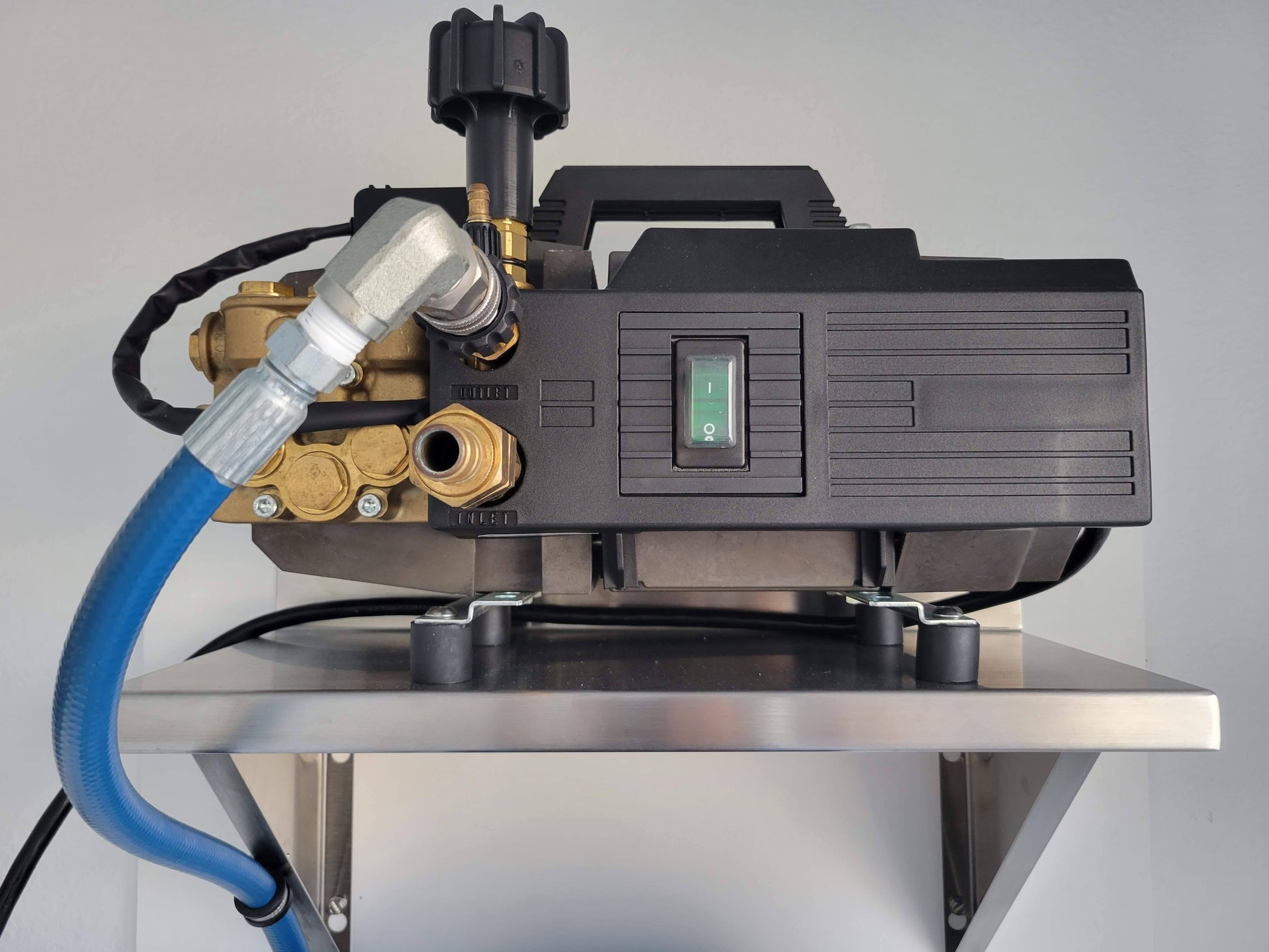

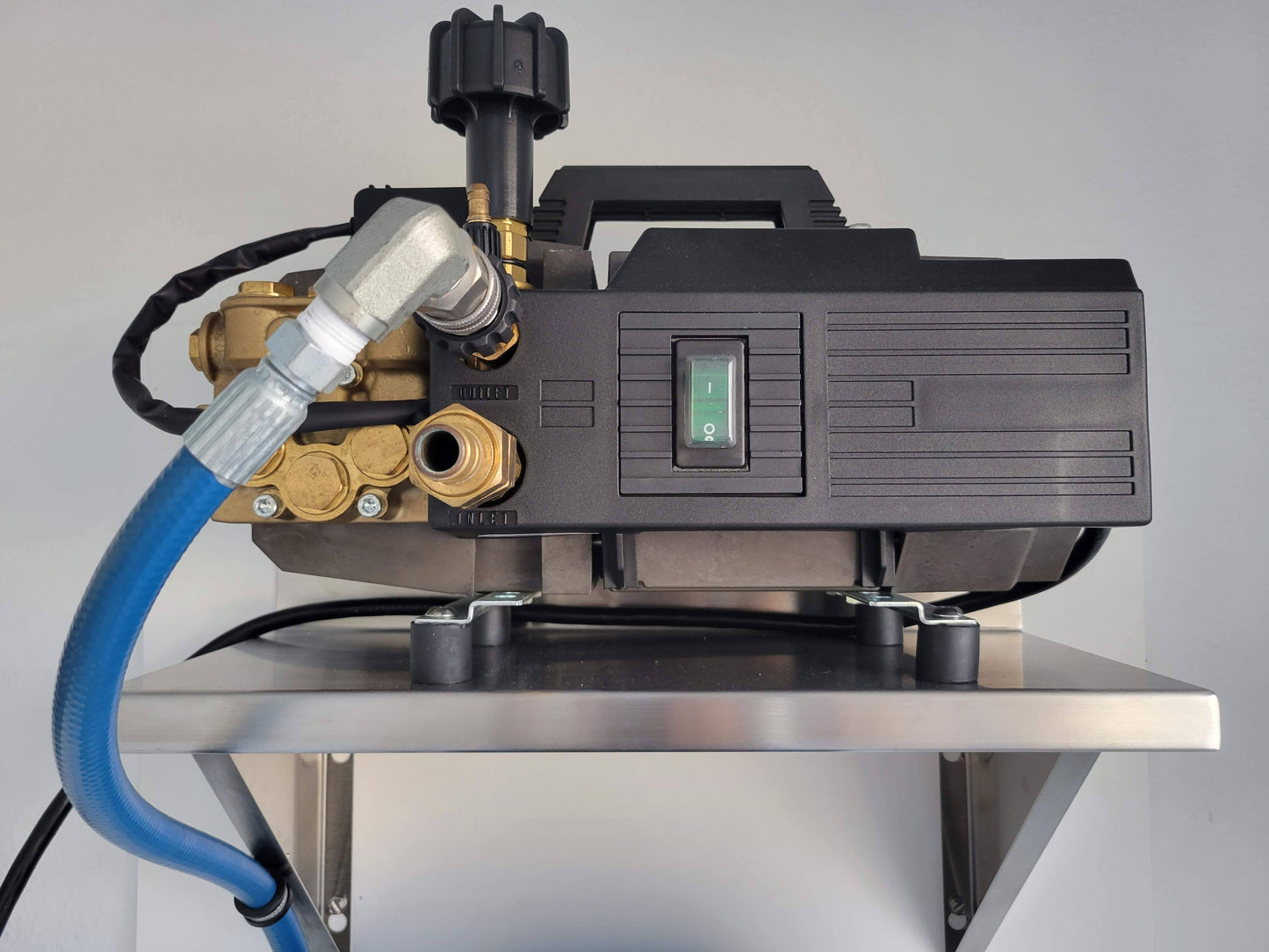

This is the hardware you'll need to mount your AR630-TSS to the stainless steel shelf we sell (or a metal shelf of your own). This comes with 4 anti-vibration bumpers that help isolate the shelf from the vibrations of the AR630-TSS, reducing noise.

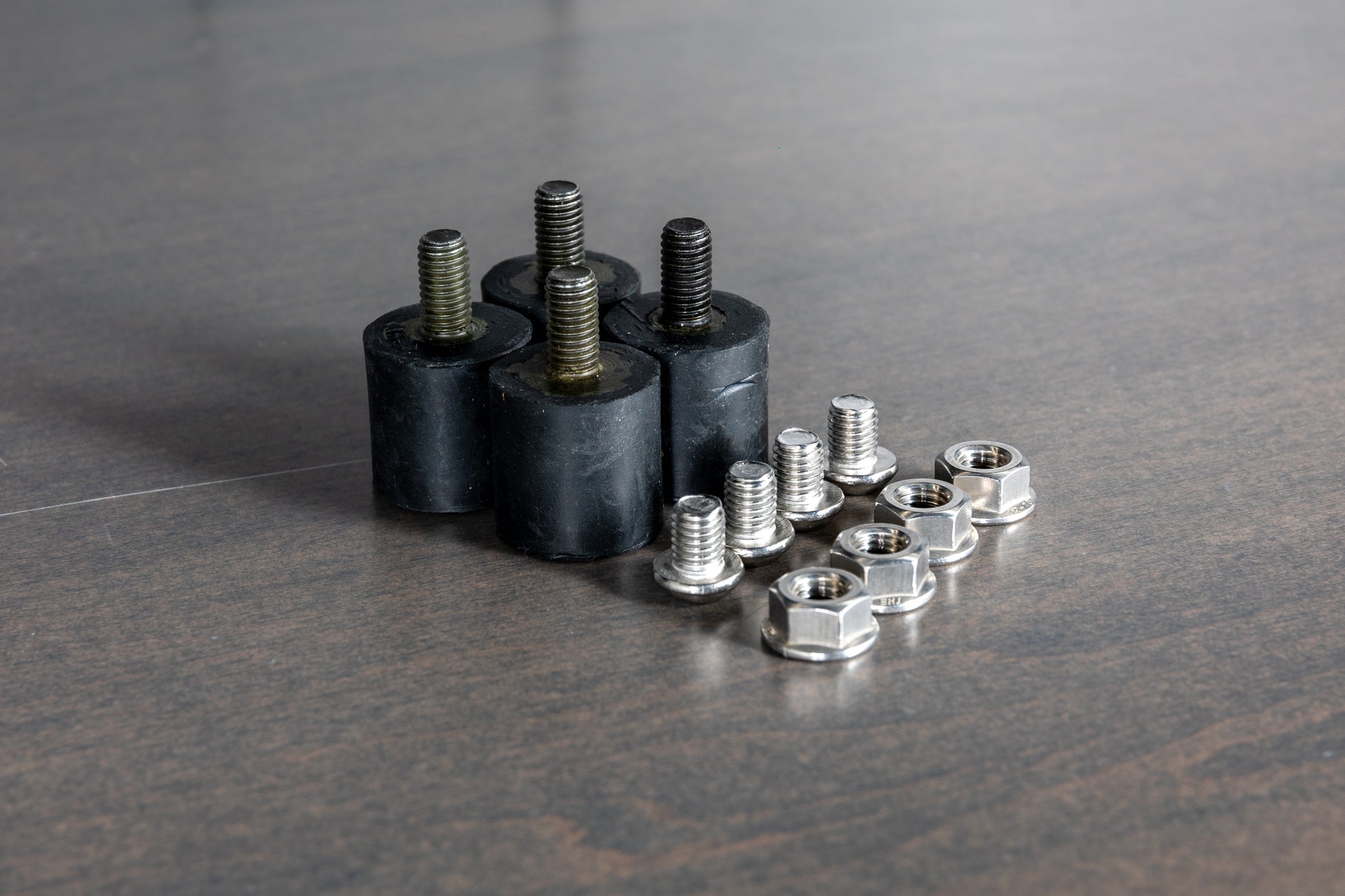

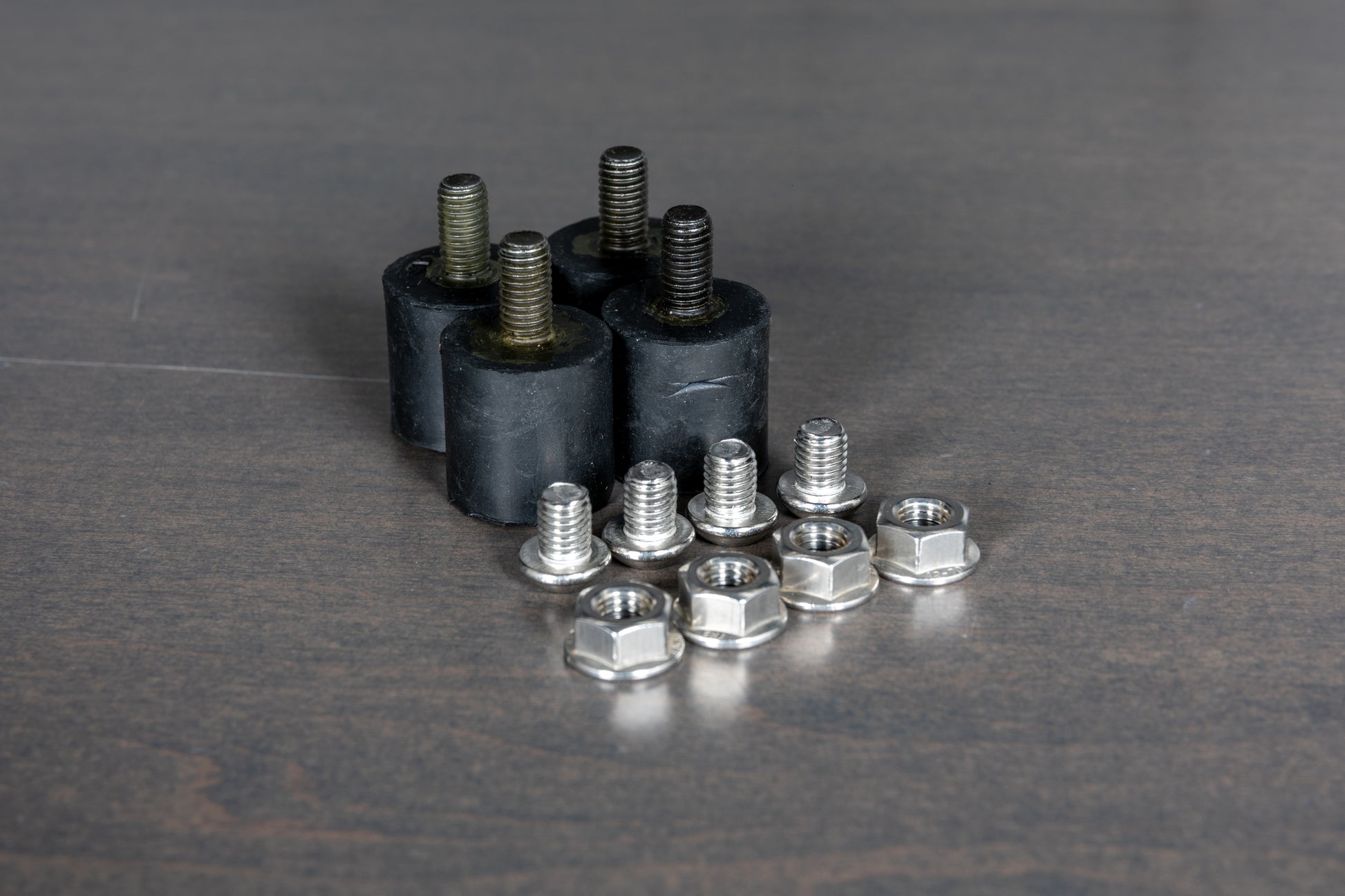

The kit will come with four mounts that comprise three pieces for a total of 12 pieces.
To use the hardware kit, you'll need to drill some holes into the shelf. Here's how I recommend you do it:
You will want to place the AR630-TSS on the shelf where you want it to be secured. I recommend first placing some painter's tape down where the feet go so you don't scratch up the shelf. You'll need to remove the small rubber pads on the feet to allow you to mark the holes with a sharpie.
After the holes are marked, remove the AR, and drill the holes in the shelf using a 5/16" drill bit. I recommend using a new drill bit with some cutting fluid.
Now that the holes are drilled, you can secure the machine to the shelf. Take the feet off of the AR using a 5mm Allen wrench. Put the 5mm pan head hex bolts through the holes in the feet where the rubber pads were. Thread the anti-vibration dampeners to the bolts. Next, reinstall the feet on the AR.

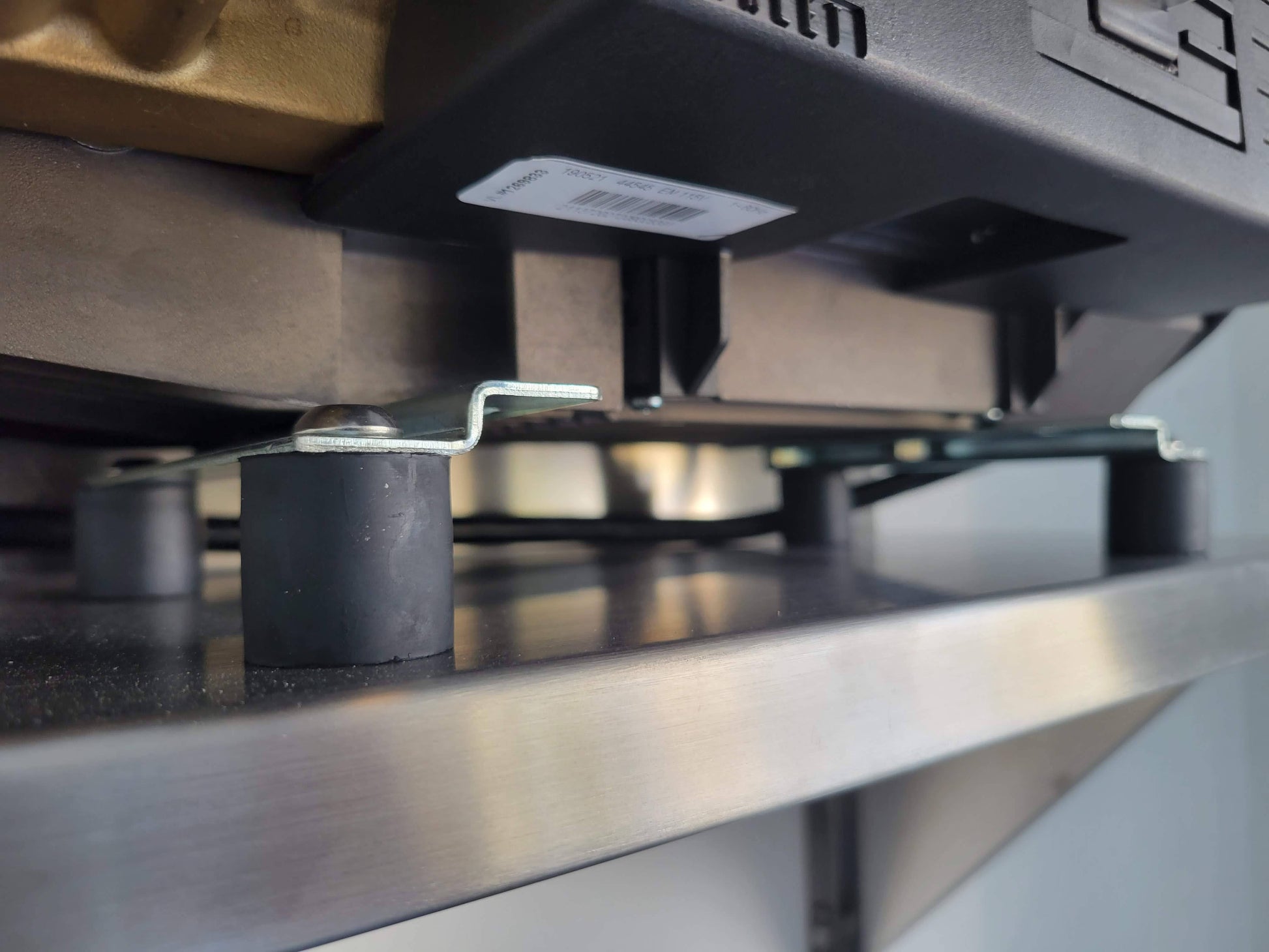

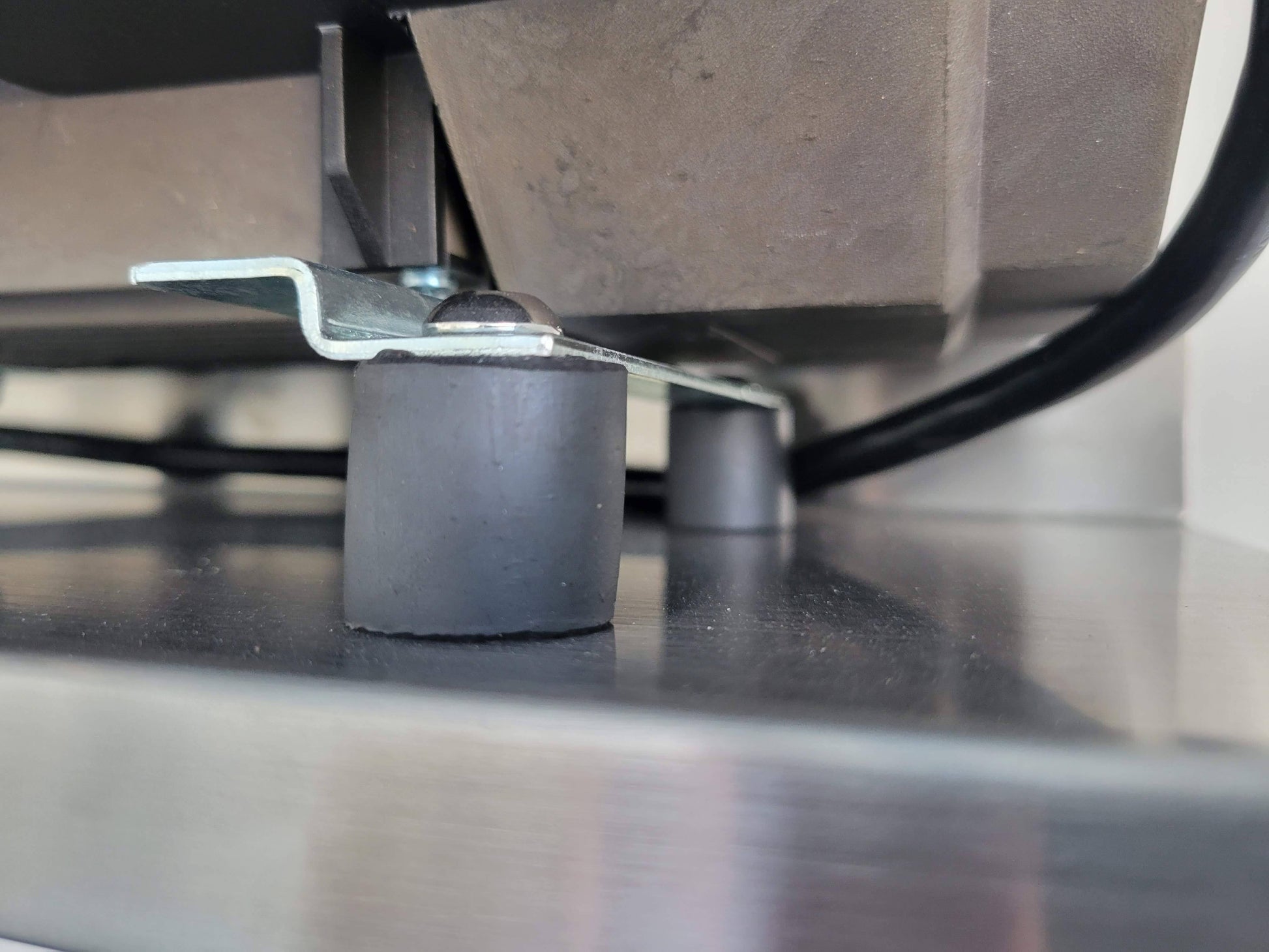

The male threads on the anti-vibration dampers should now be attached to the AR and should be facing toward the ground; this makes it easier to mount the AR to the shelf. Align the threads on the anti-vibration dampeners with the holes in the shelf and place the pressure washer on the shelf.

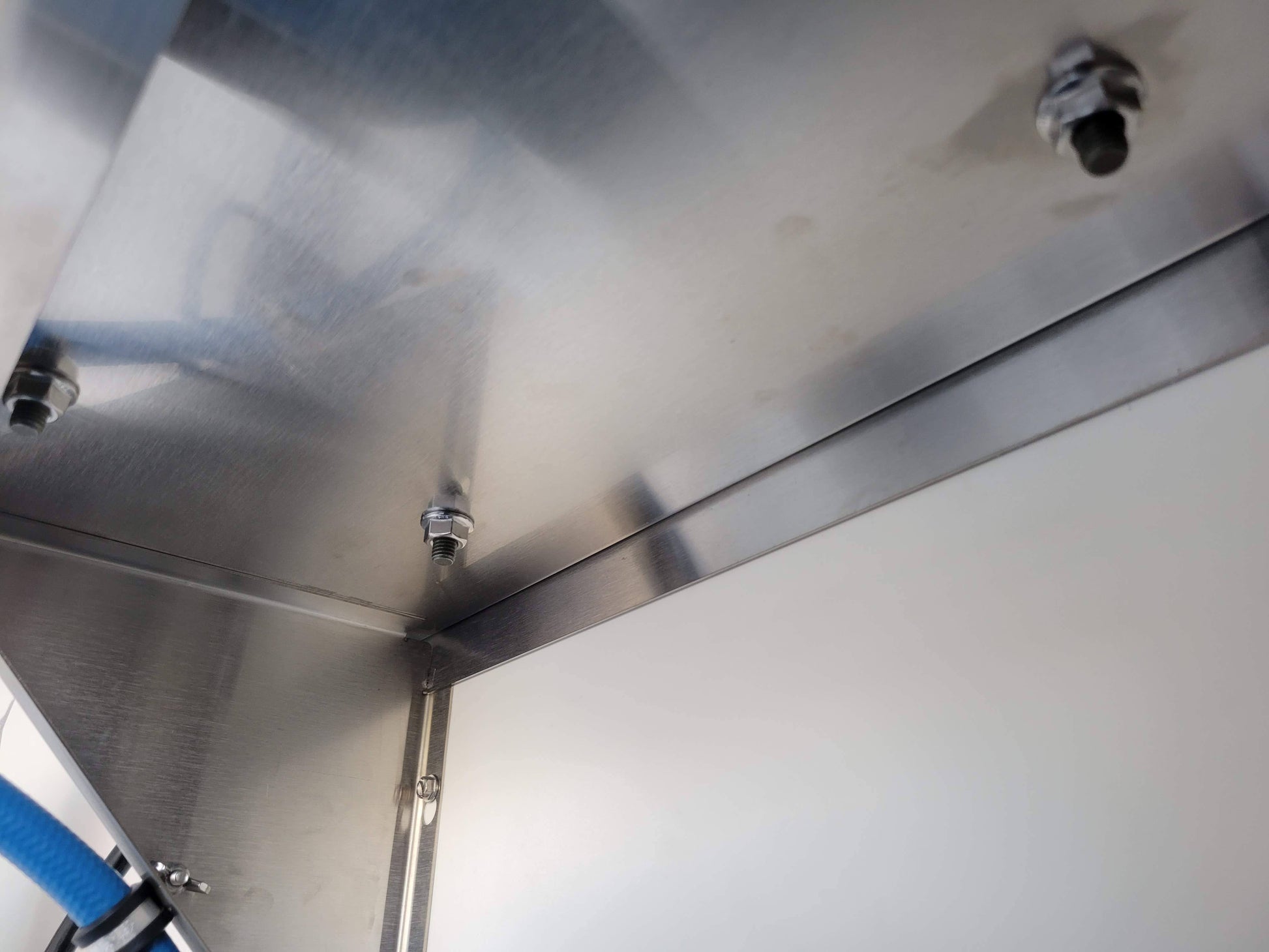

The last step is to tighten it down with the 13mm / 1/2" Flange Nuts. Note there may be some residual rubber in the threads from manufacturing.
You'll notice an immediate and significant reduction in vibration and noise; if you're planning on mounting your AR, you need this kit.
