Wall Mount Hose and Reel Upgrade Kit

Description

In our pursuit to make buying pressure washer accessories easier, we made this wall-mount hose reel kit that includes everything you need to put a  High-Pressure Hose on a hose reel and connect it to your pressure washer.

What I really like about having a hose reel is that it’s super easy to use and clean up. It makes the car washing experience a pleasant one. Once you have the reel mounted and hose connected, there is no more dragging your hose across the lawn or janky hose roll-up at the end of your car wash.

Along with this reel, you’ll also be getting a high-pressure hose. It has a smooth jacket and is very flexible. The thicker inner wall prevents gashes and ruptures. You won’t find anything on the market that comes close.

FAQ & Support

Why is my 3/8" coupler leaking from the end?How do I install or uninstall these quick disconnects on my hose? Did Paul Bunyan torque these down!? 3/8" Coupler and Fitting Install.
Troubleshooting: Cox Hand Crank Reel leaking at hose connection inside - outlet.
How To: Proper Layout and Setup for Kranzle Custom Install Solution.

Pressure Washer Fittings 101: Fittings and QD Naming
Pressure Washer Fittings 102: Applications and Usage
Pressure Washer Fittings 103: Spray Nozzles

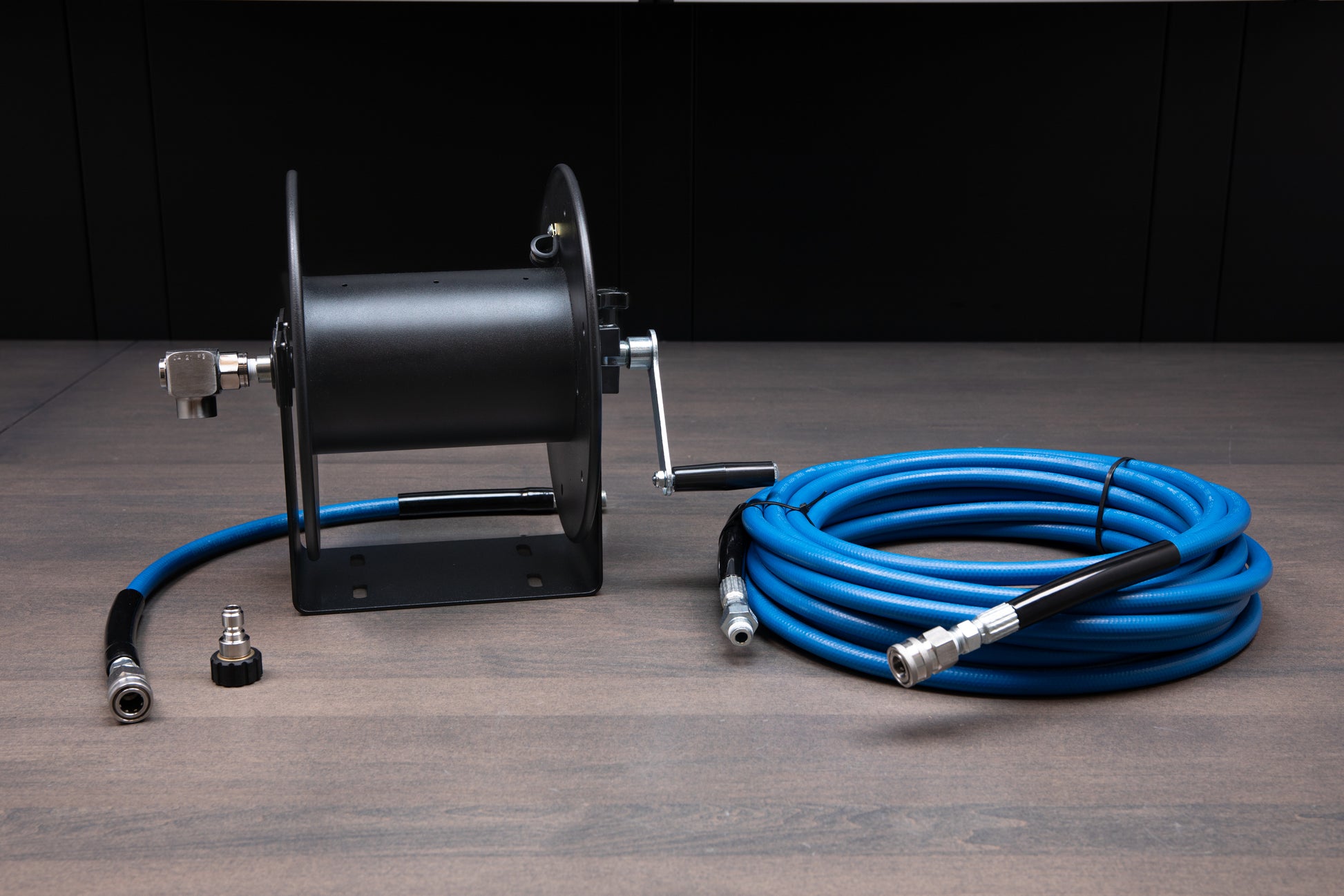

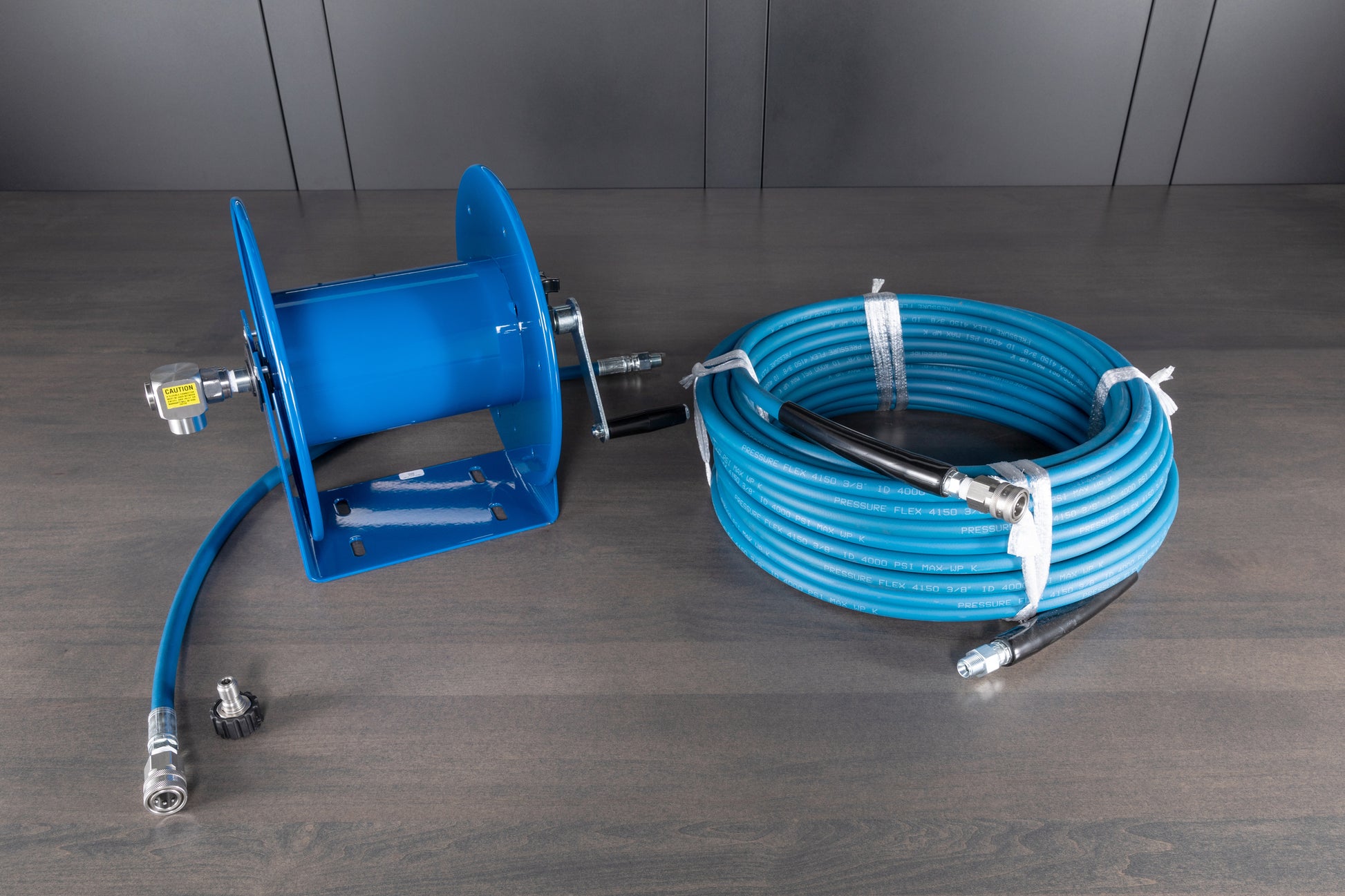

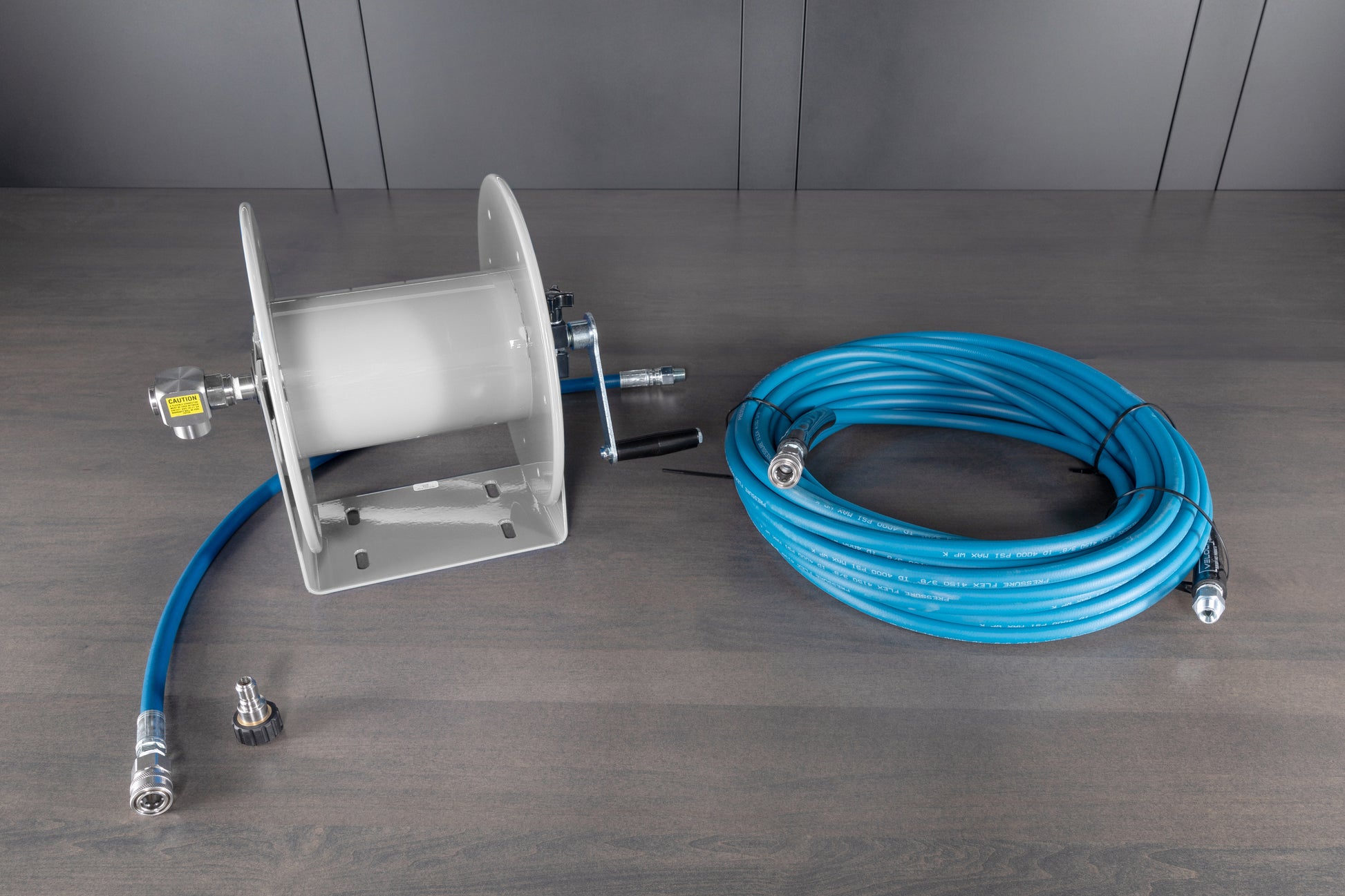

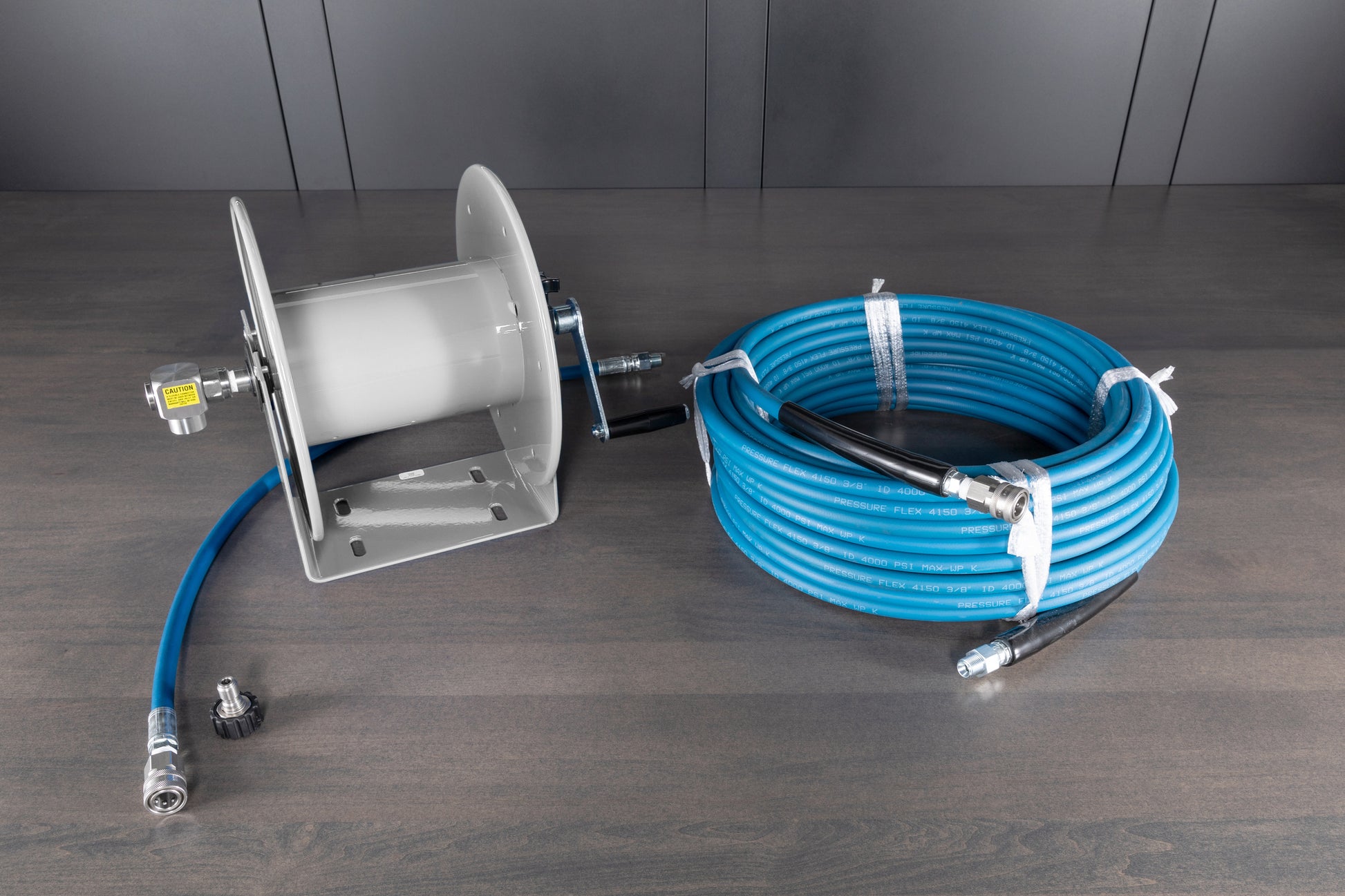

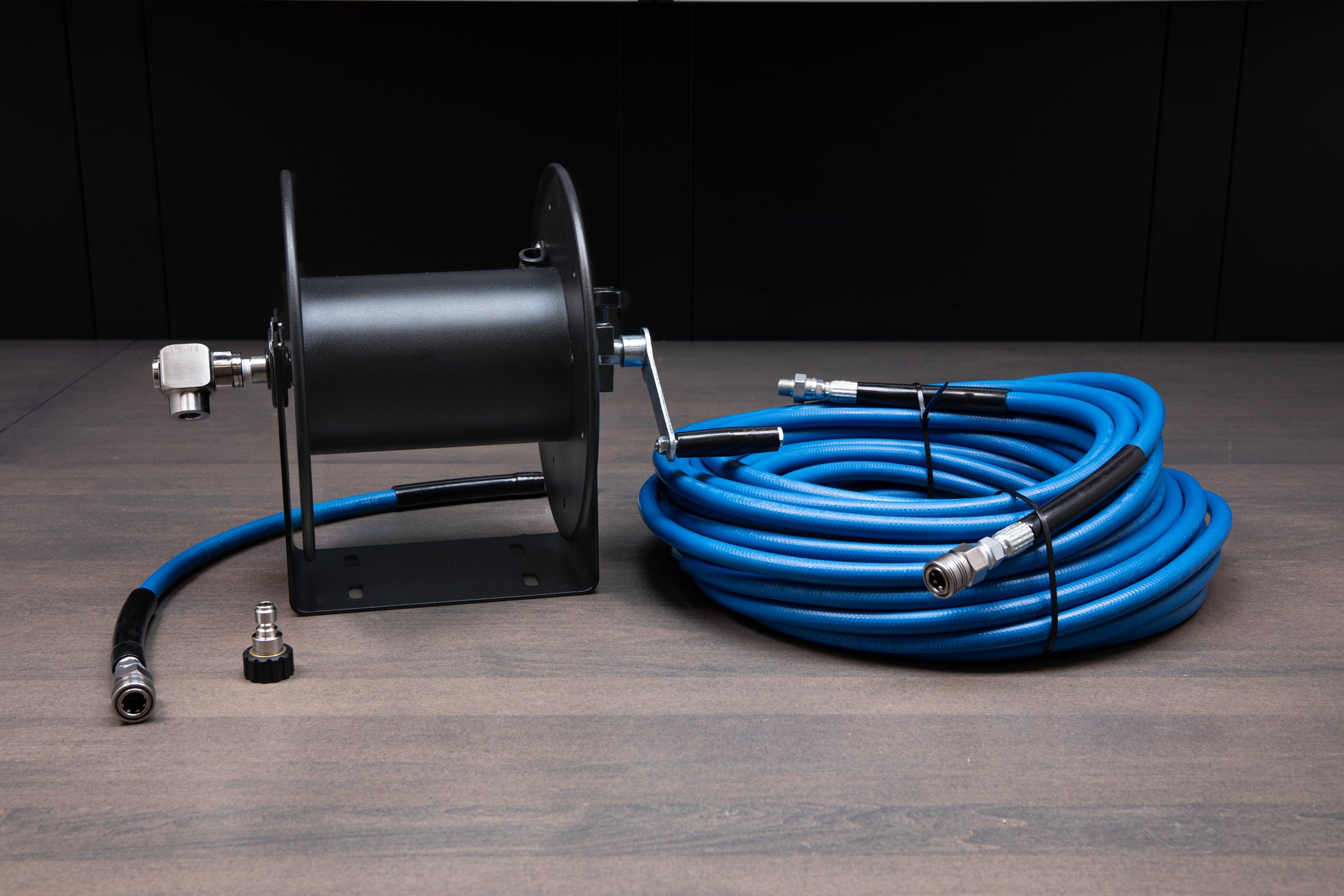

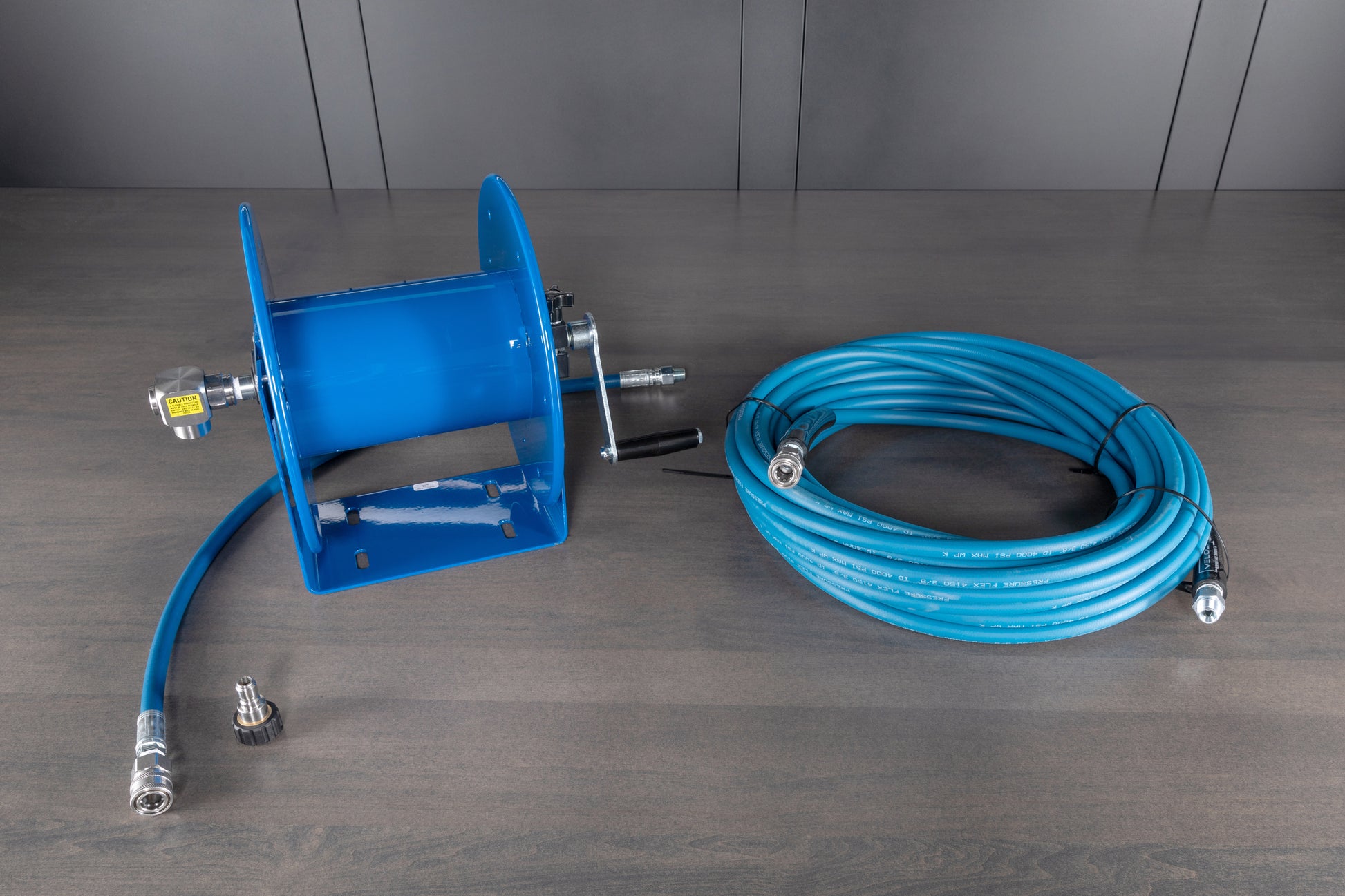

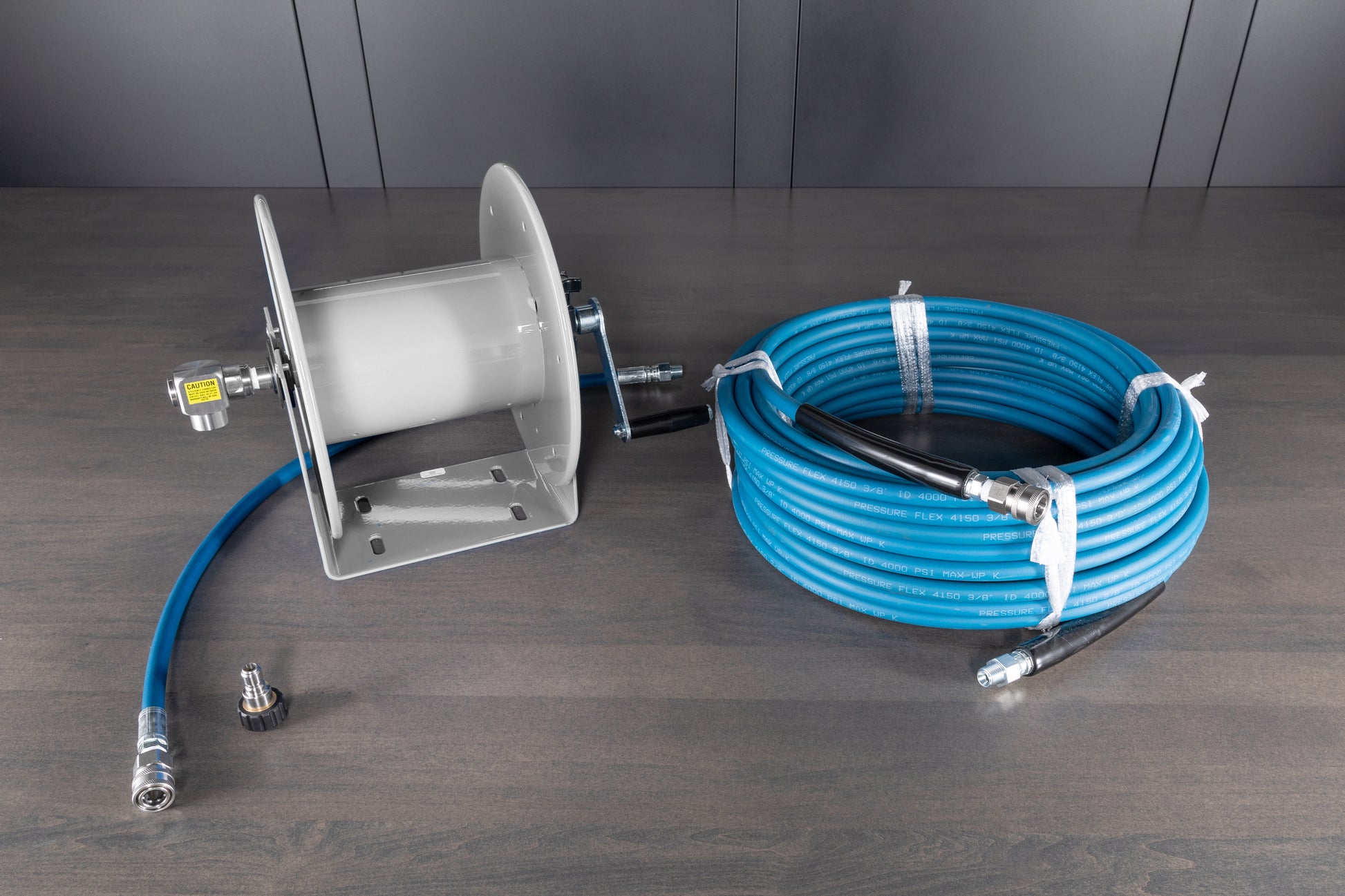

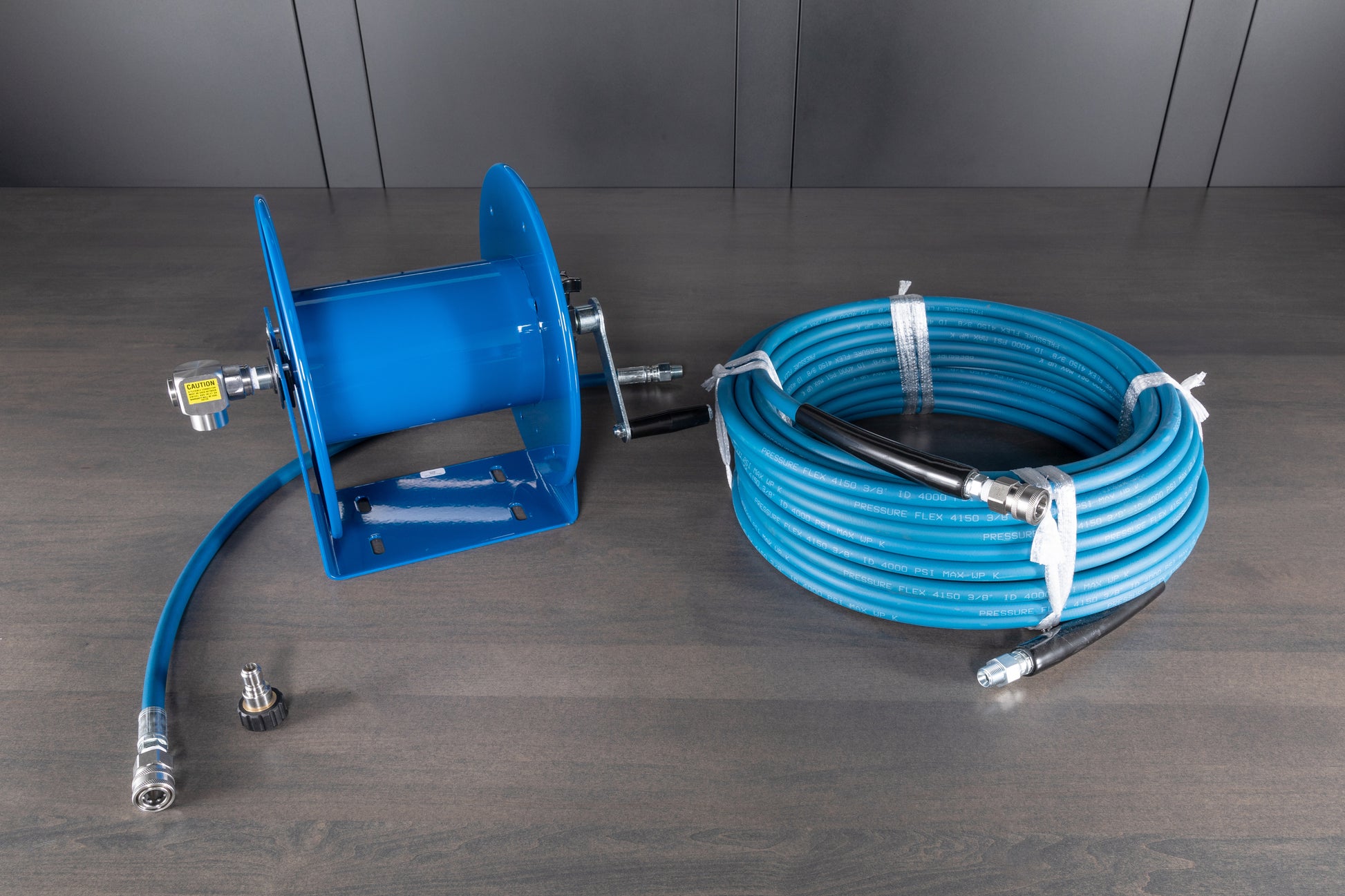

What You Get

Tier:
Basic Kit
- 3’ Jumper Hose w/ MTM Stainless Steel 3/8" Female QD Coupler and M22 Female to 3/8" QD Plug
- Coxreels Hand Crank Hose Reel w/ Stainless Steel Swivel
- 75’ High-Pressure Hose w/ MTM Stainless Steel 3/8" Female QD Coupler

Advanced Kit
- 3’ Jumper Hose w/ PRIMA Stainless Steel 3/8" Female QD Coupler and M22 Female to 3/8" QD Plug
- Coxreels Hand Crank Hose Reel w/ Stainless Steel Swivel
- 100’ High-Pressure Hose w/ PRIMA Stainless Steel 3/8" Female QD Coupler

Ultimate Kit
- 3’ Jumper Hose w/ Mosmatic T304 Stainless Steel ⅜” Female QD Coupler and M22 Female to ⅜” QD Plug*
- Coxreels Hand Crank Hose Reel w/ Stainless Steel Swivel
- 100’ High-Pressure Hose w/ Mosmatic T304 Stainless Steel ⅜” Female QD Coupler


Hose Reel Color:
Blue
Black
Gray


Pressure Washer Outlet:
M22 14mm
- Comes with M22 Female (14mm) to ⅜” QD Plug

M22 15mm
- Comes with M22 Female (15mm) to ⅜” QD Plug


Specifications

Stainless Steel M22 Female (14mm) to 3/8" QD Plug
- Brand: MTM
- Material: Stainless Steel
- Inlet: M22 Female (14mm)
- Outlet: ⅜” QD Plug
- Warranty: 60 days, for manufacturing defects.

Stainless Steel M22 Female (15mm) to 3/8" QD Plug
- Brand: MTM
- Material: Stainless Steel
- Inlet: M22 Female (15mm)
- Outlet: ⅜” QD Plug
- Warranty: 60 days, for manufacturing defects.

Stainless Steel 3/8" Female QD Coupler
- Brand: MTM
- Material: Stainless Steel
- Inlet: ⅜” Male NPT
- Outlet: ⅜” QD Coupler
- Warranty: 60 days, for manufacturing defects (does not include o-rings).

Jumper Hose
- ⅜” Inside Diameter
- ⅝” Outside Diameter
- Ends terminated in ⅜” Male NPT
- Single Wire Construction
- Smooth Jacket in Non-marking Blue
- Rubber Bend Restrictors
- Max Pressure: 4000 PSI
- Max Temperature: 275 °F
- Warranty: 60 days, for manufacturing defects

Coxreels Hand Crank Hose Reel with Stainless Steel Swivel
- Model #: CCR-1070
- Capacity: 100’ of ⅝” Outside Diameter Hose
- Stainless Steel Full Flow 90° Swivel
- Adjustable Tension Brake
- U-Shaped Frame
- ⅜” Female NPT Inlet
- ⅜” Female NPT Outlet
- Made in the USA
- Max Working Pressure: 4,000 PSI
- Overall Dimensions: W = 18.25” | L = 12” | H = 13”
- Base Dimensions: X = 9.5” | Y = 6”
- Mounting Pattern: M = 5.5” | N = 3”
(See Diagram in Pictures)

High-Pressure 3/8" Pressure Washer Hose
- ⅜” Inside Diameter
- ⅝” Outside Diameter
- Ends terminated in ⅜” Male NPT
- Single Wire Construction
- Smooth Jacket in Non-marking Blue
- Rubber Bend Restrictors
- Max Pressure: 3000 PSI
- Max Temperature: 250 °F
- Warranty: 90 days, for manufacturing defects
