ScanGrip Mini Mag Pro

SKU: SC-03.5692
ScanGrip Mini Mag Pro
ScanGrip Mini Mag Pro
ScanGrip Mini Mag Pro
ScanGrip Mini Mag Pro
ScanGrip Mini Mag Pro

ScanGrip Mini Mag Pro

SKU: SC-03.5692
Regular price $39.00

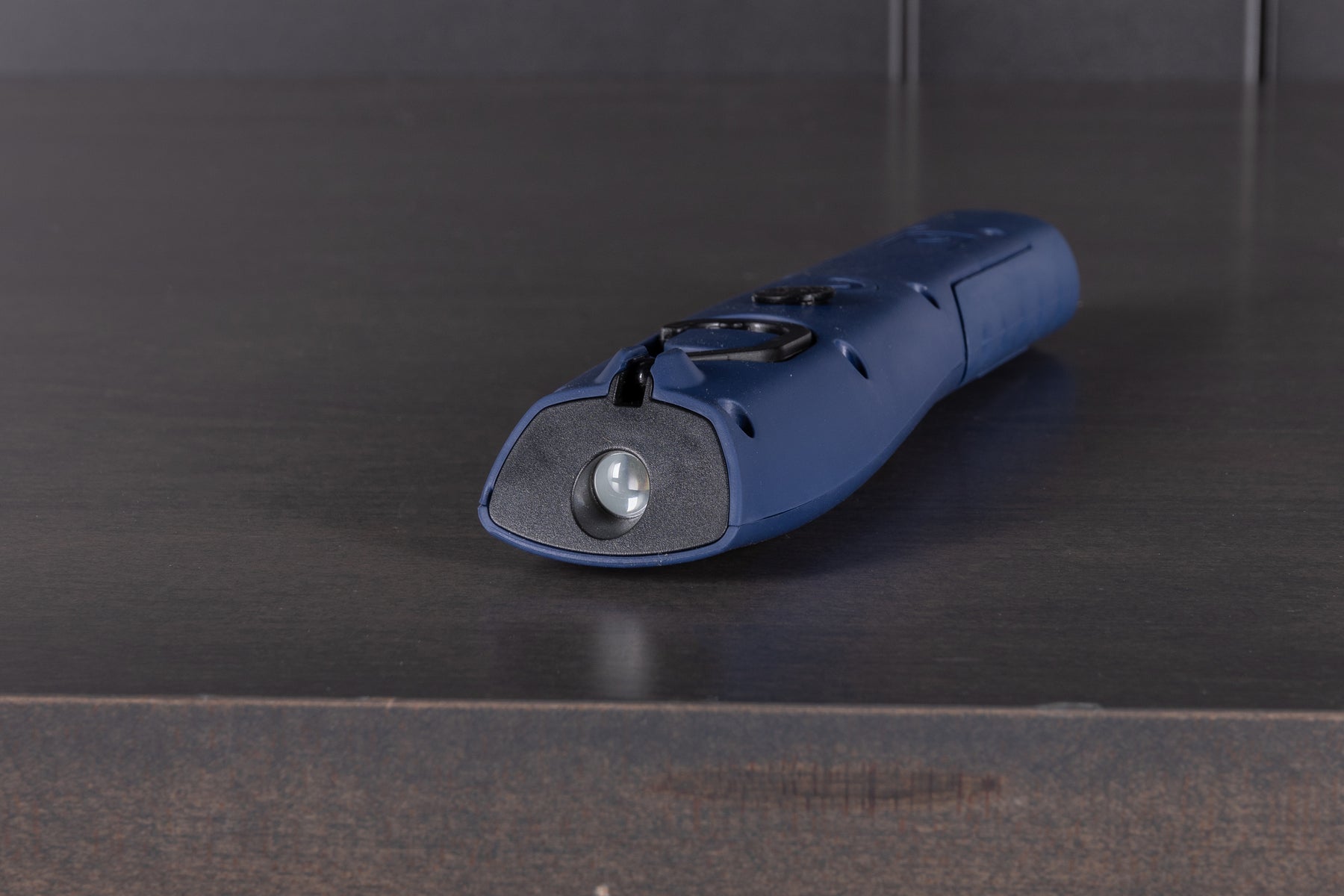

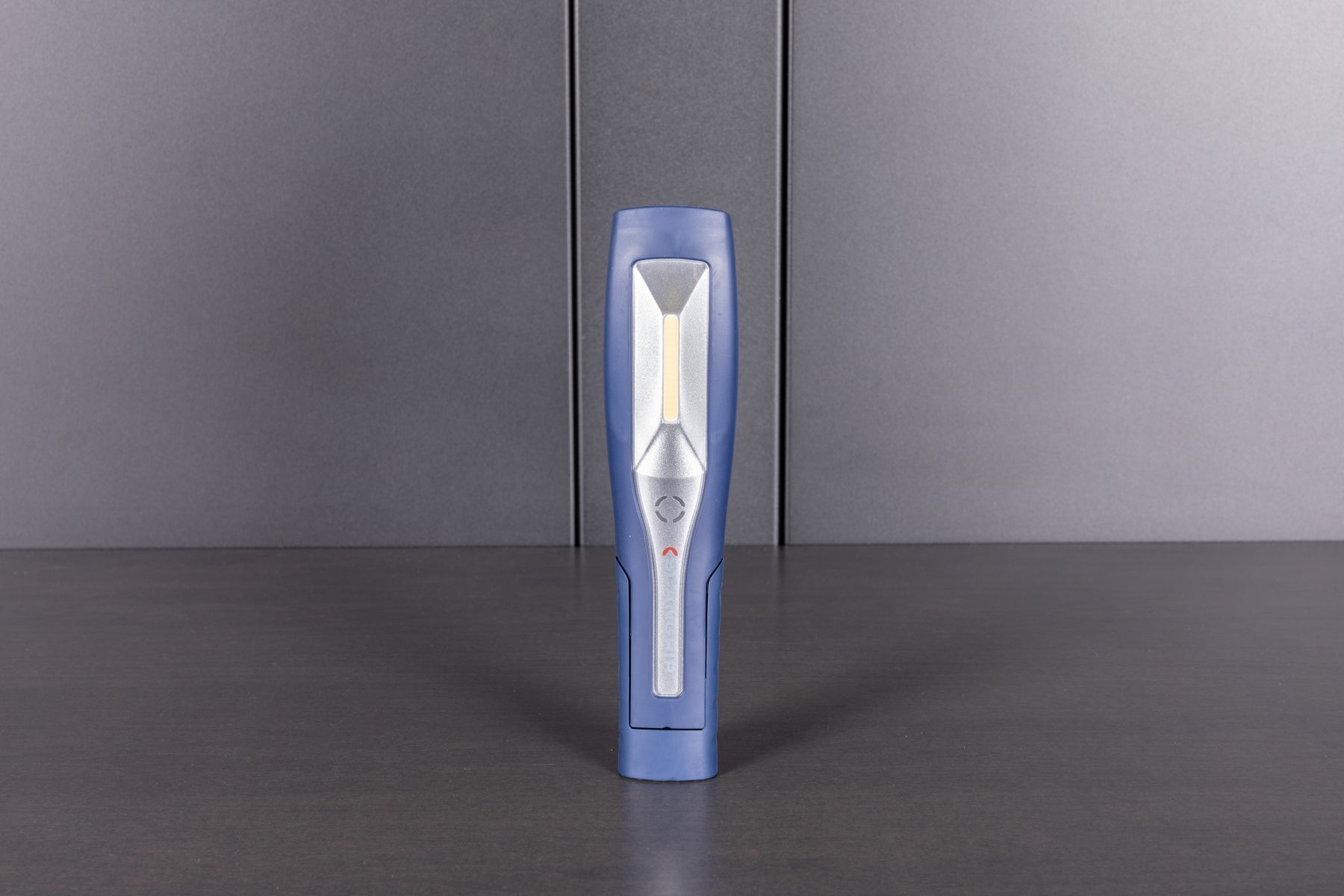

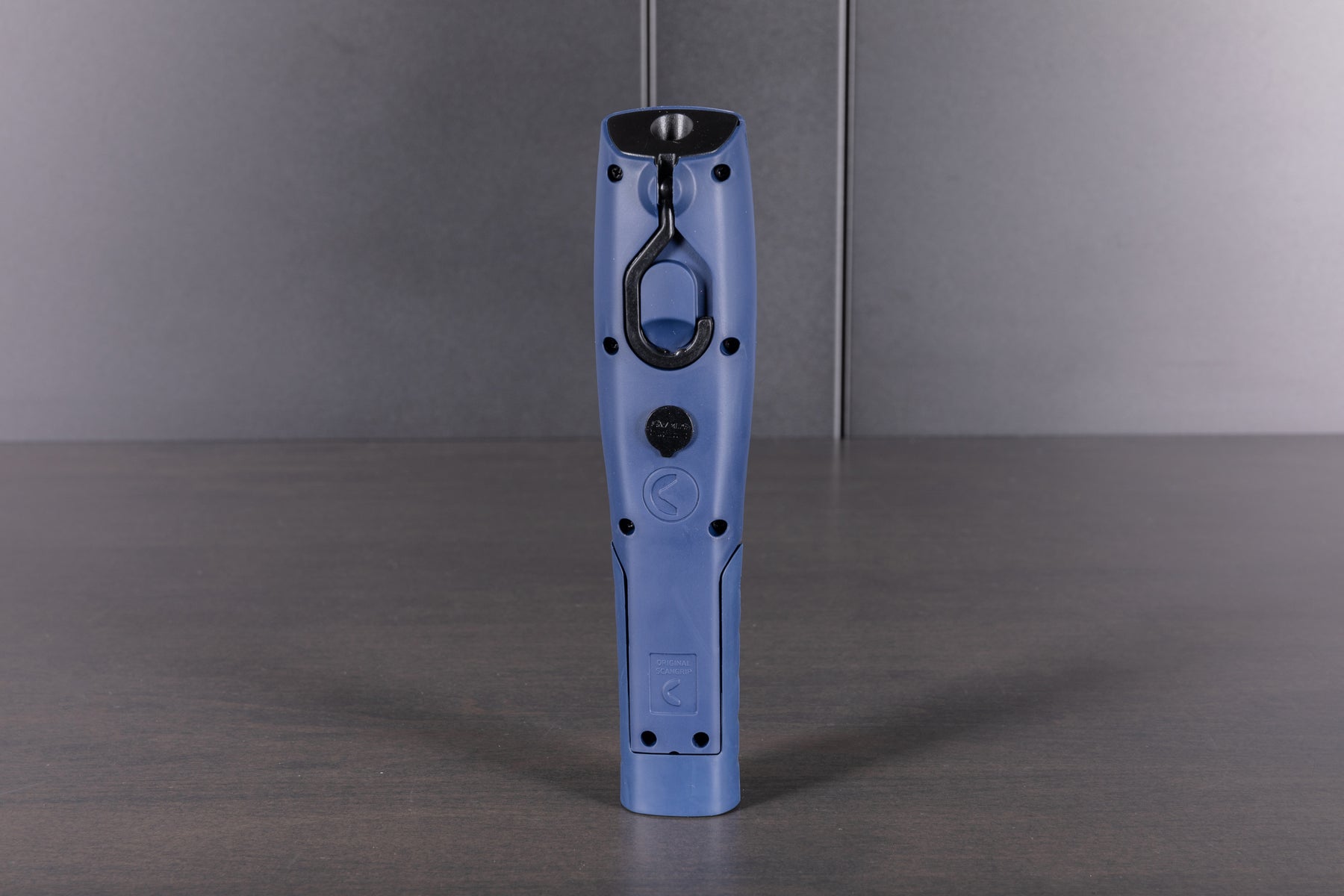

The Scangrip Mini Mag Pro is just like its bigger brother the ScanGrip Mag Pro but smaller and not as bright. These are what I've been using as a general work light in combination with my ScanGrip Line Lights when I'm needing some light in tight spaces. The Mini Mag Pro comes with a single retractable hook for easy hanging on the underside of cars, the hook can be retracted and hidden when not in use. The ScanGrip Mini Mag Pro has two different lights, one being a large front dimmable COB LED that's dimmable and can put out a maximum of 200 lumens and can go as low as 20 lumens using the smooth, stepless dimmer. To accompany the front COB LED you also have a small top LED that's more like a traditional penlight that will put out a maximum of 80 lumens but is not dimmable like the front COB LED.

The light is waterproof with an IP54 rating so any water or non-harmful fluids won't damage the light. You can expect up to 20 hours of run time, with a charge time of roughly 3 hours at 1A.

The Mini Mag Pro is a pocket-sized version of the popular MAG bestseller.  It provides significantly improved light output, a battery upgrade, and even more functionality.

This light replaces Mini Mag (03.5403) and includes an upgraded stepless dimmer function in the range of 10% to 100%. Compared to the previous Mini Mag, the lumen output is higher and the protection class has been upgraded to IP54. This new design also comes with a battery indicator on the front.

The Mini Mag is an extremely powerful, rechargeable LED work light and flashlight in one, containing the latest high performance LED technology.

The new and modern design of the Mini Mag provides an ergonomic and user-friendly grip.

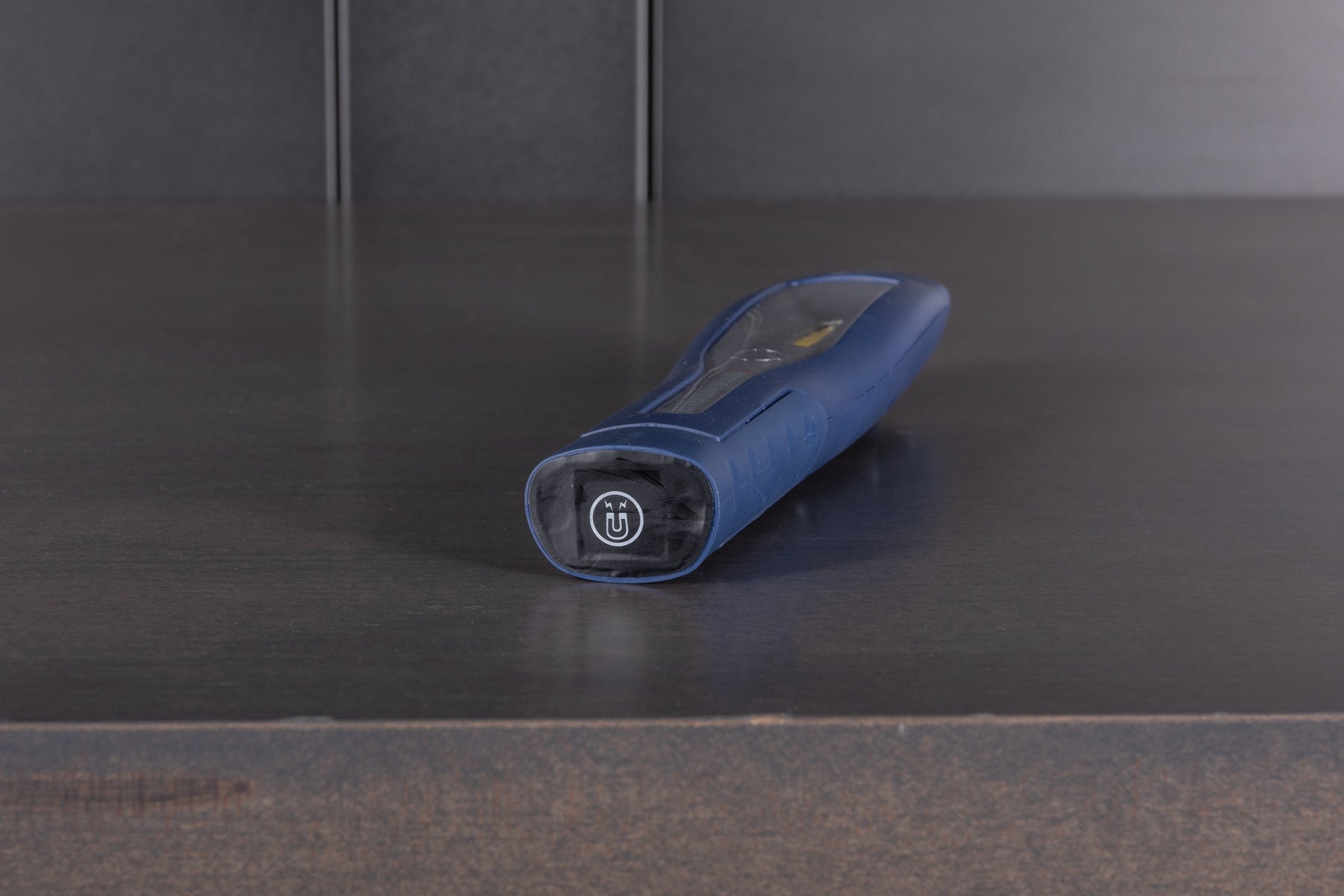

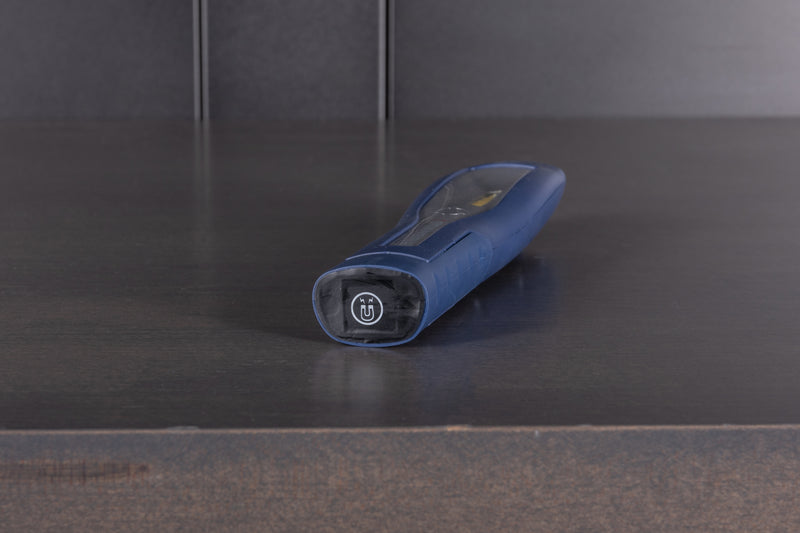

You can place it anywhere you want with the strong built-in magnetic holder and the retractable suspension hook. The lamp head tilts up to 180 degrees.

Light Source COB LED:

  • Luminous Flux, Max (Lumen) 200
  • Luminous Flux, Min (Lumen) 20
  • Illuminance, Max (Lux) 350
  • Illuminance, Min (Lux) 35
  • Beam Distance (Meter) 35
  • CRI >80
  • CCT (Kelvin) 6000
  • Adjustable Light Output Stepless dimmer
  • Beam Angle Main 120
  • LED performance (lm/w) 165

    Top Light Source LED:

    • Luminous Flux, Max (Lumen) 80
    • Illuminance, Max (Lux) 700
    • Beam Angle (°) 25
    • CRI >80
    • CCT 5000
    • Light Source Secondary SMD LED

    Electrical Specifications:

    • Power source Rechargeable Battery
    • Battery type Li-ion
    • Battery capacity (mAh) 1200
    • Battery voltage (V) 3.70
    • Cable 1.0m / Black standard cable / USB to mini DC
    • Charging voltage DC (V) 5.00
    • Charging current (A) 1.00
    • Max Power Consumption (W) 2.50

    Operational Specs:

    • Impact resistance (meter) 1.00
    • Ingress protection IP54
    • Operating temperature -10 to +40 ̊C
    • Operating time, up to (hours) 20.00
    • Charging time (hours) 3.00

        x1 ScanGrip Mini Mag Pro
