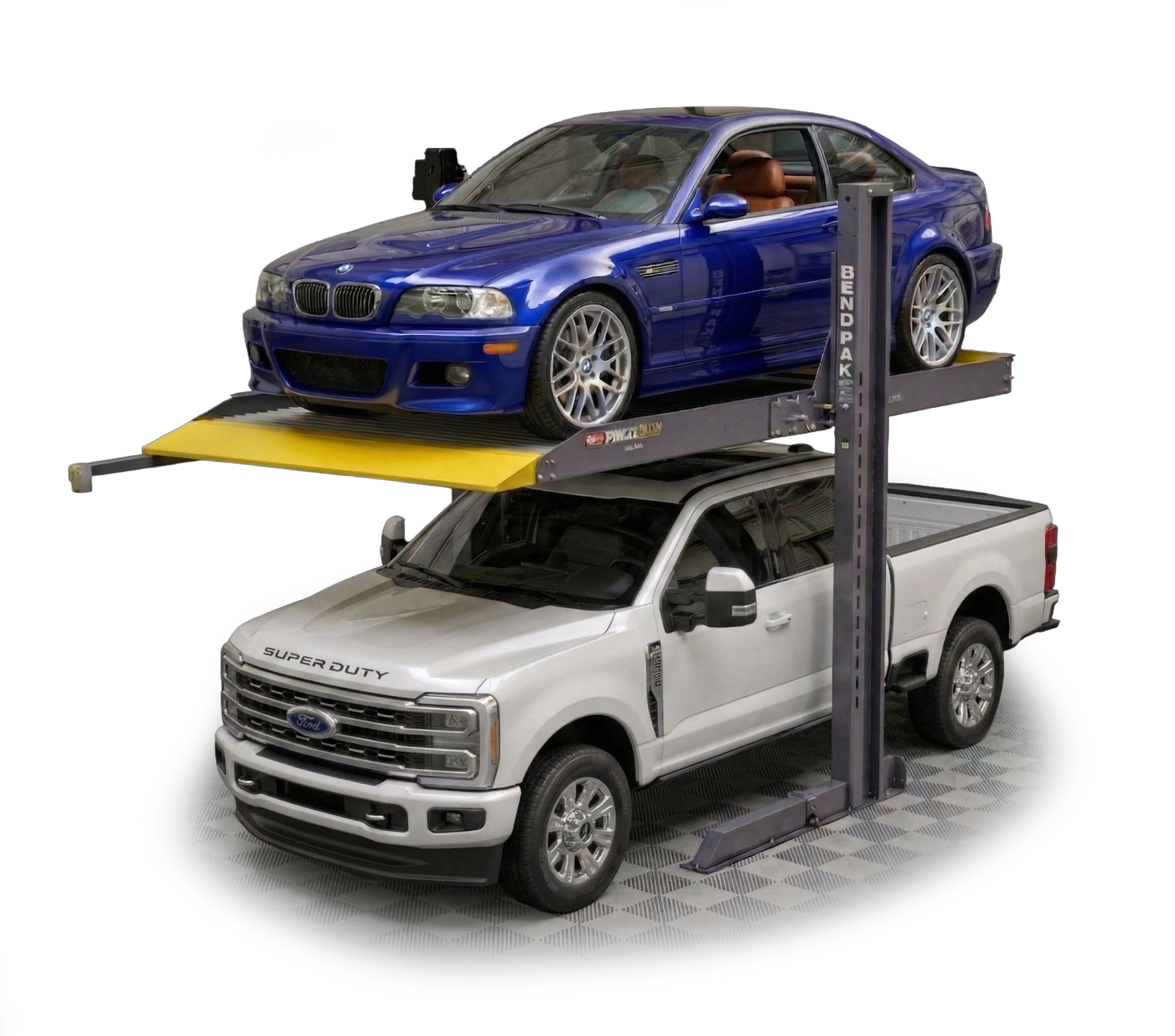

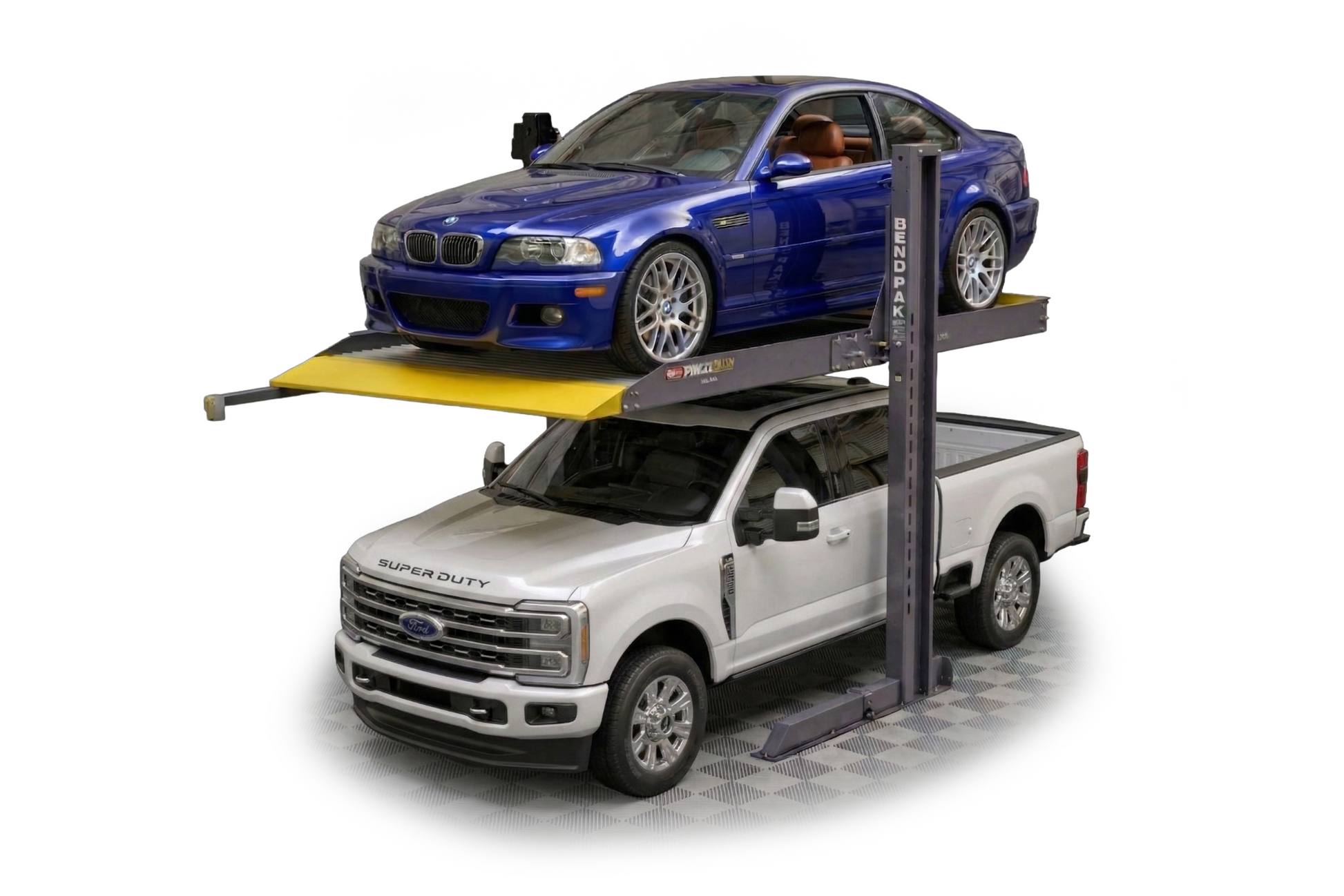

BendPak PL-6000DCX Parking Lift | 6,000 lb Wide Two-Post Vehicle Storage Lift

$10,895.00 USD
$10,895.00 USD
Shipping calculated at checkout.
    Shipping Information

    This item dropships to all Direct Shipping Points located within the 48 contiguous United States. Shipments to regions outside the 48 contiguous United States will incur additional freight charges.

    BP-5175625

    Double Your Parking Without Expanding Your Footprint

    The BendPak PL-6000DCX is built for one job: creating more vehicle storage in the same bay. With a 6,000-lb lifting capacity per platform, it is designed to accommodate a broad range of vehicles including sedans, sports cars, SUVs, and light trucks while fitting within a 9.5-foot parking space. That makes it a strong solution for private garages, dealers, commercial parking, and high-density storage layouts.

    Commercial-Grade Structure, Built for Daily Use

    This is not a lightweight hobby lift. The PL-6000DCX uses a commercial-grade design with a galvanized corrugated anti-slip platform, manual safety lock release, and hydraulic overload protection. BendPak designed it for both long-term upper-level parking and short-term lower-level parking, giving it practical flexibility for real-world use where space efficiency matters.

    Sized For Wide Vehicles, Not Just Compacts

    The PL-6000DCX delivers the working dimensions that matter. It features a 157-inch platform length, 94.5-inch usable platform width, and 82.5-inch lifting height, with an overall height of 131 inches and overall width of 112 inches. Those numbers make it practical for stacking a wide variety of street vehicles while still keeping the installation footprint disciplined and predictable.

    Designed for Smarter Multi-Lift Layouts

    One of the PL-6000DCX’s biggest advantages is layout efficiency. BendPak’s ganged column design allows multiple installations in minimal space, and the official manual states the system can support side-by-side installations by sharing a lift post between lifts. For developers, service facilities, vehicle storage operations, and premium residential builds, the PL-6000DCX is especially effective when parking density is a priority.

    Simple Power Requirements, Purpose-Built Controls

    The PL-6000DCX uses a 4HP hydraulic power pump and can be configured for 208–240V, 50/60Hz & 22 Amps single-phase power, depending on the installation. It also uses manual lock release and an electric key switch with an emergency stop for controlled operation. In practice, that gives buyers a commercial parking lift with straightforward control logic and installation flexibility across different sites.

    The BendPak PL-6000DCX is for the person who wants a better answer than “just park outside”. I'm that person, and I just put three of the Benpak PL-6000DC lifts in my shop so all my cars can be inside.

    This is a purpose-built parking lift for people who want to maximize space without compromising their garage, showroom, or storage area. It gives you 6,000 lbs. of lifting capacity, a wider platform design when compared to the PL-6000DC (82.5"), and a layout intended to make vehicle storage more efficient, especially when you need to accommodate more than just low, narrow cars. BendPak positions the DCX as the wider version, with a 94.5-inch usable platform width, making it a stronger fit for pickups, vans, SUVs, and other larger vehicles than the standard PL-6000DC.

    What makes this lift compelling is that it is not trying to be everything. It is a dedicated parking and storage solution. That matters. The platform is large enough to be genuinely useful, the structure is commercial-grade, and the shared-column design makes it possible to build a much more efficient multi-lift layout when space is limited. BendPak also markets it for both indoor and outdoor installation, which broadens where it actually makes sense to use.

    This is the kind of product that makes a garage or storage facility feel more intentional. Instead of stacking problems on top of each other, you create a system that works. If you have multiple vehicles, a limited footprint, and a preference for doing things properly the first time, the PL-6000DCX is a smart way to create more usable parking in the same space.

    Advantages

    Low Operating Cost

    Platform driven by gravity when lowered. No electric motor consumption is required.

    Fast and Easy Installation

    Installation is fast and easy. A detailed installation manual is provided with floorplan and foundation drawings. Online videos are available to help customers through the installation process.

    Ganged/Shared Columns

    The posts can be shared, which allows multiple installations in minimum space and reduces cost.

    Professional Packing & Delivery

    Professional packaging and our experienced logistics team ensure customers will get the product damage-free. Compact package size means simple unloading and handling.

    Dependable Hydraulic Operation

    The PL-6000DCX features a single direct-drive hydraulic cylinder, eliminating the need for screw mechanisms and offering better reliability, smoother operation, and lower maintenance costs.

    Automatic Safety Device

    Powerful load-holding devices automatically engage and lock the lift structure as the parking lift raises, preventing sudden free fall in the unlikely event of a suspension component failure. Typically, after the lift is raised to the required working height, operators are instructed to lower it until it is safely resting on the locks to minimize wear on suspension components.

    x1 - Bendpak PL6000-DCX

    PL-6000DCX Specs & Features

    • Capacity: 6,000 lbs
    • Lifting Height: 82.5 in
    • Platform Length: 157 in
    • Usable Platform Width: 94.5 in
    • Overall Height: 131 in
    • Overall Length: 163.5 in
    • Overall Width: 112 in
    • Motor: 208–240V, 50/60Hz, 1 Phase, 4 HP, 22 Amps
    • Ganged column design allows multiple installations in a minimum space
    • Commercial-grade design and construction
    • Galvanized and corrugated anti-slip platform
    • Freestanding design
    • Overhead power unit provides smooth, quiet hydraulic operation
    • Designed for installation on concrete surfaces
    • Platform can be stopped at different heights to fit various vehicles and ceiling heights
    • Full-width channel-locked center panels protect lower vehicle
    • Wide deck platform accommodates pickups, vans, and cars
    • Single dual telescoping direct-drive cylinder
    • Manual safety lock holds platforms securely in place
    • Maintenance-free composite carriage bearings
    • Electric key switch for security and safety
    • Automatic shut-off when operator releases key switch
    • Manual safety lock release
    • Hydraulic overloading protection

    A few dimensional and power details that are also listed for the PL-6000DCX are:

    • Post center-to-center width: 105.5 in
    • Post support length: 60.25 in
    • Control column height: 71 in
    • Minimum side clearance: 2 in
    • Platform to support: 36.25 in
    • Lifting time: less than 50 seconds
