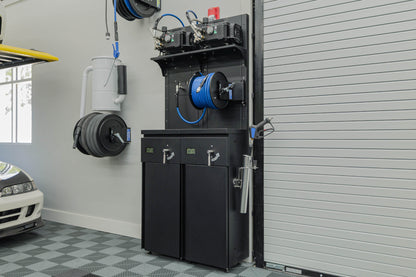

Obsessed Garage Wash Station (Dual Pressure Washers)

Obsessed Garage Wash Station (Dual Pressure Washer)

The Obsessed Garage Wash Station Dual is for the person who wants the cleanest, most integrated wash setup we make. It is a self-contained dual pressure washer system that combines water purification, pressure washer integration, hose management, and spot-free rinse capability into one dedicated cabinet layout.

This came from the same years of prototyping and revision as the Single, but pushed further. We kept changing the layout, plumbing, reel position, service access, and machine integration until it stopped feeling like a project and started feeling complete. The goal was to build the setup you end up wanting after you have already tried everything else. For the person building a serious wash bay, this is the end game.

What It Is

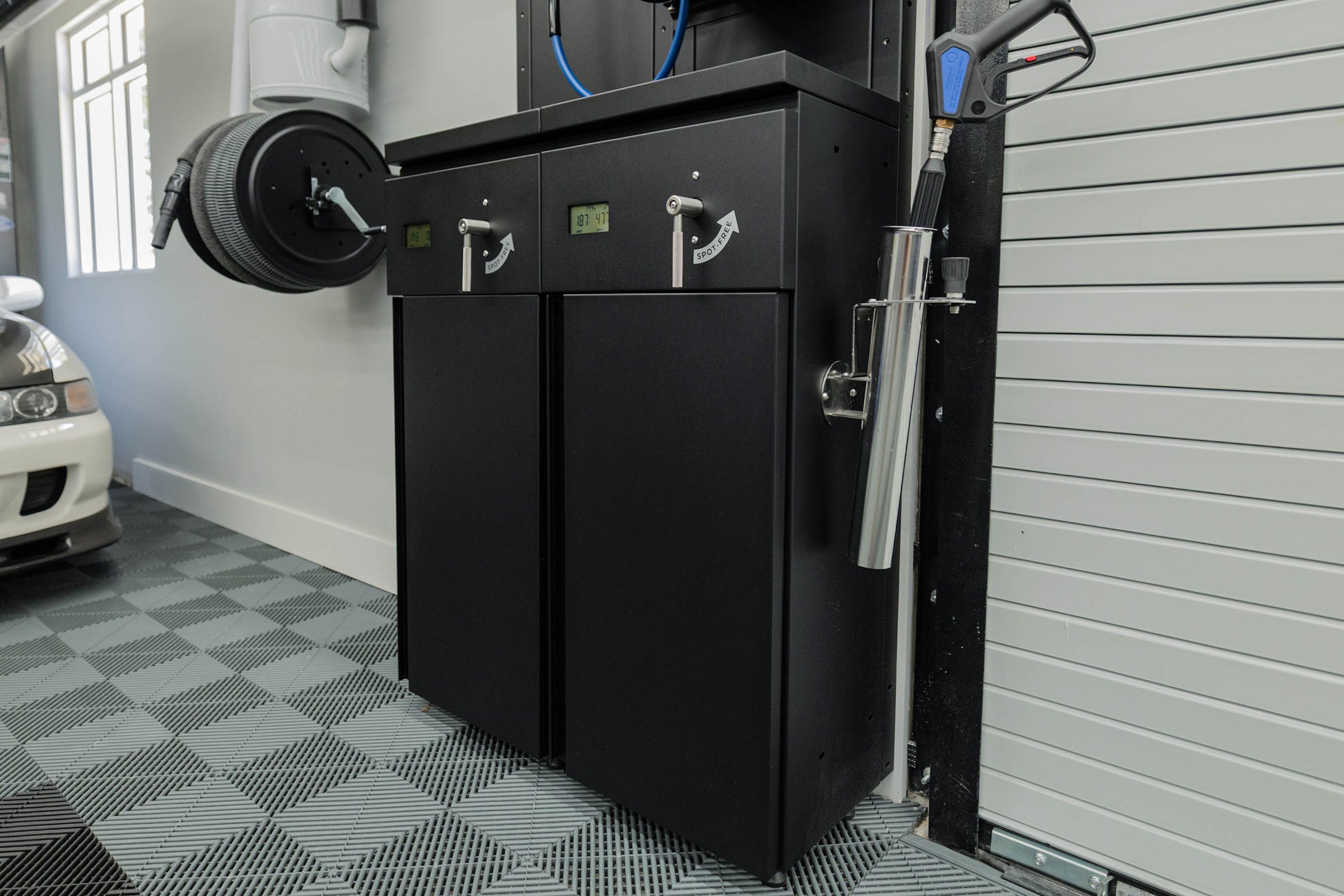

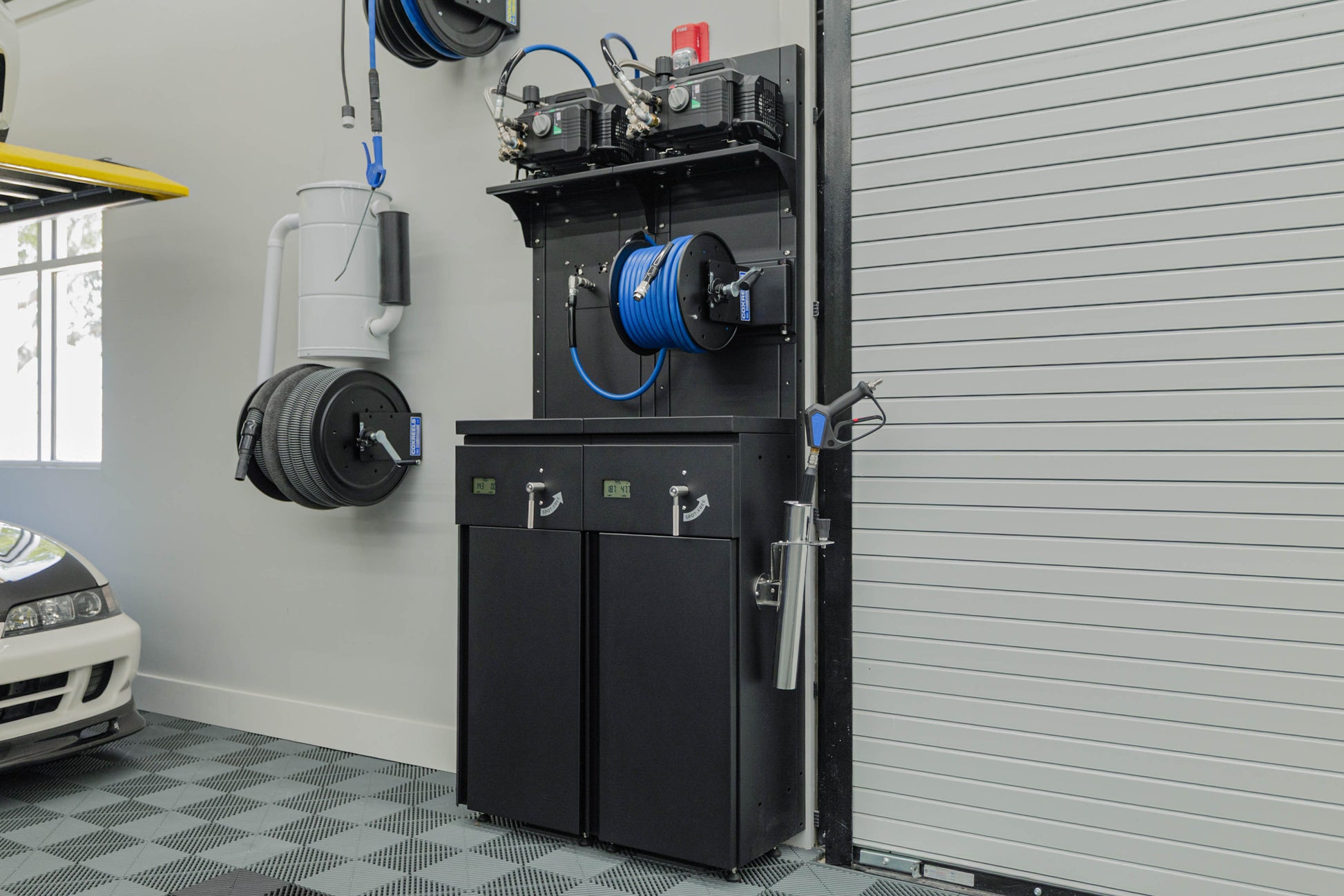

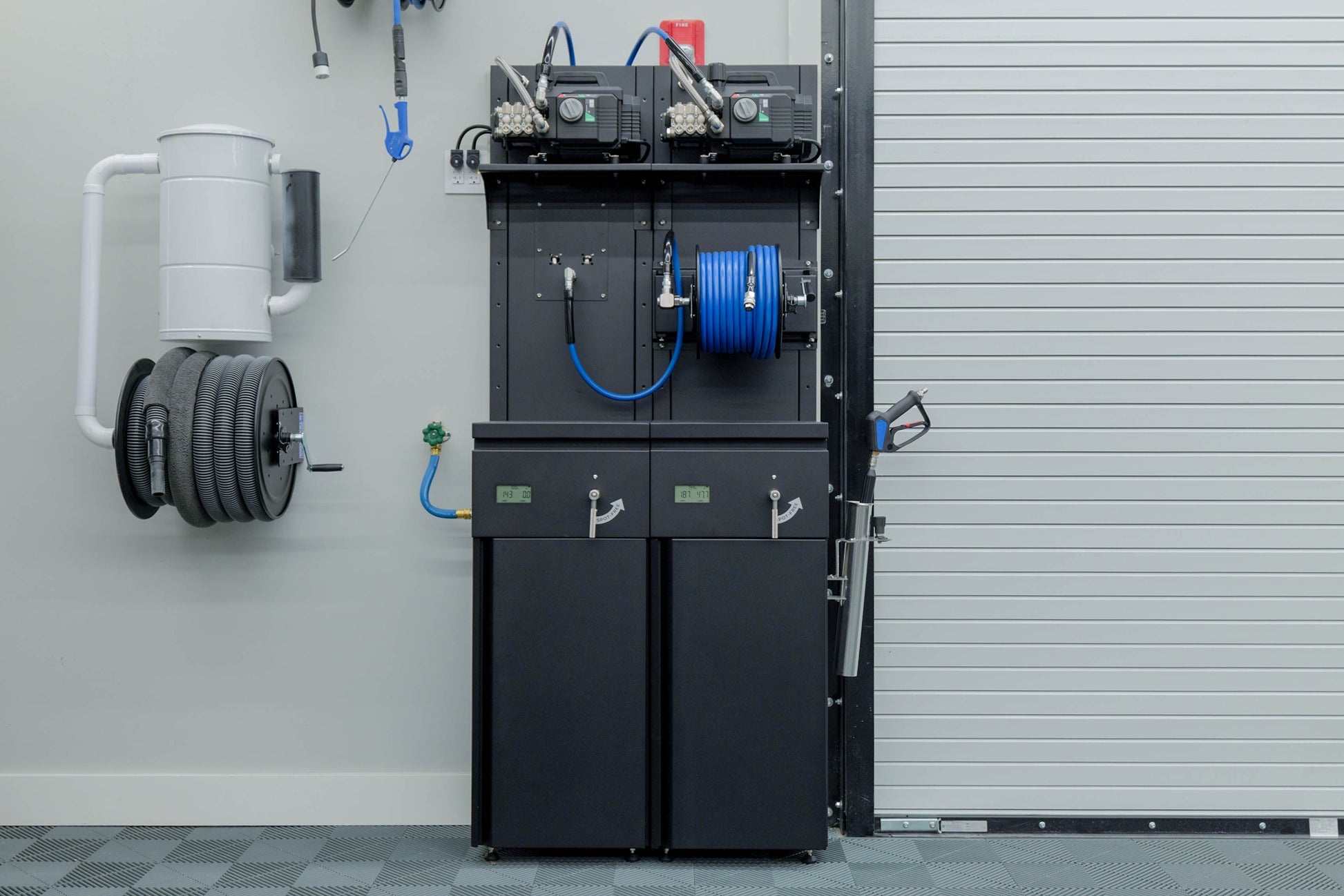

At its core, this is a complete cabinet-based dual wash solution designed in-house. The system combines dual pressure washers, integrated deionized water tanks, a hose reel, and dedicated controls into one clean footprint. The cabinet is built around the same wrinkle black powder coated look inspired by the Sonic MSS Plus style, but the bigger deal is that everything is laid out around how the system is actually used.

The Dual Wash Station is designed as a parallel tank and pressure washer system. Each cabinet receives inlet water and supplies either fresh water or deionized water to its own pressure washer, and the flows are not combined until after the pressure washer outputs. That is what makes the system feel so intentional. It is not two random units sitting next to each other. It is one integrated system.

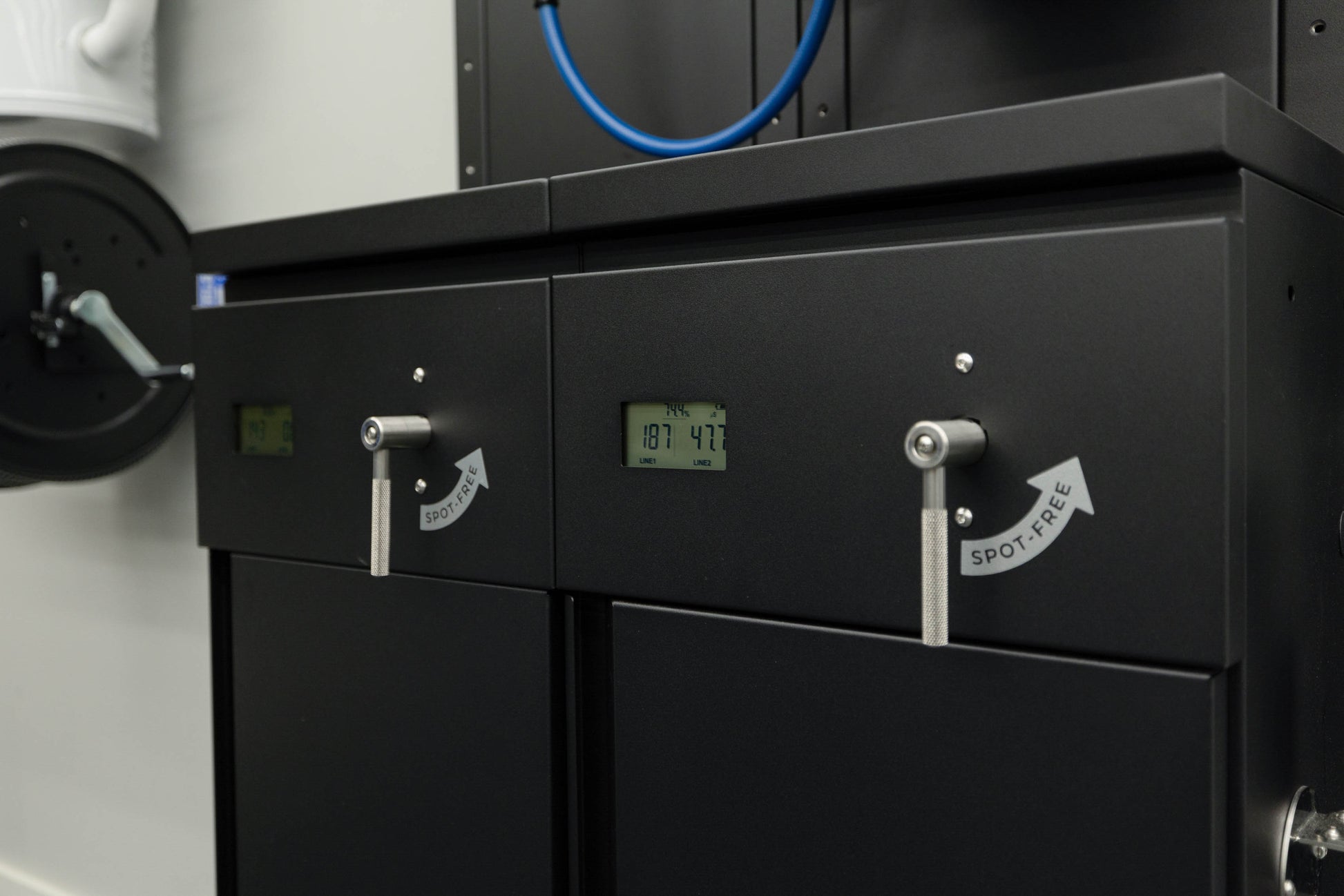

Each cabinet has its own water quality mode valve, so you can switch between fresh water and De-Ionized (DI) water without changing hoses or dragging tanks around mid-wash. Spot-Free mode sends DI water through the cabinet. Bypass mode sends fresh water through it. That is the right way to use this. Fresh water for your initial rinse and wash steps. DI water for your final rinse.

How It Works

The front-mounted TDS meter on each cabinet shows inlet and outlet water quality in parts per million, so you can monitor what the system is doing instead of guessing. In Spot-Free mode, an outlet reading of 20 PPM or lower is considered ideal for a spot-free finish. On the Dual system, each TDS meter reads the output of the cabinet it is connected to, while the final pressure washer output is a combination of the water from both cabinets.

The resin setup is serviceable, which is a big deal on something like this. Each cabinet uses a removable, refillable media cartridge inside the tank, so the resin can be changed without turning the system into a giant hassle to own. The cartridge is removed from the top and refilled as needed, and the documentation calls out a capacity of up to one-half cubic foot of resin per cartridge, with some space left at the top for proper performance.

That serviceability matters even more on the Dual because you are dealing with two tanks. The Dual version comes with resin.  So you have a real starting point without immediately needing to source consumables.

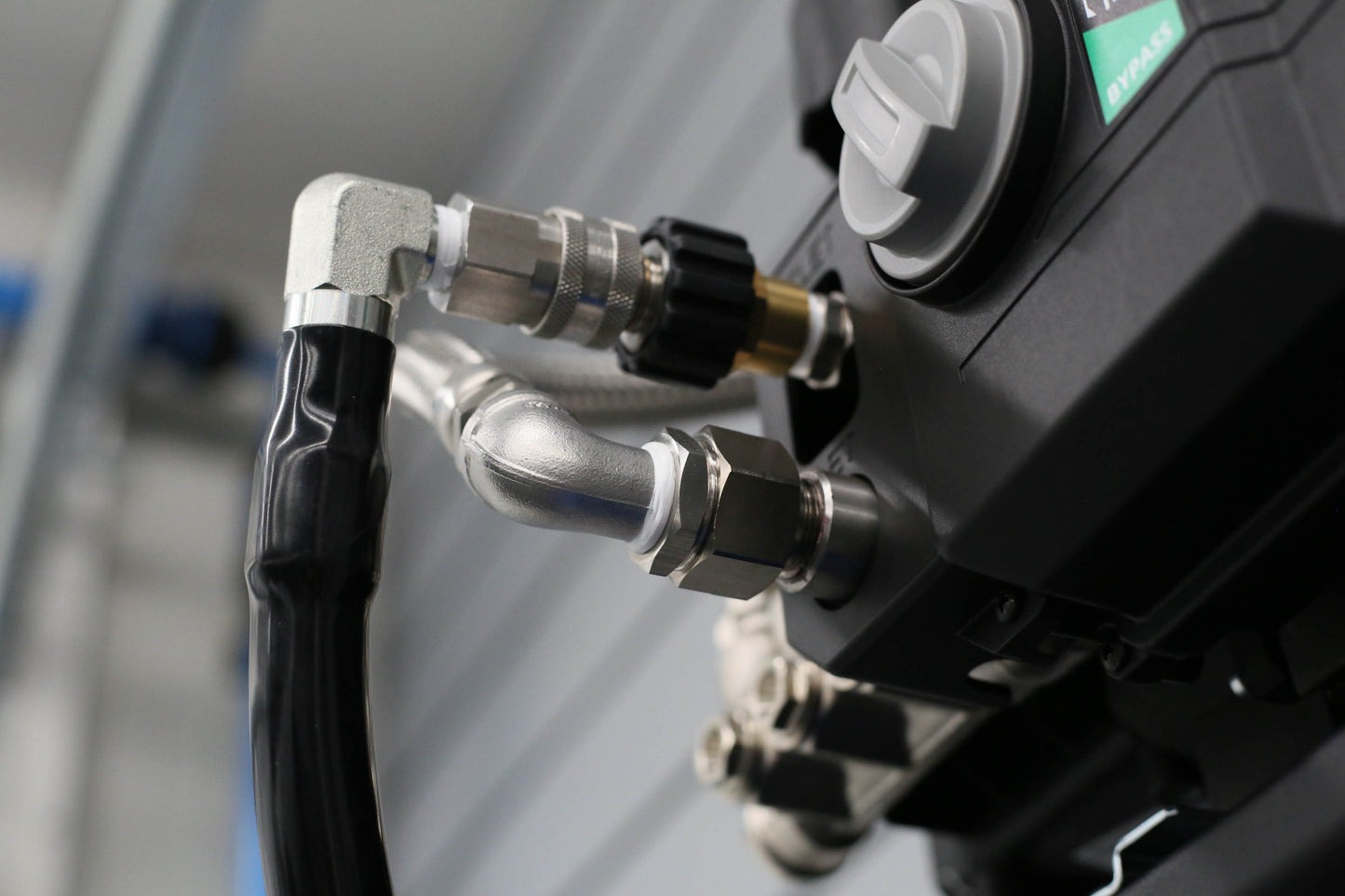

The Dual also adds high-pressure valve control on the back panel, which gives you three output modes. You can run both pressure washers together in Combined Mode for maximum flow, or isolate the system to Left-Only or Right-Only operation. That gives you more flexibility and makes the Dual feel like a real system instead of just a bigger version of the Single.

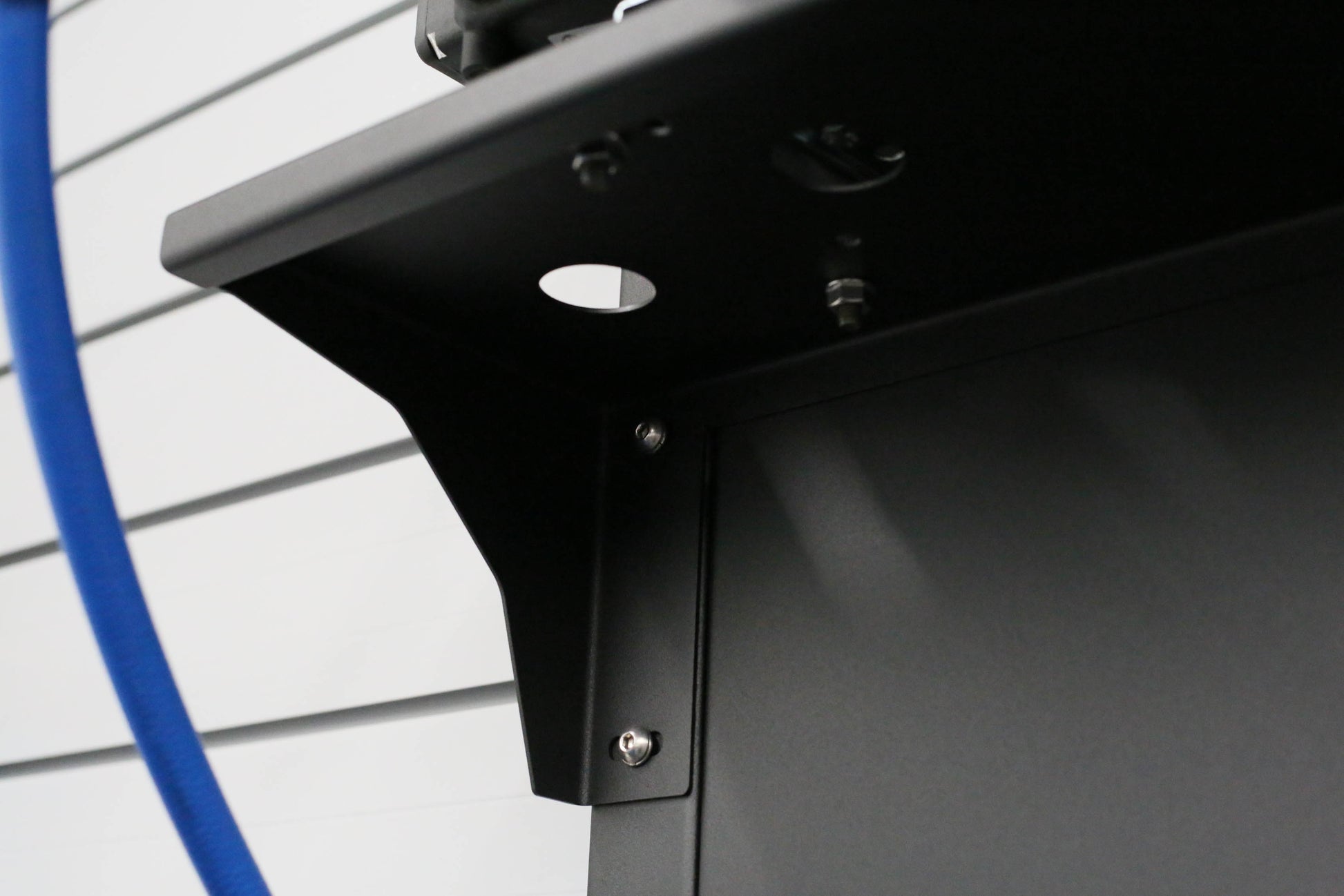

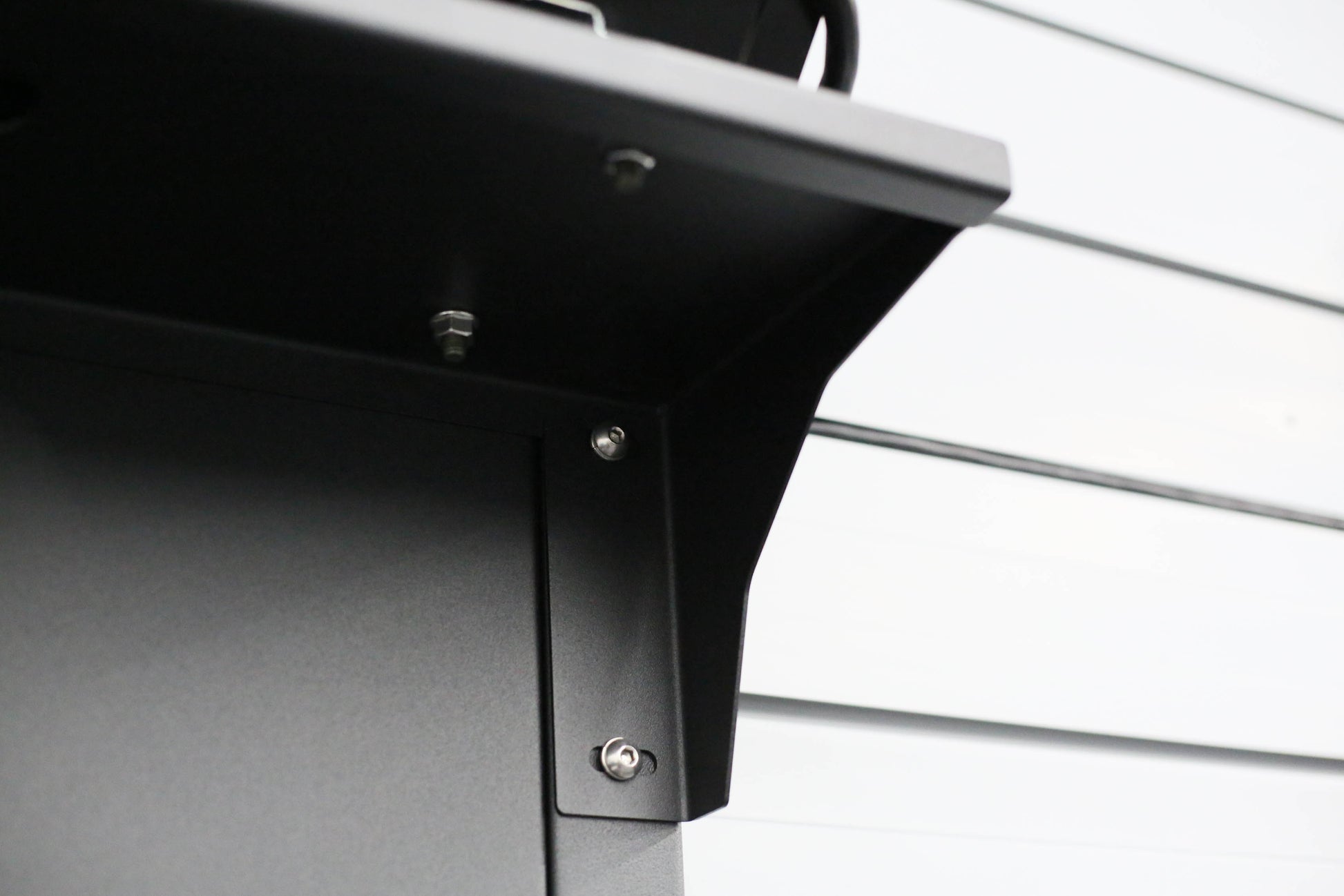

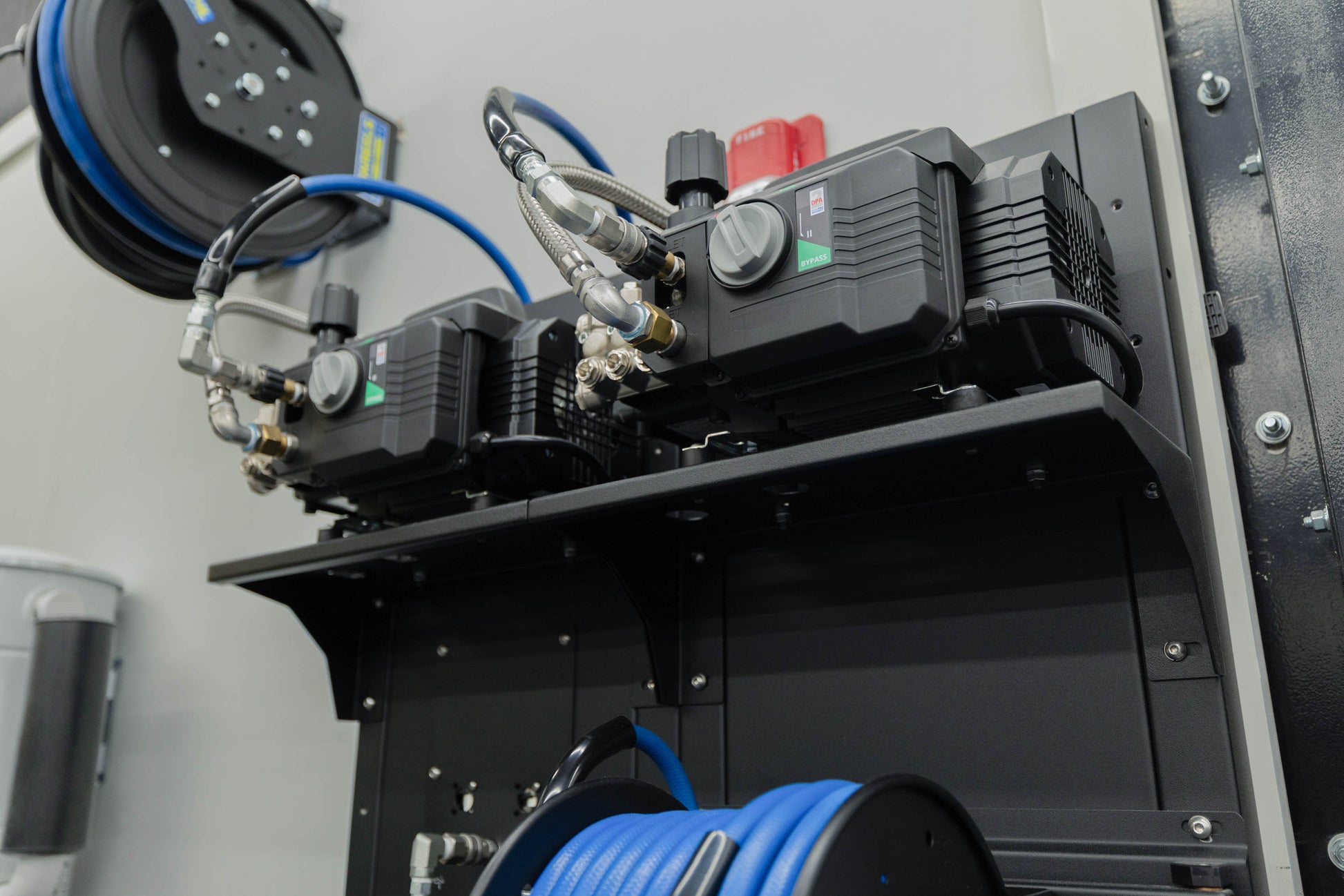

Built as a Complete System

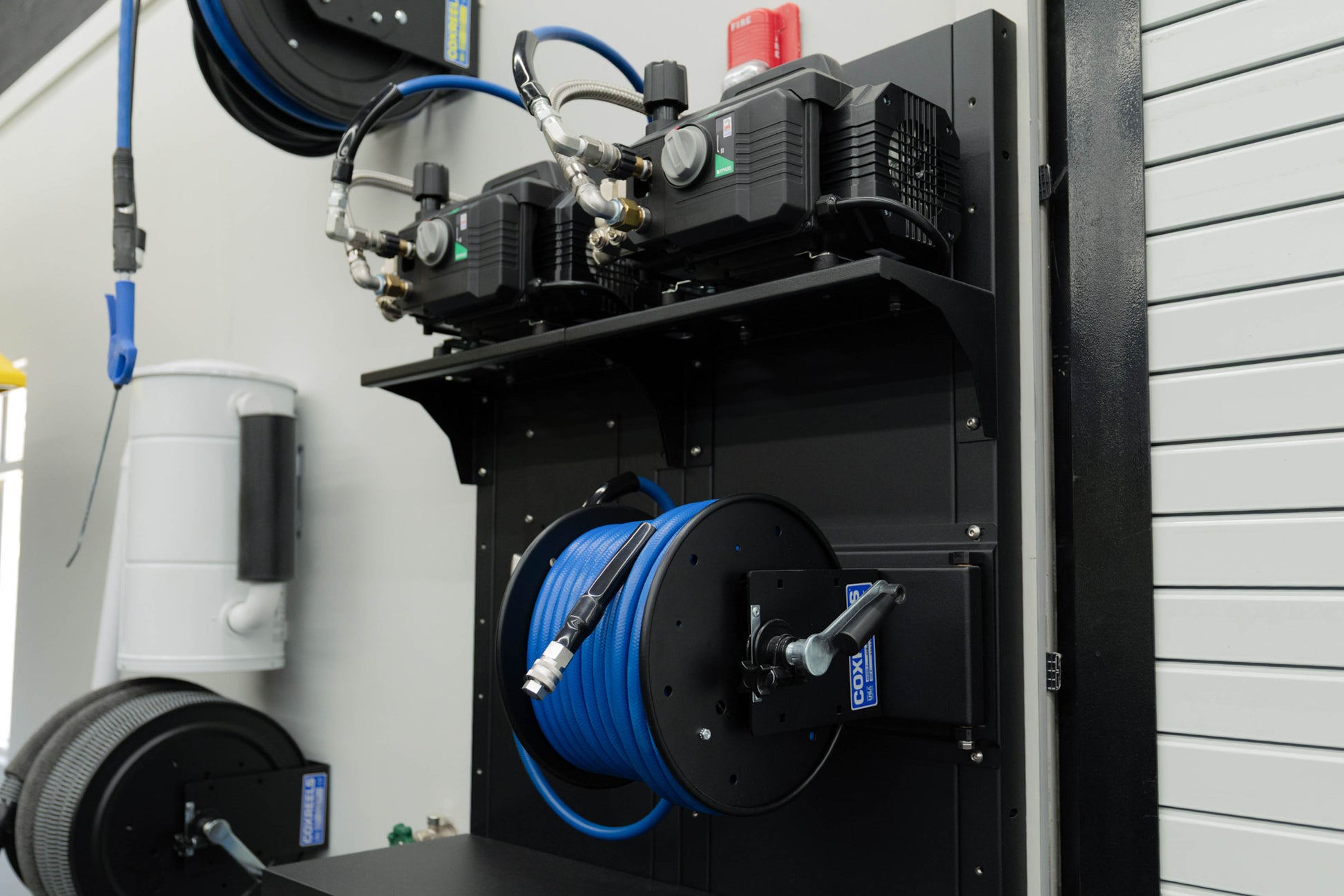

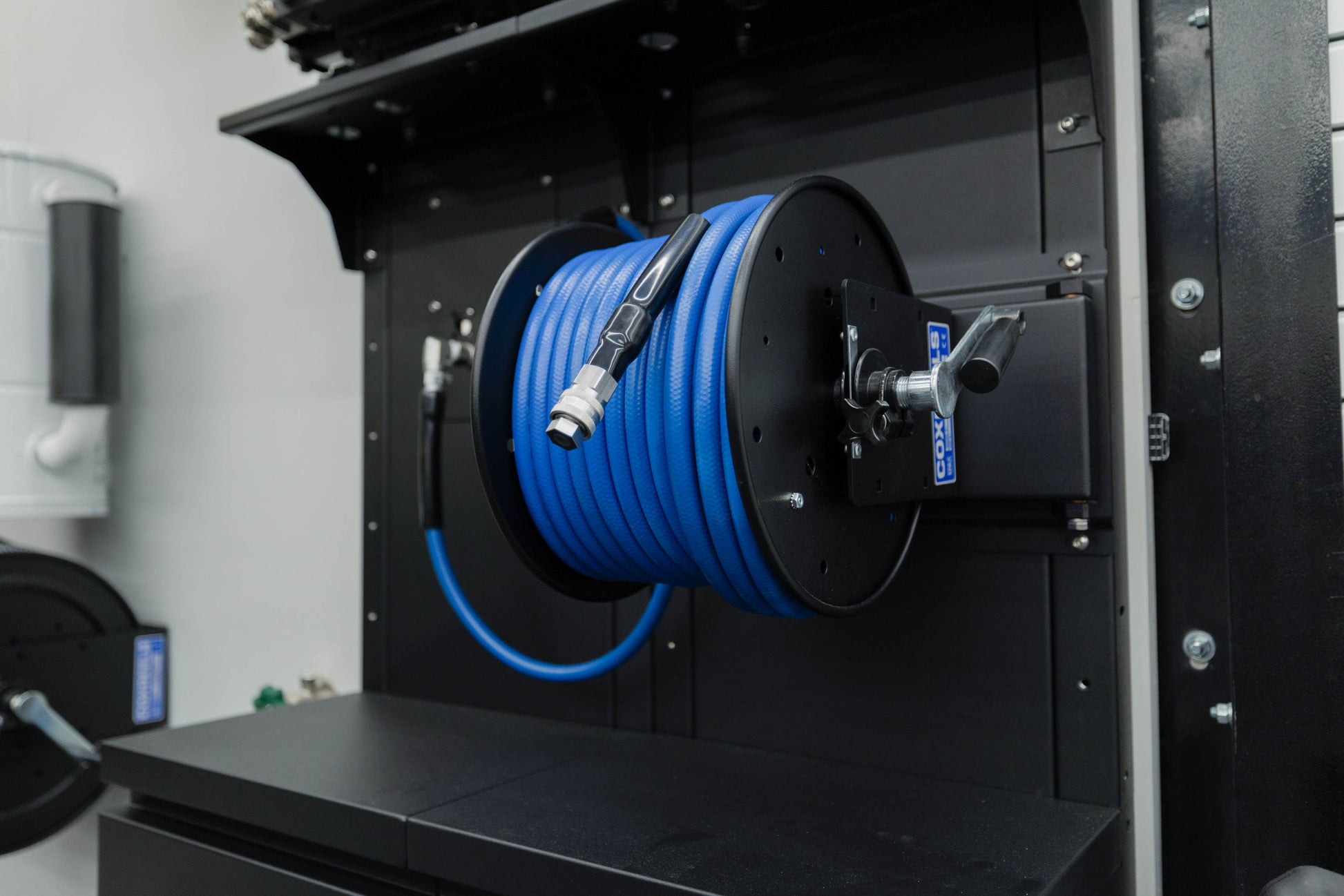

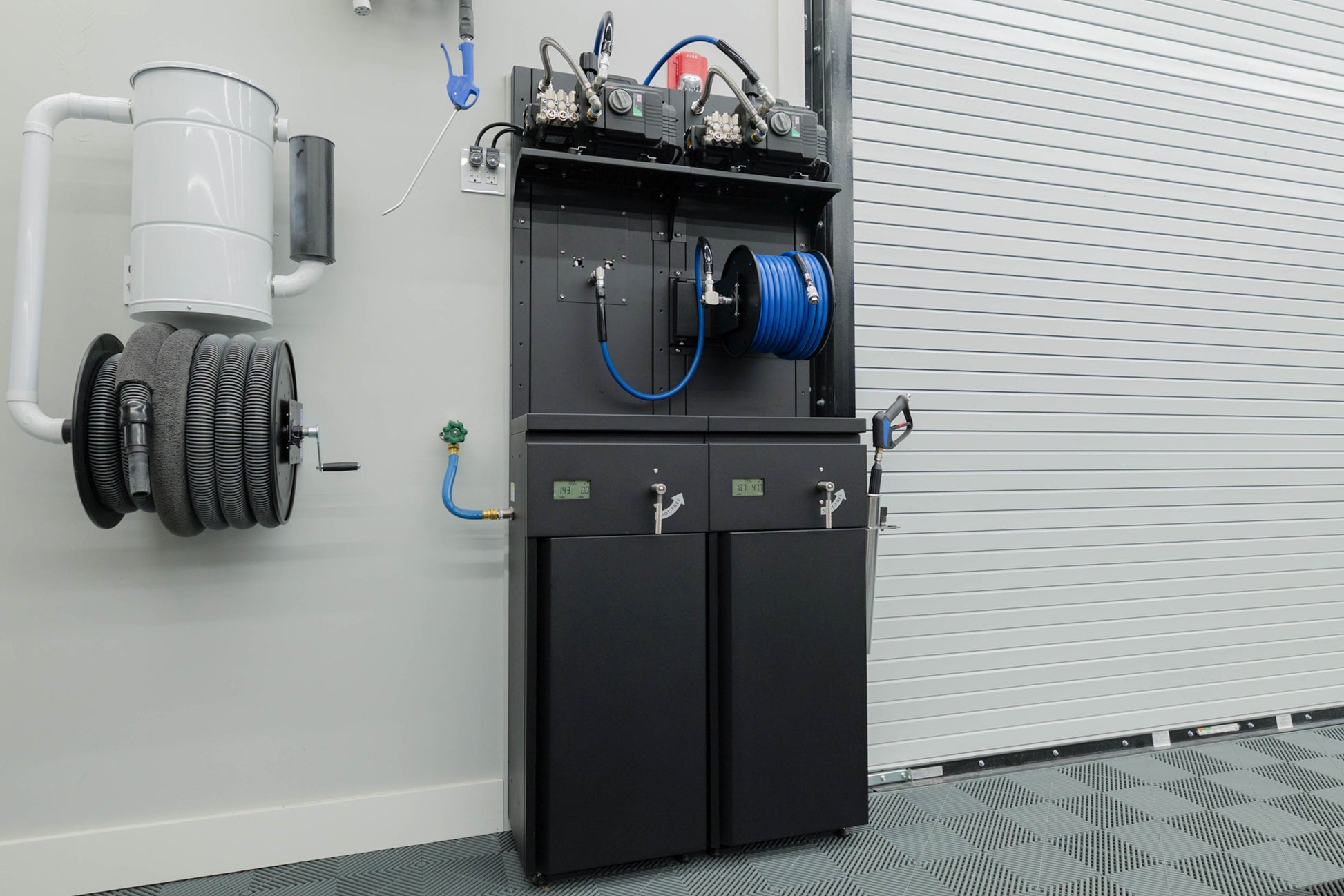

The upper section of the wash station is built around the pressure washer shelves, the plumbing path, and the hose management system. The pivoting hose reel is still one of the best details in the whole setup. When closed, it sits parallel to the wall and keeps the station tidy. When opened, it swings out 90 degrees so you can pull hose at an angle without snagging, then lock it back in place when you are done. That sounds small, but it is exactly the kind of usability detail that changes how the system feels every time you wash.

Who This Is For

This is for the person building a true dream wash bay. You want more flow, more capability, cleaner hose management, and a setup that looks like it belongs in a serious garage. You care about spot-free rinsing, you want the flexibility of combined or isolated washer operation, and you want a system that feels engineered instead of improvised. If the Single is the right answer for most people, the Dual is for the person who wants the no-compromise version.

Not ready for a Dual Setup? Check out the Obsessed Garage Wash Station Single Pressure Washer Version!
