Nussbaum Jumbo HF 7

Color
$12,394.75 USD
$12,394.75 USD
    Shipping Information

    This item is drop shipped from Nussbaum in North Carolina. Shipping will be invoiced separately after checkout.

    JFUS070.010-5001

    Nussbaum Jumbo HF 7

    Manufacturer Description

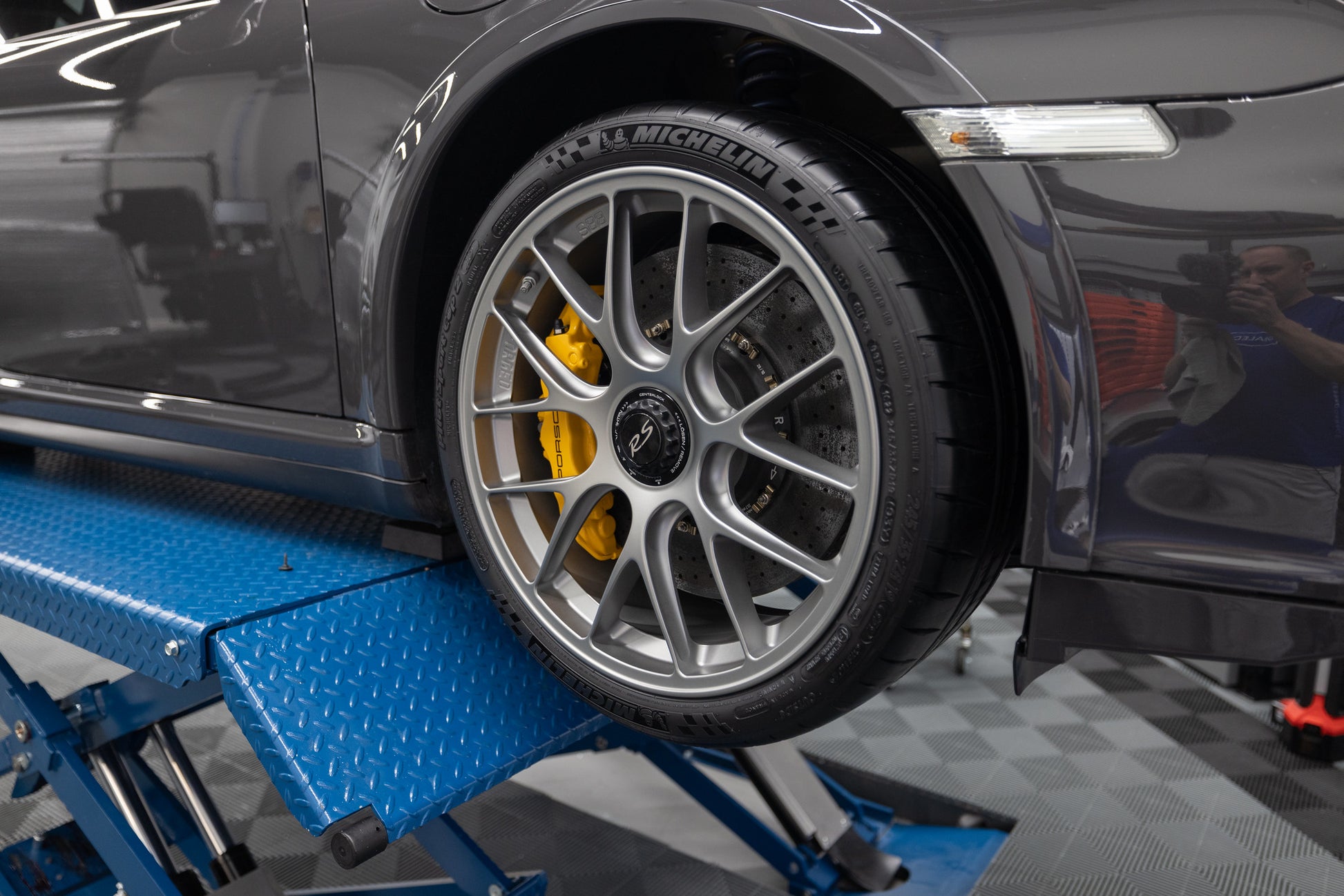

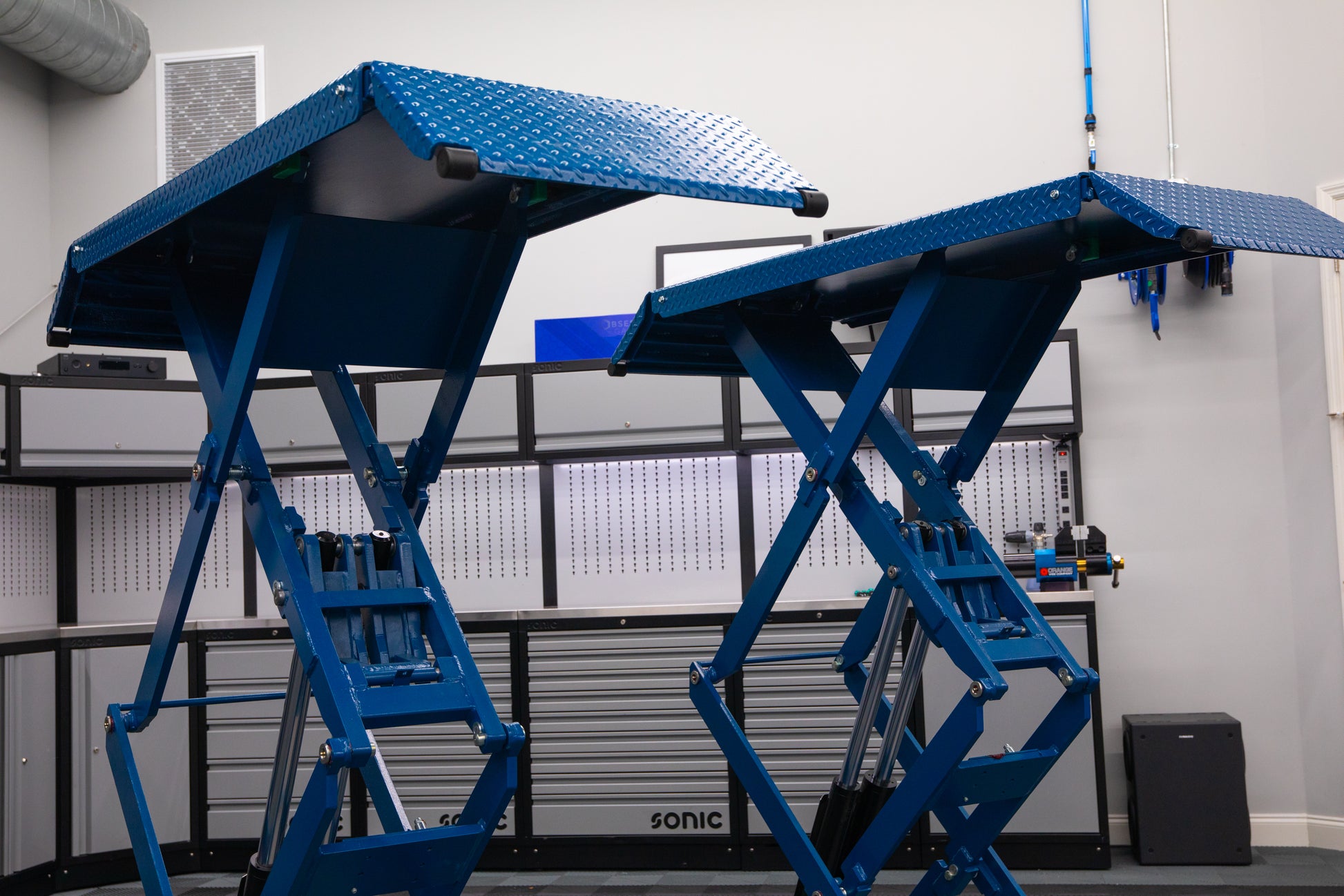

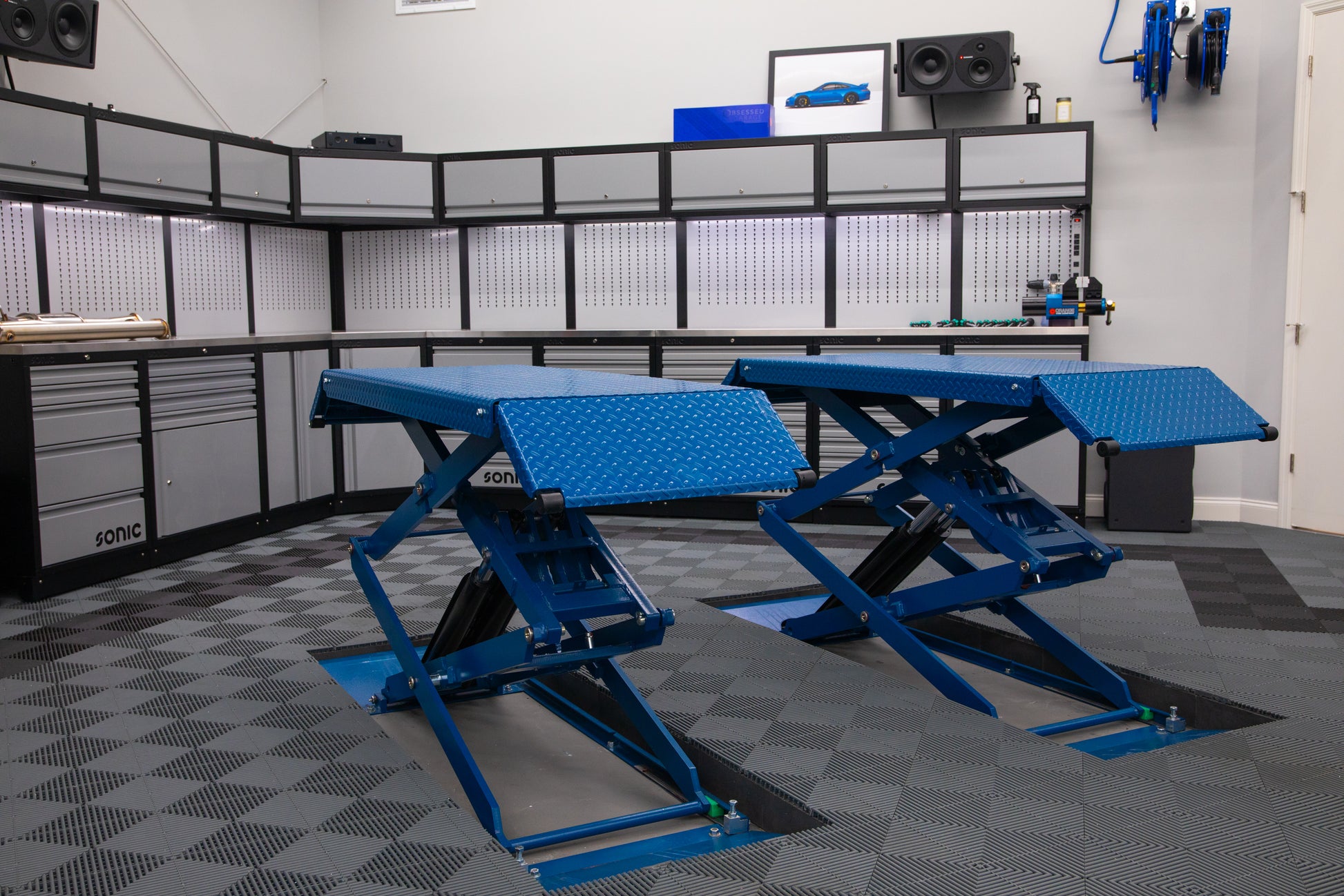

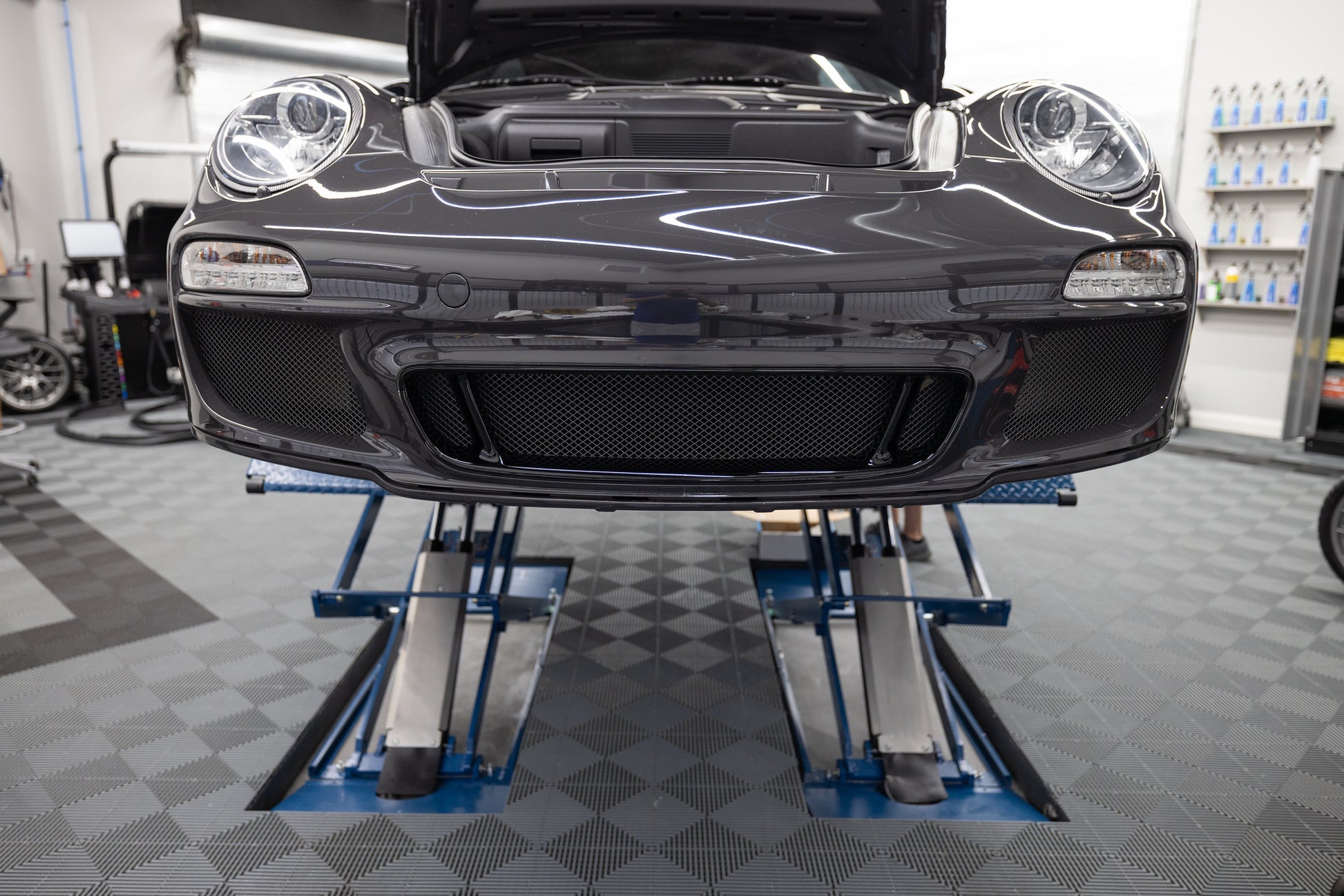

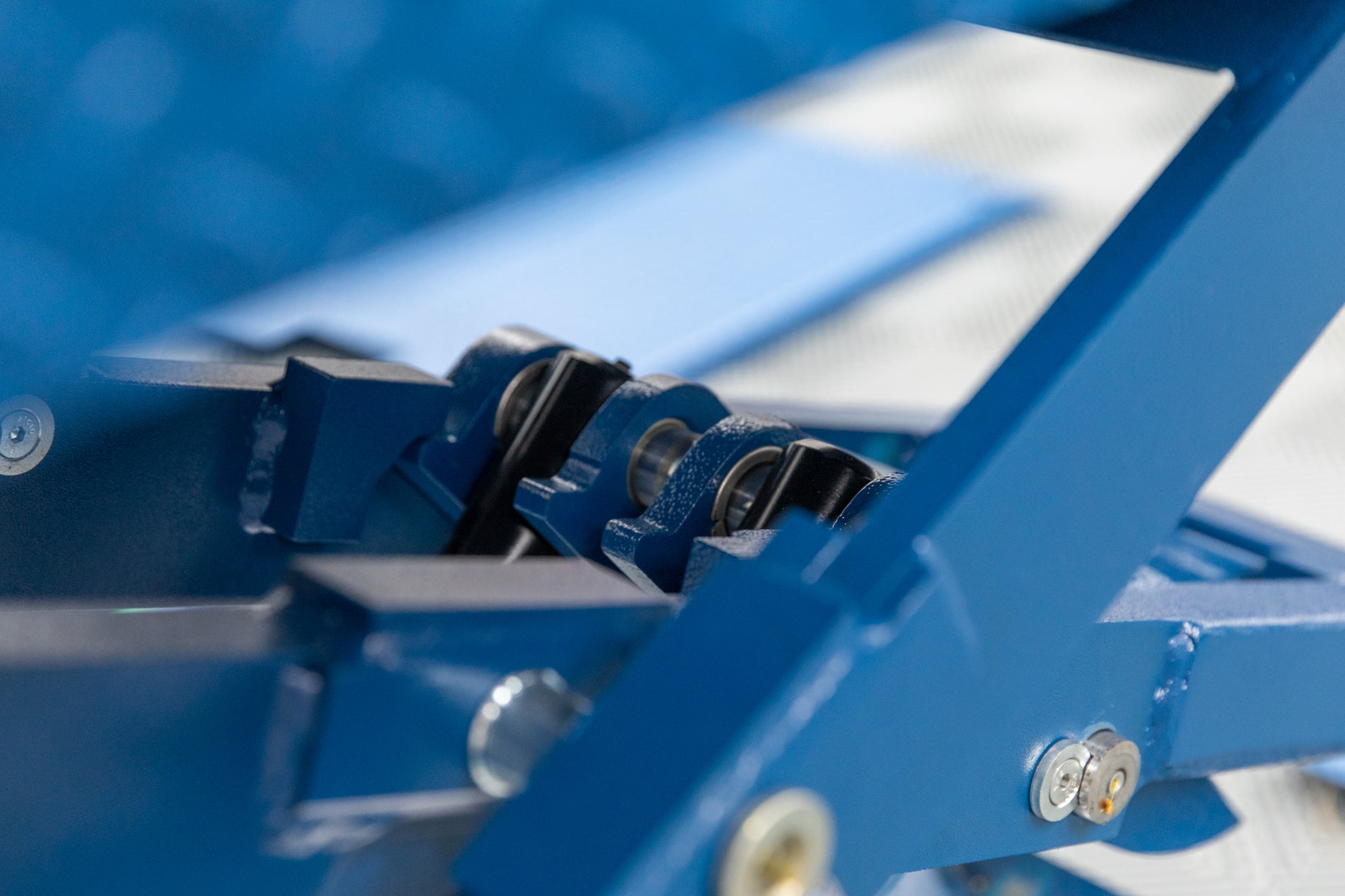

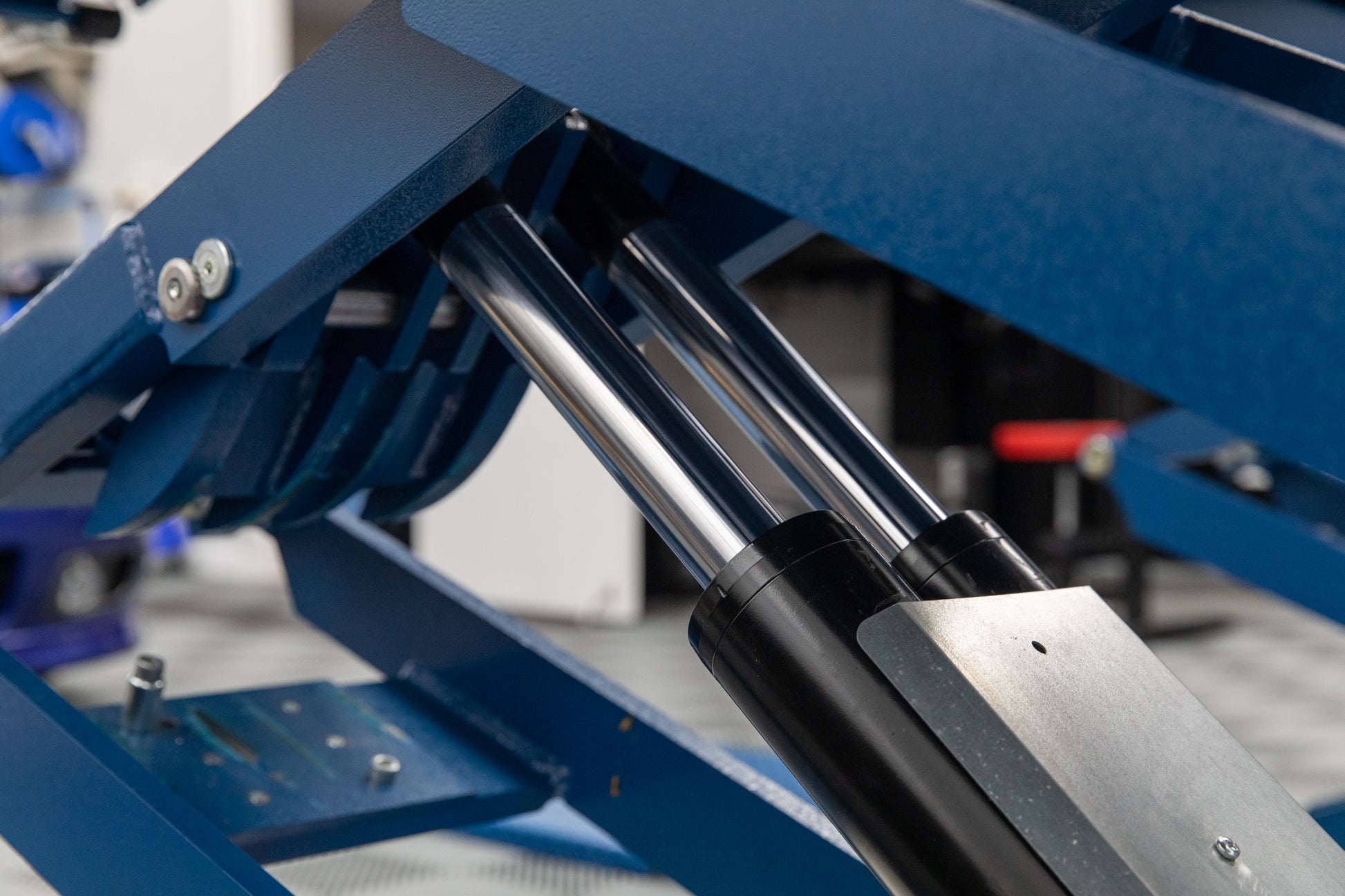

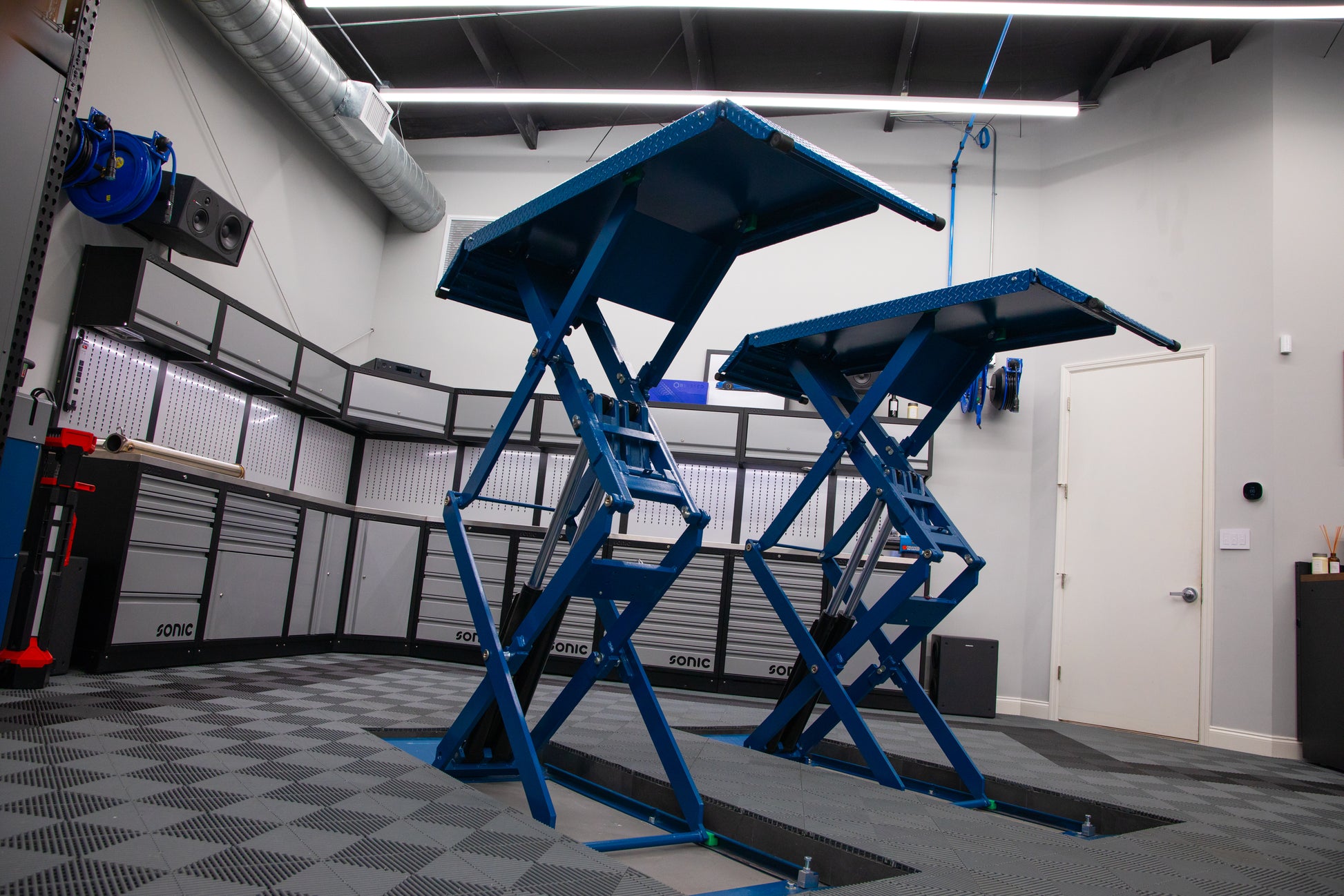

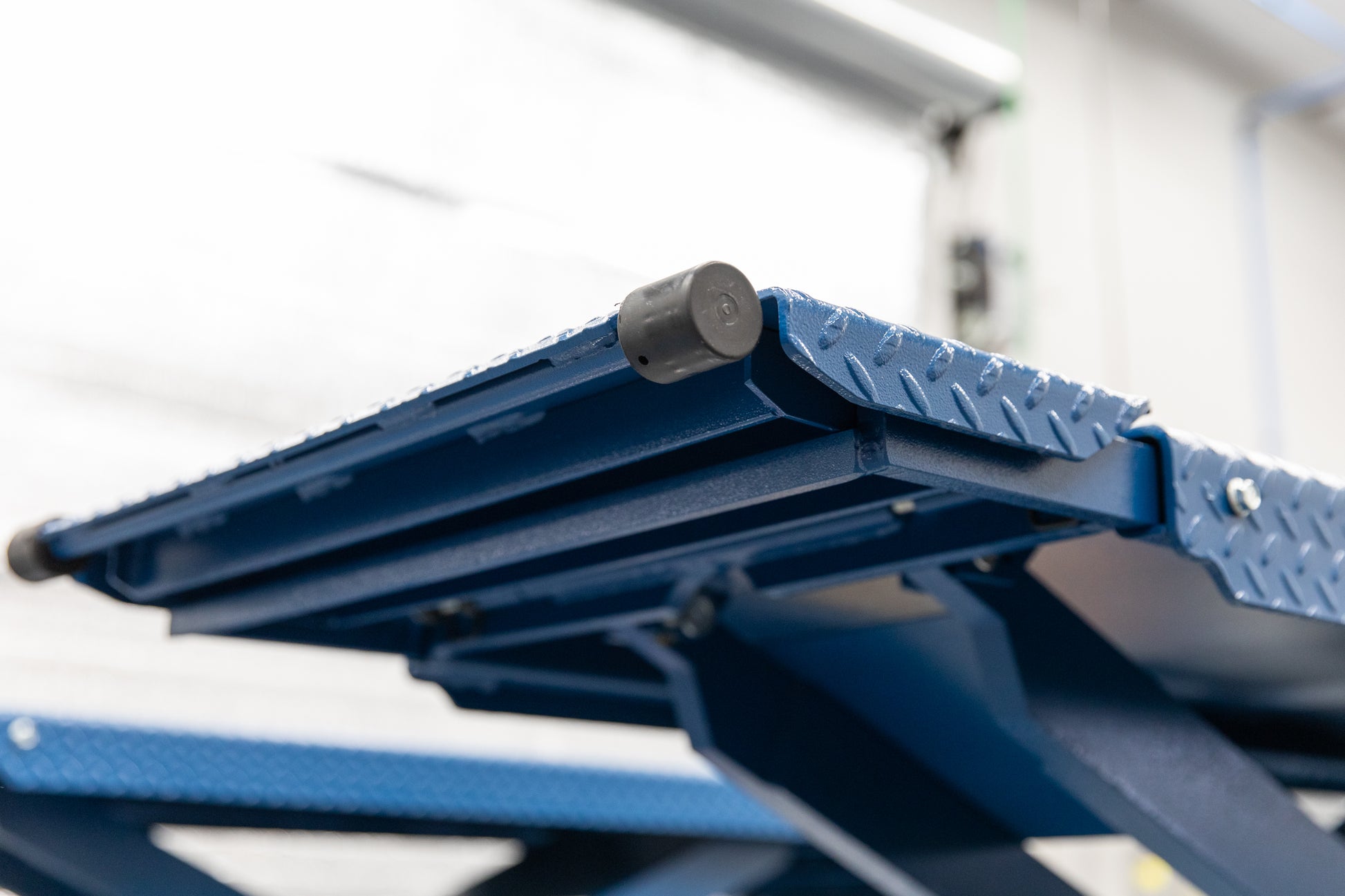

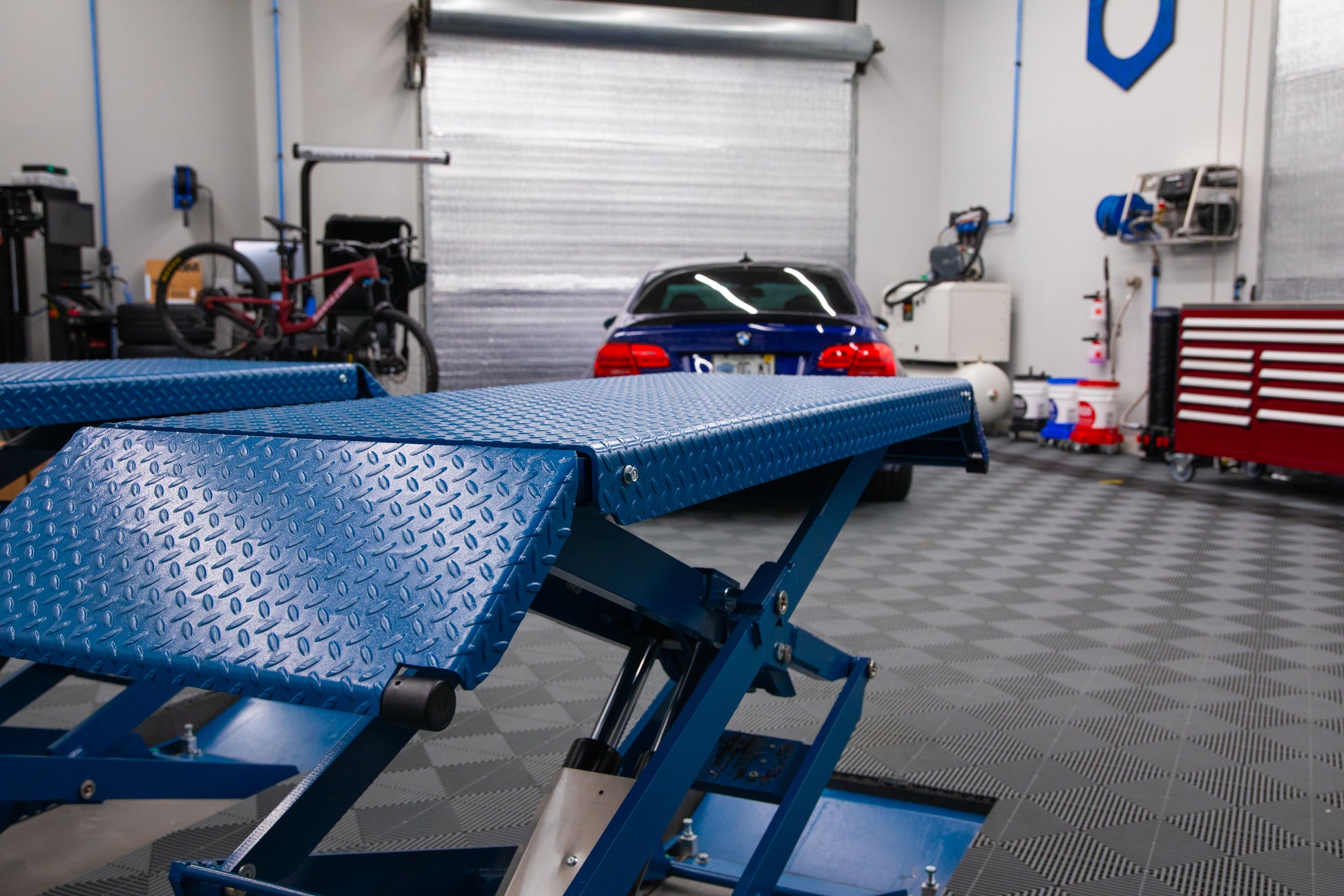

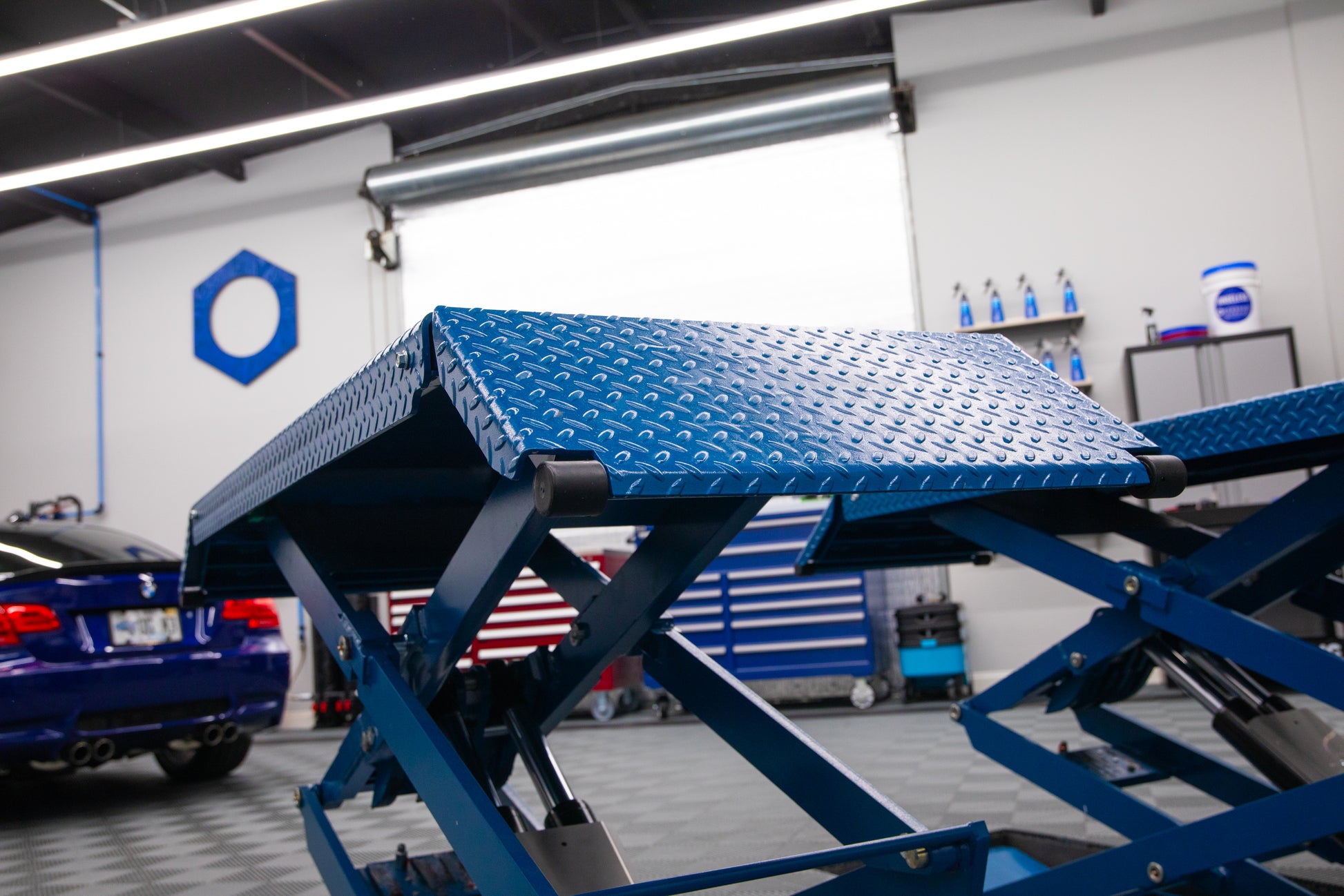

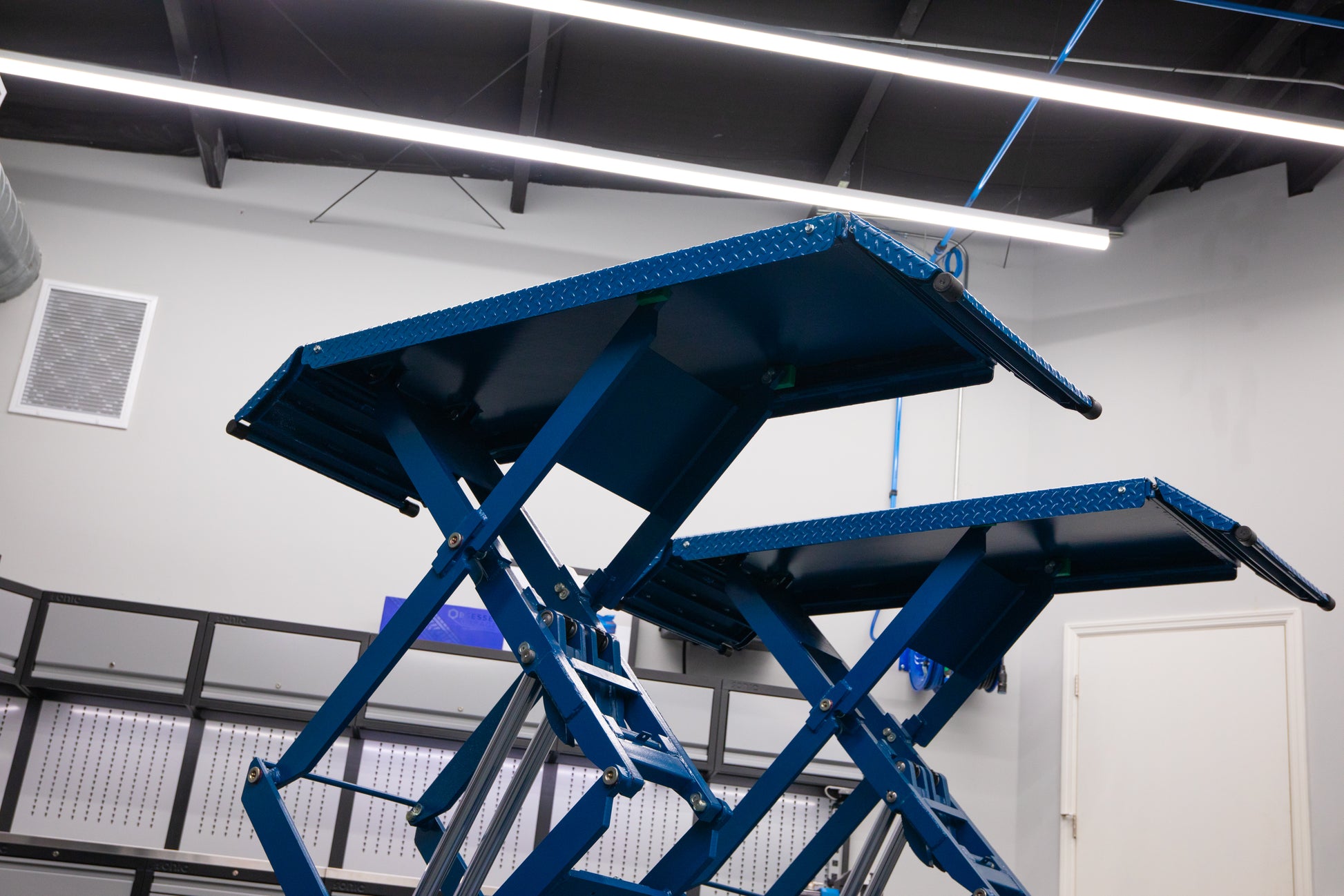

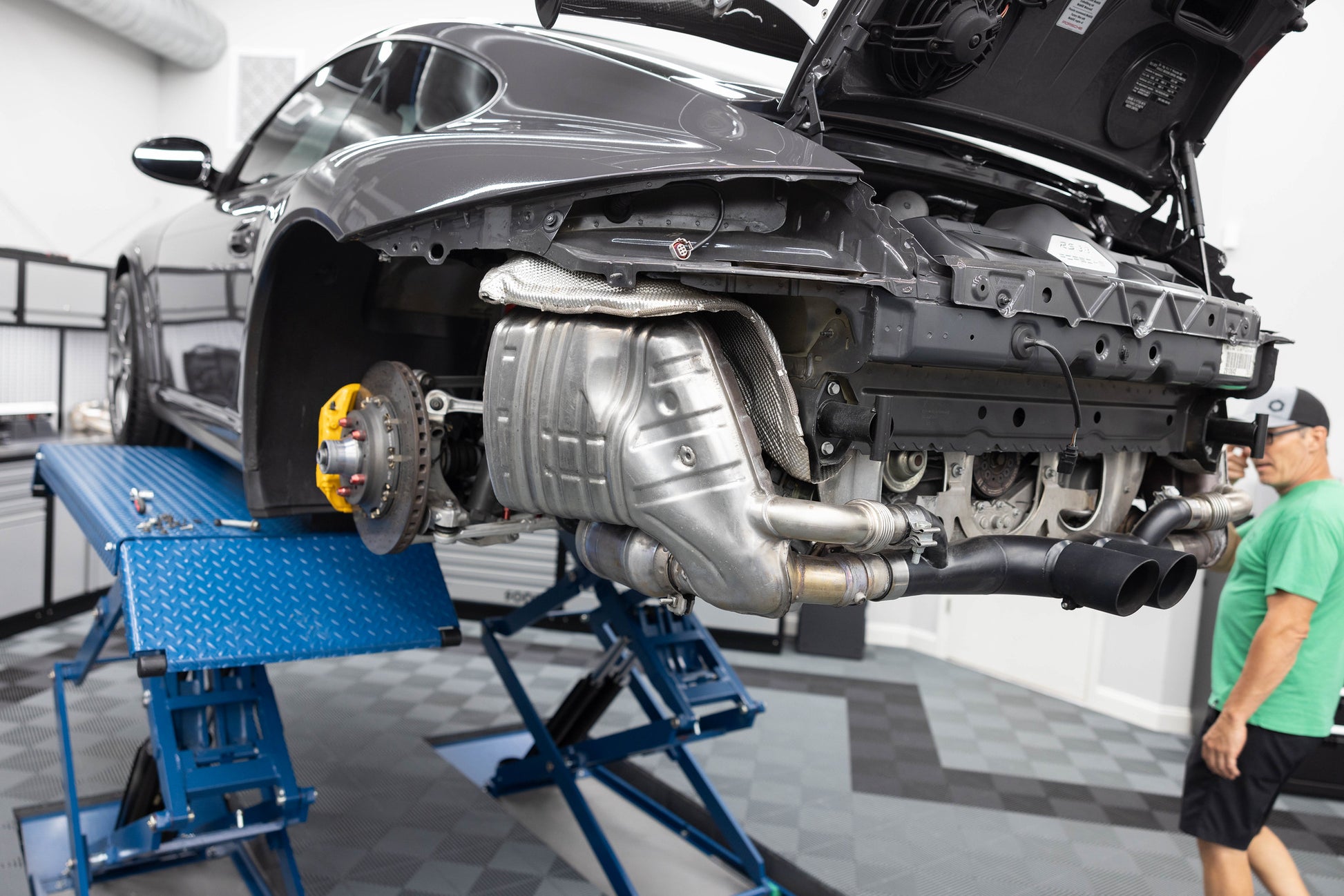

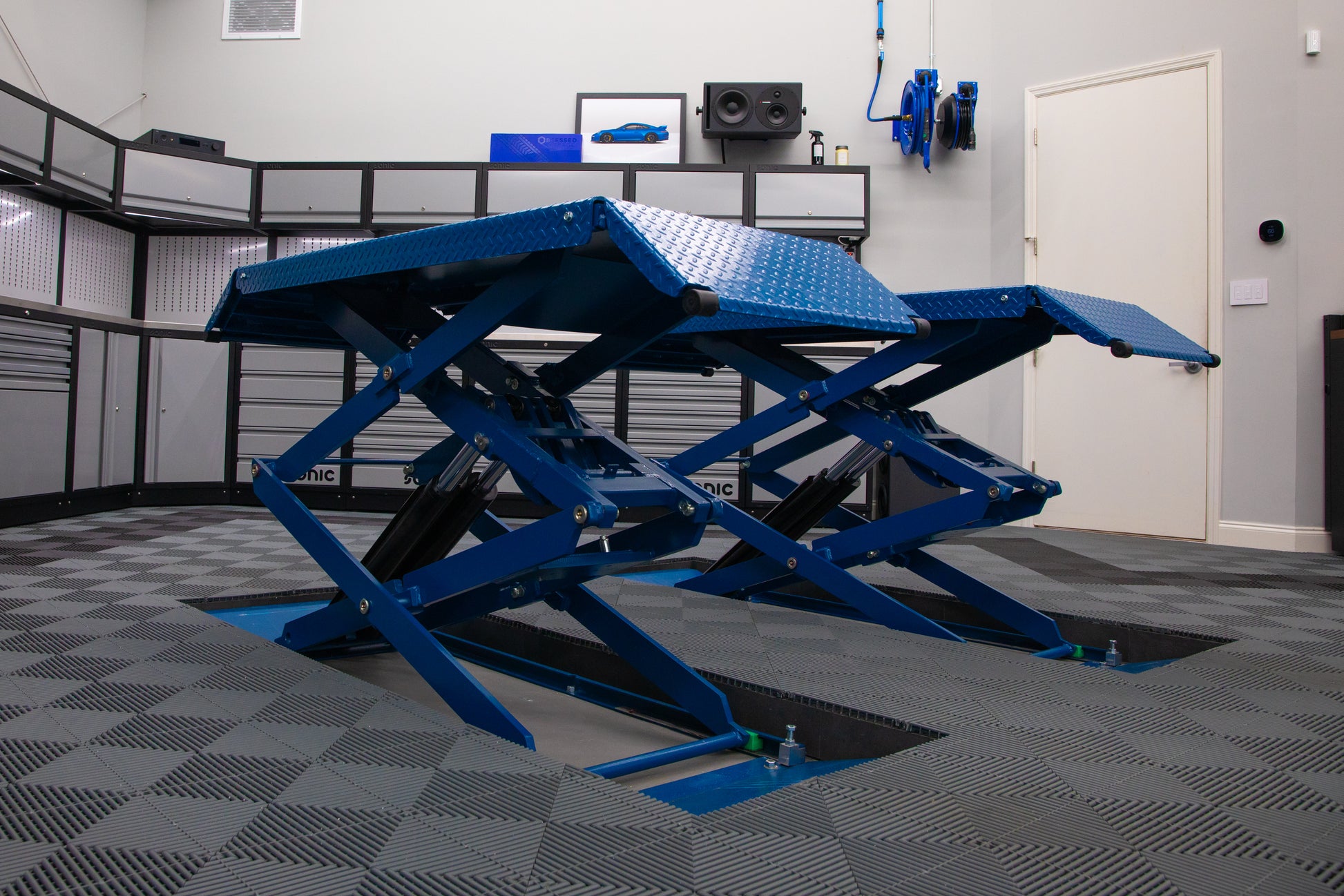

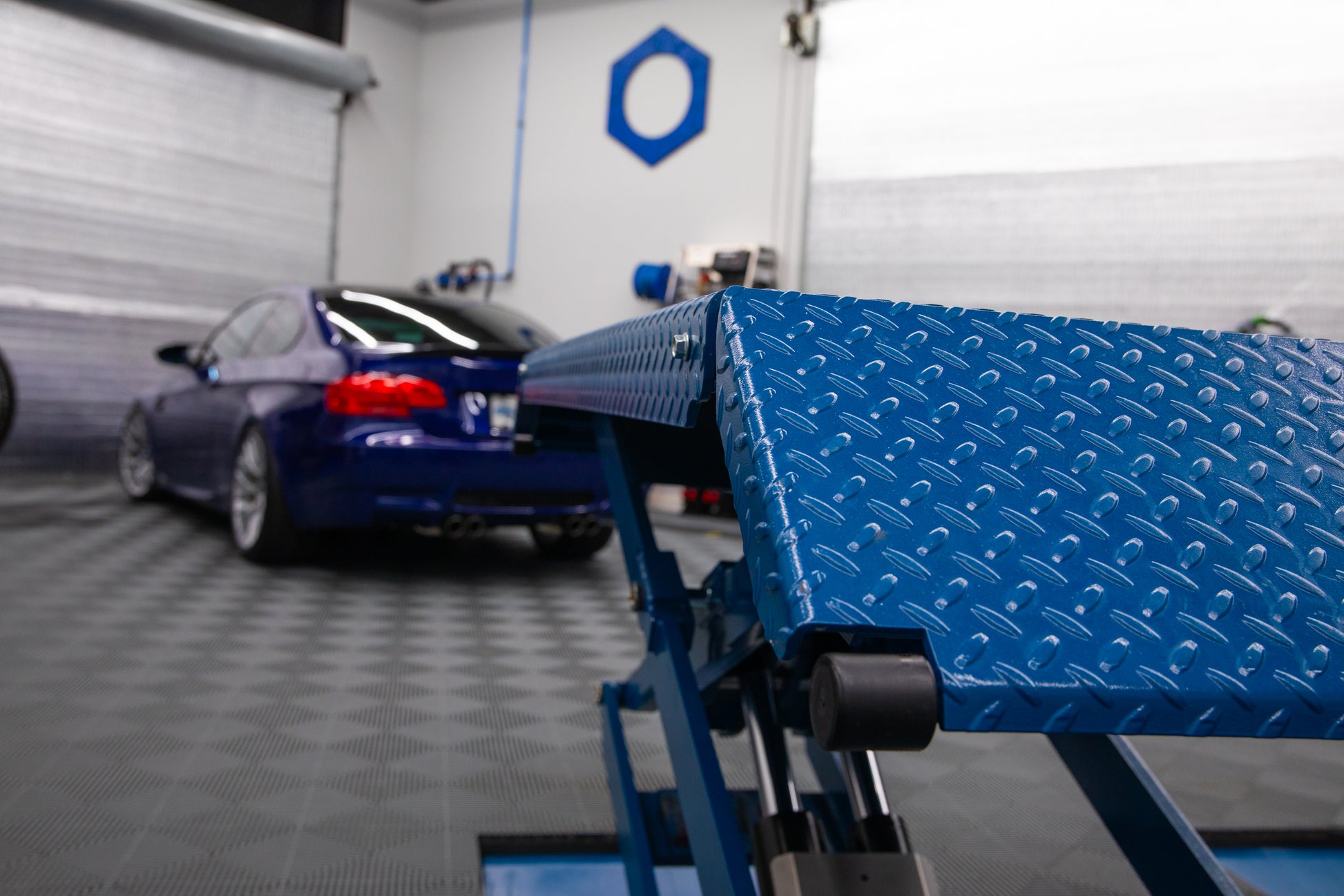

    The hydraulic double scissor lift Jumbo HF 7 with a capacity of 7,000 lbs is the perfect ALI-certified all-round lift for car workshops where speed, flexibility, and reliability are in demand. With its small space requirement, its high lifting height of 79 inches, the length-adjustable platforms, flat design, and Hyperflow technology, it is the lift that no professional car workshop should be without. Whether for tire changes, oil changes, work on the engine, or inspection, for low-lying sports cars, SUVs, or vans, the Jumbo HF 7 is ready to lift at lightning speed. The drive-on ramps can be unlocked and locked by one-hand operation in order to extend or shorten the platform.

    x1 - Nussbaum Jumbo HF 7

    • Capacity: 7,000 lbs
    • Platform length min: 57.5 - 85 inches
    • Lifting height: 79 inches
    • Platform width: 24 inches

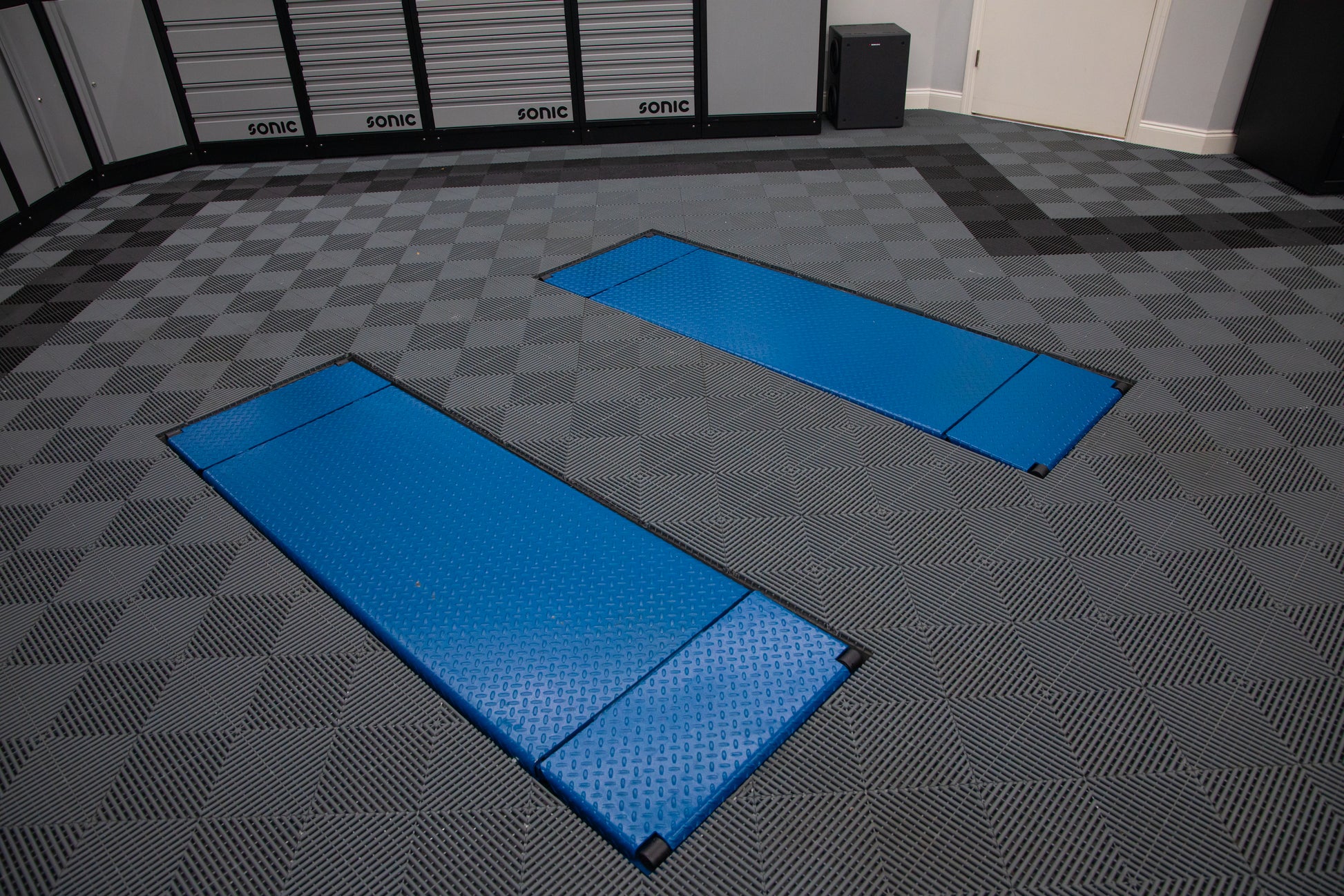

    • Drive-on height: 4 1/8 inches
    • Overall width min: 79.5 inches
    • Power supply: (V/ph) 208/230 / single phase - 240V 30A
    • Motor power: 3 hp
    • Hydraulic Oil Spec: AW32

    Downloads & Articles

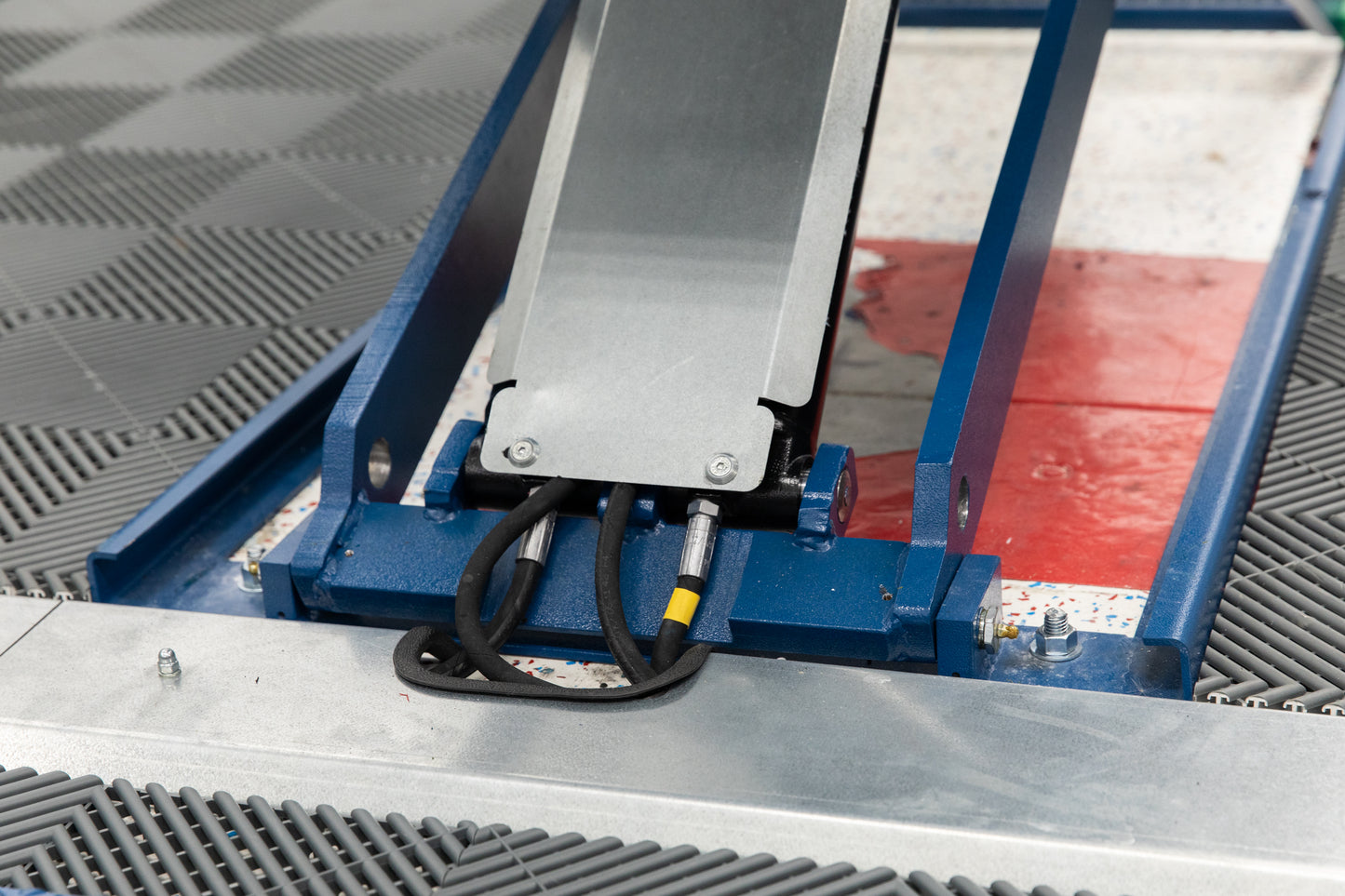

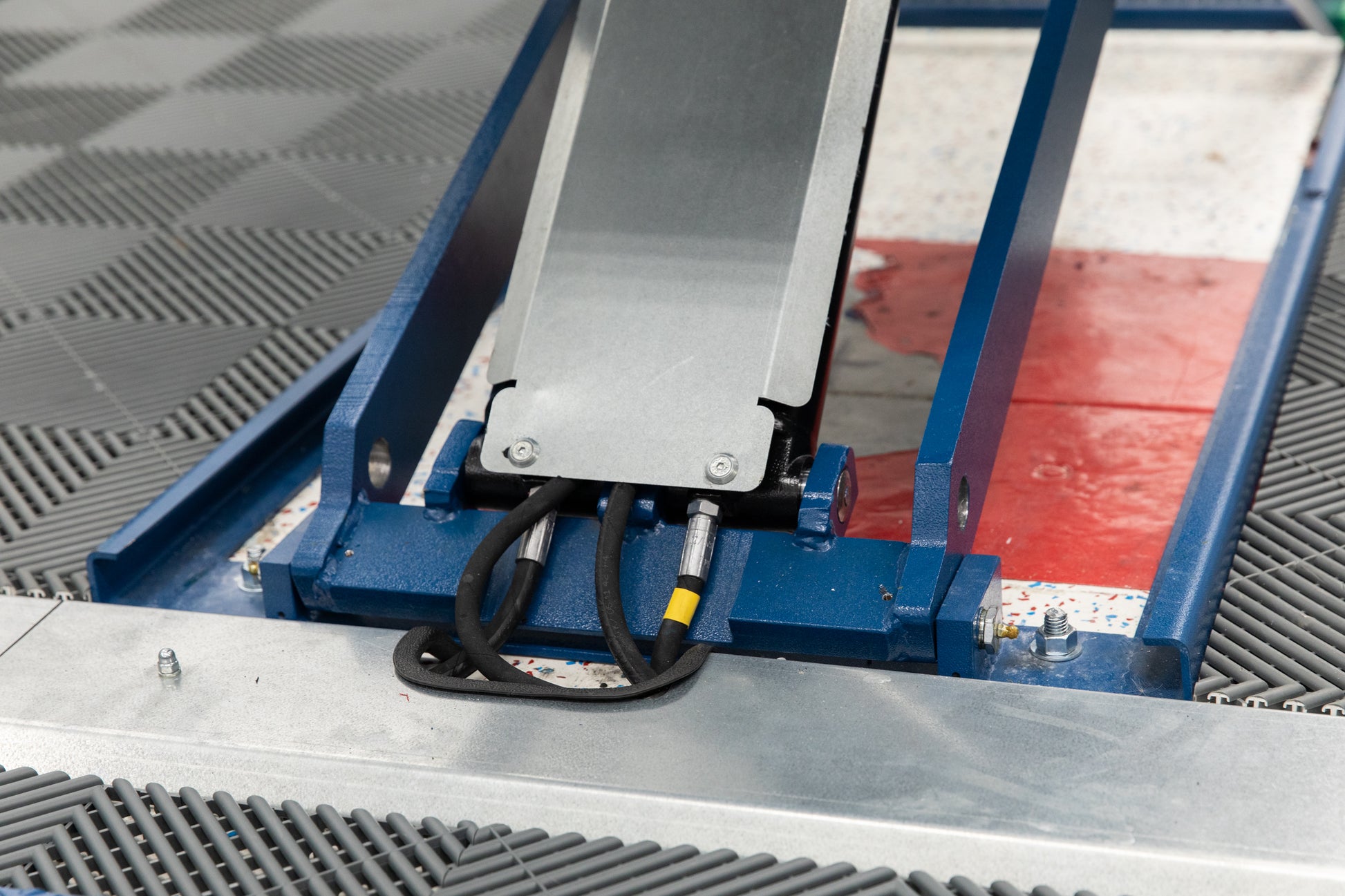

    Hydraulic Extension Information

    If your lift setup requires longer hydraulic hoses, you can have your local hydraulics shop make some up. The hose you need is 1/4" double wire and must have a rating of 5,000 PSI or higher. For the fittings, request "Metric 8-Light".

    Here are some links to examples of the fittings needed:

    Male Threaded Fitting
    Female Threaded Fitting
