Lutron Occupancy/Vacancy Sensor

Style
$95.00 USD
$95.00 USD
Low stock! Only 9 left
    Shipping Information

    This item is shipped from our warehouse at OGHQ in Lady Lake, FL. Shipping costs are calculated at checkout.

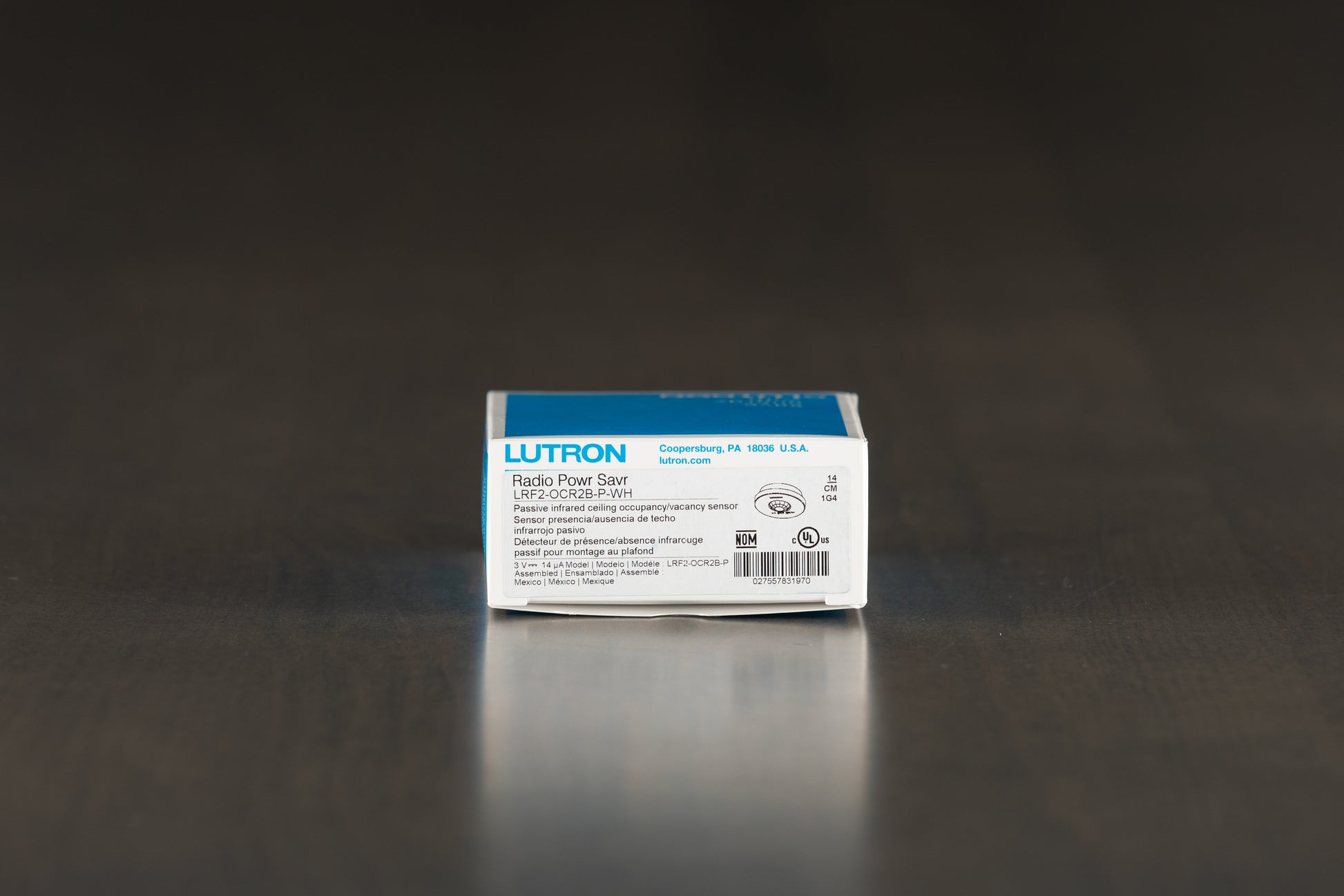

    LU-LRF2-OCR2B-P-WH

    The Lutron Ceiling Mounted Occupancy/Vacancy Sensor dose not work with Caseta

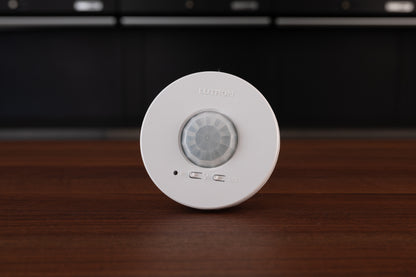

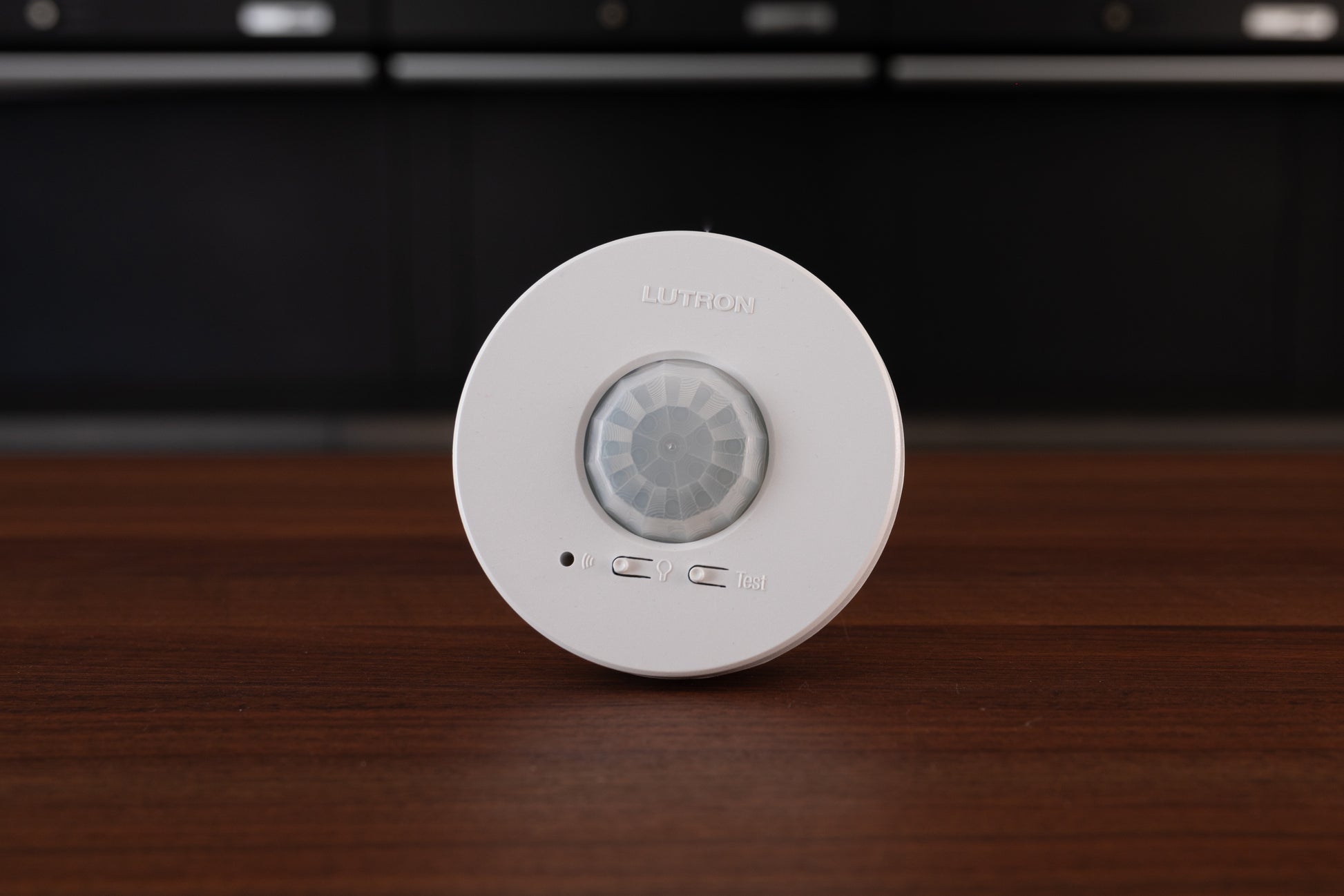

    The Lutron Ceiling Mounted Occupancy/Vacancy Sensor detects movement or the lack thereof to turn your lights on or off. This can be useful for a space you come and go from often and may not always remember to turn the lights off.

    Pairing is exactly the same as a pico; It can also connect to a Vive Hub or Ra2 Select Main Repeater. These really excel with app control. So you’re able to set them up how you want. The detection range is somewhat small on these, so you'll want to grab a handful. For reference, Matt has 5 of them in his Current Garage.

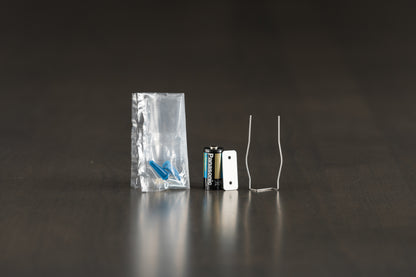

    x1 - Occupancy/Vacancy Sensor

    SKUs
    (Corner Mount) - LRF2-OKLB-P-WH
    (Ceiling Mount) - LRF2-OCR2B-P-WH

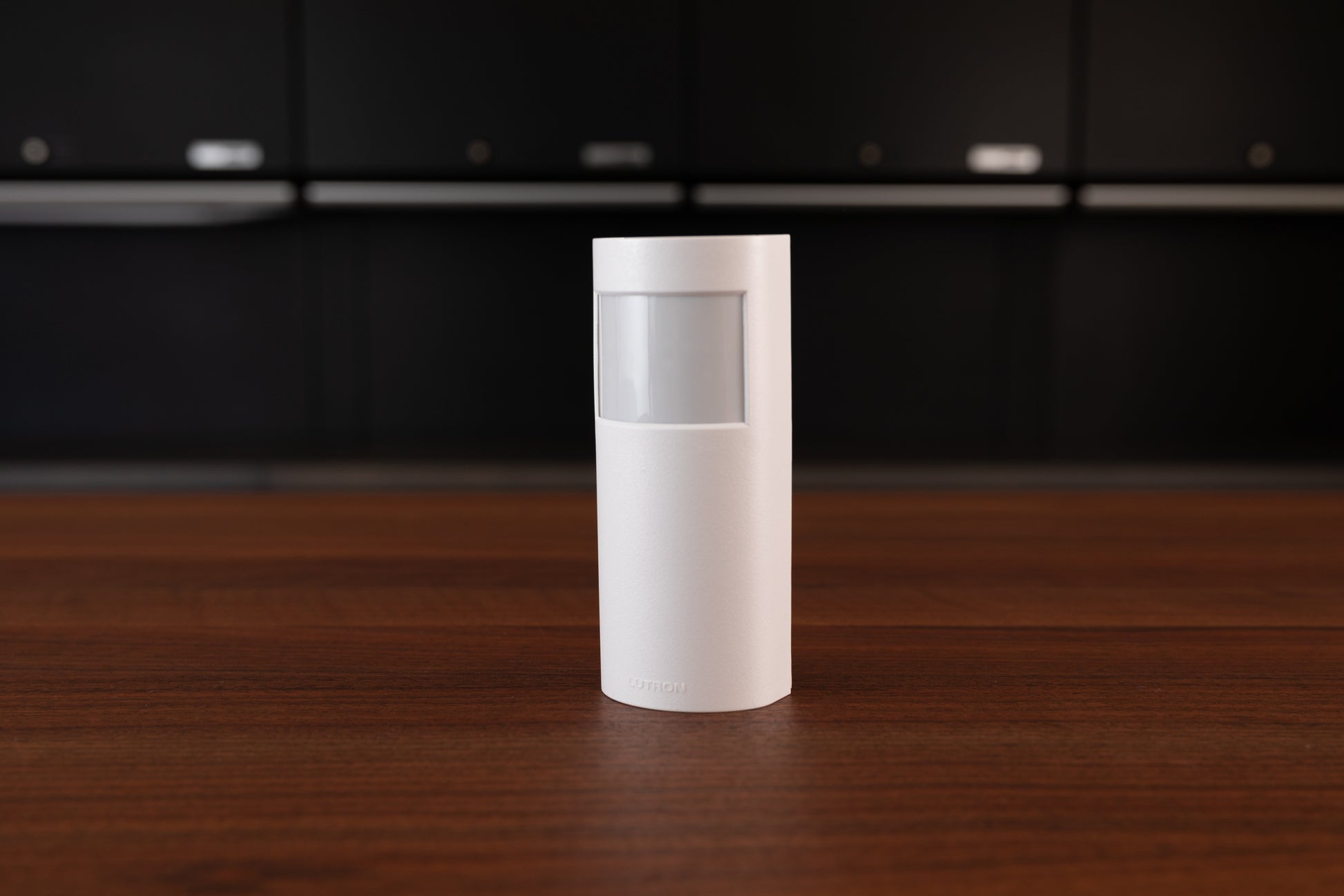

    (Wall Mount) - LRF2-OWLB-P-WH

    Ceiling Height Maximum Square Coverage Area*

    • 8 ft - (2.4 m) 18 ft × 18 ft (5.5 m × 5.5 m)
    • 9 ft - (2.7 m) 20 ft × 20 ft (6.1 m × 6.1 m)
    • 10 ft - (3.0 m) 22 ft × 22 ft (6.7 m × 6.7 m)
    • 12 ft - (3.7 m) 26 ft × 26 ft (7.9 m × 7.9 m)

    Power/Performance

    • Operating voltage: 3 V-
    • Operating current: 14 μA nominal
    • Requires one CR 123 lithium battery
    • 10-year battery life
    • Non-volatile memory (saved changes are stored during power loss)

    RF Range
    Local load controls must be located within 60 ft (18 m) line-of-sight, or 30 ft (9 m) through walls, of a sensor.

    Warranty
    5-Year Limited Warranty. For additional information, please visit www.lutron.com/TechnicalDocumentLibrary/Sensor_Warranty.pdf
