SKU: KZ-98K1322TS
Regular price $1,122.00
/

The Best Pressure Washer on Earth


I started the search for a wall-mountable pressure washing solution years ago when I built the wash bay at my old house. I headed down a rabbit hole that kept leading me down dead ends.

Too much noise, not enough flow, fit/finish/quality concerns, are all issues I encountered. That is the reason I ended up deciding to take a gamble on the Kranzle K165STS that had in my wash bay. It certainly is great at 2800PSI and 2.8 GPM and looks absolutely fantastic.

The cons: it's loud, cycles for 30 seconds before turning off, and weighs 180lbs. Oh...another small issue...it was $4500 and they no longer make it!

What I really wanted for all of us is a small, compact pump that I could put on a shelf that looks and works like the Kranzle K1122TST. That is the main component of my Obsessed Garage Complete Kranzle Pressure Washing Solution. There are significant advantages to having that cart model, but what if you wanted to mount it on the wall with permanent plumbing, and a hose reel?

After the massive success I had with the Kranzle K1122 package and my need for another wall-mounted solution for OGHQ, I decided to design a less costly, more efficient wall-mounted solution. I bought a K1622 that was currently available. It is a 1600 PSI, 1.7GPM pump...but...it runs continuously. It doesn't have the "Total Stop" function the K1122TST has.

It just wasn't good enough for our application. Although the pump can run for hours in bypass mode, I think we want the pressure switch that would make this pump function better for car washing.

Selling about 500 Kranzle pressure washers in 2017 got us a seat at a table with the engineers. I did everything short of begging for a higher flow, lower pressure, and lower cost pump that we can wall mount. I also want it to shut off when you release the trigger.

I basically asked them to take the pump from the 1122 and put it on the chassis of the former K1622 model. So...we've now got it, and it is called the K1322TS.

Specifications

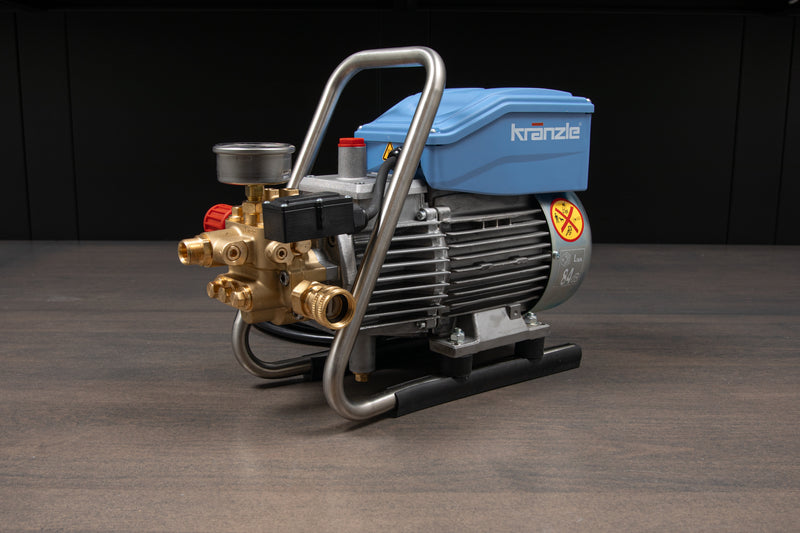

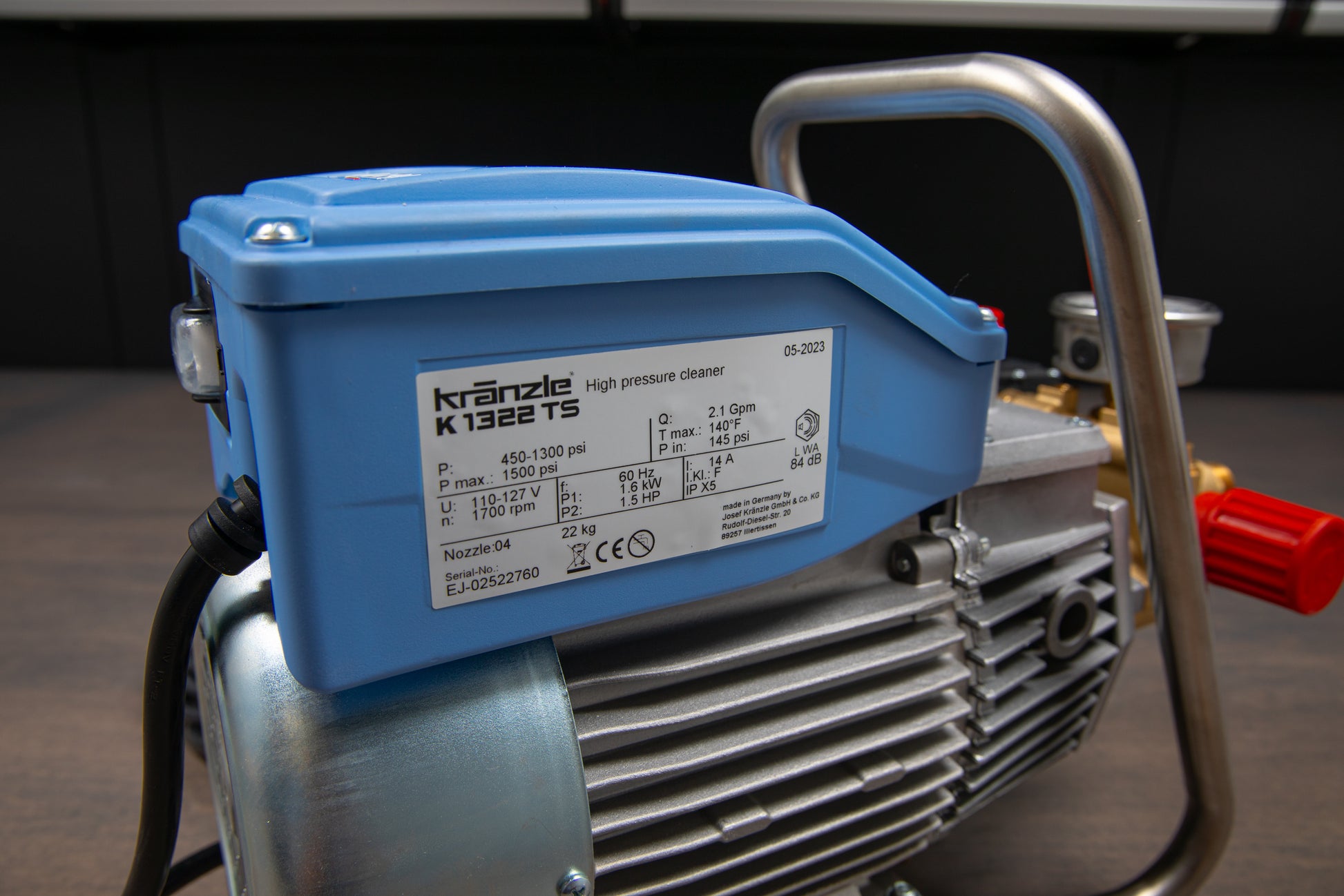

Kranzle K1322TS
- Tested Flow: 1.9 GPM
- Tested Pressure: 1010 PSI
- Tested Current: 13.5 A with 4.0 Orifice Nozzle, 16.2 A with 1.25mm Orifice Foam Cannon

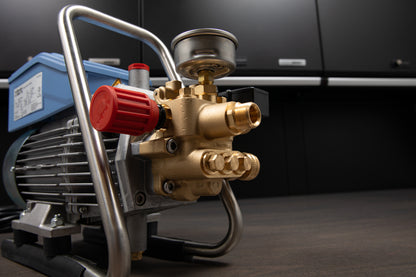

- 3 Piston Wobble Plate Pump
- Self-Priming
- Auto-start/stop

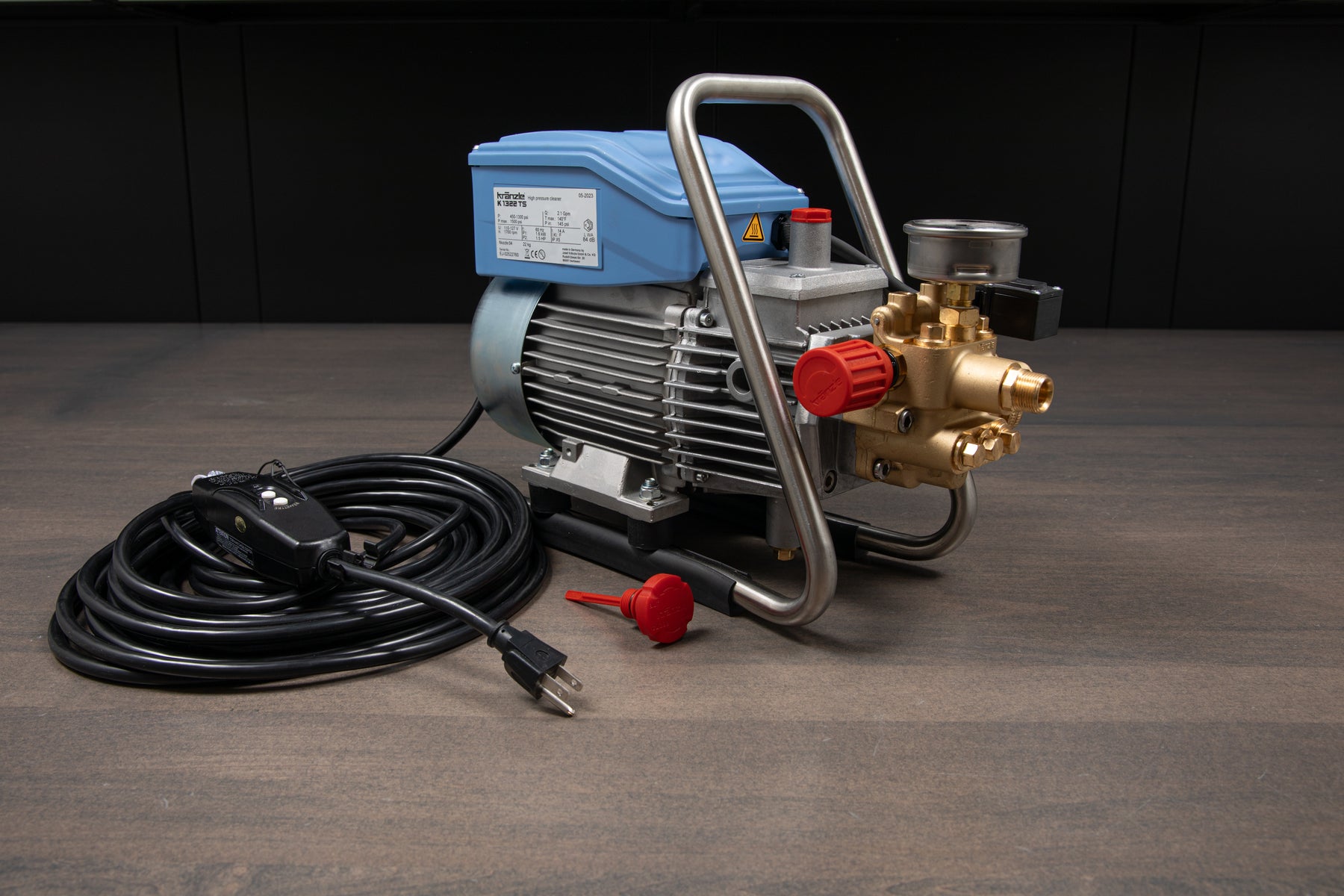

- 35’ Power Cord with GFCI
- Electrical Requirements: 110 V, 15 A (Recommended 20 A circuit for use with foam cannons)

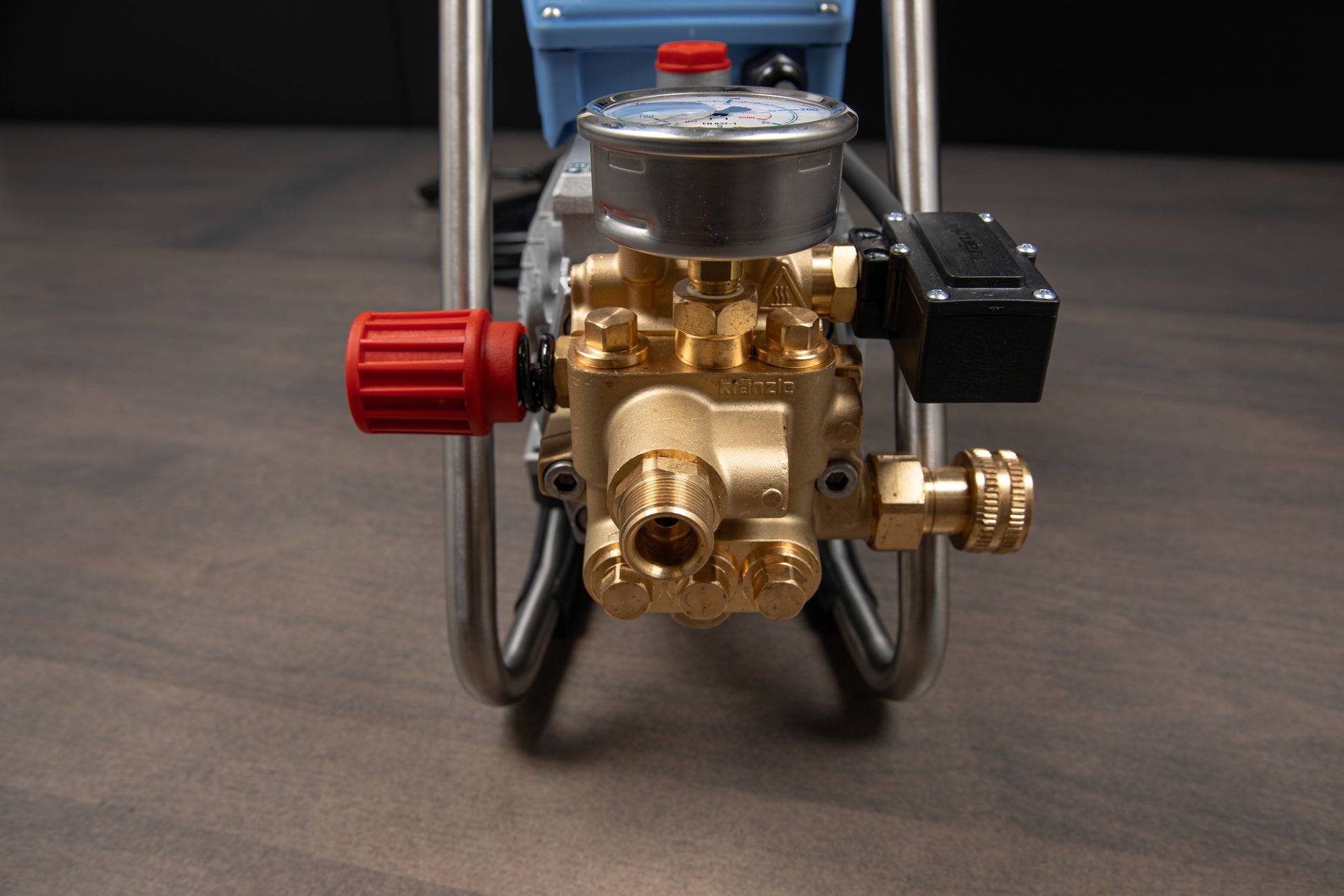

- Inlet: ¾” Female GHT
- Outlet: M22 Male (14mm)
- Dimensions: 18.75” W x 7” D x 12.5” H
- Weight: 43 LBS

- Max Temperature 140°F

Warranty Information
Kranzle offers a 1-year warranty for commercial use and 2 years for home use. Info about their warranty can be found HERE. If you ever have a problem with your machine, reach out to us. Before you send us an email, try to work through the issues yourself in our FAQ and Support tab. Sometimes it’s a simple fix if you’re having trouble.

User Manual

Kranzle K1322TS operating manual with spare parts list
