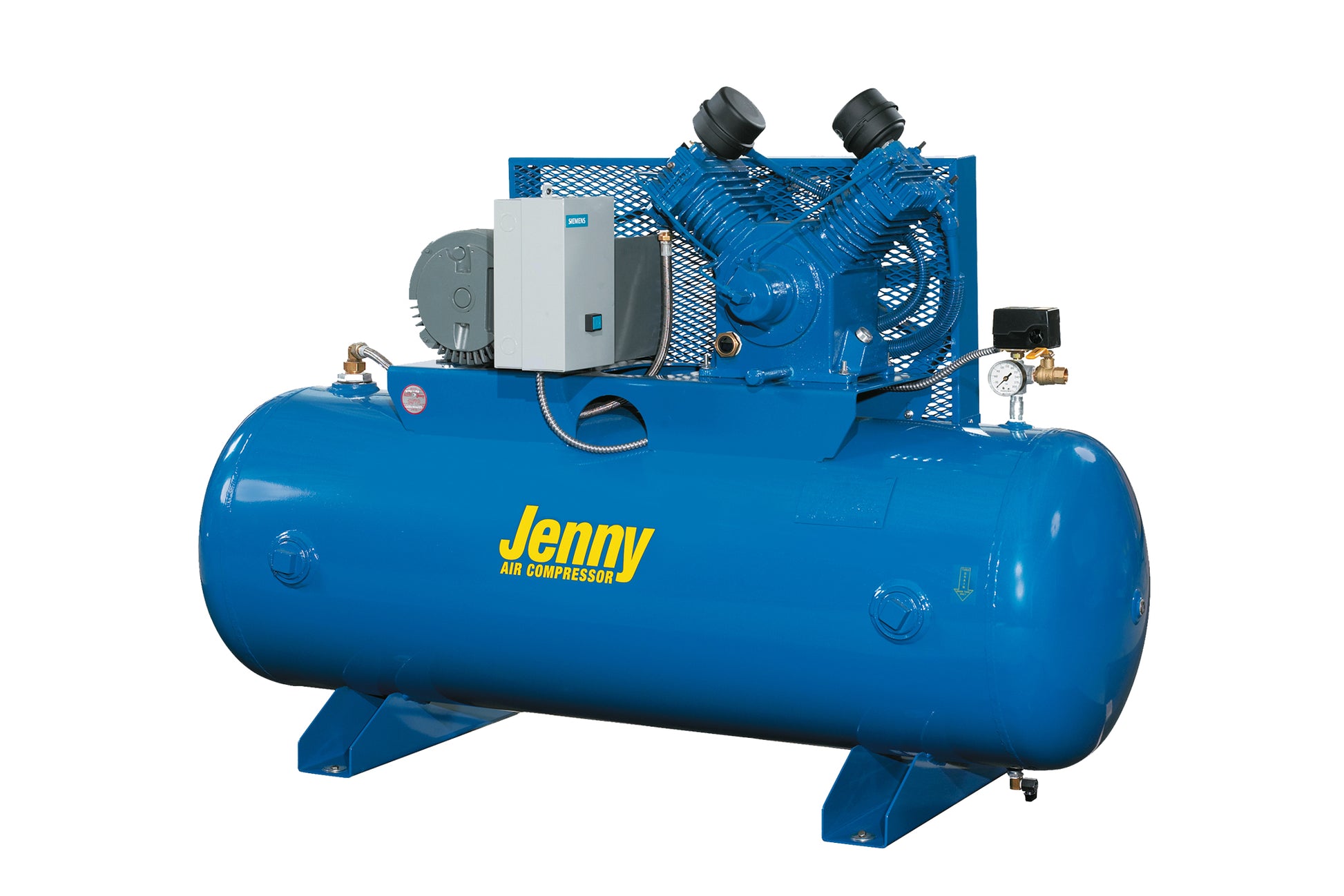

Jenny W5B-60 5HP 60 Gallon Two Stage Air Compressor

Skip to product information
1 of 4
Orientation
Regular price $4,838.00 USD
Sale price $4,838.00 USD Regular price

    Shipping Information

    This item is dropshipped from Jenny in Pennsylvania. Shipping will be calculated at checkout for most addresses. If you cannot get a shipping quote, please reach out to support for a quote.

    W5B-60V-230V-Single Phase

    IMAGE MIGHT NOT REPRESENT THE EXACT PRODUCT


    Standard Features:

    • Heavy-duty two stage cast iron compressor pump - Made in Somerset, PA USA
    • Wired for 230V, Single Stage Power.
    • Splash lubricated
    • Belt driven with a large flywheel for extra cooling and easier start-up
    • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
    • Directional air shroud for reduced pump temperatures
    • Totally enclosed heavy-duty belt guard
    • Tanks are powder coated and ASME certified
    • 60 gallon tanks and larger are ASME National Board certified
    • Protectively mounted fittings
    • Manual tank drain(s)
    • Large canister intake filter with replaceable filter elements
    • Special unloading valves to assist in motor starting
    • Tank gauge
    • Pressure relief safety valve
    • Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
    • Magnetic starter is included on all 5HP and larger units
    • Industrial/Commercial grade UL Listed electric motor
    • Thermal overload motor protection

    x1 - Jenny W5B-60 5HP 60 Gallon Two Stage Air Compressor

    Model: Jenny W5B-60

    Horsepower: 5 HP

    Tank Size: 60 gallons

    Pump Type: Heavy-duty two-stage cast iron compressor pump — Made in Somerset, PA USA

    Power: Wired for 230V, Single Phase Power

    Lubrication: Splash lubricated with Jenny Ultimate Blue Synthetic Compressor Pump Oil

    Drive Type: Belt driven with large flywheel for extra cooling and easier start-up

    Belt Guard: Totally enclosed heavy-duty belt guard

    Tank Certification: Tanks are powder coated and ASME certified; 60 gallon tanks and larger are ASME National Board certified

    Tank Drain: Manual tank drain(s)

    Intake Filter: Large canister intake filter with replaceable filter elements

    Tank Gauge: Yes

    Pressure Relief Valve: Safety valve included

    Auto Start/Stop Control: Yes, with pressure unloader set at 145–175 PSI (two stage)

    Magnetic Starter: Included on all 5HP and larger units

    Motor: Industrial/commercial grade UL Listed electric motor

    Motor Protection: Thermal overload motor protection

    Dimensions:

    • Length: 56 in
    • Width: 26 in
    • Height: 58 in

    Weight: 380 lbs
