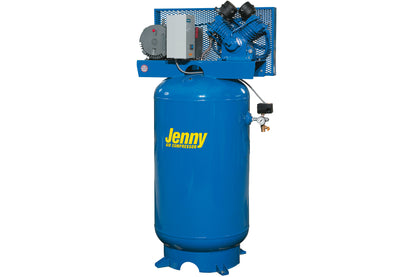

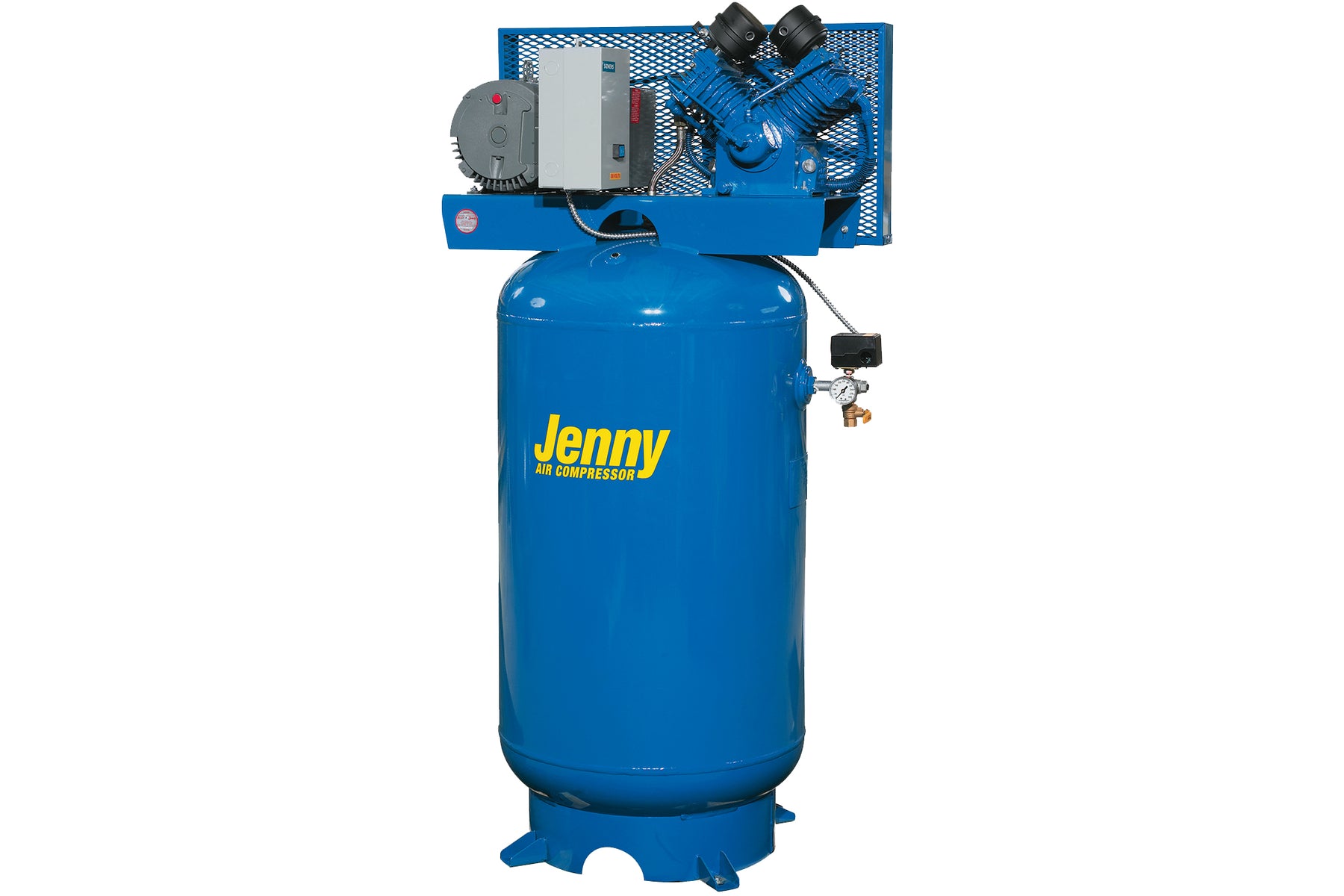

Jenny GT3B-80 3HP 80 Gallon Two Stage Air Compressor



IMAGE MIGHT NOT REPRESENT THE EXACT PRODUCT

Standard Features:

  • Heavy-duty two stage cast iron compressor pump - Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty belt guard
  • Tanks are powder coated and ASME certified
  • 60 gallon tanks and larger are ASME National Board certified
  • Protectively mounted fittings
  • Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • Special unloading valves to assist in motor starting
  • Tank gauge
  • Pressure relief safety valve
  • Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
  • Industrial/Commercial grade UL Listed electric motor
  • Thermal overload motor protection



    Shipping

    These will drop-ship from the Jenny in  Pennsylvania. Rather than building shipping into the price and leaving a fudge factor for different parts of the country, I think it's smarter to simply quote you the price it costs with no markup. Suspect the shipping invoice to be around $175-400 depending on where you live.

    • If you know what you want, place your order.
    • I will send a separate invoice with shipping cost.

    Manuals:



    Specifications:

    MODEL HP TANK GAL. VOLTS AMPS PUMP RPM CFM DISP. CFM Del'd @ 125 PSI L W H APPROX. WEIGHT
    GT3B-80 3 80 230V 15 660 13.4 10.7 75" 38" 53" 590lbs
    GT3B-80V 3 80 230V 15 660 13.4 10.7 36" 27" 70" 590lbs
