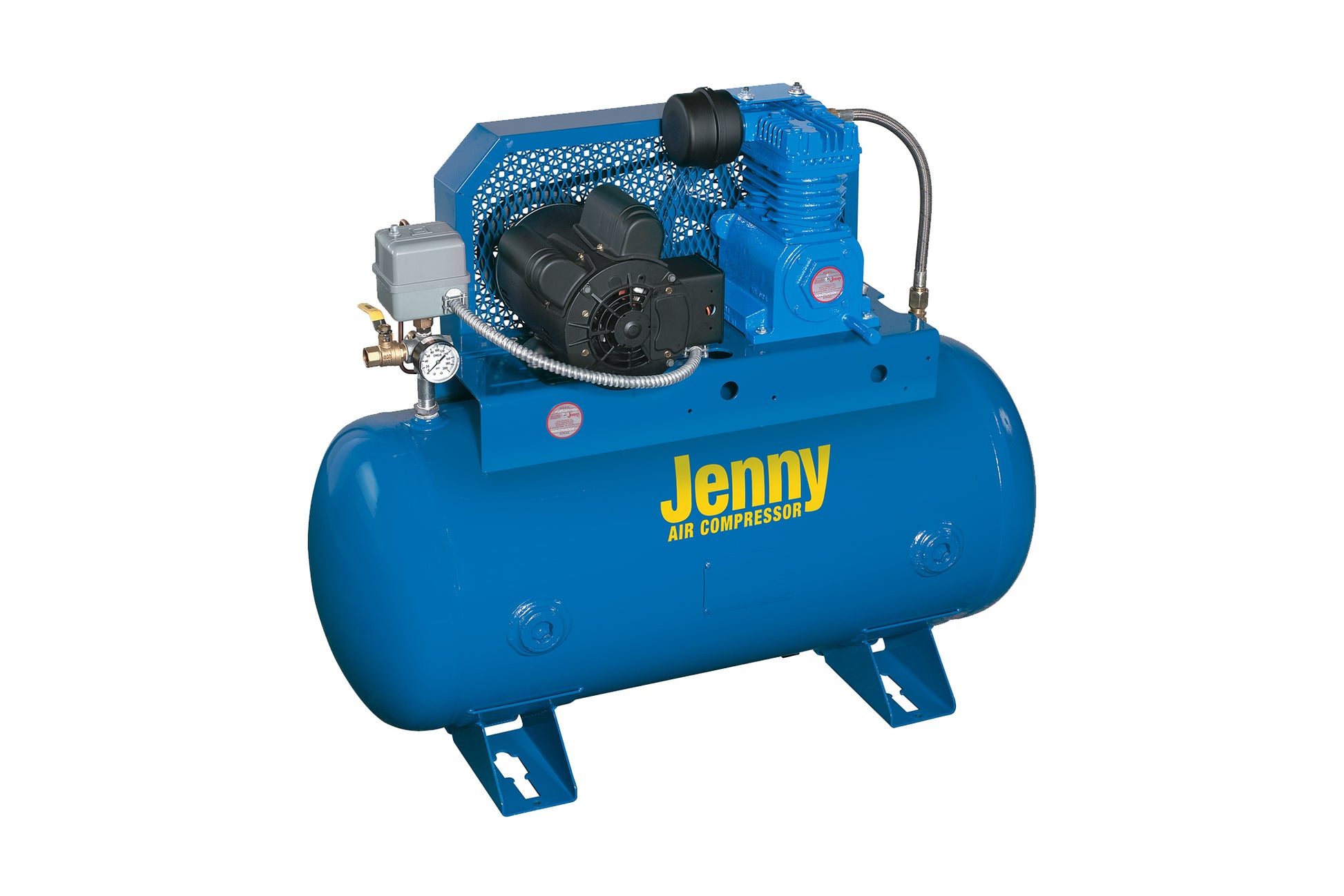

Jenny G3A-30 3HP 30 Gallon Single Stage Air Compressor

IMAGE MIGHT NOT REPRESENT THE EXACT PRODUCT

Standard Features:

  • Heavy-duty single stage cast iron compressor pump - Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Totally enclosed heavy-duty belt guard
  • Tanks are powder coated and ASME certified
  • Protectively mounted fittings
  • Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • Special unloading valves to assist in motor starting
  • Tank gauge
  • Pressure relief safety valve
  • Auto Start/Stop control with pressure unloader set at 105-125 PSI (single stage) or 145-175 PSI (two stage)
  • Industrial/Commercial grade UL Listed electric motor
  • Thermal overload motor protection

Shipping

These will drop-ship from the Jenny in  Pennsylvania. Rather than building shipping into the price and leaving a fudge factor for different parts of the country, I think it's smarter to simply quote you the price it costs with no markup. Suspect the shipping invoice to be around $175-400 depending on where you live.

  • If you know what you want, place your order.
  • I will send a separate invoice with shipping cost.



Manuals:



Specifications:

MODEL HP TANK GAL. VOLTS AMPS PUMP RPM CFM DISP. CFM Del'd @ 125 PSI L W H APPROX. WEIGHT
G3A-30 3 30 230V 15 770 20.8 14 45" 24" 43" 340lbs

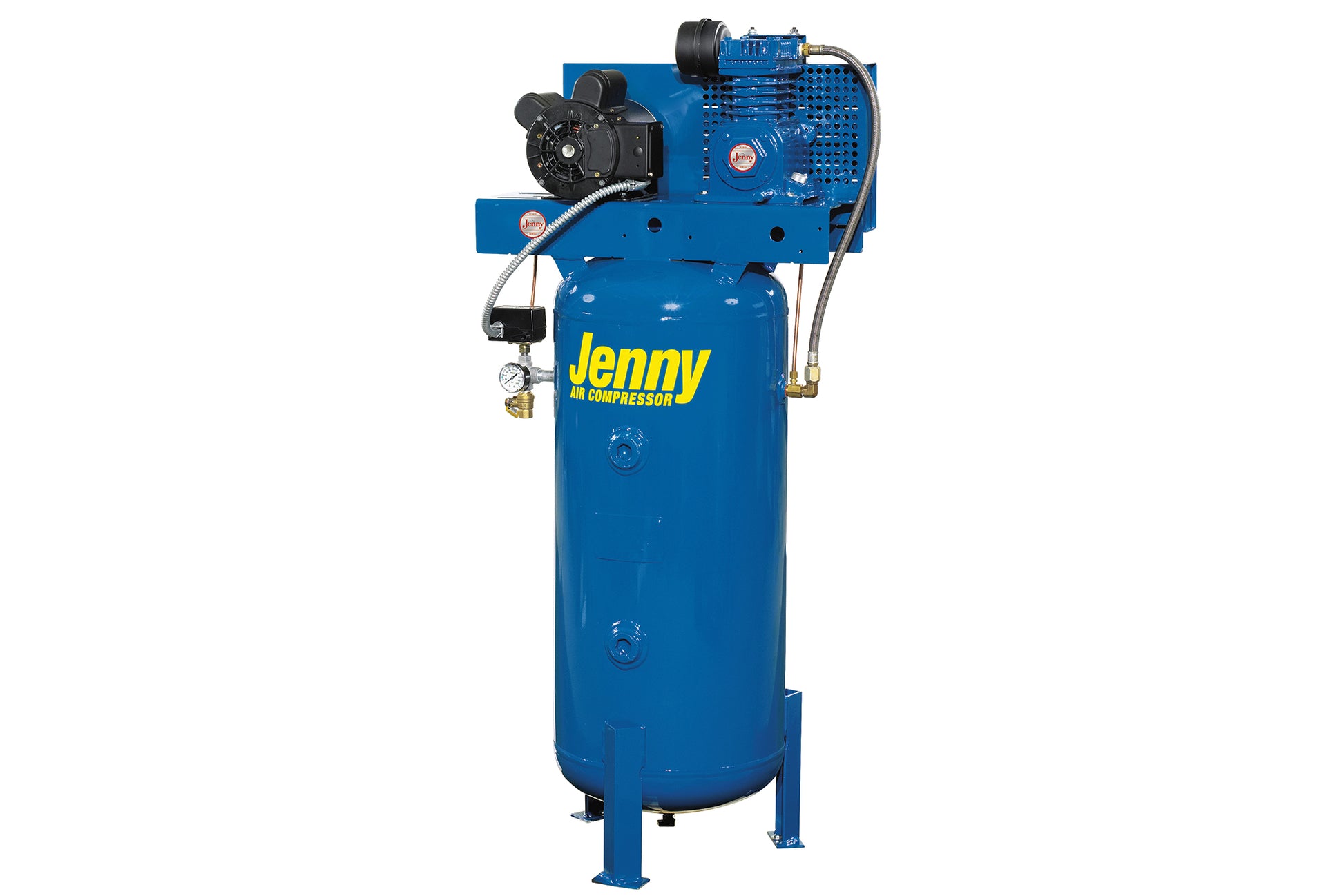

G3A-30V 3 30 230V 15 770 20.8 14 28" 19" 62" 340lbs
