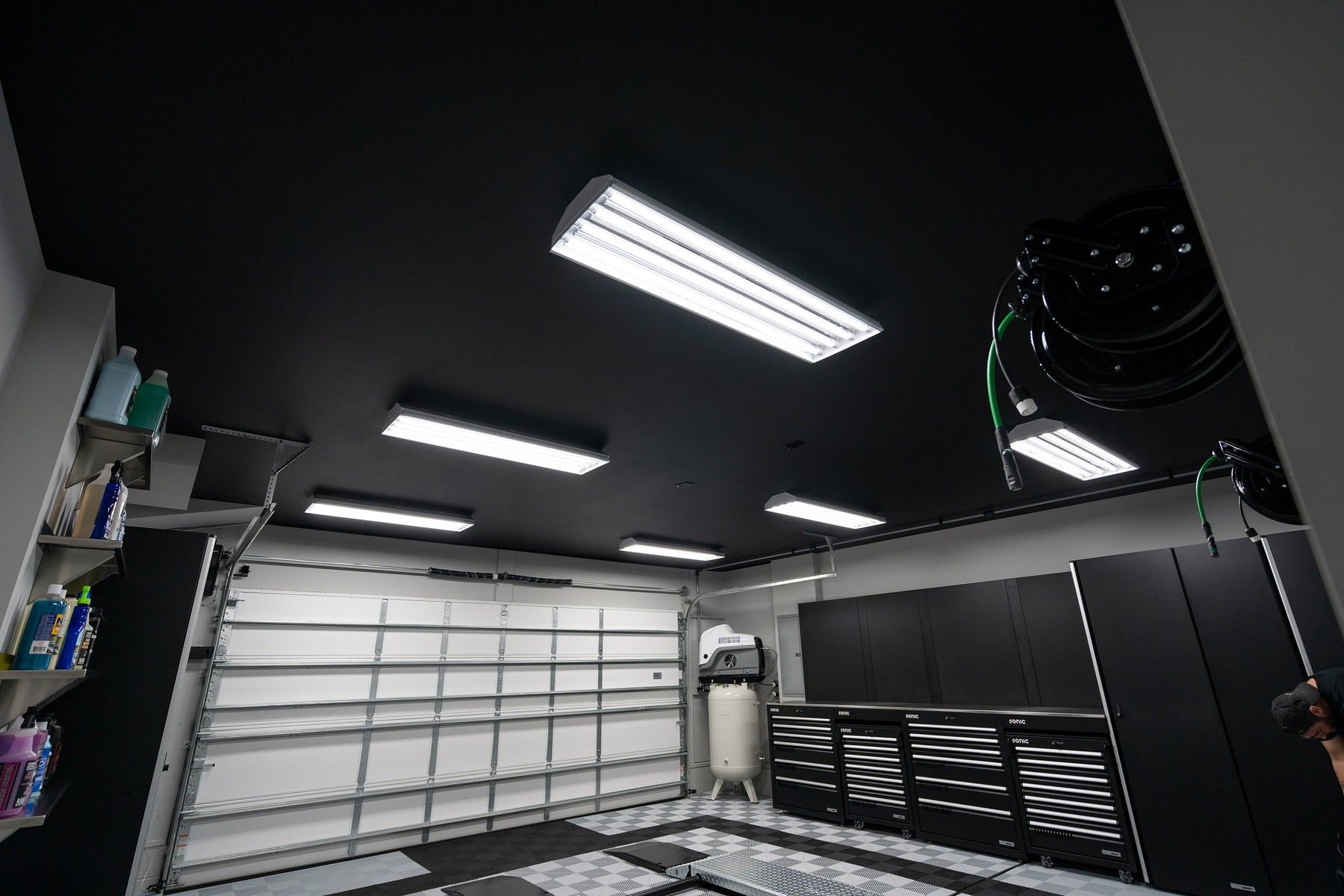

We get a lot of questions on lighting layouts and how many fixtures to purchase. For a four-car garage, you'll be shooting for a four-wide and three-deep layout. Cover each parking space with three fixtures perpendicular to the vehicle, and you'll be off to a good start. These lights have a super high lumen output, but they find a way to not be too harsh on your eyes. The color temperature is exactly what you want for your four-car garage.

You should install these with two separate switches to separate the room into halves. You could get creative as well, though. If you have storage or cabinets along the same wall as the entrance into your home, sometimes it works well to have that entire row along the wall be on its own switch. That way, when you walk out into the garage to grab something, you don't have to turn on every light.

For ceilings up to 13 feet, choose the 4-bulb variant. For anything 14 feet and up, choose the 6-bulb option.

Technical Drawing Download

Specifications

48" L x 13 7/8" W x 3 15/16" D Each
110V Rated at 50,000+ Hours 80+ CRI
Surface Mountable or Chain Hung Capable
Non-dimmable

4 Bulb Fixture

- Rated to draw 0.74A per fixture
- 11,400 LED Lumen Output (21,660 Equivalent)

6 Bulb Fixture

- Rated to draw 1.2A per fixture
- 17,100 LED Lumen Output (32,490 Equivalent)

x12 - Overhead Light Fixtures (4 bulb or 6 bulb)

This item is dropshipped from Prime Lights in Texas. Shipping is free to continental US.
