Overhead Lights 2.0

Skip to product information
1 of 8
Size
Shipping Location
Regular price $145.00 USD
Sale price $145.00 USD Regular price

    Shipping Information

    This item is dropshipped from Prime Lights in Texas. Shipping is free to continental US.

    PL-4SRHBG2-80XLFR

    Description

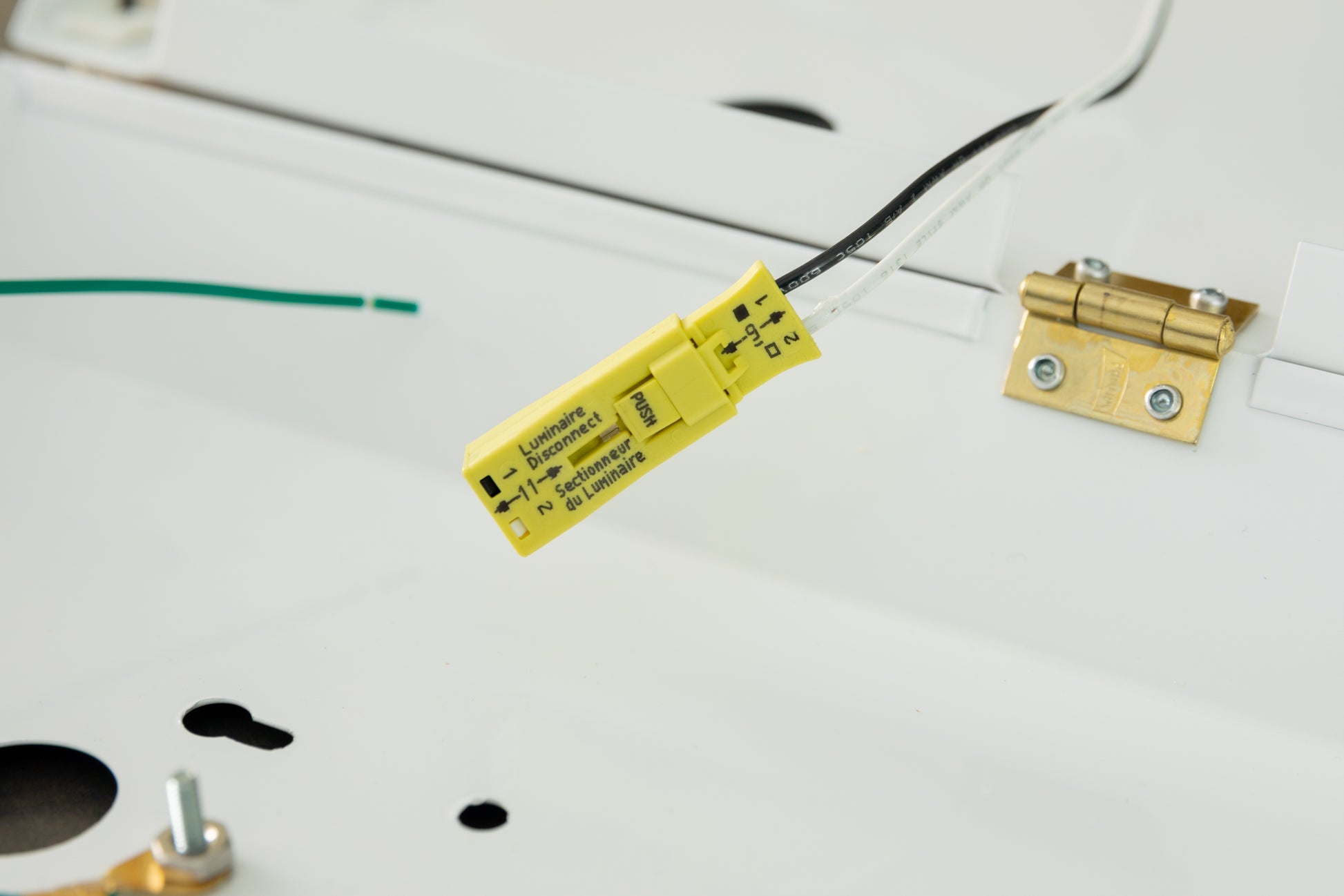

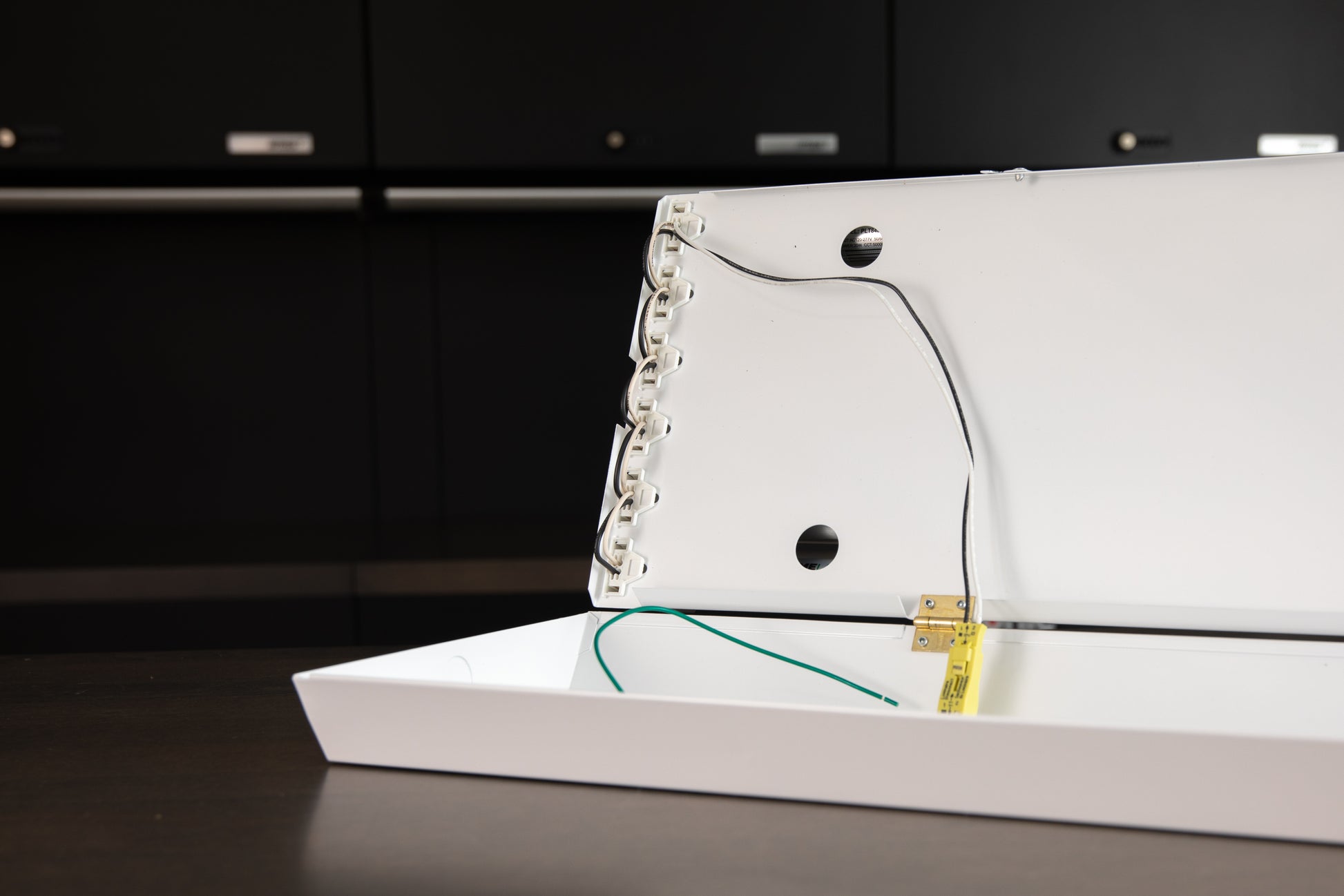

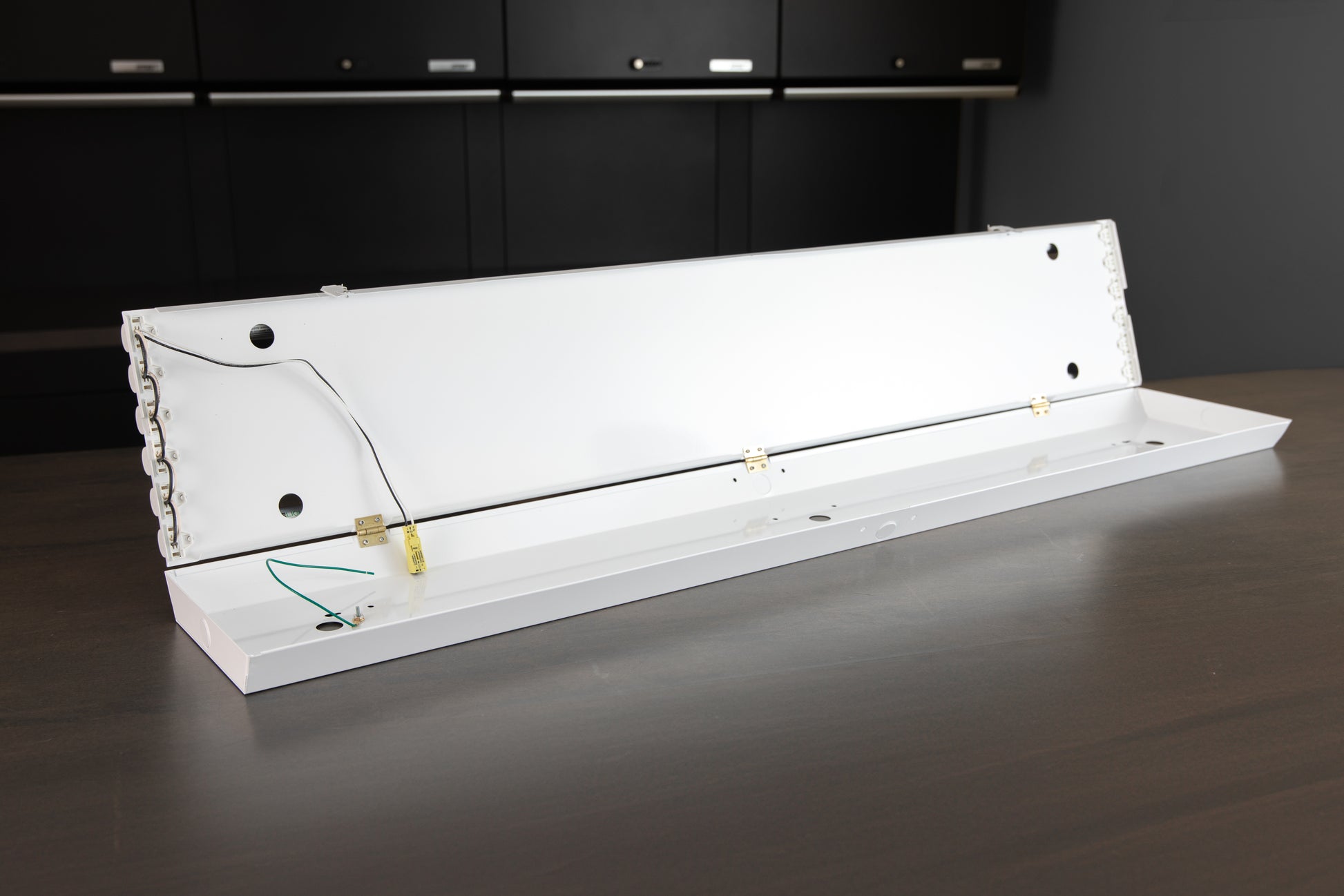

    New for Summer 2024 are the generation 2.0 of our Overhead Lights. If you have seen in some of my past videos the lights I've put in my 2 garages or the LZ Garage project, these are much better. These lights include bulbs and are less expensive as a total package due to the lack of ballasts. Like the Gen 1 lights, these are still the typical 20-gauge baked White Enamel Steel, but they are now much simpler. These don't have the unnecessary reflectors, which means the housing can be much smaller. The Gen 2 lights now have a hinge, which makes installation so much easier.

    These single-sided powered lights include 5000K frosted LEDs. Although technically high bay fixtures, they can be used in a garage of normal height if placed properly. That's why frosted LED tubes are necessary. You don't want clear lenses.

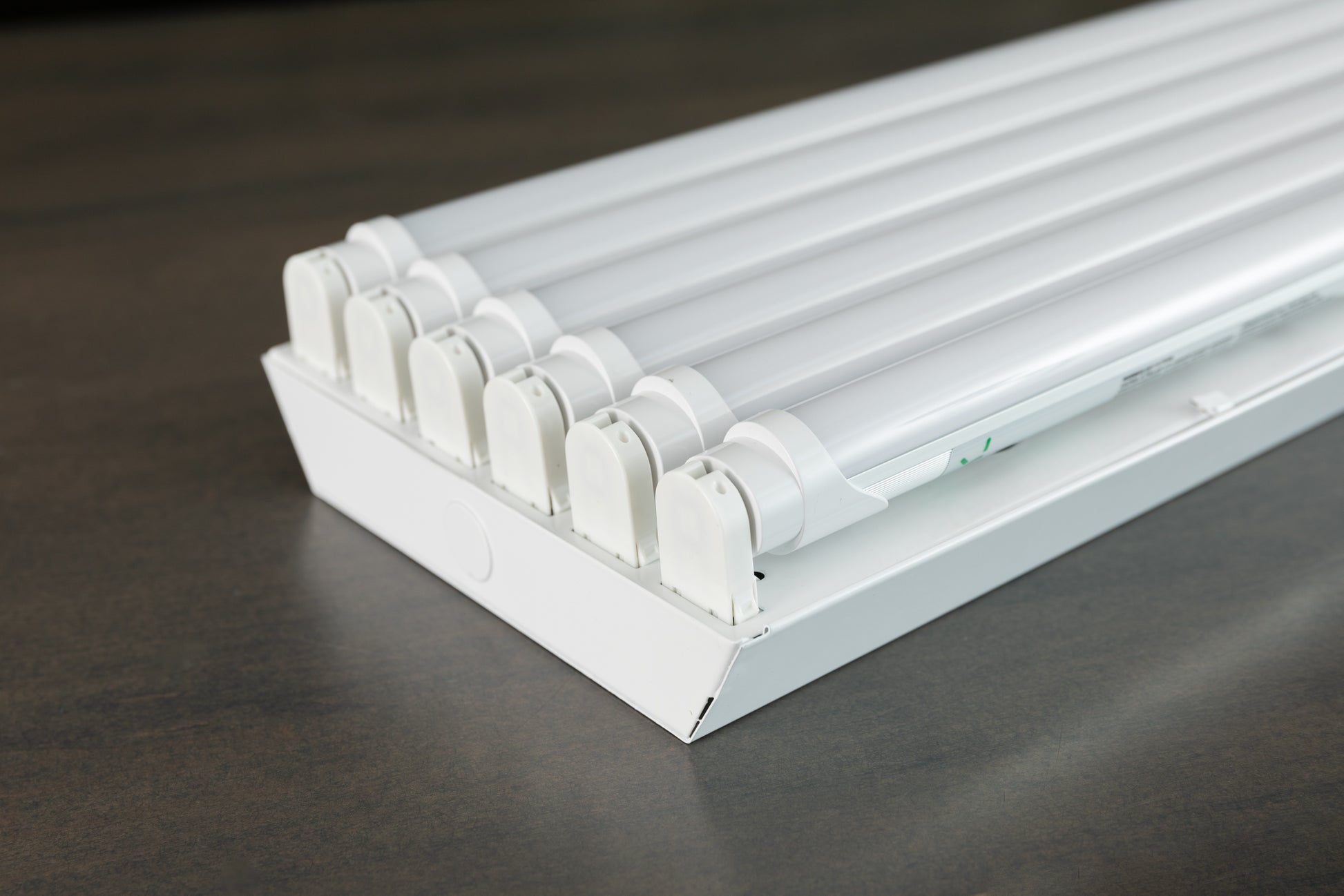

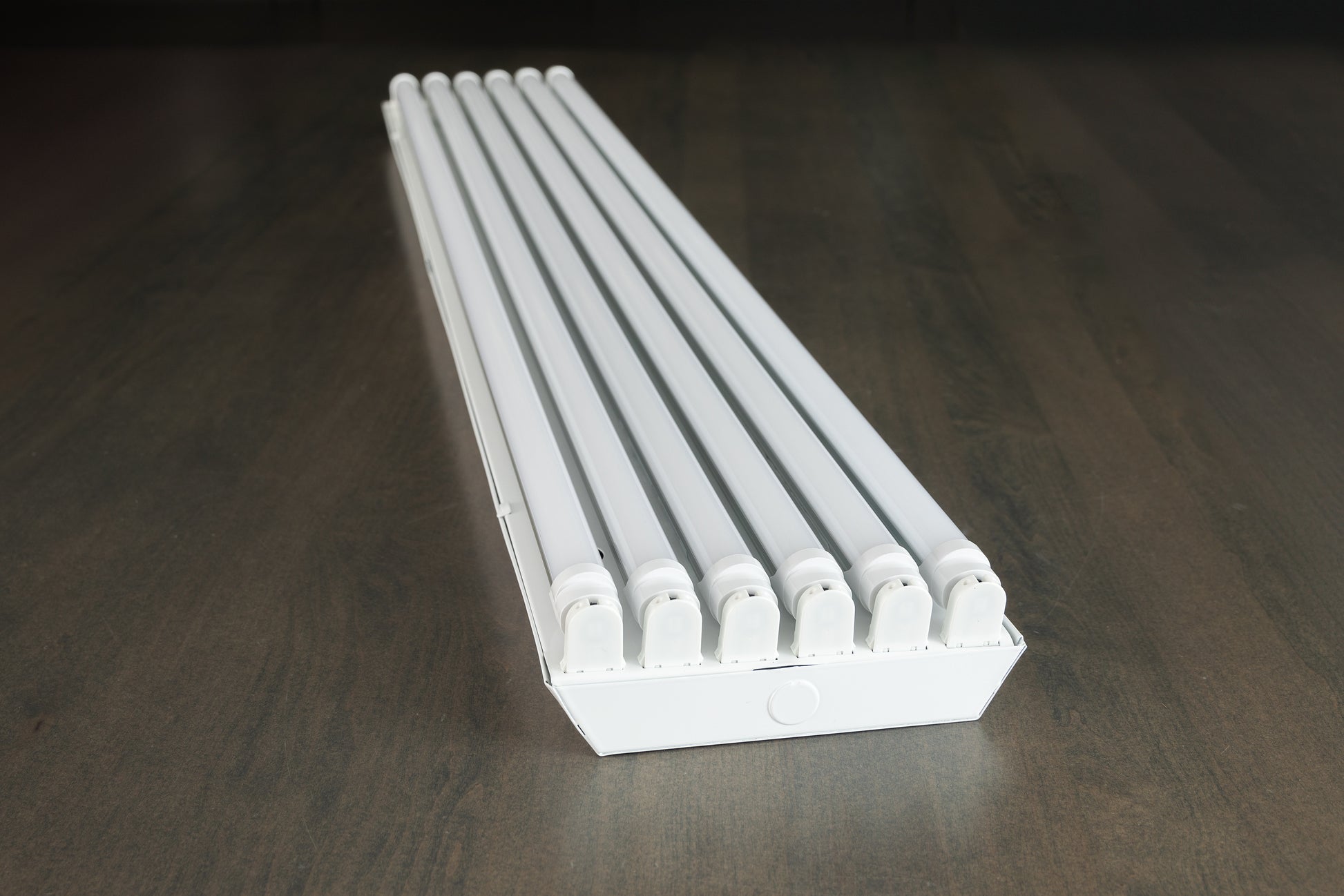

    Note the photos you see of the lights installed in a garage are Gen 1 Lights. The Gen 2 Lights look similar but don't have the housing. You can see the Gen 2 lights in the photostudio shots.

    4 Bulb

    - 4 Frosted, 22W Single-Sided 5000K Tubes

    6 Bulb

    - 6 Frosted, 22W Single-Sided 5000K Tubes

    4 Bulb Fixture

    Assembled Dimensions: 48.5" Long x 6" Wide x 3" High
    Input Wattage: 80W (Gen 2.0 much brighter, less watts than previous, more robust)
    Voltage: 110-277V
    LED Lumens: 14,400
    Lumens per watt: 180+
    Color Temperature: 5000K
    CRI: 80+
    Life: >70,000 Hours
    Beam Angle: 170°
    Amperage @ 120V: 0.67A / Amperage @ 277V: 0.29A
    Base Type: G13 Medium B-Pin
    Equivalent Lumens: 40,100 (fluorescent equiv.)
    BAA Compliant Luminaire

    *Note: Non-dimmable

    6 Bulb Fixture

    Assembled Dimensions: 48.5" Long x 9" Wide x 3" High
    Input Wattage: 120W (Gen 2.0 much brighter, less watts than previous, more robust)
    Voltage: 110-277v
    LED Lumens: 21,600
    Lumens per watt: 180+
    Color Temperature: 5000K
    CRI: 80+
    Life: >70,000 Hours
    Beam Angle: 170°
    Amperage @ 120V: 1.1A / Amperage @ 277V: 0.44A
    Base Type:  G13 Medium B-Pin
    Equivalent Lumens: 40,100 (fluorescent equiv.)
    BAA Compliant Luminaire

    *Note: Non-dimmable
