Size
Shipping Location
Regular price $129.00
/

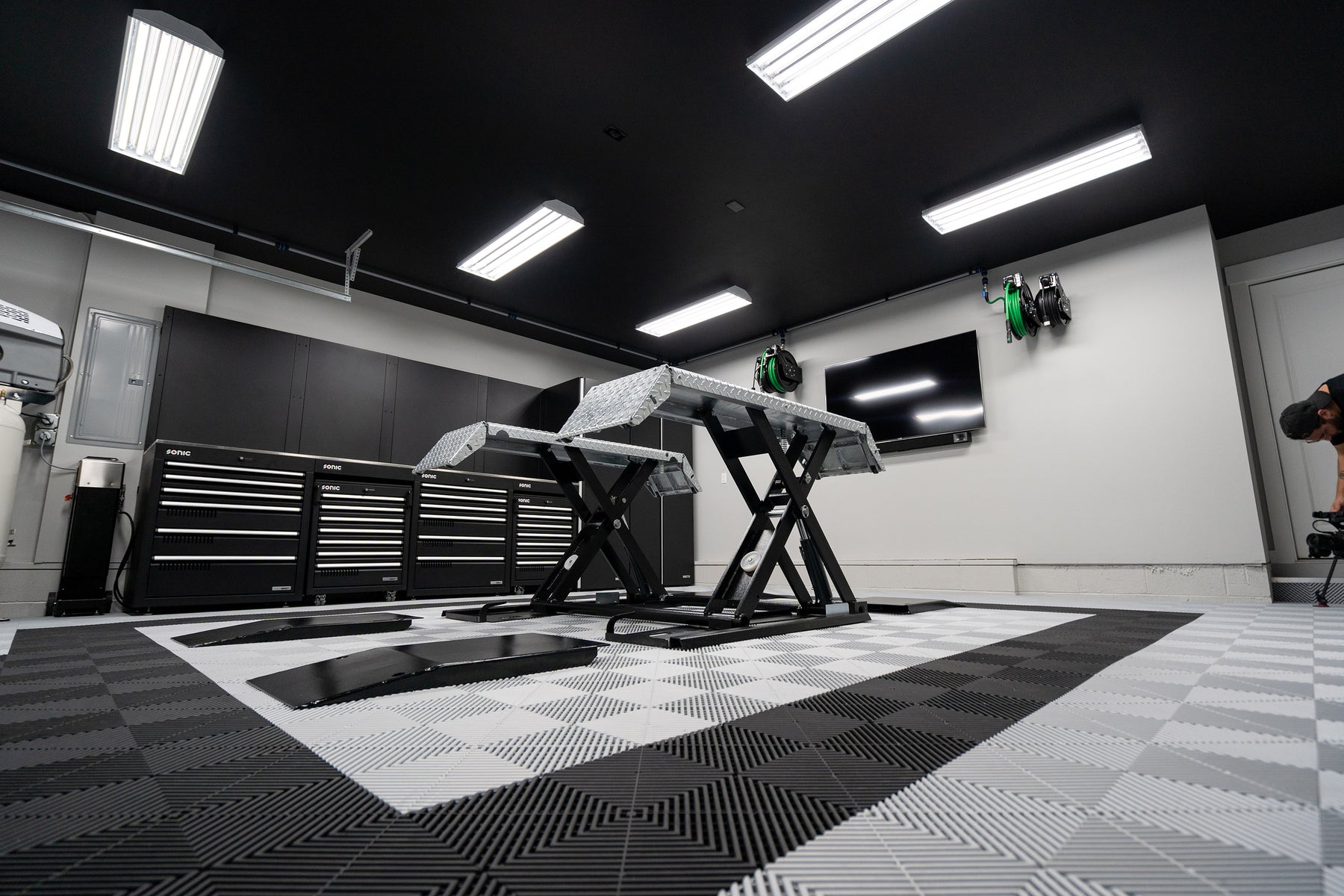

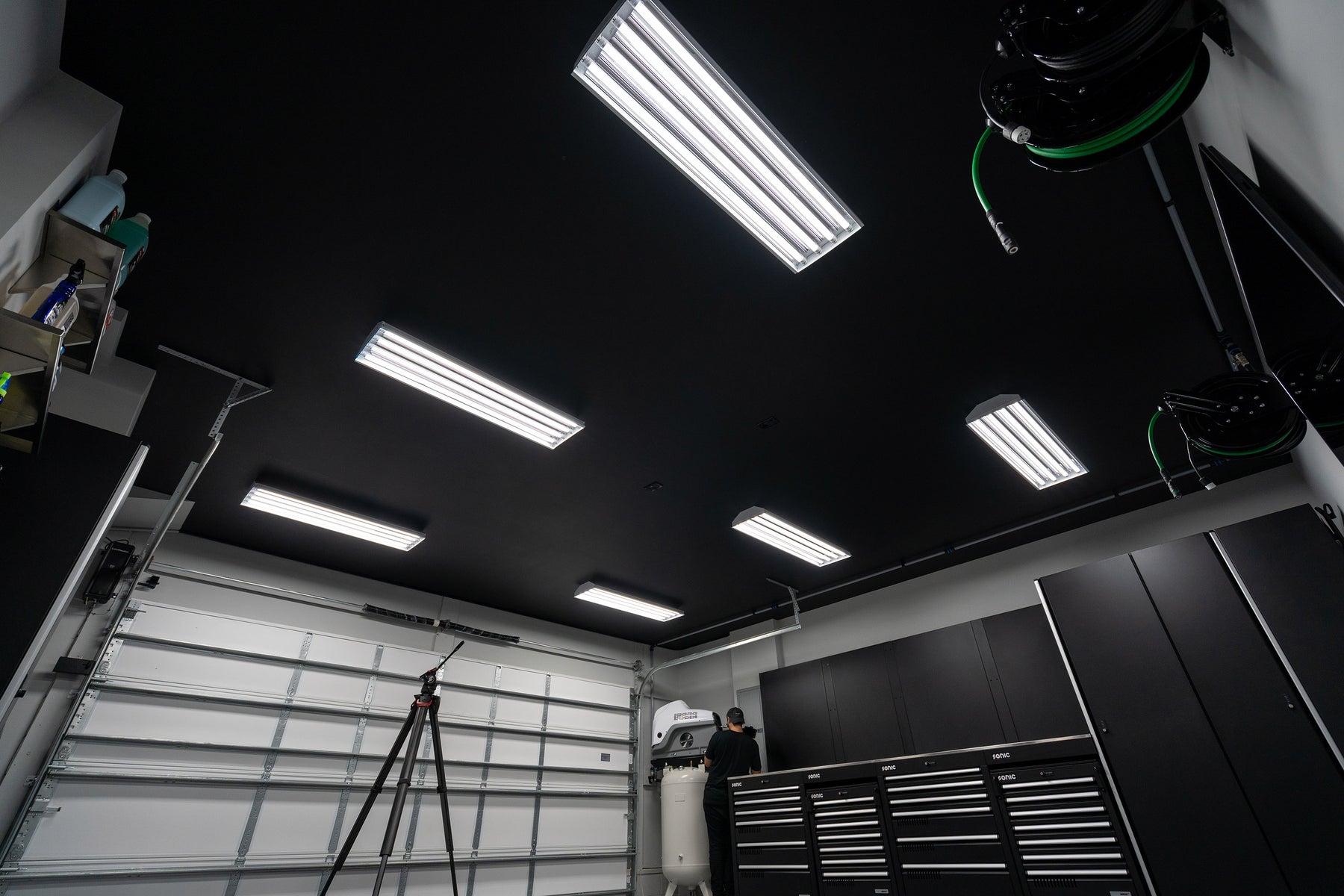

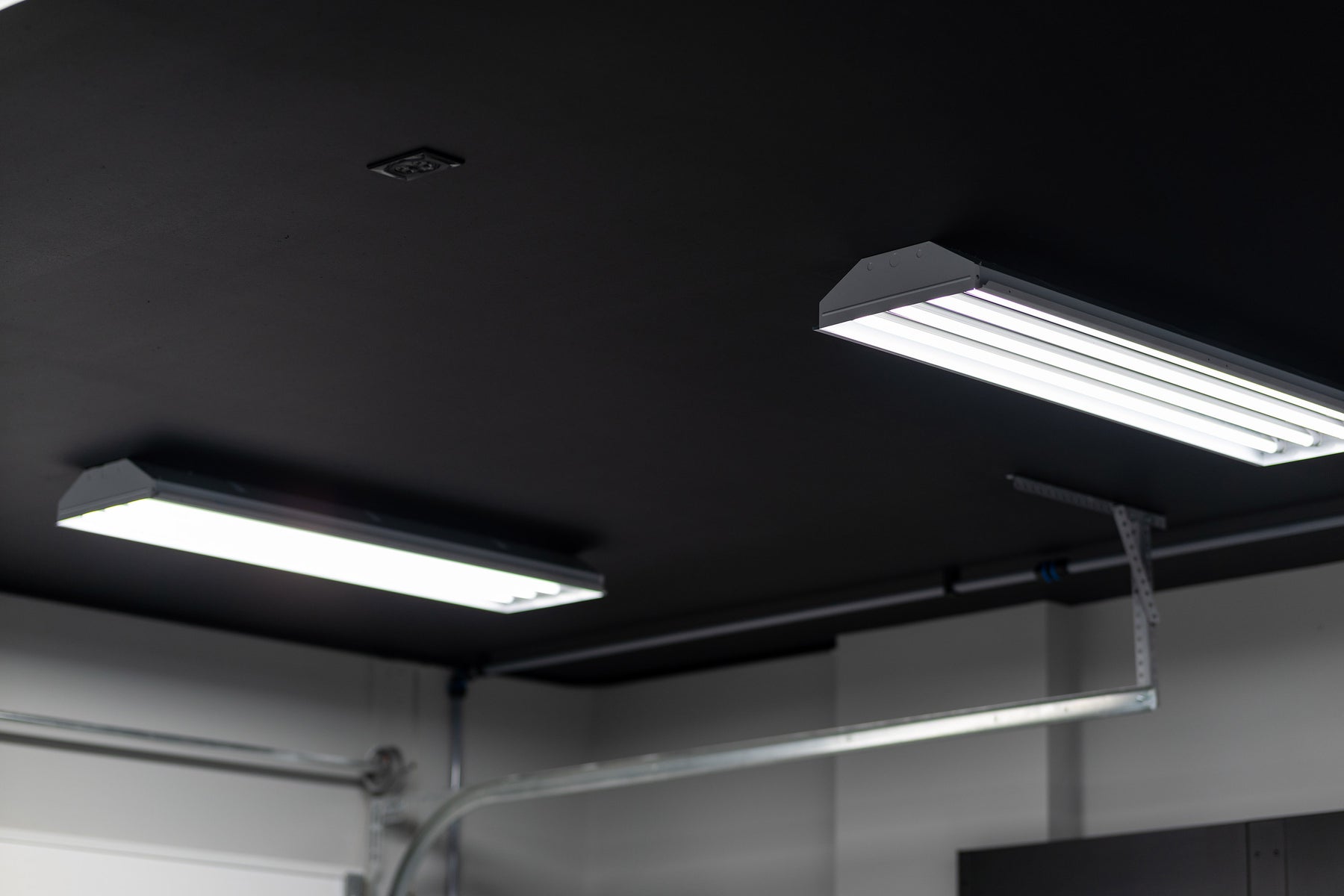

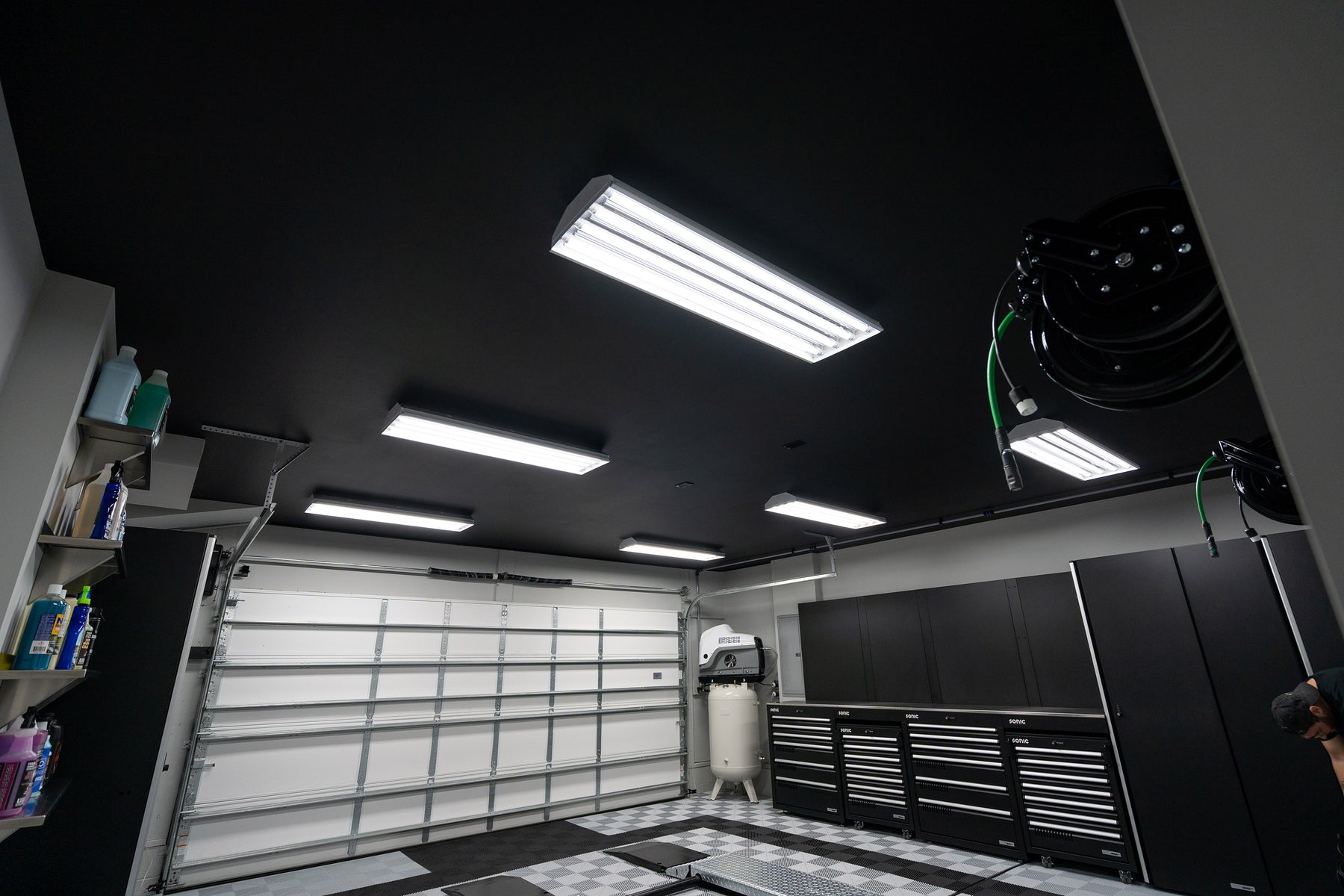

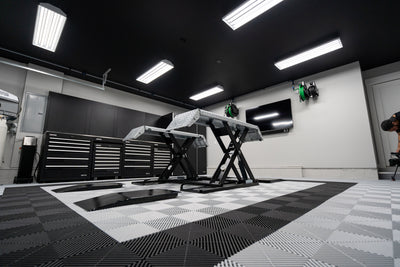

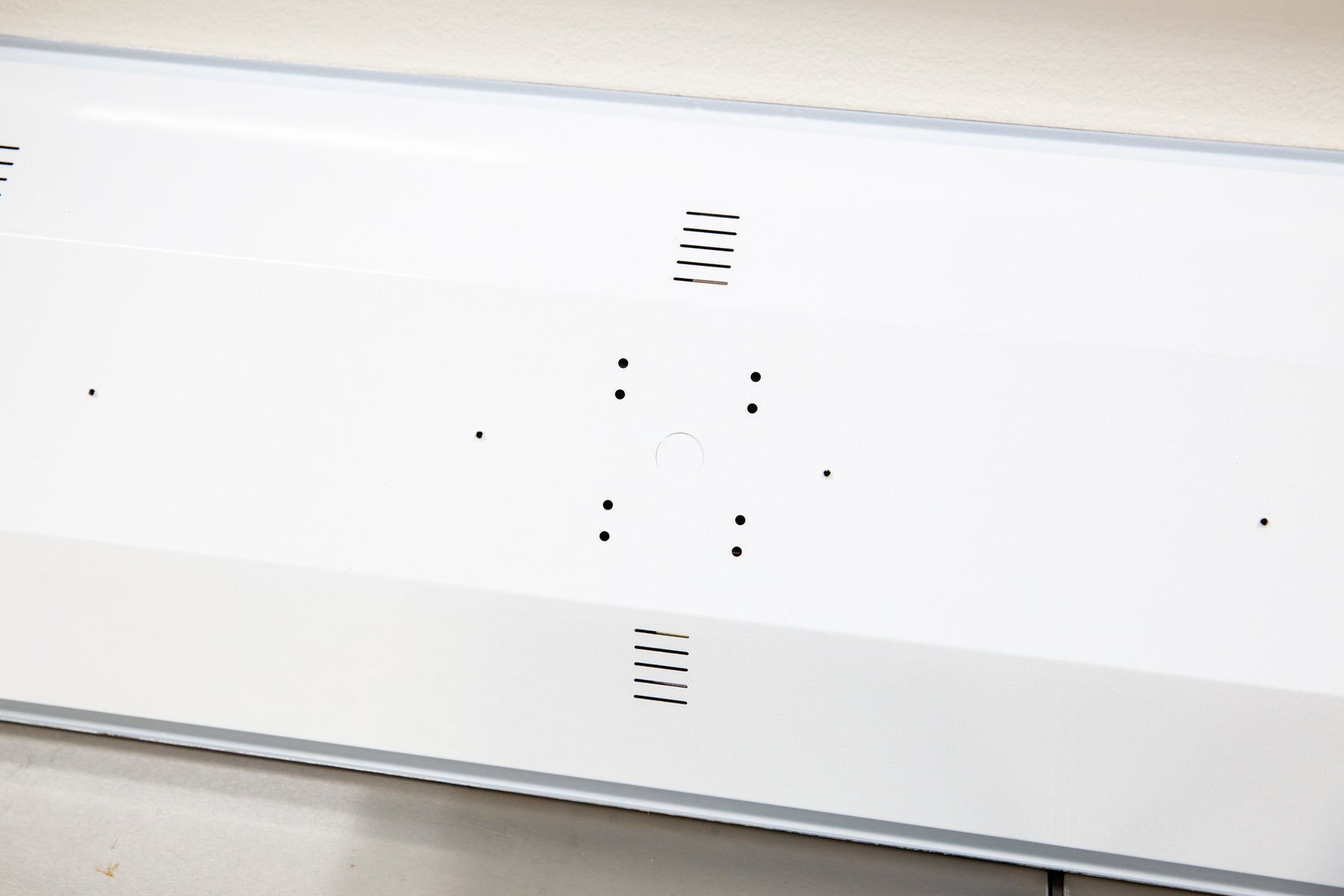

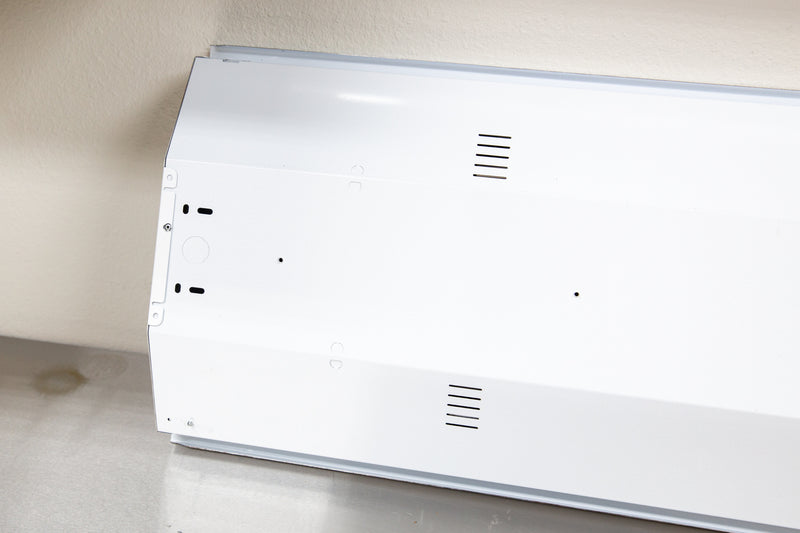

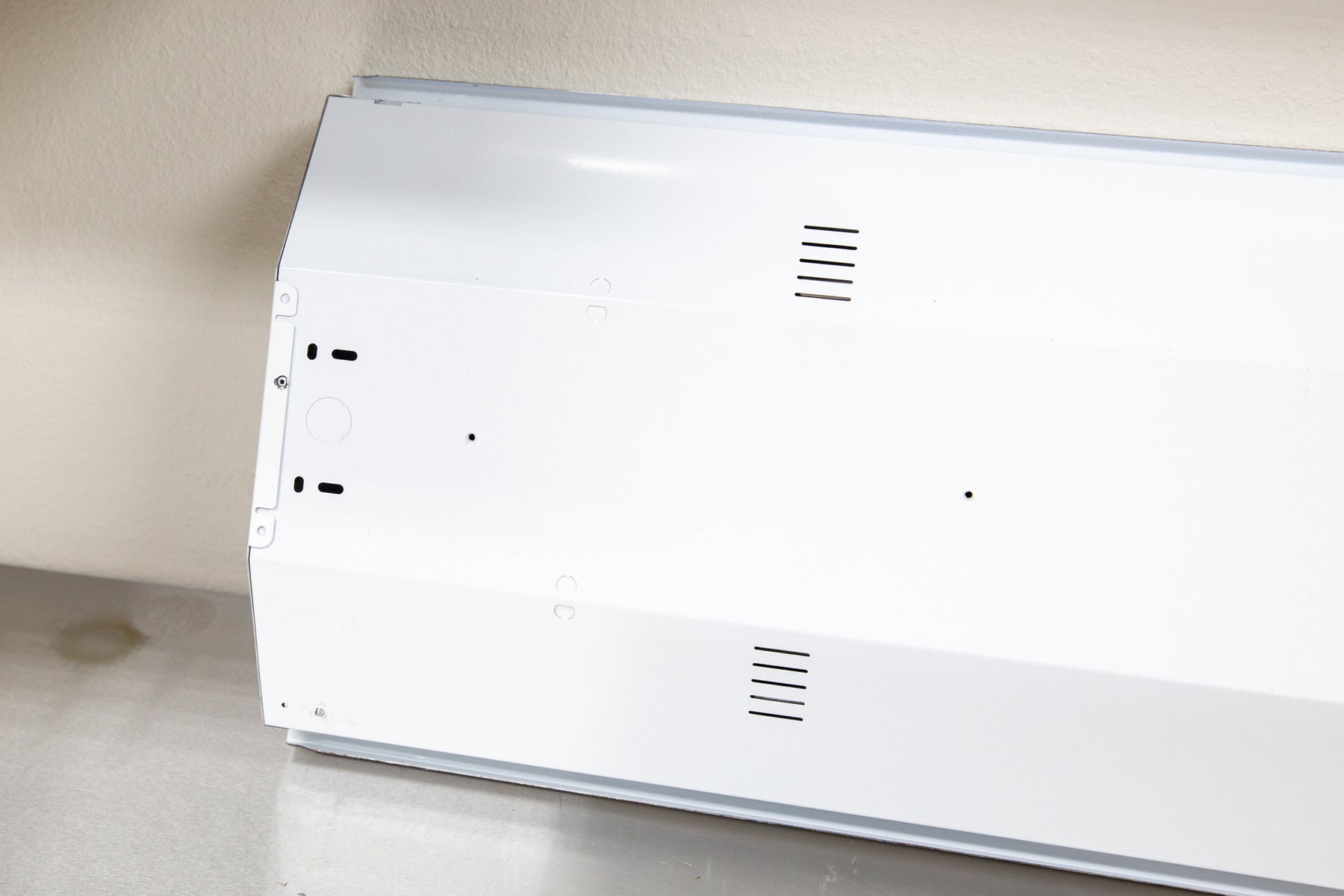

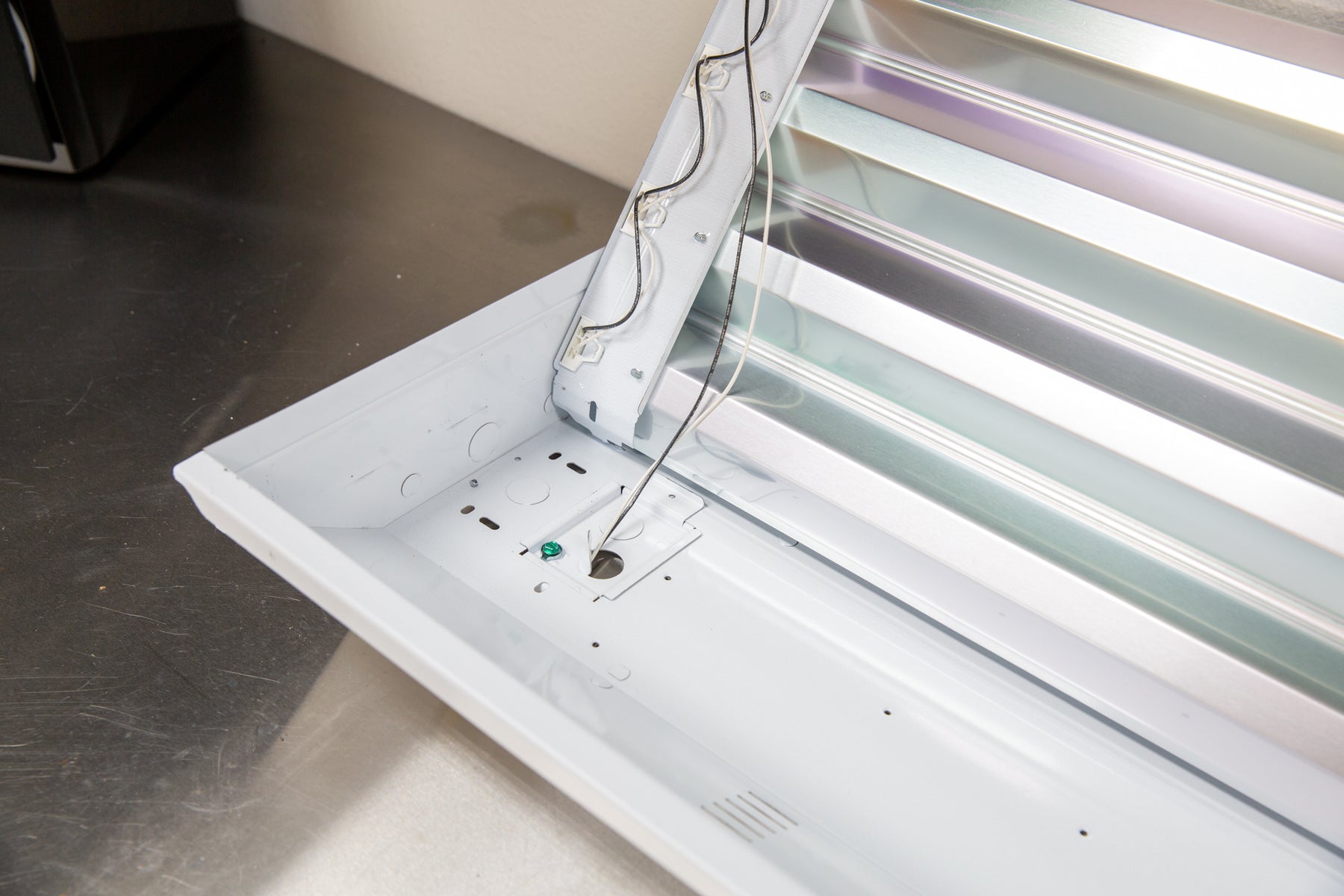

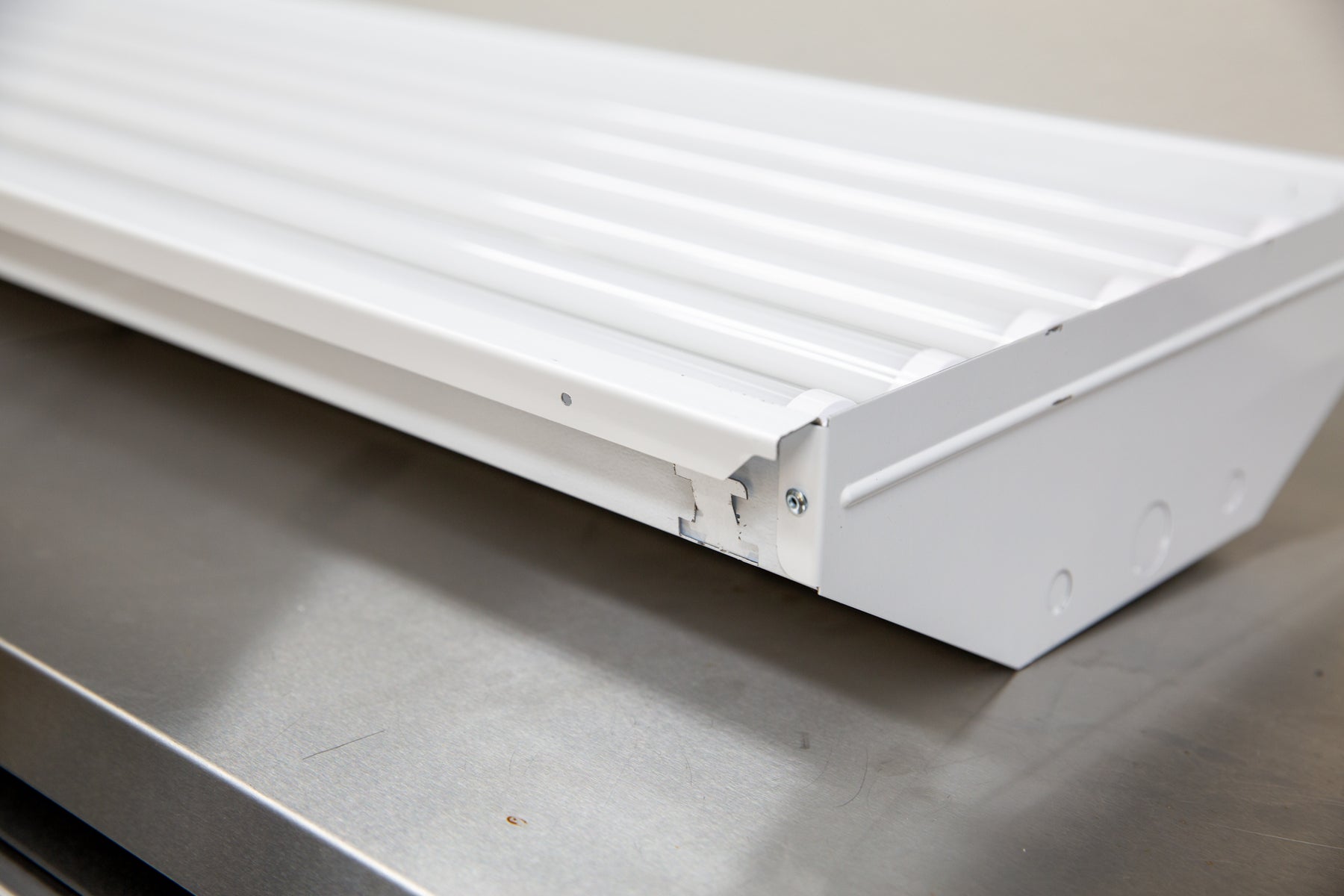

If you have seen in some of my past videos the lights I've put in my 2 garages or in the LZ Garage project, these are much better. I hadn't found these yet. The good news is these include bulbs and are less expensive as a total package due to lack of ballasts. They are still the typical 20 Gauge baked White Enamel Steel, but they have some reinforcement on the sides that make them a bit more sturdy.

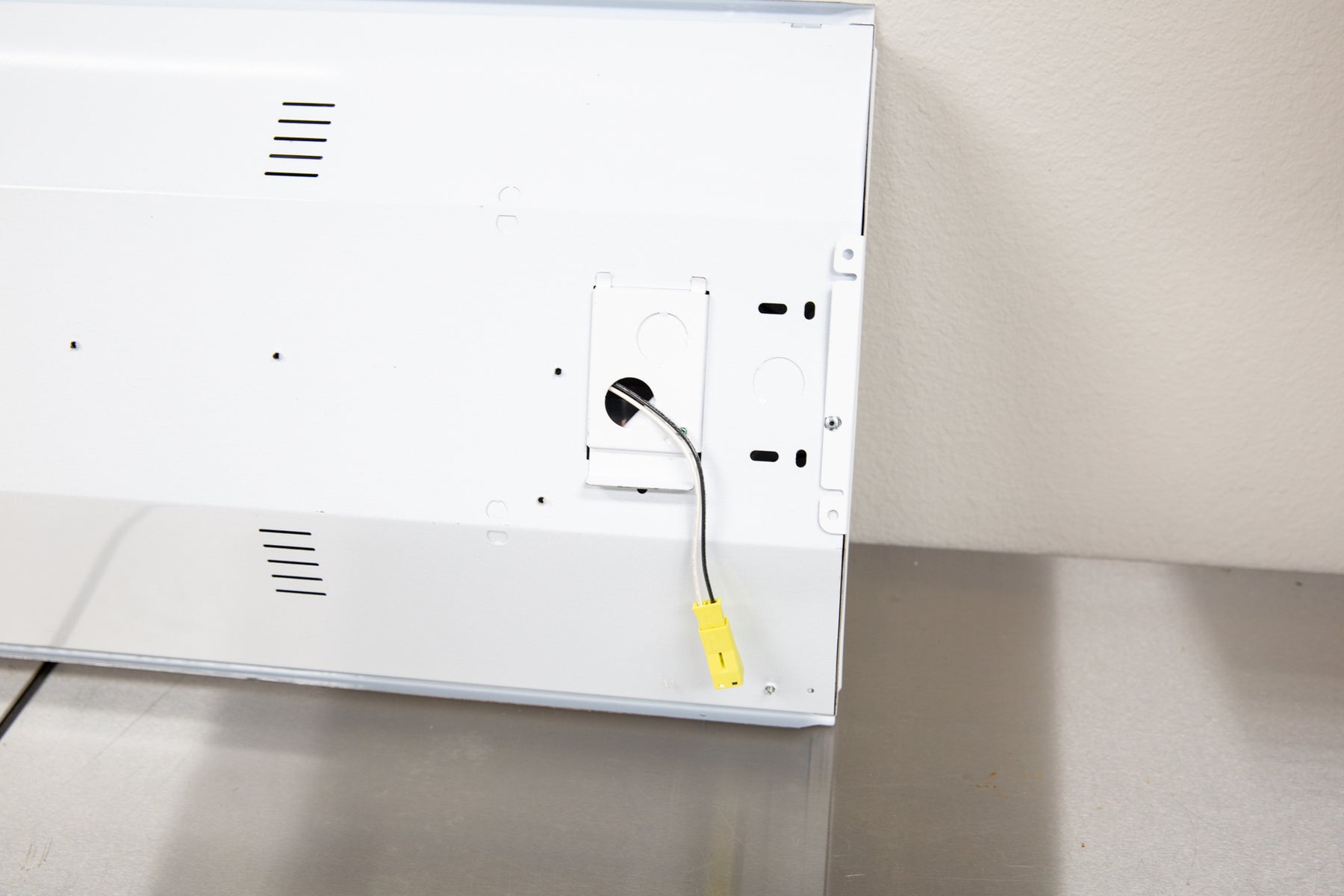

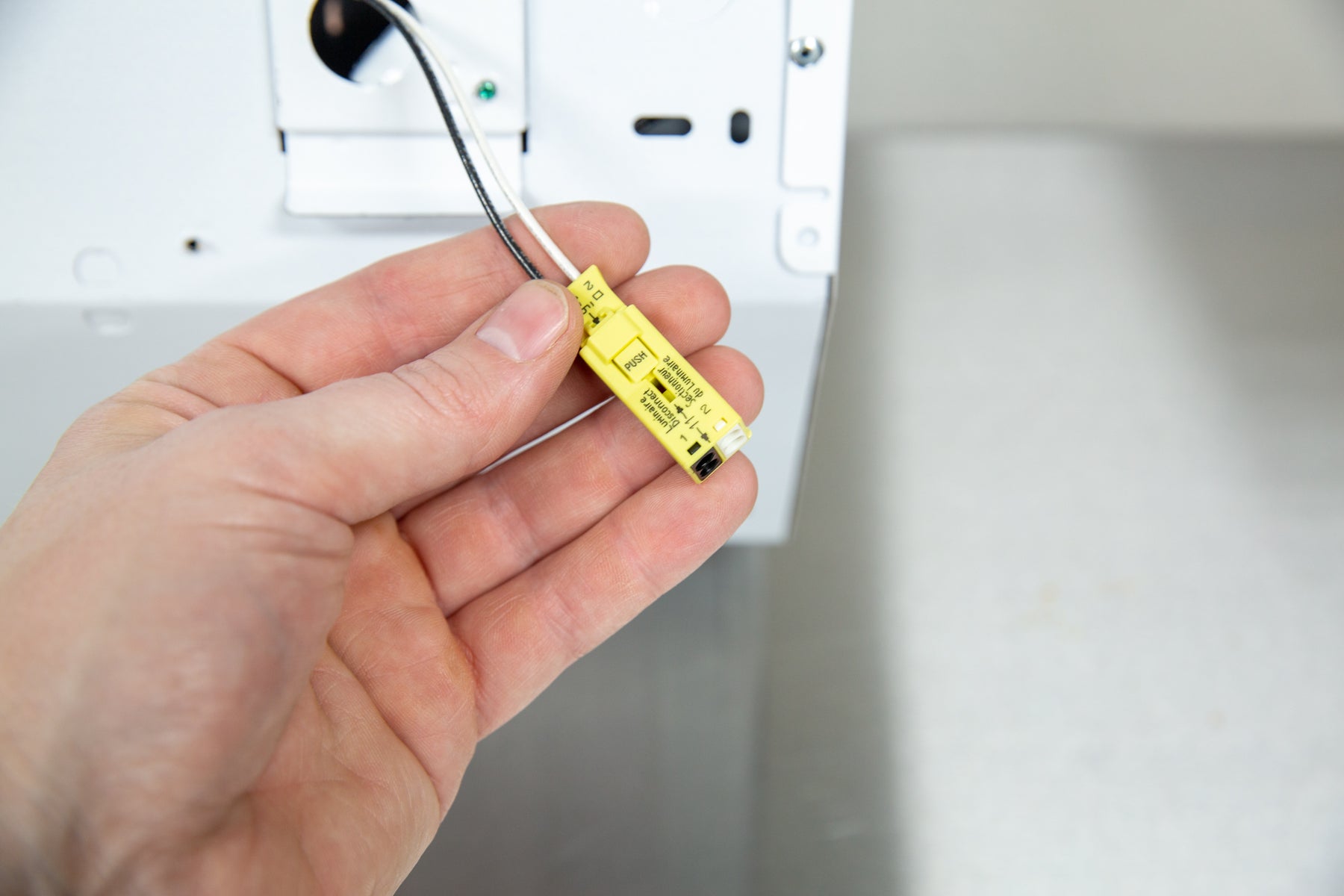

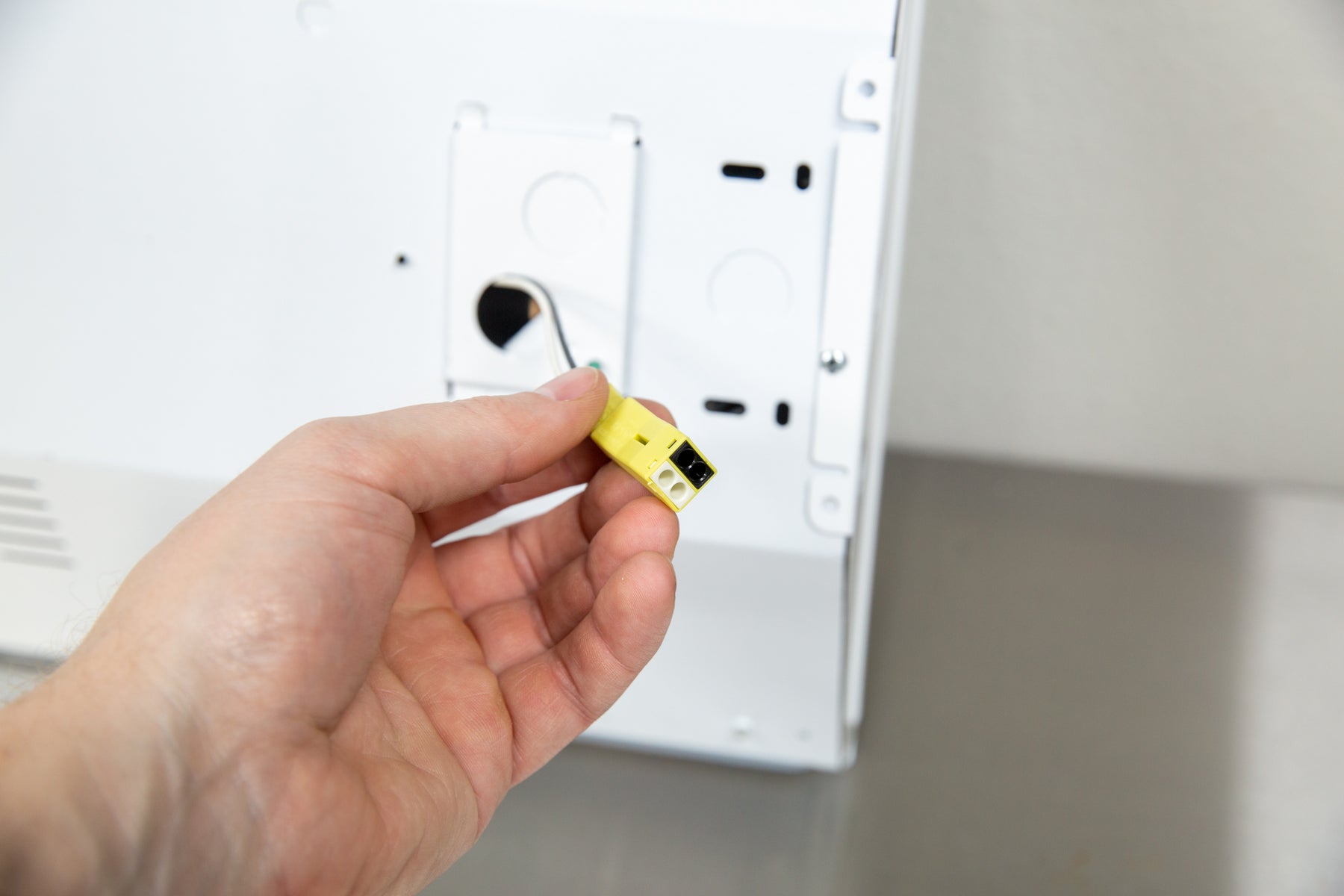

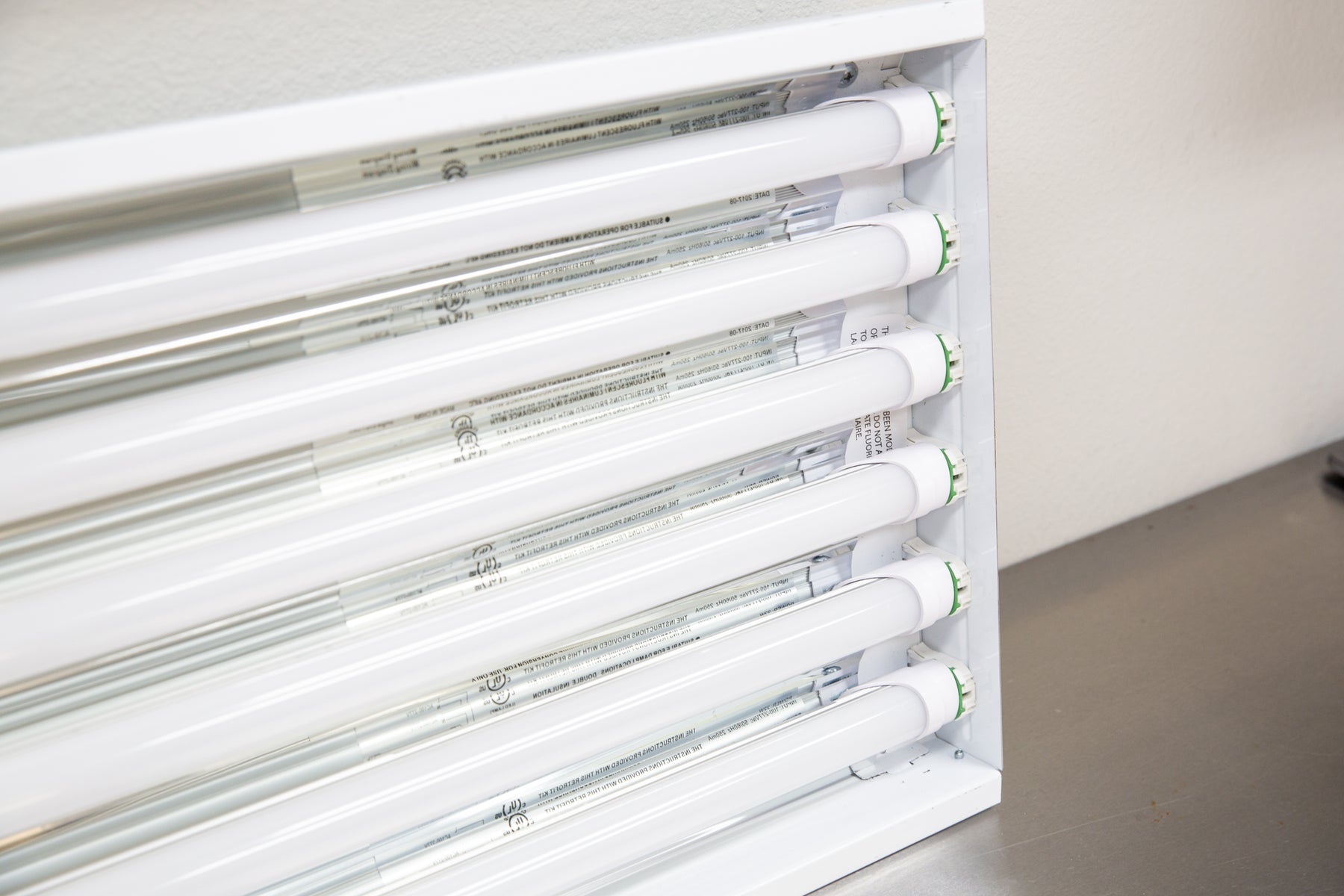

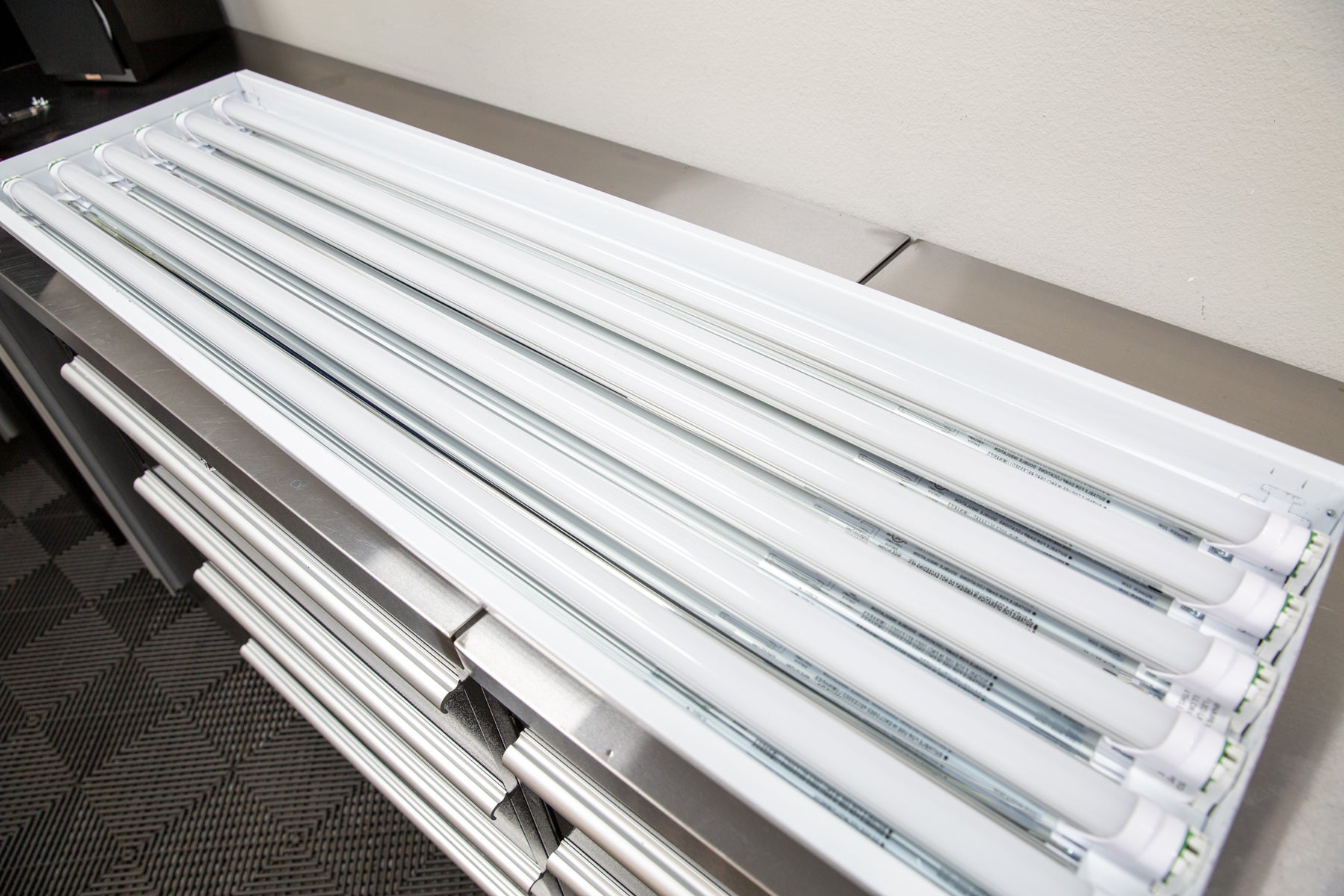

They are single sided powered. These include 5000K frosted LEDs. They are a bit more palatable at 5000K for most people. I would suggest trying 5000K then getting the more expensive 6000K higher CRI bulbs later. As of now, I don't have access to those.

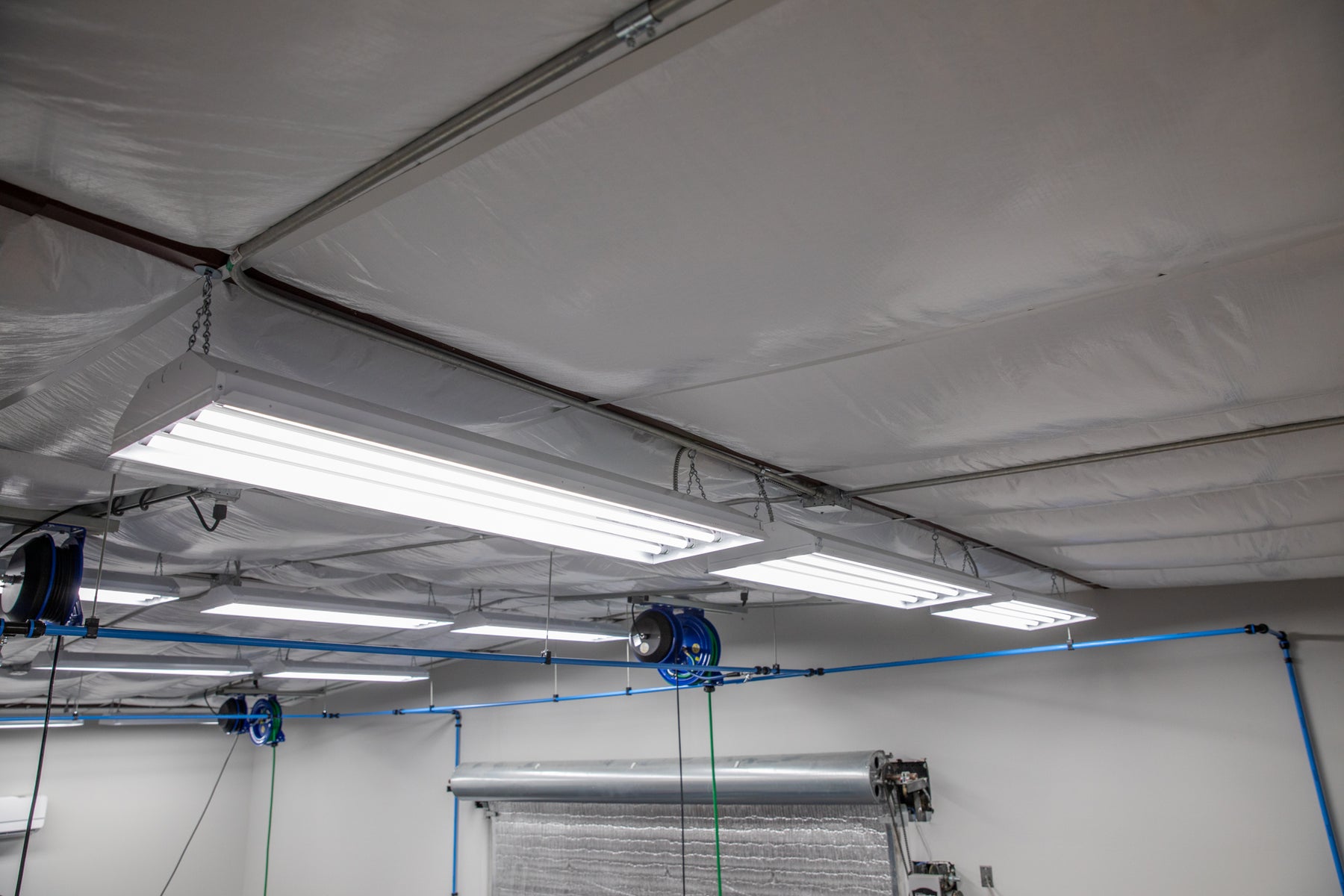

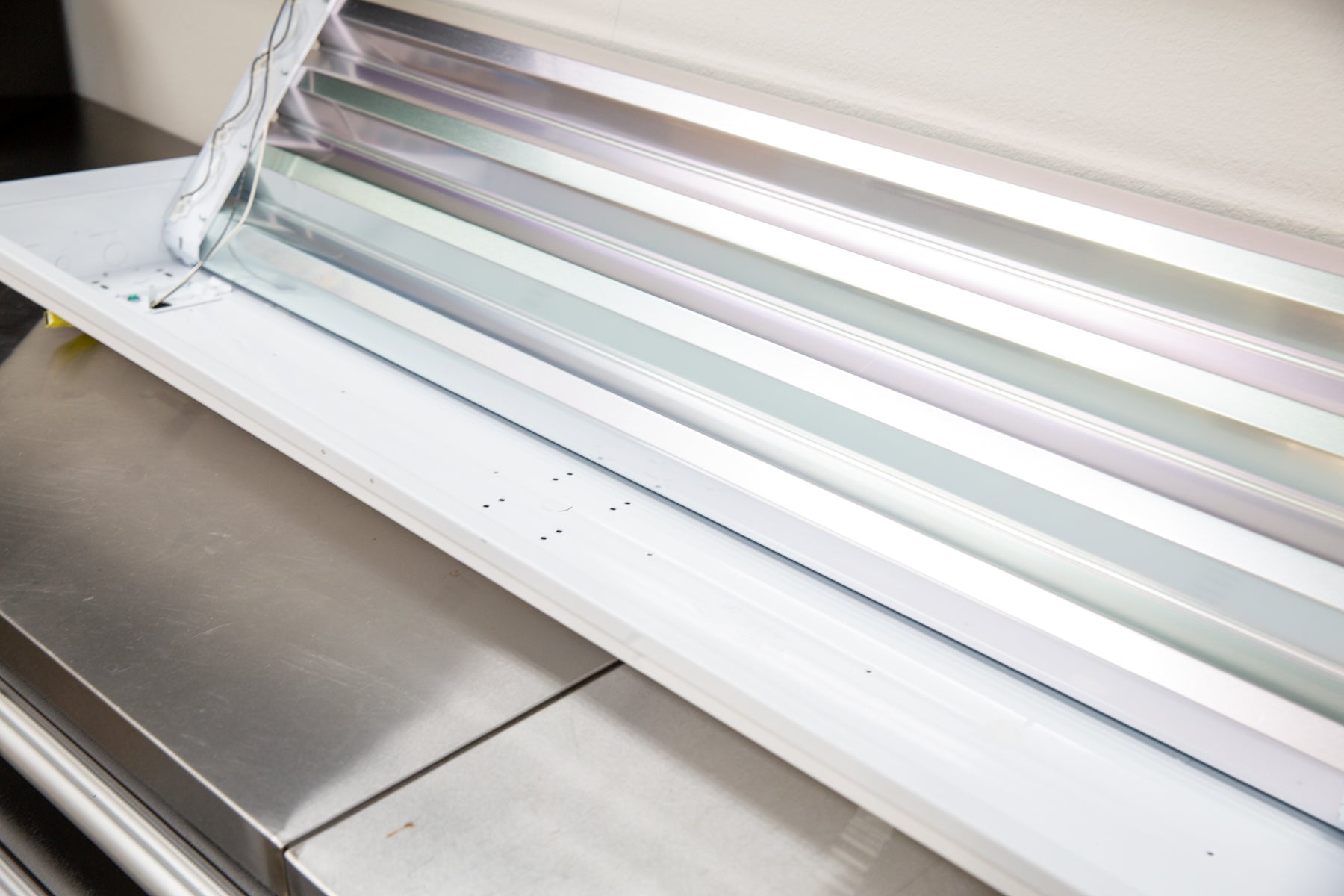

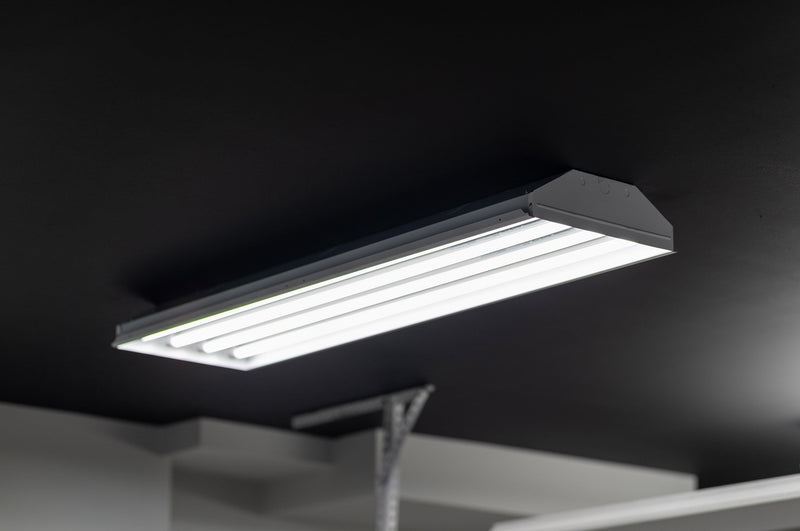

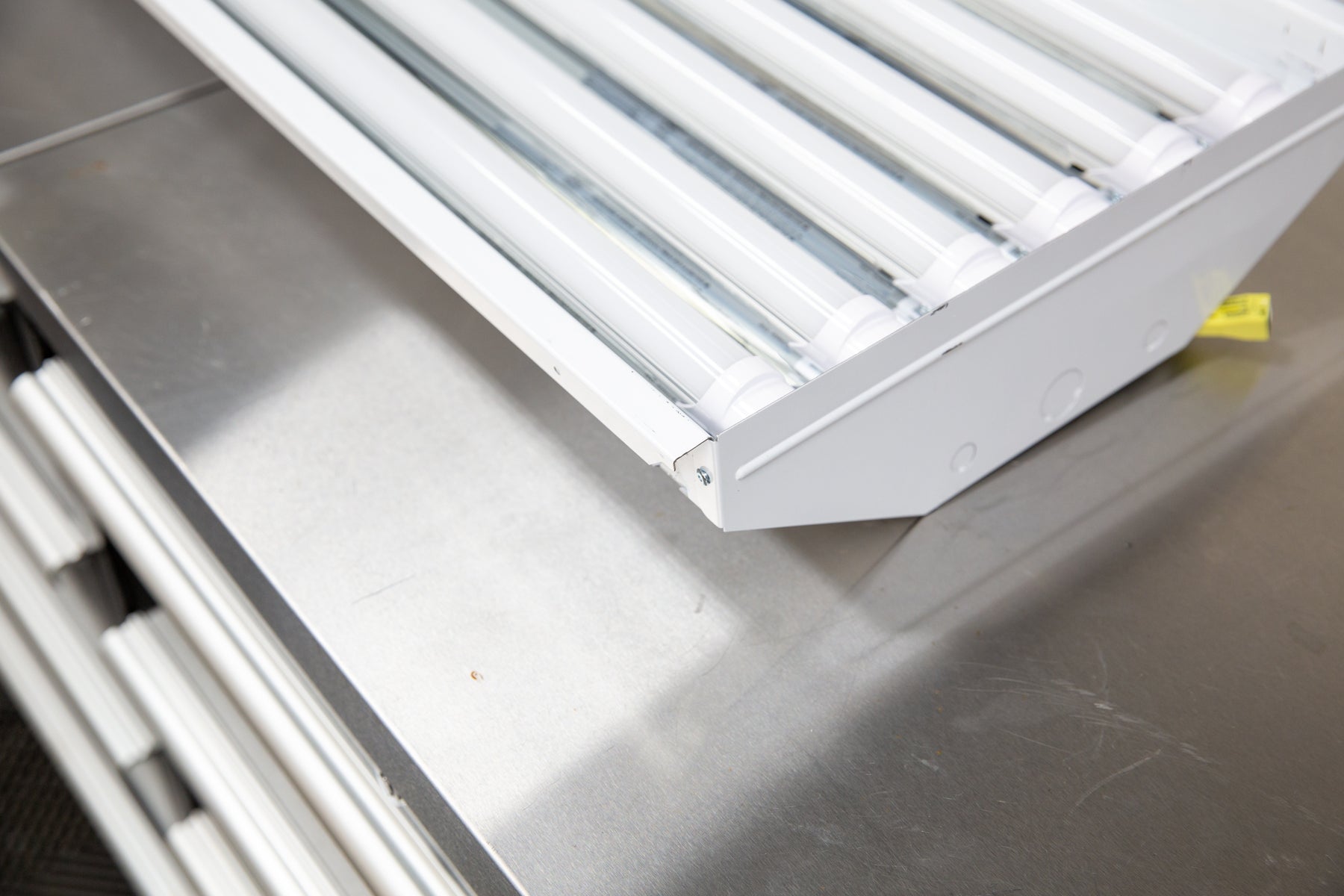

These are technically high bay fixtures due to the reflectors, but we can use them in a normal height garage if placed properly. That's why frosted LED tubes are necessary. These are not dimmable.

Specifications

48" L x 13 7/8" W x 3 15/16" D Each
110V Rated at 50,000+ Hours 80+ CRI

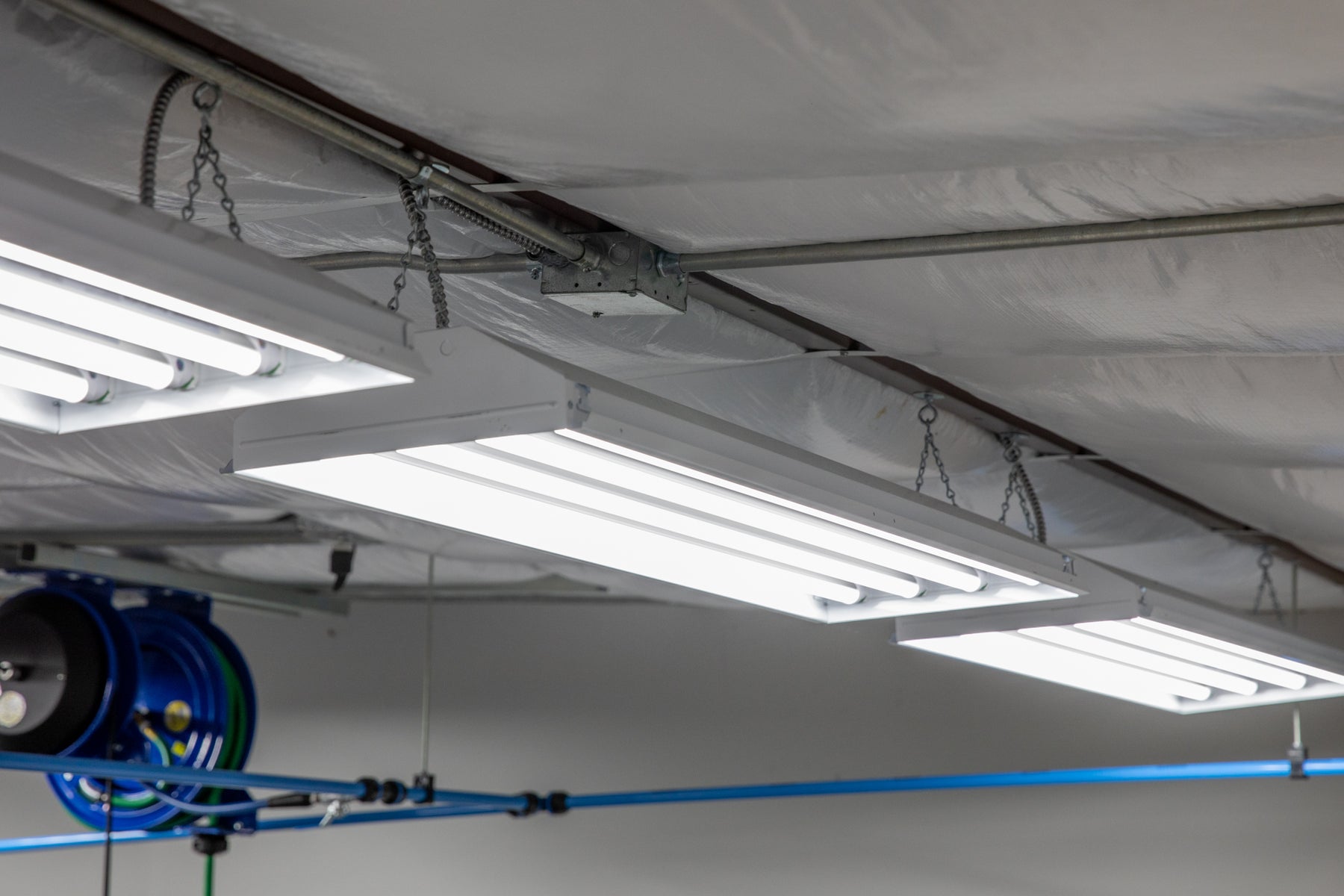

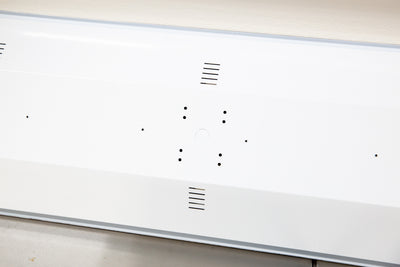

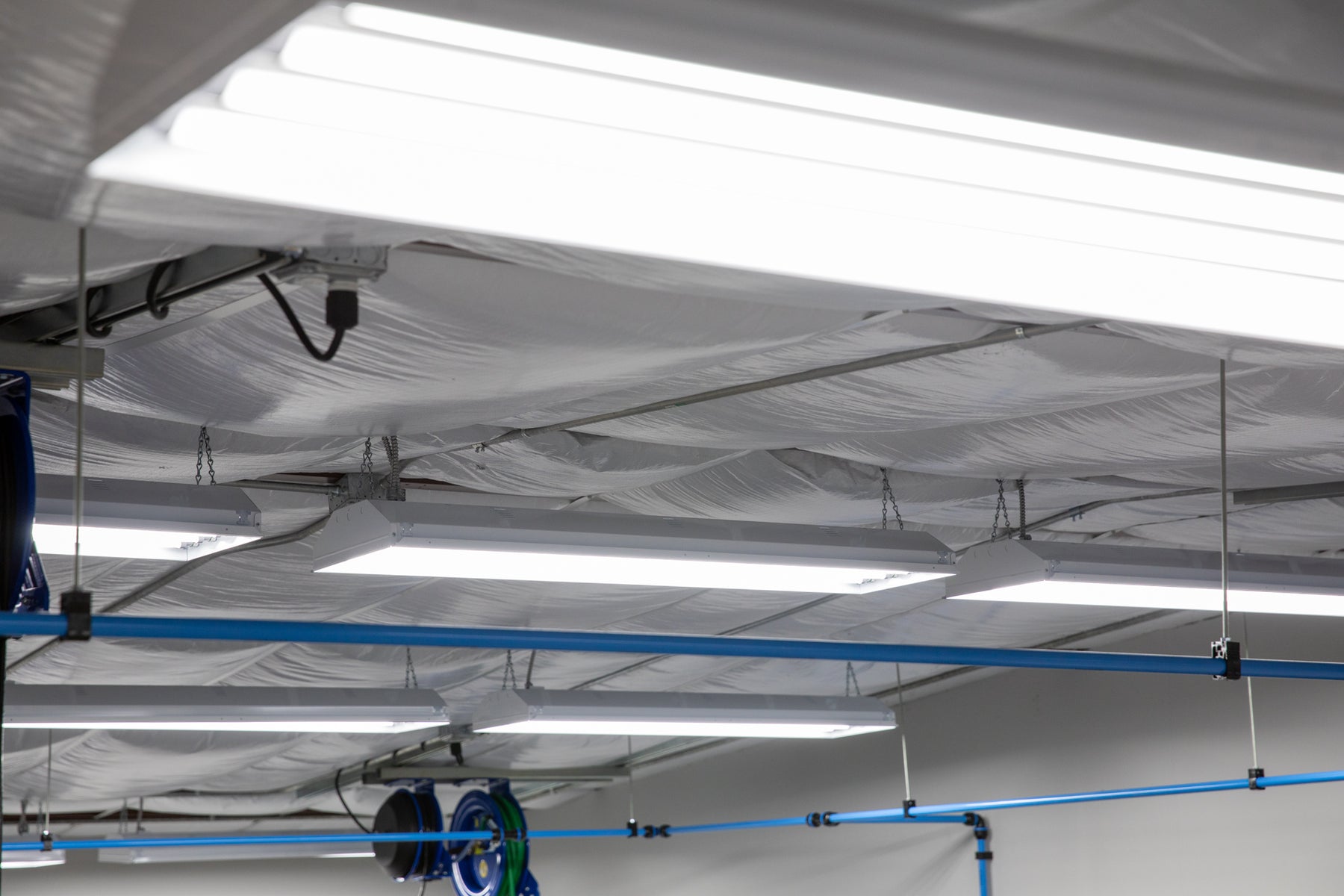

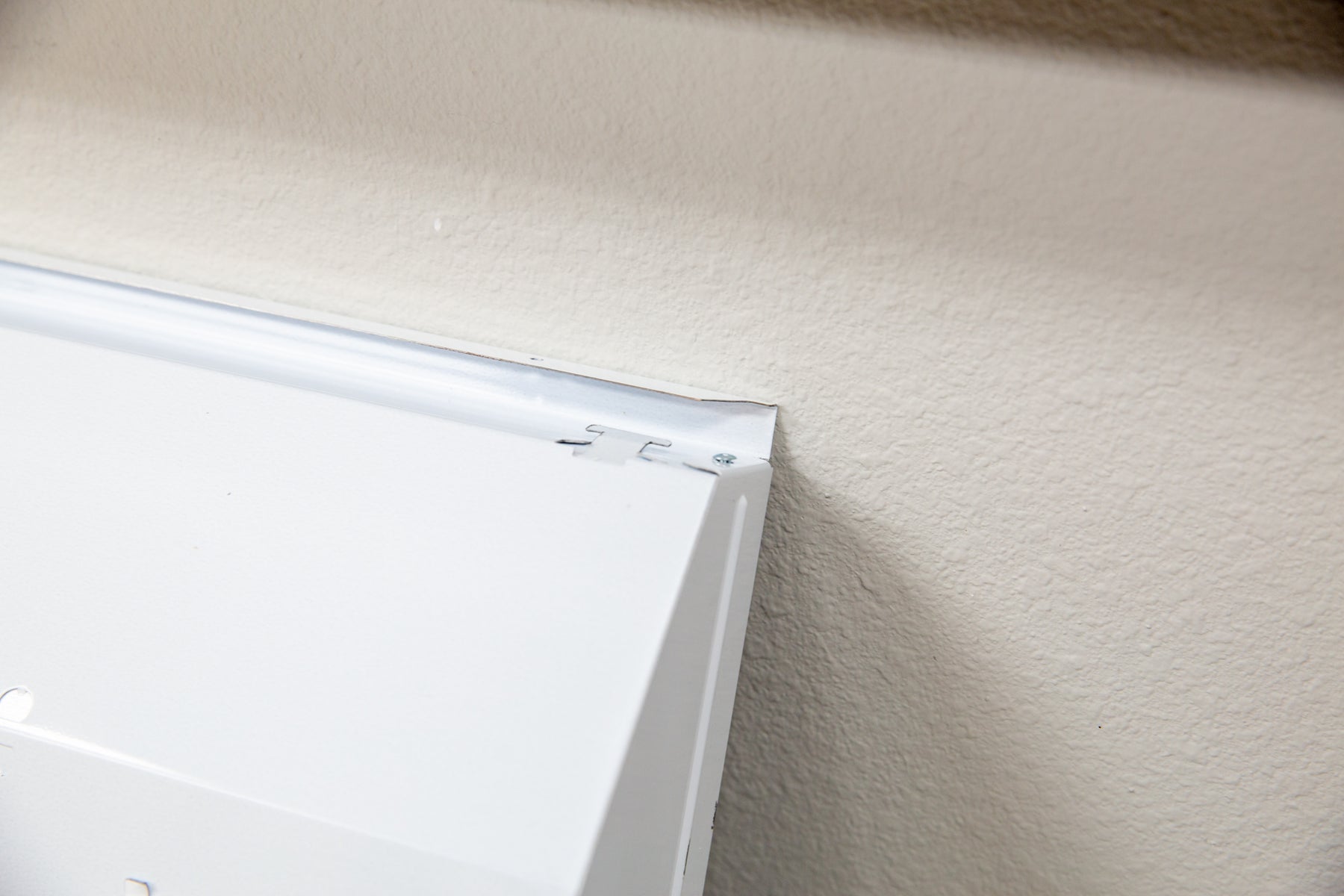

Surface Mountable or Chain Hung Capable
Non-dimmable

4 Bulb Fixture

- Rated to draw 0.74A per fixture
- 11,400 LED Lumen Output (21,660 Equivalent)

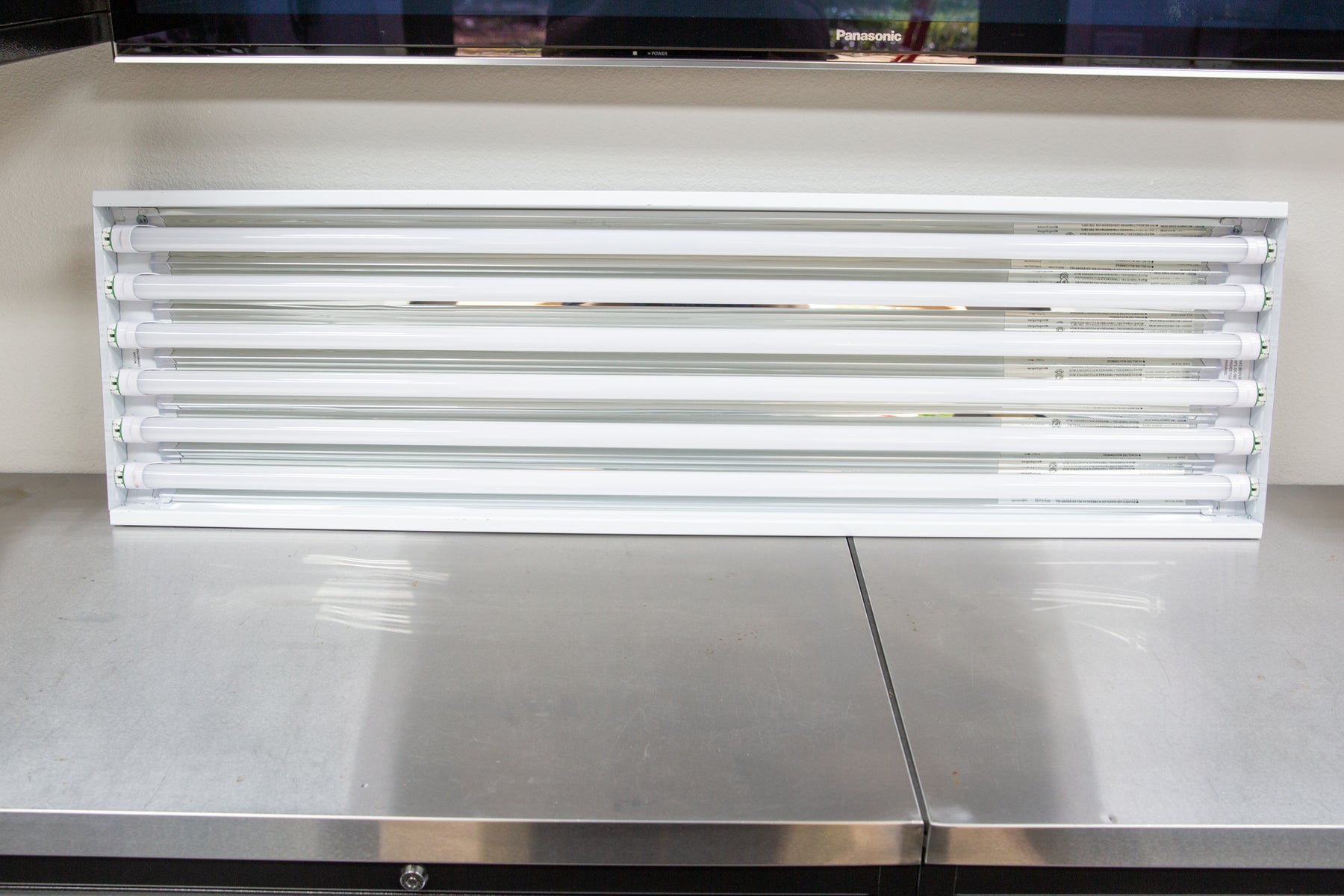

6 Bulb Fixture

- Rated to draw 1.2A per fixture
- 17,100 LED Lumen Output (32,490 Equivalent)

FAQ & Support

The warranty on these lights are for 5 years. If you have an issue, please submit a request with us.

Related Videos:

 - Lighting Install at OGHQ

 - Overhead Garage LED Lighting

Related Articles:

 - How To: Overhead Lighting Install Info - Basic

 - How To Buy: Compressor, Lighting, Pressure Washer, Cabinets, Packages, Flooring - A Basic Introduction

 - Overhead Light Installation Instructions

4 Bulb

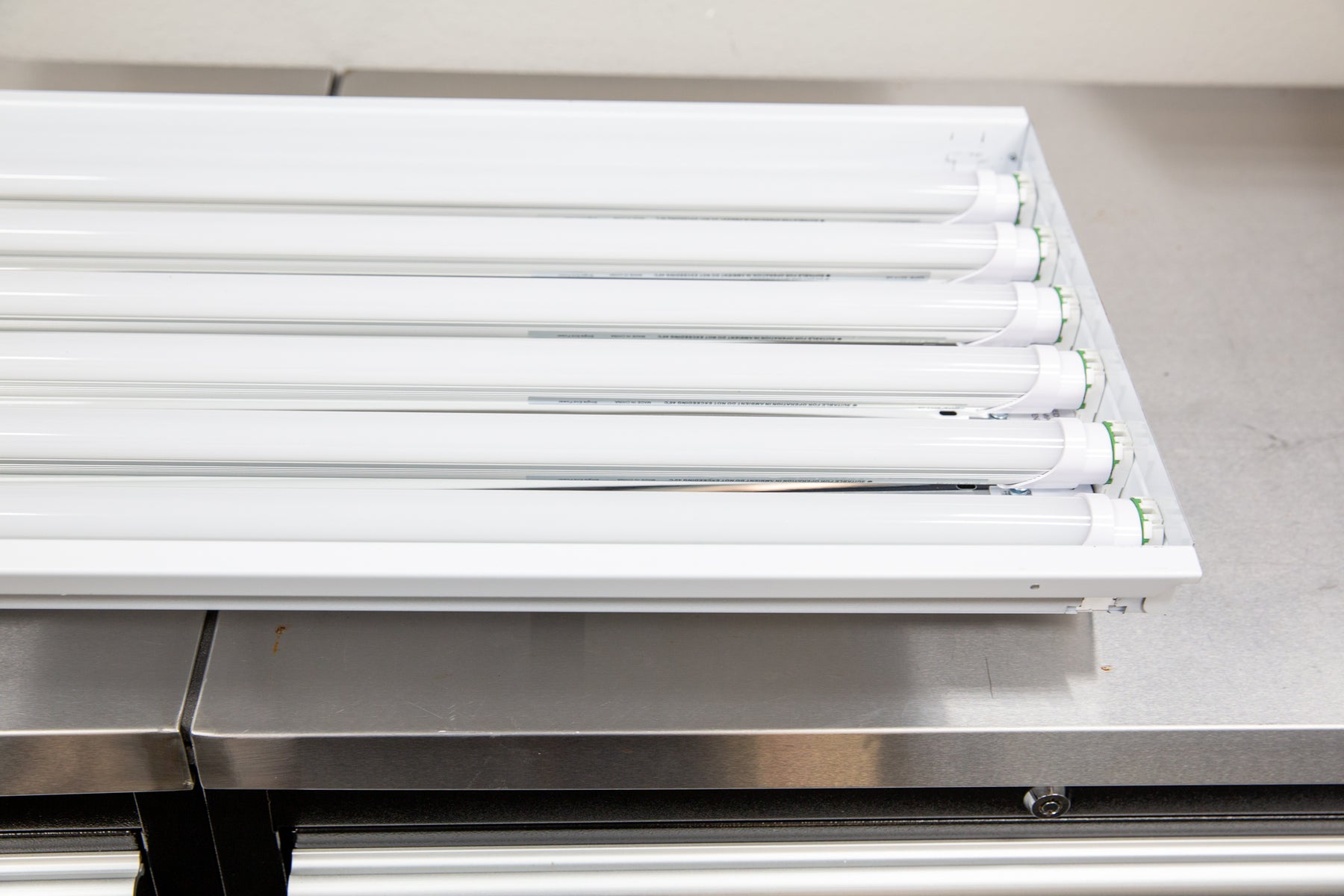

- 4 Frosted, 22W Single-Sided 5000K Tubes

6 Bulb

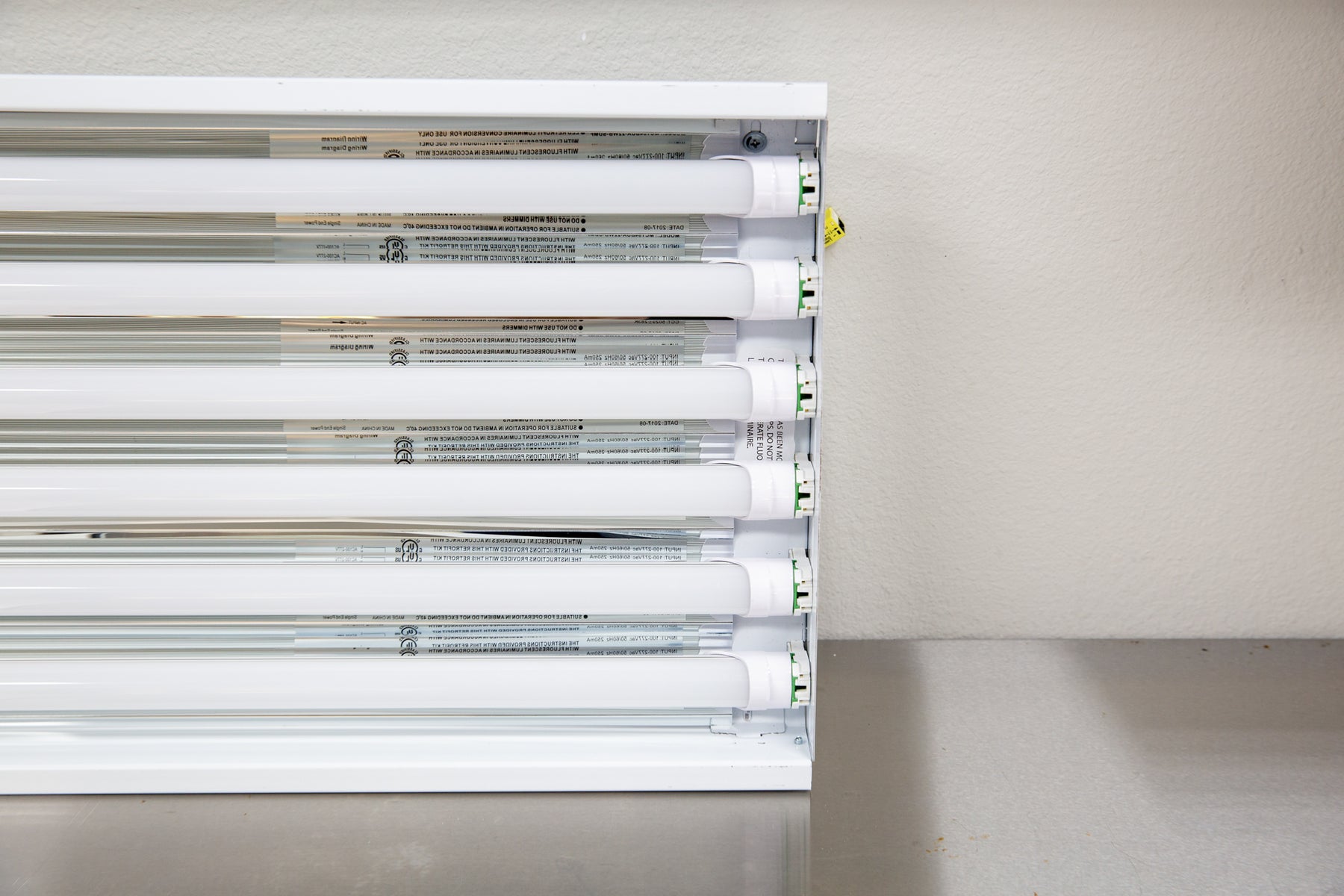

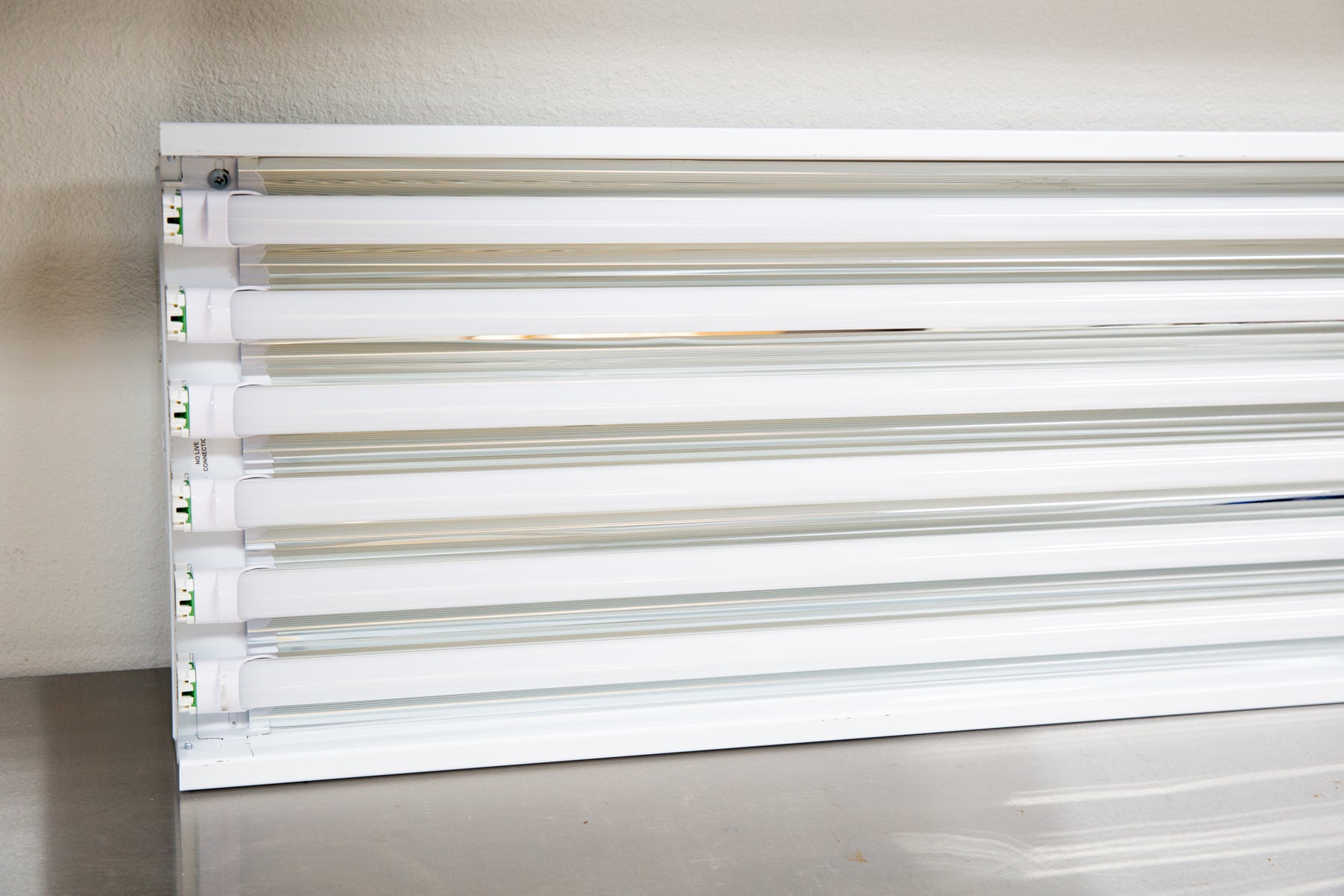

- 6 Frosted, 22W Single-Sided 5000K Tubes

This item is dropshipped from Prime Lights in Texas. Shipping is free to continental US.


ETA Information:

In Stock and Ready to Ship
