Ceiling Height
Capacity
Regular price $999.00
/

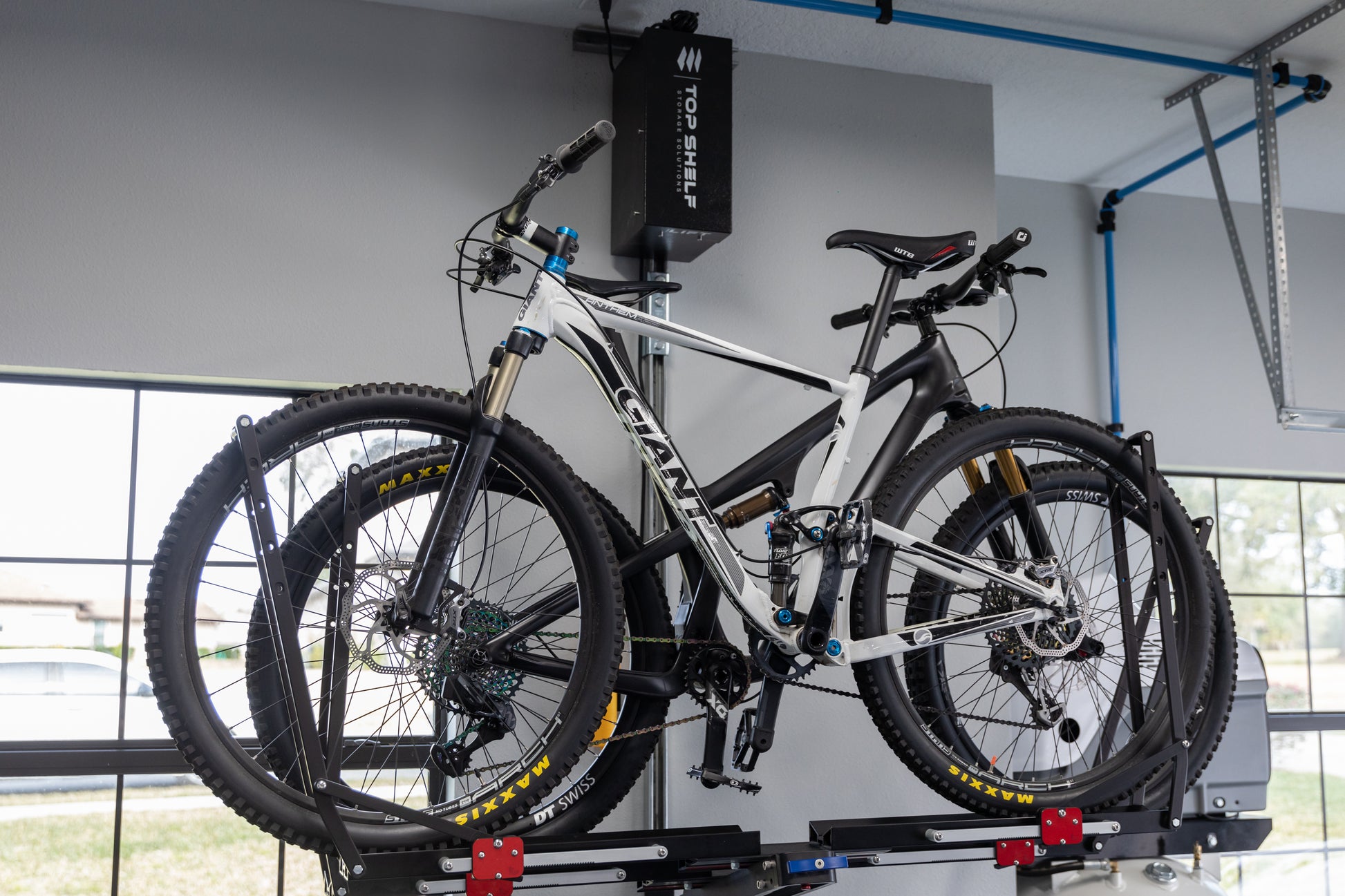

It’s a common theme in my household and my life to keep things tidy. Not everyone shares this same objective, I know. Michele and the kids always have their bikes scattered everywhere, which drives me nuts. So, I came across the Top Shelf Lift 400 that has solved this problem.

I joined a Kickstarter in late 2020 or early 2021, where my new friend Tabb (founder of Top Shelf Storage Solutions) saw a need for a lift solution, not just for bikes but also for any other cargo you may want to keep off the ground, and created this masterpiece. You don’t realize how important it is to have something like this in your garage until you start laying things out and begin to see the space-saving opportunities.

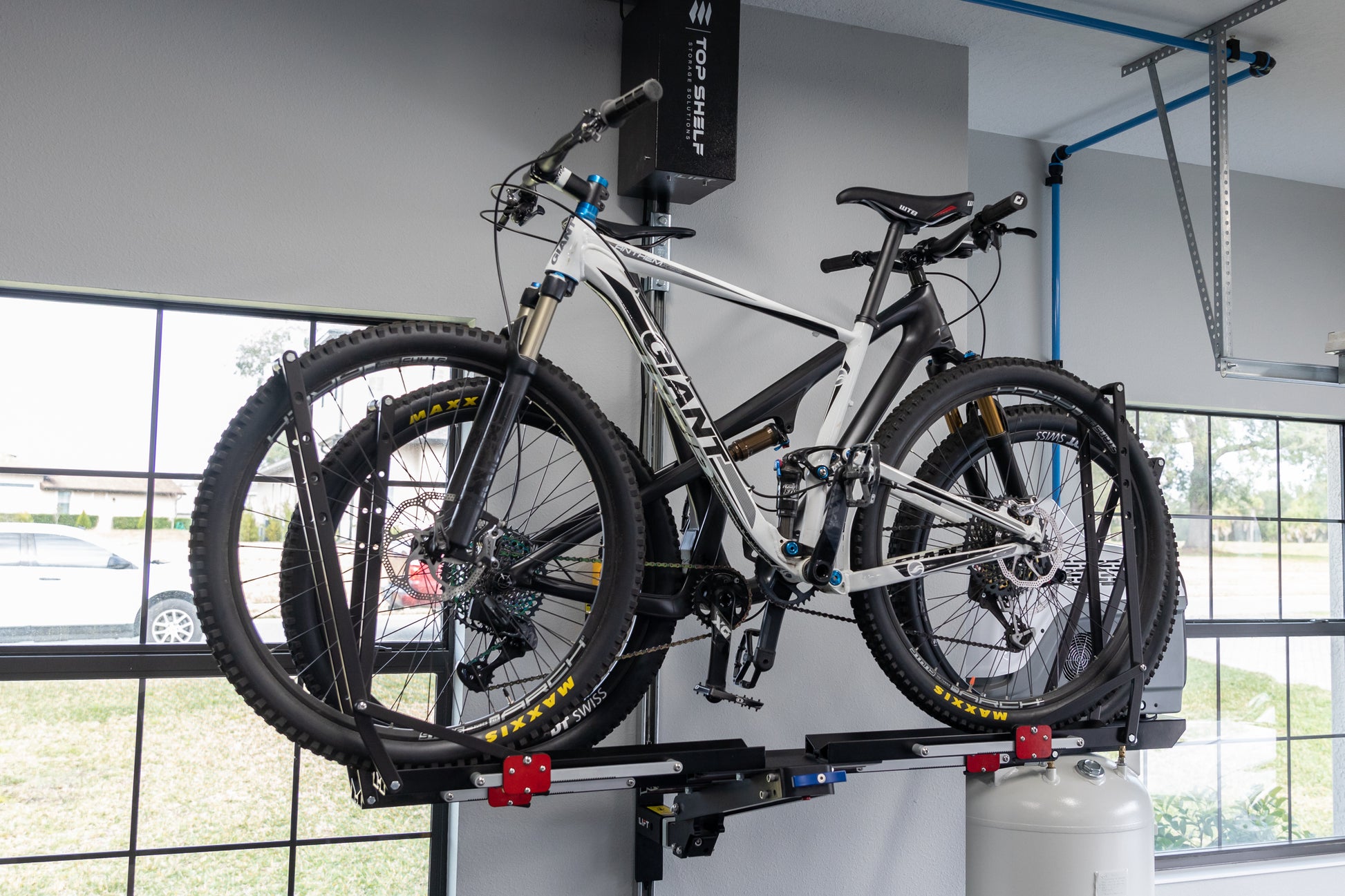

If you’re handy with tools, you can complete this installation in under an hour. Mike did it in 20-minutes. From my observation and reading the instructions, it’s a really simple install. We first put my bike on and raised it where it barely touched the ceiling. My initial reaction was, “this is freaking sweet.” Whether you have one vehicle or multiple vehicles, I found that I can easily park my cars underneath it.

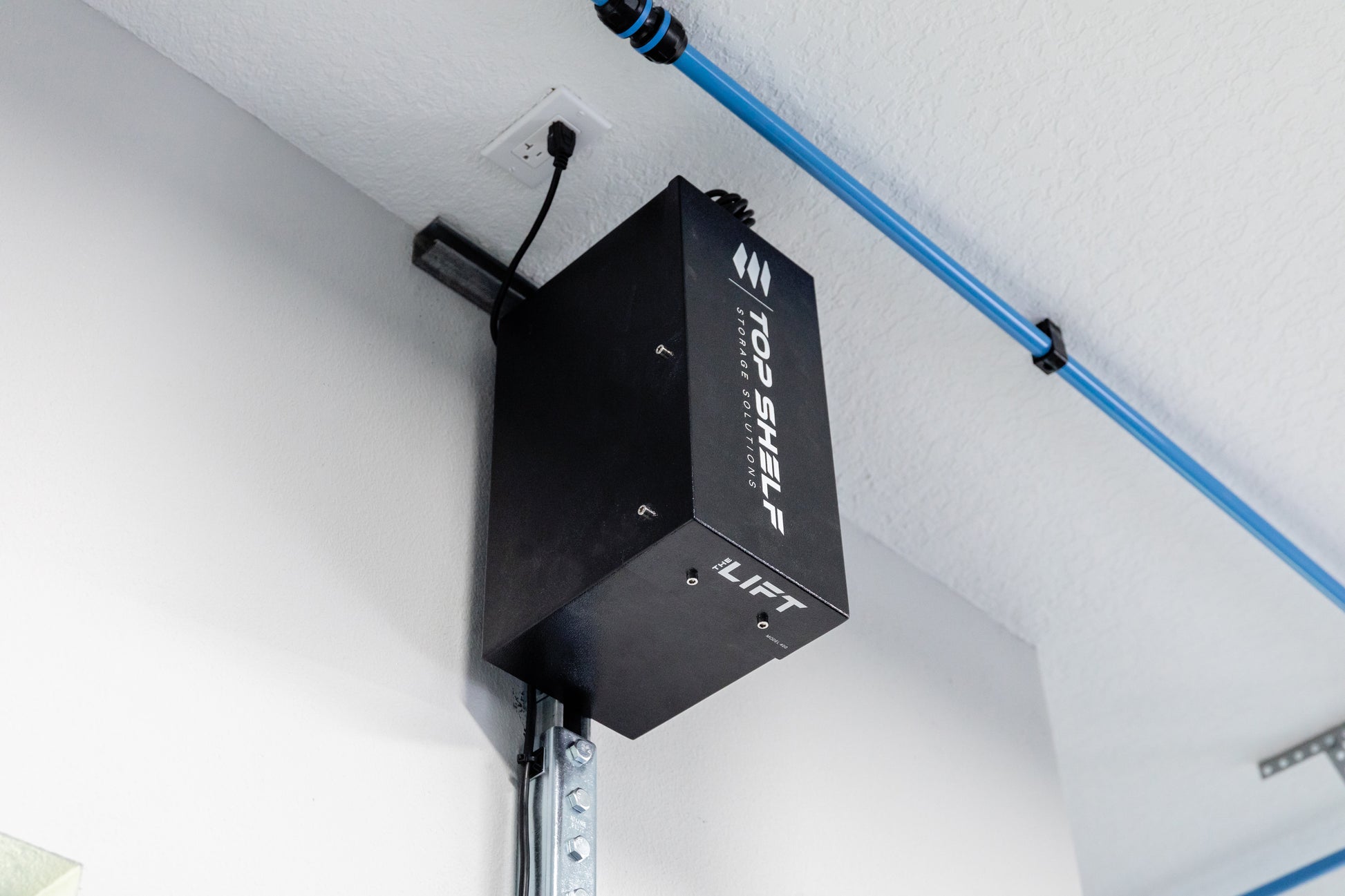

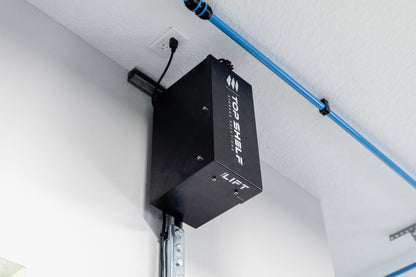

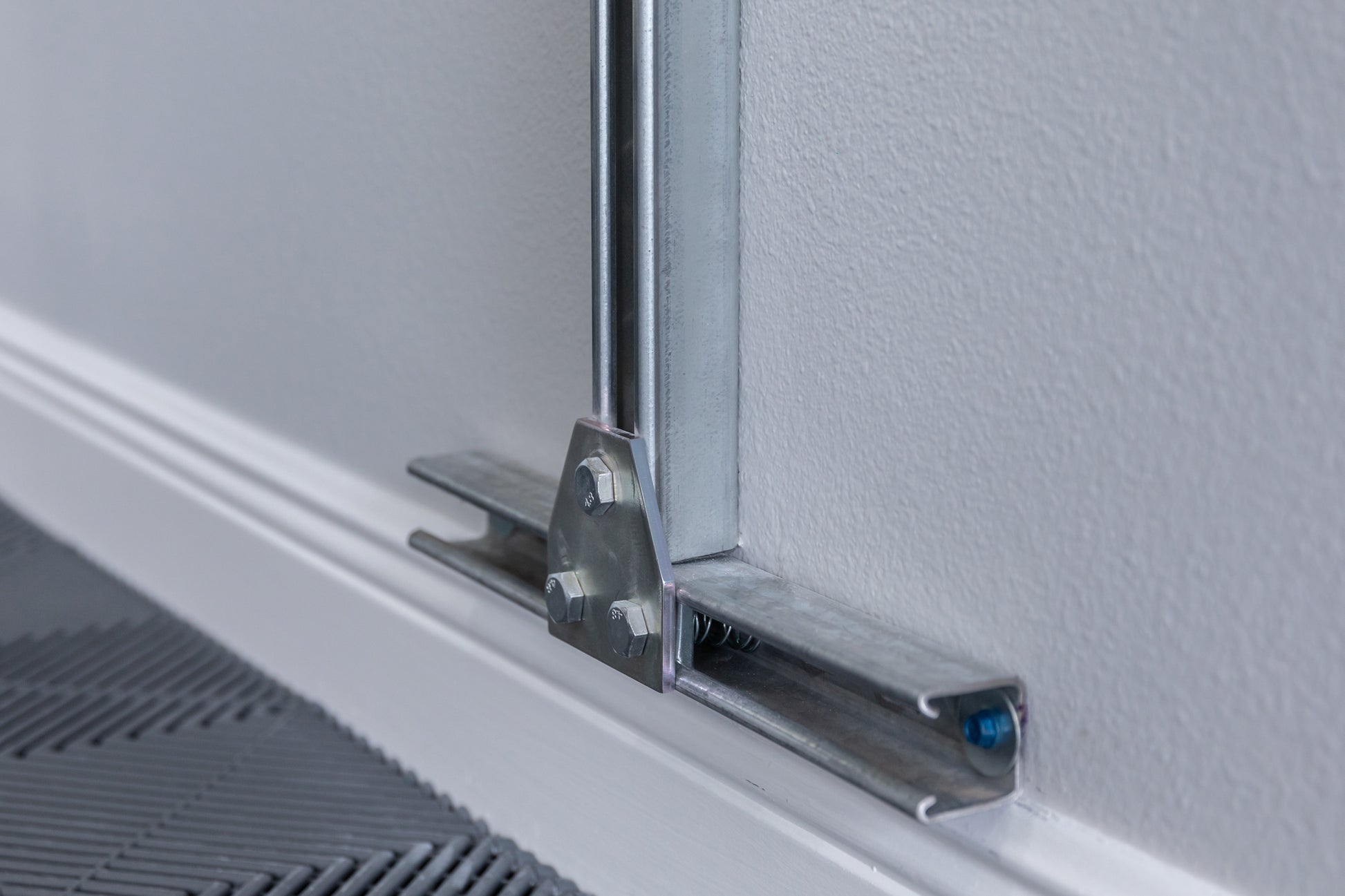

You’ll have five different sizes to choose from; what you decide to go with will depend solely on the height of your garage. When we installed mine, we positioned the base of it right above the baseboard. This gave us enough clearance towards the top, where the box with all of the components inside went—a really clean look.

I’m incredibly pleased with this product and how it turned out in my garage. I know for a fact that I’ll be installing several of these in my future homes.

Safety Features

  • The Lift Motor has an electronic brake when not in use to keep The Lift from moving
  • The Lift stops quickly if the gear being lifted or attachment comes into contact with something
  • The controller includes a child safety lockout that must be turned to release
  • The Up/Down button on the controller must be held down for The Lift to move in either direction (this keeps the user out of harm's way and attention focused on the movement of The Lift)
  • A channel safety pin is provided to provide extra security that The Lift will not come down when not in use

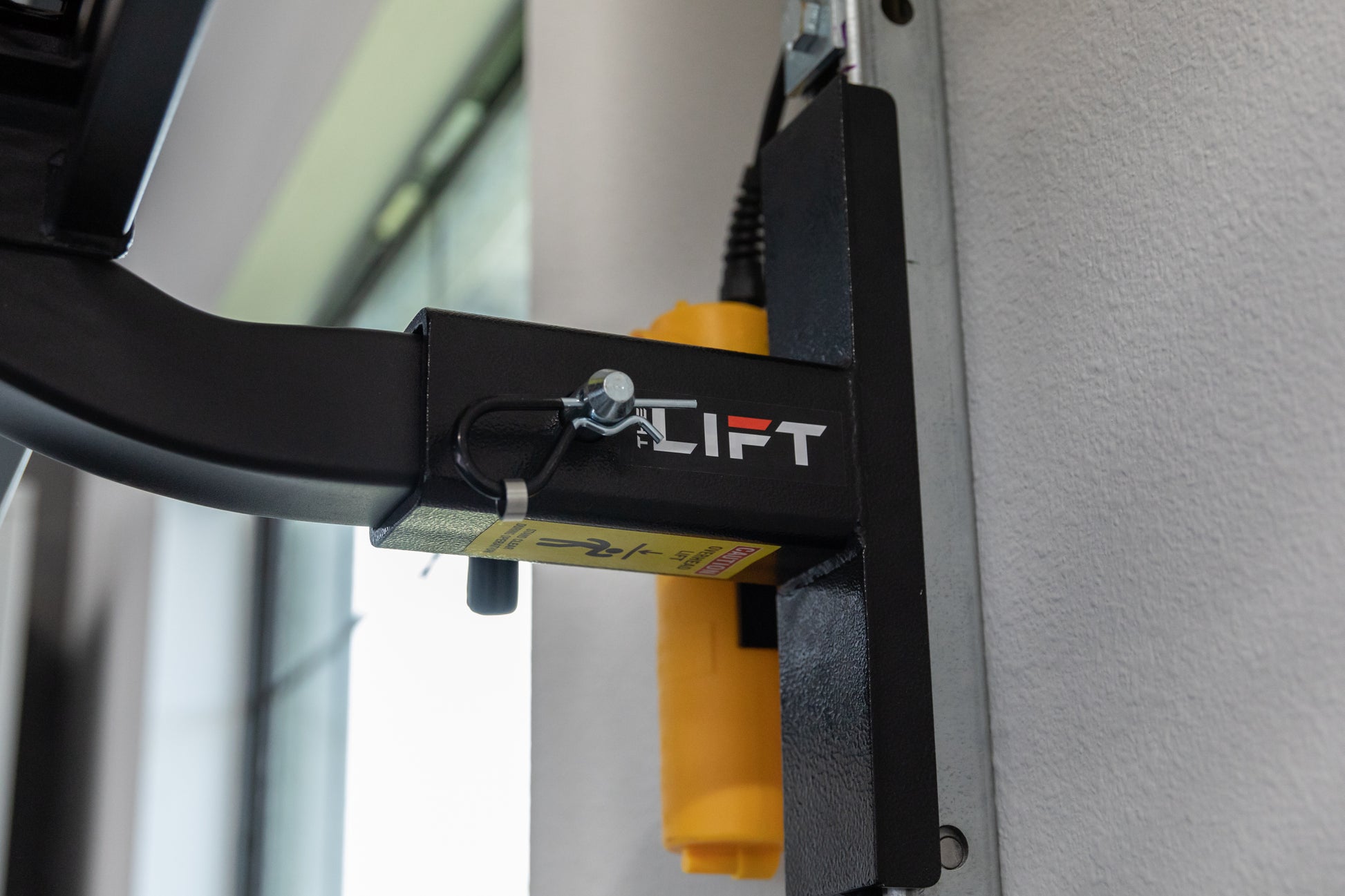

  • A hitch receiver safety pin is provided to secure the attachment into The Lift's hitch receiver
  • The Lift is secured to the wall utilizing 12 lag screws (provided)
  • A cargo net or tie-down straps are required to secure items to attachment when being lifted
  • The Lift wire cable is aircraft-grade w/breaking strength of 2,000lbs



Based on ceiling height: 8 ft, 9 ft, 10 ft, 11 ft, 12 ft

- 120-volt lift motor with electronic brake

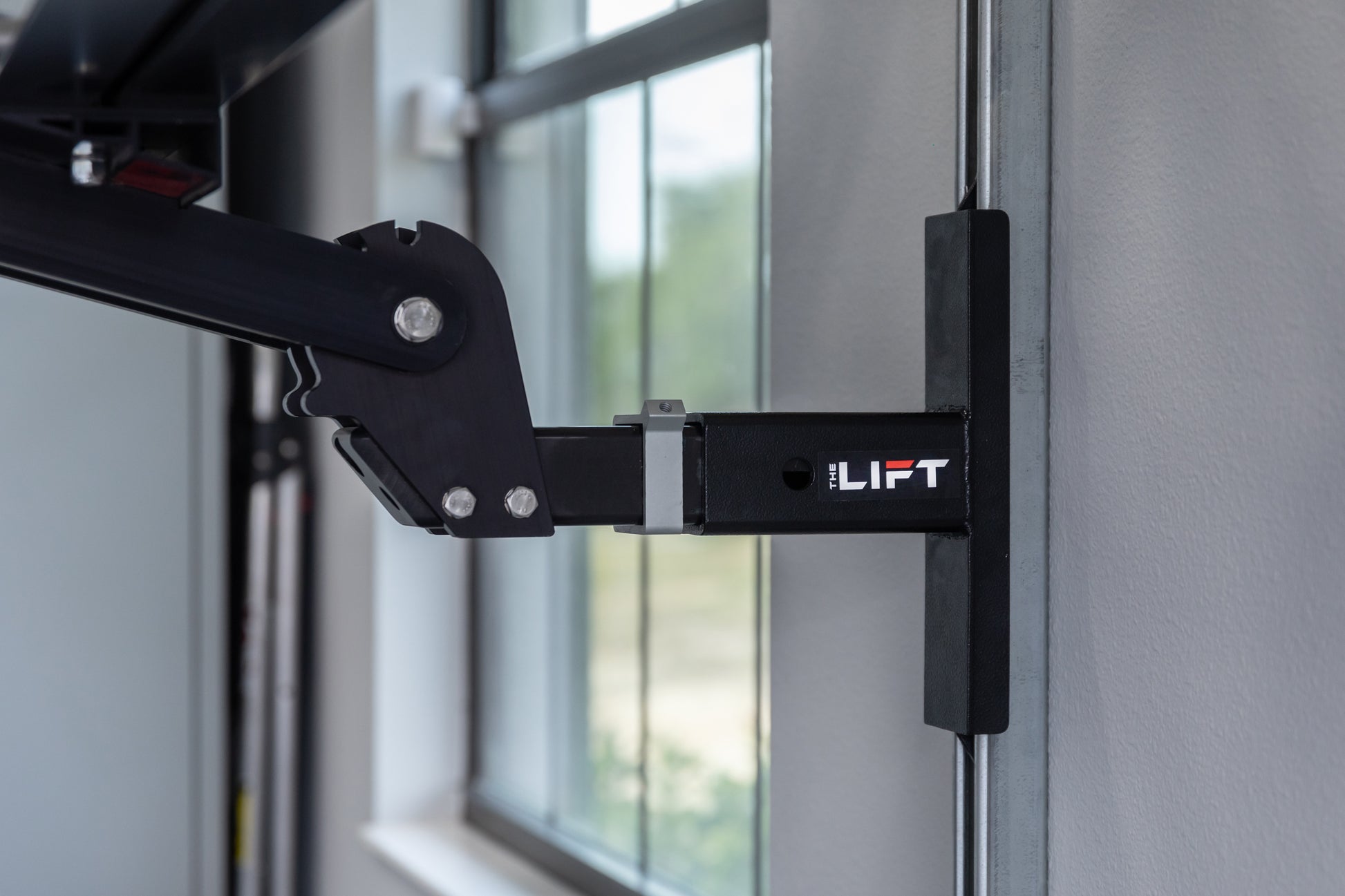

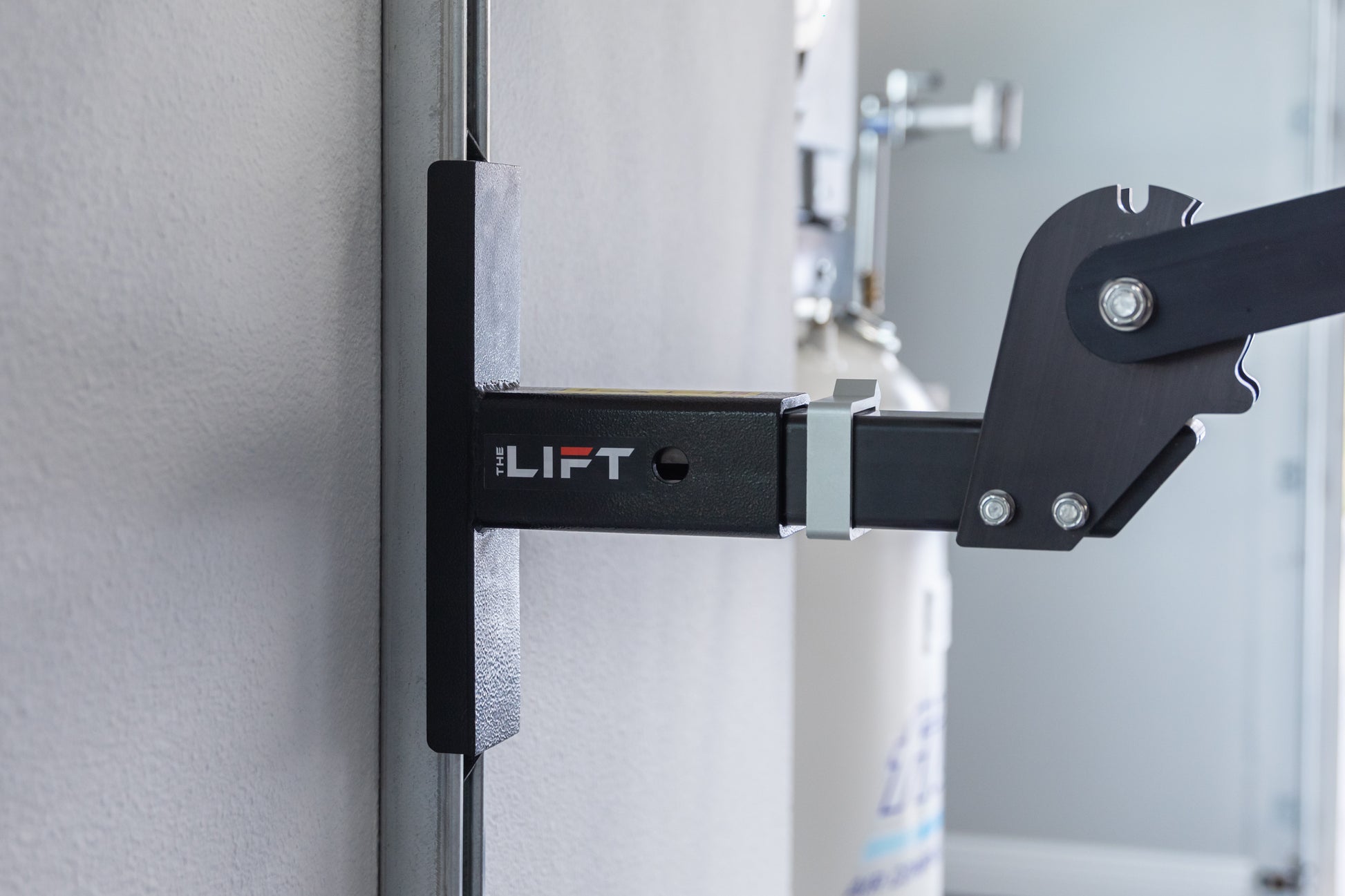

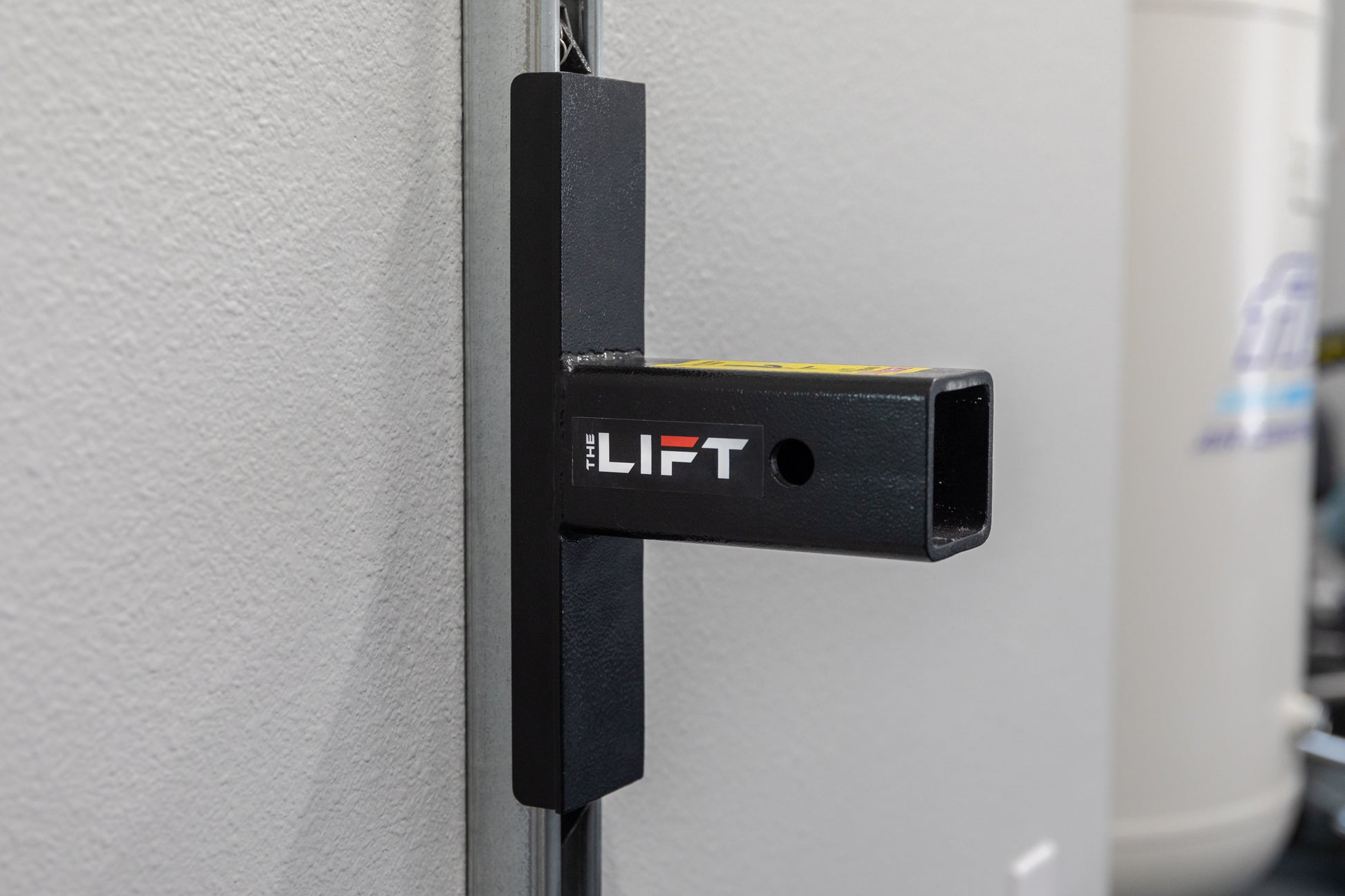

- Patented Trolley w/ 2” receiver hitch and pen

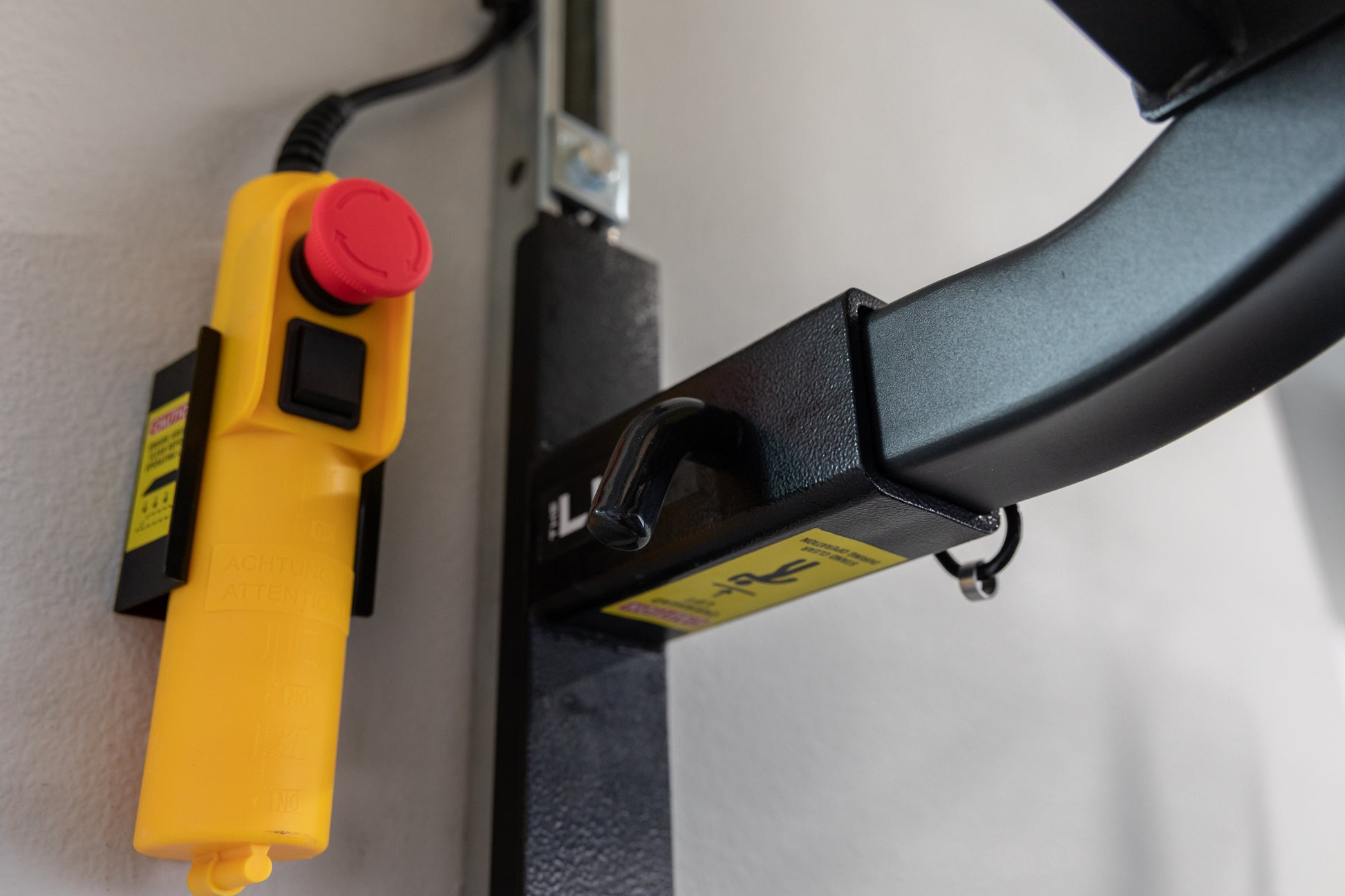

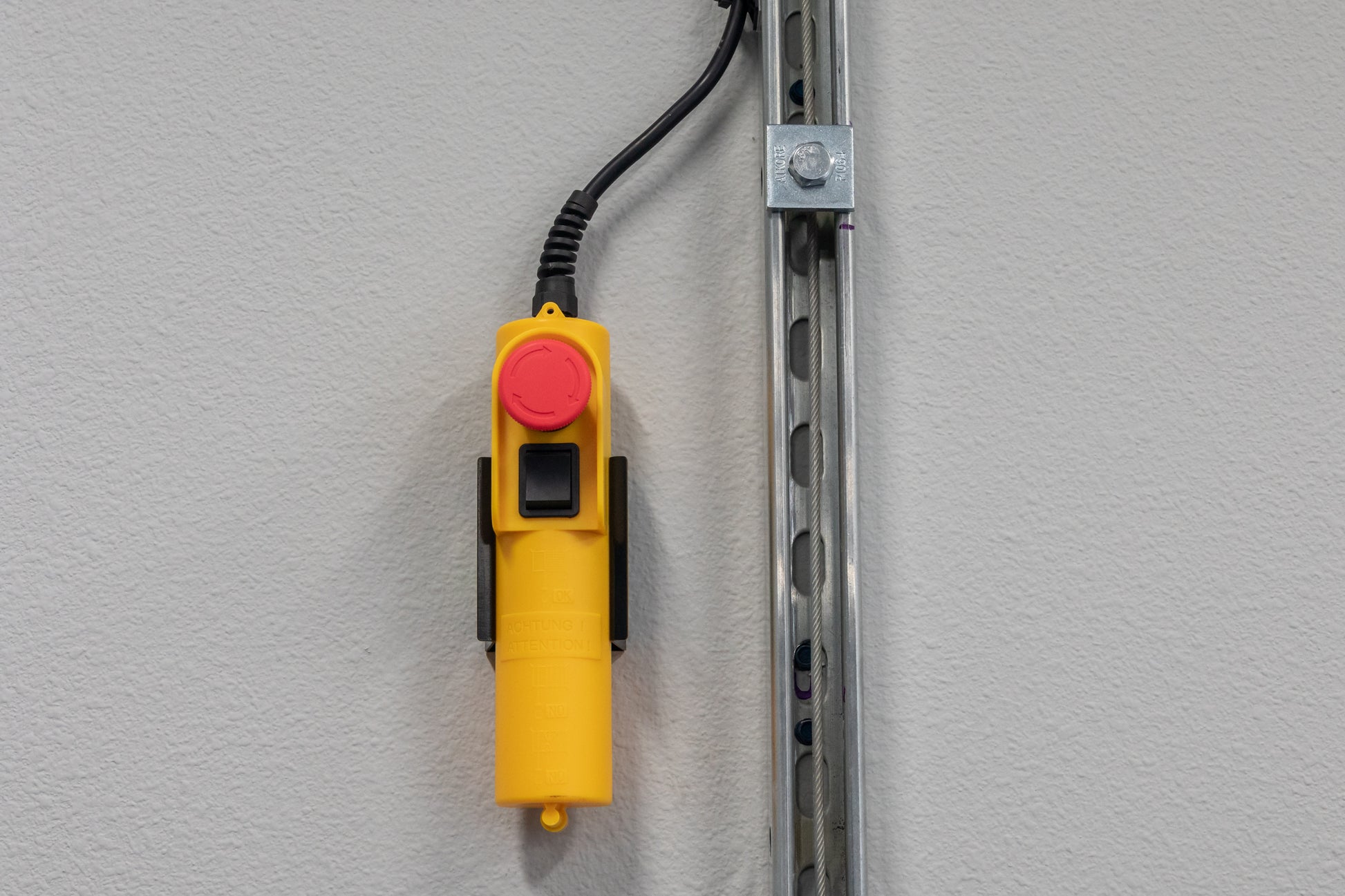

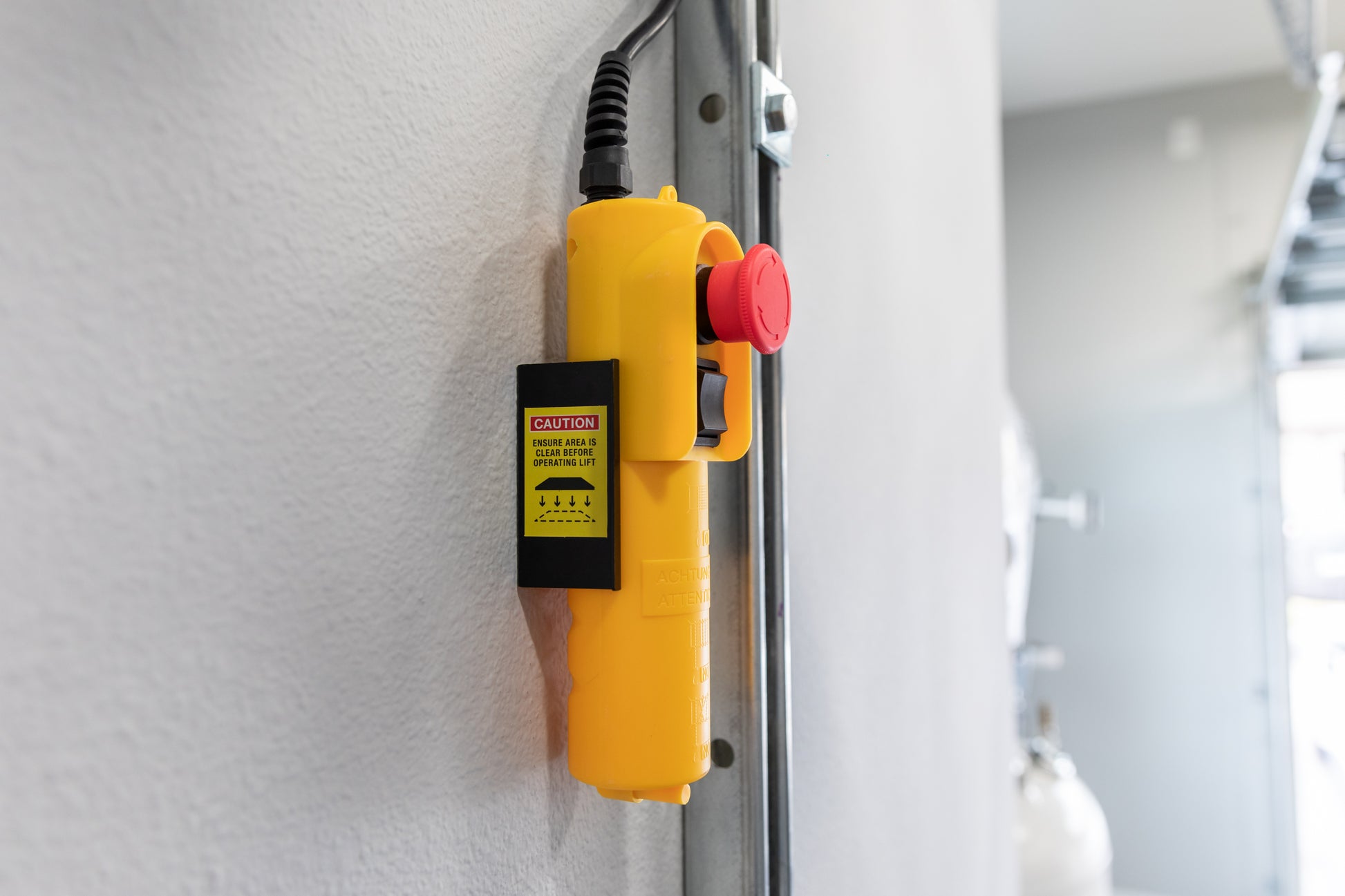

- Detachable, wall-mounted controller with safety lockout and 15 ft cord
- 12 gauge steel channel is included but packaged separately
- All bolts, springs, nuts, steel connector, and mounting plates needed for assembly are included
- 15 ft power cord
- Channel stop
- ⅛” Stainless Steel cable with nylon coating and aircraft attachments
- Channel safety pin
- 12 lag bolts for wall mounting


Specifications
- Lift 400 - Safely lifts up to 400lbs (Including the weight of attachment) or
- Lift 200 - Safely lifts up to 200lbs (Including the weight of attachment)

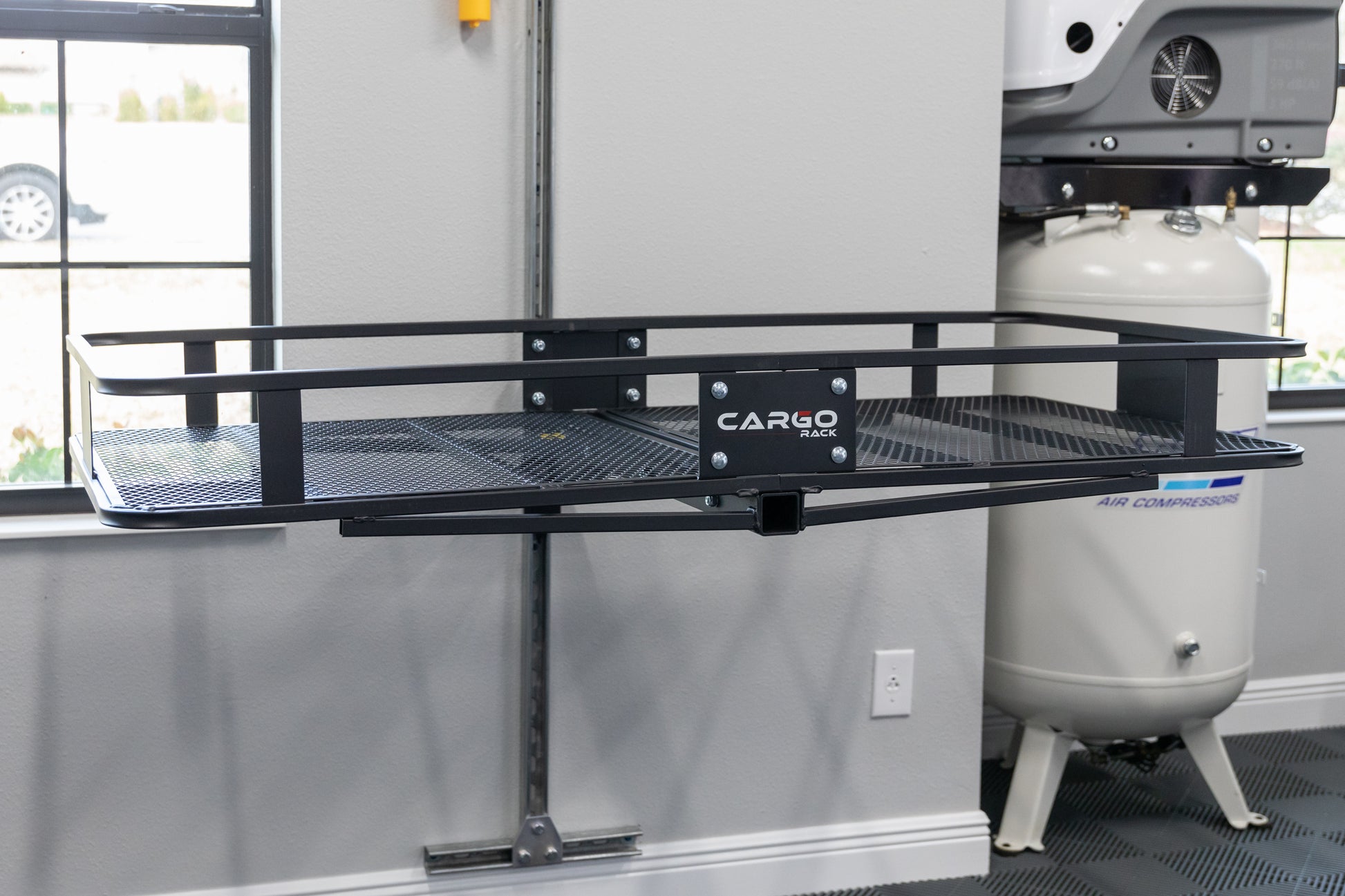

- Use and Store common Roof Rack attachments you already own by adding the Top Shelf Roof Rack to your system
- Use and store Hitch Receiver Attachments you already own
- Supports both 2in and 1 1/4 hitch receiver attachments​
- No wasted space. Lifts items to the ceiling
- Numerous safety features built into the system
- Channel stop provided to set a common upper stopping point
- All hardware provided to mount Lift to typical framed wall
- Electrical Requirements: 120 VAC
- Finish: Durable black powder coat and zinc plated finishes

Note: Lifting capacity of each trolley is based on the center of the load being lifted. If your load is centered less than 24in from the wall, the capacity is 300lbs. If more than 24” away from the wall, the load capacity decreases to 200lbs. It is not recommended to lift loads centered further than 36” from the wall.

This item is dropshipped from Top Shelf Storage Solutions in Kansas. Shipping is free.


ETA Information:

In Stock and Ready to Ship
