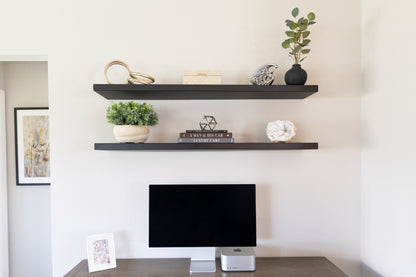

Obsessed Garage Floating Shelf

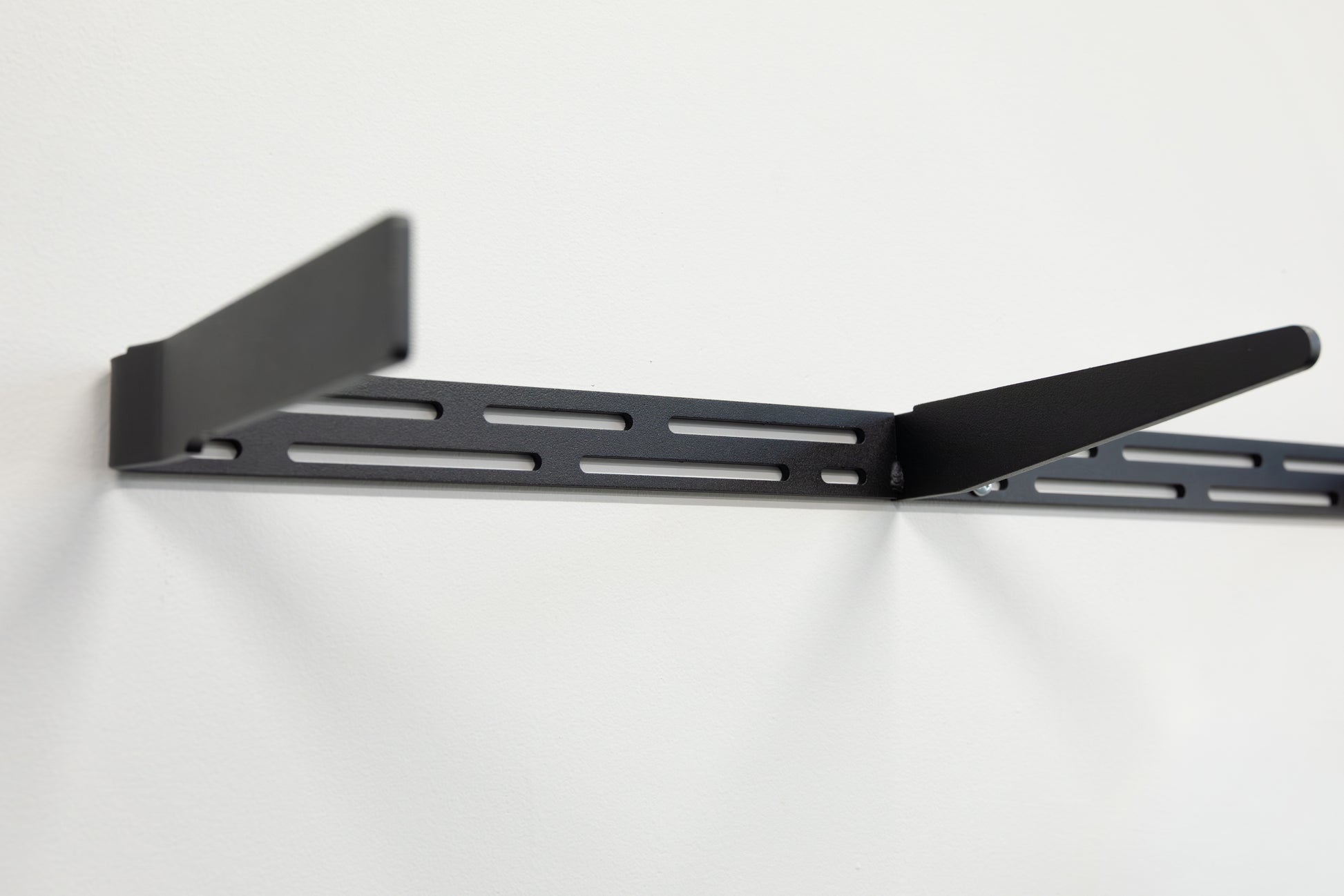

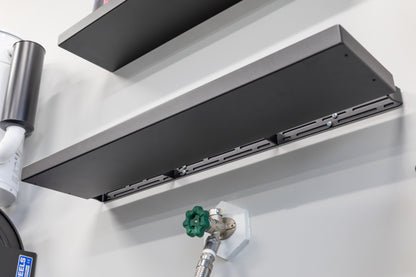

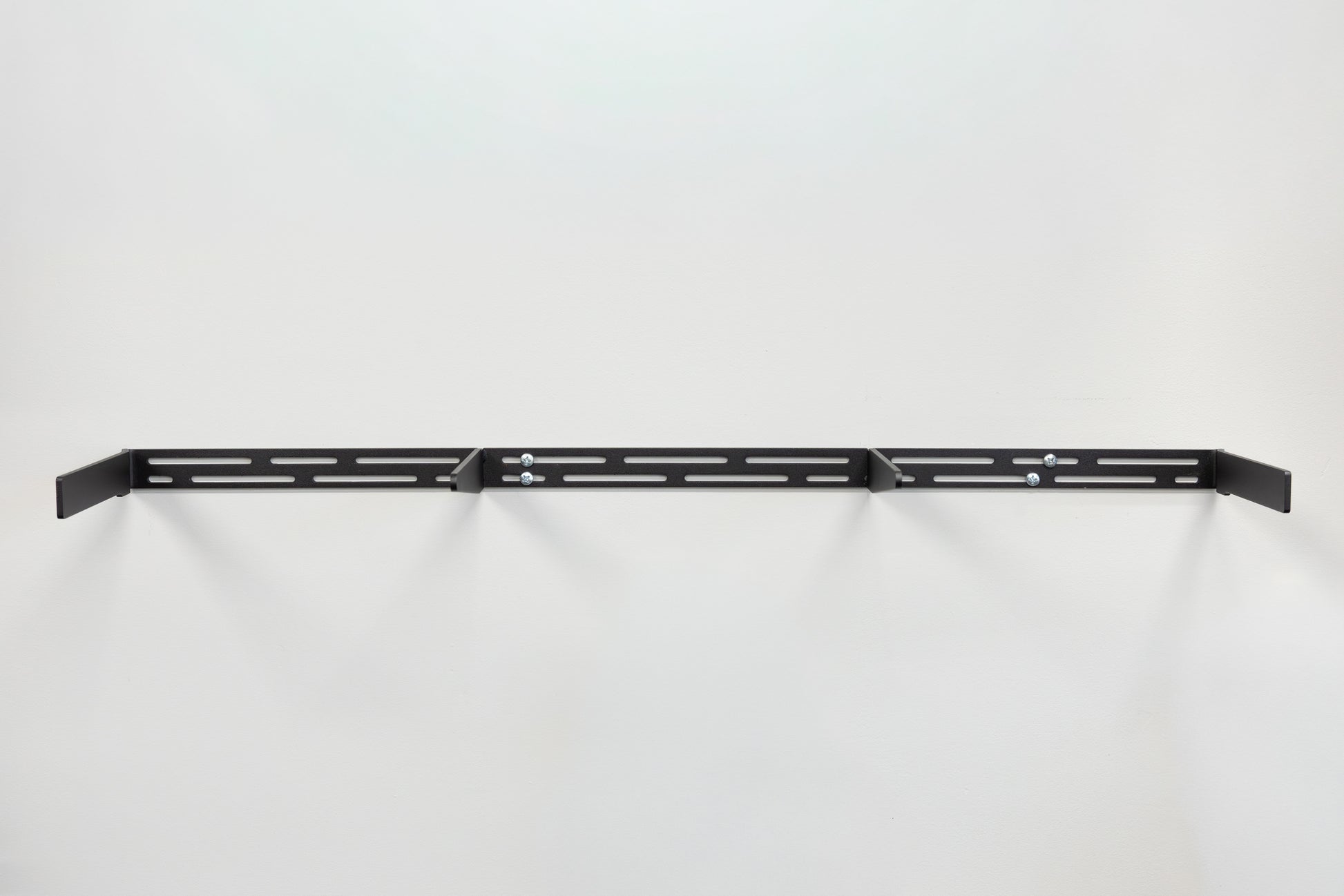

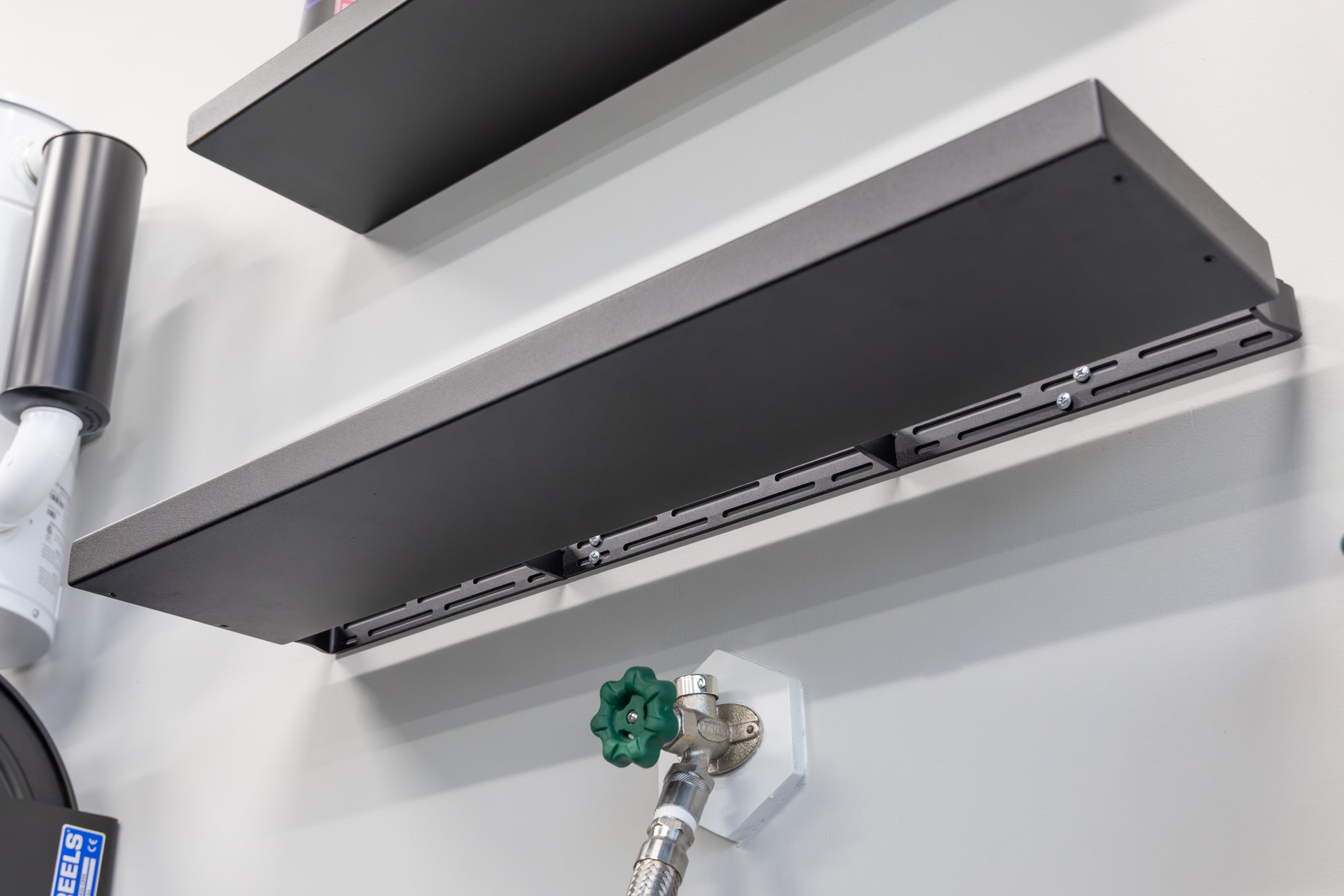

The Obsessed Garage Floating Shelf is a clean, purpose-built storage solution for garages, workspaces, utility rooms, and organized home environments. It uses a hidden mounting bracket system to give you an unobstructed shelf surface with no visible side brackets, supports, or hardware clutter.

Built with an all-metal shelf body and all-metal mounting bracket, this system is designed to feel solid, install cleanly, and look intentional once mounted. It is available in multiple widths so you can choose the right size for your space, stud layout, and storage needs.

Each shelf is rated for 50 lbs of evenly distributed weight when properly mounted to 2x4 wood studs using the recommended fasteners.

Key Features

• Hidden mounting bracket design
• Clean floating appearance with no exposed support arms

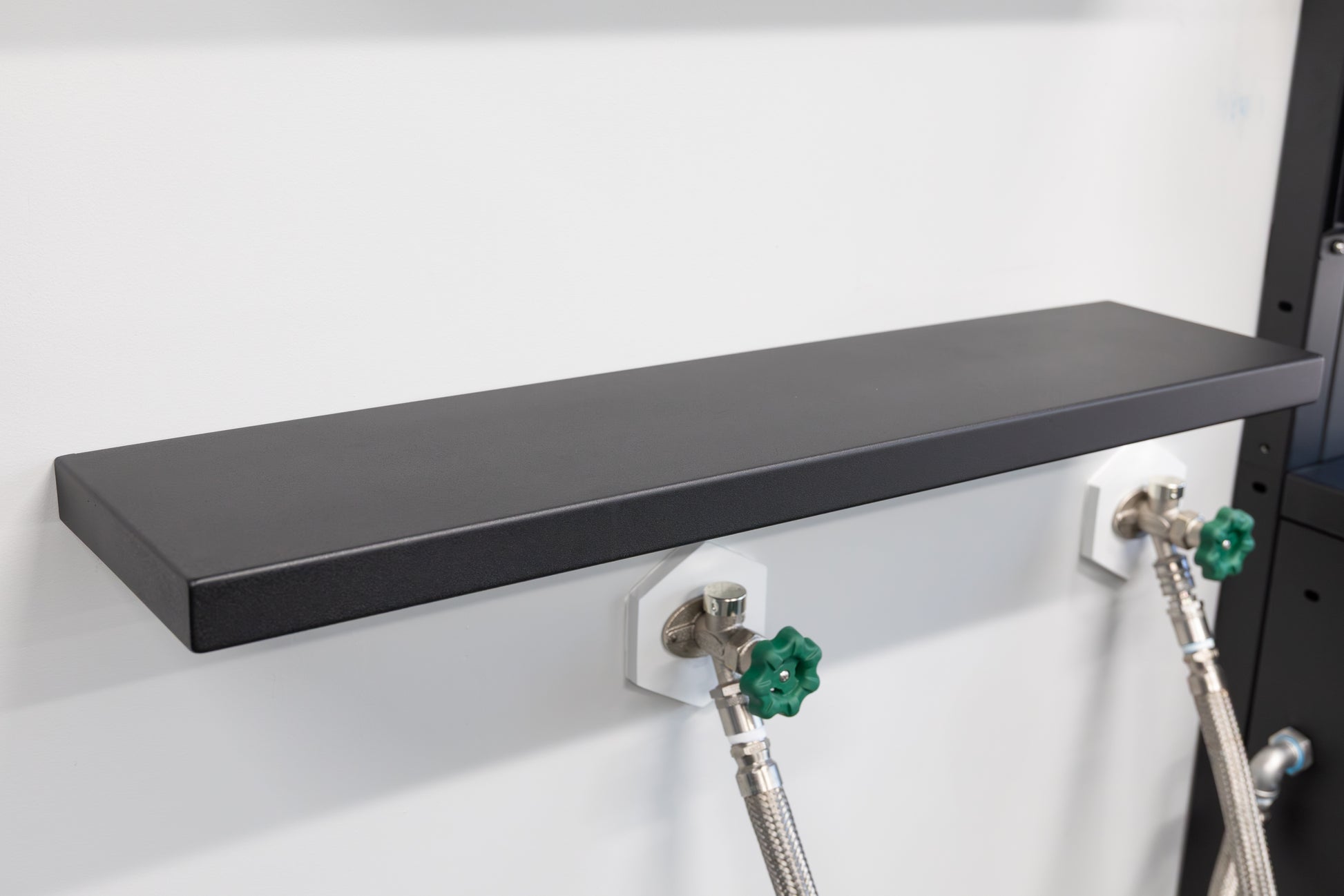

• All-metal shelf body and mounting bracket
• Rated for 50 lbs of evenly distributed weight when properly installed
• Multiple shelf widths available
• 10 in. shelf depth

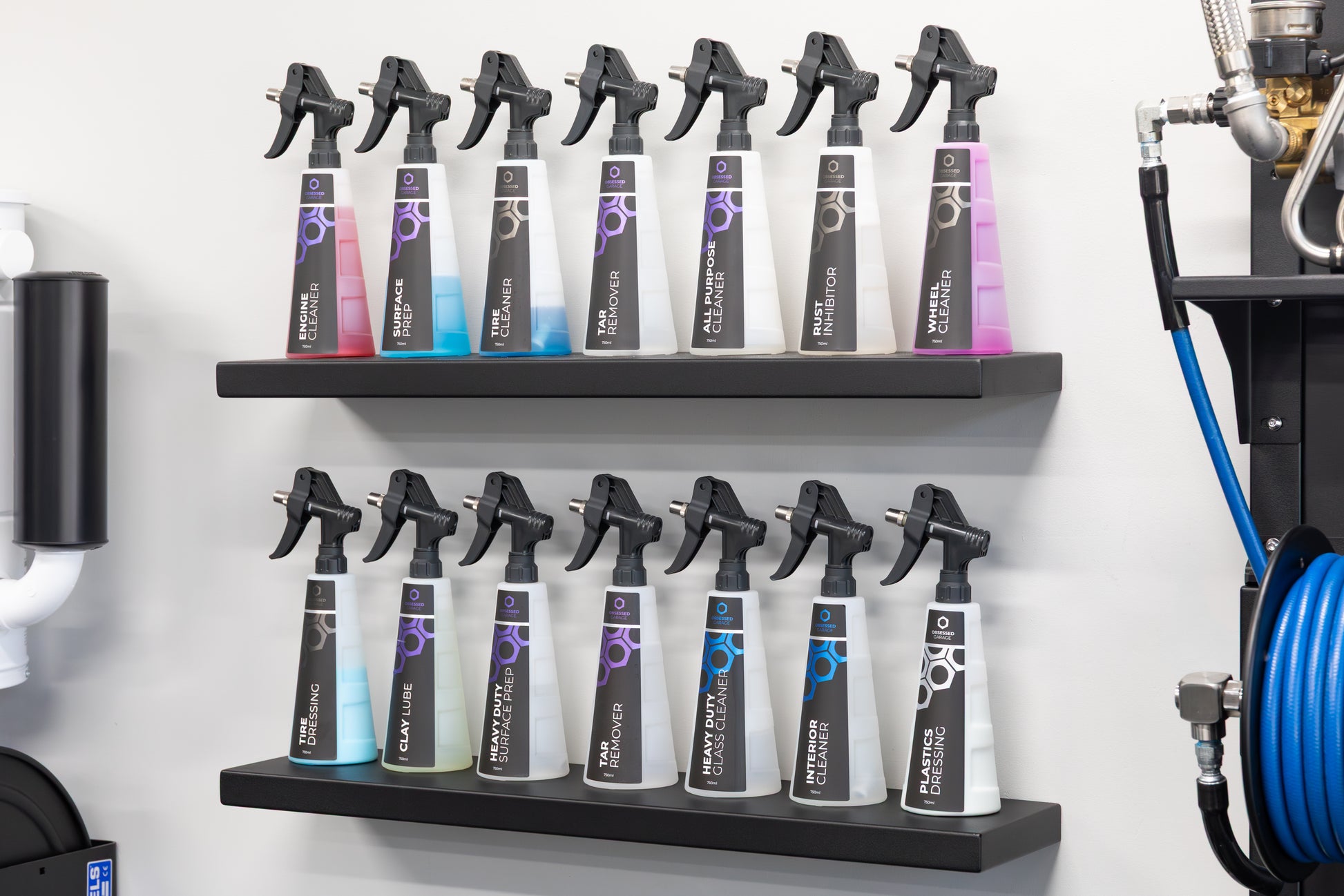

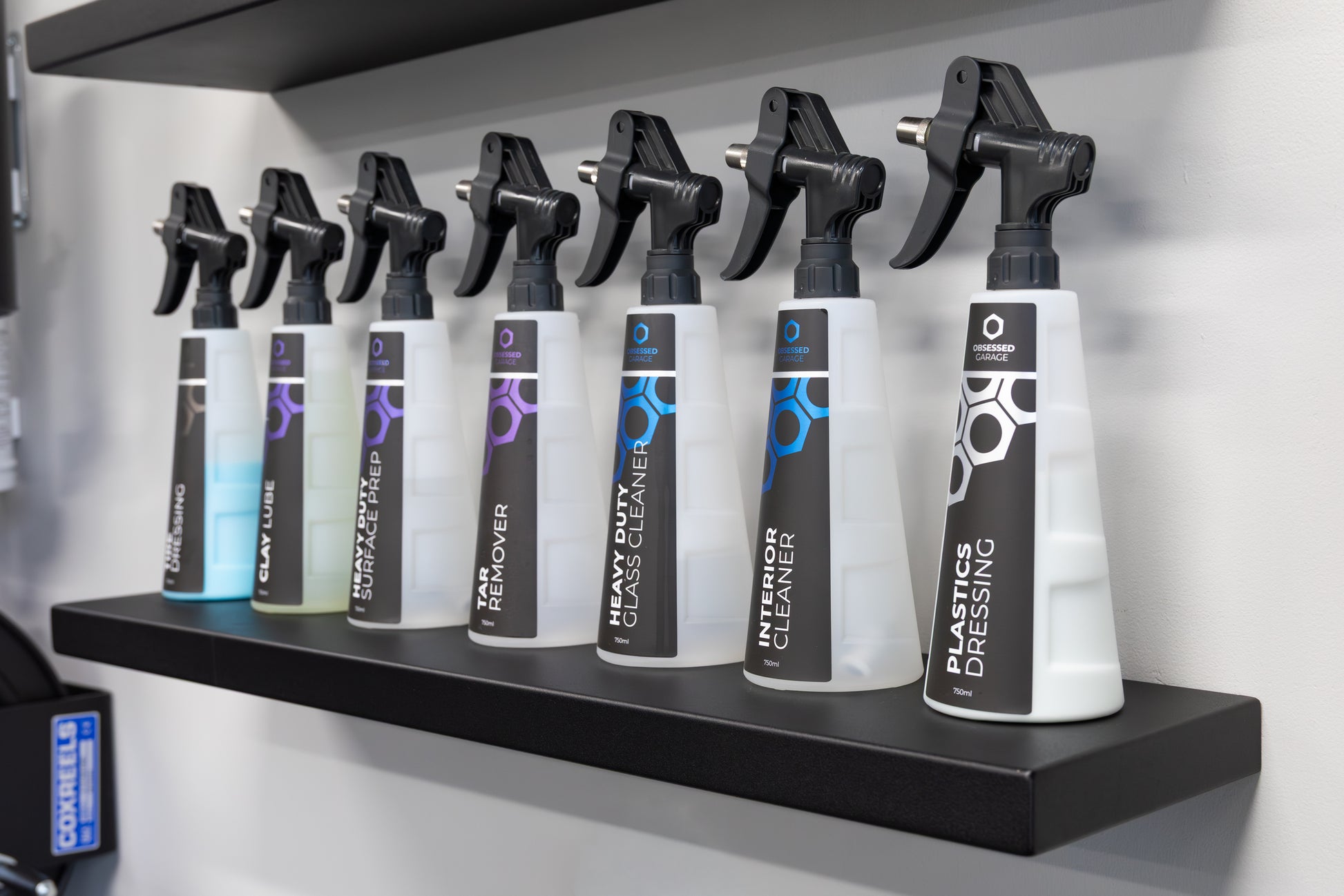

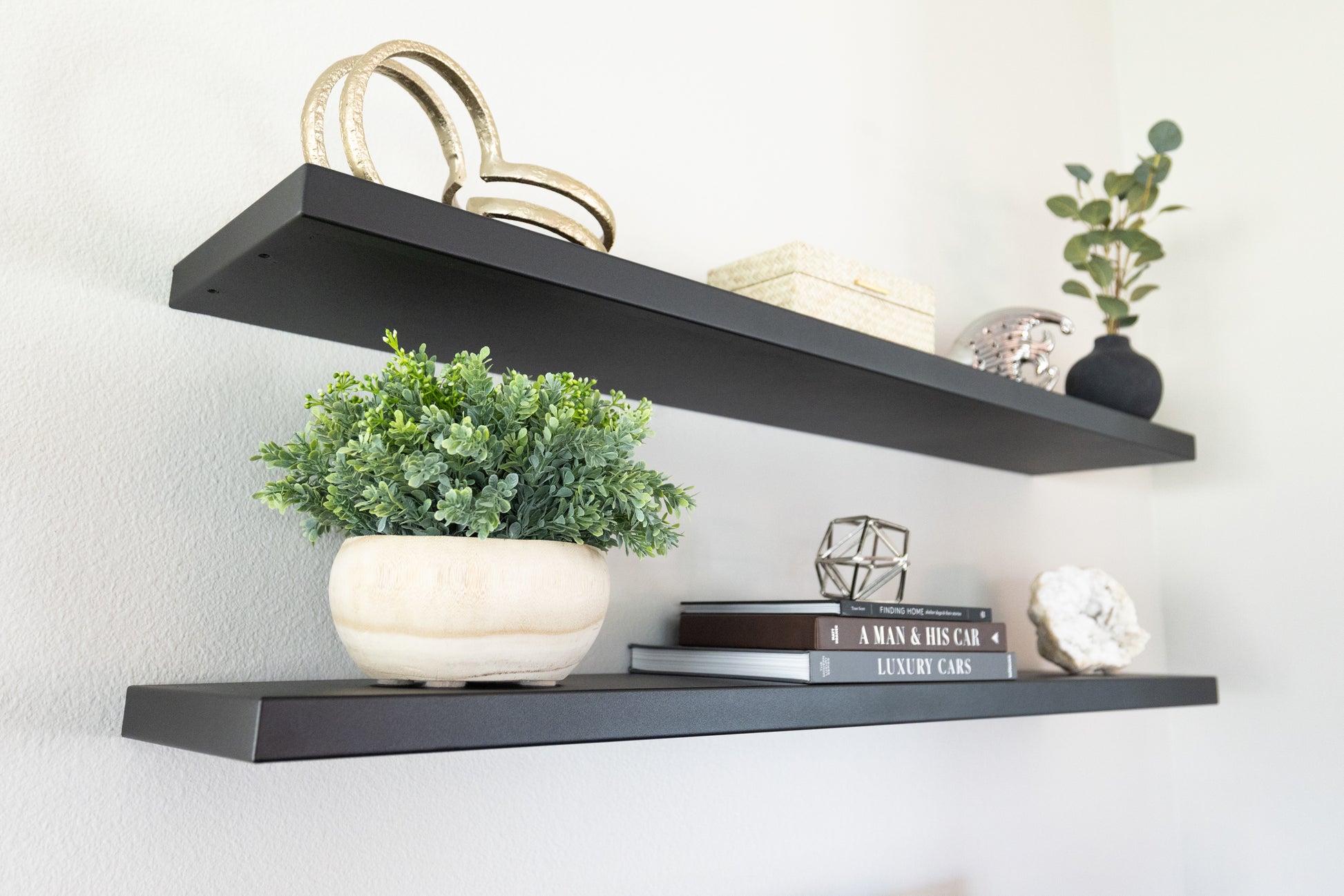

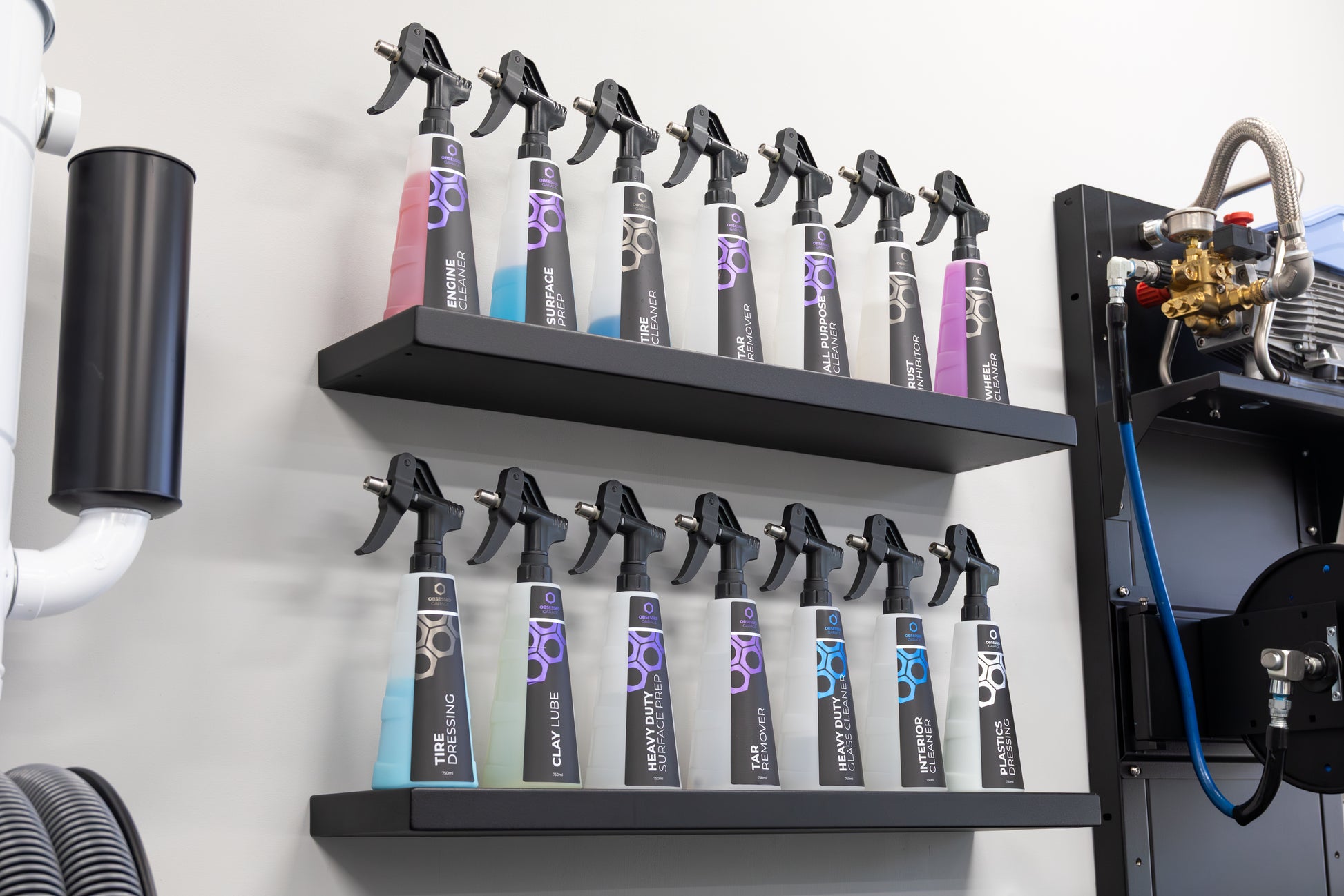

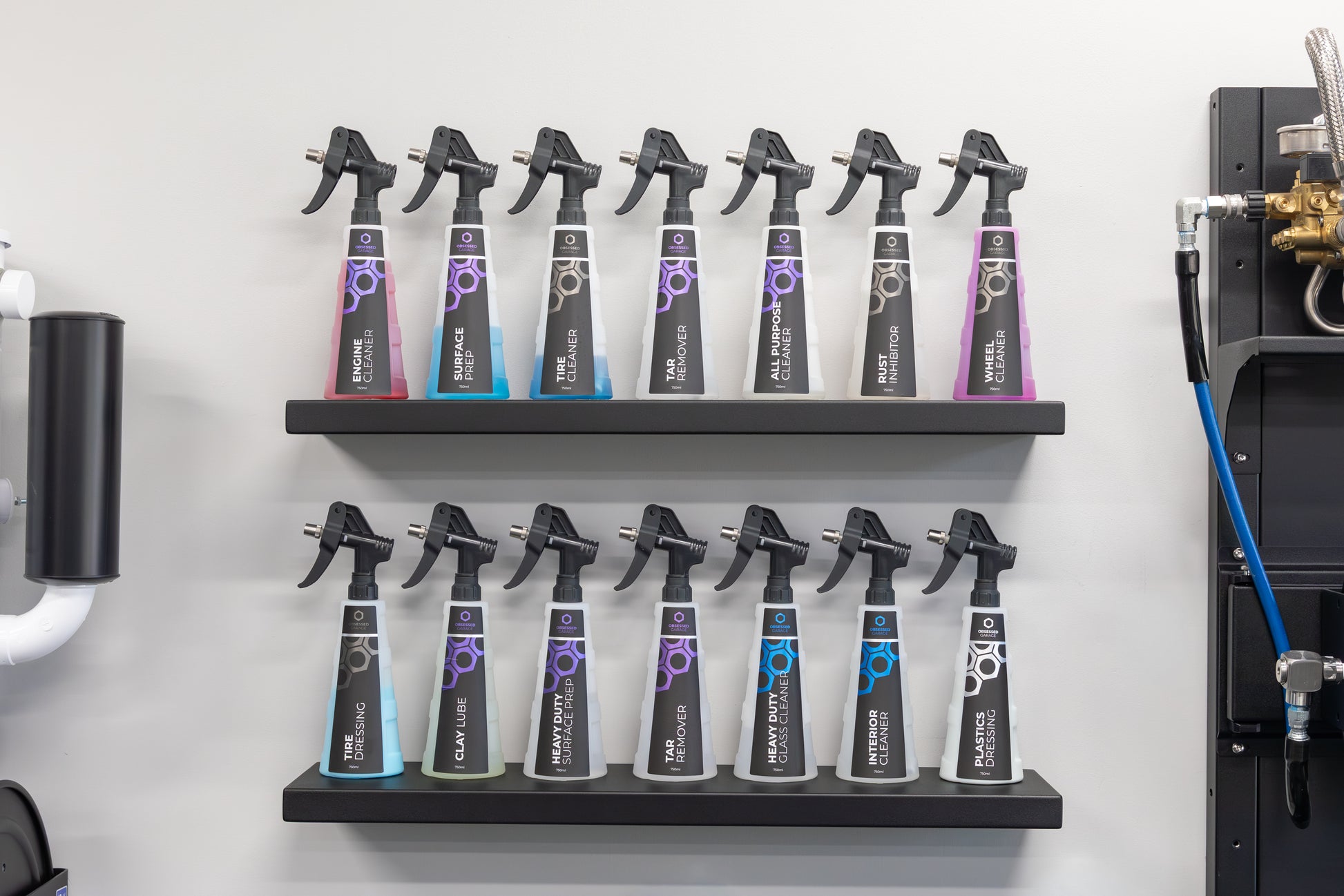

• Designed for garage, shop, detailing, utility, home and organized storage spaces
• Installation hardware guidance included in the installation manual
• Professional installation recommended if you are not comfortable locating studs, drilling, leveling, or working from a ladder

Available Sizes

Depth:
10 in.

Widths:
18 in.
26 in.
34 in.
50 in.

Load Rating

All sizes of the OG Floating Shelf System are rated for:

Maximum Load: 50 lbs
Load Type: Evenly distributed weight
Recommended Mounting Surface: 2x4 wood studs using the recommended fastener

Do not exceed the rated shelf load. Improper installation, unsuitable wall construction, or unsupported fastener placement can reduce the safe working load.

Installation Overview

Installation requires accurate measuring, locating structural supports, leveling the mounting bracket, drilling, and securing the shelf body to the hidden bracket.

General installation steps:

1. Determine your wall construction and correct fastener type.
2. Locate studs or structural supports.

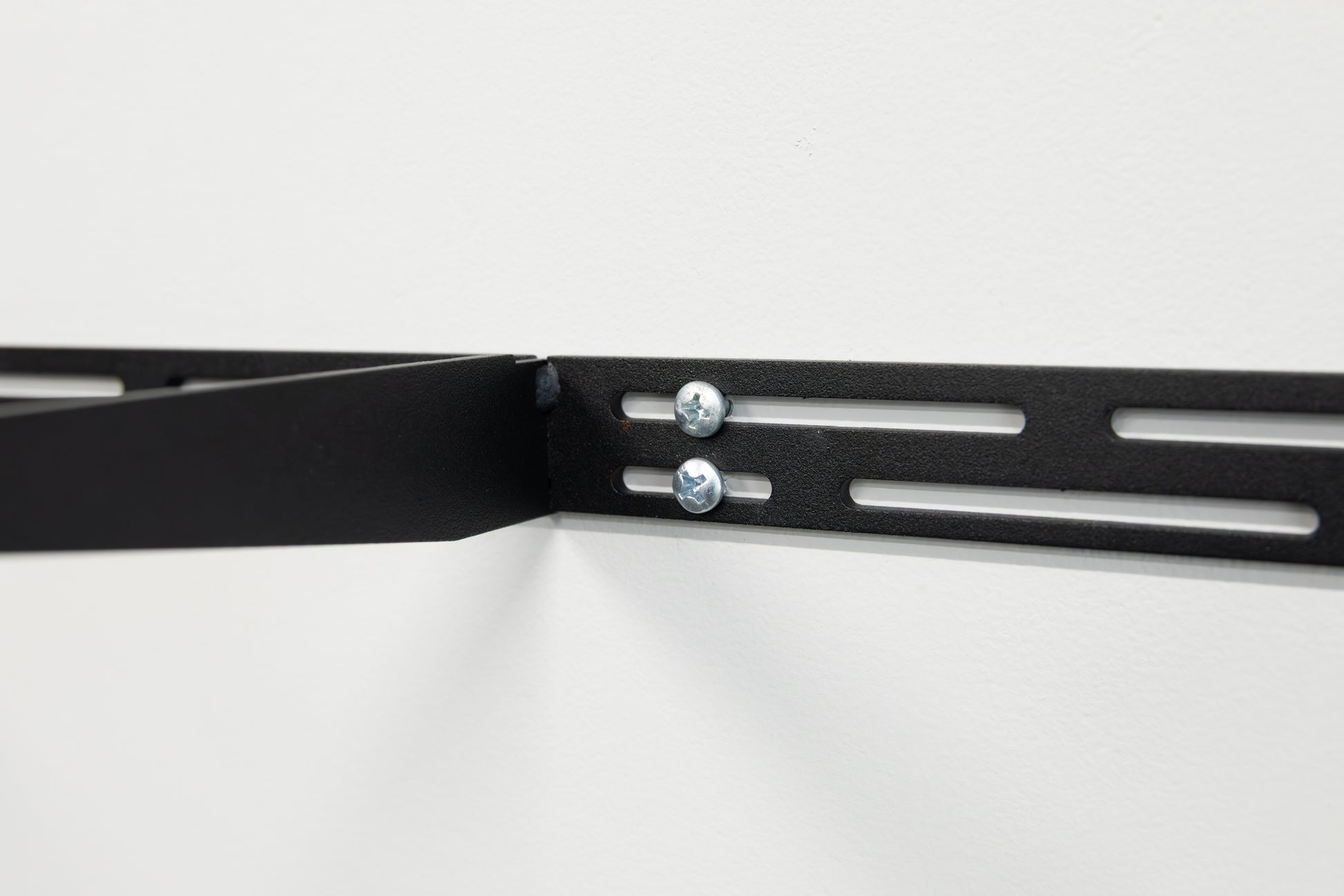

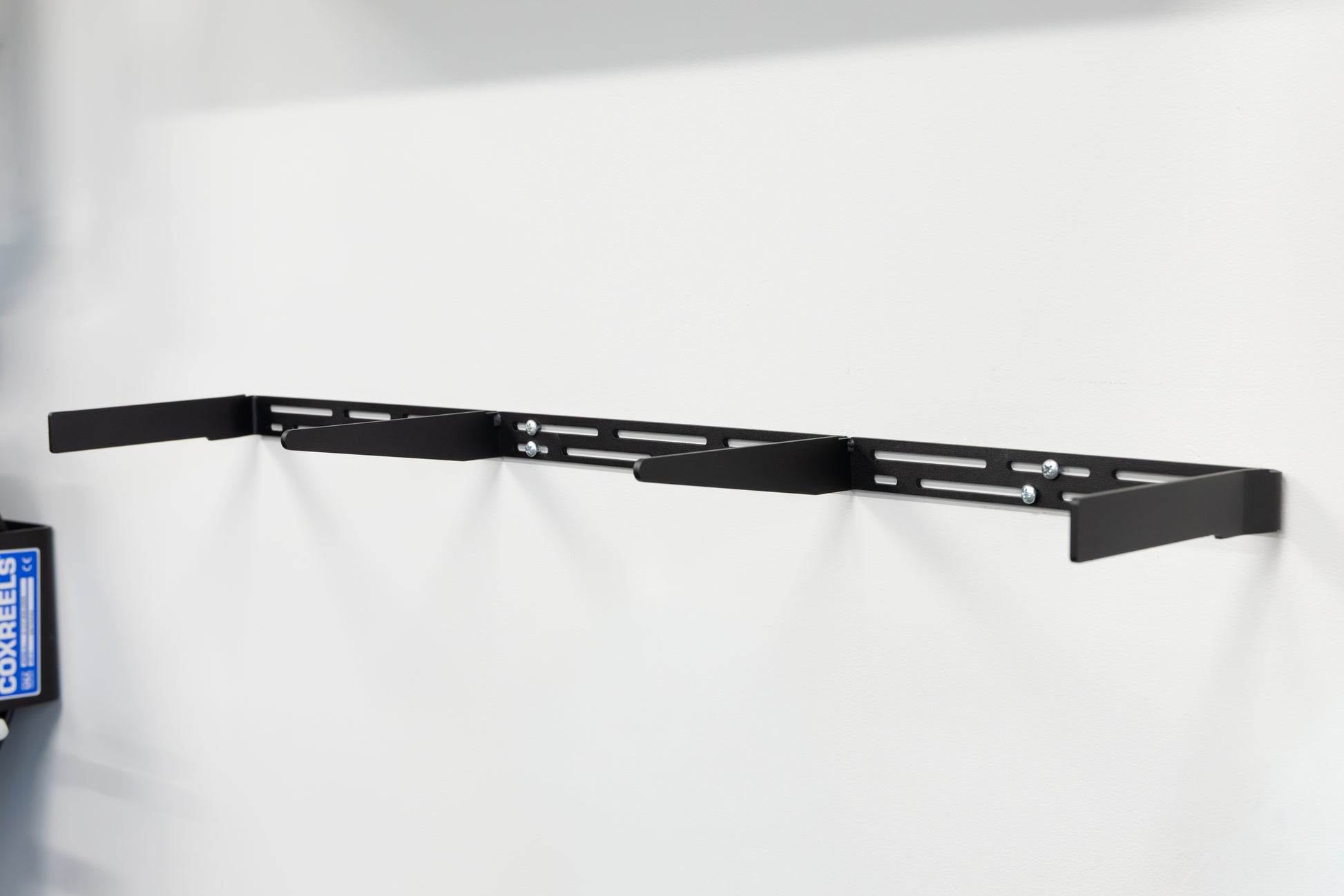

3. Mark and install the mounting bracket level.
4. Adjust bracket arm alignment if needed.
5. Install the locating spacers.

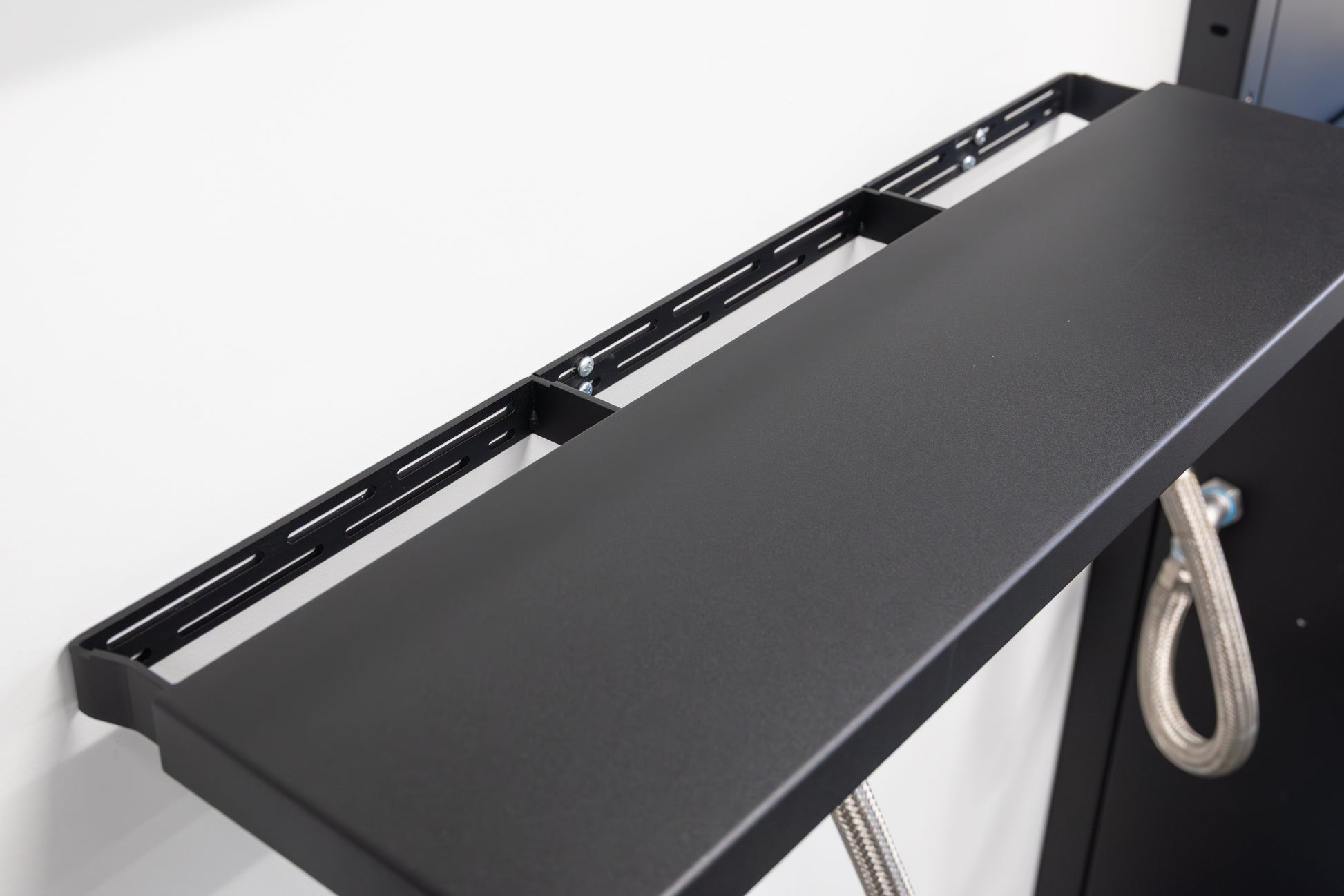

6. Slide the shelf body onto the bracket.

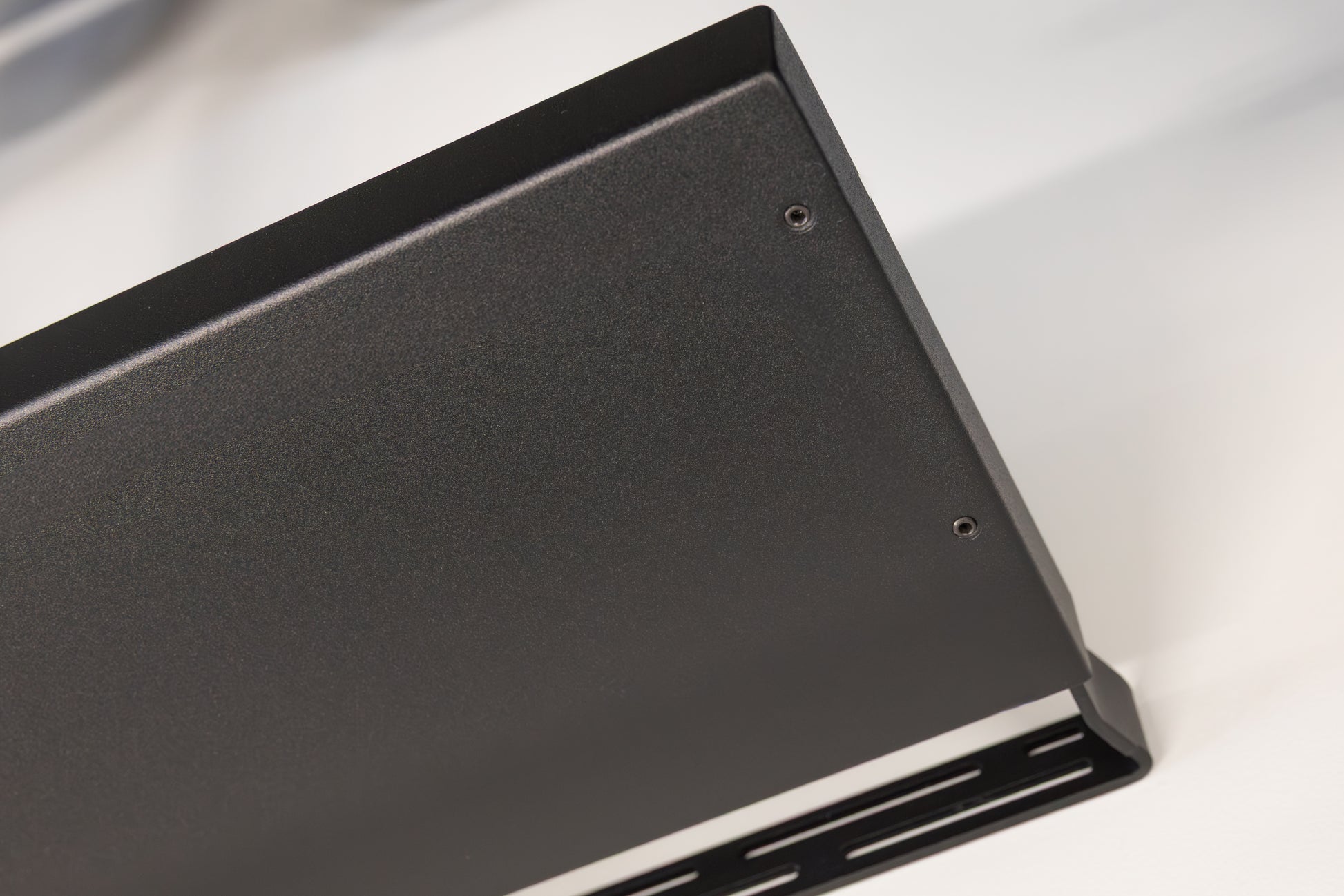

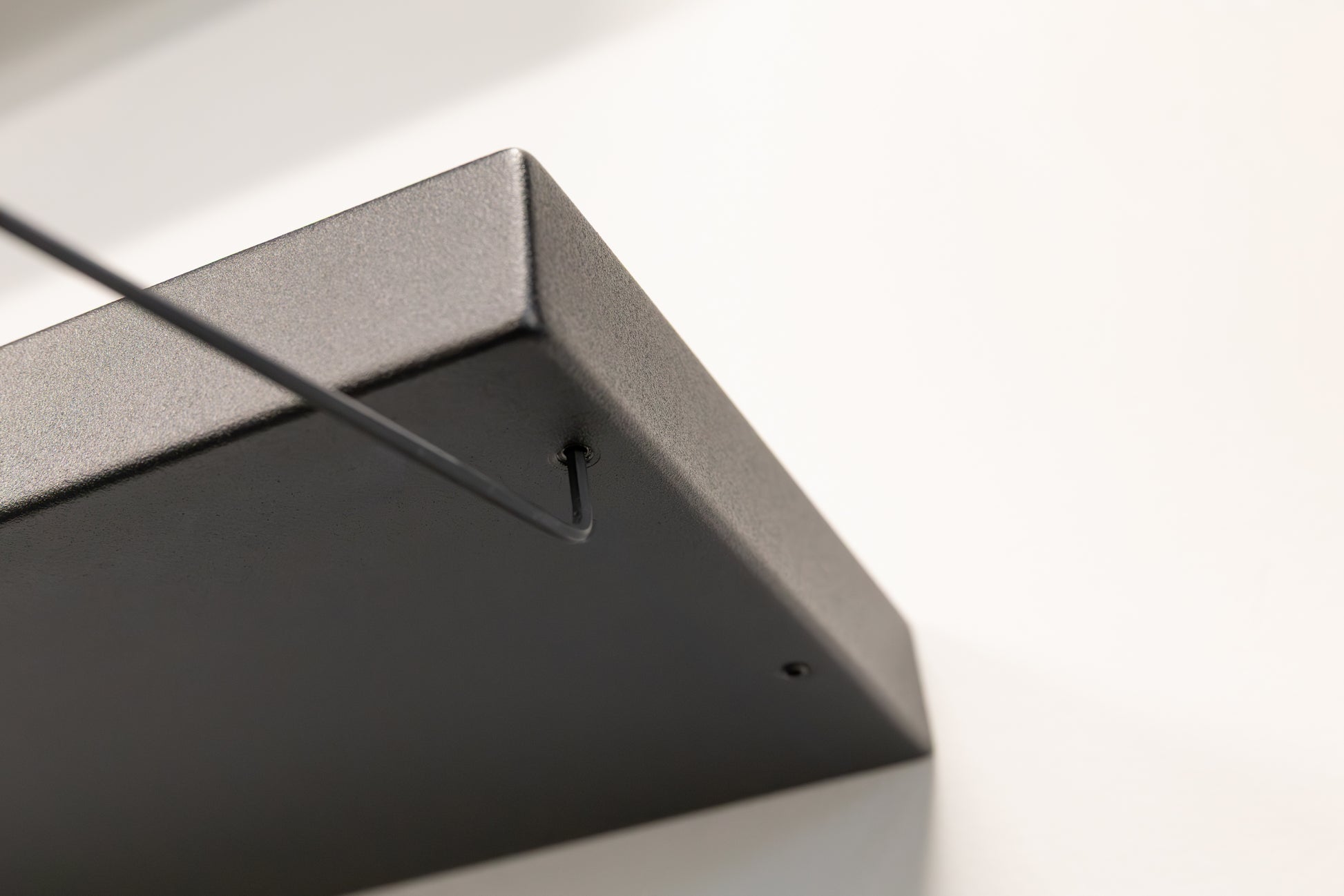

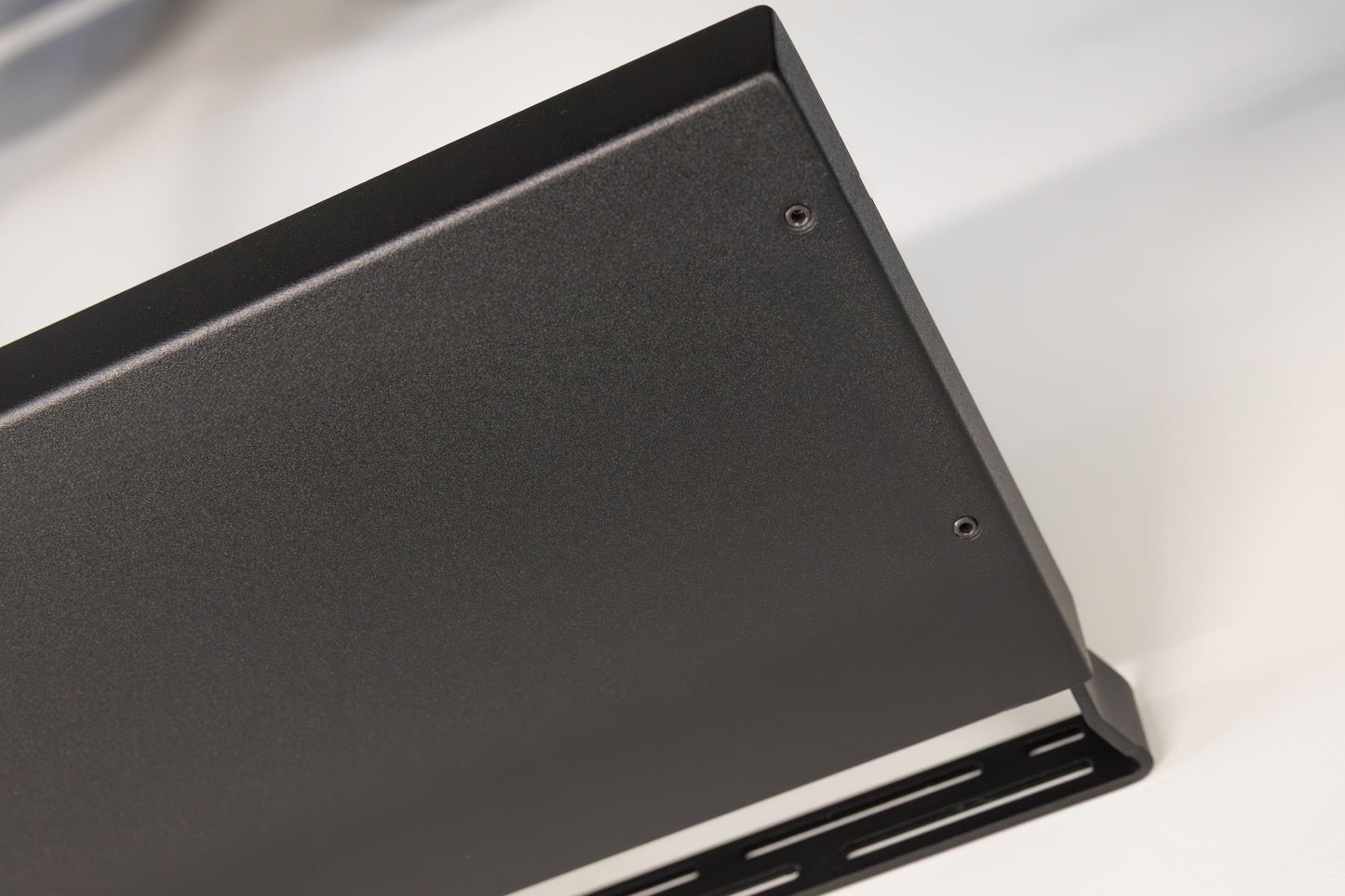

7. Secure the shelf body with the included socket set screws.

The estimated install time is 0.5 to 1 hour per shelf.

Recommended Tools

• Tape measure
• Stud finder
• Level
• Pencil
• Ladder
• 1/8 in. hex key / Allen wrench
• Power drill
• Drill bit set

Fasteners are selected based on your wall construction and are not universal. Refer to the installation manual before mounting.

Installation Notes

At least one fastener should be secured to the wall's structural support. If structural support is unavailable at the desired location, appropriate anchors must be used, and the maximum shelf load may be reduced.

The shelf system is manufactured to strict tolerances, so wall condition matters. If the wall is not straight, level, or plumb, the final shelf position may be affected.

Do not over-tighten the socket set screws. Over-tightening can distort the shelf body and is not covered under warranty.
