Speaker
Amplifier
Subwoofer Setup
Regular price $5,535.18
/

The Advanced Dynaudio Bookshelf Speaker Solution is our two-channel system, and by two-channel, I mean we have our amplifier in the middle connected to two passive speakers with speaker wire. I think this solution will be a popular option for the majority because it will be more realistic to obtain. The Emit’s that come with this selection are some killer speakers.

Like we did with our pressure washing solutions, I believe this kit-style package will make life much easier for those of you who want to build out a sick sound system in your garage without the hassle of piecing all of these things together a la carte.

When you’re building your package out, the first thing you will select is your speakers. In this package, I decided to go with the Dynaudio Emit’s. I absolutely love these things. I’ve discussed these speakers in great detail in my overview and demo video. The warm, rich sound they deliver is unmatched by any other speaker. If you have sensitive ears for bright sounds, you’ll want to do like me and live in this Dynaudio world. Because we are using these in a harsh environment like the garage, we want a speaker that will adapt well to this space.

I’ve created a real simple formula here. After picking your speaker (10’s or 20’s), you’d then choose your color and then your size. If you’re balling hard, then get the Emit 20’s. With this selection, you’re getting a bigger woofer, and if you have the space, these are a no-brainer. They (the 20’s) sound better, play at a lower frequency and have lower output.

You’ll then move to the source component (the amplifier). We have three options in this package, but you’re not limited to that - you may decide you want to upgrade to the NAD M10 V2 or even something above that; that’s totally fine. The three (3) options are 1) NAD C368 2) Bluesound Powernode 3) NAD C700.

The combination I like most is the Emit 20’s with the NAD C368 amplifier and a Dynaudio Sub 6. Again, it comes down to how much you are willing to spend and how much space you have. This C368 is much bigger than the Powernode and works perfectly with these speakers. It’s a magical setup.

I love all of these source components because of the BlueOS built into them. You can stream high-res music seamlessly. The amplifier is the player, and your phone is the controller. You can handshake from one room to the other using the BlueOS software. An example would be you’re in your garage jamming out on the C368, but then you move inside your home and want to play off of your Powernode. It’s as simple as making that switch right from the BlueOS app.

All of this audio stuff can appear intimidating, but I promise you, it’s not. This is why Uncle Matty is here, to lead and guide you through the purchasing and installation process. You’ll have this all set up in under 5-minutes. Just watch the video above to see how to put all of this together. And yes, I will be supplying you with 50 ft of CI-rated speaker wire with banana plugs. We’ll also offer you the option to upgrade to the Metra Premade HiFi-Ready 12 Gauge BFA Terminated Speaker Cables, which may not be long enough, depending on your layout.

Most of you are going to be setting this up using cabinets. So, you’ll have your speakers on top of the cabinets; you’re going to run your wires behind it. Your source component (amp) will go on the left or right side. I’m almost sure the 50ft of speaker wire will be sufficient for most applications. If not, it’s inexpensive, and you can just order a longer length.

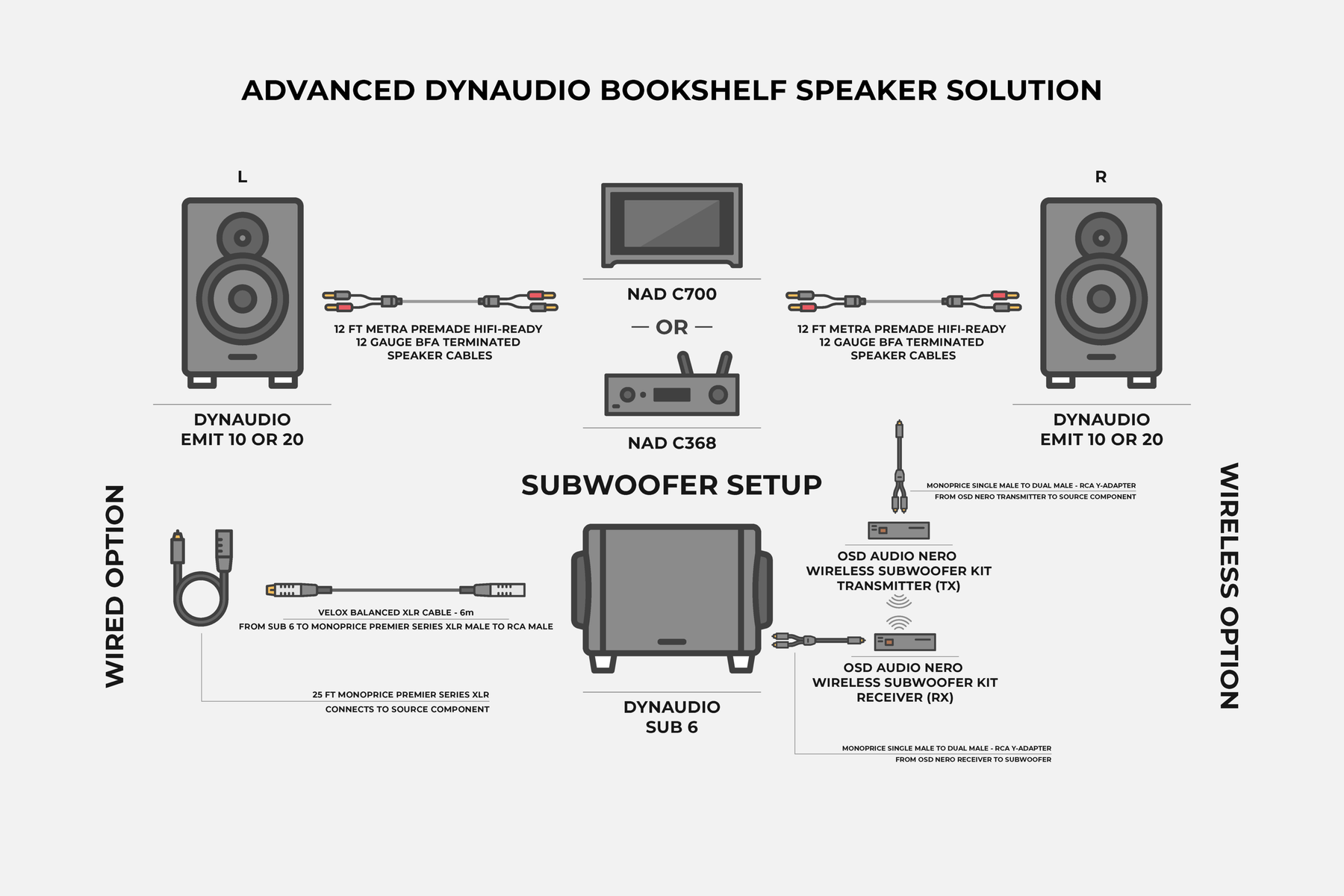

You’ll have the option to do either a wired setup or a wireless setup for your subwoofer. The wired solution comes with an RCA to XLR connection (cable) that will go into the SUB OUT on your source component while the other end plugs into the Sub 6. You always want to be wired if you have the choice.

If you decide to go the wireless route like me, where I want my subwoofer out of the way, we’re providing you with an OSD Audio Nero Wireless Subwoofer Kit with a Monoprice Single Male to Dual Male - RCA Y-Adapter. The dual male end plugs into the OSD Audio, and the single male end plugs into the SUB OUT on your source component. You always want to be wired if you have the choice.

You’ll get one (1) transmitter and one (1) receiver. The transmitter is what’s going into the source component. The receiver is what’s going into the subwoofer.

I’m hoping to bring in SVS subs as our entry-level subwoofer option to have some practical options available.

We’ll also have a video add-on option and brackets available if you decide to mount your speakers on the wall.

If you’re a big music guy or gal, this is the system you want to go with - this system is going to give you more output and amplitude.

What You Get

Speakers

  • x2 Emit 10’s or 20’s
  • 2 Grilles
  • 2 Foam port plugs
  • Owner's Manual
  • Quick Start Guide
  • Warranty Extension Card

Amplifier

Options

  • NAD C700
  • NAD C368
  • Bluesound Powernode

Cables and Wiring

  • Metra Premade HiFi-Ready 12 Gauge BFA Terminated Speaker Cables

Subwoofer Setup

  • Dynaudio Sub 6

Wiring Options

  • Wireless - OSD Audio Nero Wireless Subwoofer Kit and Monoprice Single Male to Dual Male - RCA Y-Adapter (x2)
  • Wired - Velox Balanced XLR Cable (6m) and Monoprice Premier Series XLR Male to RCA Male
    Specifications

    Speakers

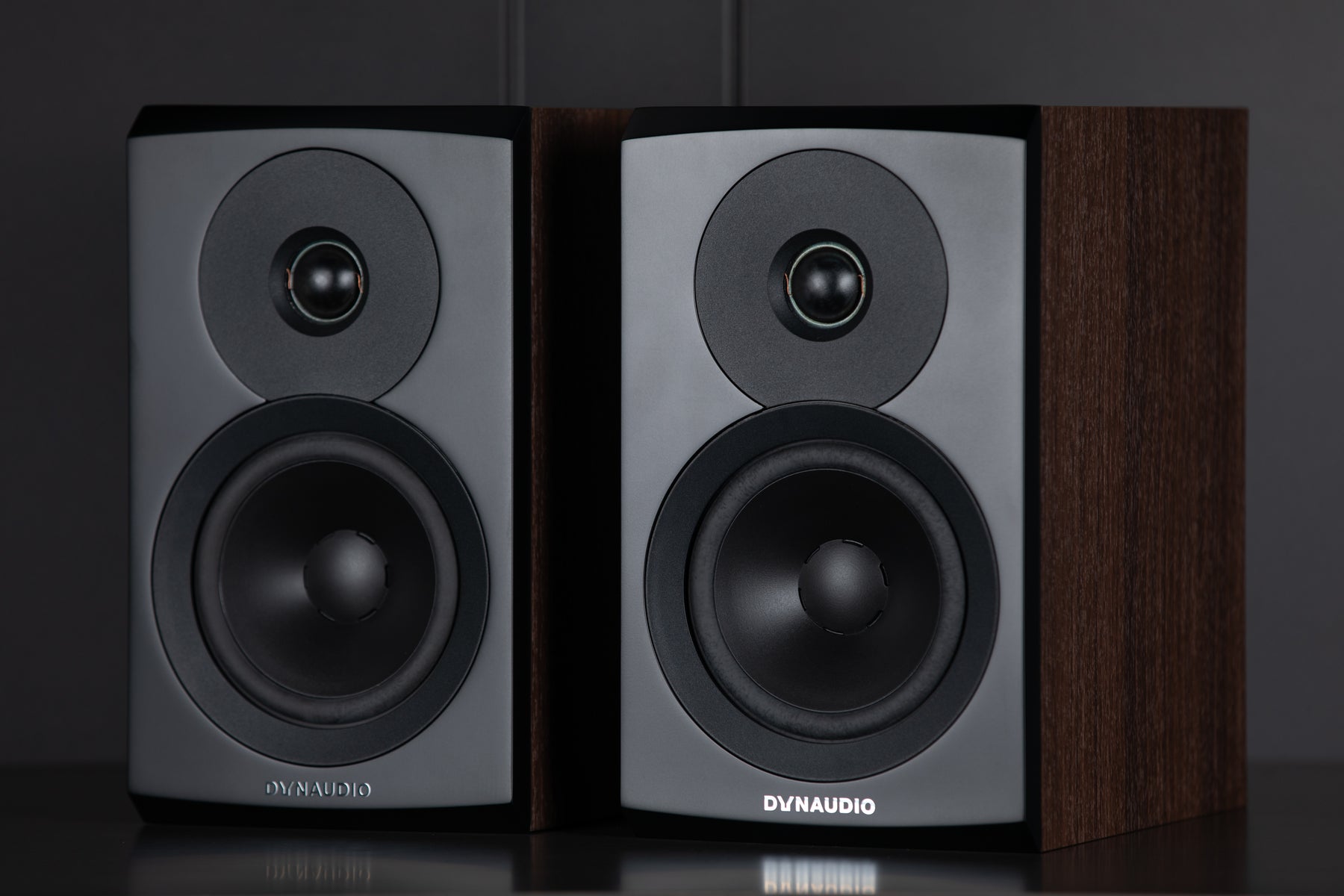

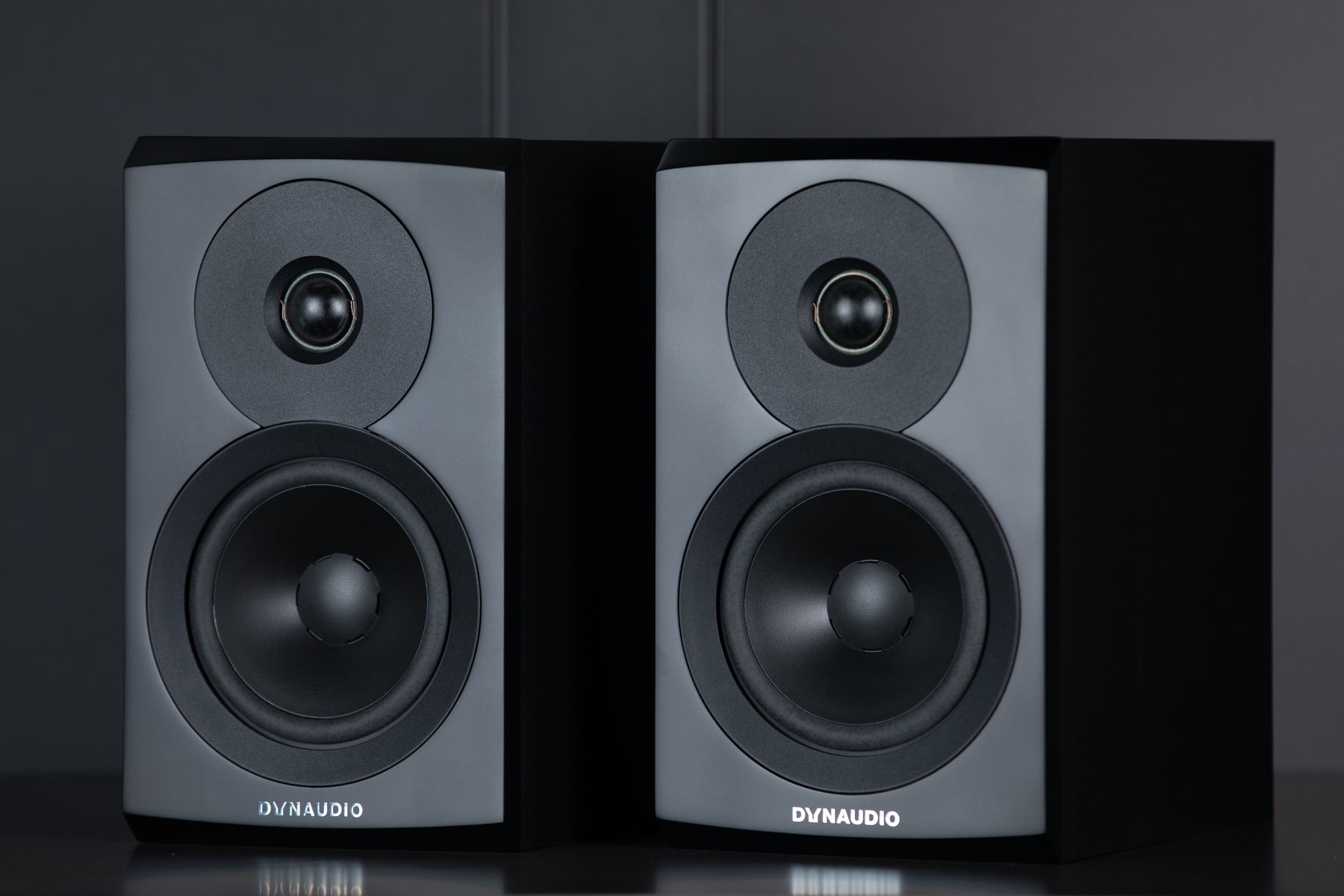

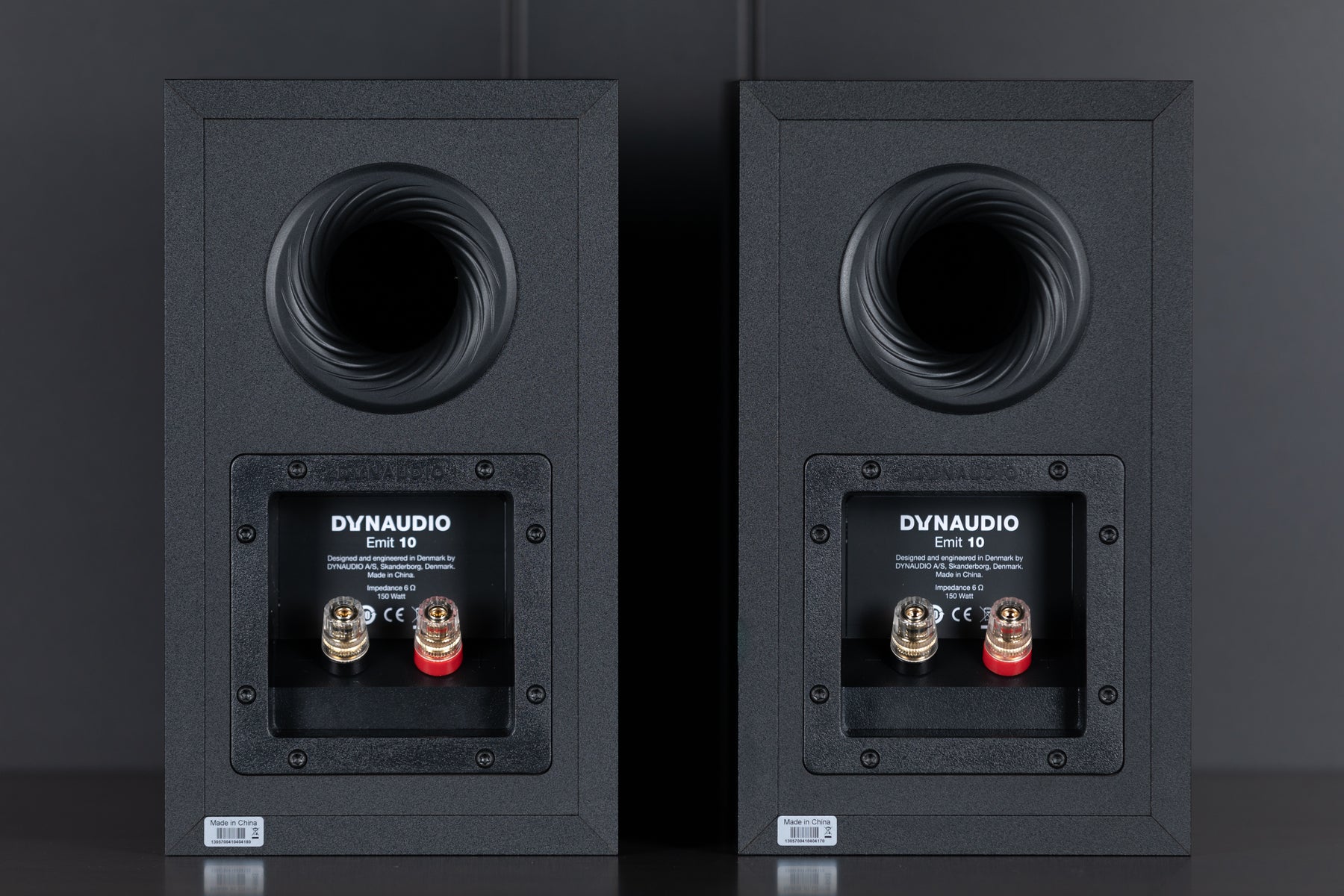

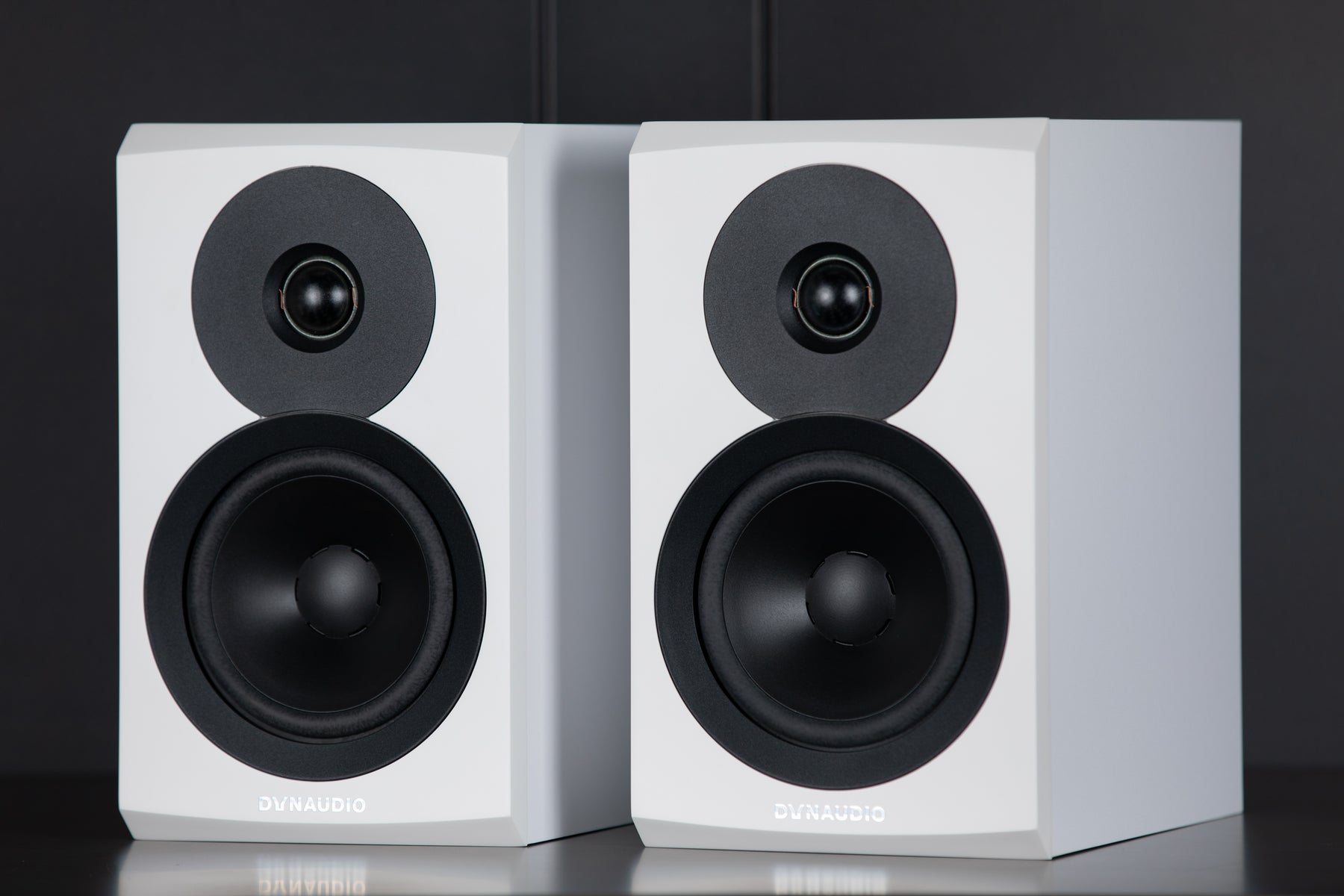

    Emit 10

    • Sensitivity: 85dB (2.83V/1m)
    • IEC power handling: 150 watt
    • Impedance: 6 Ω
    • Frequency response (± 3 dB): 64Hz - 25kHz (-6 dB 52 Hz - 35 Khz)
    • Box principle: Bass reflex rear double flared port
    • Crossover: 2-way
    • Crossover frequency: 3700 Hz
    • Crossover topology: 1ST order tweeter/2nd order woofer
    • Midrange/Woofer: 14cm MSP cone
    • Tweeter: Cerotar soft dome with Hexis
    • Weight: 6.43kg / 14.2 lb
    • Dimensions (WxHxD): 170 X 290 X 271,5 mm | 6.7 X 11.4 X 10.7 in
    • Dimensions with feet/grille (WxHxD): 170 X 290 X 284,5 mm | 6.7 X 11.4 X 11.2 in

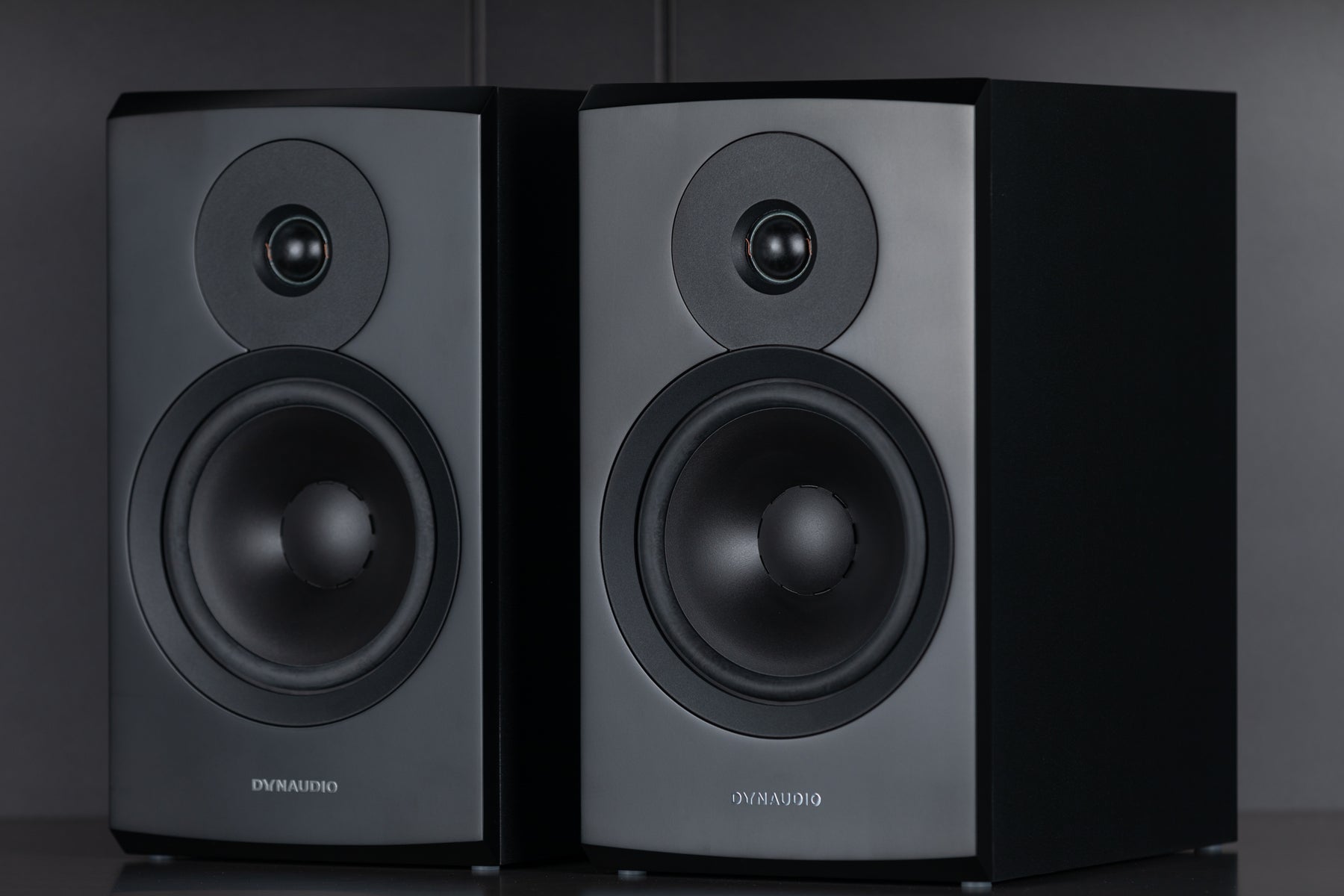

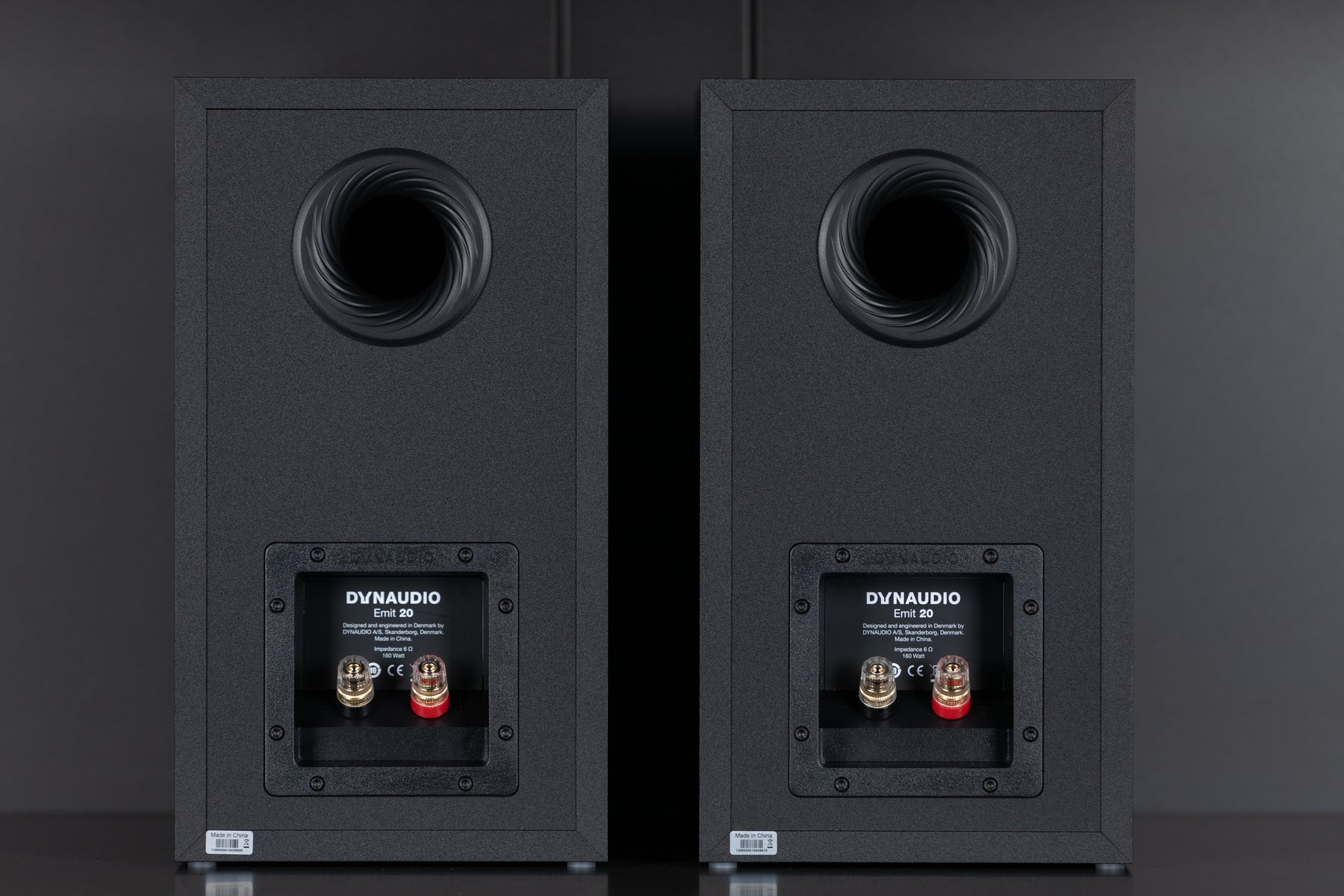

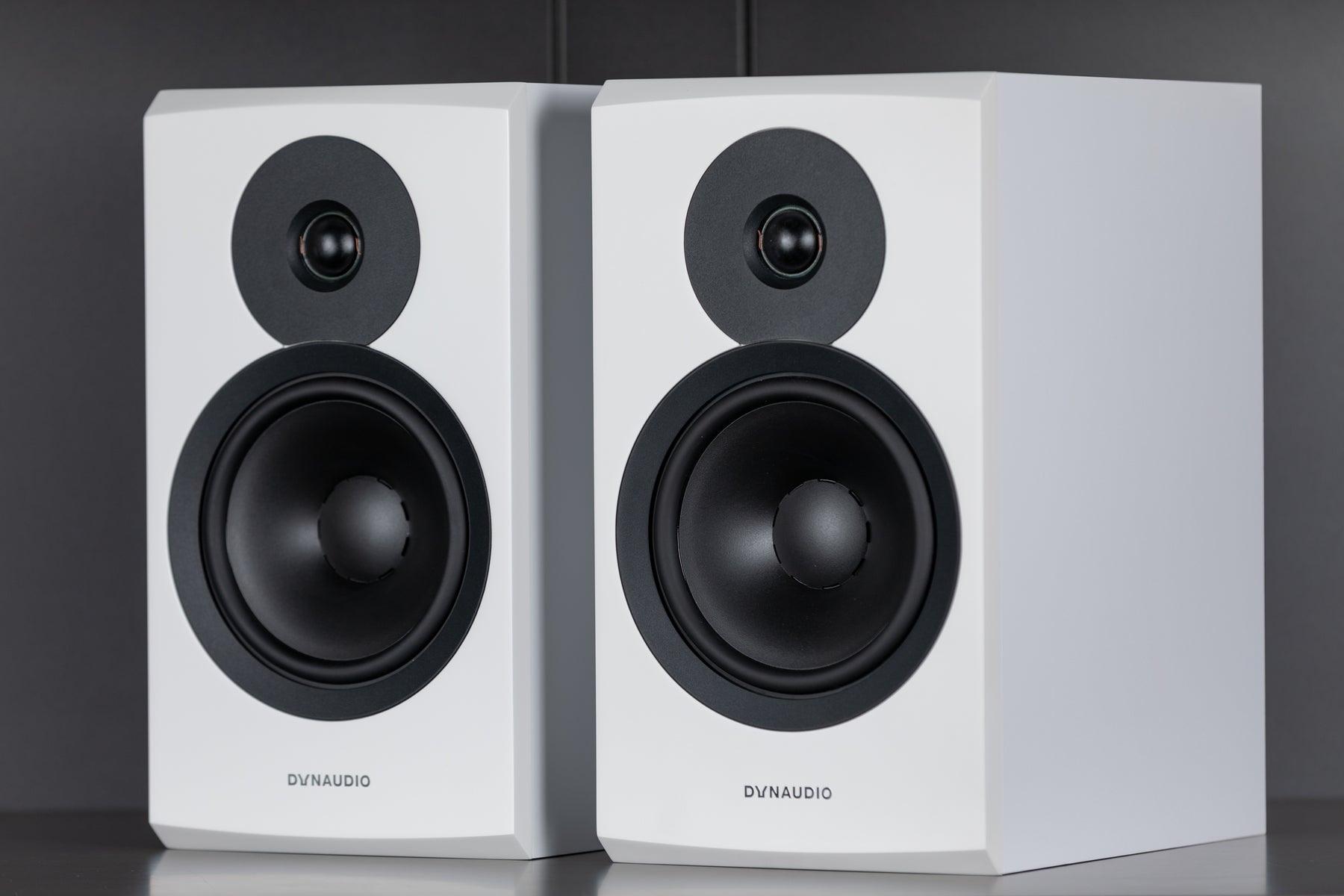

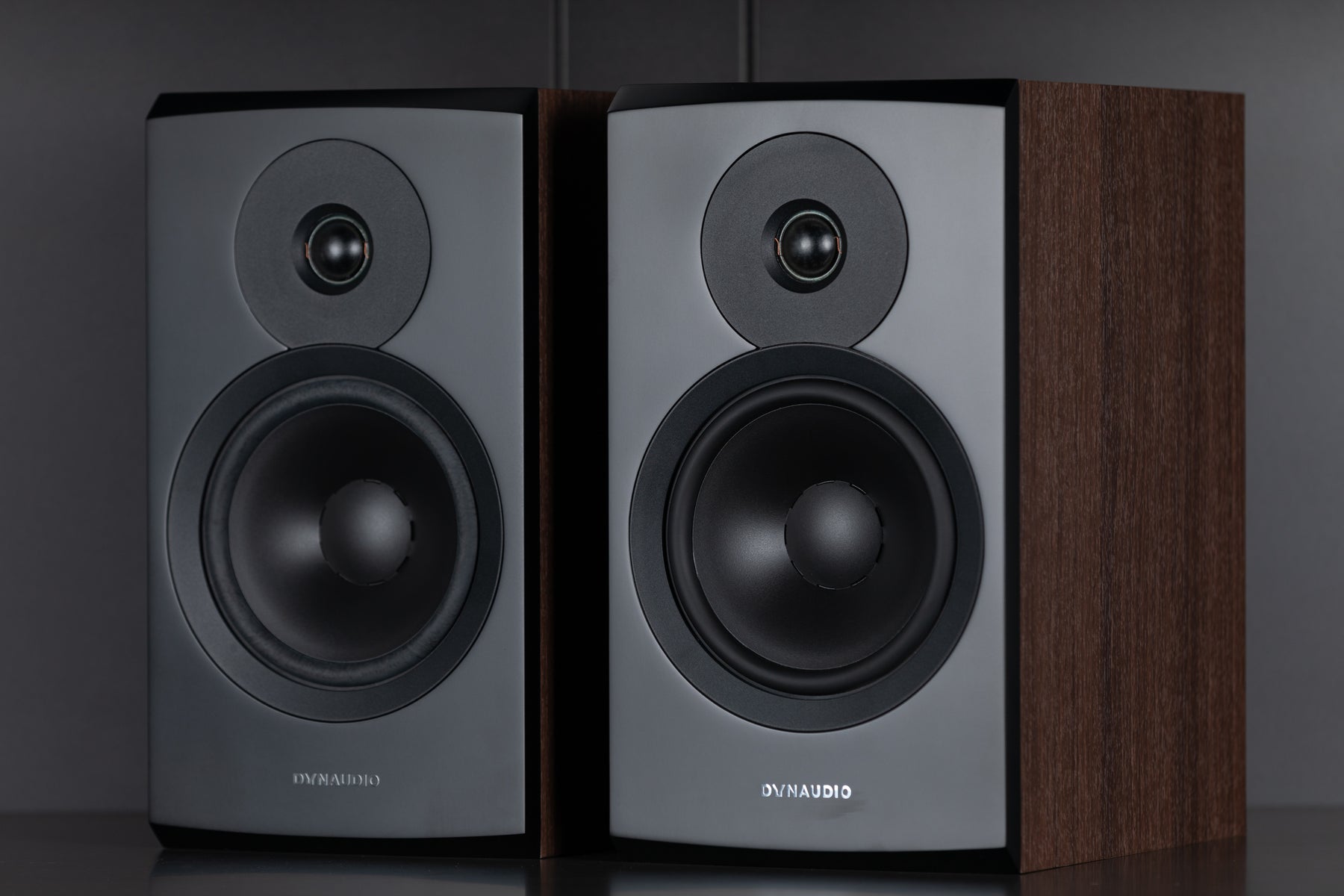

    Emit 20

    • Sensitivity: 86dB (2,83V / 1m)
    • IEC Power Handling: 150W
    • Impedance: 4 Ohms
    • Frequency Response (±3dB): 50Hz – 23kHz
    • Box principle: Bass Reflex Rear Ported
    • Crossover: 2 way
    • Crossover Frequency: 2600Hz
    • Crossover Topology: 1st/2nd order
    • Woofer: 17cm MSP
    • Tweeter: 28mm soft dome
    • Weight: 7.5kg / 16lb
    • Dimensions (WxHxD): 215 x 355 x 265mm | 8.5 x 14 x 10.4in
    • Dimensions with feet/grill (WxHxD): 215 x 355 x 280mm | 8.5 x 14 x 11in

    Amps (Source Components)

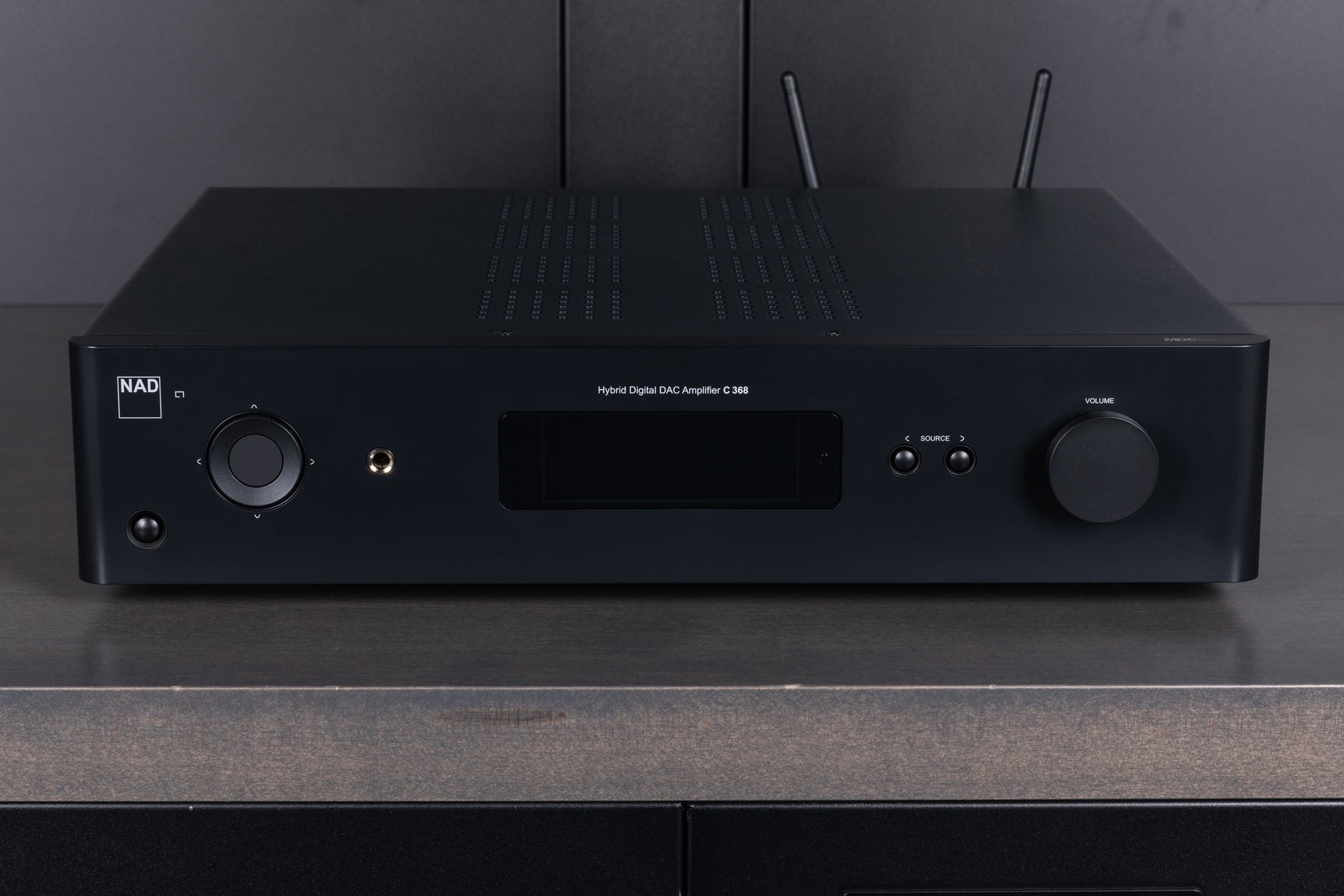

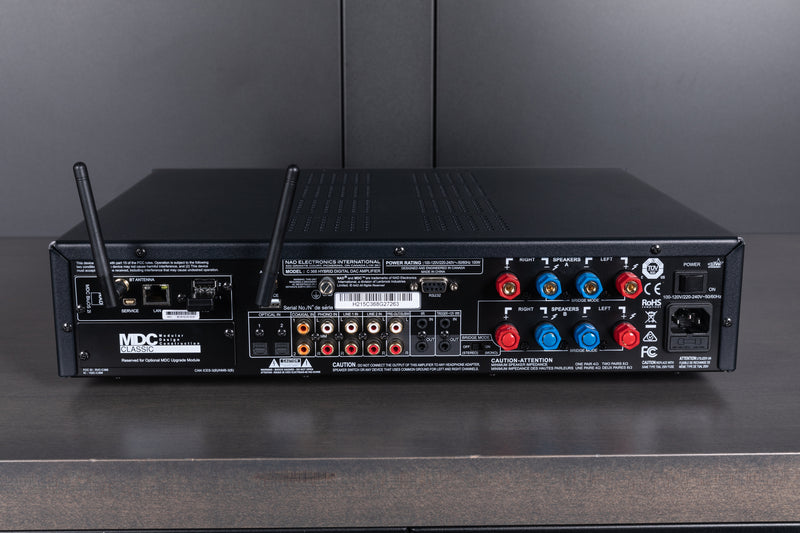

    NAD C368

    • 80 watts x 2 channels into 8 or 4 ohms (20-20,000 Hz) at 0.03% THD
    • 4-ohm stable for use with a wide range of speakers
    • Class D Asymmetrical PowerDrive amplifier design
    • Built-in Bluetooth for wireless music streaming from a compatible device or wireless headphone listening
    • supports the aptX® codec for wirelessly streaming CD-quality sound
    • Independent built-in high-output headphone amplifier
    • 2 MDC (Modular Design Construction) slots for adding additional capabilities and features
    • Remote control
    • Compatible with leading third-party control systems like Control4, Crestron, RTI, and URC

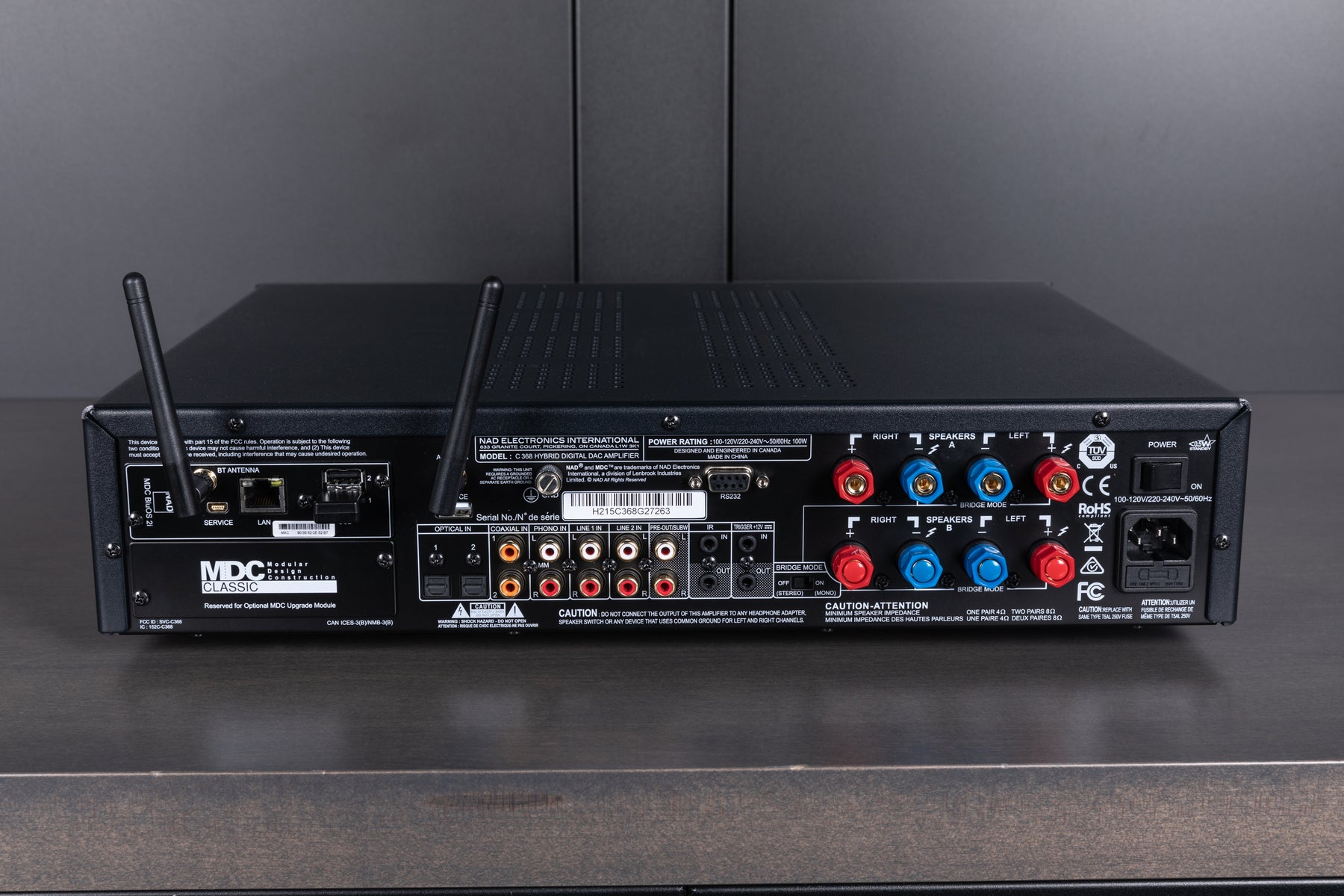

    Connections:

    • 4 digital audio inputs (2 optical/2 coaxial)
    • 3 stereo RCA audio inputs, including a phono input (for use with a moving magnet cartridge)
    • Stereo RCA preamp output for connecting a separate amplifier or powered subwoofer
    • RS-232C port for use with external controllers
    • IR in/out and 12-volt triggers
    • Full-size headphone jack
    • 2 pairs of binding post speaker connectors for A and B speakers
    • USB port for service only
    • Detachable power cord

    Dimensions and warranty:

    • Signal-to-noise ratio: 98 dB
    • 17-1/8"W x 4"H x 16-5/8"D

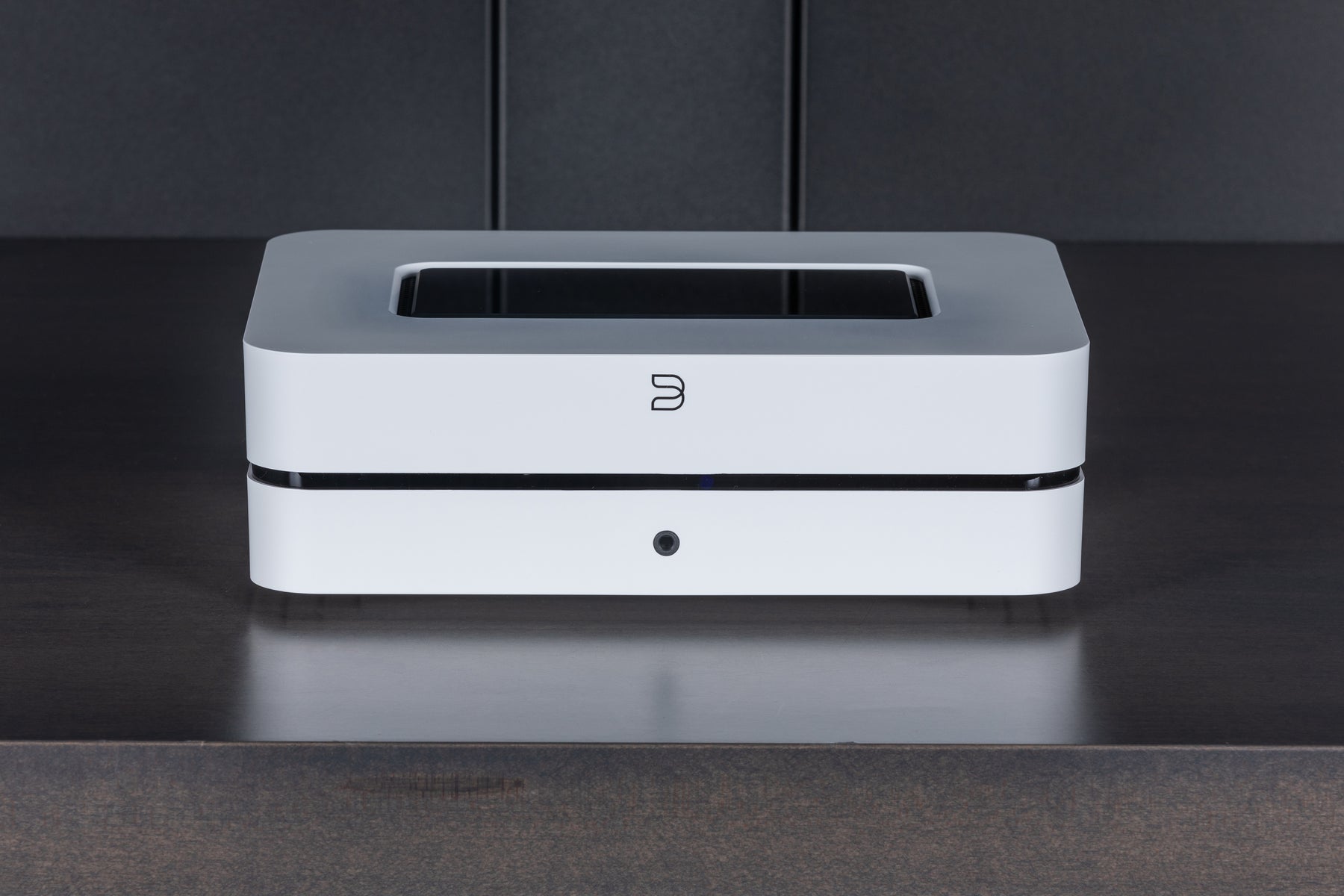

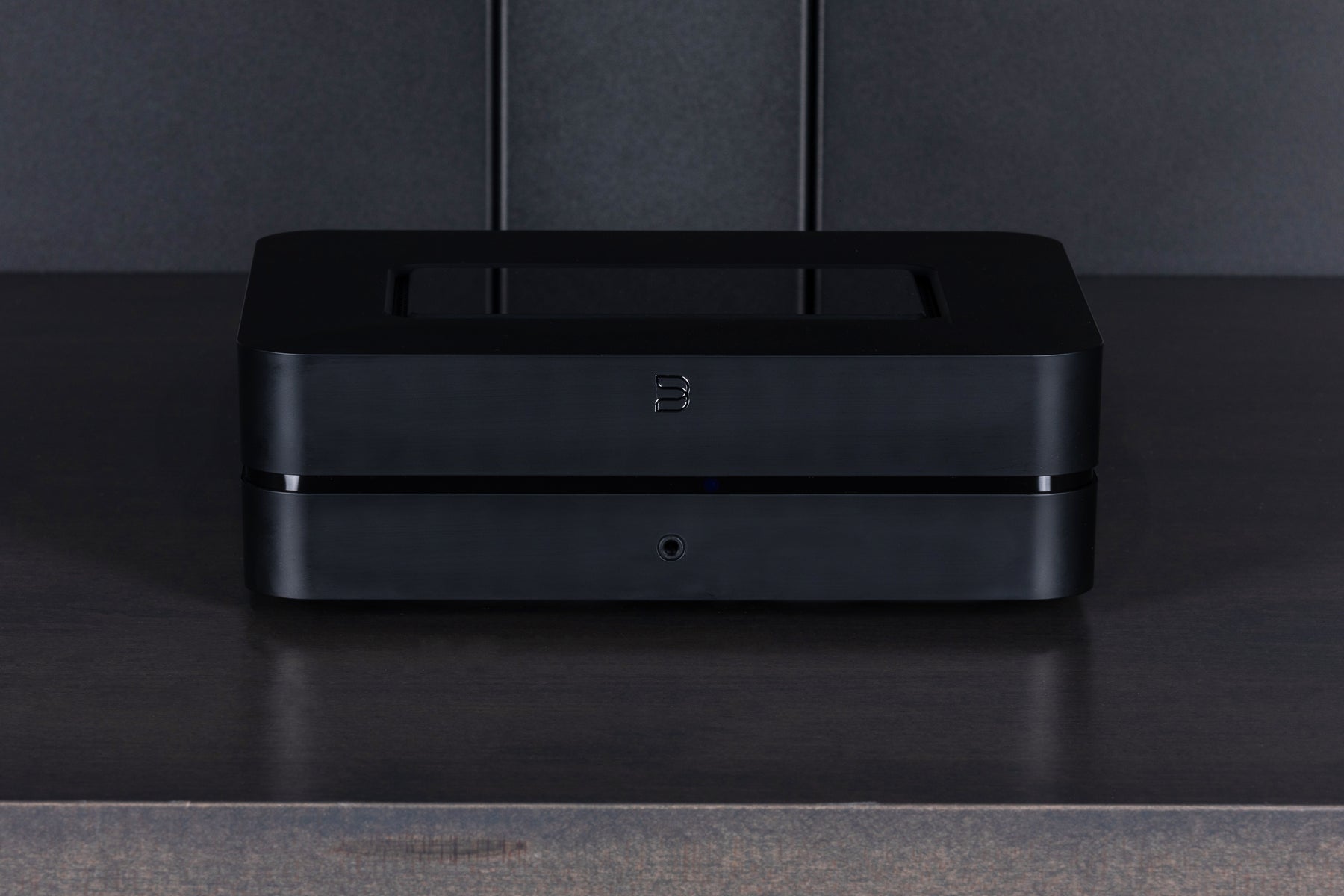

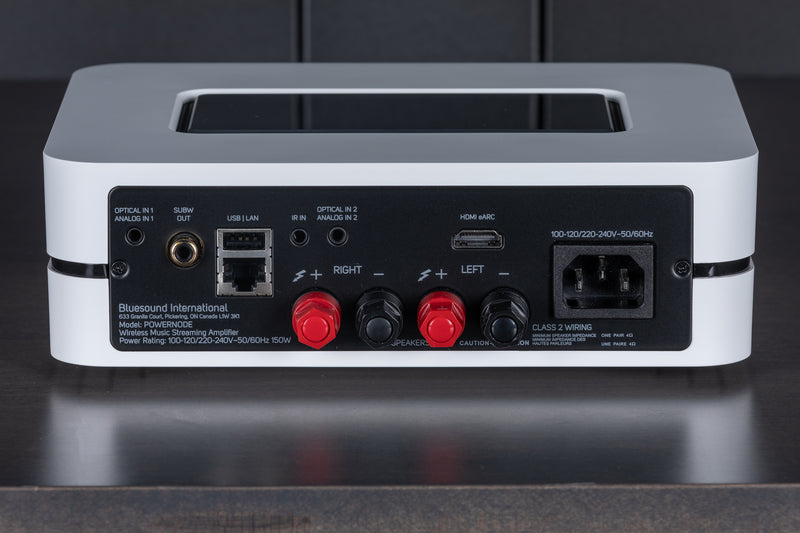

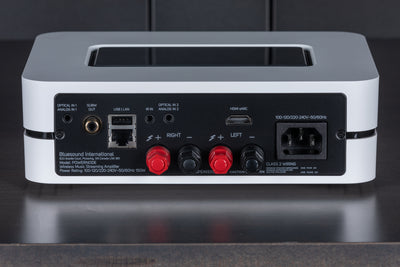

    Bluesound Powernode

    • Supported Audio File Formats | MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
    • Supported Hi-Res Audio File Formats | FLAC, MQA, WAV, AIFF, MPEG-4 SLS
    • Supported Multi-Channel Audio Formats | Dolby Digital
    • Processor | ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core
    • Native Sampling Rates | up to 192 kHz
    • Supported Network File Sharing | Server Message Block (SMB) up to 200,000 files
    • Native Sampling Rates | up to 192 kHz
    • Bit Depths | 16 - 24
    • Performance | SNR -100dBA | THD+N, 0.008%
    • DAC | 32-Bit, 384kHz | Differential Output design
    • Amplification | HybridDigital™
    • Rated Power Output | 80W x 2 (8 Ohms)
    • IHF Dynamic Power | 220W (4 Ohms) / 130W (8 Ohms)
    • Box Dimensions (LxWxH): 11.7 x 11.7 x 4.5
    • Package Weight: 6.975 lb

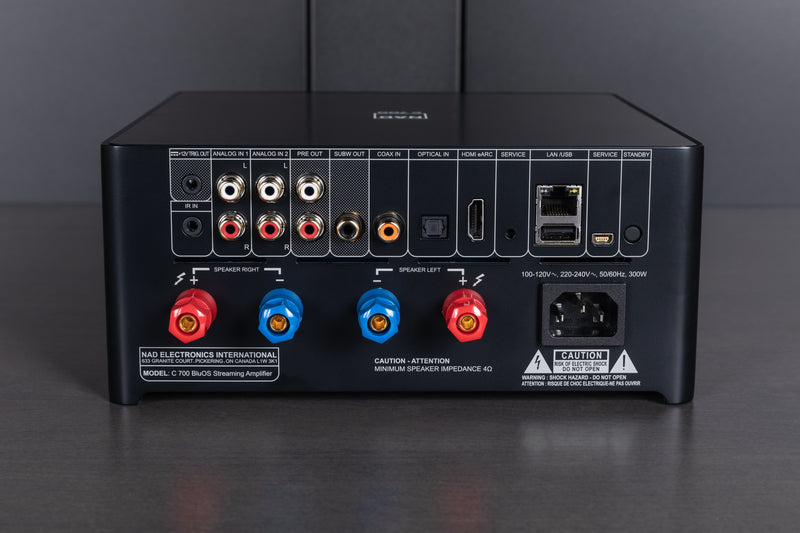

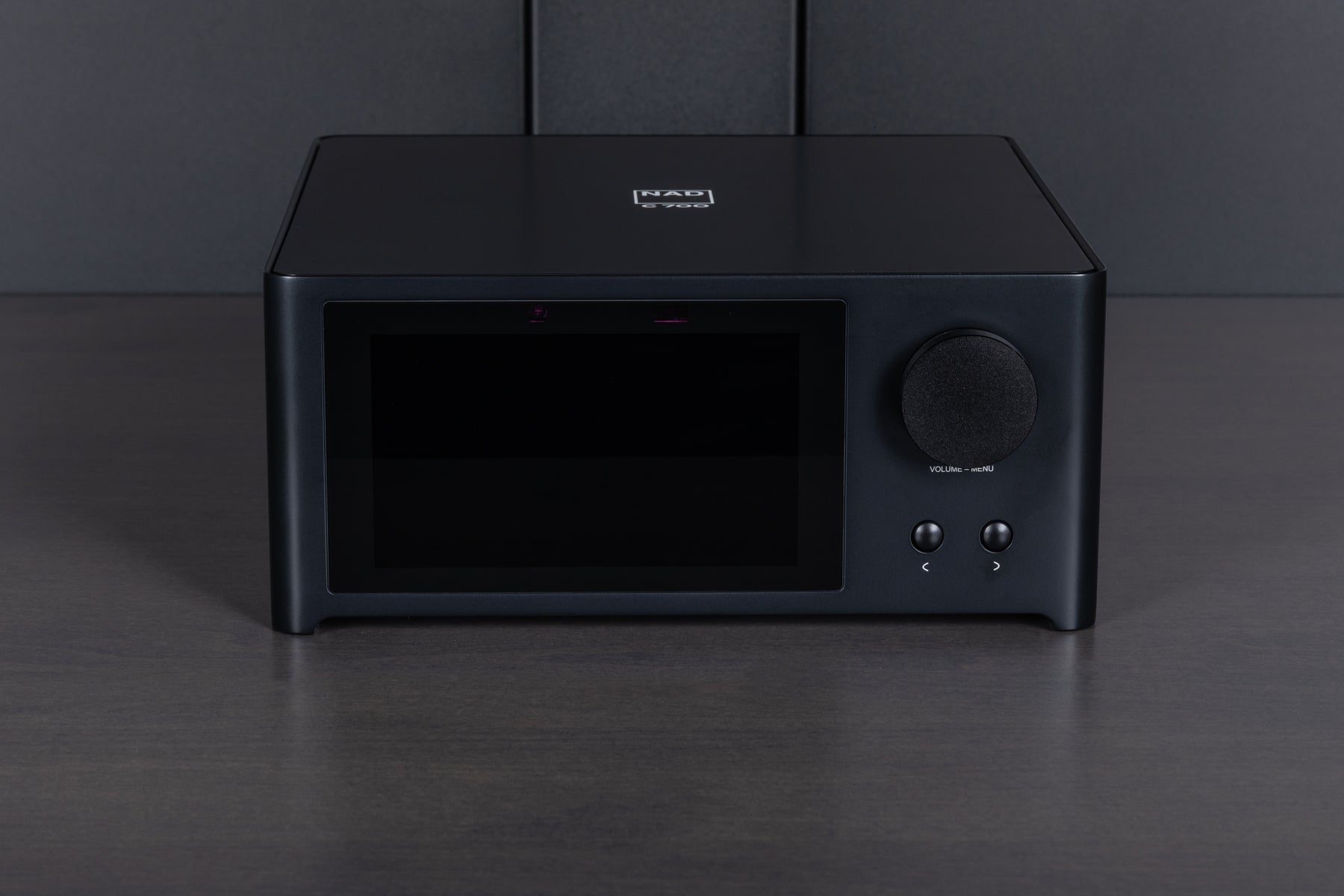

    NAD C700

    • 80 watts x 2 channels into 8 or 4 ohms (20-20,000 Hz) at 0.04% THD
    • 4-ohm stable for use with a wide range of speakers
    • HybridDigital UcD output stage can deliver up to 120 watts of instantaneous power for dynamic peaks
    • 24-bit/192kHz DAC built-in | supports high-res MQA, FLAC, WAV, and AIFF files
    • 5" color LCD display
    • BluOS compatibility for further expansion with Bluesound wireless speakers
    • Built-in two-way Bluetooth® with aptX HD
    • Connects to your home network via built-in dual-band Wi-Fi® or wired Ethernet for music streaming
    • free internet radio from TuneIn Radio and iHeartRadio
    • Apple AirPlay 2 lets you stream from an iPhone or iPad and ask Siri to play Apple Music
    • Free BluOS controller app for iOS®, Android™, Windows®, and Mac® OS X
    • Roon-ready

    Connections:

    • 2 analog stereo RCA audio inputs
    • Digital inputs: 1 Toslink optical, 1 coaxial
    • HDMI eARC input
    • USB (Type A) port for connecting a thumb drive or mass storage device
    • Gigabit Ethernet port for making a wired network connection
    • stereo RCA preamp output for connecting a separate amplifier
    • mono RCA output for connecting a powered subwoofer
    • Binding post speaker connectors
    • IR input and 12-volt trigger in/out

    Dimensions and warranty:

    • 8-5/8"W x 3-13/16"H x 11-5/8"D
    • Weight: 10.6 lbs.
    • Warranty: 2 years

    Subwoofer

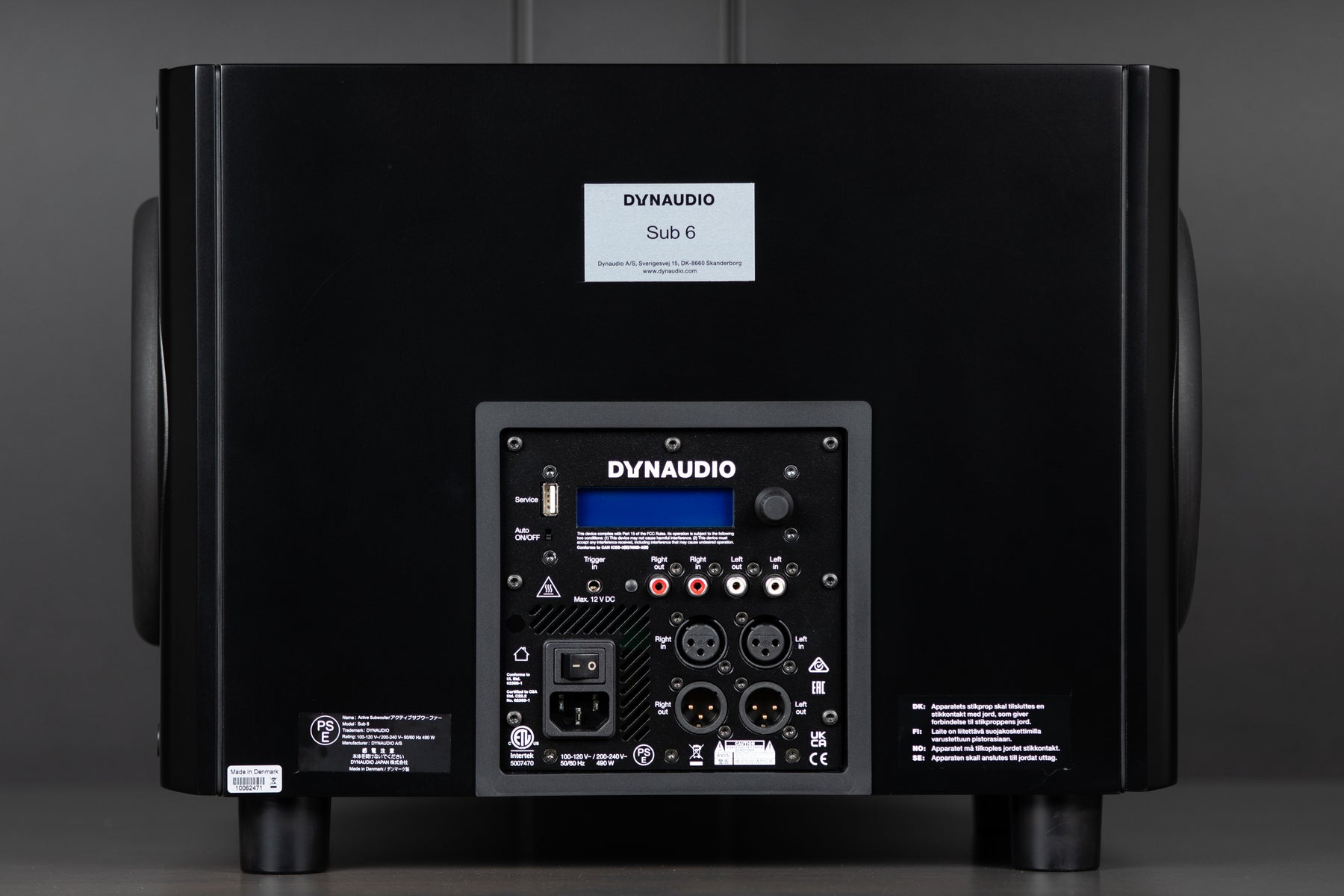

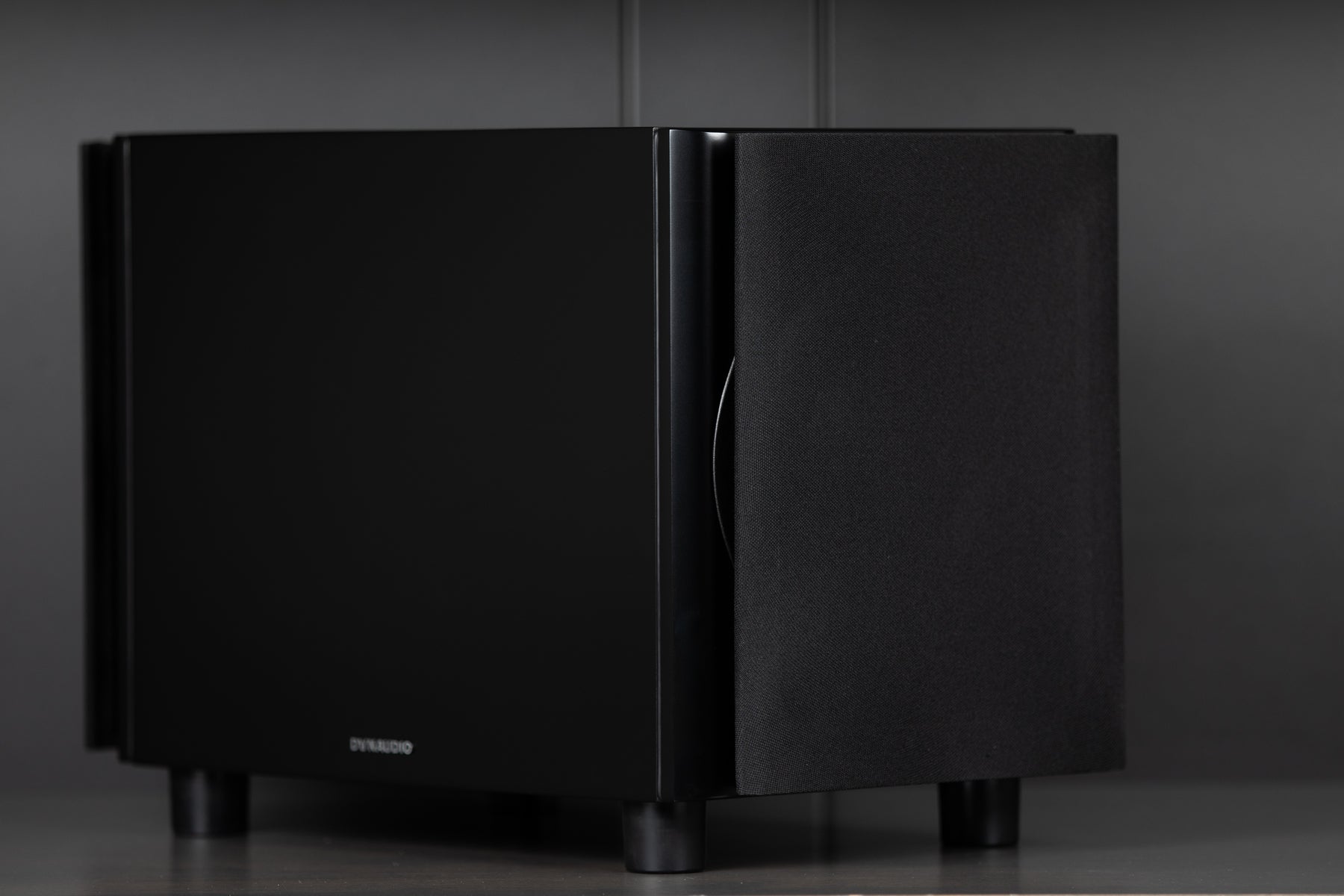

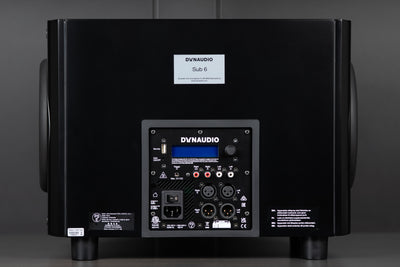

    Sub 6

    • System: Twin opposed driver, closed box, active DSP subwoofer
    • Analog inputs: 2 x balanced XLR, 2 x unbalanced RCA phono
    • Analog outputs: 2 x balanced XLR, 2 x unbalanced RCA phono
    • Frequency response (±3dB): 16Hz – 230Hz
    • Auto ON/OFF: Yes
    • Box Principle: Sealed
    • Low Pass Filter: Adjustable/preset
    • Phase Adjustment: 0/180 degrees
    • Woofer: 2 x 23cm MSP + hybrid drive
    • Amplifier power: 500W
    • AC power input: 100 - 120V/220 - 240V 50/60Hz
    • Standby power consumption: <0.5W
    • Maximum power consumption: 490W
    • Weight: 21.5kg / 45.2lb
    • Dimensions (W x H x D): 447 x 300 x 268mm
    • Dimensions with feet /grille (W x H x D): 470 x 333 x 268mm

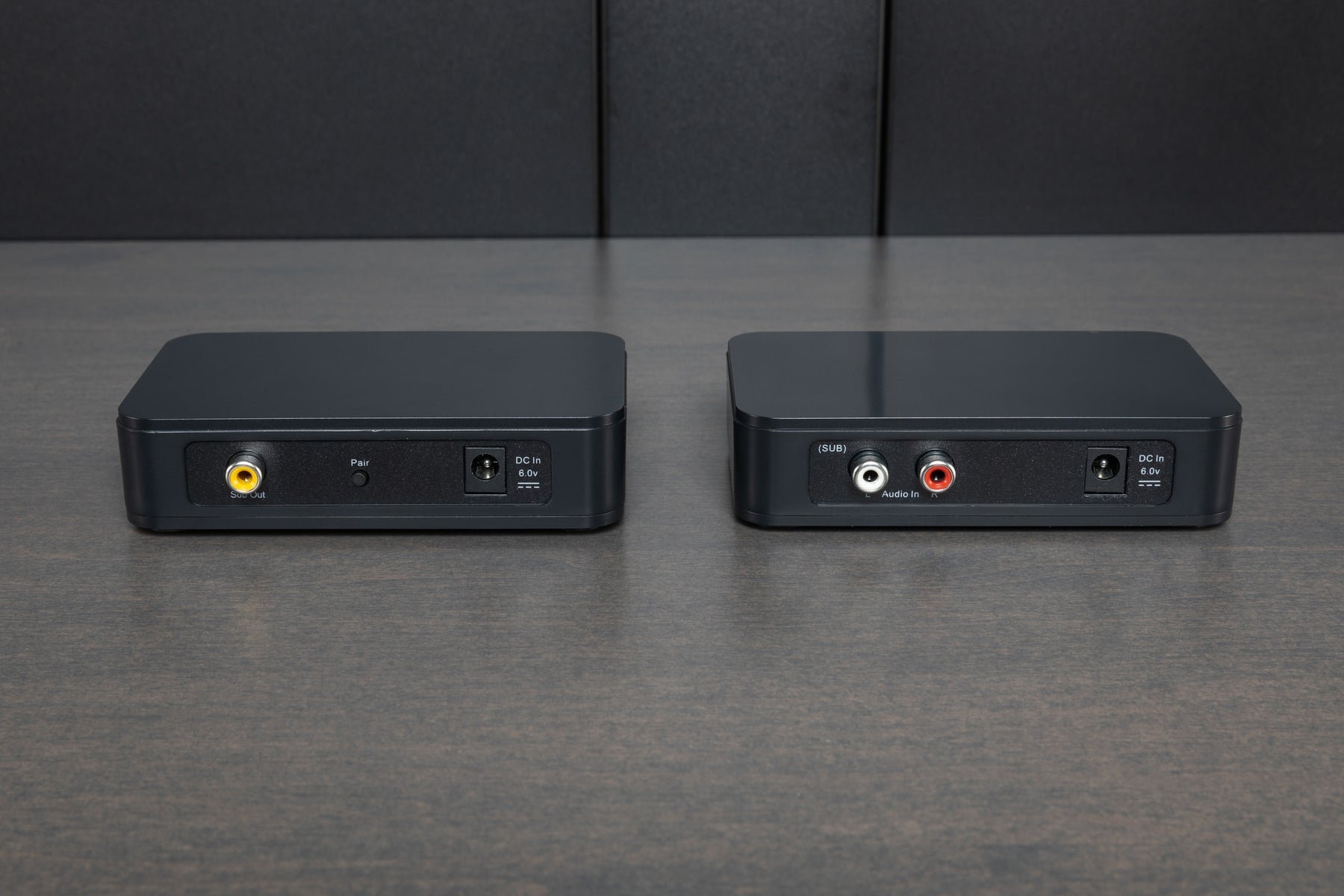

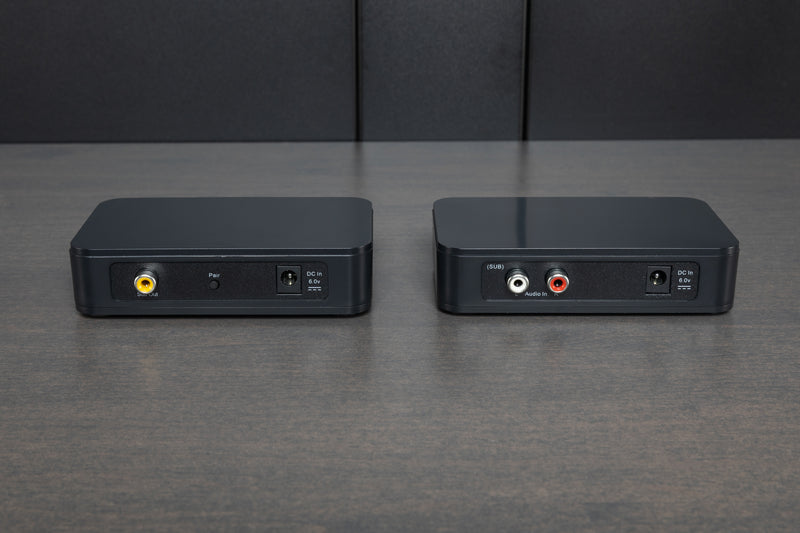

    OSD Audio Nero Wireless Subwoofer Kit

    • 5.8 GHz operating frequency for reliable bass audio
    • Upgraded chip set for reliability and a near-zero delay
    • Up to 150 ft operation distance between transmitter and receiver (line of sight).
    • Audio Output Level: 2V
    • Frequency Response: 18Hz-22KHz
    • Audio Distortion: <1%
    • Signal to Noise Ratio: >80dB

    Cables and Wiring

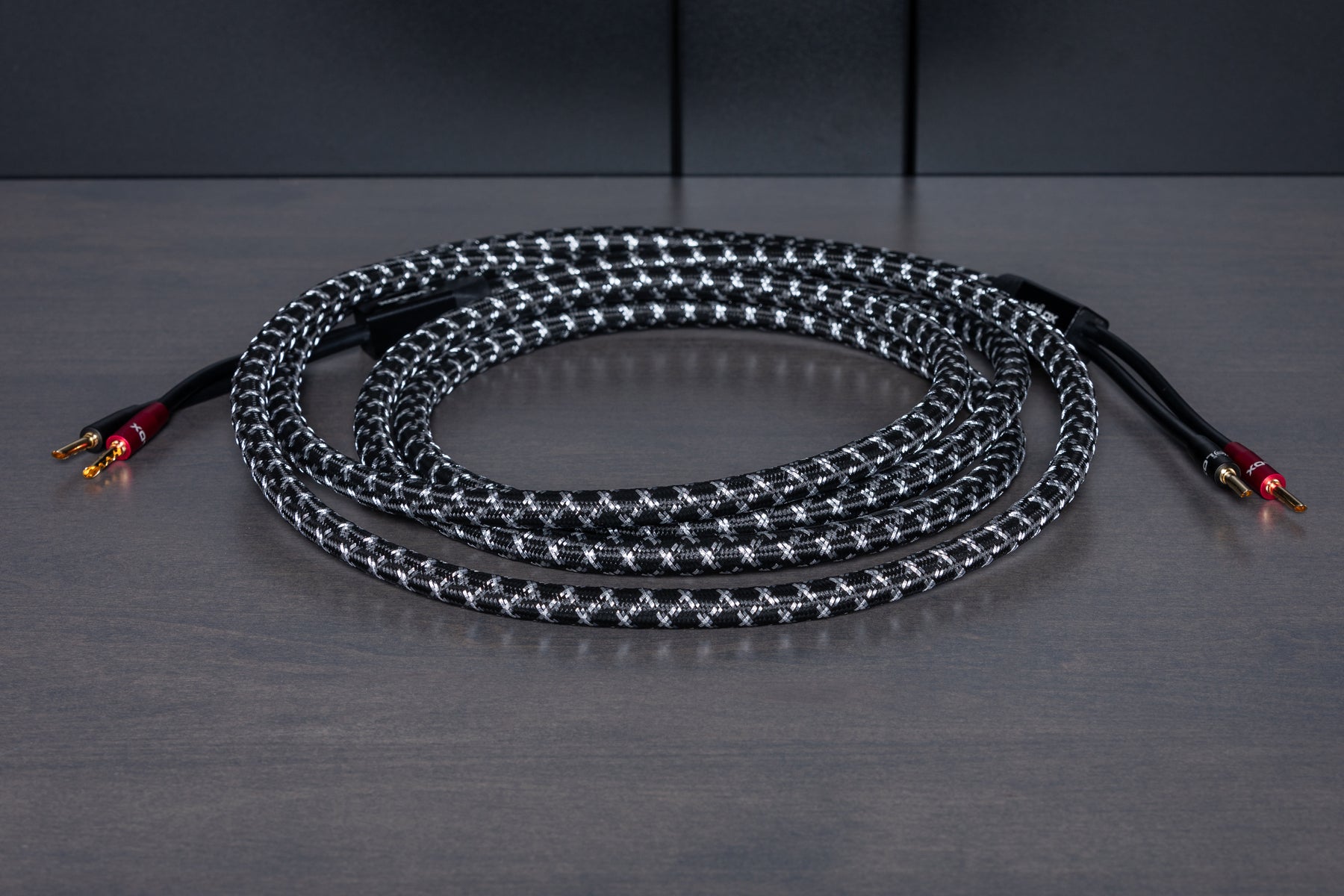

    Metra Premade HiFi-Ready 12 Gauge BFA Terminated Speaker Cables

    • HiFi-ready 12 gauge BFA terminated speaker cable
    • Length: 8 ft (2.44 m)
    • High purity oxygen-free copper for excellent conductivity
    • 12 AWG copper conductors
    • 420 separate 0.1 mm diameter strands per conductor
    • 24K gold plated BFA terminations
    • Woven flexible jacket protects from wear and tear
    • Anodized aluminum terminals for easy identification
    • Low-density polyethylene insulation
    • Cotton yarn supports twist shape design
    • Cotton paper separator assists with flexibility

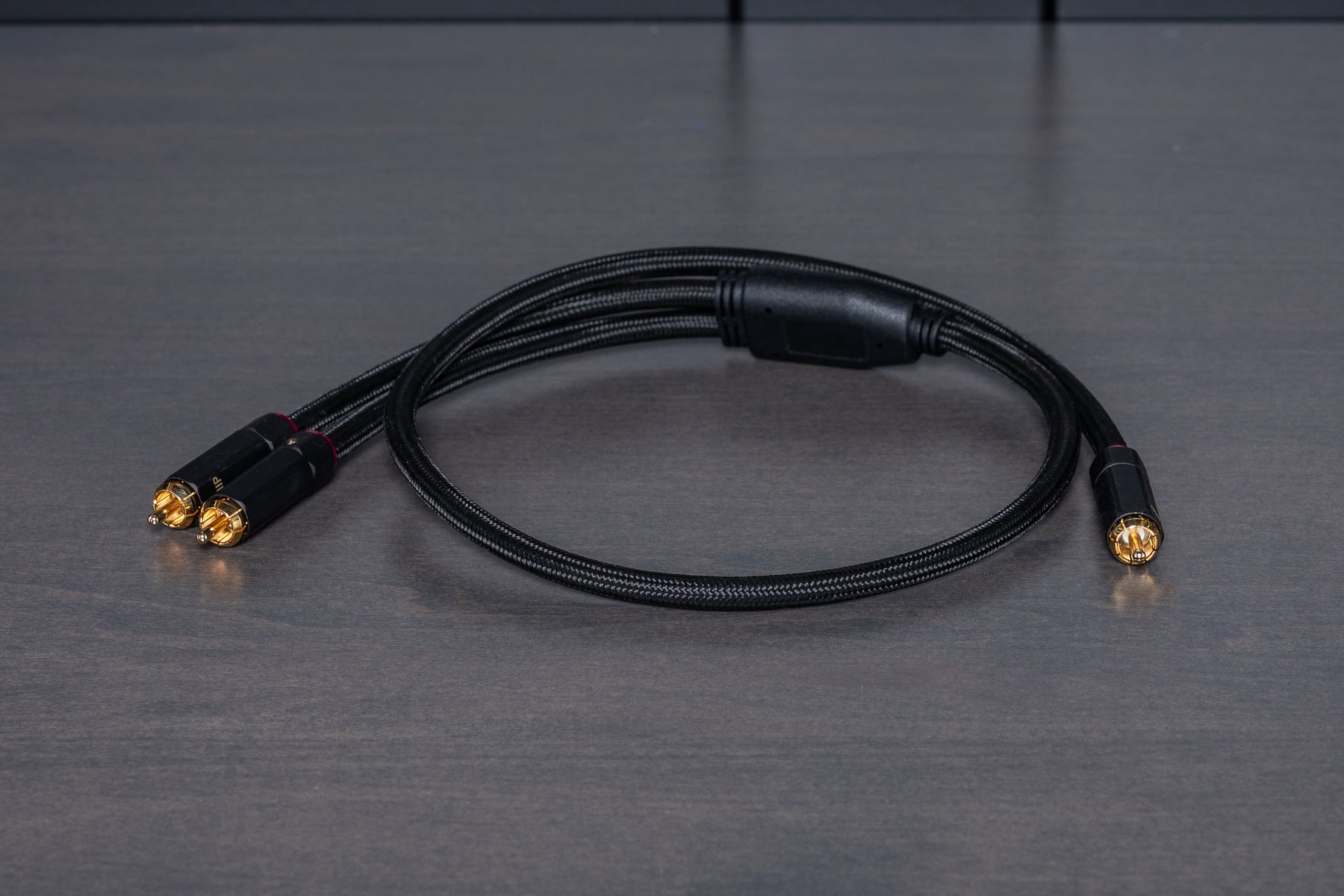

    Monoprice Single Male to Dual Male - RCA Y-Adapter

    • Gold plated RCA male connectors
    • Two channels for audio on left and right speakers
    • 97% pure oxygen-free copper conductor
    • Double shielded with copper braiding
    • 22 pF per foot capacitance
    • 75 ohm impedance

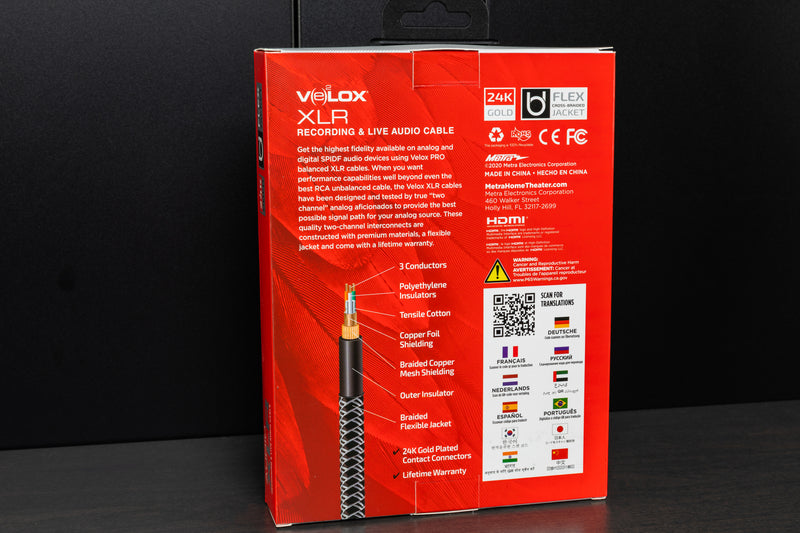

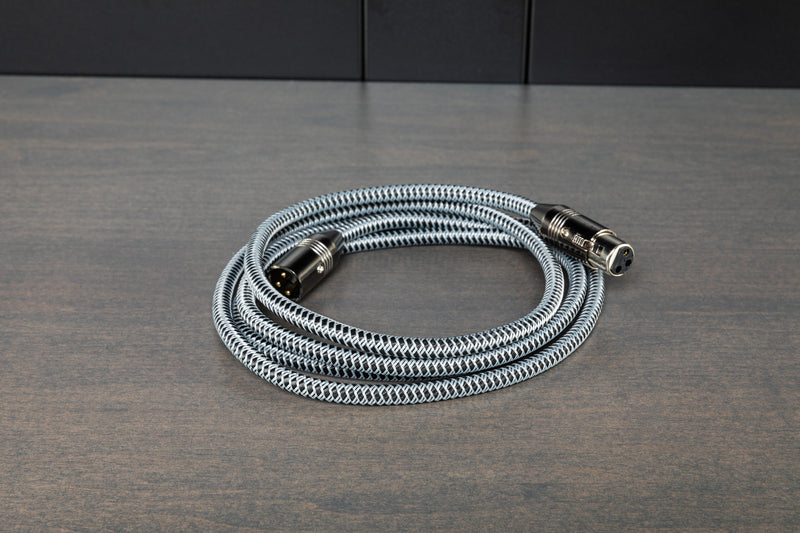

    Velox Balanced XLR Cable

    • Quality analog interconnects
    • True “two-channel” analog
    • Woven flexible Jacket
    • Lifetime Warranty
