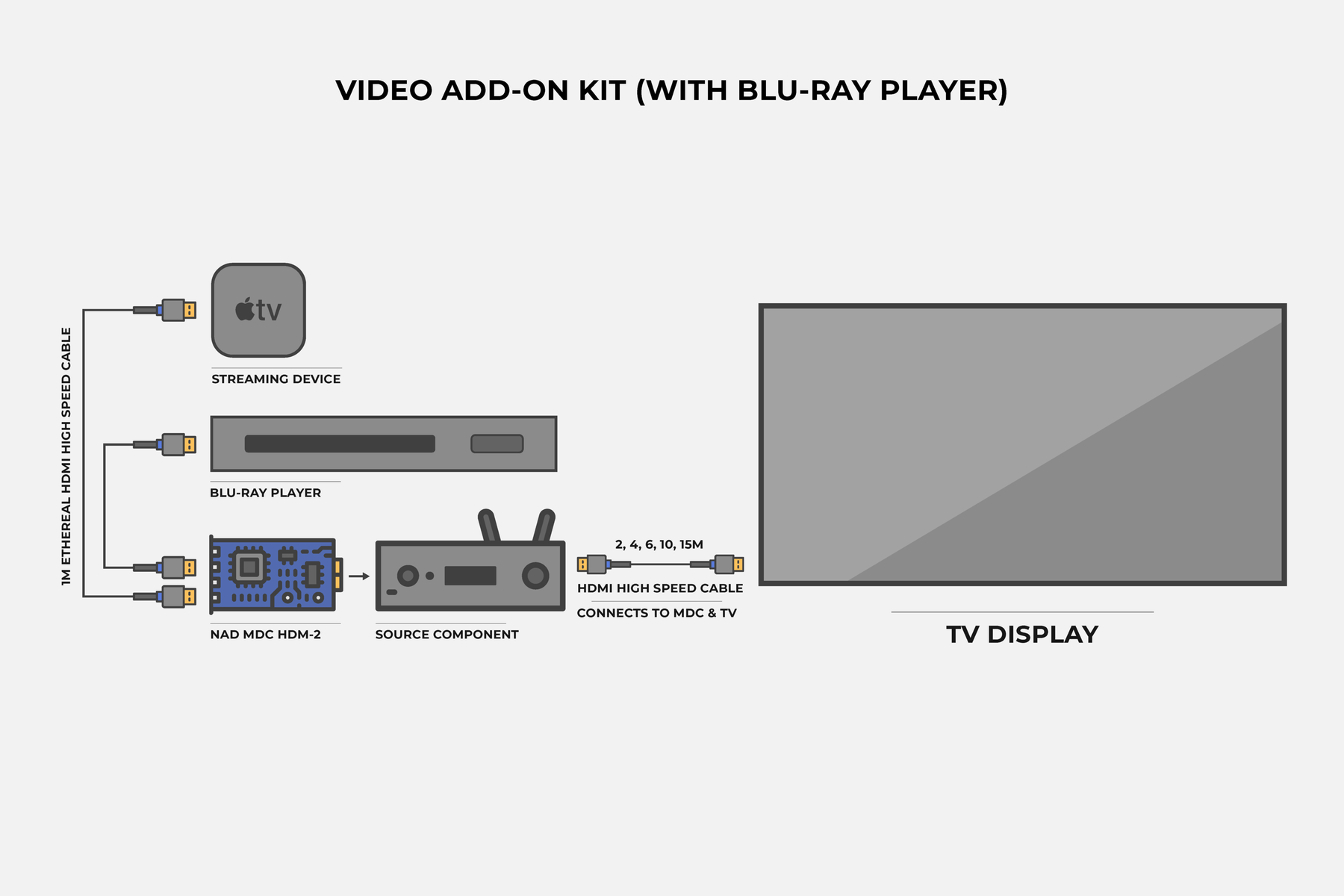

Video Add-On Kit Setup
Source to Display Cable Length
Regular price $435.97
/

In many of our audio solutions, you’ll have the option to include this video add-on kit. Some people would prefer audio-only in their garage, while others may want to have a display set up. I’ve done both applications and would much rather have a TV installed where I can work on my cars and watch a little Heartland. Okay, a lot of Heartland.

This addition to your audio setup is pretty painless. We’re not just looking to get video in your garage, but we’re looking to get you a solid connection where information being passed back and forth isn’t compromised either because of an inferior cable or incorrect cable length. I go into greater detail about HDMI Cables and solutions to achieve 4K transmission over distance on our OG Shorts channel. Be sure to check that video out.

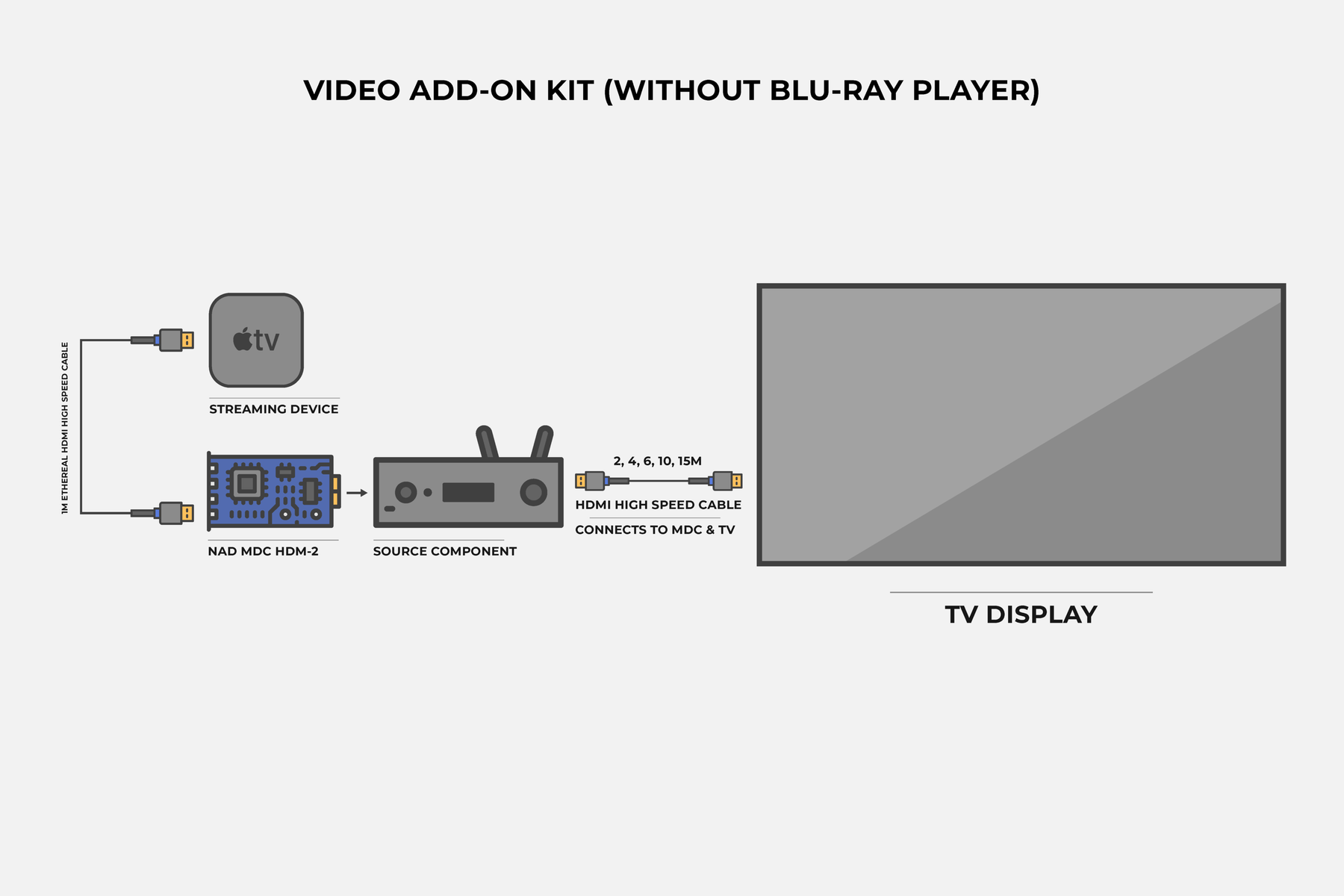

If you decide to go with this kit, here are the different options you’ll have to choose from:

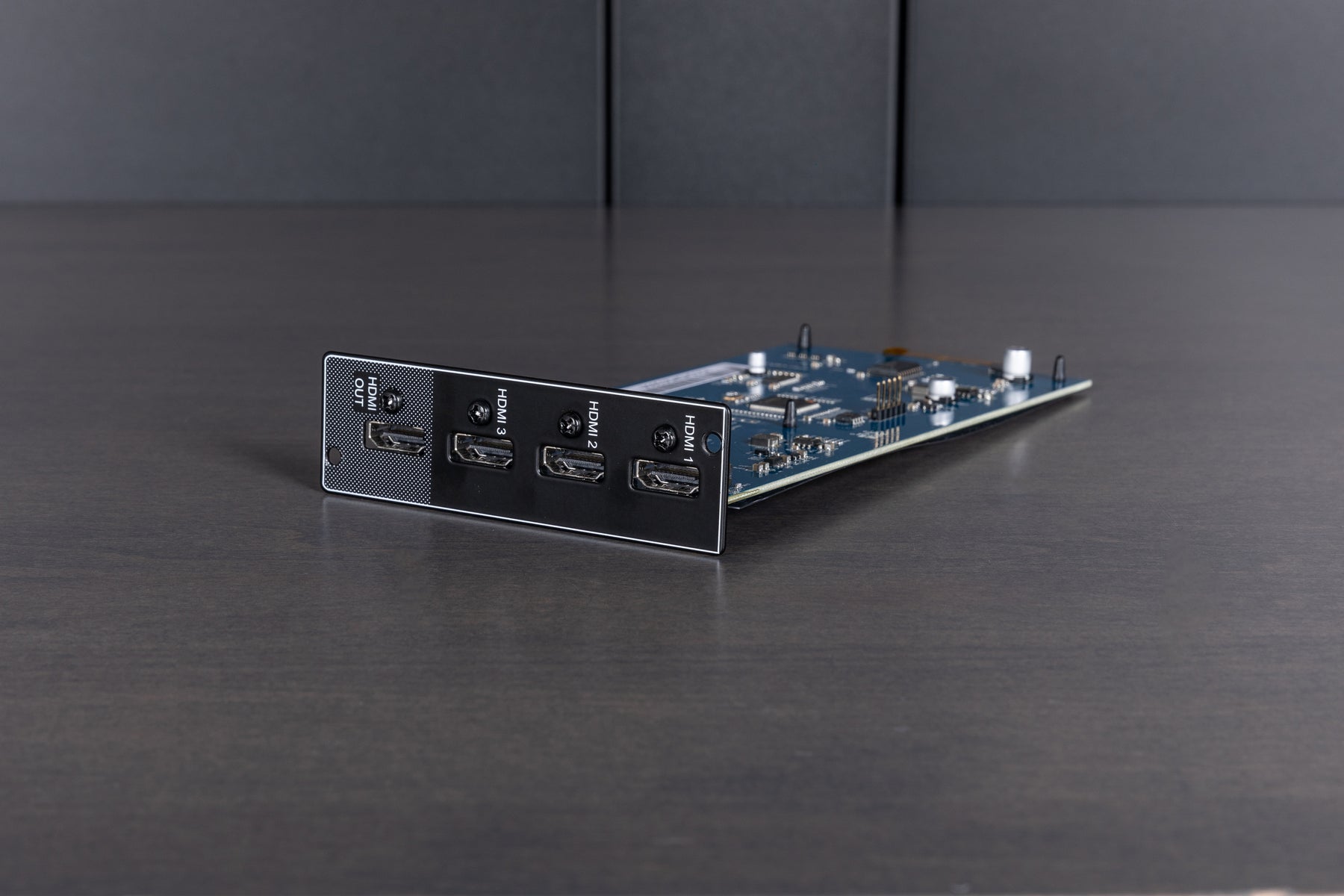

  • HDMI switching. Included with this kit is the NAD MDC HDM-2. If you selected the C368, C388, C658, T778, or the M33 as your source component then you'd get this MDC module. This device allows you to run HDMI in and HDMI out on your amp. It also puts you on an upgradeable path letting you install the latest technology to your amplifier
  • HDMI cable and size. Depending on the size of your garage, you may have to go with a longer cable. I’m selling HDMI cables in several sizes. You can go with the Ethereal HDMI High-Speed Cable in 1m, 2m, 4m, or 6m. The Velox 10 Meter HDMI Cable or Velox 8K Powered HDMI Cable that’s 15m (49ft). The latter two are on the pricier side, I know, but this is what I’ve found to be sufficient with longer cable runs. Especially if you’re not doing a conduit and going in-wall

This setup may sound kind of clunky, but it’s the way to go. Because I'm using Apple 4K TV as my streaming device, this is what works and works extremely well.



Module
NAD MDC HDM-2
- NAD MDC HDM-2 owner's manual
- HDMI upgrade module
- 2 Screws
- Cable Options

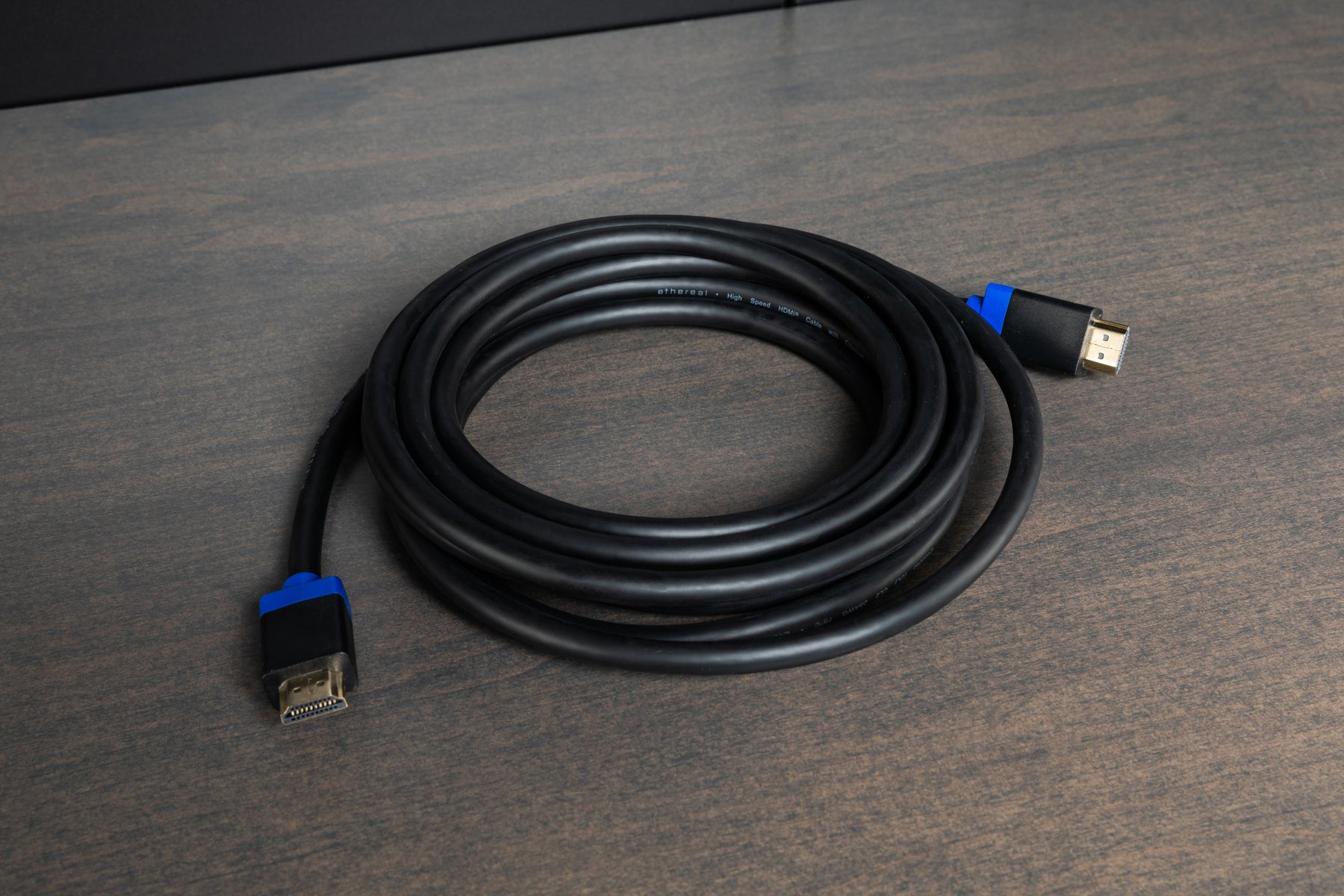

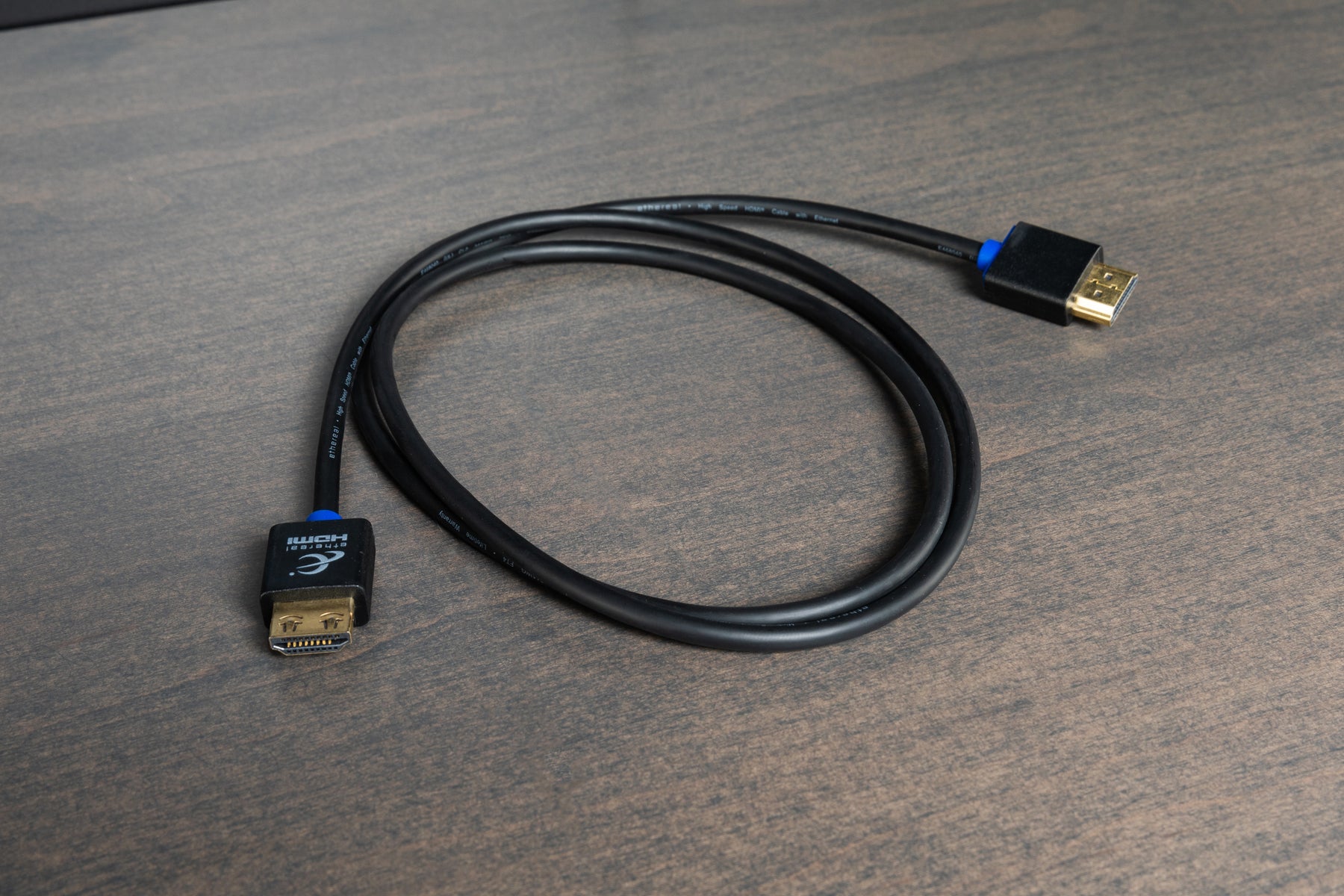

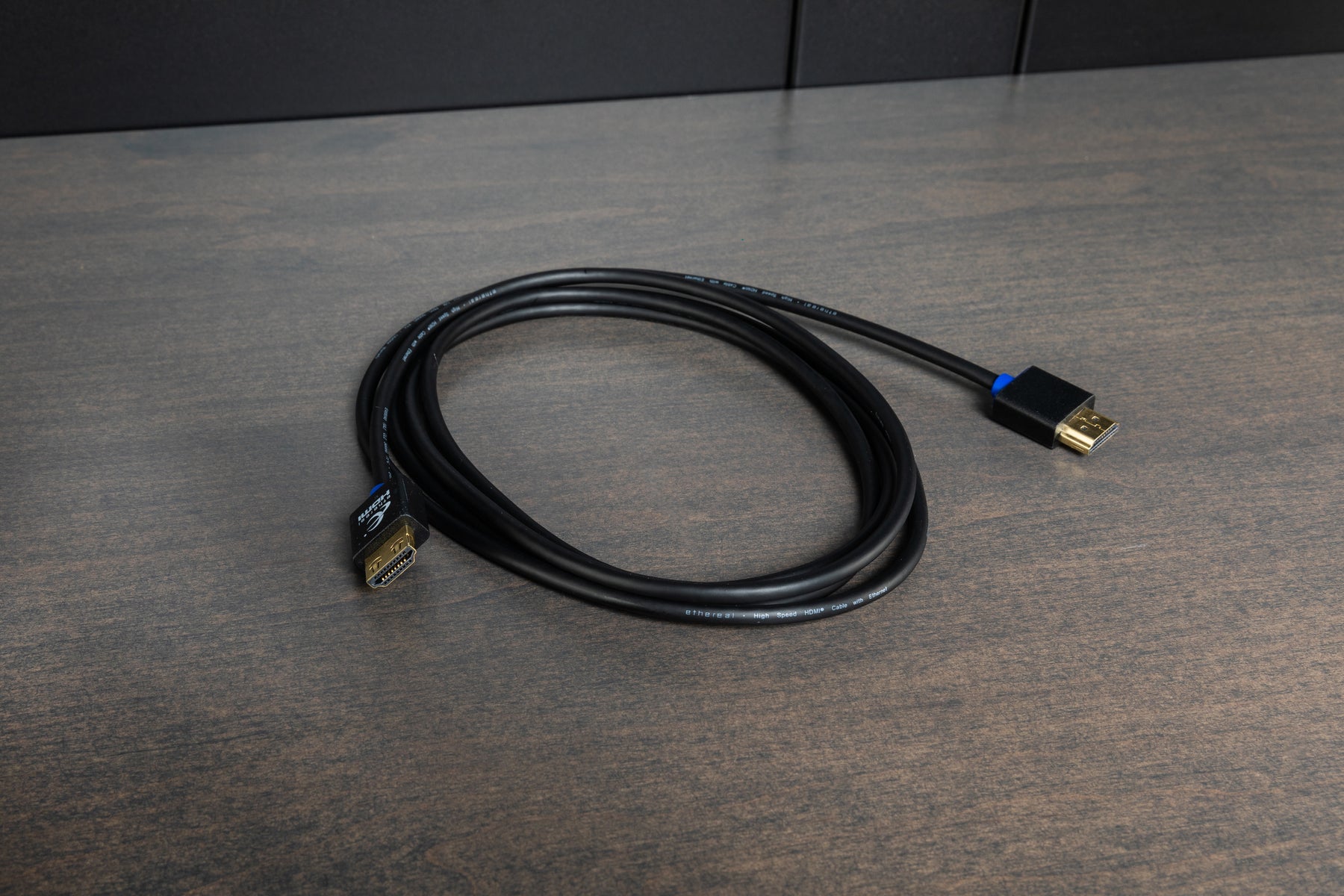

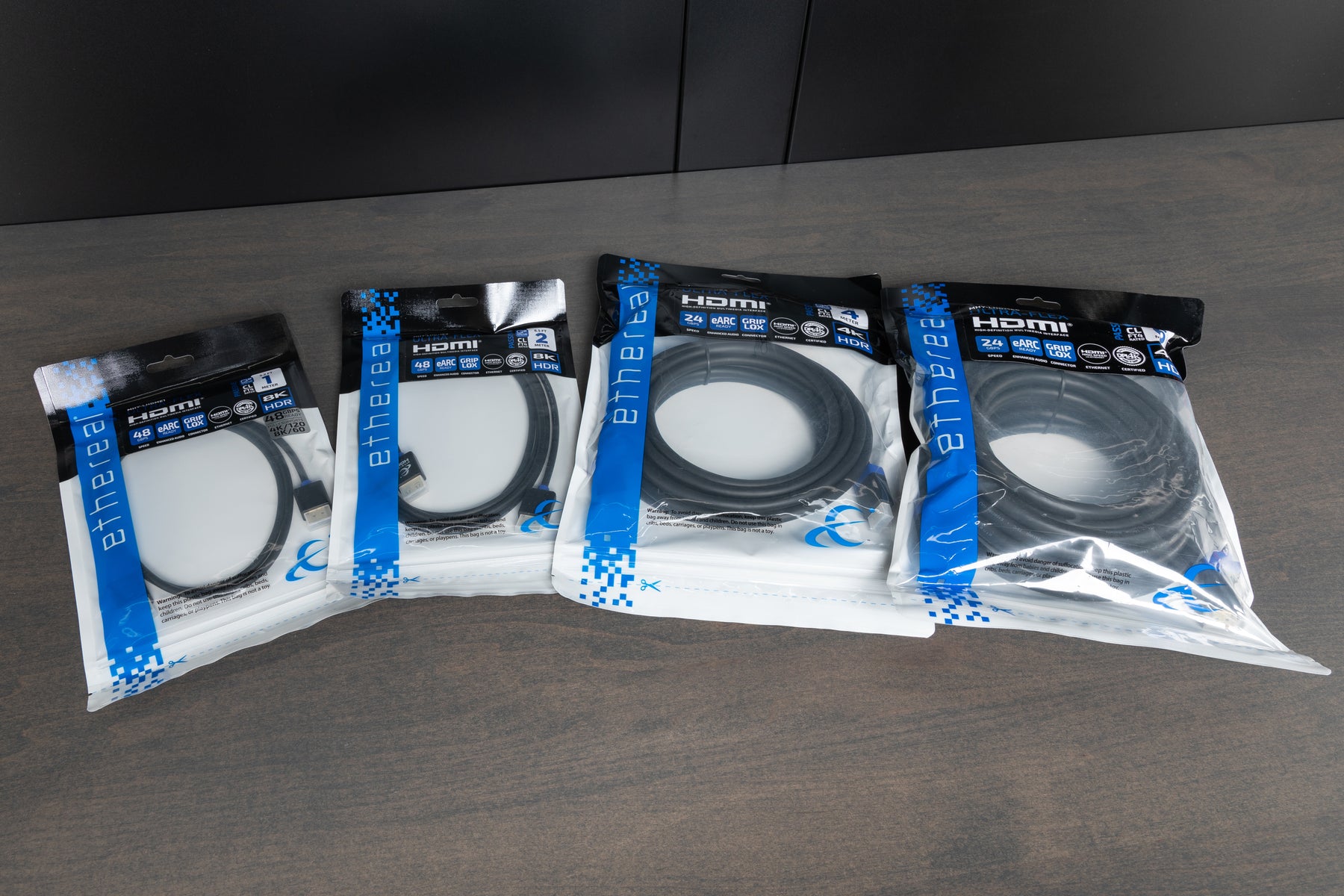

Ethereal HDMI High-Speed Cable
- 1 Meter
- 2 Meter
- 4 Meter
- 6 Meter

Velox 10 Meter HDMI Cable
- Color: Black, Blue, and Gold
- 10 Meters (32.8 Feet)

Velox 8K Powered HDMI Cable
- Color: Black and Gold
- 15 Meters (49 Feet)


Specifications

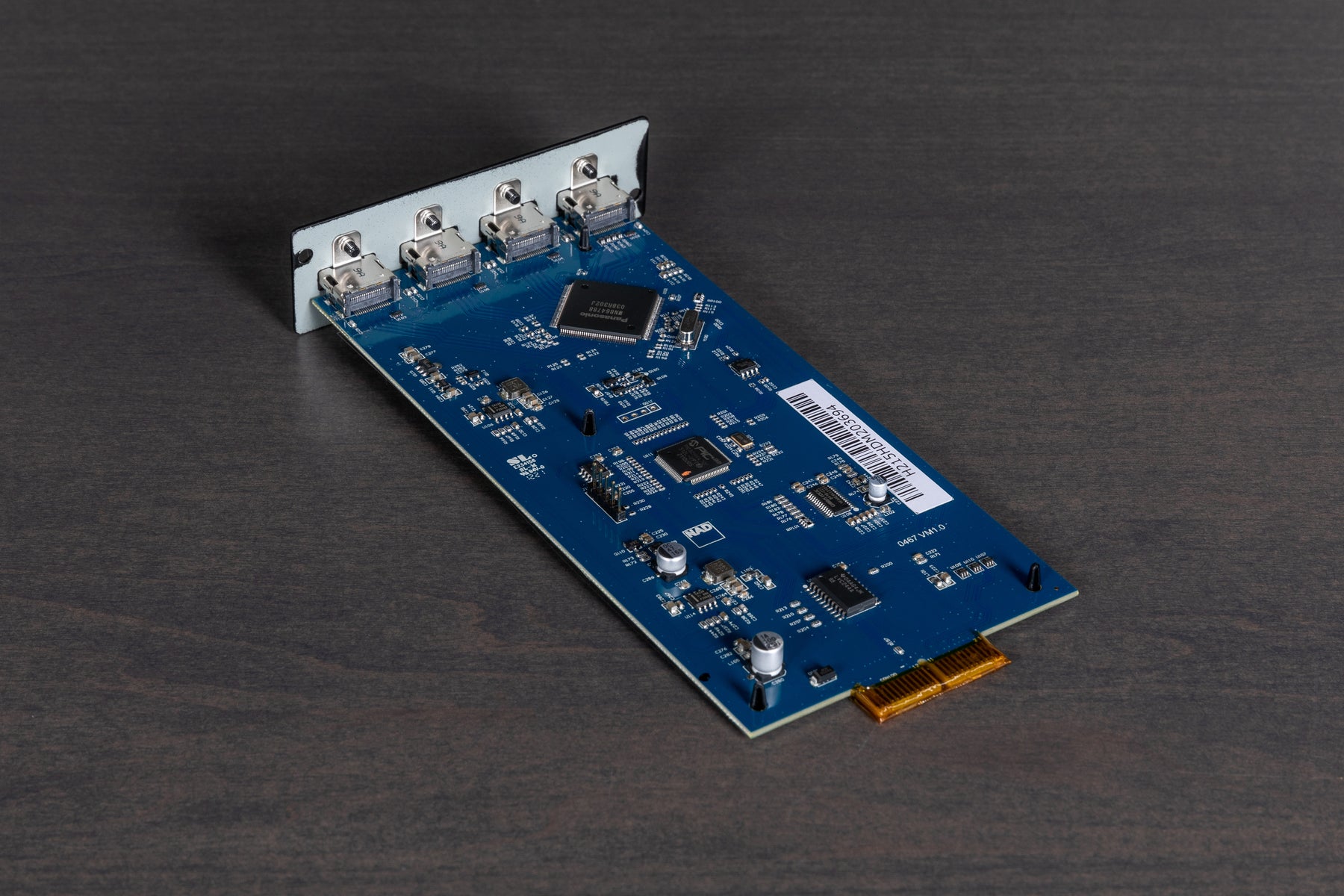

NAD MDC HDM-2
- Add-on module for select NAD stereo components
- Compatible with NAD C390DD, C368, C388, M12, M32, and C658
- HDMI audio/video switching: 3 in, 1 out
HDCP 2.2 technology ensures compatibility with 4K Ultra HD sources and TVs
- HDR-compatible for extended picture contrast and brightness with compatible 4K TVs and HDR-encoded content
- Supports HDR10
- Supports ARC (Audio Return Channel) and CEC (Consumer Electronic Control) for easy integration with existing components and remote controls
- PCM resolution: up to 24-bit/192kHz
- Supports 2-channel audio-only; does not decode surround sound
- HDMI video is pass-through only; no on-screen display for metadata during BluOS playback

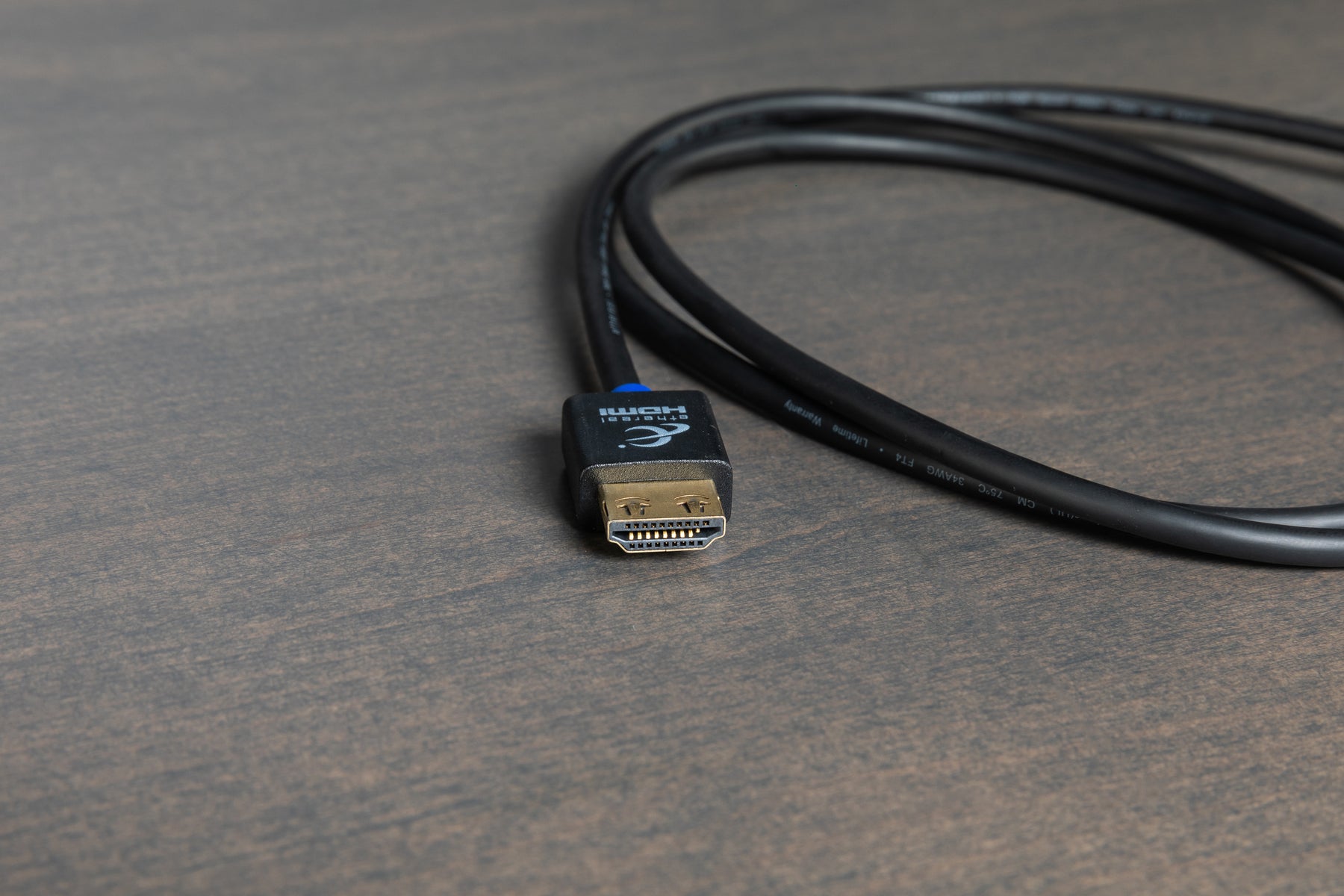

- Ethereal HDMI High-Speed Cable
- Supports 24 Gbps, 4K@60Hz HDR
- 24K gold plated Grip-Lox connector for securing cable to source and display devices
- Ultra-flexible slim profile cables excellent for use when added flexibility is needed
- Multi-layer shielding
- Audio return channel (ARC/eARC)
- Bandwidth | 10.2Gbps, 18Gbps, 24Gbps
- Brand or Series | MHY Series
- Features | HDR, Locking Connector
- Resolution | 1080p, 4K
- Type | Ethernet, Passive
- Jacket Type | CL Listed, FT4 Listed
- Length (Feet & Meters) | 19-20' / 6M
- DPL Certified | Yes

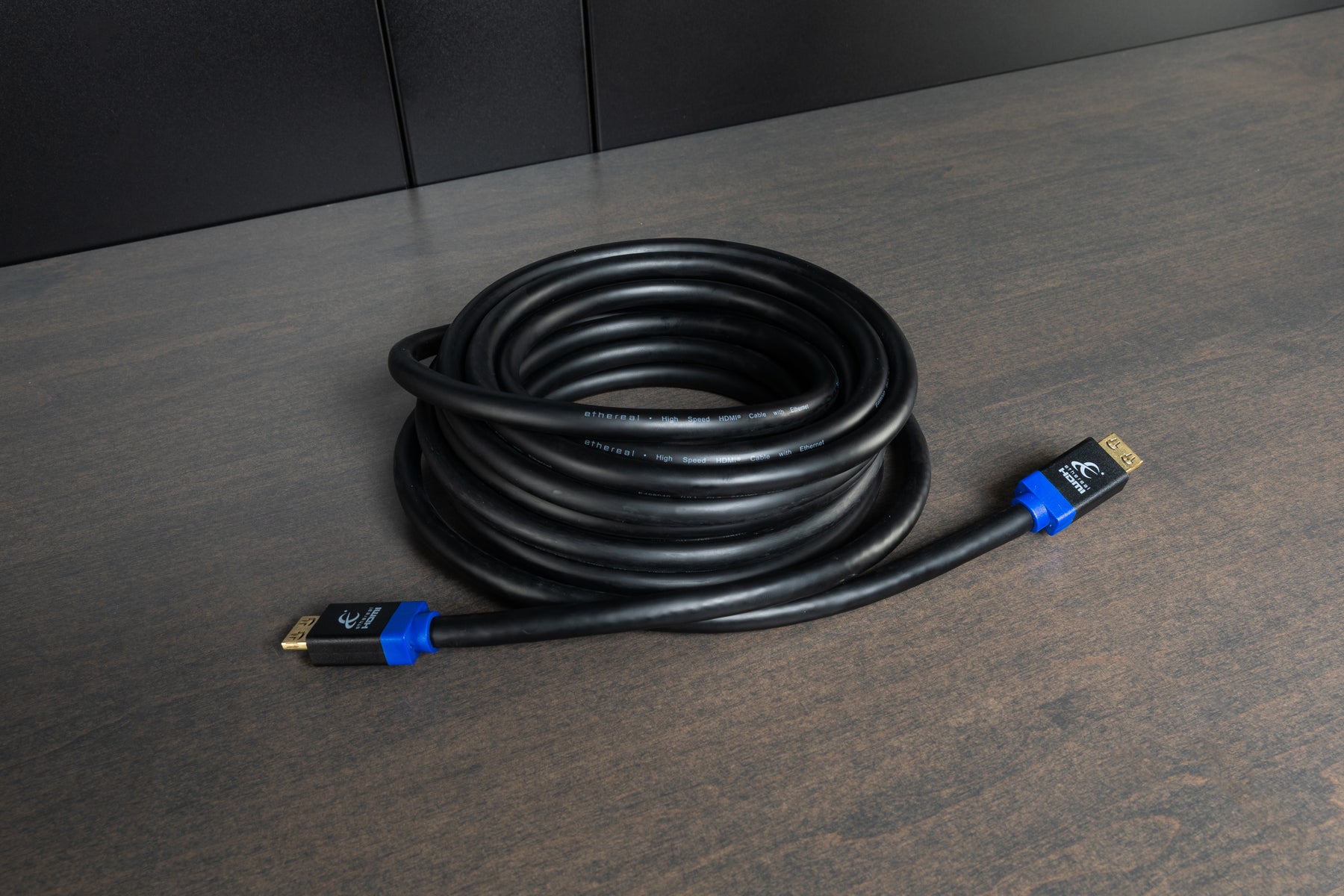

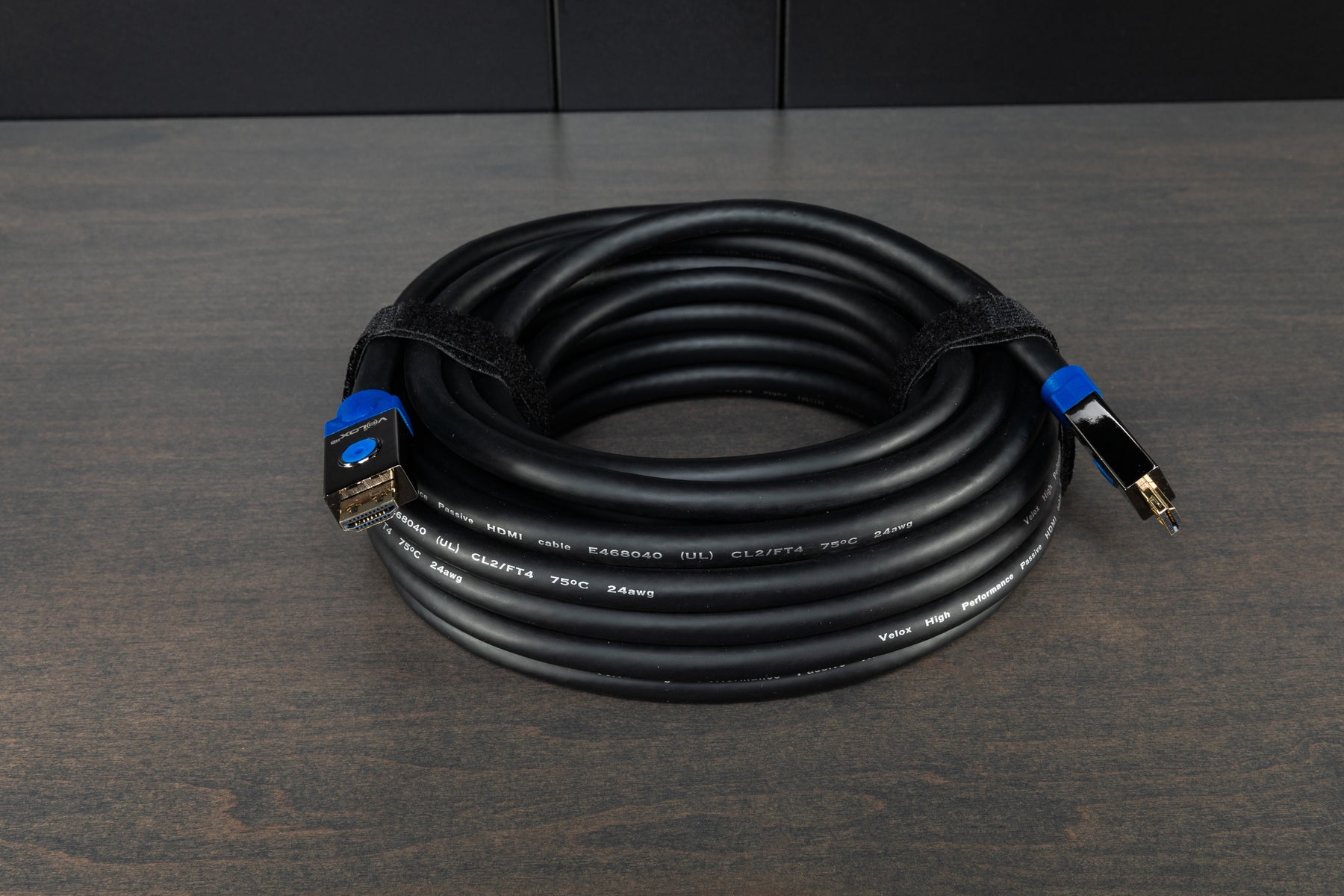

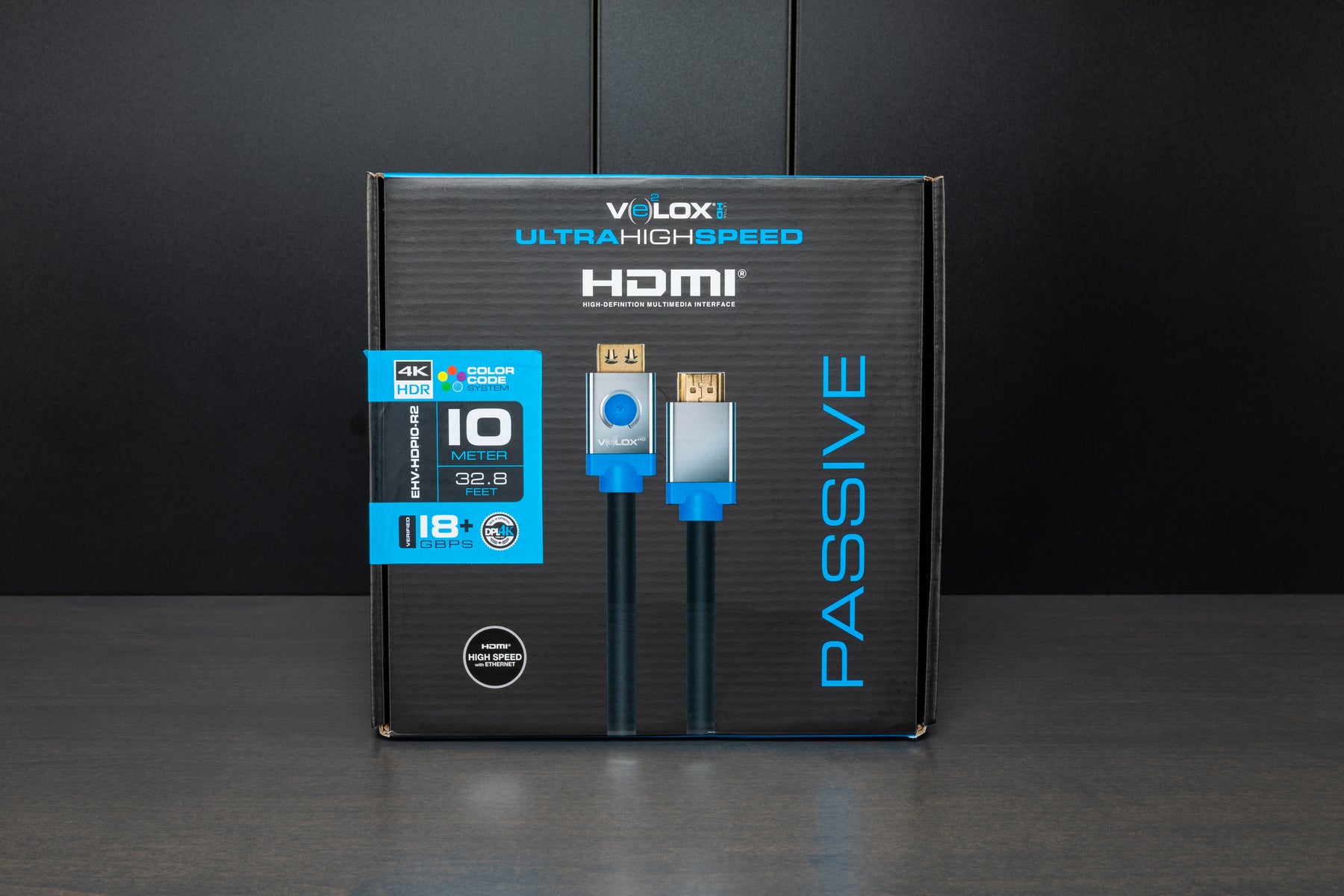

Velox 10 Meter HDMI Cable
- Send 24Gbps HDMI signals 10 Meters (32.8 feet) with Ethereal’s longest length DPL certified 24Gbps passive HDMI cable.
- HDMI® transmission cable
- Supports 24Gbps, 4K/60, 4:4:4 and HDR
- Advanced features in metallurgy, topology, dielectric and shielding
- New microwave RF design
- Less insertion loss over long distances
- For HDMI® TMDS High-Speed Signaling
- Highest bandwidth performance
- Length: 10 meters
- Cable Diameter: 9.5mm
- Audio Return Channel (eARC and ARC)
- Bandwidth | 10.2Gbps, 18Gbps, 24Gbps
- Brand or Serie | Velox Series
- Features | HDR, Locking Connector
- Resolution | 1080p, 4K
- Type | Ethernet, Passive
- Jacket Type | CL Listed
- Length (Feet & Meters) | 30-35' / 10M
- DPL Certified | Yes

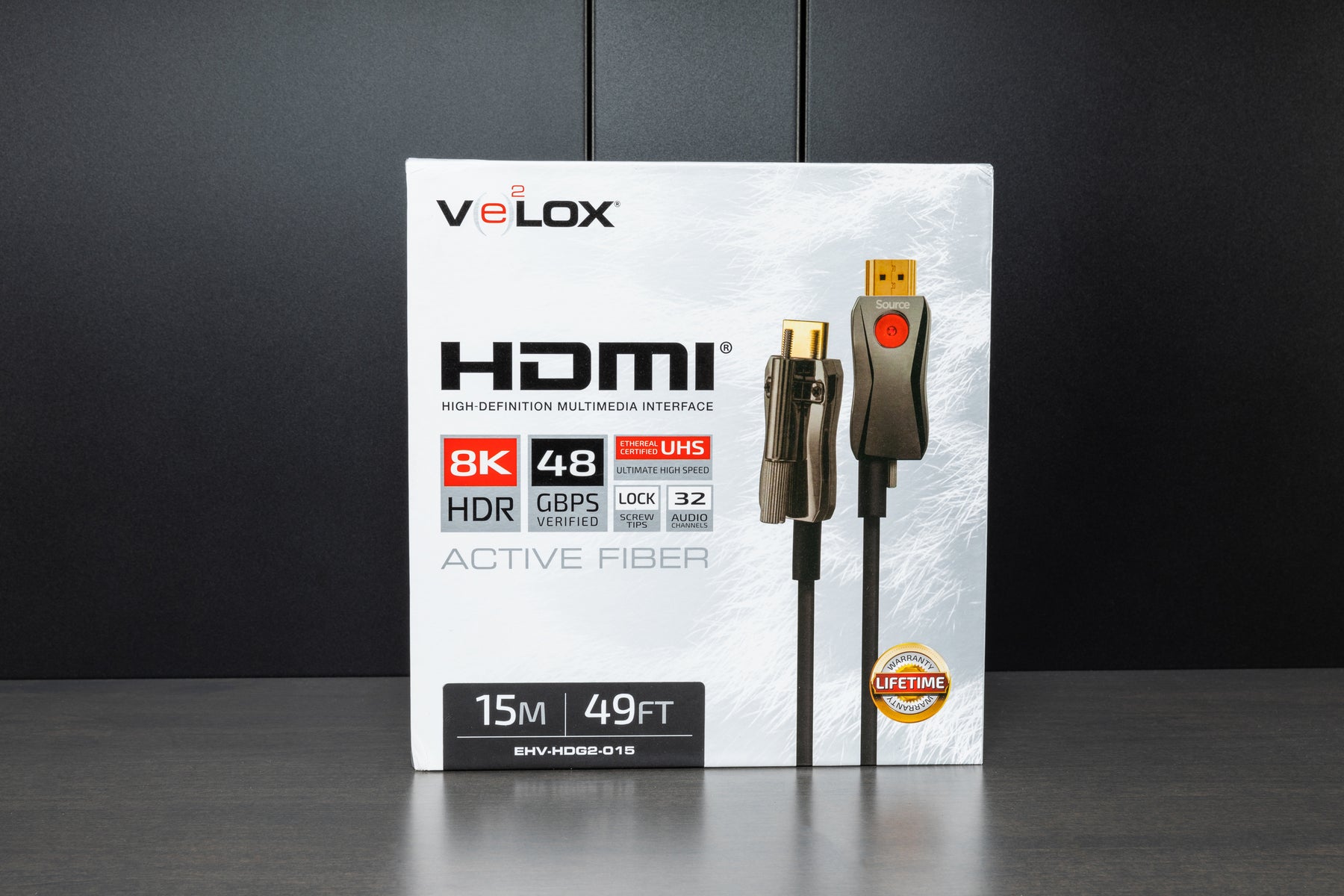

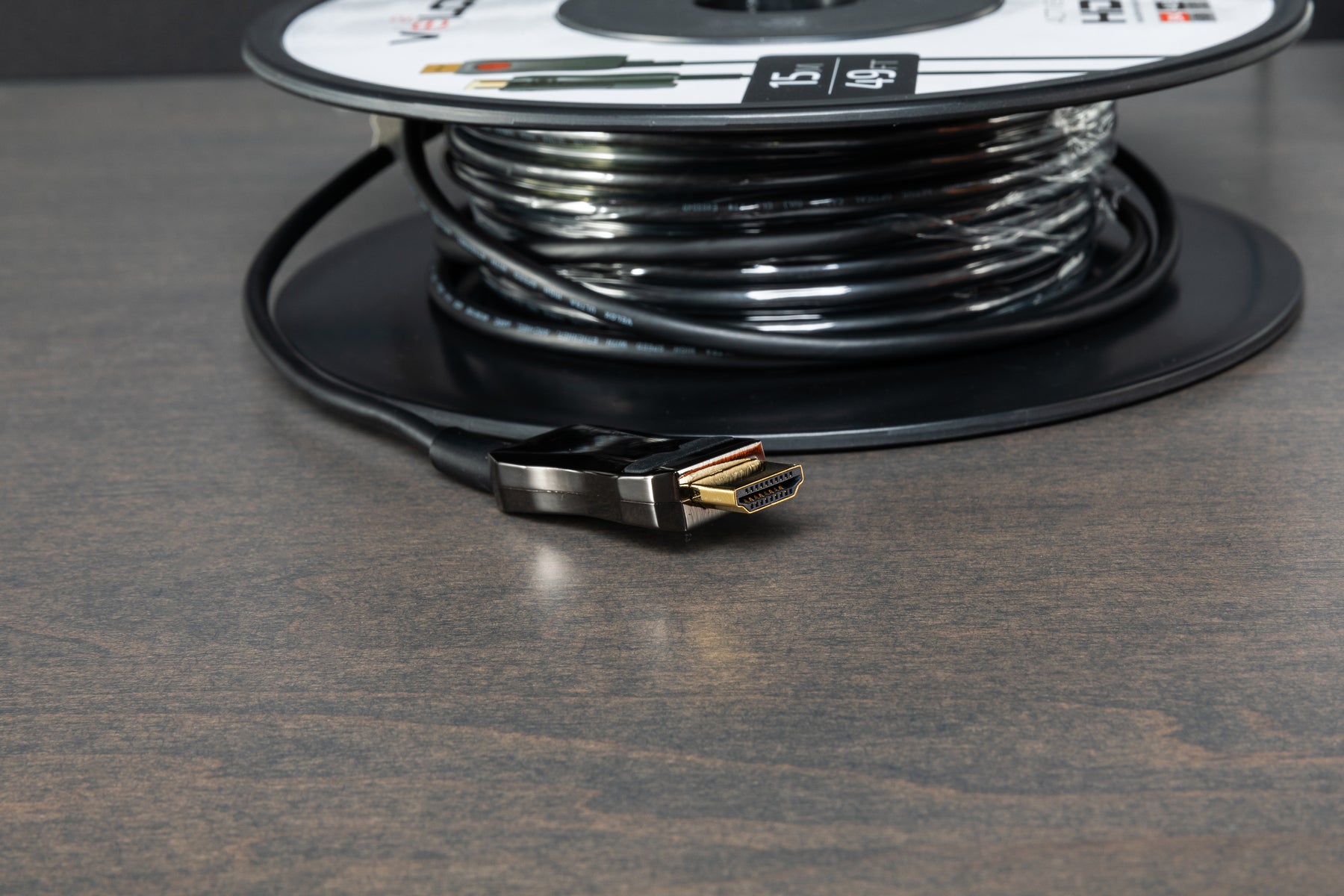

Velox 8K Powered HDMI Cable
- 48Gbps bandwidth for uncompressed ultimate high-speed video performance
- Supports up to 8K/10K resolutions, designed at 12Gbps per channel x 4 channels
- ARC, eARC, and Ethernet supported up to 10 meters (32.8 feet)
- Supports all color subsampling
- Supports Dynamic HDR
- Backward compatible with HDMI 2.0, HDCP 2.2, and all earlier versions
- 24K gold plated, corrosion-resistant contact connectors
- Multi-layer shielding to prevent electromagnetic interference, maximizing noise isolation and protecting components from HDMI ultra-low speed emanations
- CL-listed for in-wall installations

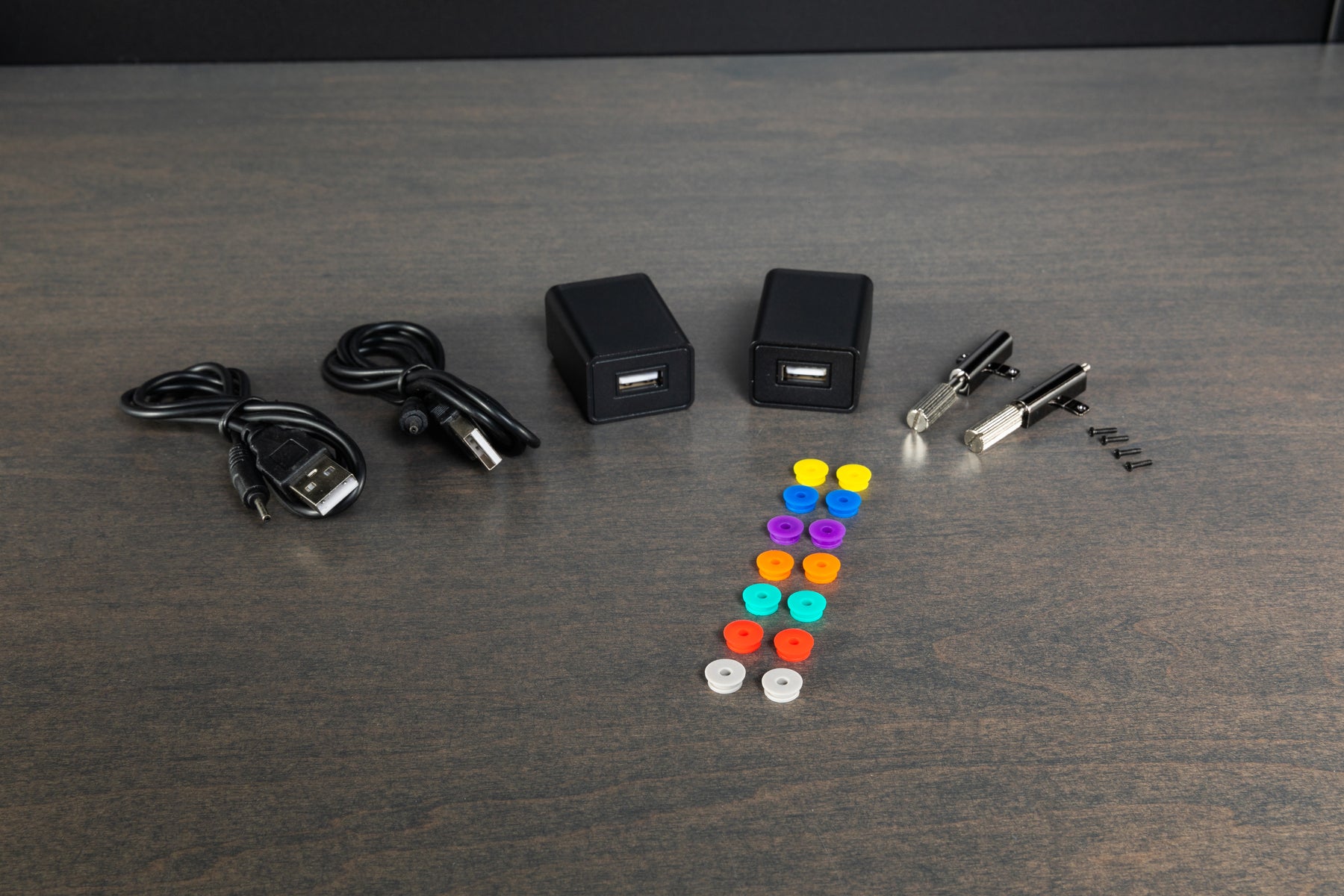

- Includes USB cables for external power
- Attachable screw locking connectors included
- Lifetime warranty

Ships from OGHQ Warehouse. Shipping costs are calculated at checkout. Our audio solutions will be fulfilled as products are available, so shipments might be delayed. Audio products are subject to a 15% restocking fee.


ETA Information:

In Stock and Ready to Ship
