I started the search for a wall-mountable pressure washing solution years ago when I built the wash bay at my house. I headed down a rabbit hole that kept leading me down dead ends. Too much noise, not enough flow, fit/finish/quality concerns, are all issues I encountered. That is the reason I ended up deciding to take a gamble on the Kranzle K165STS that I had in my wash bay.
It certainly is great at 2800PSI and 2.8 GPM and looks absolutely fantastic. The cons: it's loud, cycles for 30 seconds before turning off, and weighs 180lbs. Oh...another small issue...it was $4500 and they no longer make it!
What I really wanted for all of us is a small, compact pump that I could put on a shelf that looks and works like the Kranzle K1122TST. That is the main component of my Obsessed Garage Complete Pressure Washing Solution.
There are significant advantages to having that cart model, but what if you wanted to mount it on the wall with permanent plumbing, and a hose reel?
After the massive success I had with the Kranzle K1122 package and my need for another wall-mounted solution for OGHQ, I decided to design a less costly, more efficient wall-mounted solution. I bought a K1622 (non-TS version) that was currently available. It is a 1600 PSI, 1.7GPM pump...but...it ran continuously.
It didn’t have the "Total Stop" function the K1122TST has. It just wasn't good enough for our application. Although the pump can run for hours in bypass mode, I think we want the pressure switch that would make this pump function better for car washing.
At the time, the K1622 did not have a total stop feature but now this K1622TS model comes with total stop!

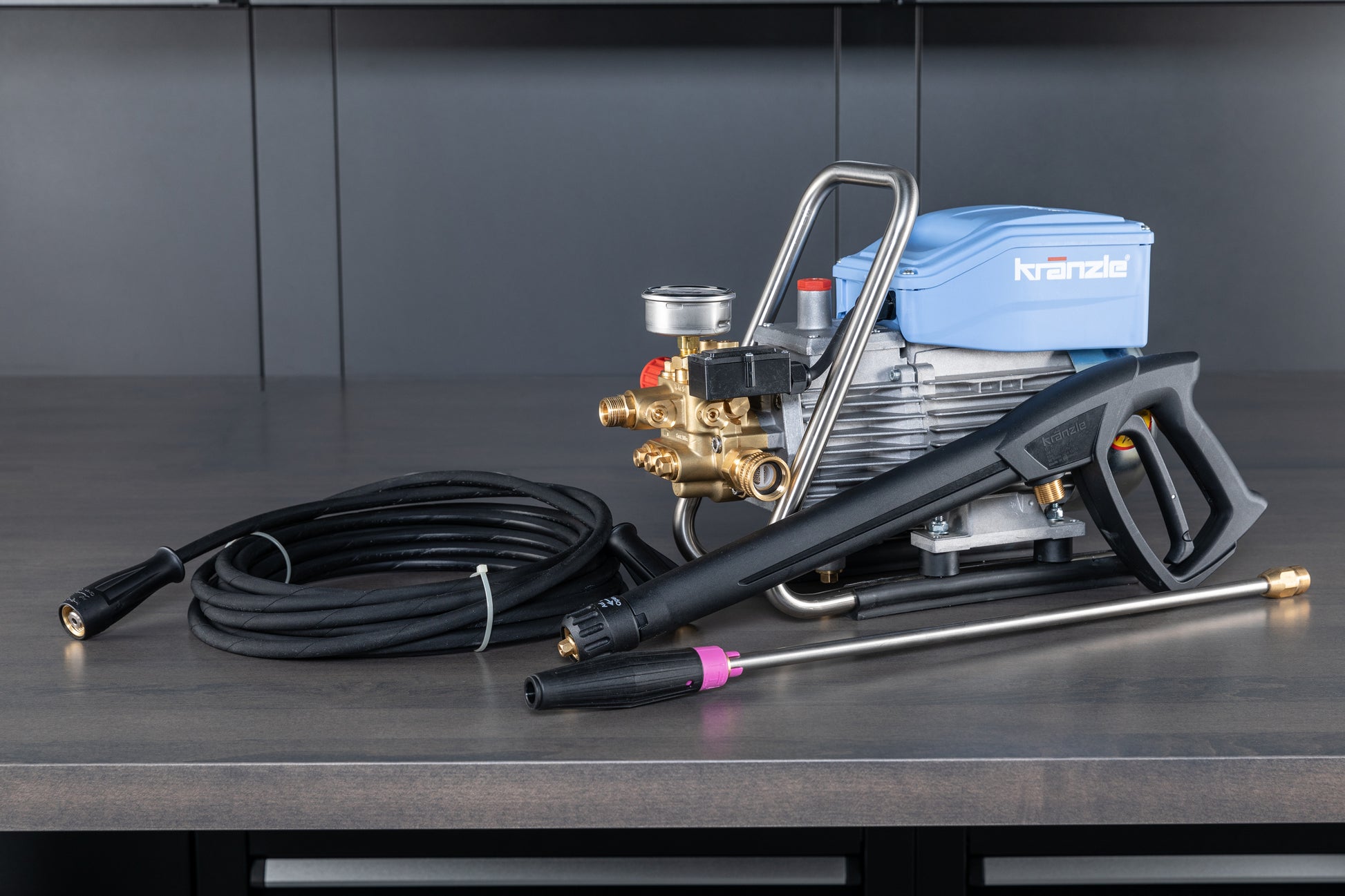

If you want something with more pressure, a stock OE sprayer, and a wand, but less flow, this machine is a winner. And it will still beat the pants off of most pressure washers available at a similar or lower price.

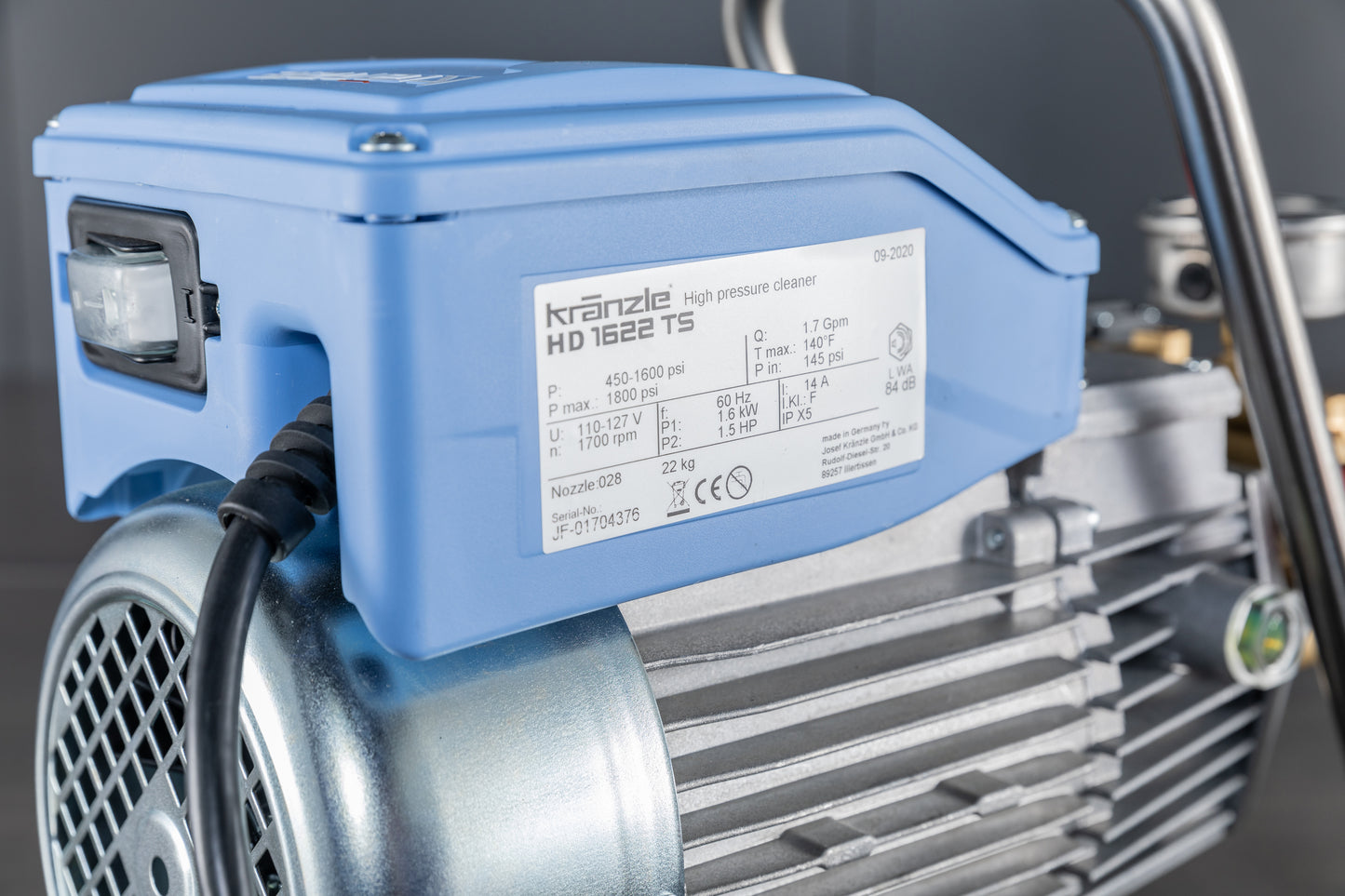

Specifications

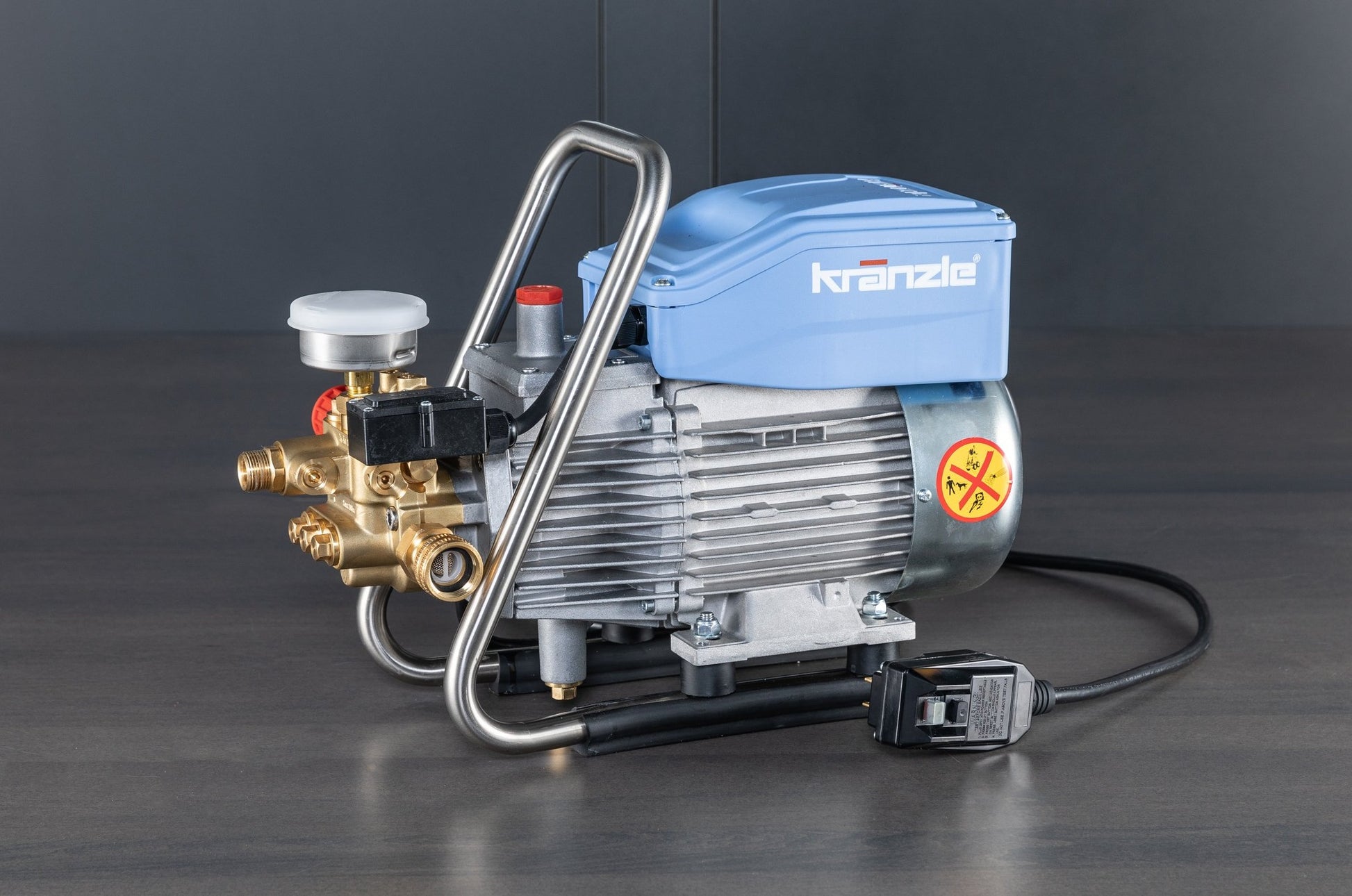

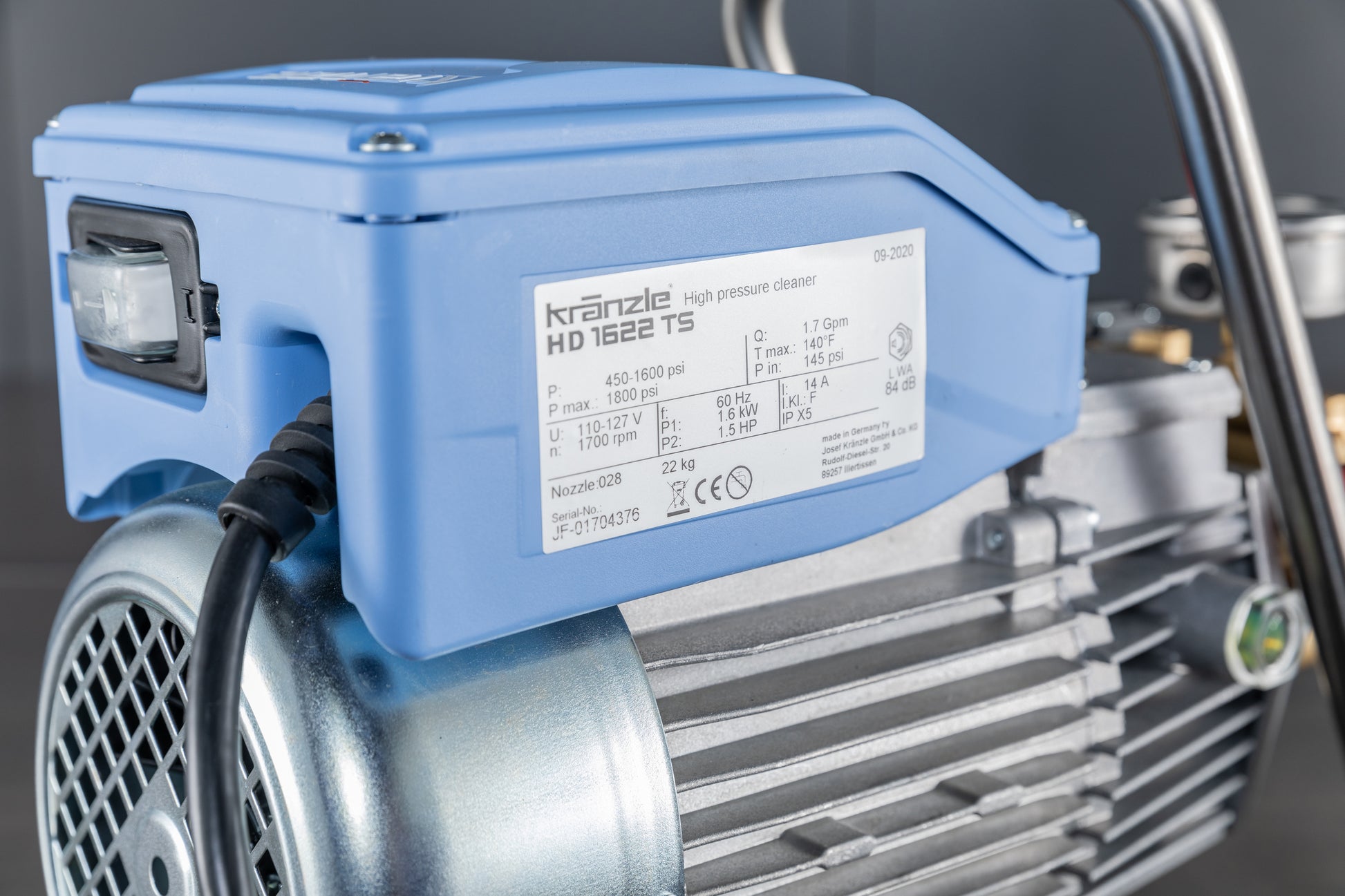

Kranzle K1622TS
- Measured Flow: 1.6 GPM
- Measured Pressure: 1450 PSI
- Measured Current: 14.8 A with OE Accessories
- 3 Piston Wobble Plate Pump
- Self-Priming

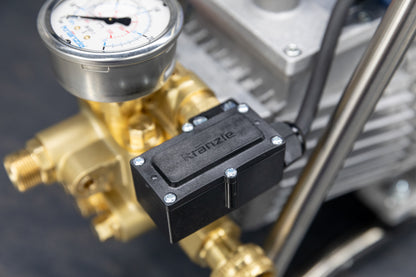

- Auto-start/stop
- 35’ Power Cord with GFCI
- Electrical Requirements: 110 V, 15 A

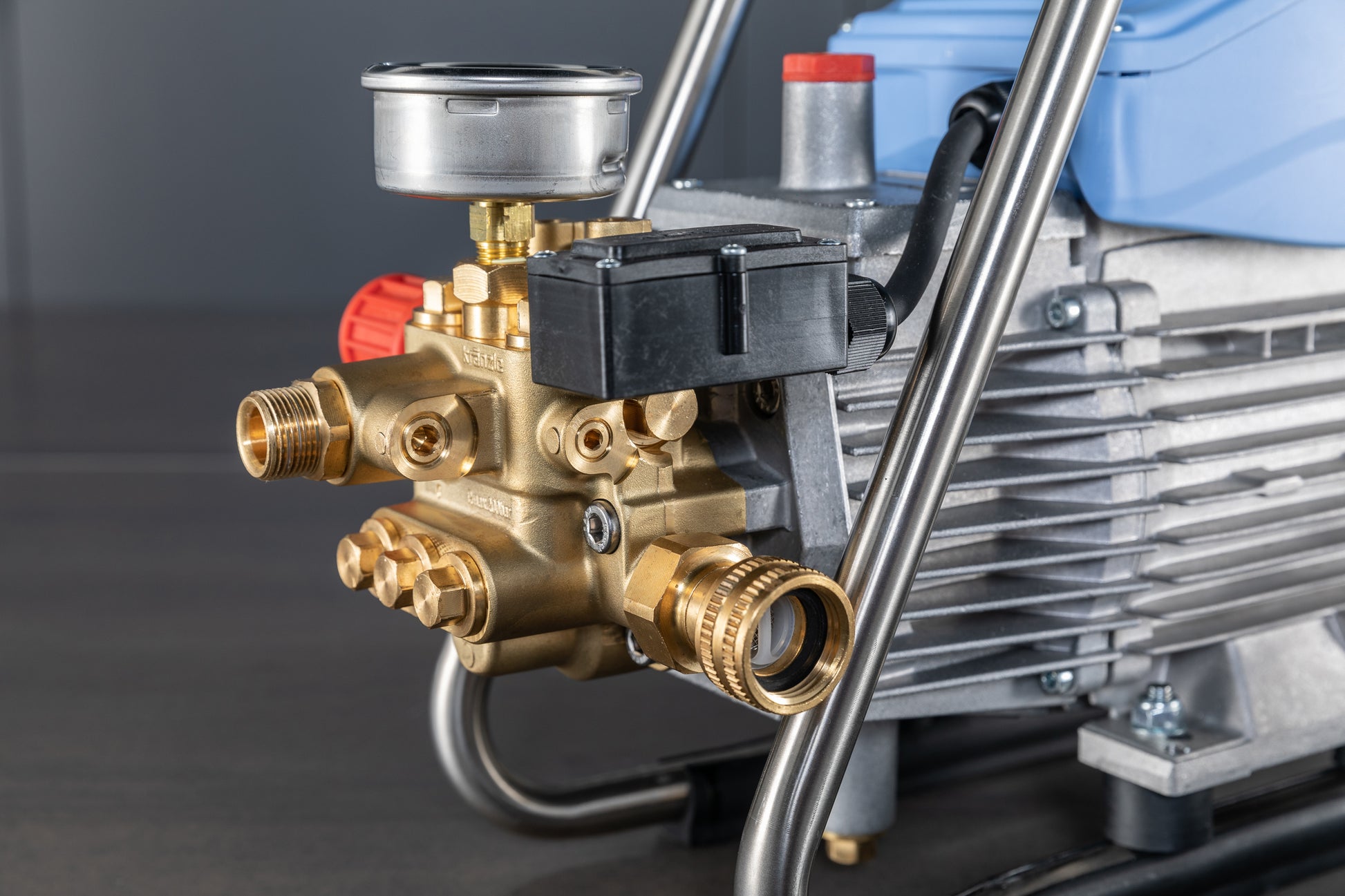

- Inlet: ¾” Female GHT
- Outlet: M22 Male (14mm)
- Dimensions: 18.75” W x 7” D x 12.5” H
- Weight: 43 LBS
Warranty Information
Kranzle offers a 1-year warranty for commercial use, and 2 years for home use. Info about their warranty can be found HERE. If you ever have a problem with your machine, reach out to us, not Kranzle. They will send you back to us since you bought it from OG. Before you send us an email though, try to work through the issues yourself in our FAQ and Support tab. Sometimes it’s a simple fix if you’re having trouble.
FAQ & Support
User ManualKranzle K1622TS Operating manual with spare parts list
Support Articles
What is the best pressure washer?
Will a Kranzle pressure washer work with a water tank?
Can I use a Kranzle with a generator? What wattage do I need?
How To Buy: Setting up a Kranzle K1322TS for a Mobile Detailer Tralier/Van - Generator and Water Tank.
What is the difference between the K1622TS and the K1322TS? (Hint: Just get the K1322TS)
Why Should I Upgrade My Sprayer and Which One Should I Get? - Upgrading Your Sprayer
Pressure Washer Fittings 101: Fittings and QD Naming
Pressure Washer Fittings 102: Applications and Usage
Pressure Washer Fittings 103: Spray Nozzles
How To: Proper Layout and Setup for Kranzle Custom Install Solution.
How To: Properly Shorten Kranzle Power Cord
How To: Kranzle Oil Change
How To: Set up your inlet hose or garden hose with quick disconnects
How To: Kranzle Teardown and Maintenance Deep-Dive.
How To: Setting up a Wall-Mounted Kranzle Inside with an External Hose Reel Outside
Why is my gun or wand (1/4" Coupler) leaking from the outlet?
Why is my 3/8" coupler leaking from the end?
Why didn't I receive all of my garden hose quick disconnects? I only received two garden hose fittings!
Troubleshooting: Garden hose / inlet hose is leaking at the threads.
Troubleshooting: Kranzle leaking oil from the bottom of the casing - Kranzle Pump Oil Leak.
Troubleshooting: Kranzle Inlet Leaking Water - Garden Hose Connection.
Troubleshooting: I just got my Kranzle and it's dripping / leaking oil!
Troubleshooting: Kranzle tripping with foam cannon even on a 20A circuit.
Why does my Kranzle pressure gauge show a high or low pressure-reading?
This item is dropshipped from Kranzle in Maryland. Shipping is free.
