Powering these lights is super simple. There are no ballasts required - these lights are self powered. You can power them using a normal plug, or you can hardwire them to a controlled circuit with a switch on the wall or use the switch that we sell.
To learn more about the installation of the under cabinet lights please read the Installation Tips tab.

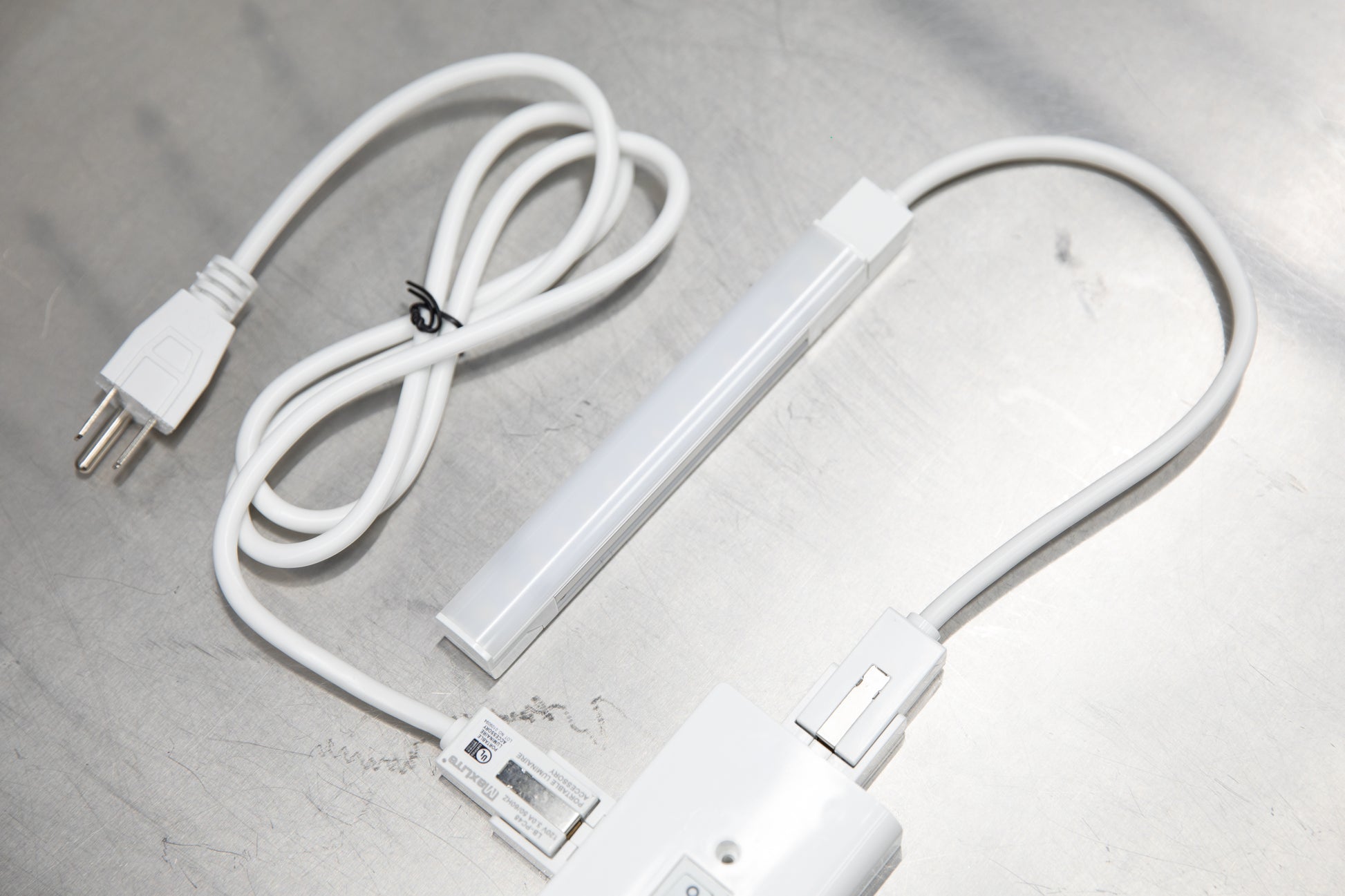

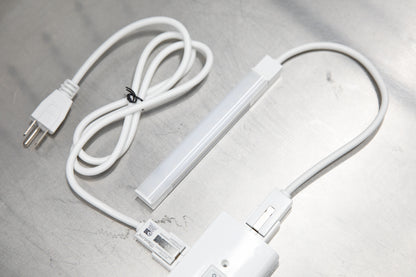

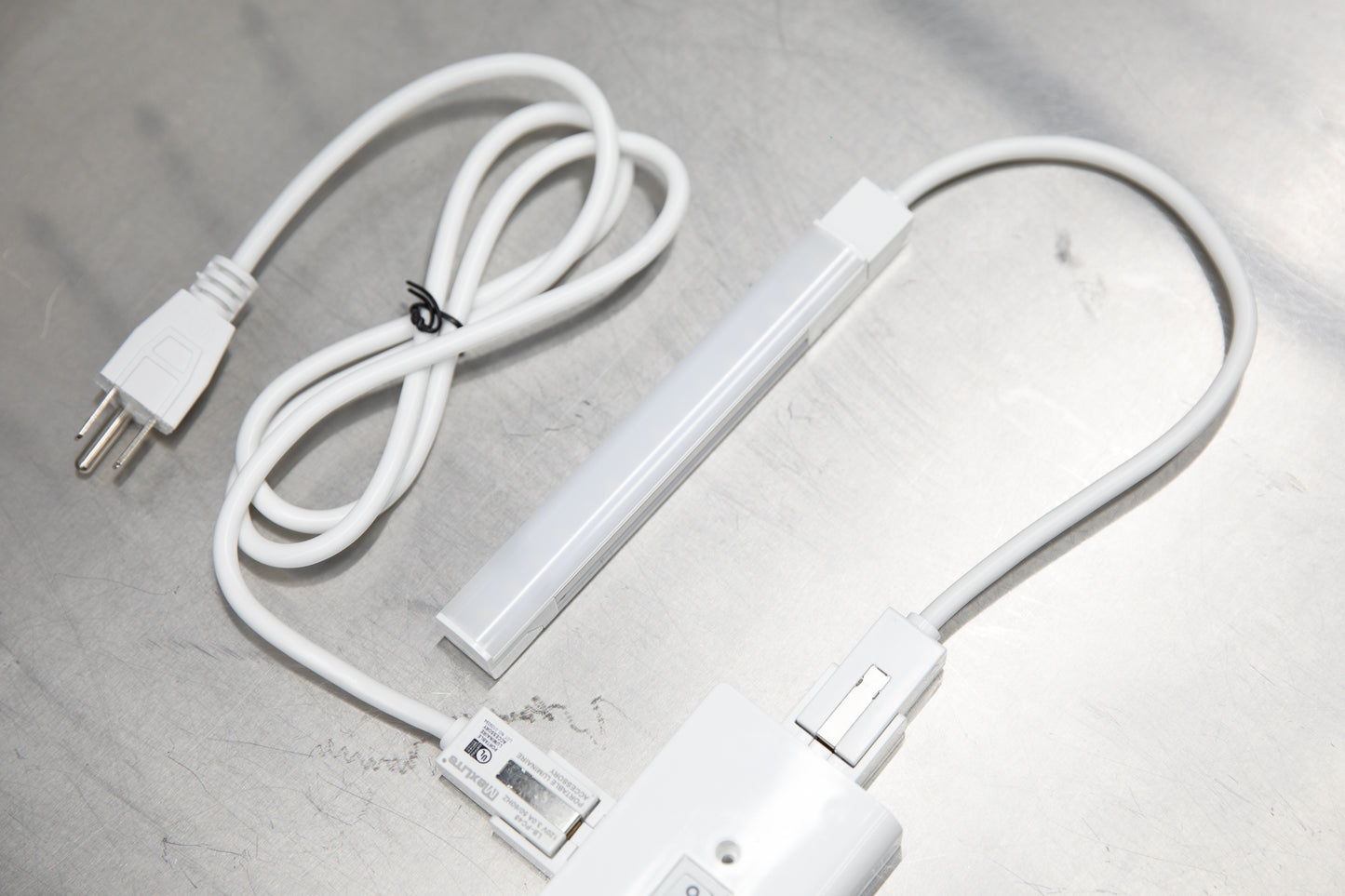

Power cord to power the lights.
Options:

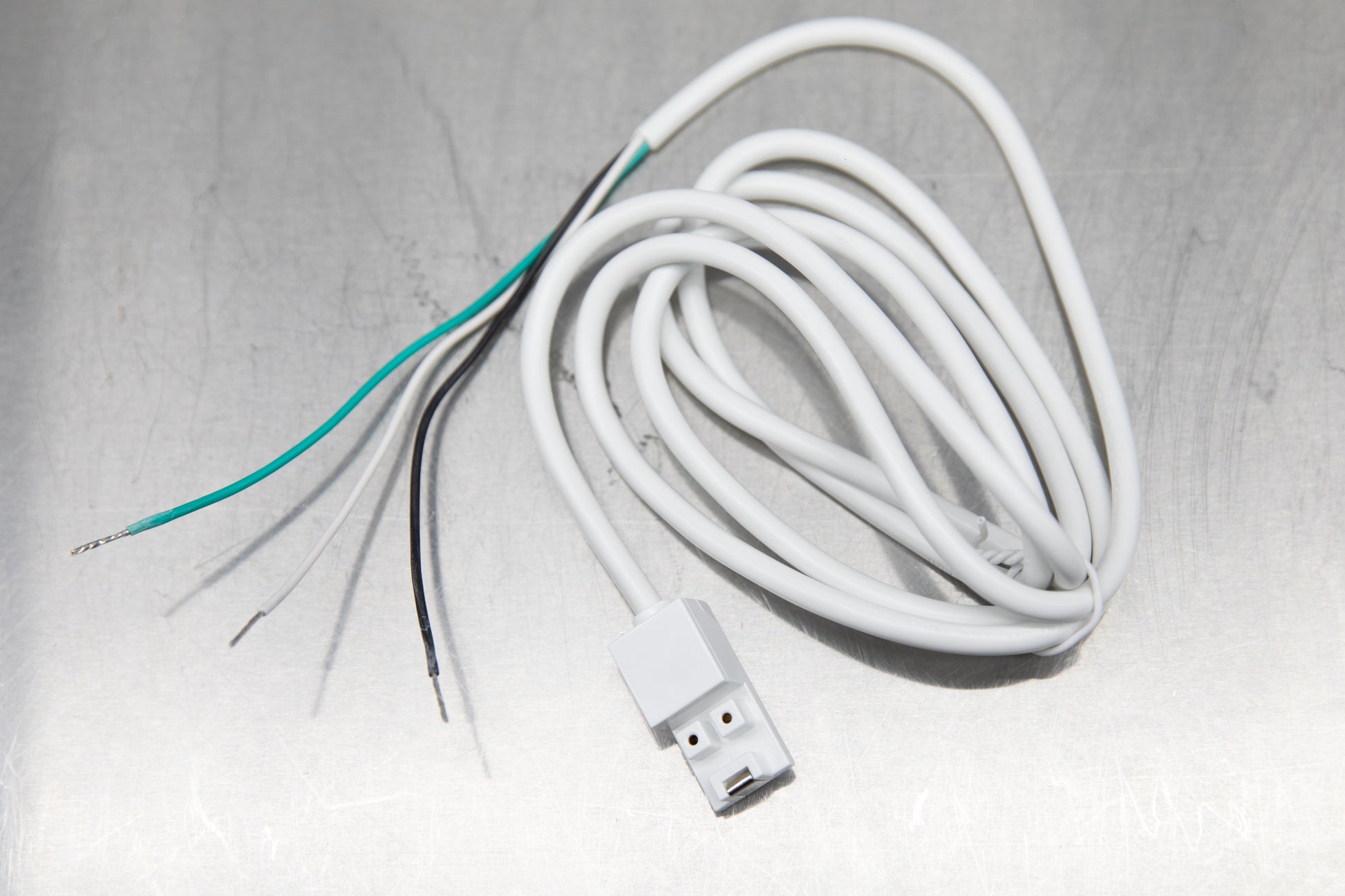

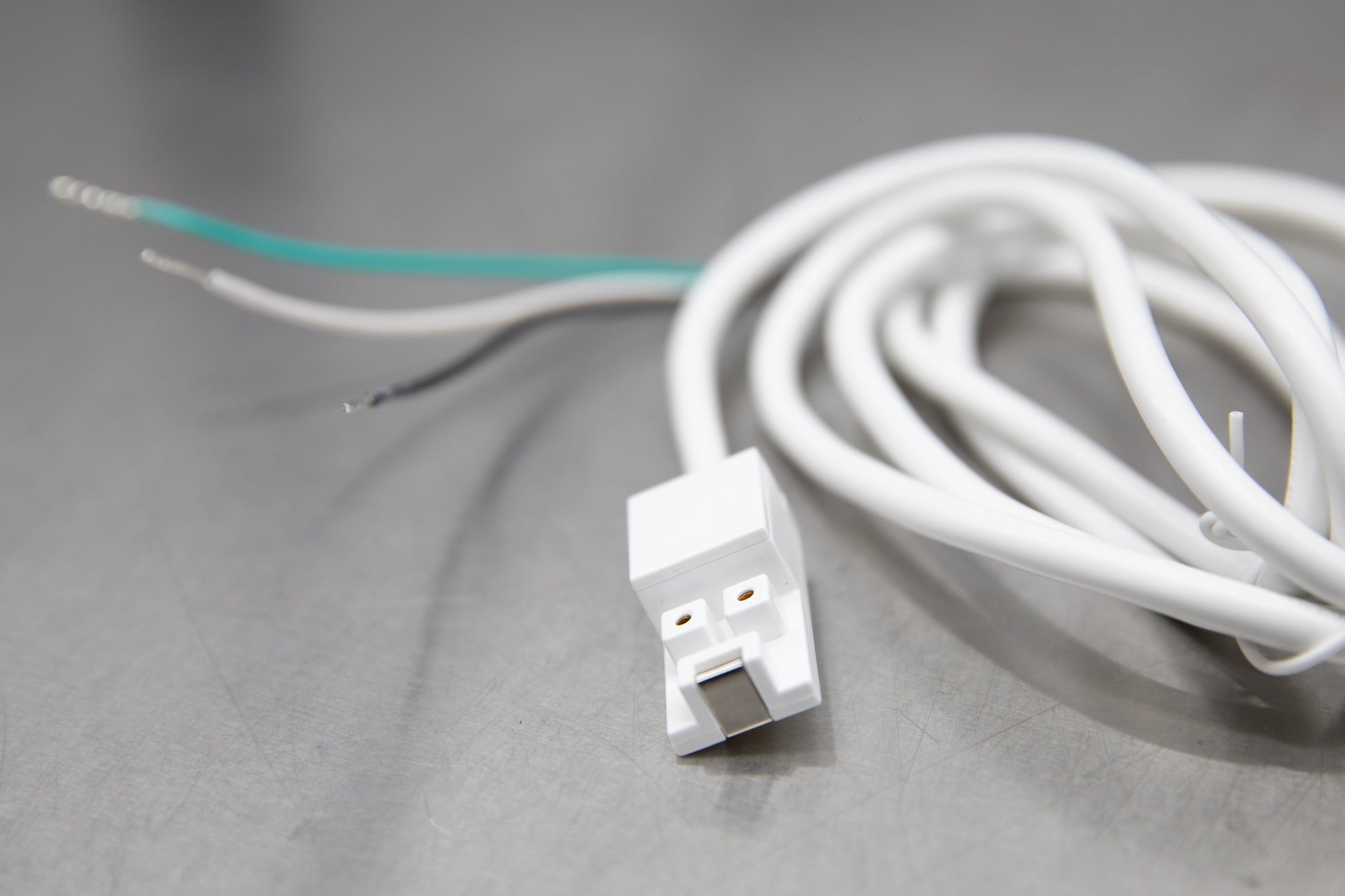

70" Hardwire
Hardwires into your electrical and terminates in the light fitting.

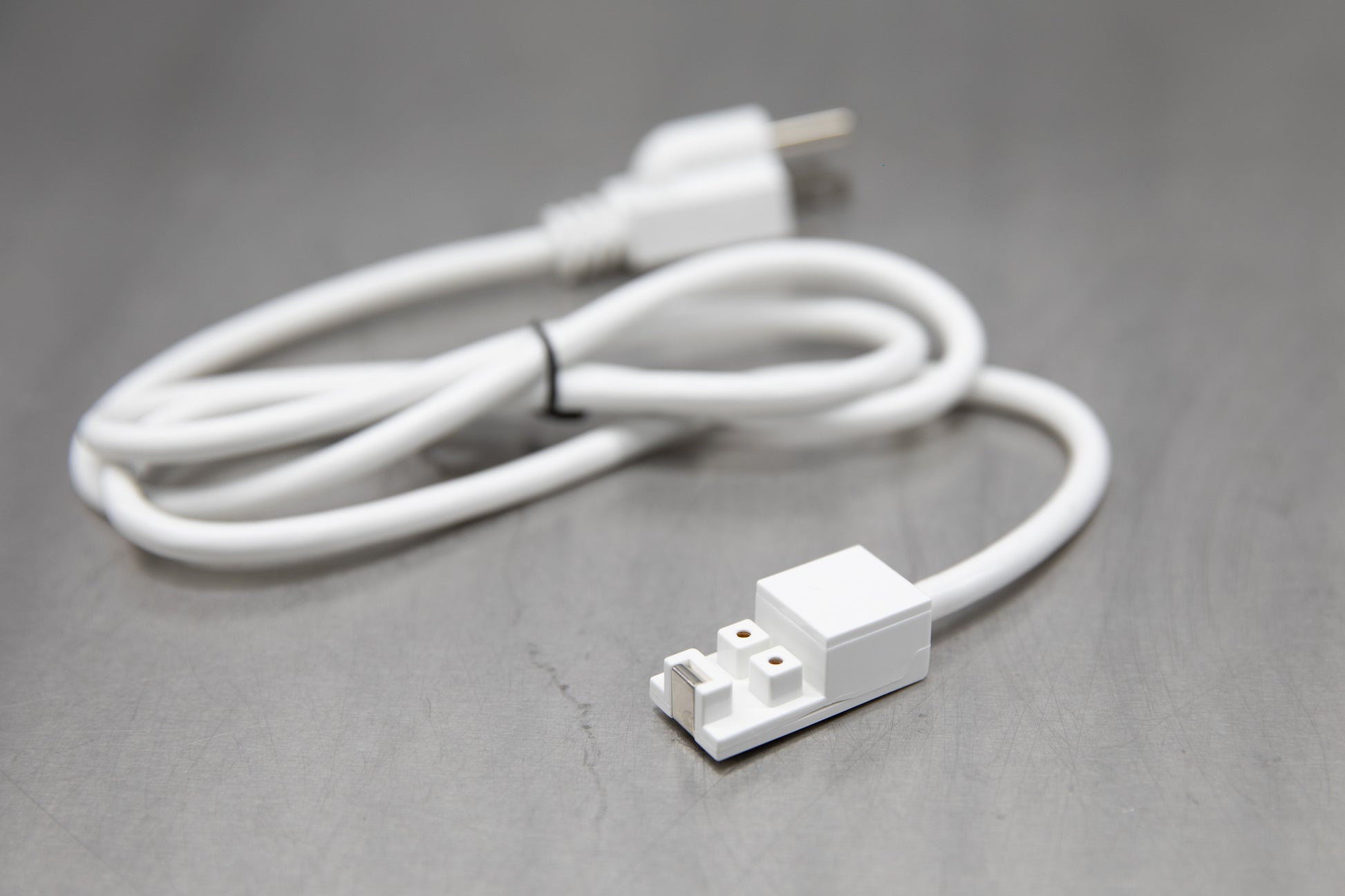

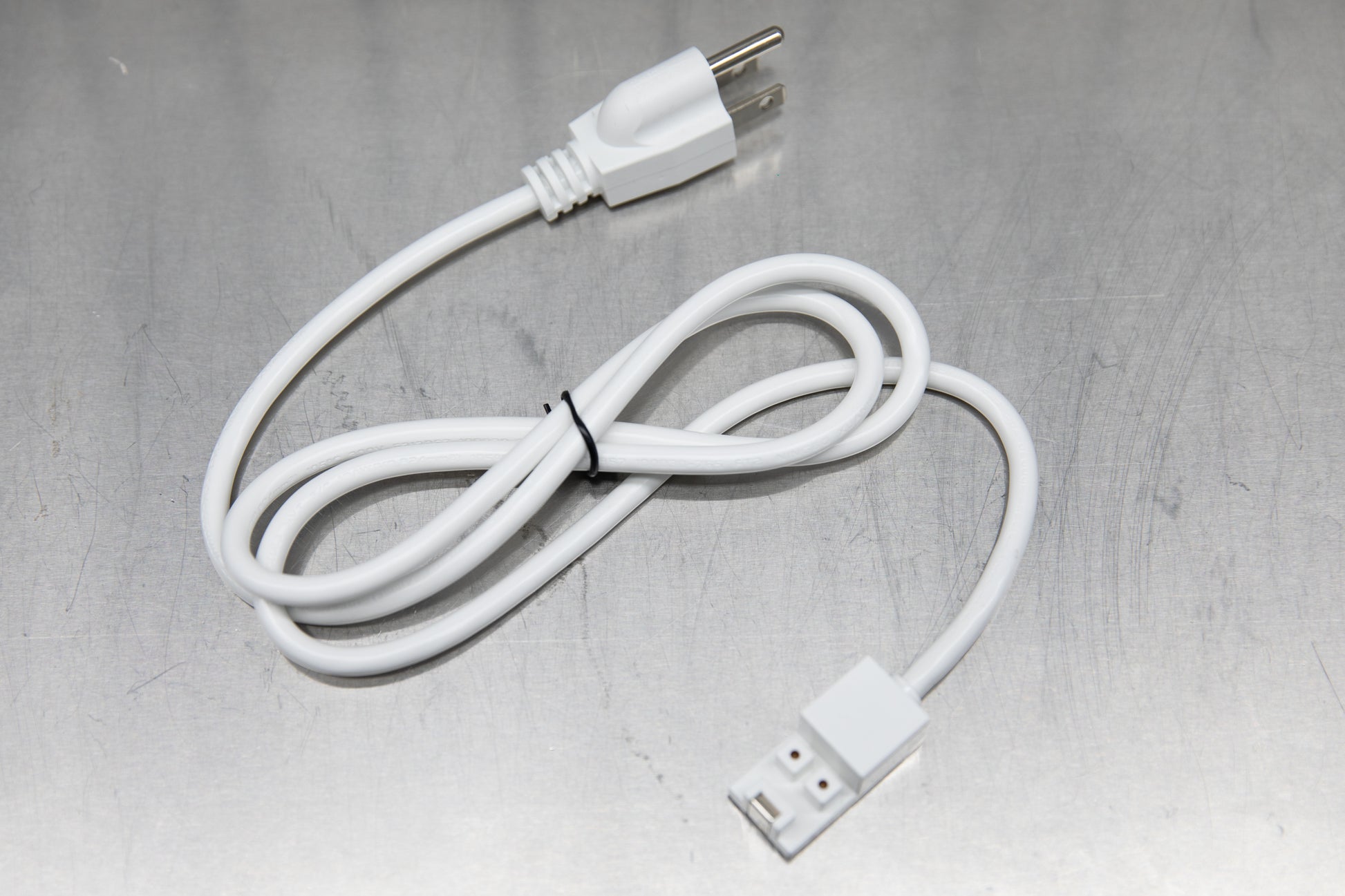

48" with Plug
Plugs into your standard outlet and terminates in the light fitting.
Installation Tips

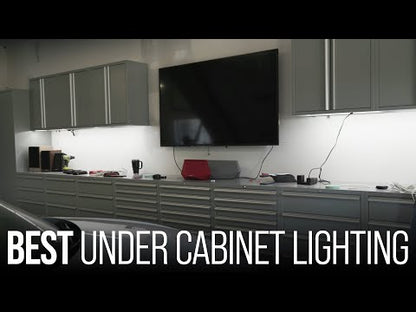

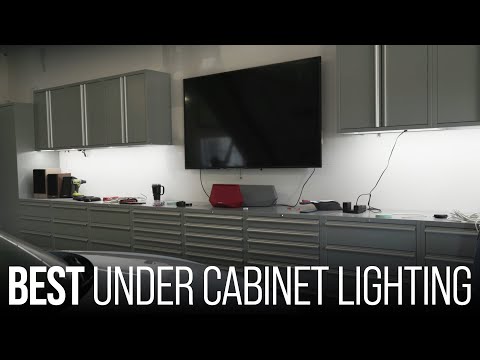

If you haven’t watched the video from the Story tab, please watch it first. This gives you the best idea of what to expect when installing.
If you are installing our under cabinet lighting solution under Saber and Sonic MSS Cabinets, it is recommended that you drill through the sides of the cabinet. This allows you to have an unbroken line of light. You will need to use a step-bit and drill a hole that is 1-⅛” in diameter. For my Saber array at my house, the center of the hole was drilled 2 inches from the front of the cabinet. At the OGHQ Sonic MSS array, the center of the hole is 1-¾” from the front of the cabinet. You can adjust where the hole is drilled if needed based on what you think is best.
I drilled the holes for the lights after the cabinets were already installed. I don’t recommend doing this, especially for the Sonic MSS cabinets. It will be much easier to drill the holes with the cabinets not installed already.
If you are installing these under Sonic MSS+ Cabinets, you won’t need to drill through the cabinets; there is already a hole for the lights to pass through.

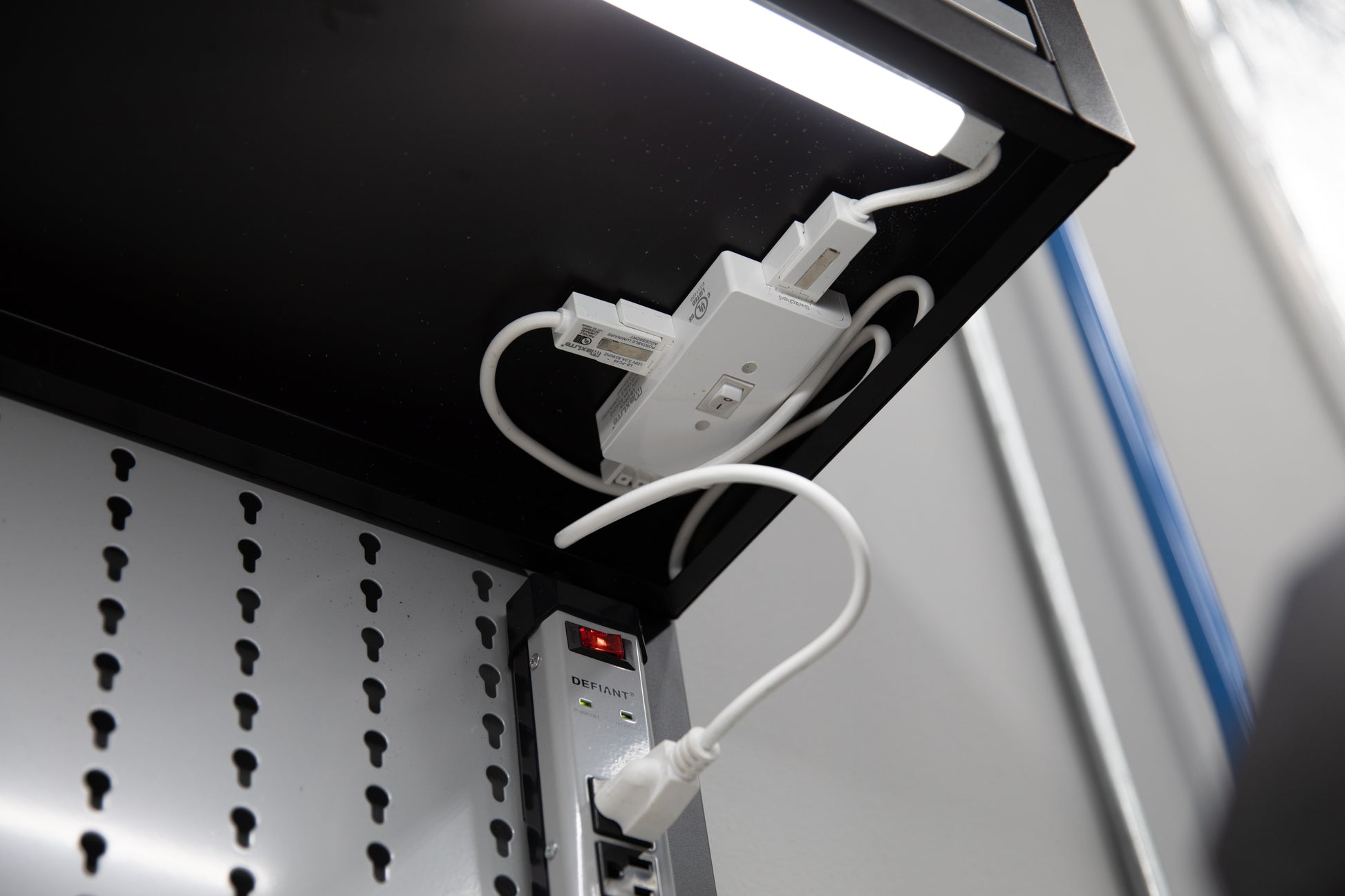

Installing the lights themselves and getting them powered up is super simple. These are self-powered and can either be hardwired or plugged into an outlet.
Use the Under Cabinet Light Joiners to connect a series of lights together. Just push the lights into the joiner and you’re good to go.
Use the Magnetic Mounting Clips to hold the lights to the bottom of the cabinet.
