Jenny Pneumatic Style Tank Drain

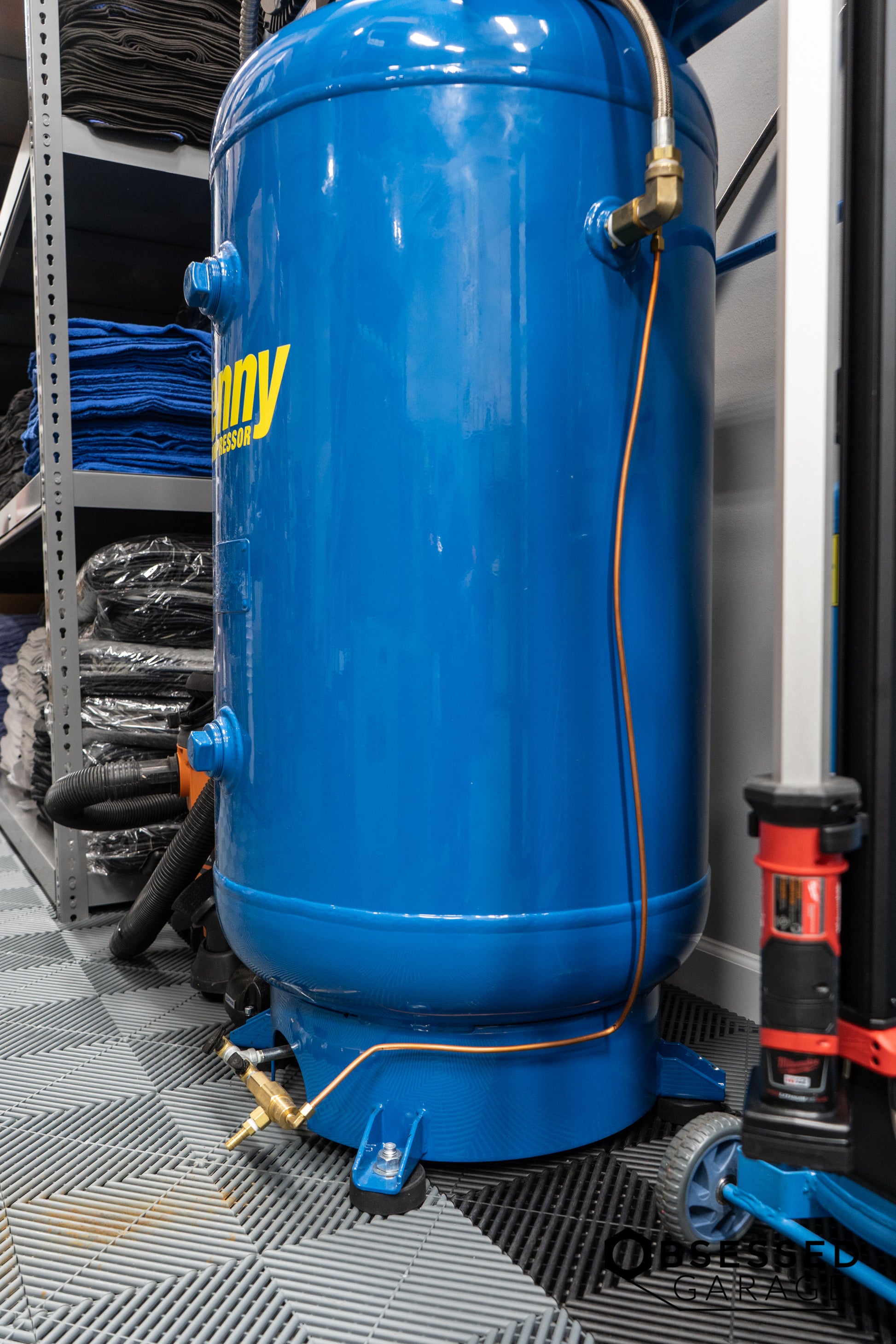

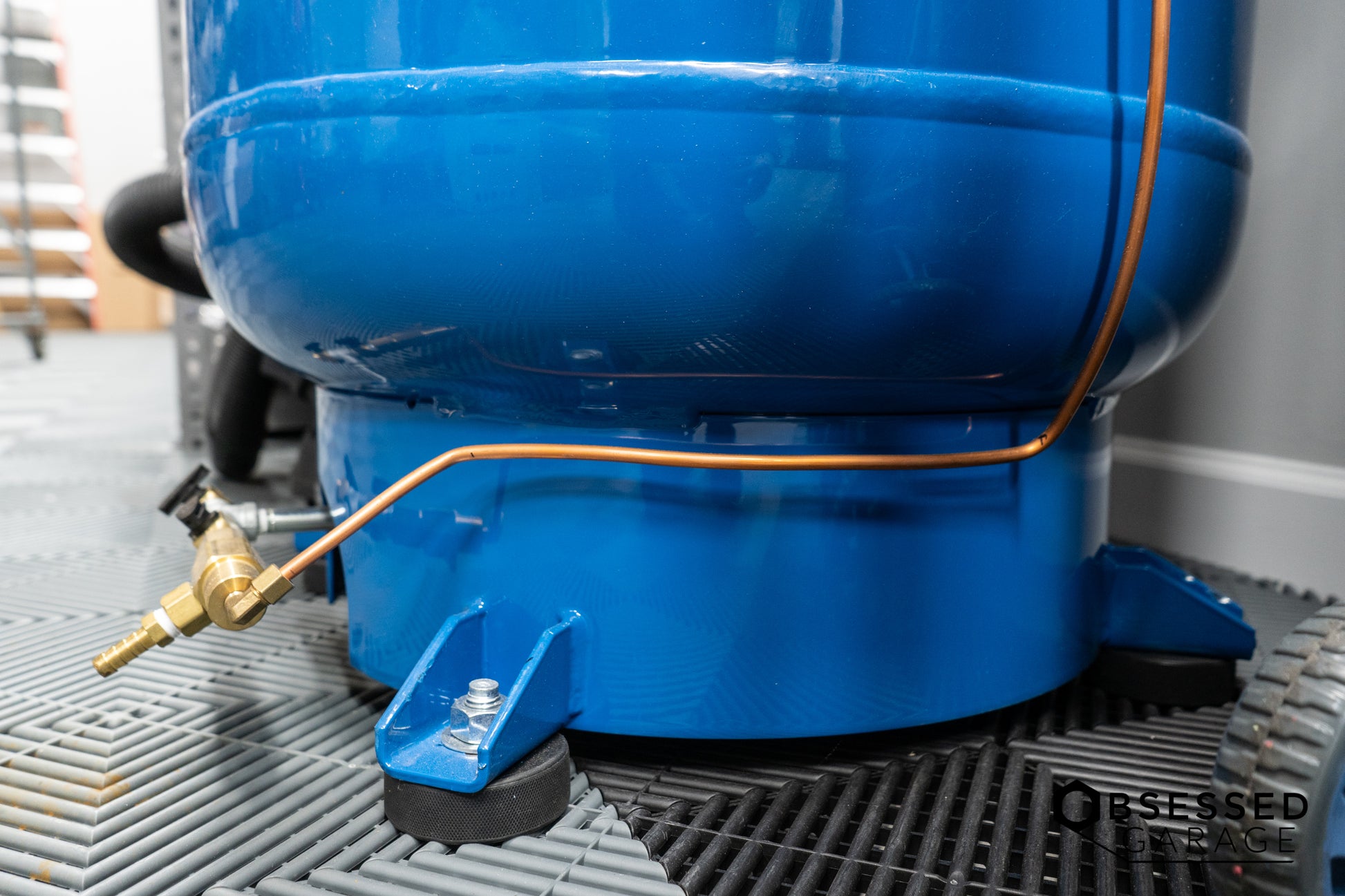

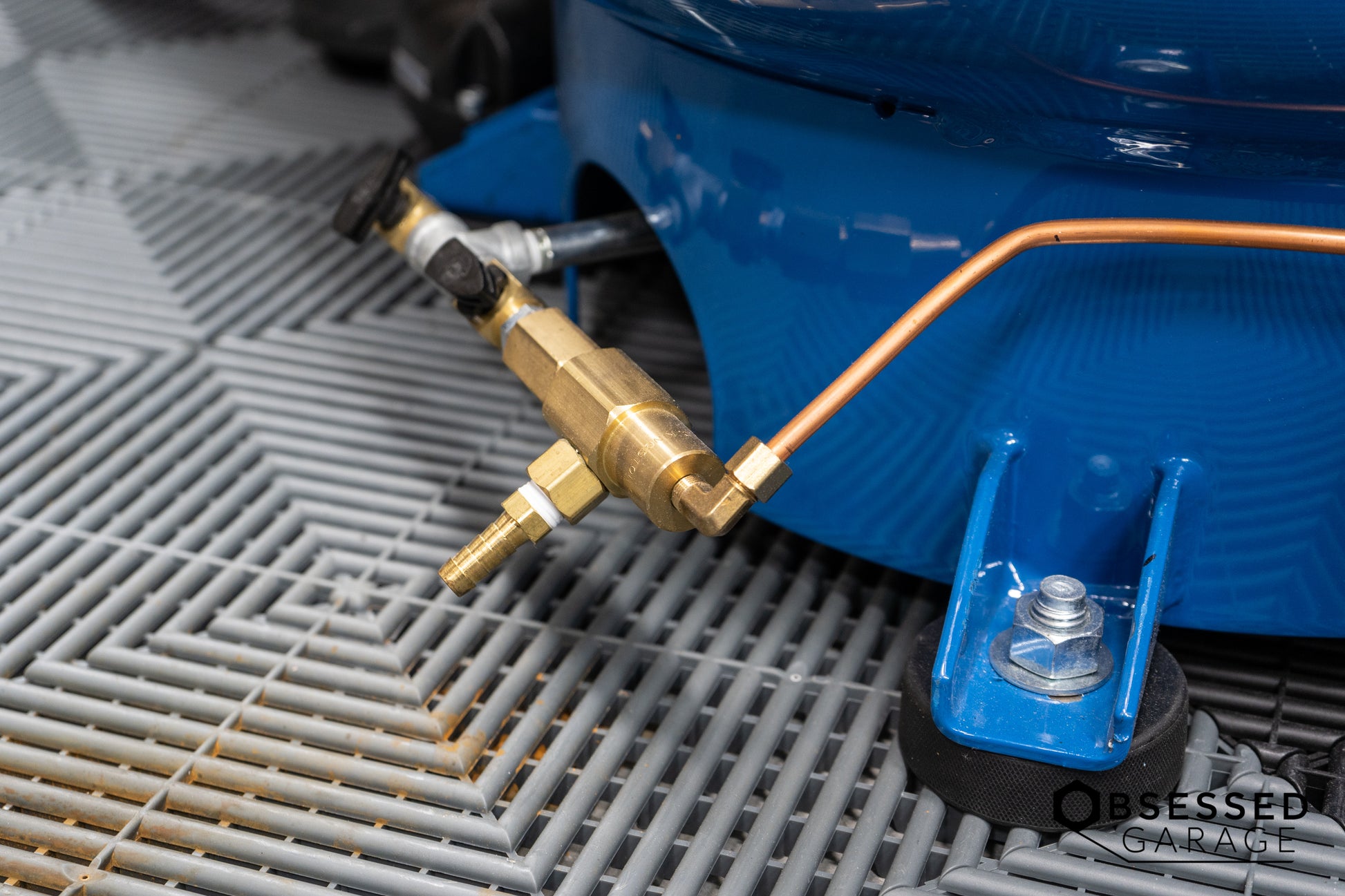

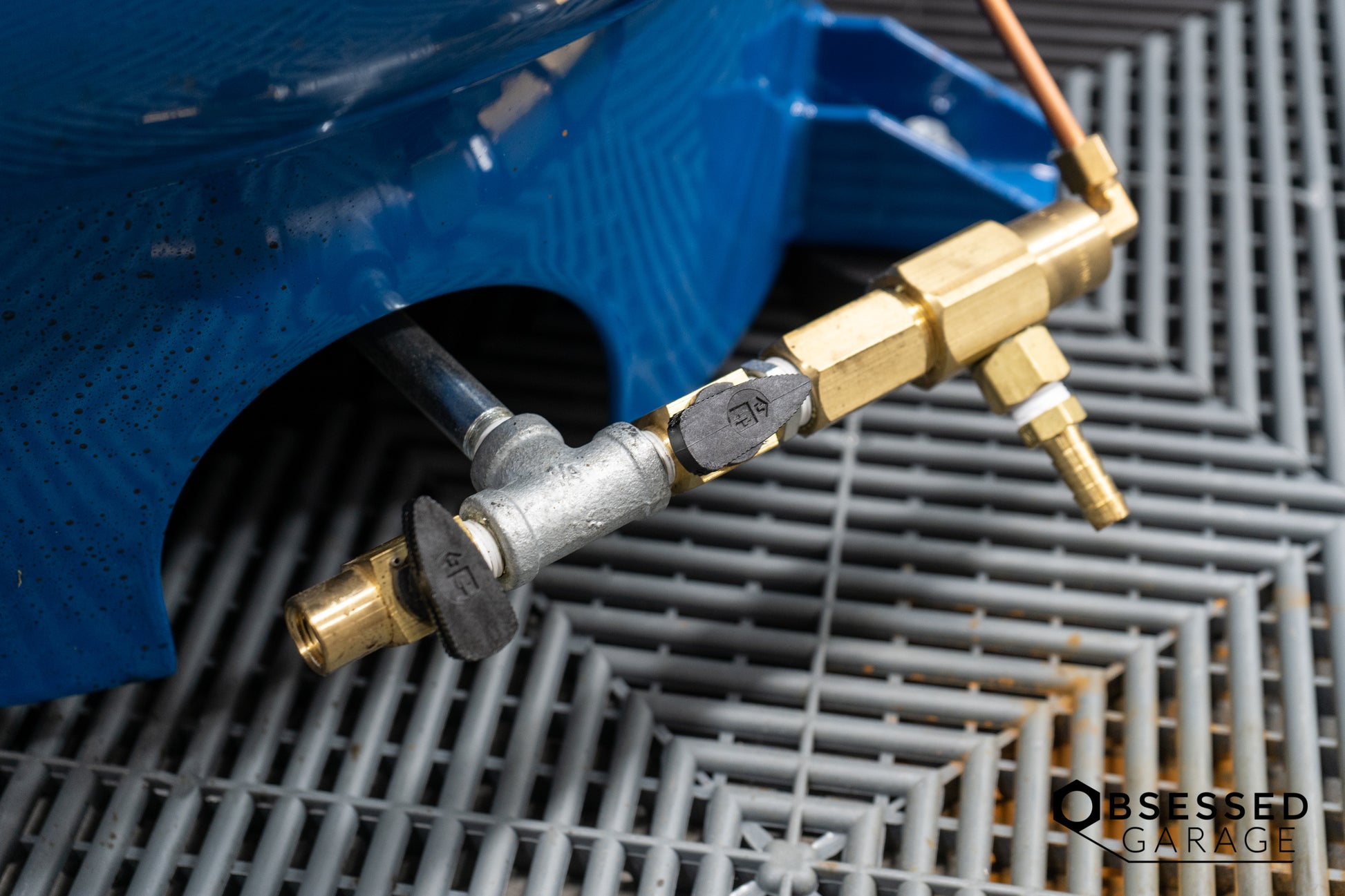

This is the pneumatic style tank drain for your Jenny Air Compressor.

Designed For Use on All Compressors with an Unloader Port. Complete Drainage is Assured by Double Action of the Valve (which opens when the compressor starts and stops). Long, Trouble-Free Service is Provided Through Simplicity of Design and the Use of Rust-Resisting Materials.

A minimum pressure of 30 PSI is required to permit this valve to function properly. Maximum operating pressure 300 PSI.


Valve Specs:

  • Inlet Size: 3/8" NPT
  • Outlet Size: 1/4" NPT
  • Pressure Rating: 30-300
  • Min Temp: -40°F
  • Max Temp: 225°F
