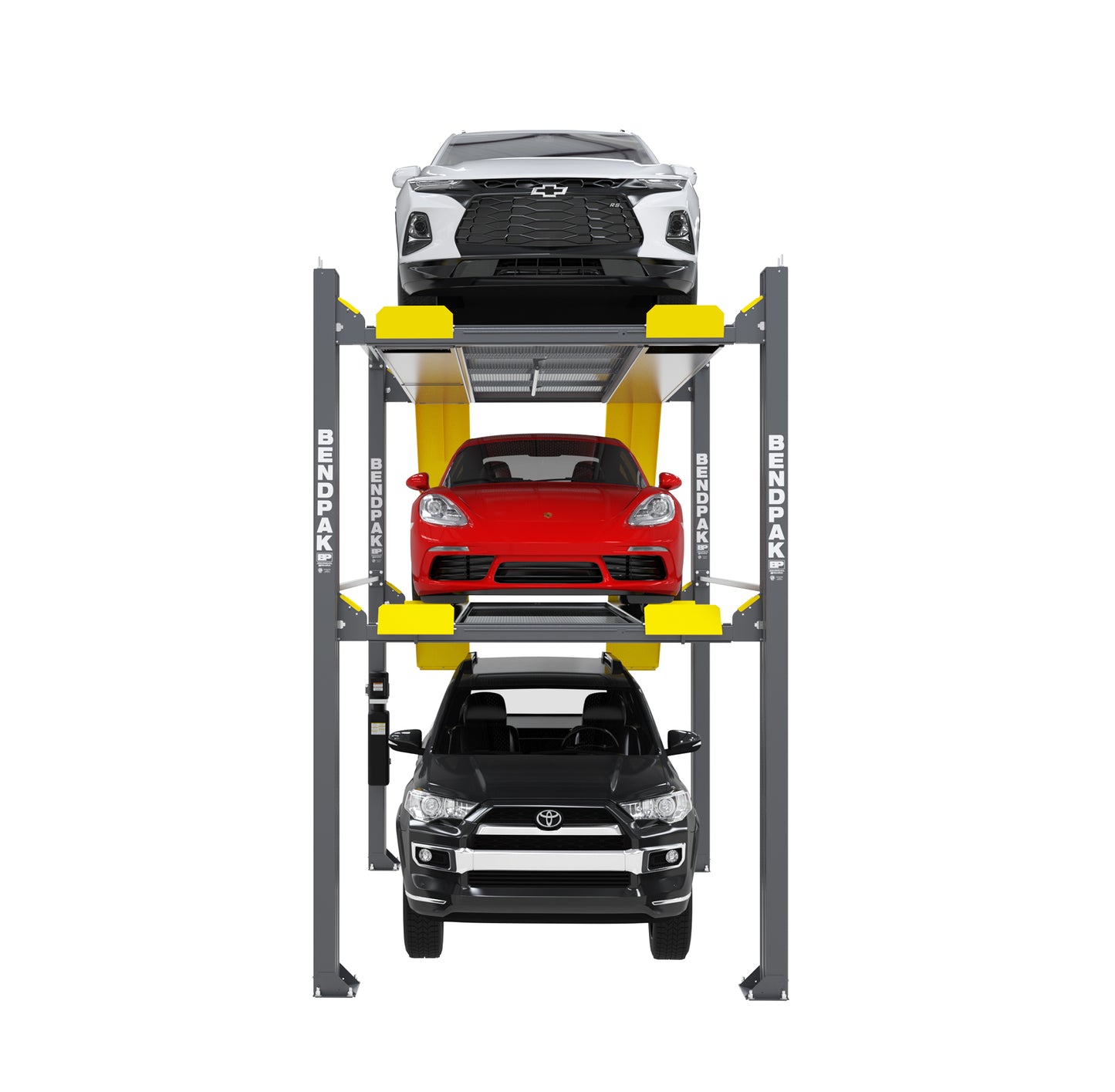

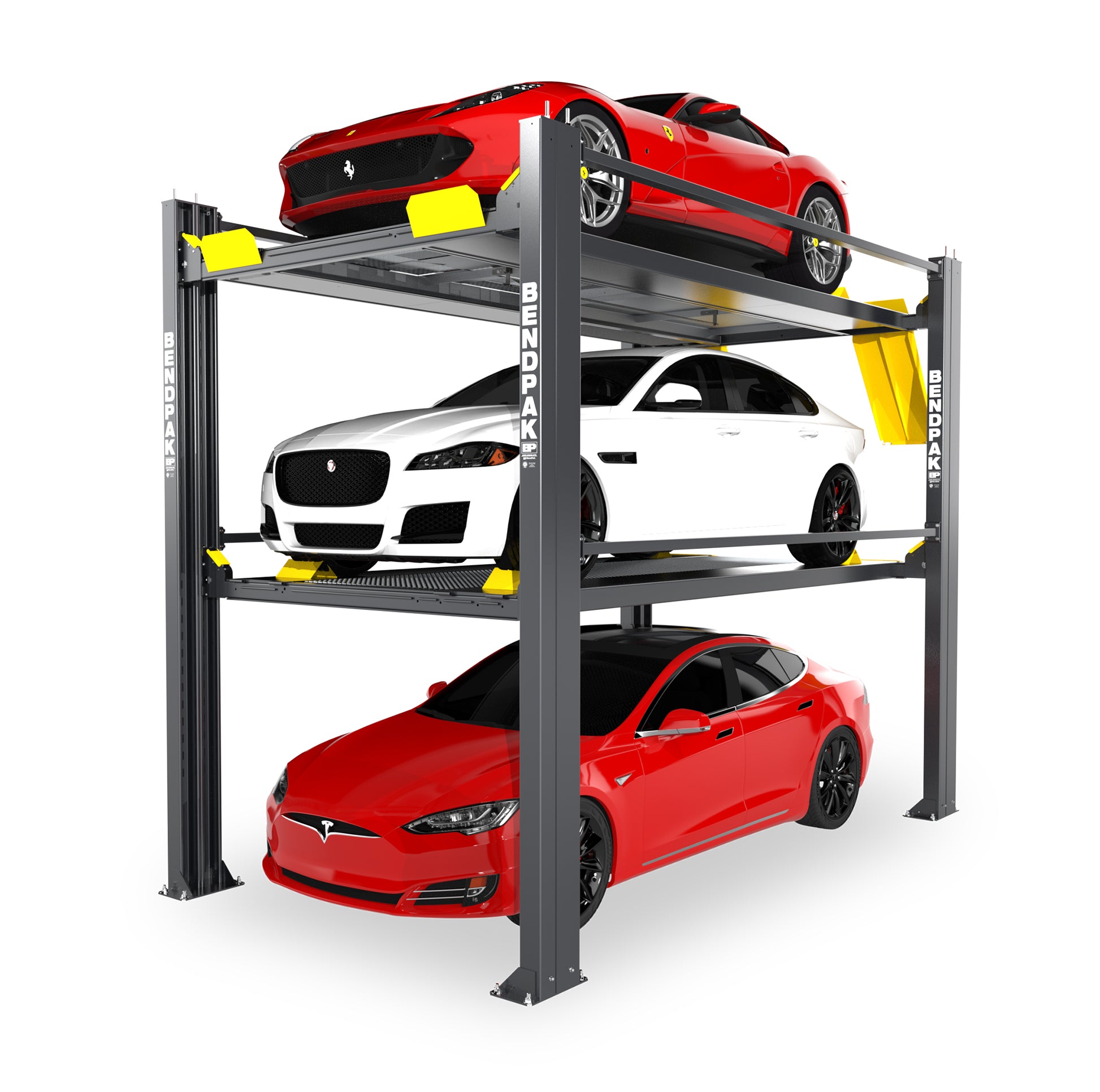

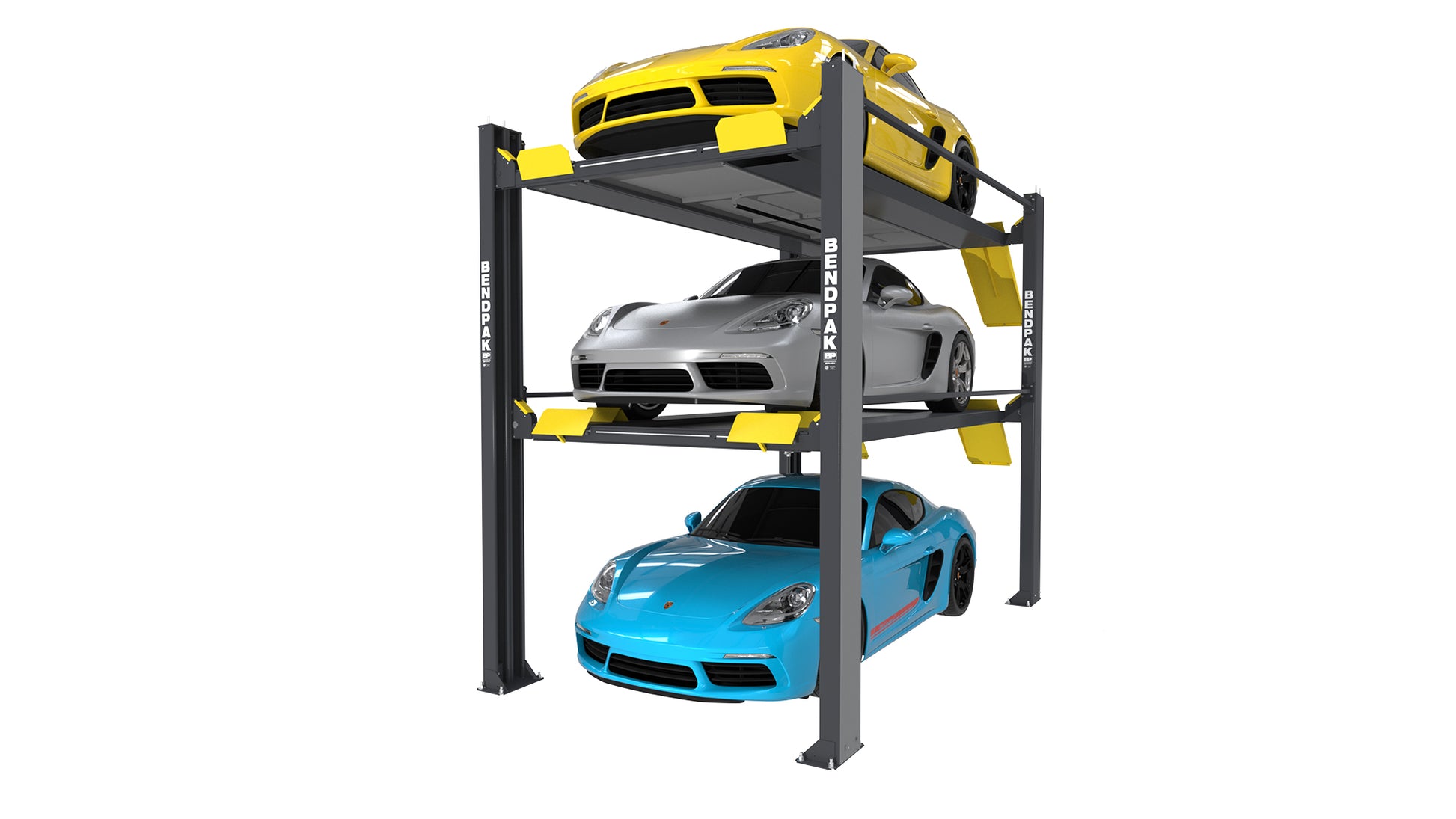

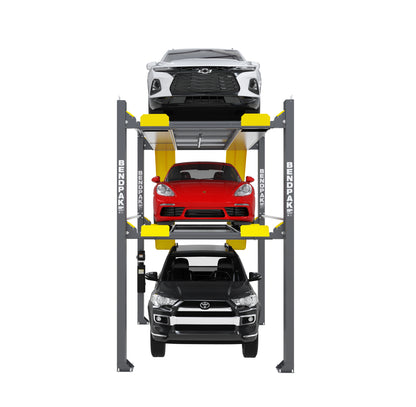

BendPak HD-973P Tri Level Parking Lift

SKU: 5175238 (C)
BendPak HD-973P Tri Level Parking Lift
BendPak HD-973P Tri Level Parking Lift
BendPak HD-973P Tri Level Parking Lift
BendPak HD-973P Tri Level Parking Lift
BendPak HD-973P Tri Level Parking Lift
BendPak HD-973P Tri Level Parking Lift
BendPak HD-973P Tri Level Parking Lift

BendPak HD-973P Tri Level Parking Lift

SKU: 5175238 (C)
Regular price $21,095.00
/

Description

Tri Level Parking Lift

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they're available. The HD-973P is for those that have tall ceilings looking to put a triple lift in their garage or shop. Each platform operates independently of each other so you can set each platform at a custom height.

Features & Specifications

Features & Specifications

  • Features
    • Perfect for parking, storage and service
    • 7,000 lb. capacity upper deck
    • 9,000 lb. capacity lower deck
    • Superstructure features durable powder coat finish
    • Perfect for cars, trucks, and SUVs
    • Platforms feature full-length aluminum decking
    • Rugged welded-steel construction
    • Powerful hydraulic cylinders
    • Heavy-duty 3/8” lifting cable
    • Heavy-duty steel construction
    • Wide base-plate for maximum stability
    • Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze
    • Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture
    • Reliable electric-hydraulic power system
    • Multi-position safety locks in each column
    • Automatic safety locks combined with redundant anti-fall devices
    • Adjustable lock ladders
    • Independent backup slack-cable safety latches
    • Push-button pneumatic safety release.
    • Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
    • Simple controls
    • Optional drive-thru ramps available
    • Optional 4,500-lb. air-hydraulic rolling jacks available
  • Specs



  • Top Platform

    • Lifting Capacity* 7,000 lbs. (3,175 kg)
    • *Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
    • *Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
    • A - Overall Width 112" (2,849 mm)
    • B - Overall Length 242" (6,139 mm)
    • C - Height of Columns 161" (4,093 mm)
    • D - Drive-thru Clearance 87" (2,201 mm)
    • E - Maximum Rise 139.5" (3,544 mm)
    • F - Maximum Lifting Height 144" (3,6​67 mm)
    • G - Distance Between Columns 100" (2,546 mm)
    • H - Runway Width 19" (482 mm)
    • I - Width Between Runways 44" (1,121 mm)
    • J - Runway Length 188.5" (4,786 mm)
    • Min. Wheelbase @ rated Capacity135" (3,429 mm)
    • Min. Wheelbase @ 75% Capacity115" (2,921 mm)
    • Min. Wheelbase @ 50% Capacity95" (2,413 mm)
    • Min. Wheelbase @ 25% Capacity80" (2,032 mm)
    • Locking Positions 31
    • Locking Spacing Every 4" (102 mm)
    • Lifting Time to Max. Rise 90 seconds
    • Lifting Time to Max. Rise 90 seconds
  • Bottom Platform

    • Lifting Capacity* 9,000 lbs. (4,082 kg)
    • *Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
    • *Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
    • Min. Wheelbase @ rated Capacity125" (3,175 mm)
    • Min. Wheelbase @ 75% Capacity110" (2,​794 mm)
    • Min. Wheelbase @ 50% Capacity90" (2,​289 mm)
    • Min. Wheelbase @ 25% Capacity7​5" (1,​905 mm)
    • Locking Positions 13
    • Locking Spacing Every 4" (102 mm)
    • Lifting Time to Max. Rise 50 seconds
    • Motor 220 VAC / 60 Hz / 1 Ph

1The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95" is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).

Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

FAQ & Support

FAQ & Support

Free Shipping in the 48 contiguous states to Commercial addresses that do not require a lift gate or forklift. If the lift needs to be delivered to a residential address, you will be invoiced for the additional freight fees for residential and lift gate/forklift service.

Concrete Slab Requirements

User Manual

HD-973P Specs

BendPak Warranty

Shipping Information

This item is dropshipped from BendPak in California. Shipping will be calculated at checkout for most addresses. If you cannot get a shipping quote, please reach out to support for a quote.

Installation and Operation Manual
