  • For ETA See Reserve Your Spot Info Below
Tier
Inlet Hose Length
Regular price $1,519.28
/

The AR Blue Clean AR630-TSS Portable Solution came from an interesting place. I was done searching for a mid-tier pressure washer after vetting and testing the Comet. But, in my continued pursuit to gather data for my spreadsheet of electric pressure washers, this unit showed up on my radar and I put it through my very own, non-patented, vigorous testing.

What I found in my testing with this unit is that it measured 975 PSI at 2.32 GPM with a 5.0 nozzle, which is darn perfect for washing a car. I hate to admit this but that’s more output than the Kranzle K1322TS, K1122TST, and Comet Static 1700.

This pressure washer is about $300 cheaper than the Kranzle K1322TS and performs very well. Of course, if I’m deciding between the two, I’m going with the Kranzle. Call me biased but the Kranzle is the better choice. The Kranzle is German-made and would be the Porsché of the two. The AR630-TSS is Italian-made and would be the Corvette. A worthy purchase that will work well for you if you’re looking to go from entry-level to mid-tier.

The AR-630-TSS has a total stop system built into it where power to the washer is controlled by the sprayer gun. It has a forged brass pump head for durability and a large knob for easy pressure adjustment. It was designed to be compact and portable. I’ve used it a few times now and decided to use it with my current setup in my present home. I’ve done so many videos with the Kranzle that it was just time to switch it up.

I am more than pleased with how this portable solution came out. The convenience of having a pressure washer you can pick up and move around at your discretion gives you complete control over where you want to set up shop - whether that’s wall mounted or transportable.

What I really like about this revamp we’ve done with our pressure washing kits is that we’re giving you more options. You’ll have three tiers available to choose from. Basic, advanced, and ultimate. Each package comes with upgraded fittings (Brass or Stainless Steel), an upgraded sprayer/wand, and either an original foam cannon or MTM’s latest PF22.2 foam cannon

You’ll see some similarities in these packages but the most obvious difference will be the sprayer and wand combo you’re getting. I want to discuss both of these products in greater detail to give you a sense of awesomeness you’ll be purchasing.

The SGS-28 in our basic package is a well-built, swiveling sprayer that was based on the SG-28, but has all stainless steel internals. The reason why you want a swiveling sprayer is because it alleviates the issue of the pressure washer hose getting tangled and twisted.

The Original Mosmatic Sprayer in our advanced package has a swivel as well. The difference is that the swivel on the advanced sprayer is made by Mosmatic and is of much higher quality - it swivels much smoother. The trigger mechanism is also a lot more stout, yet requires very little effort to engage. I still install MTM fittings on the Original Mosmatic Sprayer to help keep costs down.

Finally, the OG Spec Mosmatic Swiveling Sprayer. This is my pride and joy. Lots of money and time went into developing this sprayer. This piece uses all the best connections and hardware available in the market. It also swivels but the swivel and QD (quick disconnect) is built into the handle, reducing the bulk on the inlet of the sprayer, making it much more ergonomic.

This kit isn’t complete without the wand. I have two options: the Original Mosmatic Stainless Steel Wand that comes in the basic and advanced kits and the OG Spec Mosmatic Stainless Steel Wand that comes in the ultimate kit. These wands both have a 20° bend in them to make rinsing the roof or the lower portions of your car easier. The notable differences between these two are the fittings and the rubber nozzle protector. The Original Mosmatic Wand uses MTM fittings and has a nozzle protector installed on the wand already. The OG Spec Wand uses Mosmatic fittings and has no nozzle protector. This is because the nozzles that come in the Ultimate Kit have the protector.

Nozzles are also an important part of your pressure washer accessories and need to be upgraded. The nozzles that come with the pressure washer are prioritizing pressure over flow. For washing cars, flow is king. The nozzles I provide are some of the best out there. In the basic and advanced kits, you get a 4-pack of stainless steel nozzles from MTM. In the ultimate kit, you get the OG Spec Mosmatic Nozzle Assembly.

If there was no such thing as a Kranzle and I wanted a portable solution, this pressure washer and kit would be going in my cart.

FAQ & Support

Ships from AR North America in Minnesota.

If you purchase anything else from us along with this pressure washer, you will get a shipping update from us that makes it look like everything has shipped together.

If you purchase a quicker shipping service at checkout, this will not change the speed of when the pressure washer ships and is delivered. Selecting a quicker shipping option at checkout only applies to the items shipped from OGHQ.

The pressure washer tracking information will be sent separately from the rest of the shipment.

User Manual
AR Blue Clean AR630-TSS Operating Manual

Support Articles
What is the best pressure washer?
Why Should I Upgrade My Sprayer and Which One Should I Get? - Upgrading Your Sprayer

Pressure Washer Fittings 101: Fittings and QD Naming
Pressure Washer Fittings 102: Applications and Usage
Pressure Washer Fittings 103: Spray Nozzles

Pressure Washer Fittings 101: Fittings and QD Naming
Pressure Washer Fittings 102: Applications and Usage
Pressure Washer Fittings 103: Spray Nozzles

Why is my gun or wand (1/4" Coupler) leaking from the outlet?
Why is my 3/8" coupler leaking from the end?
Why didn't I receive all of my garden hose quick disconnects? I only received two garden hose fittings!
How To: Set up your inlet hose or garden hose with quick disconnects

The full Custom Installed AR Solution with a shelf, hose reel, wand/gun/holder, etc. is a different item. I want you to be able to buy the pump by itself if that's what you want. I've included some options here to allow you to create a system that's mobile.

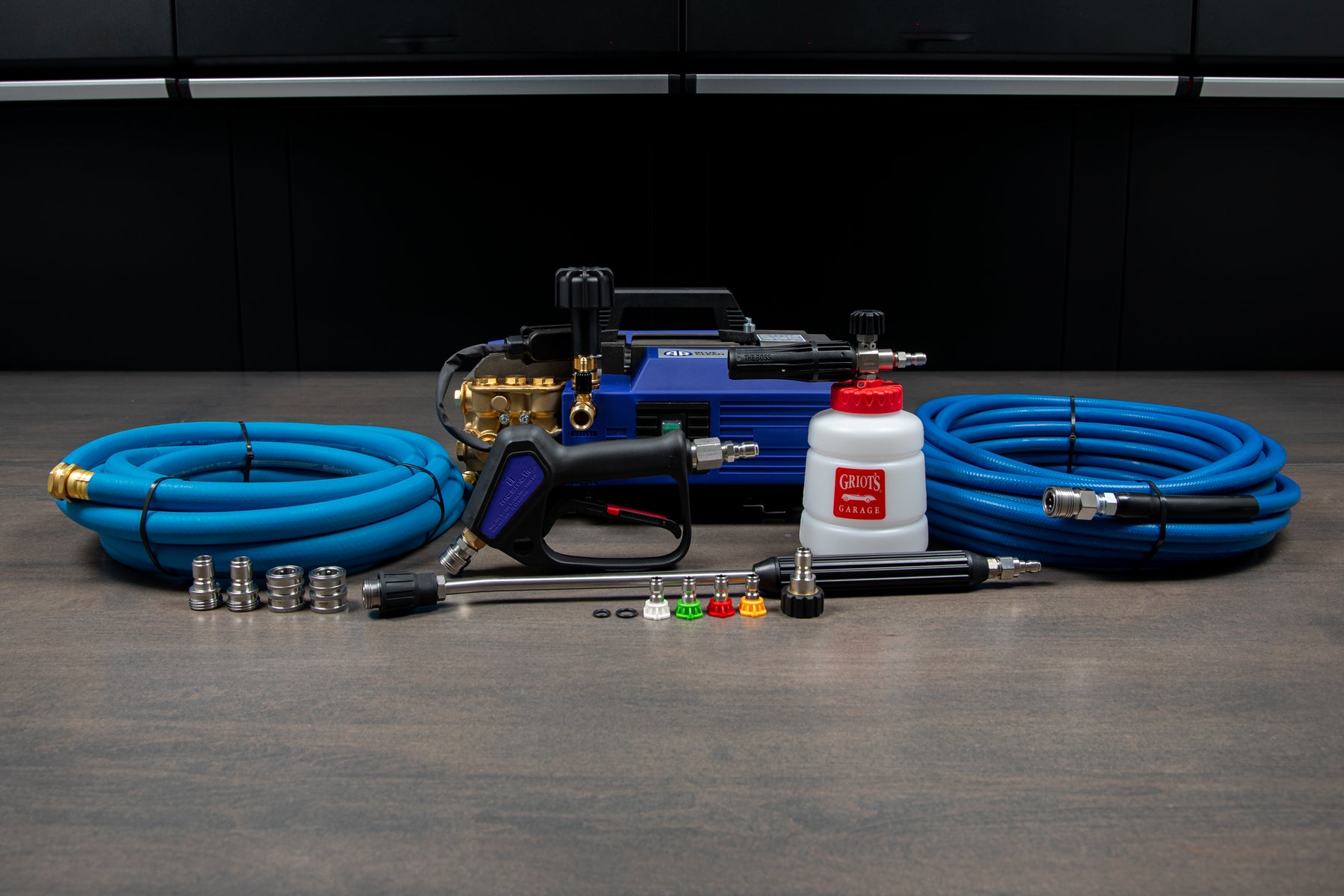

Tier:
Ultimate Solution

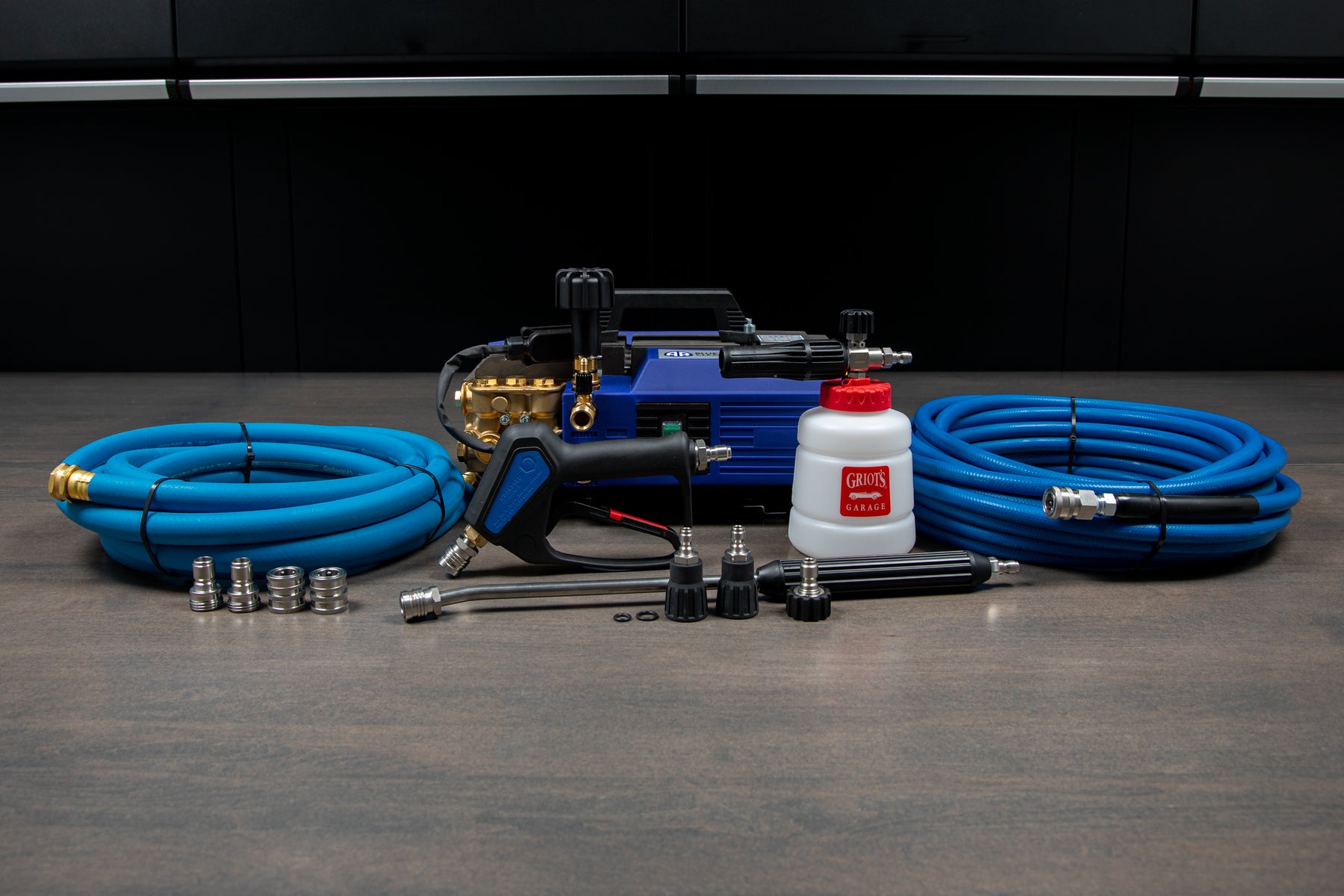

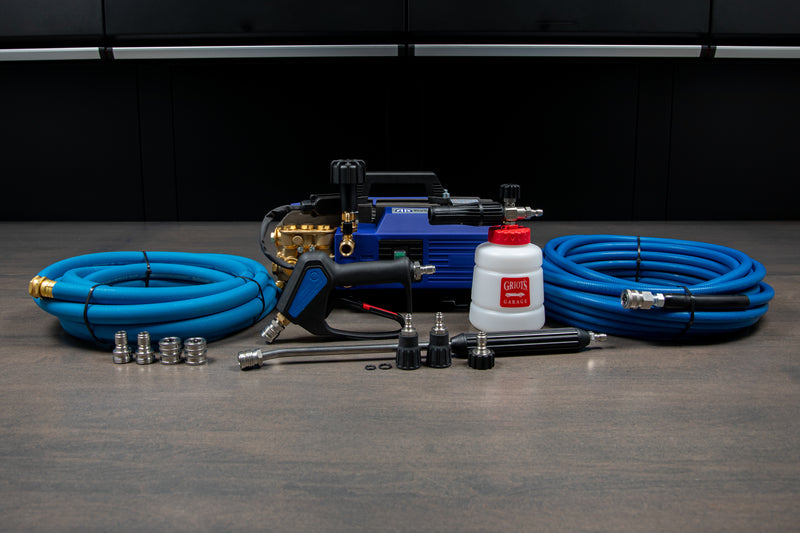

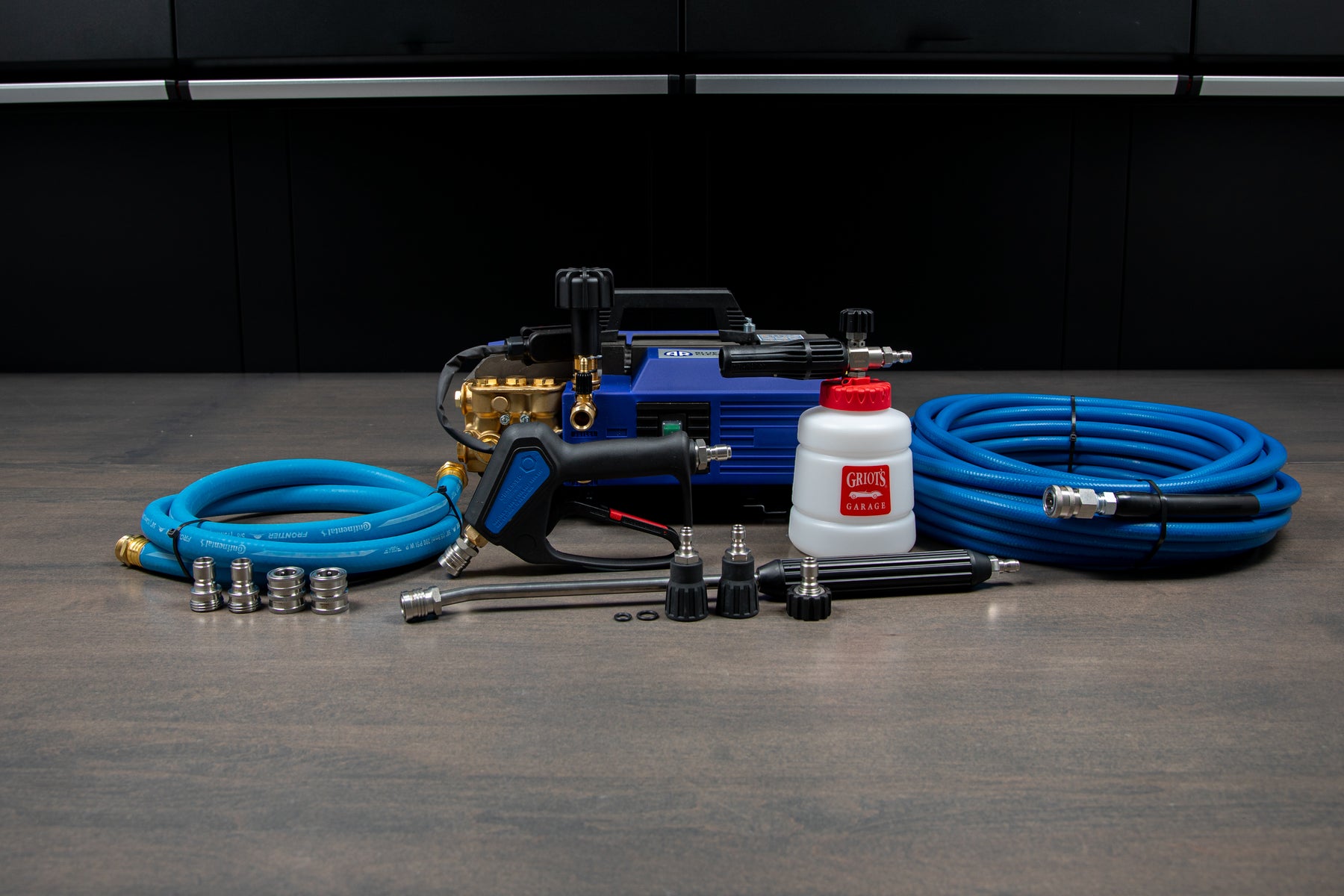

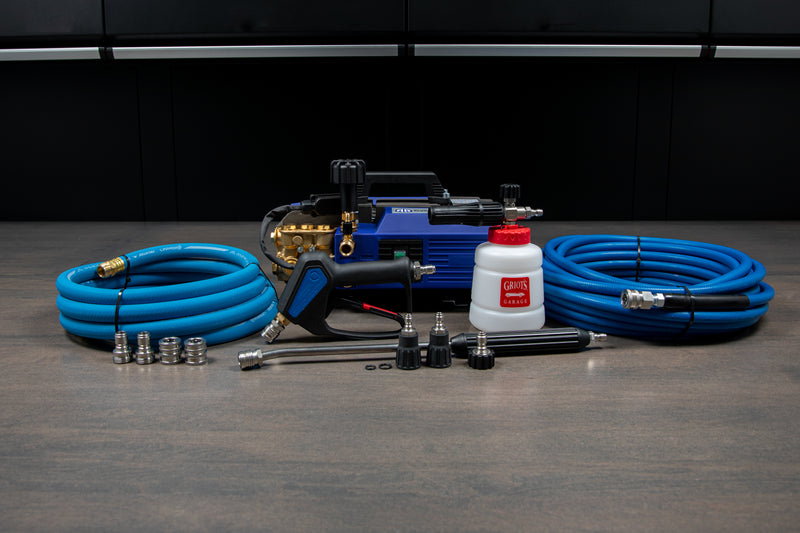

- AR Blue Clean AR630-TSS Pressure Washer
- Inlet Hose w/ Stainless Steel Garden Hose QDs
- 50’ High-Pressure Hose w/ Mosmatic T304 Stainless Steel ⅜” Female QD Couplers and M22 Female (14mm) to ⅜” QD Plug
- OG Spec Mosmatic Swiveling Sprayer w/ Mosmatic T304 Stainless Steel QDs
- OG Spec Mosmatic Wand w/ Mosmatic T304 Stainless Steel QDs
- Mosmatic Stainless Steel Nozzle Assembly w/ 5.0 Orifice - 40-degree and 25-degree
- MTM PF22.2 Foam Cannon w/ 1.25mm Orifice and Mosmatic T304 Stainless Steel ¼” Male QD Plug

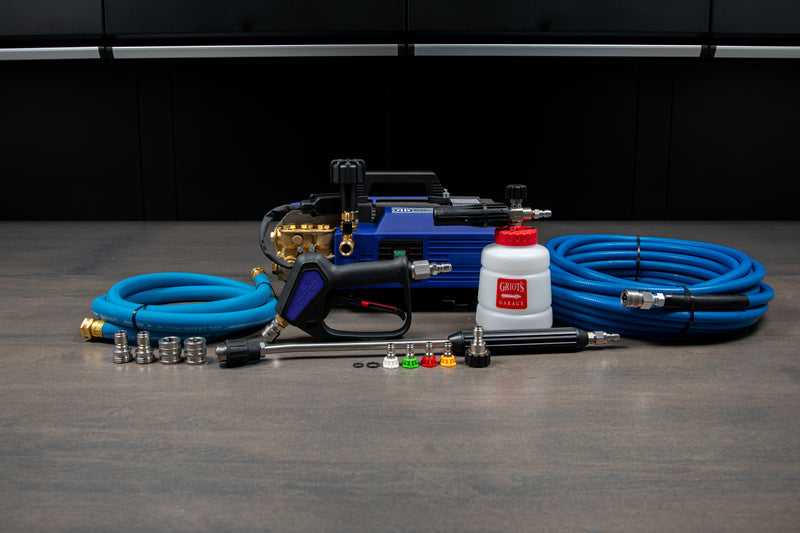

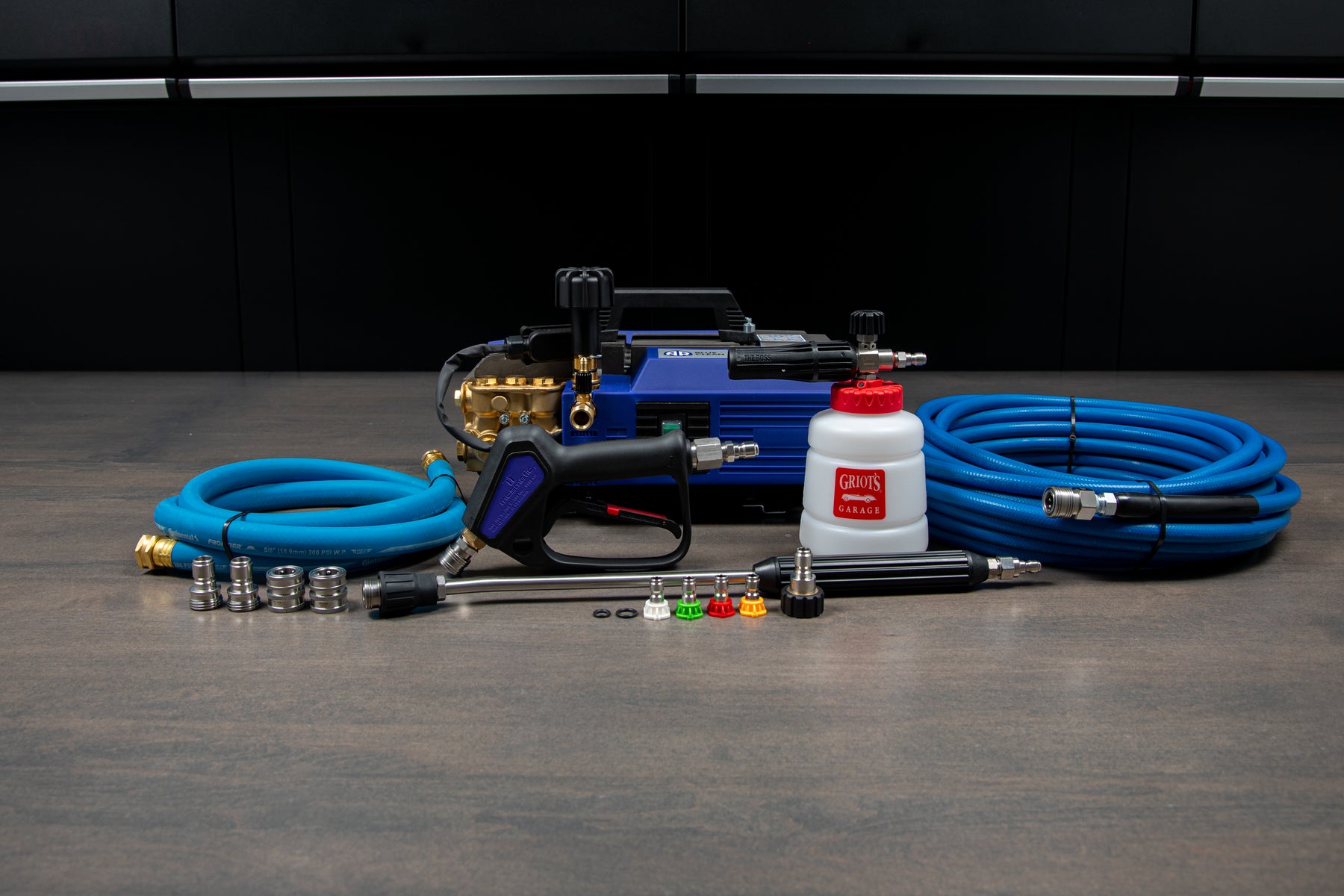

Advanced Solution

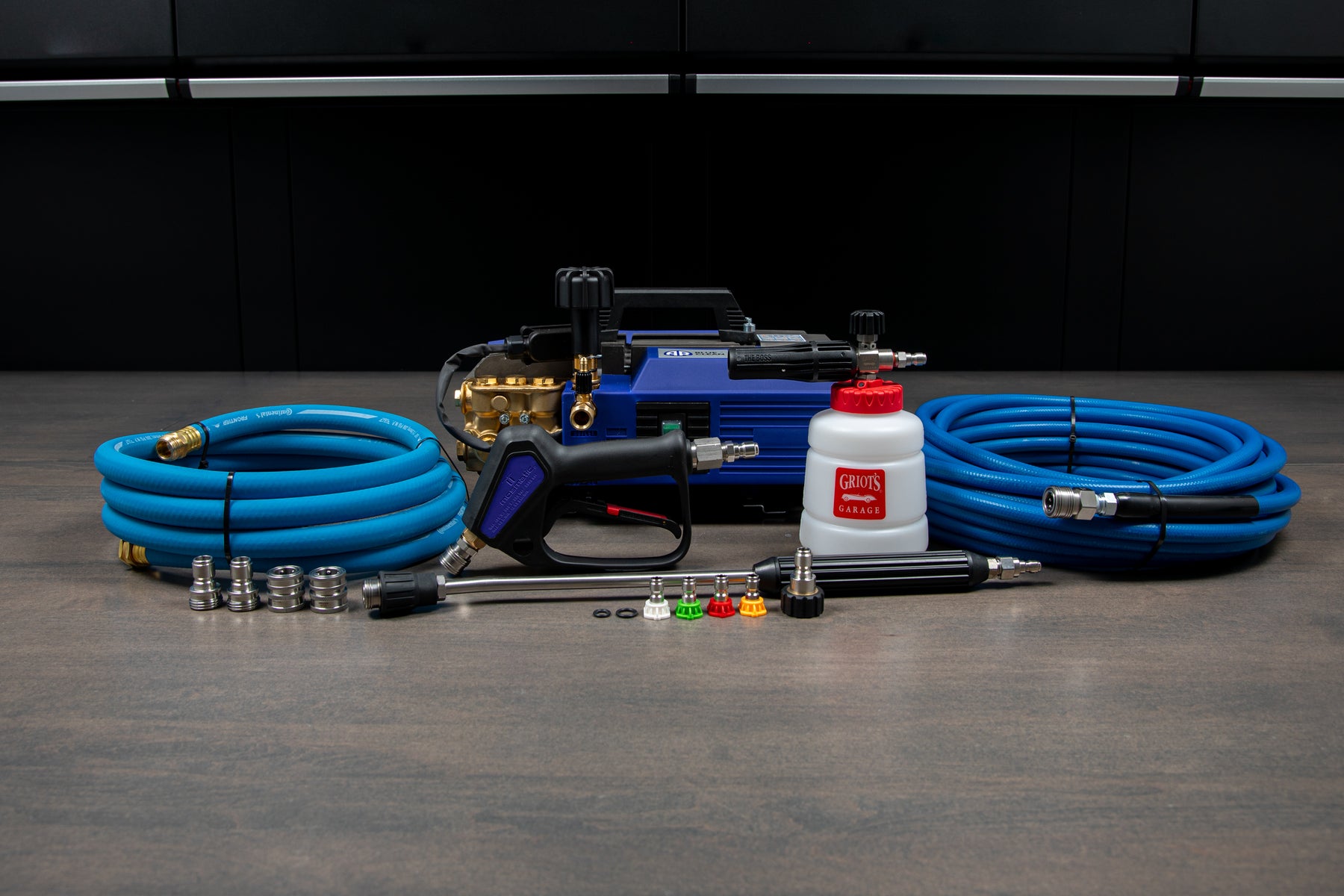

- AR Blue Clean AR630-TSS Pressure Washer
- Inlet Hose w/ Stainless Steel Garden Hose QDs
- 50’ High-Pressure Hose w/ MTM Stainless Steel 3/8" Female QD Couplers and M22 Female (14mm) to 3/8" QD Plug
- Original Mosmatic Swiveling Sprayer w/ MTM Stainless Steel QDs
- Original Mosmatic Wand w/ MTM Stainless Steel QDs
- MTM Stainless Steel ¼” Nozzle 4 Pack - 5.0 Orifice
- MTM PF22.2 Foam Cannon w/ 1.25mm Orifice and MTM Stainless Steel ¼” Male QD Plug

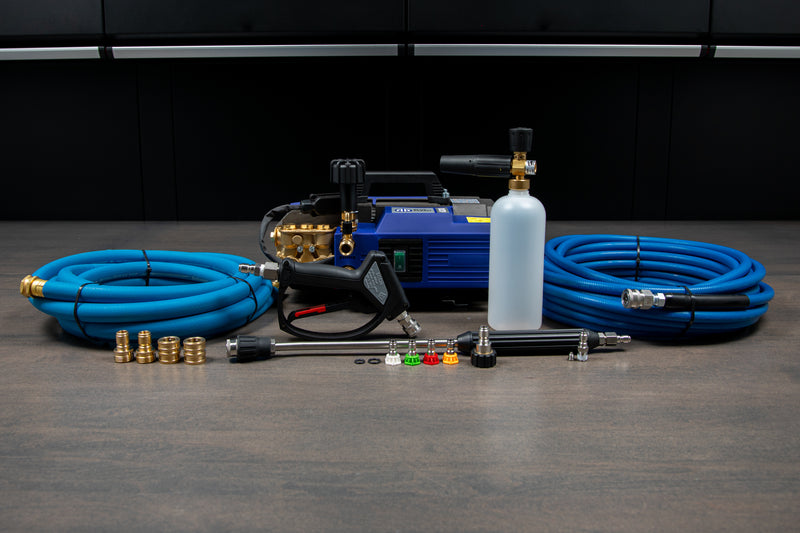

Basic Solution

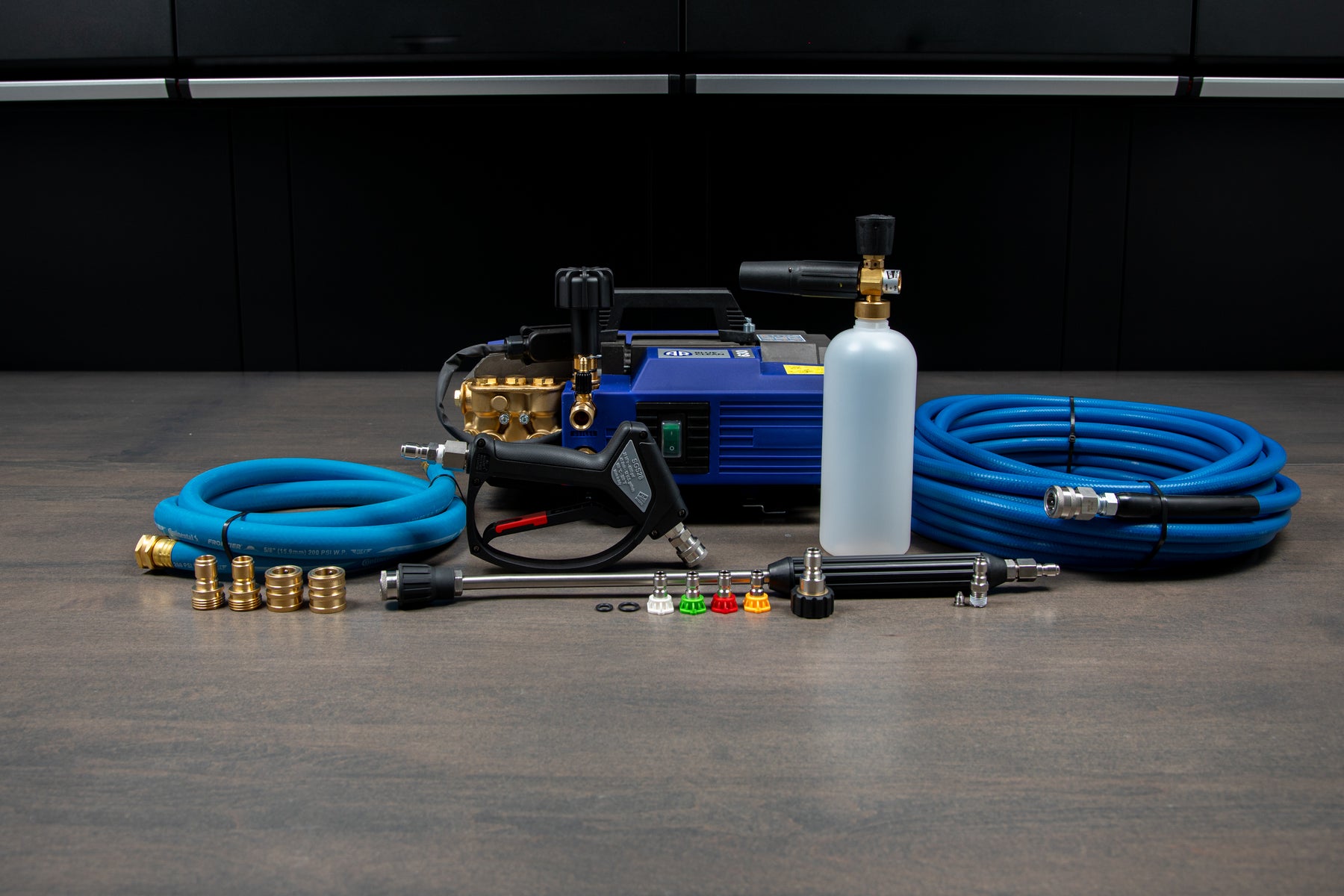

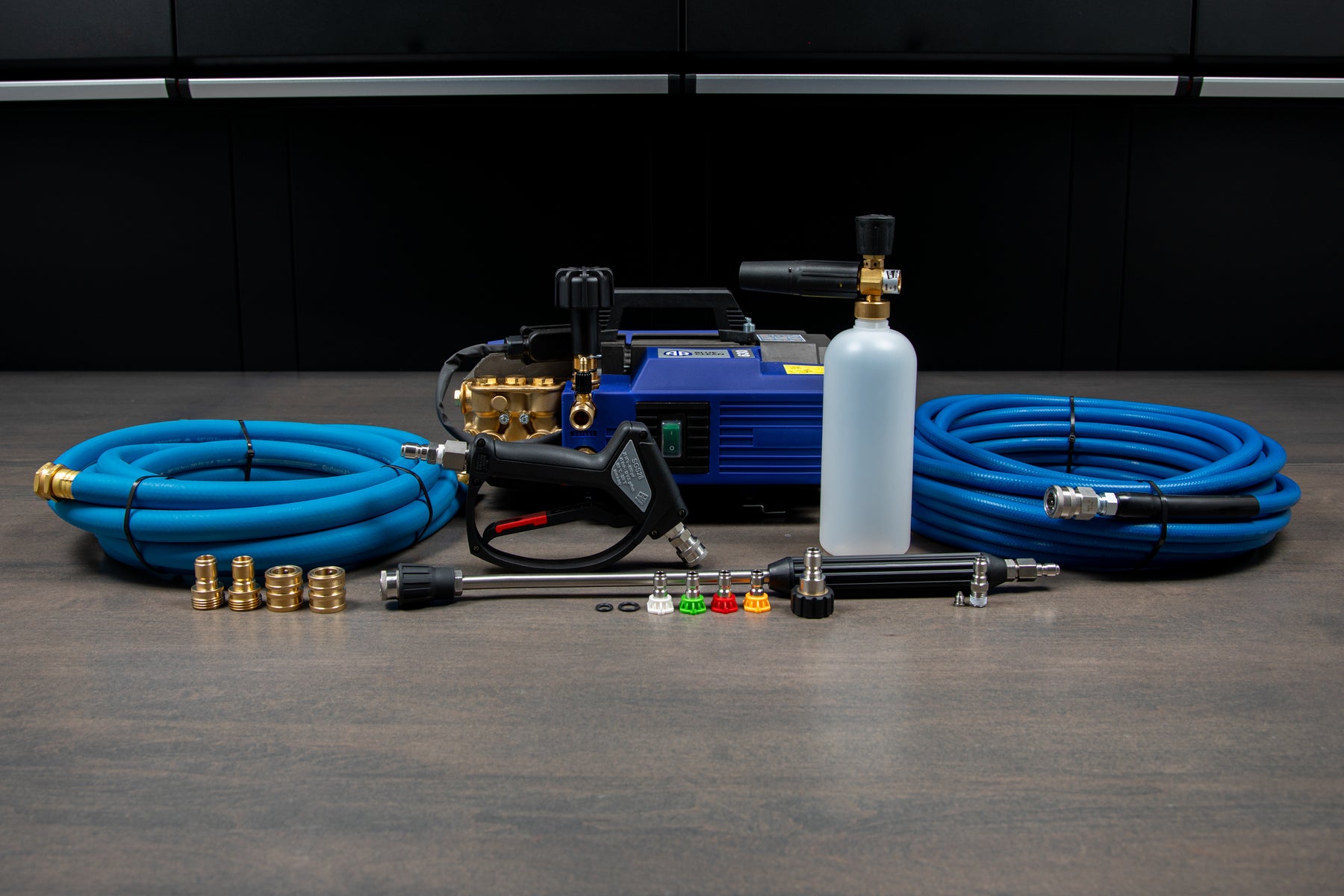

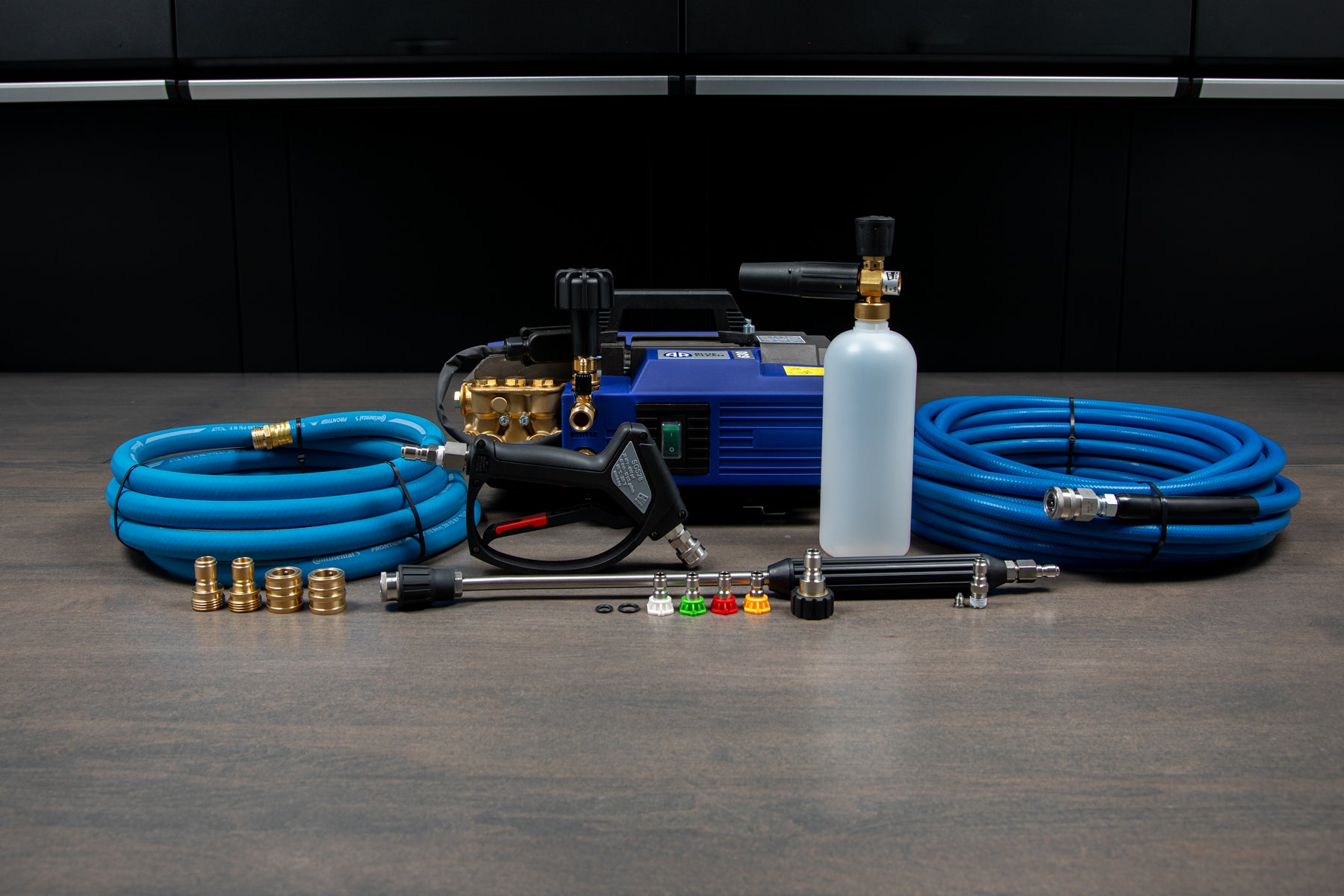

- AR Blue Clean AR630-TSS Pressure Washer
- Inlet Hose w/ Brass Garden Hose QDs
- 50’ High-Pressure Hose w/ MTM Stainless Steel 3/8" Female QD Couplers and M22 Female (14mm) to 3/8" QD Plug
- MTM SGS-28 Swiveling Sprayer w/ MTM Stainless Steel QDs
- Original Mosmatic Wand w/ MTM Stainless Steel QDs
- MTM Stainless Steel ¼” Nozzle 4 Pack - 5.0 Orifice
- MTM Original Foam Cannon w/ 1.25mm Orifice and MTM Stainless Steel ¼” Male QD Plug


Inlet Hose Length:
- 6.5’
- 12’
- 20’


Specifications

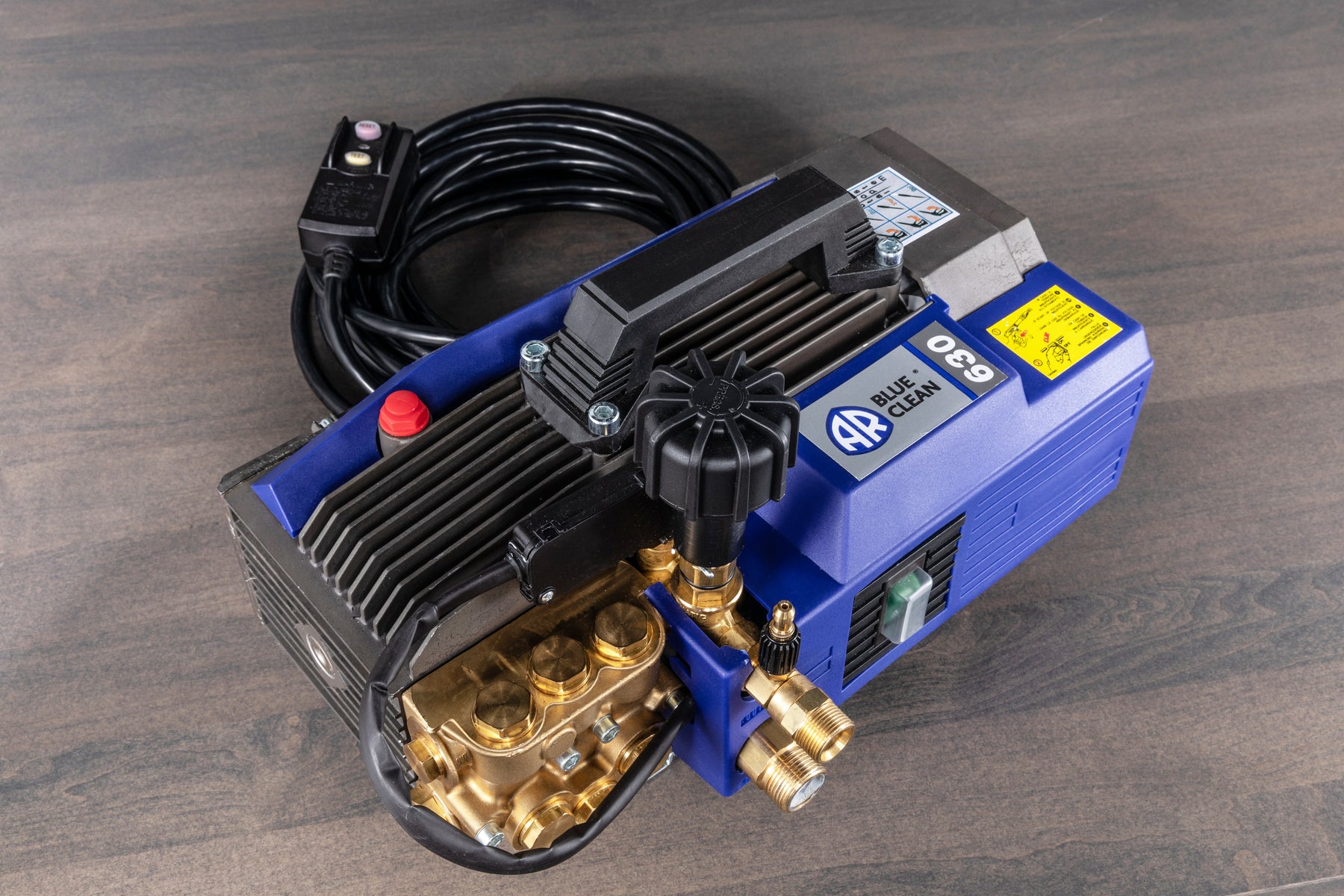

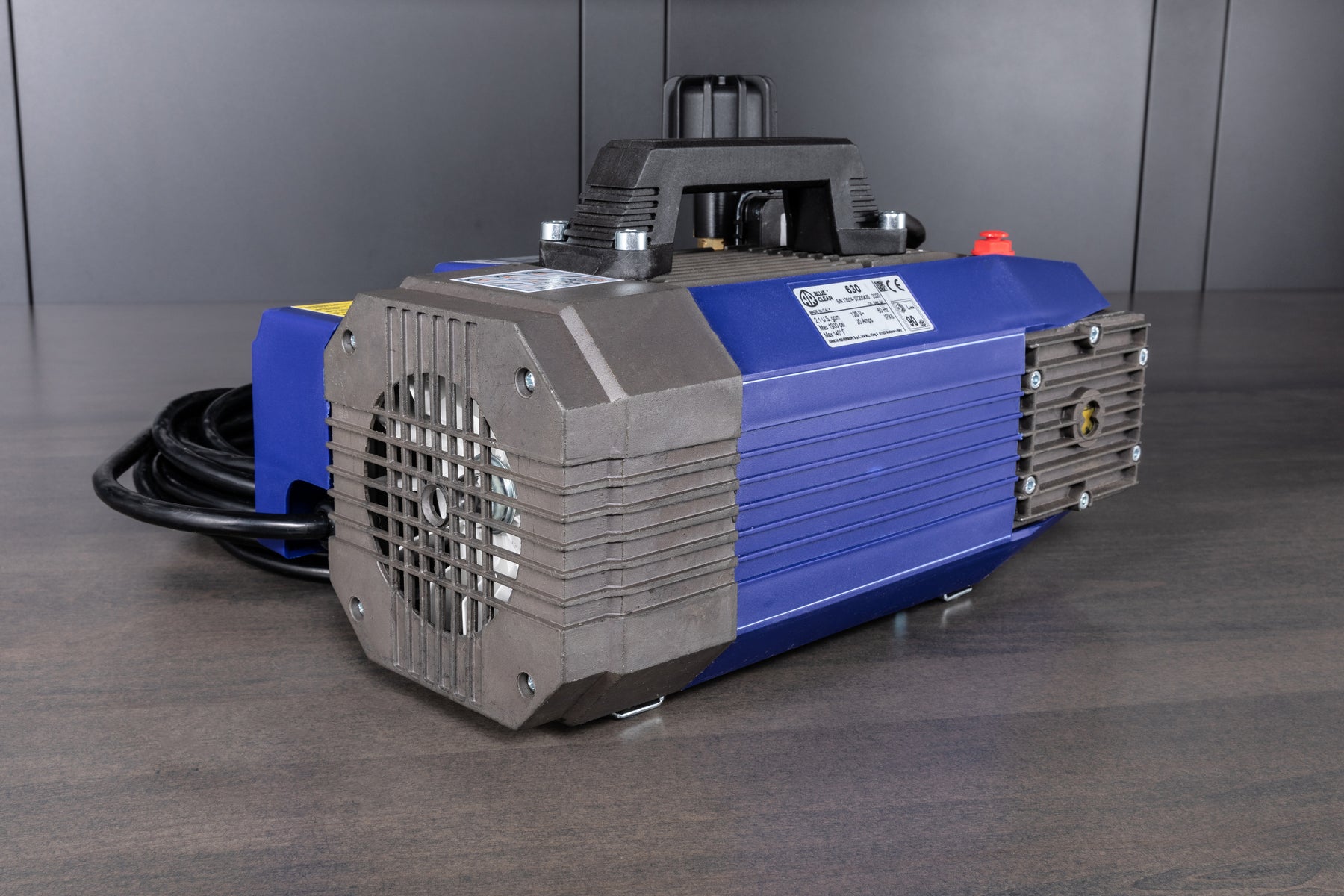

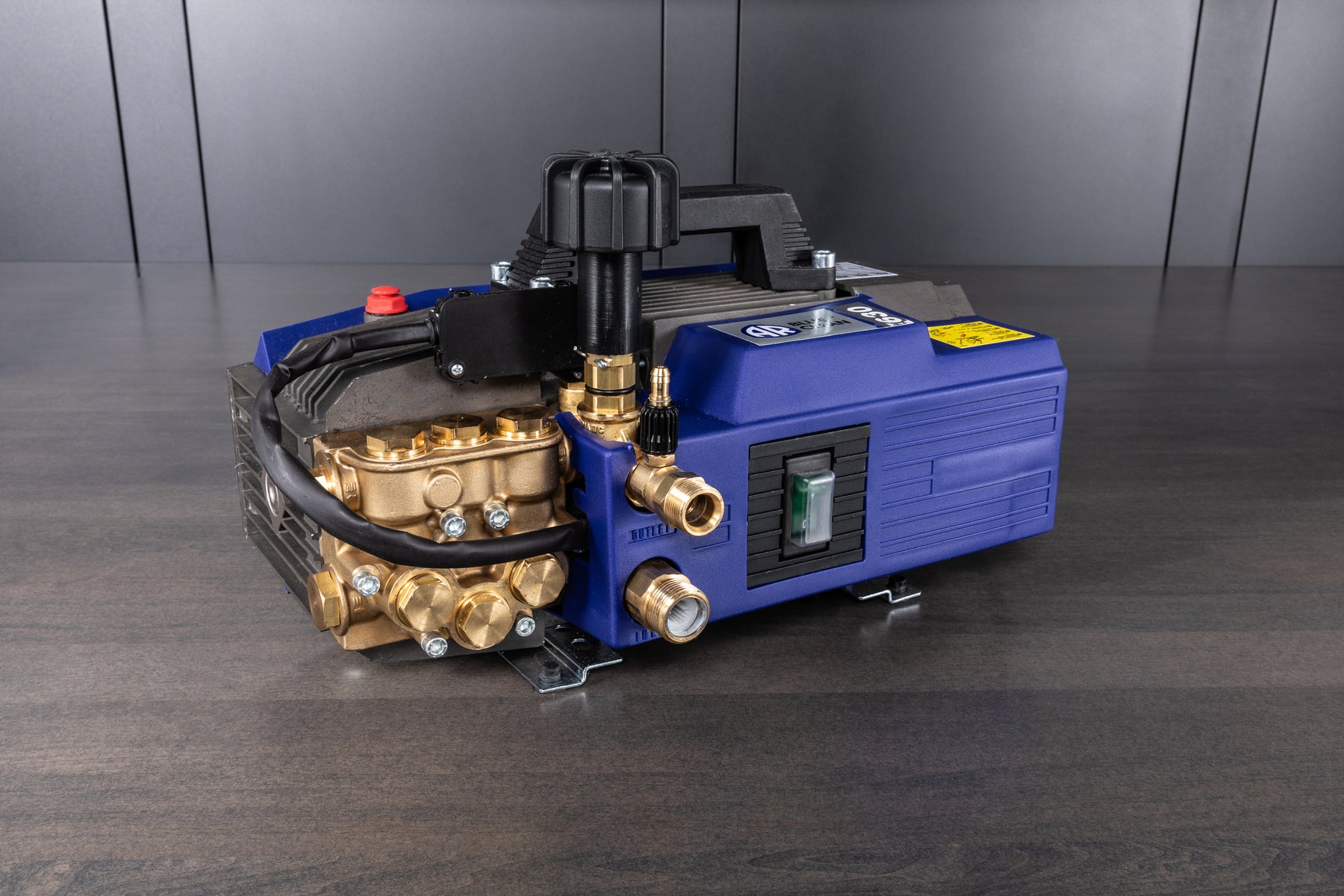

AR Blue Clean AR630-TSS
- Tested Flow: 2.3 GPM*
- Tested Pressure: 975 PSI*
- Tested Current: 17.8 A*
*with 5.0 Orifice Nozzle

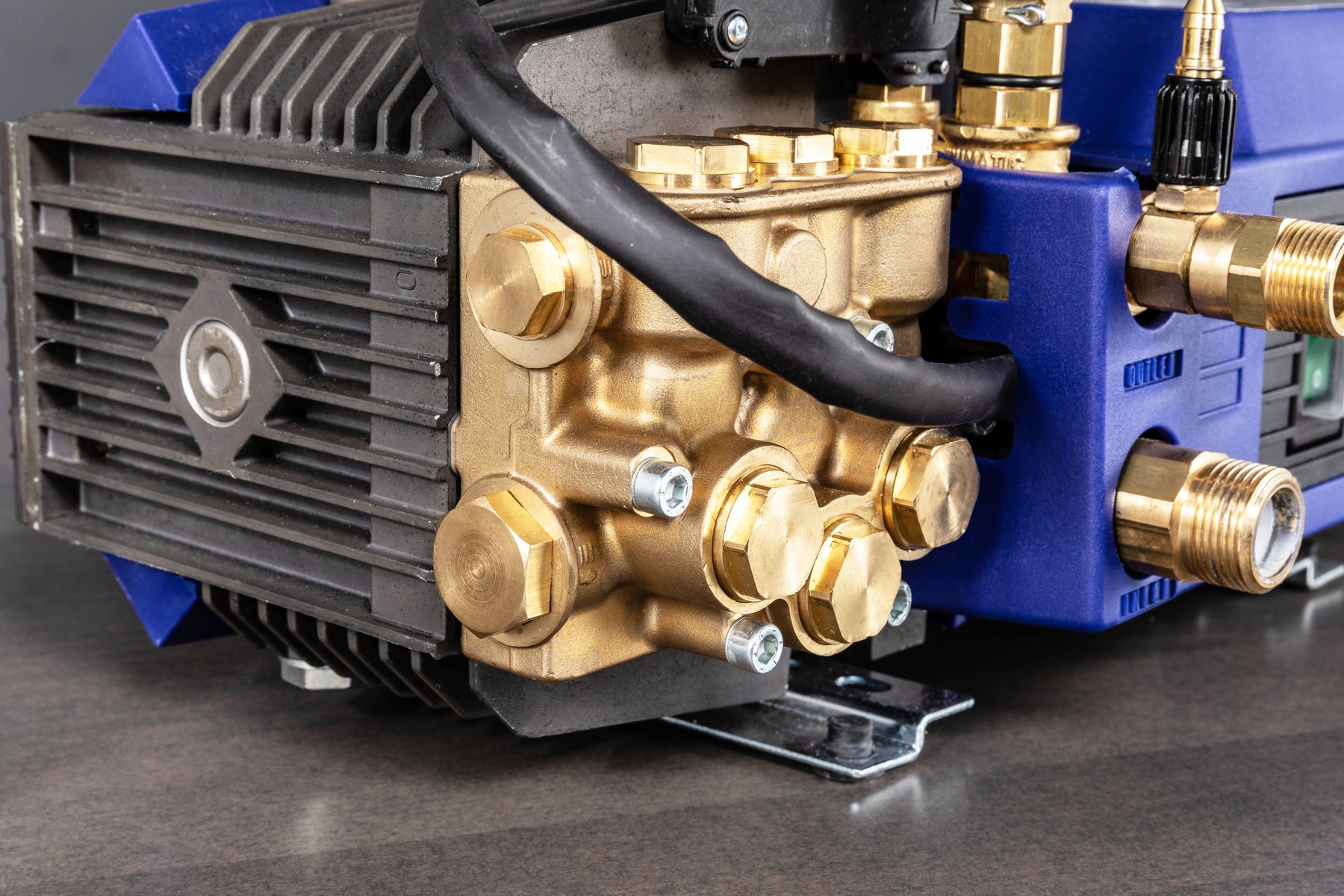

- Forged brass triplex pump with ceramic plungers and double packing industrial seals
- Total Stop System
- 35’ Power Cord with GFCI
- Electrical Requirements: 110 V, 20 A (This will not work on a 15 A circuit)

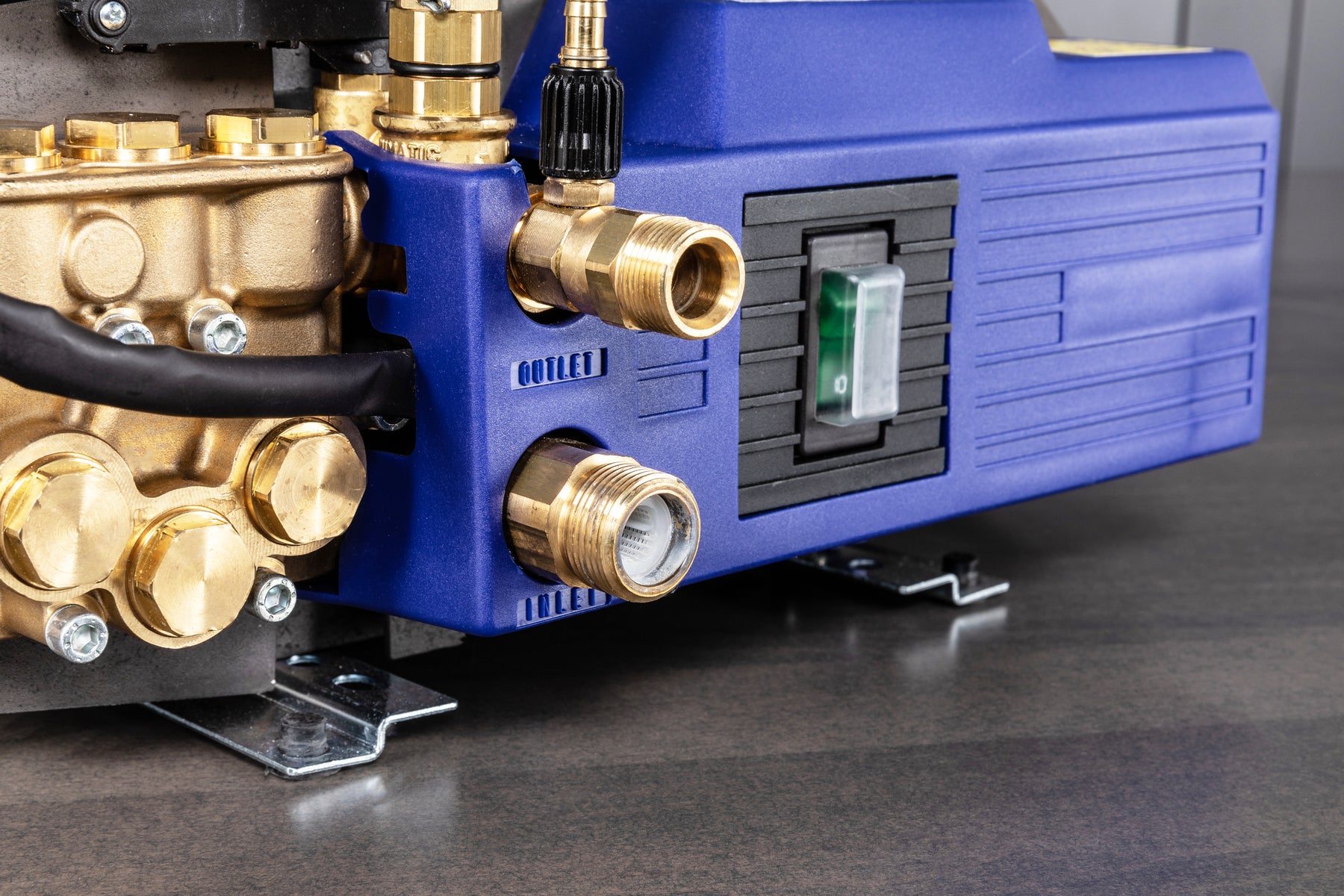

- Inlet: ¾” Female GHT
- Outlet: M22 Male (14mm)
- Max Water Temperature: 140° F
- Dimensions: 21” W x 11” D x 13.5” H
- Weight: 56.4 LBS

Warranty Information
AR Blue Clean product line is under warranty to the original retail consumer (non-transferable) against defects in material and workmanship for a period of 1 (one) year from purchase. Replacement parts and service are covered.

This limited one-year warranty applies only to products used in consumer applications and does not apply to rental or commercial applications. Use reasonable care in the operation and maintenance of the pressure washer, as described in the owner’s manual.

Sprayers:
Ultimate - OG Spec Mosmatic Swiveling Sprayer
- T304 Stainless Steel Quick Disconnects
- Mosmatic swivel integrated into the sprayer handle
- Low Trigger Force Trigger
- Custom blue faceplate with Obsessed Garage logo
- Max Tempurature: 300 °F (150 °C)
- Max Pressure: 5,000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Warranty: 6 months, for manufacturing defects (does not include o-rings)

Advanced - Original Mosmatic Swiveling Sprayer w/ QDs
- MTM Stainless Steel Quick Disconnects
- Mosmatic swivel on the inlet of the sprayer
- Low Trigger Force Trigger
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects
- MTM fittings Warranty: 60 Days, for manufacturing defects. (This does not include o-rings)

Basic - MTM SGS-28 Swiveling Sprayer with Quick Disconnects
- MTM Stainless Steel Quick Disconnects
- MTM swivel on the inlet of the sprayer
- Easy Pull Trigger
- Max Temp: 320 °F (160 °C)
- Max Pressure: 4060 PSI (28 MPa)
- Max Flow: 12 GPM (45 L/min)
- Made in Italy
- Warranty: 60 days, for manufacturing defects. (This does not include o-rings)


Wands:
Ultimate - OG Spec Mosmatic 20° Bent Wand
- 20° Bend
- Made in Switzerland
- T304 Stainless Steel Quick Disconnects
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Warranty: 6 months, for manufacturing defects (does not include o-rings)

Advanced/Basic - Original Mosmatic Swiveling Sprayer w/ QDs
- MTM Stainless Steel Quick Disconnects
- Mosmatic swivel on the inlet of the sprayer
- Low Trigger Force Trigger
- Max Temp: 300 °F (150 °C)
- Max Pressure: 5000 PSI (350 BAR)
- Max Flow: 12 GPM (45 L/min)
- Mosmatic Sprayer Warranty: 6 Months, for manufacturing defects
- MTM fittings Warranty: 60 Days, for manufacturing defects. (This does not include o-rings)


Nozzles:
Ultimate - OG Spec Mosmatic Nozzle Assembly
- T304 Stainless Steel
- ¼” QD Plug Connection
- Rubber Nozzle Guard
- Warranty: 6 months, for manufacturing defects

Advanced/Basic - Stainless Steel 1/4" Nozzle 4 Pack
- Stainless Steel
- ¼” QD Plug Connection
- Warranty: 60 days, for manufacturing defects


Foam Cannons:
Ultimate/Advanced - MTM PF22.2 Foam Cannon
- Nickel Plated Brass - Single Cast Foam Cannon Body
- Two-way adjustable spray pattern
- 32oz Wide Bottom Bottle
- ¼” QD Plug Connection
- Min Pressure: 1,100 PSI - Max Pressure: 5,000 PSI
- Min Flow: 1.4 GPM - Max Flow: 5.3 GPM
- Max Temperature: 140°F
- Made in Italy
- Warranty: 60 days, for manufacturing defects

Basic - MTM Original Foam Cannon
- Brass Foam Cannon Body
- Adjustable spray pattern
- 32oz Bottle
- ¼” QD Plug Connection
- Min Pressure: 1,100 PSI - Max Pressure: 5,000 PSI
- Min Flow: 1.4 GPM - Max Flow: 5.3 GPM
- Max Temperature: 140°F
- Made in Italy
- Warranty: 60 days, for manufacturing defects


High-Pressure Hose:
Ultimate/Advanced/Basic - High-Pressure 3/8" Pressure Washer Hose
- ⅜” Inside Diameter
- ⅝” Outside Diameter
- Ends terminated in ⅜” Male NPT
- Single Wire Construction
- Smooth Jacket in Non-marking Blue
- Rubber Bend Restrictors
- Max Pressure: 4000 PSI
- Max Temperature: 275 °F
- Warranty: 60 days, for manufacturing defects


Inlet Hose:
Garden Hose
- Brand: Continental
- ⅝” Inside Diameter
- Ends terminated in ¾” GHT


Fittings:
Ultimate - Mosmatic T304 SS 3/8" Female QD Coupler
- Brand: Mosmatic
- Material: T304 Stainless Steel
- Inlet: ⅜” Male NPT
- Outlet: ⅜” QD Coupler
- Warranty: 6 months, for manufacturing defects (does not include o-rings).

Advanced/Basic - Stainless Steel 3/8" Female QD Coupler
- Brand: MTM
- Material: Stainless Steel
- Inlet: ⅜” Male NPT
- Outlet: ⅜” QD Coupler
- Warranty: 60 days, for manufacturing defects (does not include o-rings).

Ultimate - Mosmatic T304 SS M22 Female (14mm) to 3/8" QD Plug
- Brand: Mosmatic
- Material: T304 Stainless Steel
- Inlet: M22 Female (14mm)
- Outlet: ⅜” QD Plug
- Warranty: 6 months, for manufacturing defects (does not include o-rings).

Advanced/Basic - Stainless Steel M22 Female (14mm) to 3/8" QD Plug
- Brand: MTM
- Material: Stainless Steel
- Inlet: M22 Female (14mm)
- Outlet: ⅜” QD Plug
- Warranty: 60 days, for manufacturing defects.

Ultimate/Advanced - Stainless Steel Garden Hose 3/4” Female QD Coupler
- Brand: MTM
- Material: Stainless Steel
- Inlet: ¾” Female GHT
- Outlet: ¾” QD Coupler
- Warranty: 60 days, for manufacturing defects.

Basic - Brass Garden Hose 3/4” Female QD Coupler
- Brand: MTM
- Material: Brass
- Inlet: ¾” Female GHT
- Outlet: ¾” QD Coupler
- Warranty: 60 days, for manufacturing defects.

Ultimate/Advanced - Stainless Steel Garden Hose 3/4” Male QD Plug
- Brand: MTM
- Material: Stainless Steel
- Inlet: ¾” Male GHT
- Outlet: ¾” QD Plug
- Warranty: 60 days, for manufacturing defects.

Basic - Brass Garden Hose 3/4” Male QD Plug
- Brand: MTM
- Material: Brass
- Inlet: ¾” Male GHT
- Outlet: ¾” QD Plug
- Warranty: 60 days, for manufacturing defects.

Some of the items in this package will be shipped from OGHQ in Lady Lake, FL. Some components will be dropshipped from supplier warehouses.


ETA Information:

(AR630) End of June (Mosmatic couplers)- There is a larger batch arriving in early June
