Description
This is a limited stock item that we special order, we keep only a few in stock at our warehouse. If it shows as in stock(Add to Cart button is present), we have them. If the "Back Order" button is active, you can purchase, just know it will take about a month or two to get in-stock from Cox.

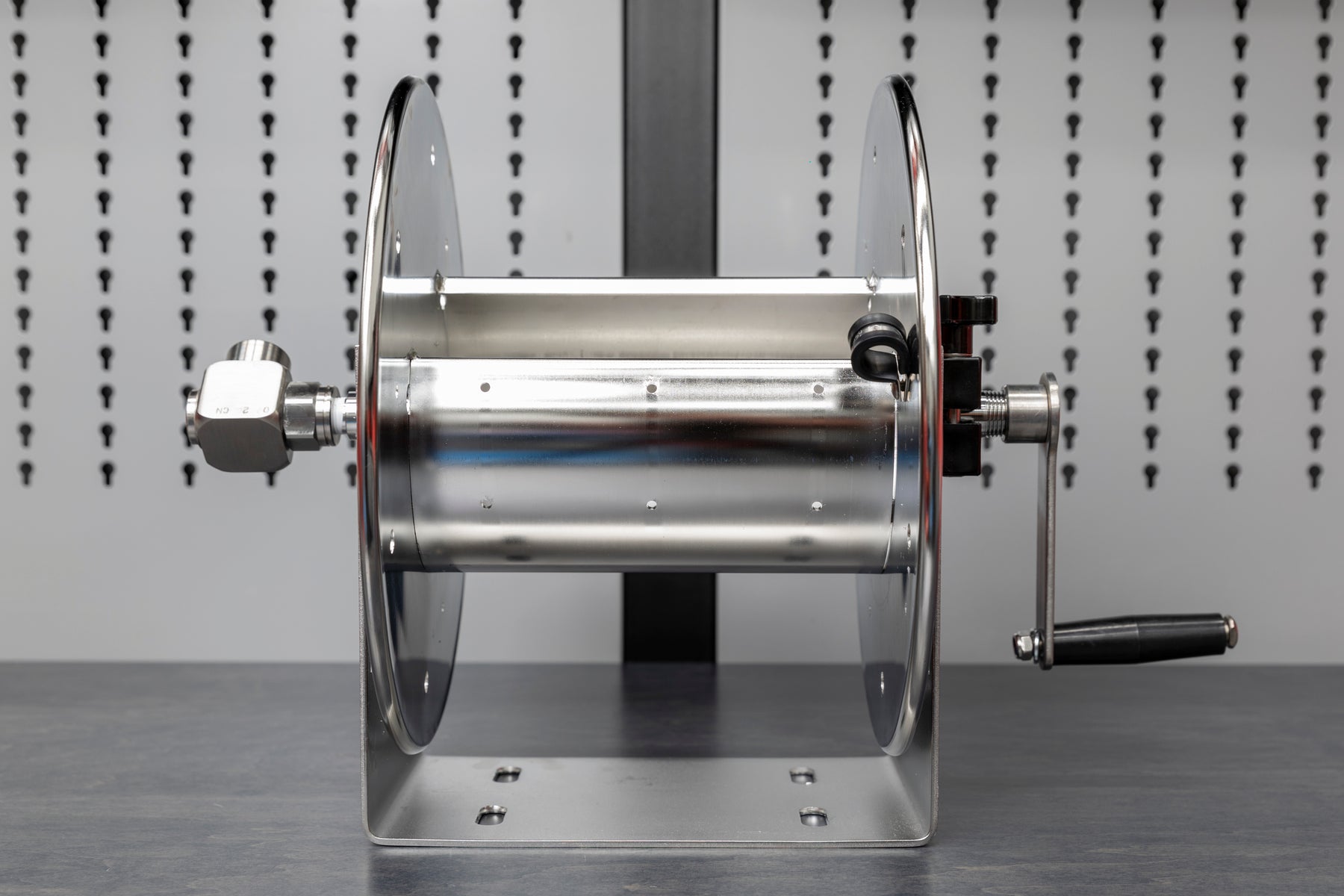

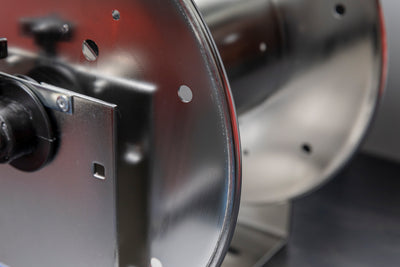

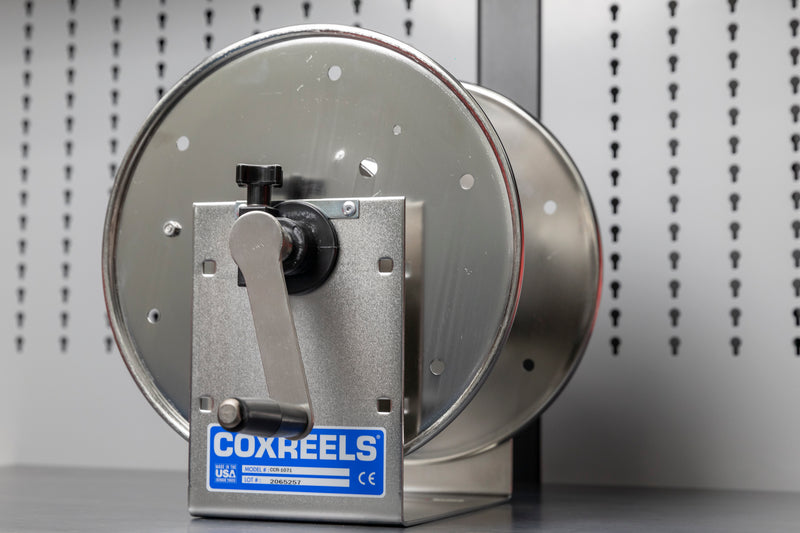

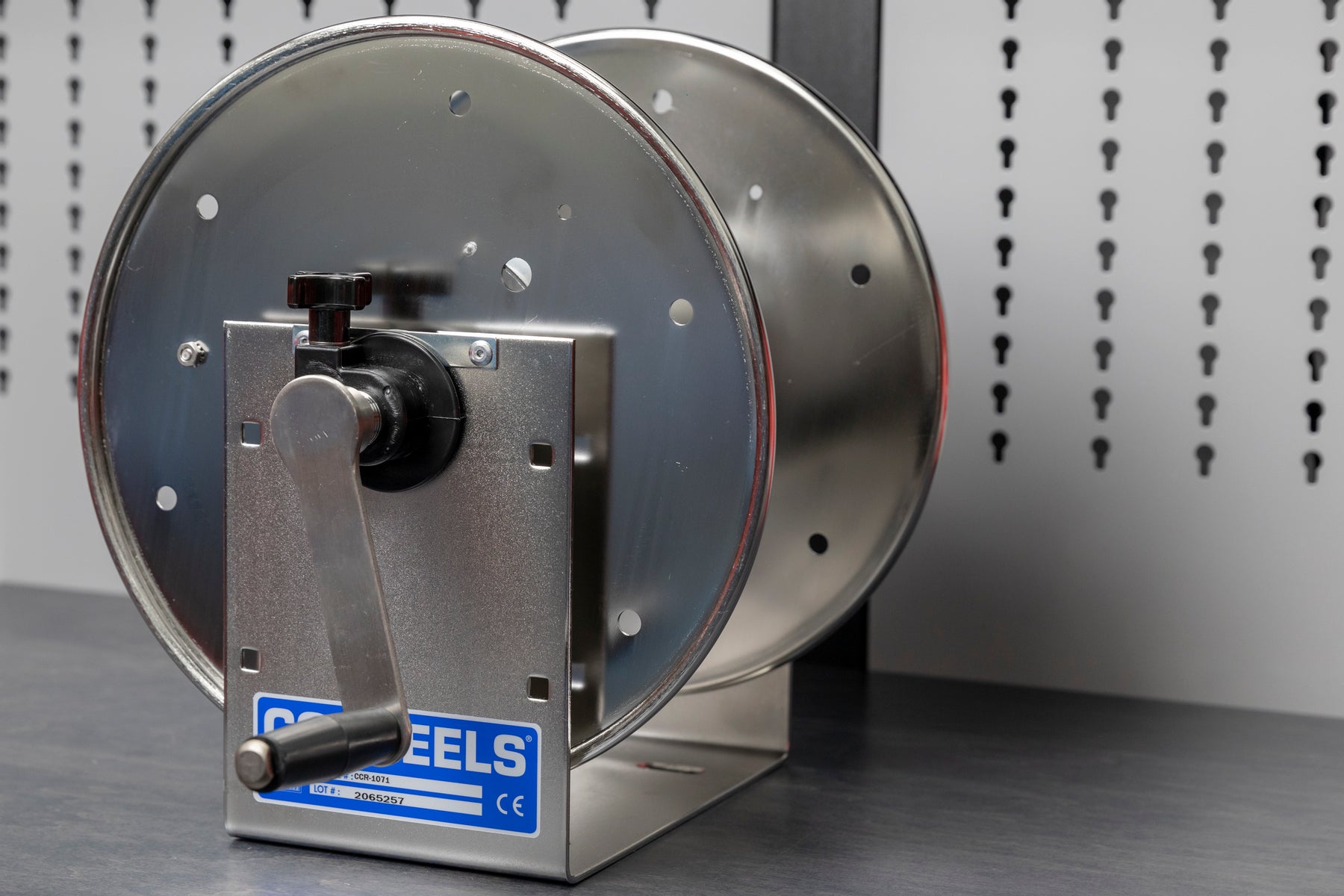

If you've seen our previous Cox pressure washer hose hand crank reels this is something that will probably shock you! Cox said they could make a hose reel made completely out of stainless steel (Besides the plastic parts). Having a reel made out of all stainless components is expensive, this is only for the few that are crazier than me! This reel is a US-made, no frills, super high quality, compact reel that fits neatly under the 18" stainless shelf I've sourced for my on-wall pressure washing solution. This is the smallest option. The others had more features, but they were too bulky or stuck too far off the wall. This one holds up to 100' of 5/8" outside diameter hose. It's shown with the 100' 5/8" OD Kobrajet hose. It still works and looks good with a 50' or 75' hose on it.
If you're looking to buy a Cox hand crank hose reel make sure you also check out the custom stainless wall mount solution we have for the reels, this allows for easier installation on 16" on center studs.
Here is what it has:
-

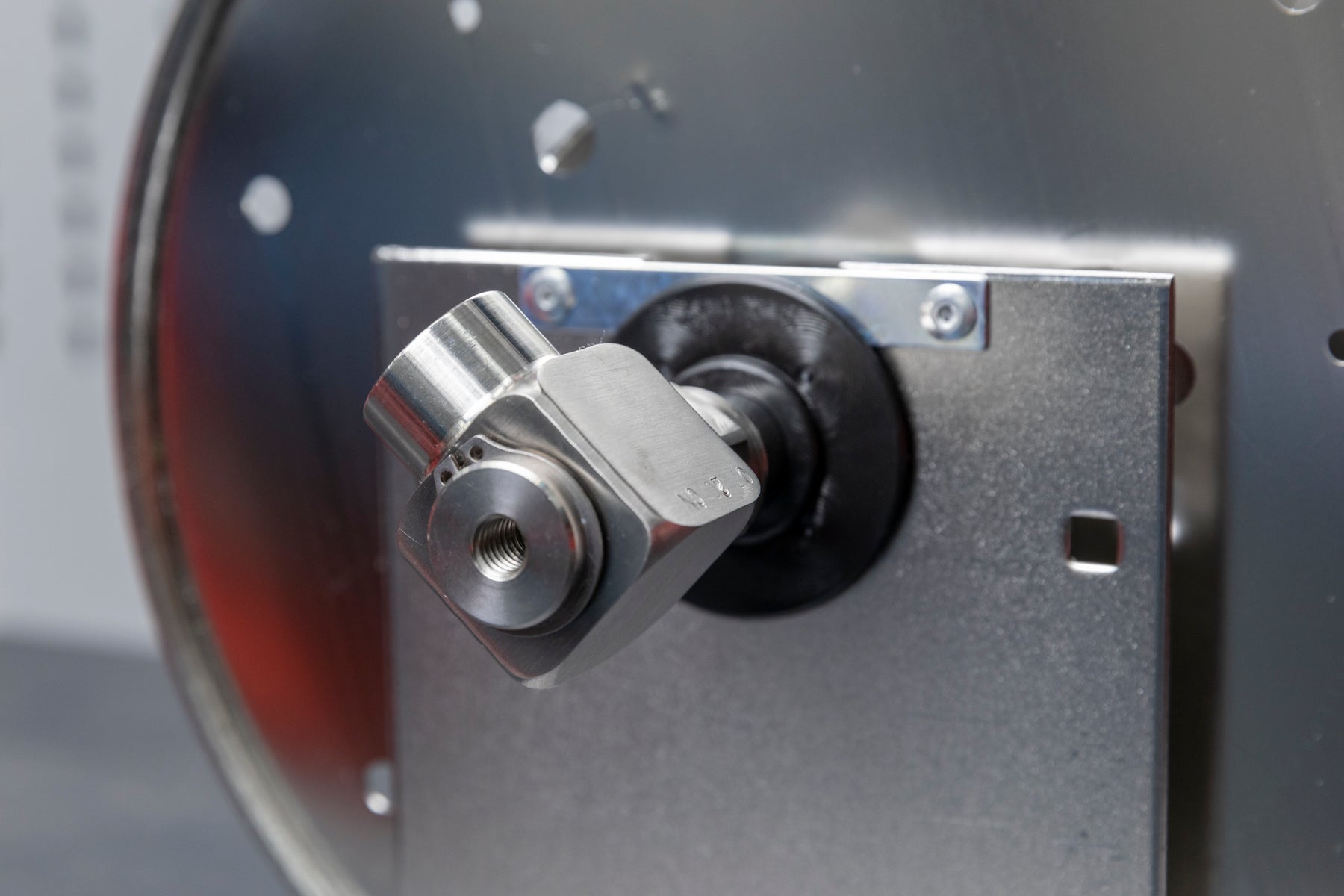

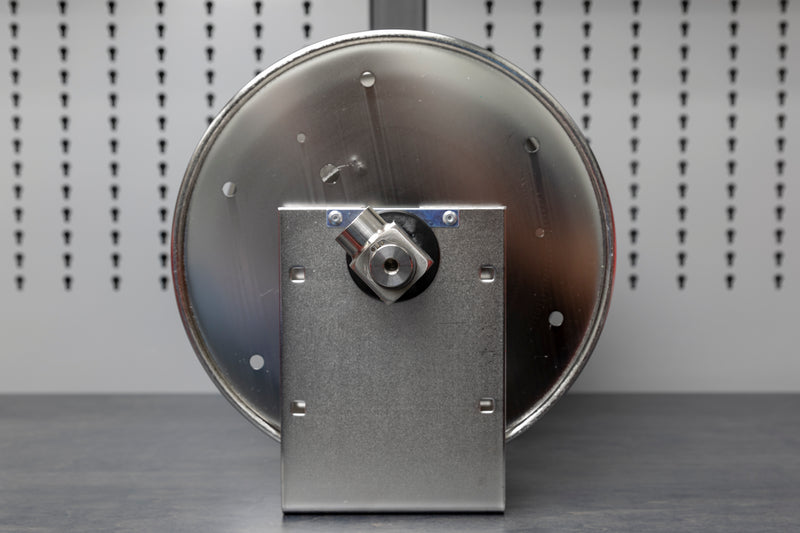

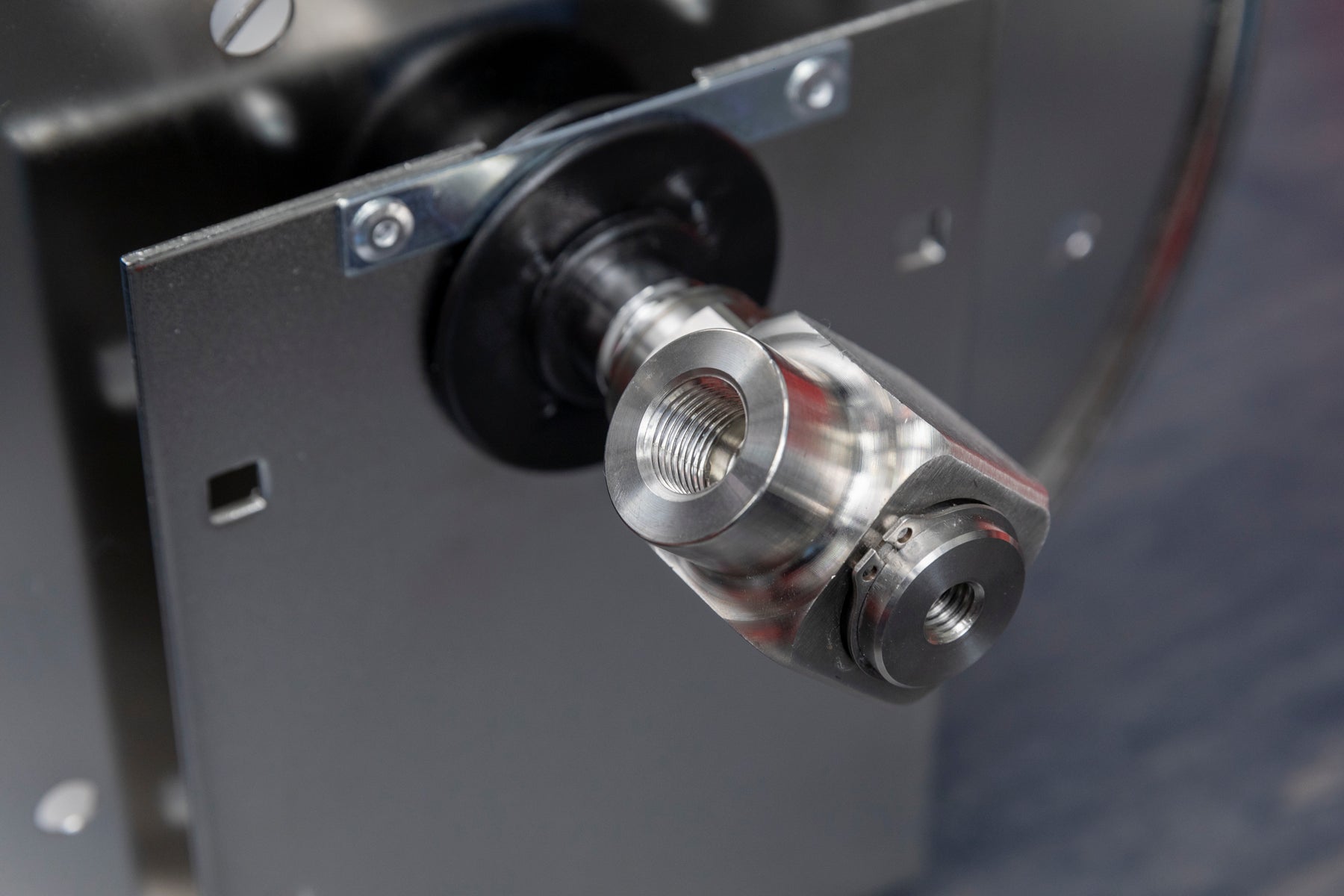

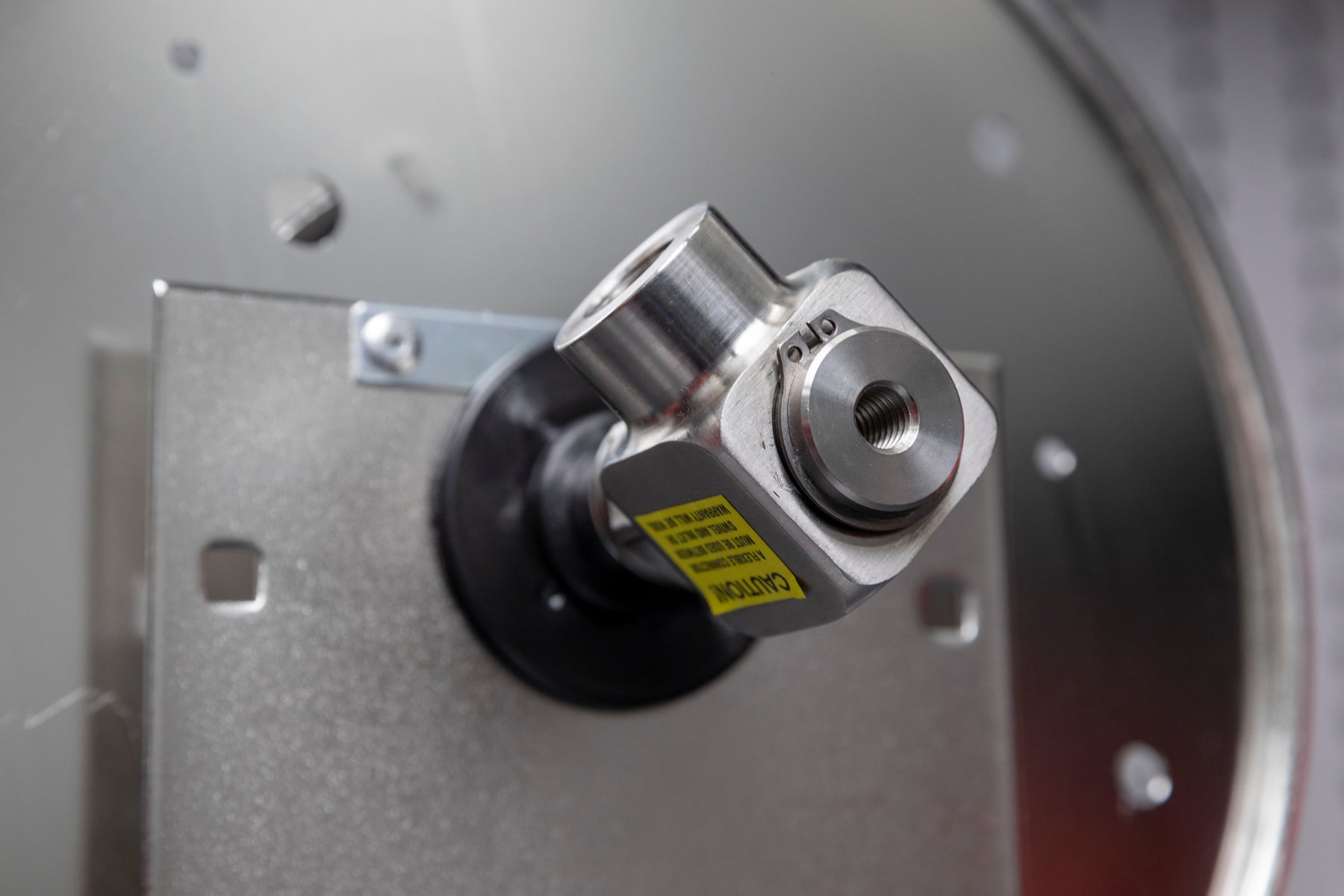

Swivel: This is a full flow 90 degree, new and improved, stainless steel part. It has a 3/8" female NPT inlet, so it accepts most normal inlet hoses.

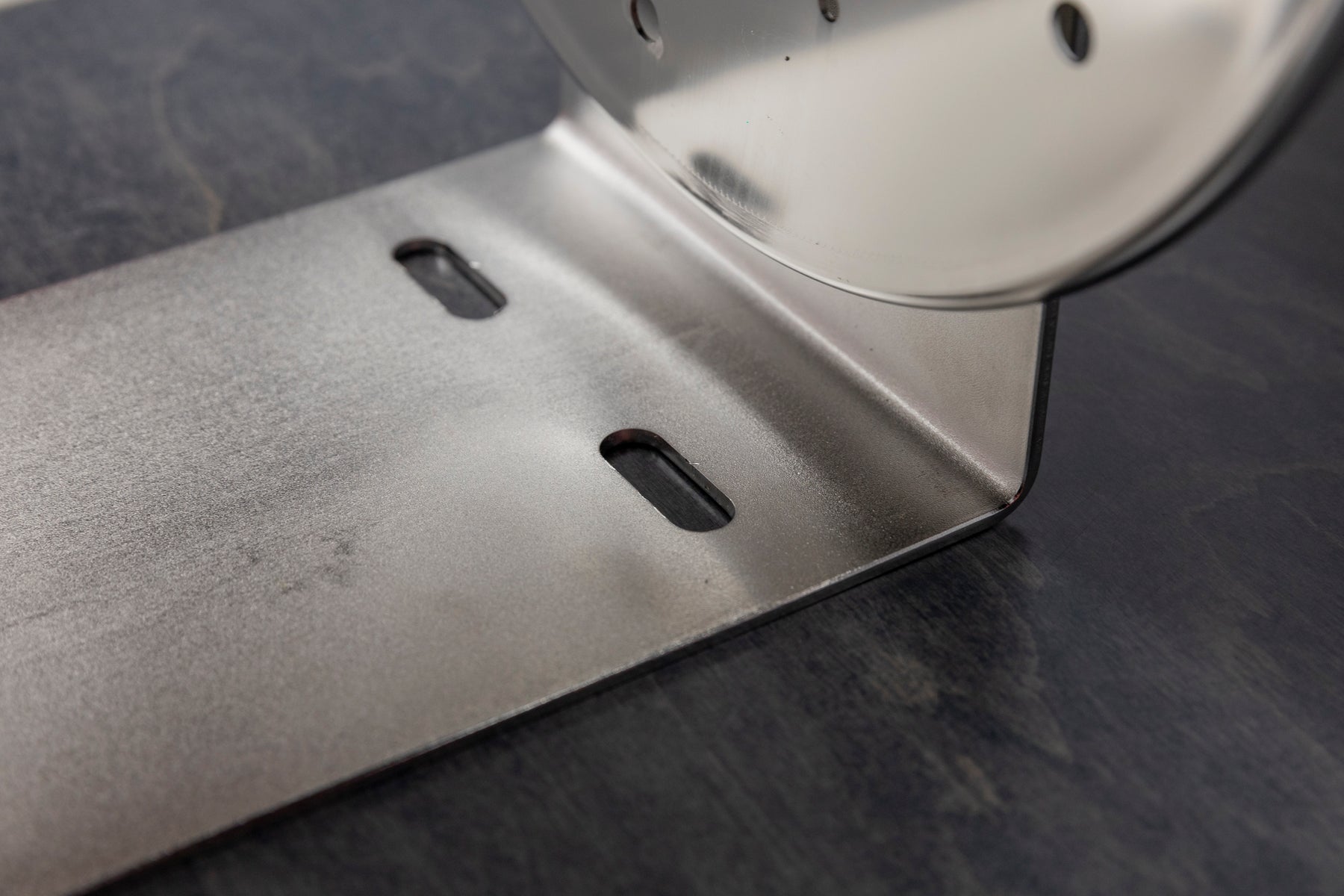

- U-Shaped Frame: I mounted using some 5/16" x 2" lags with 5/16" x 1.5" fender washers. I'd use Tapcons on a concrete wall. You could also use the dimensions diagram to mount to Uni-Strut if you need to span your studs.

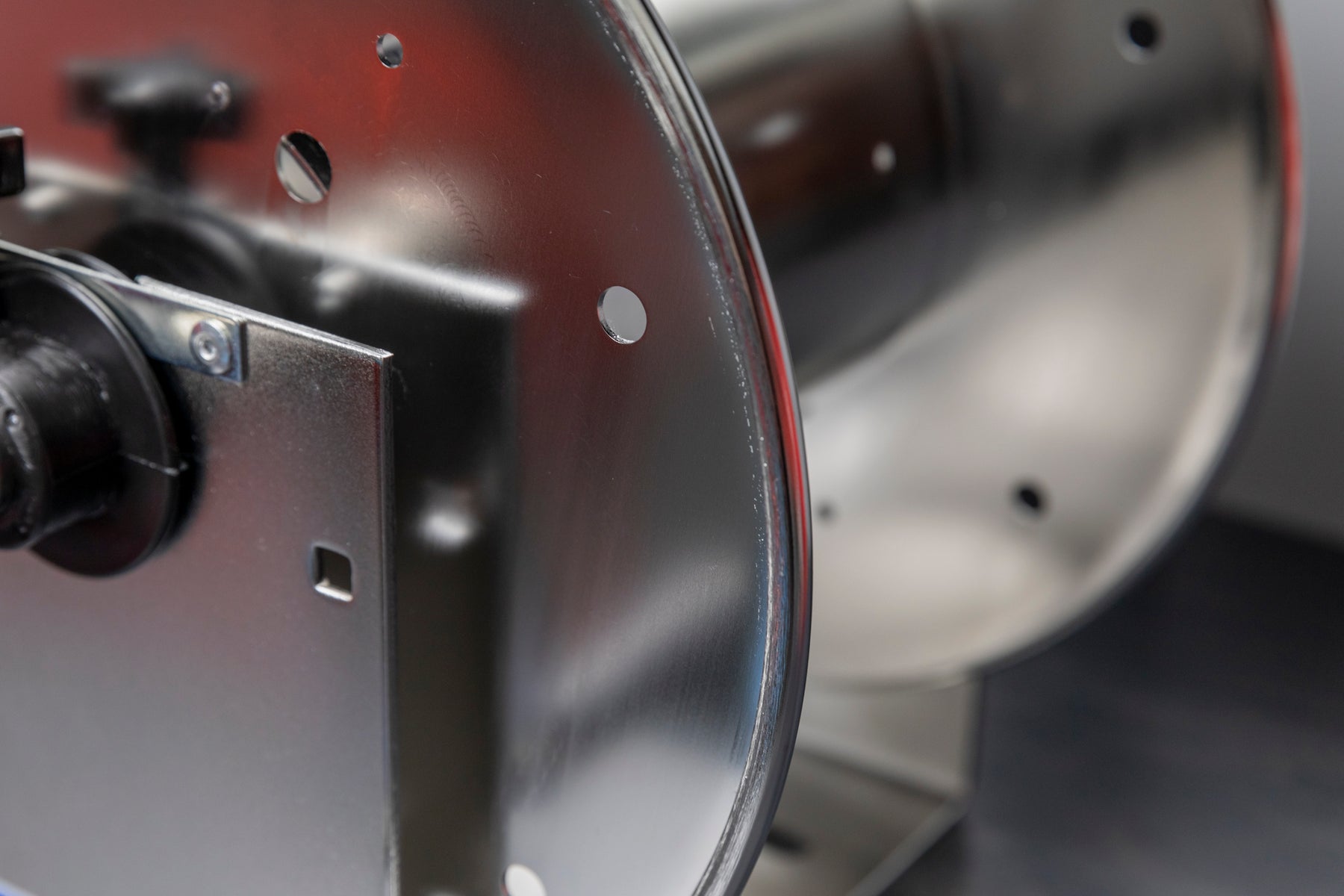

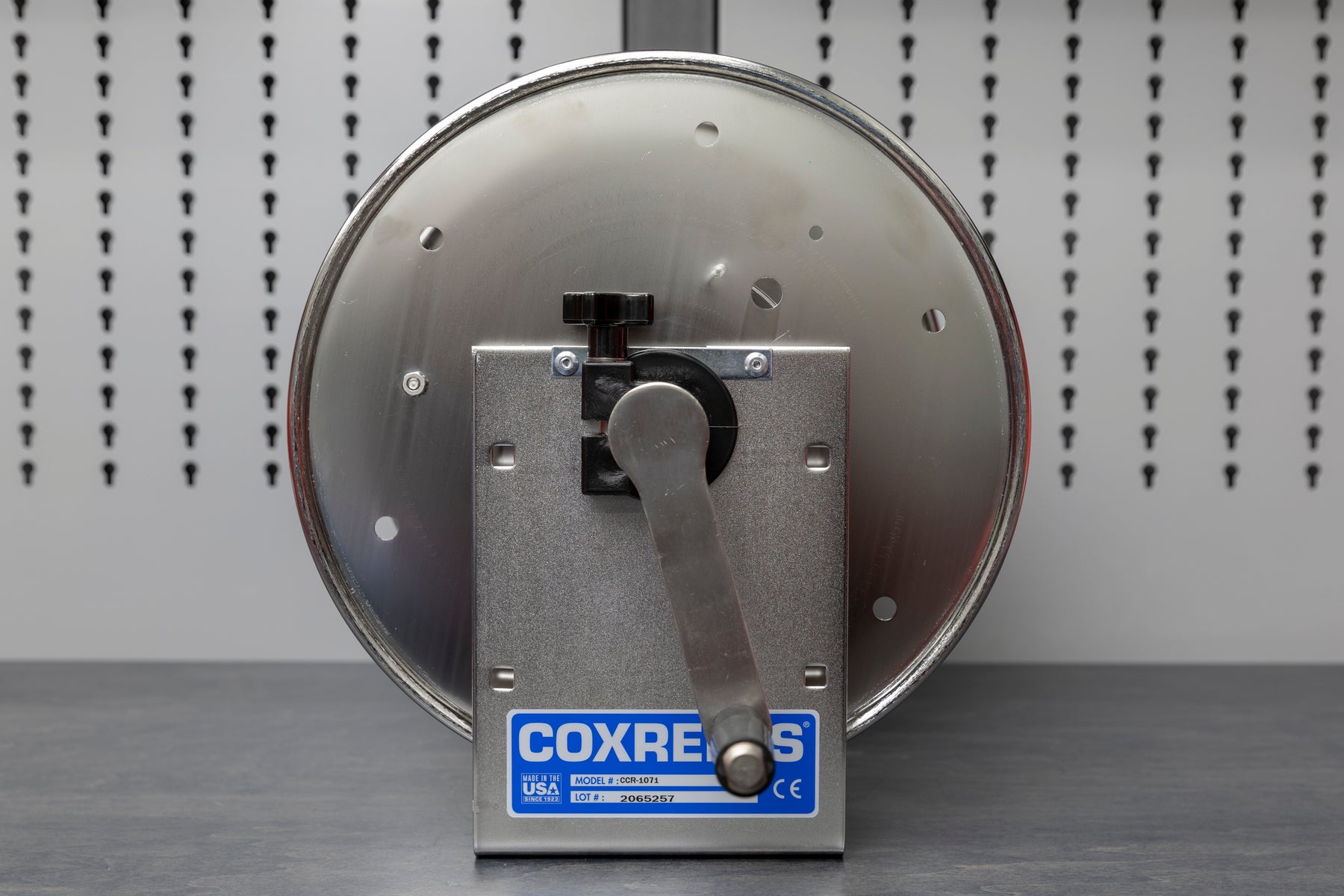

- Adjustable Tension Brake: That's the black knob on the side that allows you to adjust how easily the hose winds or unwinds. I always torque the brake down when not in use.
For working pressures up to 4,000 PSI.
- Overall Dimensions: W - 18.25" | L - 12" | H - 13"
- Base Size: X - 5" | Y - 6"
- Mounting Pattern: M - 5" | N - 3"
- Weight 19 lbs
- Swivel Inlet Size: 3/8" NPT Female
- Outlet Size: 3/8" NPT Female
- Material: Stainless Steel
