SKU: AS010105
Speaker
Subwoofer Setup
Regular price $2,161.97
/

I’m almost certain this Wireless Bluetooth Bookshelf Audio Solution will be one of our more popular audio solutions. Mainly because of its affordability compared to the higher-end stuff we’re selling in our advanced and ultimate audio packages.

We’re branding this as a wireless system, but it still requires some wires. You have to plug it in and run a speaker wire from left to right. These are wireless connected speakers with built-in Bluetooth, making them wireless. I want to be sure I clear that up so there’s no confusion.

I was on such a high talking about the pricier stuff that I’m now having to calm myself down and get back to reality. That’s not a knock on anyone who decides to go this route. This base package system is legit. I understand that not everyone is a crazy person like me who obsesses over this kind of stuff. Many of you are just getting started building your garage and want an affordable, simple, killer audio setup. Well, this is where you want to start.

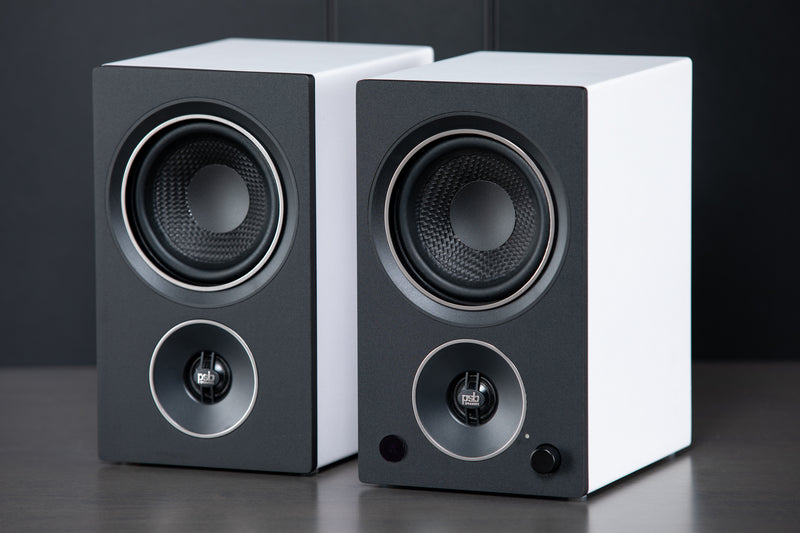

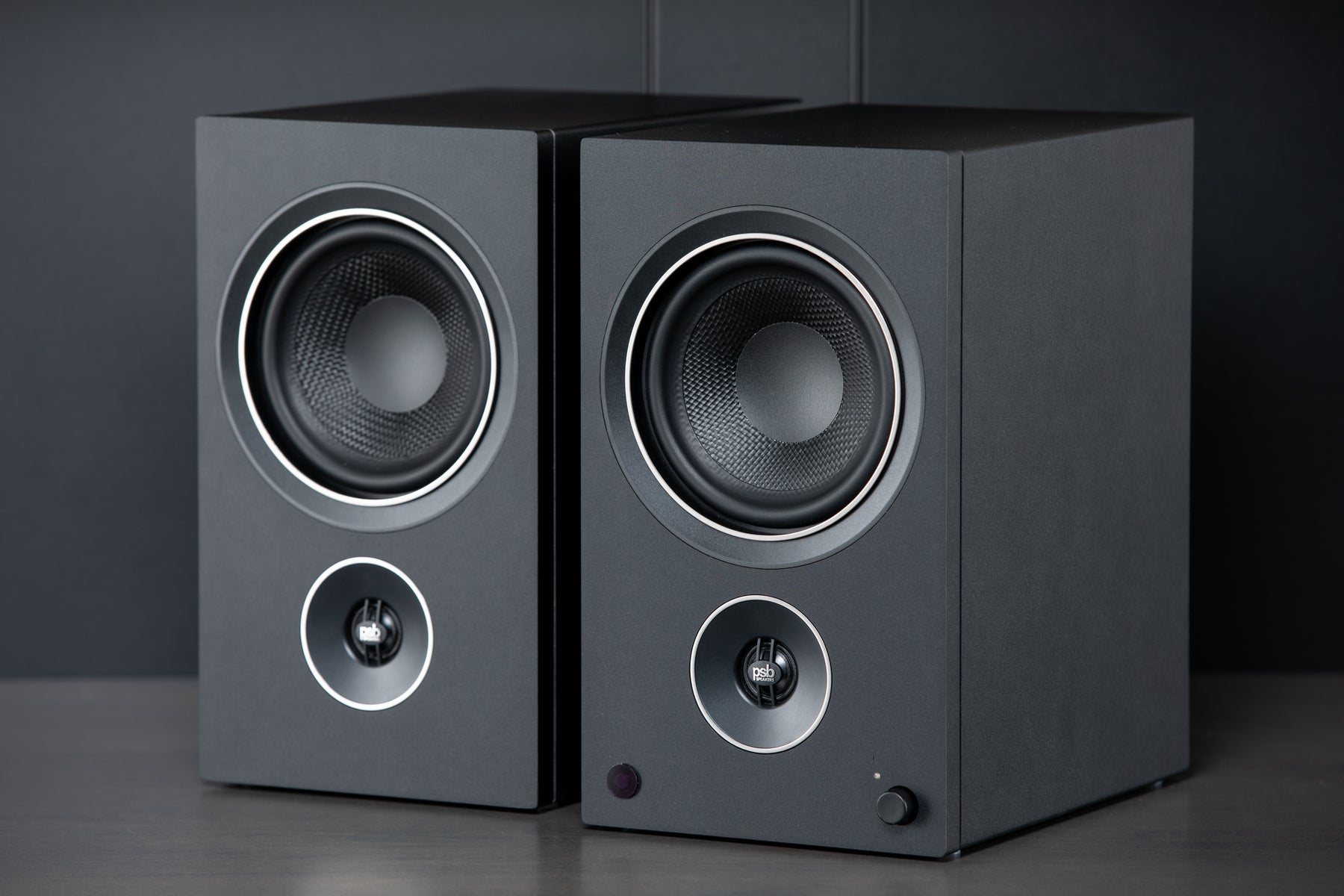

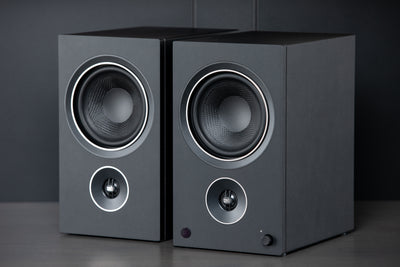

When you’re putting this package together, you’ll start with your speakers. In this build, you’re going to get the PSB AM3’s/AM5’s. If I were you, I’m going with the AM5’s. The AM5’s will fill the room much better than the AM3’s.

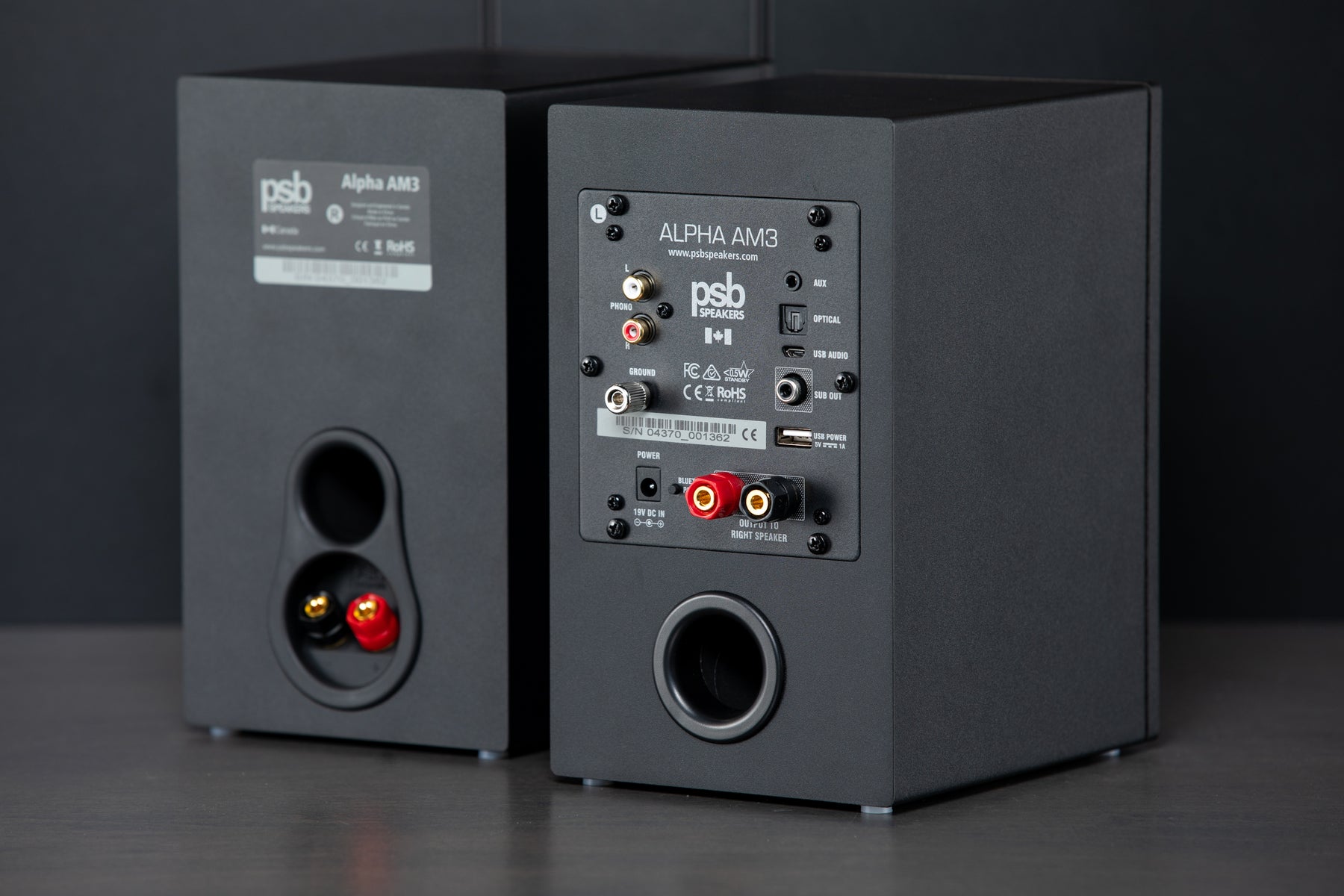

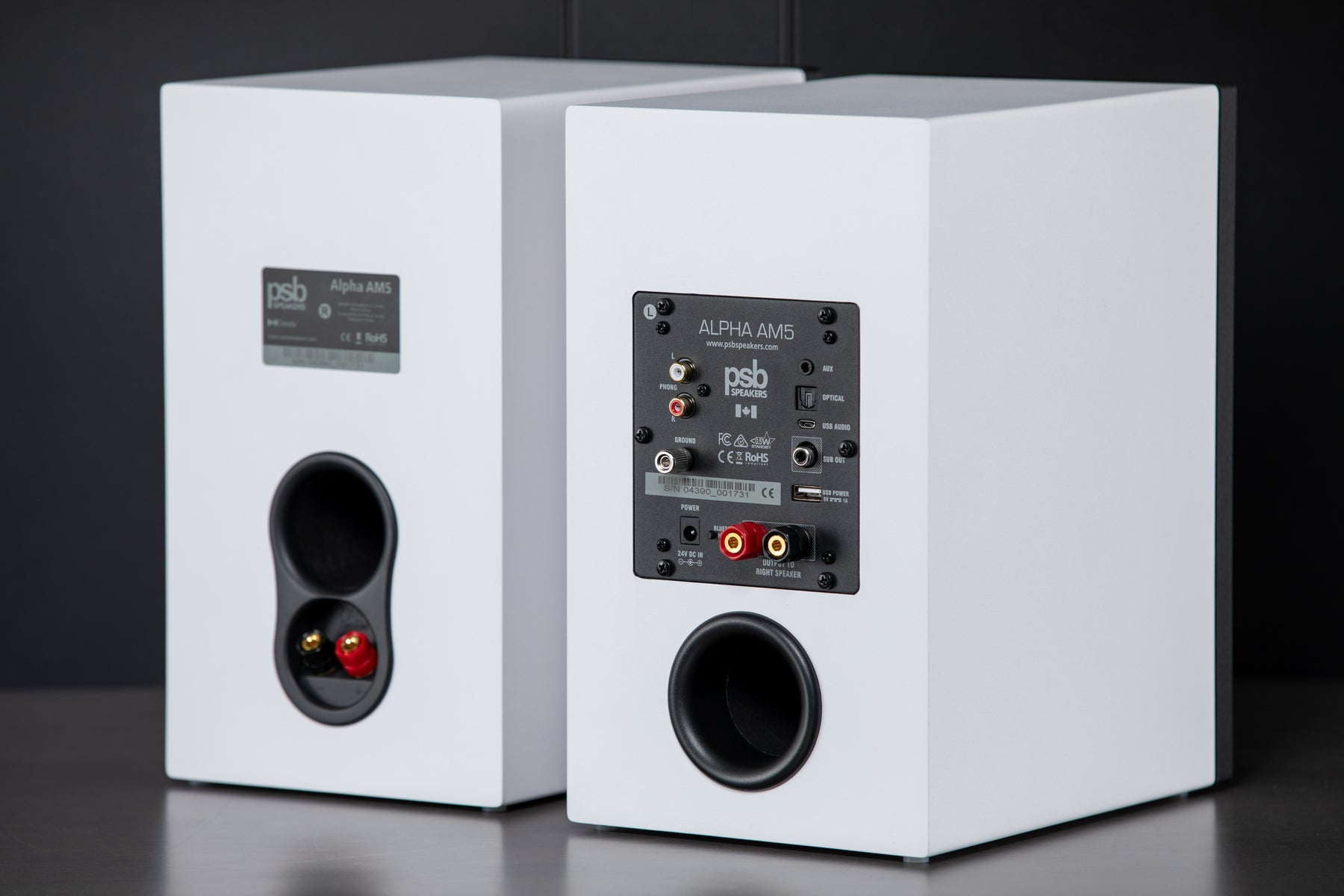

Looking at these from behind, you’ll see that one speaker is the passive speaker (where the speaker wire comes in) while the other is the active speaker (amplified speaker) with all of our inputs. I’m telling you, I don’t know what Paul Barton (chief designer of PSB) did with these things, but they sound freaking amazing.

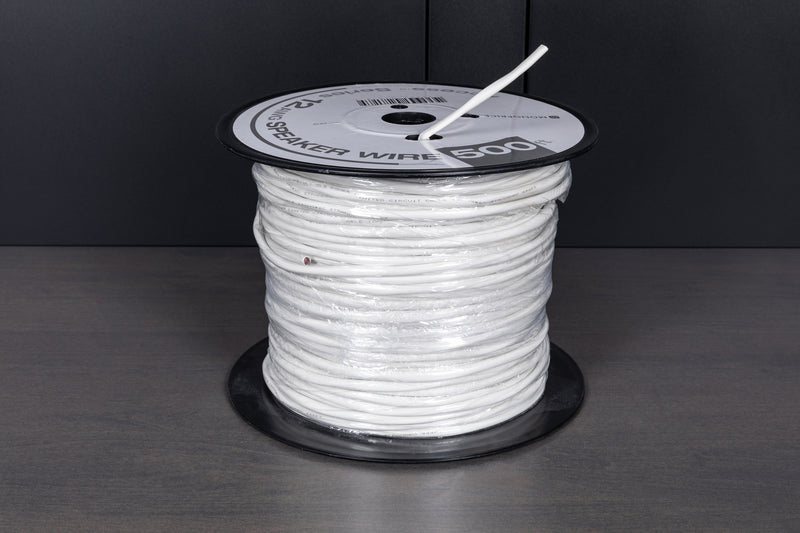

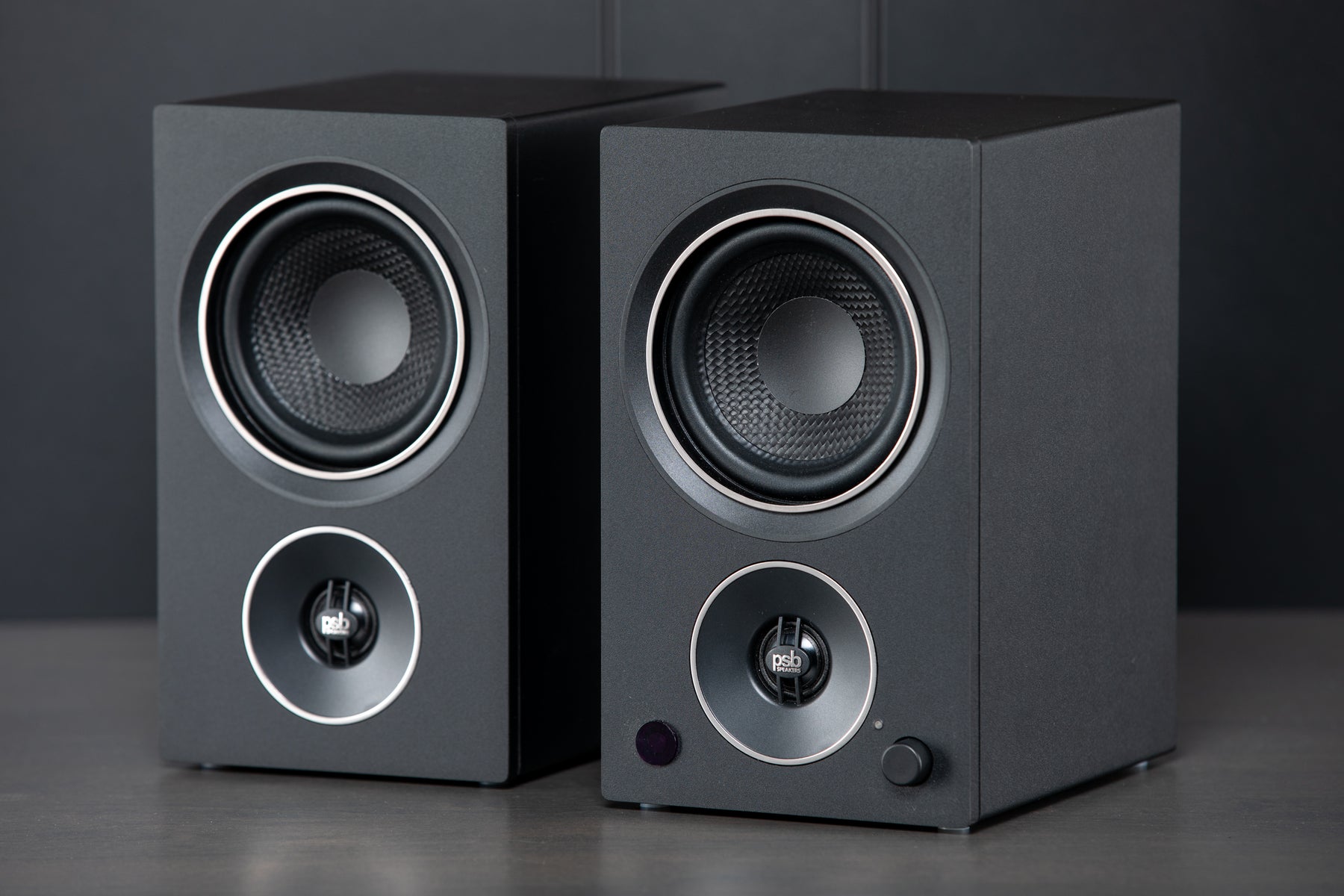

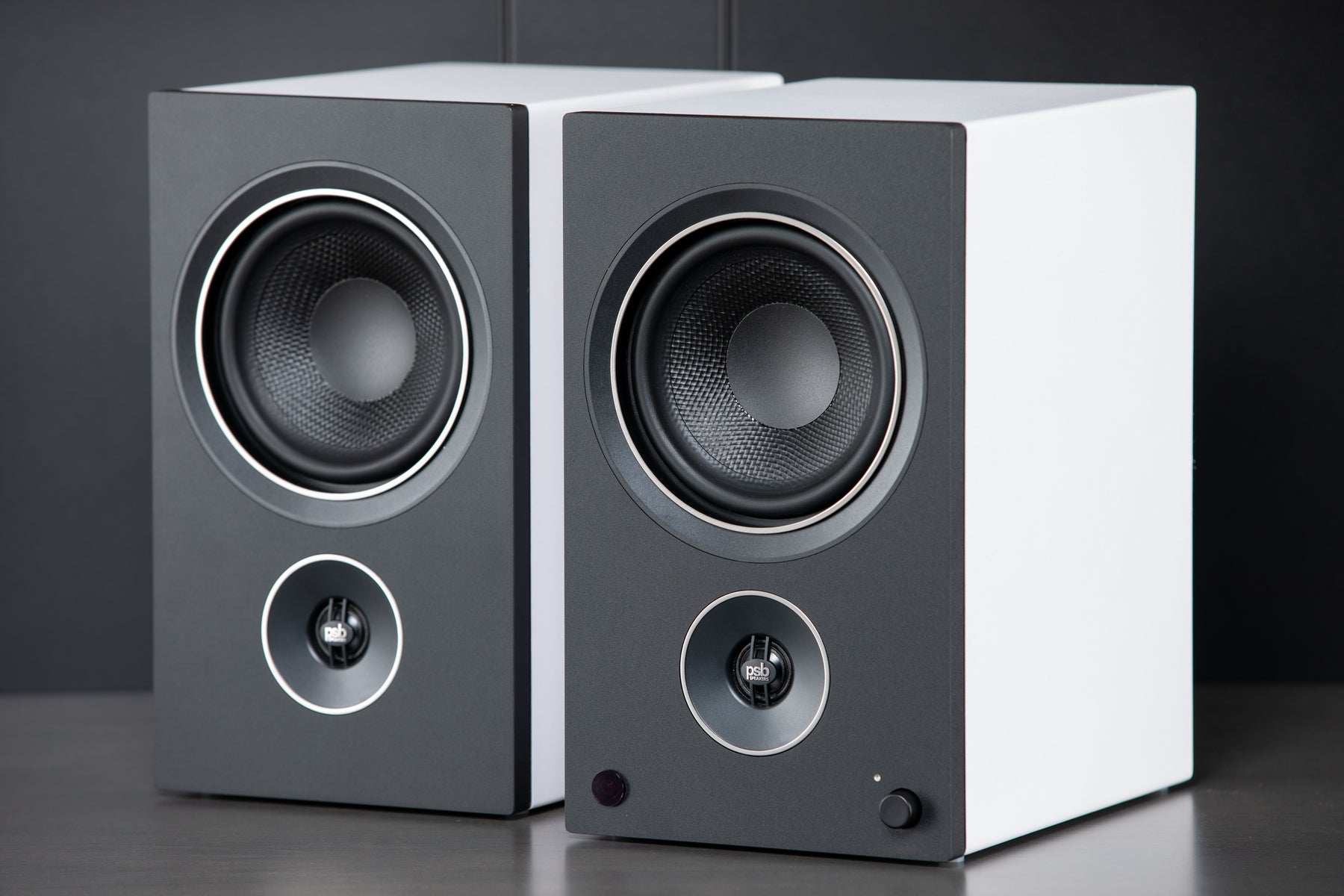

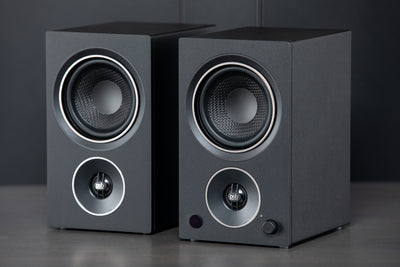

The simplest system for your garage would be to buy a pair of the AM5’s then choose your color, whether matte black or matte white. We’ll also provide you with 35’ of speaker wire with this package because the wire it comes with is junk. You’ll want to toss it.

What’s not junk are these speakers. Getting past the material, which is vinyl wrapped, your attention will quickly go to the sound once you plug them in. I really didn’t want to like these, but I was enamored once I sat and listened to them. Now, there not my beloved Dynaudio’s, but when you play these things, you’ll clearly hear the amazingness resonating out of them.

If you decide you want to go wireless, wireless where there isn’t any speaker wire connecting one speaker to another, you will go with the Dynaudio Xeo’s. I did a deep dive into these wireless speakers a while ago, so you’ll want to check that video out. These are higher-end speakers, so they’re going to be a bit pricier than the PSB’s.

The second and final step in this package is to select the subwoofer option, where we're offering you either a wired or wireless setup.

The wireless setup will include an OSD Audio Nero Wireless Subwoofer Kit with a Monoprice Single Male to Dual Male - RCA Y-Adapter with this subwoofer add-on. For the wired setup, you will receive a 25' RCA cable.

This setup is the perfect starter, garage audio solution. As I’ve done with many of our other solutions, I’ve set things up so you’ll have the ability to progress over time into the higher-end, more robust stuff.



Speaker Options

PSB AM3/AM5

- x2 Alpha AM3 Compact Powered Speakers
- x2 Alpha AM5 Powered Bookshelf Speakers
- Powered speaker
- Passive speaker
- 2 Grilles
- AC power adapter (attached 45" DC cord)
- 4' AC power cord
- Remote control (PSR-1)
- 2 "AAA" batteries
- 8' Speaker cable
- 58" Stereo minijack cable
- 8 Self-adhesive rubber feet
- Connection Diagram
- Warranty Card


Subwoofer Setup

Wireless
- Dynaudio Sub 3
- OSD Audio Nero Wireless Subwoofer Kit

Wired
- Dynaudio Sub 3
- 25' RCA Cable


Specifications

Speakers

PSB AM3
Frequency Response:
On Axis @ 0° ± 3dB | 56Hz-20Khz
LF Cutoff -10dB | 40Hz

Amplifier Power:
Amplifier Power | 35 watts x 2 RMS
Acoustic Design:
Tweeter (Nominal) 3/4" (19mm), Aluminum Dome with Ferrofluid | Neodymium Magnet
Woofer (Nominal) 4" (100mm) Cone | Rubber Surround | Steel Basket

Inputs:
Analog | 3.5mm, Phono MM
Digital | Optical, USB
Wireless | aptX™ Bluetooth
Design Type | Bass Reflexv

Construction:
Cabinet | MDF
Cabinet Sleeve | Vinyl
Baffle Front | MDF
Grille | Perforated Metal

Size (W x H x D):
Net Dimensions 5 1/8” x 8 5/8” x 6 7/8” | (130 x 220 x 174mm)
Net Weight 10 lbs (4.5 kg)
Shipping Dimensions 14 1/8” x 9 7/8” x 11 1/2” | (359 x 251 x 292mm)
Shipping Weight | 11.7 lbs (5.3 kg)
Finish:
Available Finishes | Matte Black, Matte White

PSB AM5
Frequency Response:
On Axis @ 0° ± 3dB | 56Hz-20Khz
LF Cutoff -10dB | 40Hz

Amplifier Power:
Amplifier Power | 35 watts x 2 RMS

Acoustic Design:
Tweeter (Nominal) 3/4" (19mm), Aluminum Dome with Ferrofluid | Neodymium Magnet
Woofer (Nominal) 4" (100mm) Cone | Rubber Surround | Steel Basket

Inputs:
Analog | 3.5mm, Phono MM
Digital | Optical, USB
Wireless | aptX™ Bluetooth
Design Type | Bass Reflexv

Construction:
Cabinet | MDF
Cabinet Sleeve | Vinyl
Baffle Front | MDF
Grille | Perforated Metal
Size (W x H x D):

Net Dimensions 5 1/8” x 8 5/8” x 6 7/8” | (130 x 220 x 174mm)
Net Weight 10 lbs (4.5 kg)
Shipping Dimensions 14 1/8” x 9 7/8” x 11 1/2” | (359 x 251 x 292mm)
Shipping Weight | 11.7 lbs (5.3 kg)

Finish:
Available Finishes | Matte Black, Matte White


Alpha AM5 Powered Bookshelf Speakers

Frequency Response:
On Axis @ 0°±3dB | 55Hz-20Khz
LF Cutoff -10dB | 36Hz

Amplifier Power:
Amplifier Power | 50 watts x 2 rms
Acoustic Design:
3/4" (19mm), Aluminum Dome with Ferrofluid | Neodymium Magnet

Woofer:
5.25" (100mm) Cone | Rubber Surround | Steel Basket

Inputs:
Analog | 3.5mm, Phono MM
Digital | Optical, USB,
Wireless | aptX™ Bluetooth
Design Type | Bass Reflex

Construction:
Cabinet | MDF
Cabinet Sleeve | Vinyl
Baffle Front | MDF
Grille | Perforated Metal

Size (W x H x D):
Net Dimensions | 6 3/4” x 11 2/5” x 9 1/2” (170 x 290 x 240mm)
Net Weight | 21.5 lbs (9.75 kg)
Shipping Dimensions | 18 3/8” x 13 3/8” x 15” (467 x 340 x 381mm)
Shipping Weight | 23.6 lbs (10.71 kg)


Subwoofer

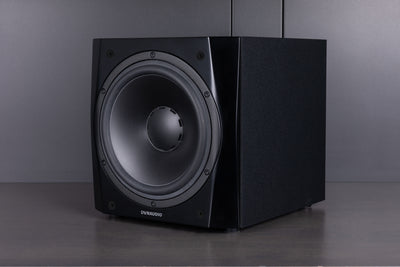

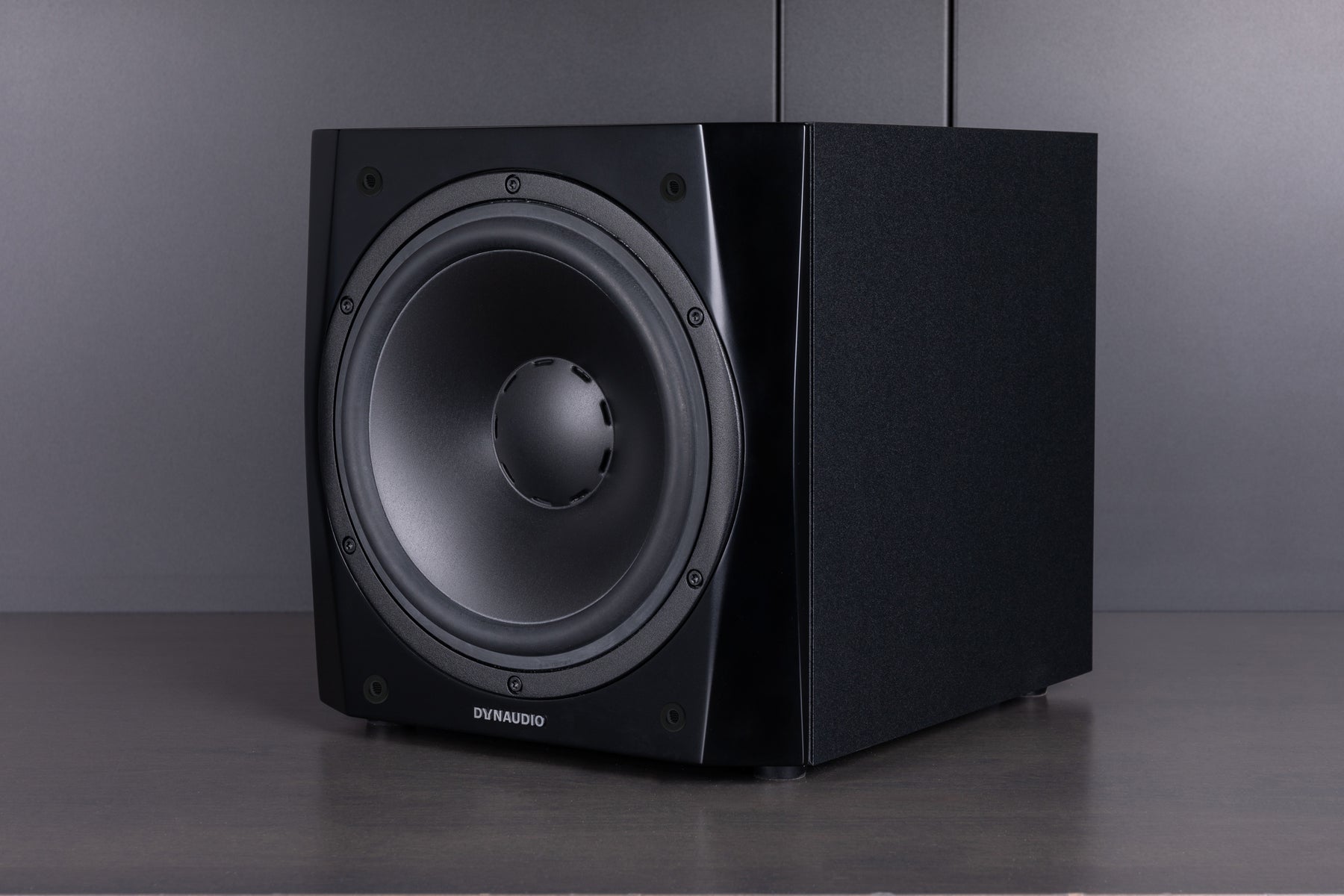

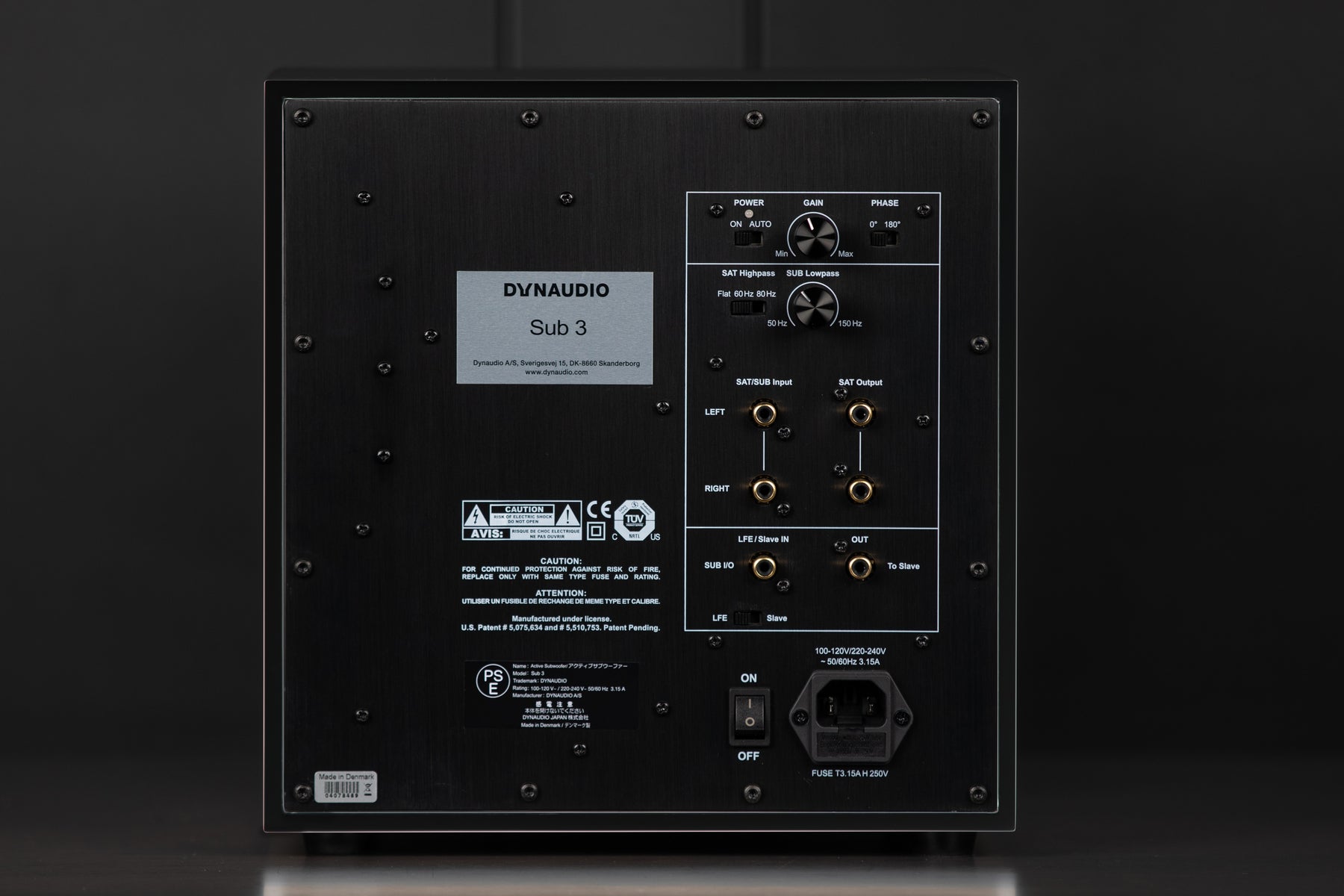

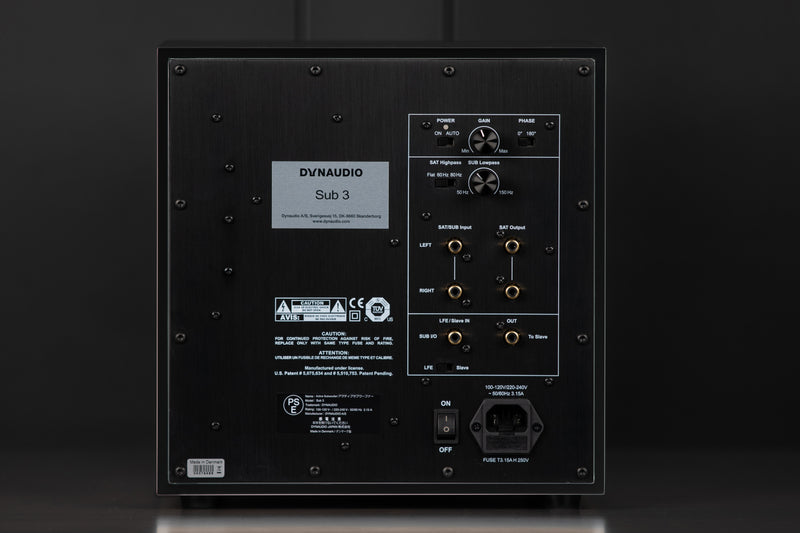

Dynaudio Sub 3
System: Single driver, active subwoofer
Analog inputs: 1x RCA LFE, 2x RCA stereo
Analog outputs: 1x RCA Slave out, 2x RCA SAT out
Frequency response (±3 dB): 22Hz–175Hz
Auto ON/OFF: Yes
Box principle: Sealed
High pass filter: Flat/60/80Hz
Low pass filter: 50Hz - 150Hz
Phase adjustment: 0/180 degrees
Woofer: 23cm MSP
Amplifier power: 300W
AC power input: 100-120 V/200-240 V 50/60Hz
Standby power consumption: < 0.5W
Maximum power consumption: 350W
Weight: 10.5kg/23.1lb
Dimensions (W x H x D): 266x276x320mm
Dimensions with feet/grille (W x H x D): 266x276x336mm

OSD Audio Nero Wireless Subwoofer Kit (if you choose wireless setup)
5.8 GHz operating frequency for reliable bass audio
Upgraded chip set for reliability and a near-zero delay
Up to 150 ft operation distance between transmitter and receiver (line of sight).
Audio Output Level: 2V
Frequency Response: 18Hz-22KHz
Audio Distortion: <1%
Signal to Noise Ratio: >80dB


Cables and Wiring

Monoprice Single Male to Dual Male - RCA Y-Adapter (comes with wireless setup)
Gold plated RCA male connectors
Two channels for audio on left and right speakers
97% pure oxygen-free copper conductor
Double shielded with copper braiding
22 pF per foot capacitance
75 ohm impedance

Ships from OGHQ Warehouse. Shipping costs are calculated at checkout. Our audio solutions will be fulfilled as products are available, so shipments might be delayed. Audio products are subject to a 15% restocking fee.
