Speaker
Streaming DAC and Amplifier
Subwoofer Setup
Regular price $10,835.18
/

We’re stepping into another realm when it comes to our ultimate packages. I’m building these solutions out the way I’d want them to be in my garage, so expect a lot of fancy and money to be spent. The Ultimate Dynaudio Bookshelf Solution is what I’d categorized as one of our premier kits, and rightfully so.

I understand how crazy this may look, but if you’re anything like me and see the value in quality products, the cost of something has little impact on your decision-making. Some people will say how ridiculous it is to put expensive equipment into a garage; I say, wherever you’re spending the majority of your time, you invest in that space to make it the best experience possible.

So, if you want to do this like me, here’s how it will go. The first thing you’re going to do is select your speakers. In this solution, we’re doing either Evoke 10 or Evoke 20 passive speakers. You’d then choose your color.  You’ll have four options: 1) Walnut Wood 2) Blonde Wood 3) Black High Gloss 4) White High Gloss. In my garage, I had the Evoke 20’s in blonde wood. I feel the blonde wood is best for the garage because it doesn’t show as much dust as the others. It also has the best veneer (a high-quality wood finish). I talk about the Dynaudio Evokes in greater detail on a video I did. Be sure to check that out.

I would highly suggest you not do the black high gloss unless you’re willing to work for it. I guess if you own a black car, you won’t mind owning this colorway.

When you’re building your package, just know, it will come with all the cables you need to set it up. Trust me when I tell you, setting this up will be super simple. Chances are, you’ll have this up and running in under 10-minutes. If you do run into issues or if you need something custom, just hit up my guys, and they’ll get you taken care of.

After picking your speaker and color, you’d choose your source component (DAC). In this solution, it will be the NAD M33, NAD M10, or NAD C388. The best option here for most of us is the C388. NAD has a newer amp I plan to have in the store called the C399 once I can get a demo in-house. The C399 shares a lot of the same architecture as the M33 but with a little less fancy. I’ll dig into more with that amp once I actually have it.

What you decide to go with will depend on how much you’re willing to spend. If you’re really balling, you will go with the NAD M33 with the Evoke 20’s and a Sub 6. If you have a small place or a small area on top of your garage cabinet and want to save a little bit, you’ll get the Evoke 10’s with a NAD M10. You really can’t go wrong either way, but I’m always going to go big.

Now, we move into my favorite part, the subwoofer add-on option, which I highly suggest you do. With this package, you get the Dynaudio Sub 6. This subwoofer is my favorite thing of all the things I’ve discovered. I love the Evokes and the source components, but this sub is the real winner.

This sub is a dual 9” woofer. It’s not the loudest; it’s not going to play the loudest SPL, but there’s just something magical about it. It’s as if it disappears in the room. You’ll have to do very little to get it set up. It has the DSP (digital signal processing) software built-in that makes it work seamlessly with the Evokes. Think of it as already being calibrated to marry the two together to distribute the perfect sound for whatever room you’re putting it in.

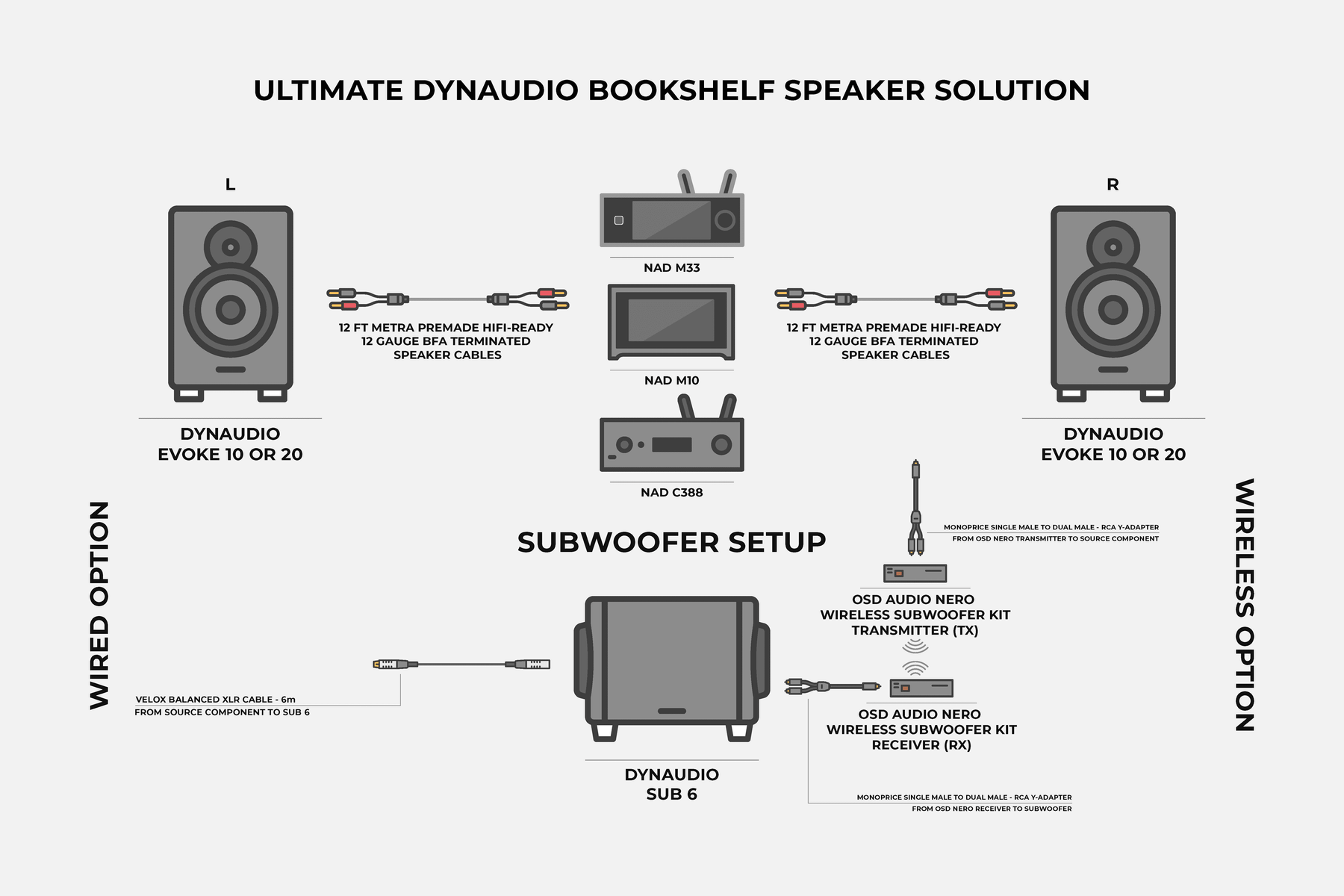

You can either do a wired or wireless subwoofer setup like our other audio packages. If you’re going to do this wired, we’d include a Monoprice Premier Series XLR Male to RCA Male with a 25’ Monoprice Premier Series XLR Cable. I recommend if you can to go wired, but if you can’t, it’s no big deal. You’re losing roughly 2 Hz of low-end frequency when you go wireless, but I can tell you that you won’t even notice the difference.

If it’s the wireless setup you’re going with, we’ll send you the OSD Audio Nero Wireless Subwoofer Kit with a Monoprice Single Male to Dual Male - RCA Y-Adapter

Be sure to watch the video above in its entirety to see how this all comes together along with how to set it up.

I want you to know that you will have full BlueOS capability with this setup. This software allows you to use your phone as a controller and your source component as the player - distributing high-quality sound with services like Tidal and Spotify.

This is truly the ultimate two-channel setup. I spent an entire week piecing this all together, and I’m happy with the way it came out. If you’re an audiophile and enjoy listening to music, go this route. You’d also go this route if you want to add in our video option (available on a separate page).

If you have a TV setup and want to do video (with audio to your speakers), you’d connect your HDMI cable to your source component (amp/preamp) to your television (eARC slot if available or ARC). I sell these in a variety of sizes depending on how long of a cable you need. 1-6 meters, you’d go with the Ethereal HDMI High Speed Cable. A 10-meter cable, the Velox 10 Meter HDMI Cable. A 49 ft (15m) cable, the Velox 8K Powered HDMI Cable. Another option is to run an optical cable from your amp to your TV. There’s really no reason to do this unless you absolutely have to.

I’ve done the labor to simplify this process for you. All you have to do is click and add to cart.

Speaker Options
- x2 Dynaudio Evoke 10’s
- x2 Dynaudio Evoke 20’s
- 2 Grilles
- 2 Foam port plugs
- 2 Tweeter protection covers (pre-installed)
- Instructions for Use
- Important Safety Instructions
- Warranty Card
- Dynaudio Evoke 10/20 owner's manual


Amplifier
Options

- NAD M33
- NAD M10 v2
- NAD C388 BluOS


Subwoofer Setup
- Dynaudio Sub 6
- OSD Audio Nero Wireless Subwoofer Kit (if you choose the wireless option)
- Monoprice Premier Series XLR Male to RCA Male and 25’ Monoprice XLR Cable (if you choose the wired option)


Cables and Wiring
- Monoprice Single Male to Dual Male - RCA Y-Adapters (comes with solution if you add-on wireless subwoofer)
- Monoprice Premier Series XLR Male to RCA Male and 25’ Monoprice XLR Cable (comes with solution if you add-on wired subwoofer)
- Video Add-On Options (this option is available on a separate page)
- Metra Ethereal HDMI High-Speed Cable - 1m, 2m, 4m, 6m
- Velox 10 Meter HDMI Cable
- Velox 8K Powered HDMI Cable - 49 ft (15m)


Specifications

Speakers

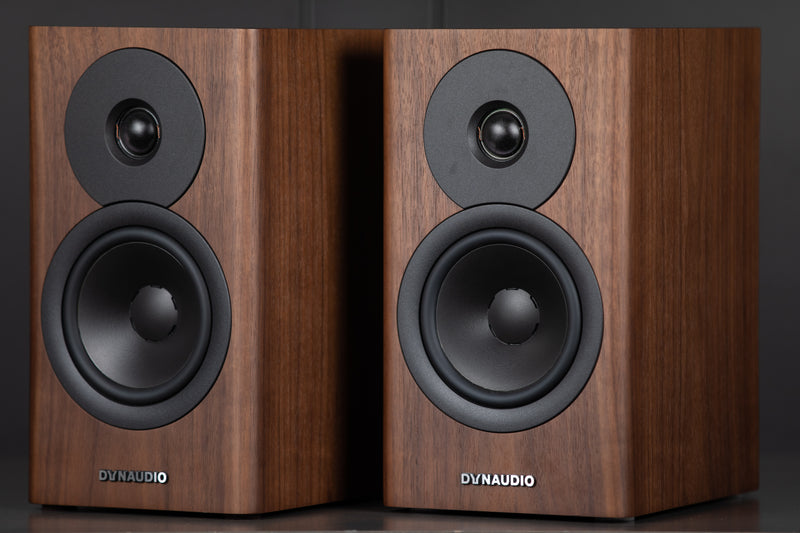

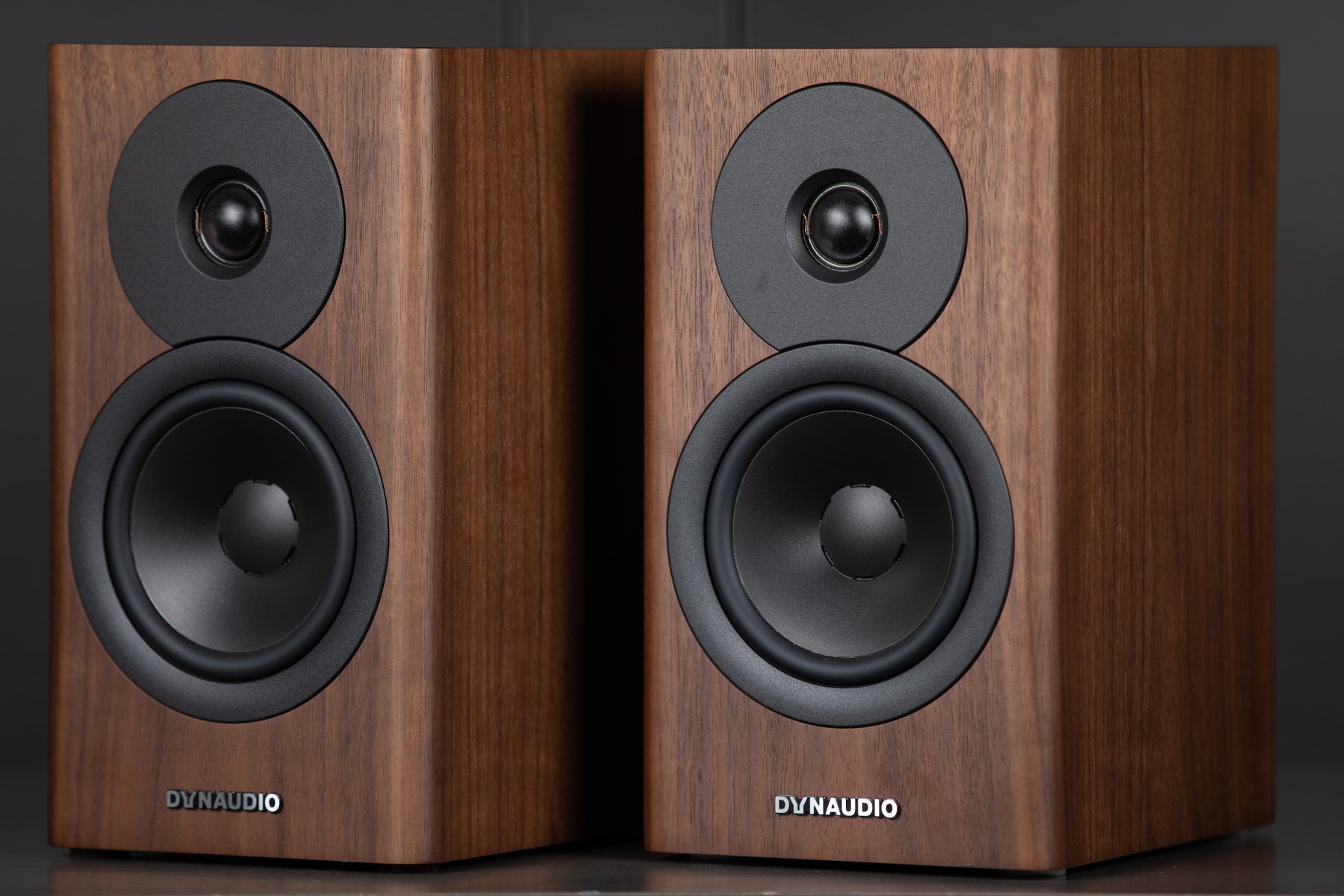

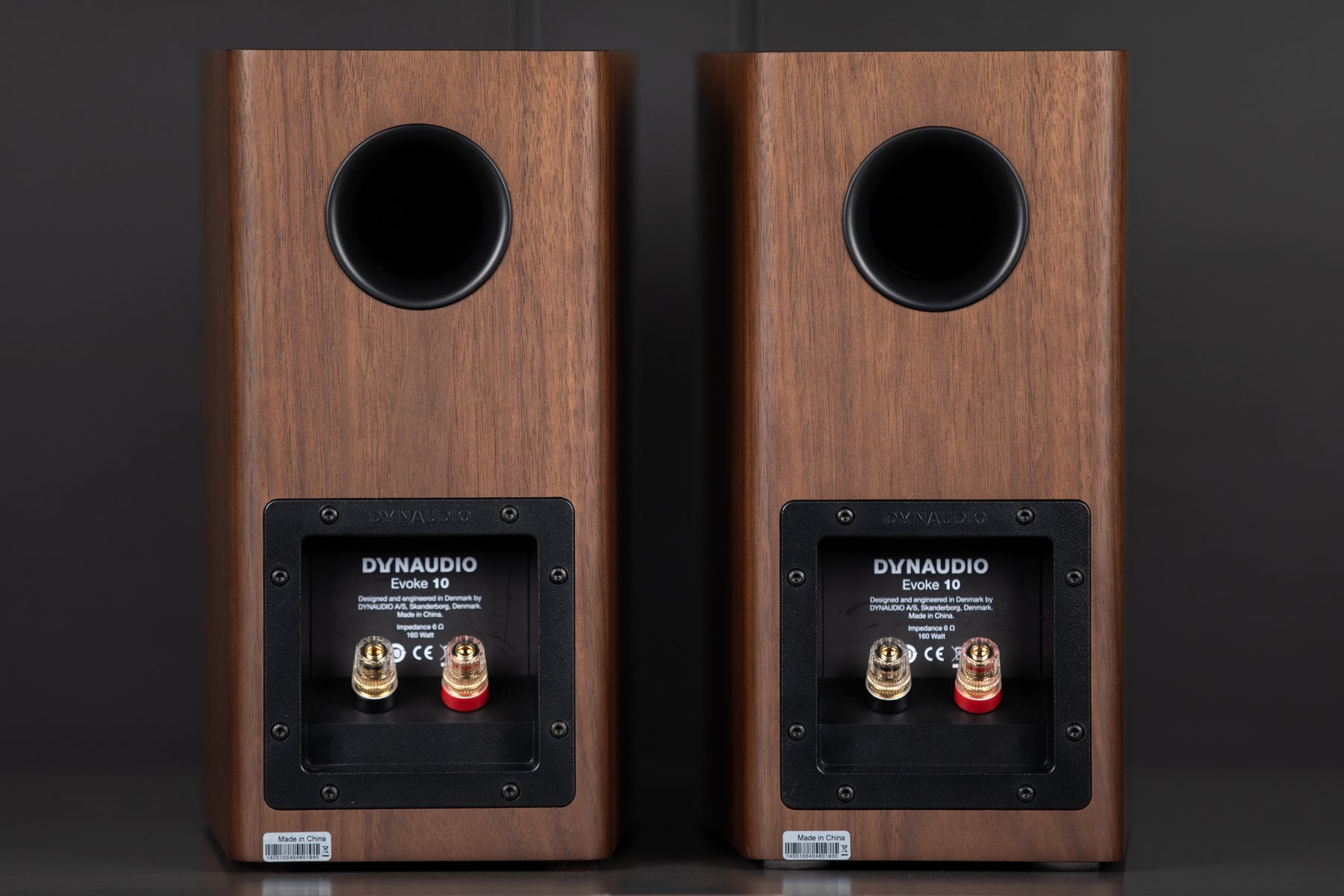

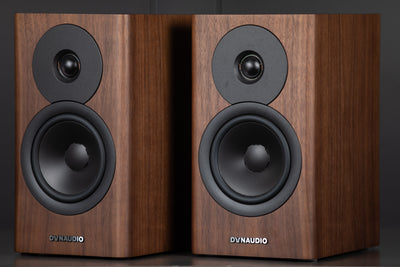

Evoke 10
- Sensitivity: 84dB (2.83V/1m)
- IEC power handling: 160W
- Impedance: 6 Ω
- Frequency response (±3dB): 47Hz–23kHz
- Box principle: Bass reflex rear ported
- Crossover: 2-way
- Crossover frequency: 1400Hz
- Crossover topology: 2nd order
- Woofer: 14cm MSP cone
- Tweeter: 28mm Cerotar with Hexis
- Weight: 6.7kg/14.8lb
- Dimensions (WxHxD): 180x315x266mm | 7.1x12.4x10.5in
- Dimensions with feet/grille (WxHxD): 180x315x277mm | 7.1x12.4x10.9in

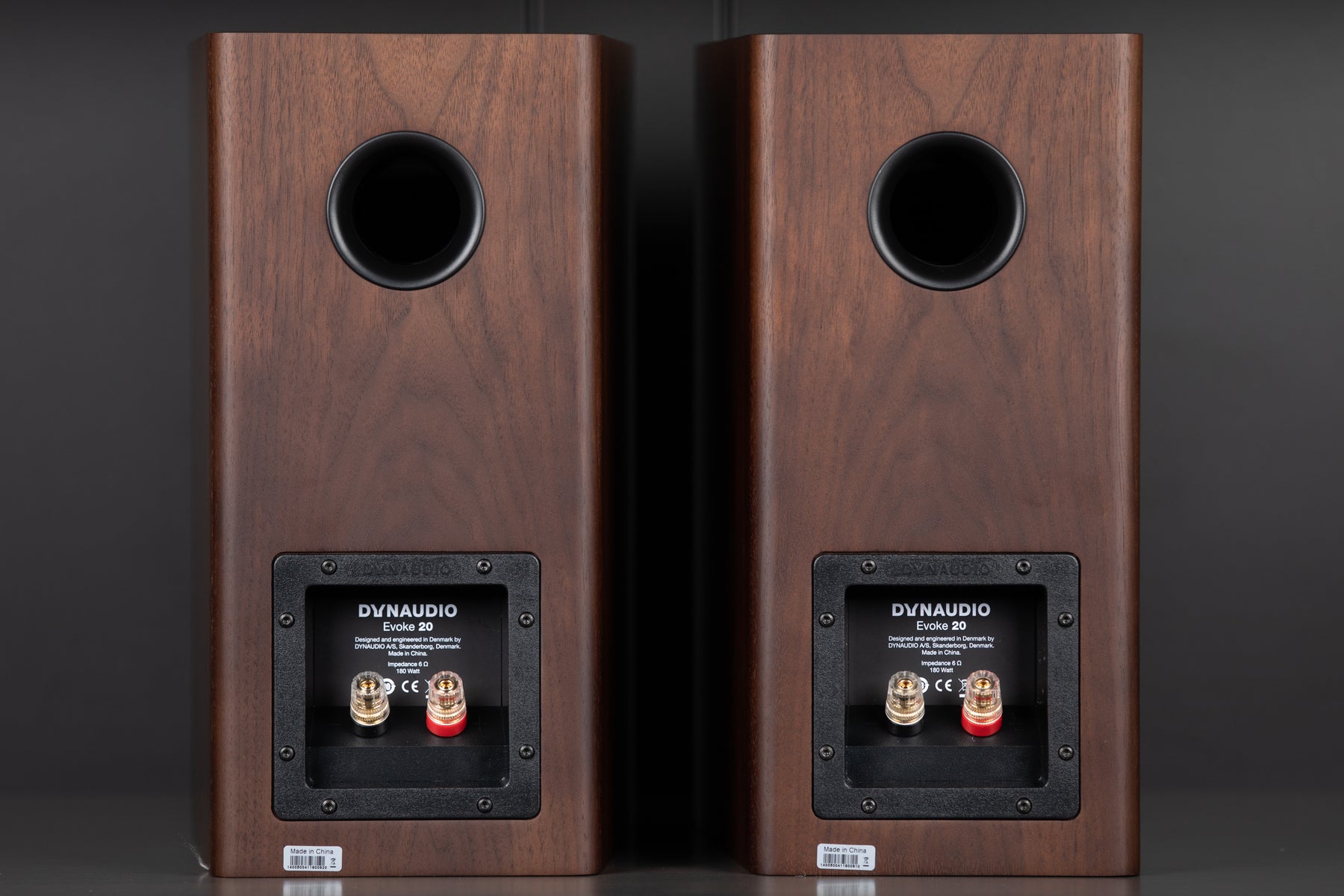

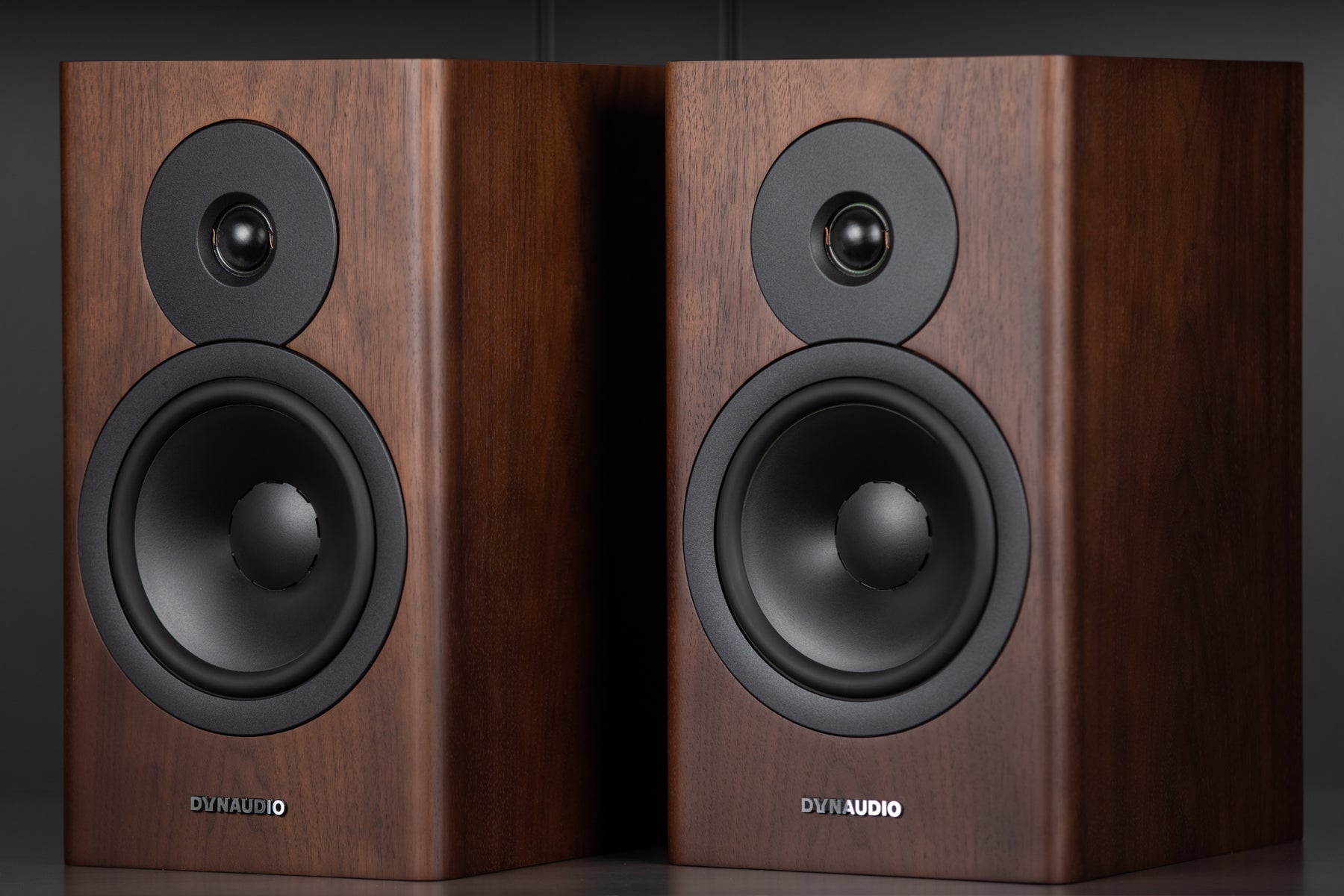

Evoke 20
- Sensitivity: 86dB (2.83V/1m)
- IEC power handling: 180W
- Impedance: 6 Ω
- Frequency response (±3dB): 40Hz–23kHz
- Box principle: Bass reflex rear ported
- Crossover: 2-way
- Crossover frequency: 3200Hz
- Crossover topology: 2nd order
- Woofer: 18cm MSP cone
- Tweeter: 28mm Cerotar with Hexis
- Weight: 9.9kg/21.8lb
- Dimensions (WxHxD): 215x380x307mm | 8.5x15.0x12.1in
- Dimensions with feet/grill (WxHxD): 215x380x317mm | 8.5x15.0x12.5in
- Amps (Source Components)

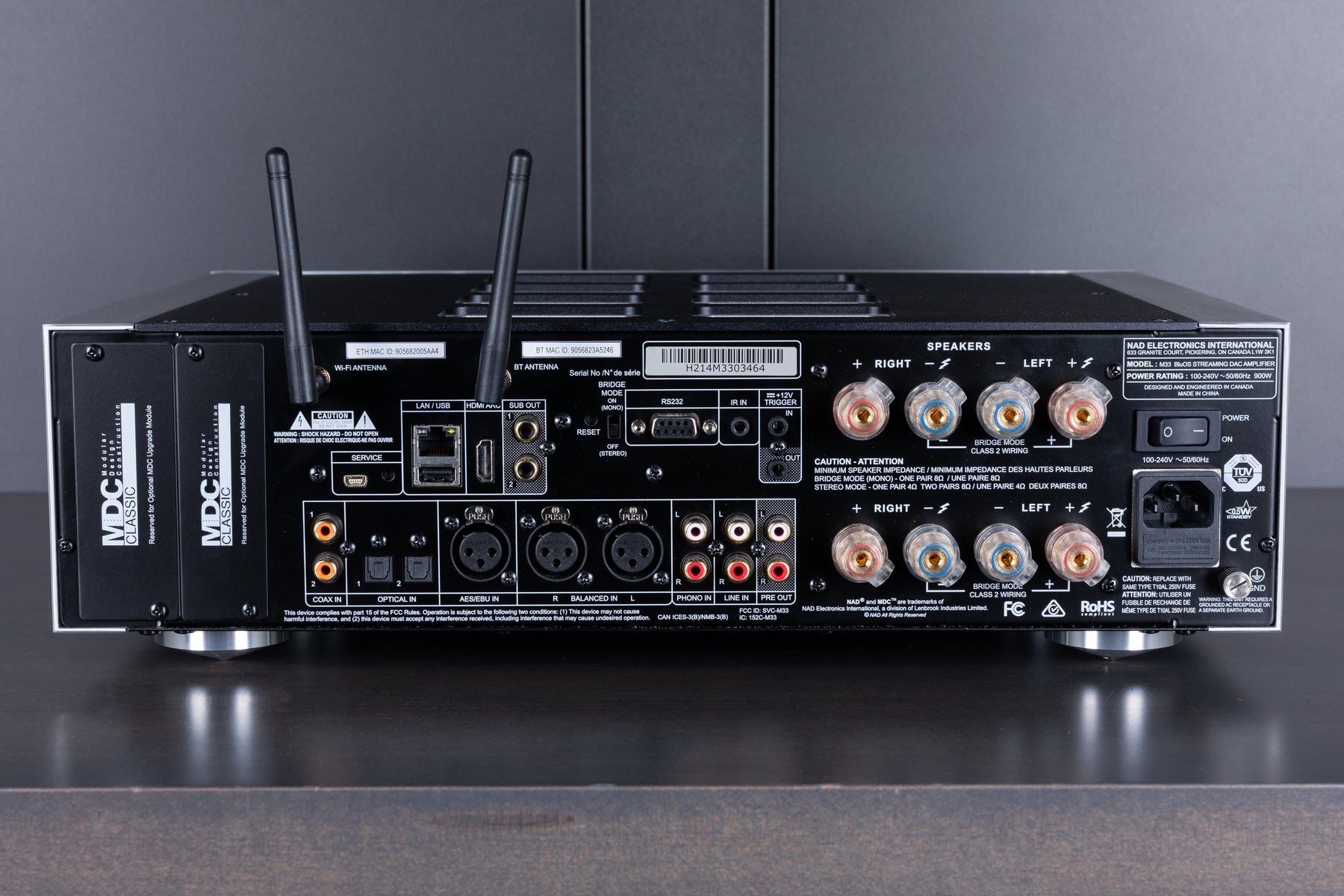

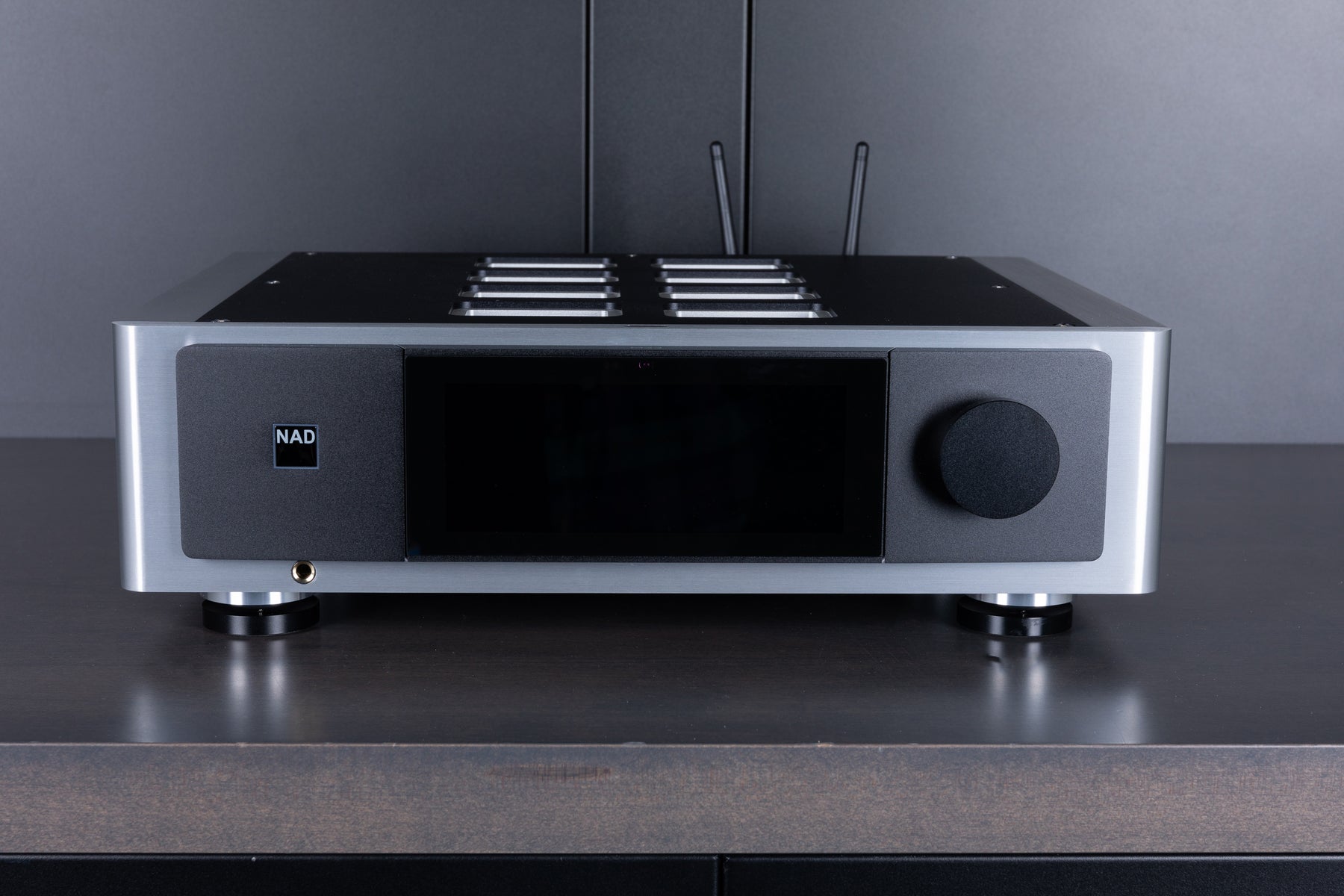

NAD M33
- Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven) | >200 W into 8 ohms | >380 W into 4 ohms
- Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD) | >700 W into 8 ohms
- Input sensitivity | 865 mV (ref. 200W 8 ohms, Volume maximum)
- THD (20 Hz – 20 kHz) | <0.003 % (1W to 200 W, 8 ohms and 4 ohms)
- Signal-to-Noise ratio | >98 dB (A-weighted, ref. 1 W out in 8 ohms) | >120 dB (A-weighted, ref. 200 W out in 8 ohms)
- Clipping power | >210 W (0.1 % THD 1 kHz 8 ohms)
- IHF dynamic power | 8 ohms: 260 W | 4 ohms: 520 W
- Peak output current | ≥25 A (in 1 ohm, 1 ms)
- Damping factor | >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
- Frequency response | ±0.2 dB (20 Hz -20 kHz) | -3 dB at 60 kHz


Preamplifier Specifications
- Line In
- Input Impedance (r and c) | 47kΩ/180pF
- Input Sensitivity | 280mV (ref. 500mV out, Volume Maximum)
- Maximum input level 20Hz-20Khz | 2 Vrms/8 Vrms (low sensitivity mode)
- Tone Controls | Treble: ±6 dB at 10kHz Bass: ±6 dB at 100Hz
- Max Output Signal | 4Vrms (ref. 0.1% THD)
- PreOut
- Maximum output level | 3.9 Vrms (ref. 0.1% THD)
- Signal-to-Noise ratio | >120 dB (A-weighted, ref. 2 V out)
- Output impedance | 100 ohms
- SubOut
- Maximum output level | 1.1 Vrms (ref. 0.1 % THD 100Hz)
- Signal-to-Noise ratio | >102 dB (20 Hz-20 kHz, ref. 1V out)
- THD+N | <0.005 % (refer 1.1 V 20 Hz-200 Hz)
- Output impedance | 680 ohms
- Phono
- Input sensitivity | MM: 1.2 mV | MC: 100 µV
- Input impedance (R and C) | MM: 56 kohms/100 pF | MC: 100 ohms/280 pF
- Signal to noise ratio (ref. 2 V Preout A-weighted) | MM: >92 dB | MC: >76 dB
- THD+N (ref 2V Preout 1kHz) | MM: <0.003 % | MC: <0.02 %
- RIAA response accuracy MM/MC | ±0.2 dB 20 Hz -20 kHz
- Headphones
- Output Impedance | 2.2ohms
- Output power | >100 mW/32 ohms


BlueOS Section
Audio
- Supported audio file format* | MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
- Supported high-resolution audio file format* | FLAC, MQA, WAV, AIFF
- Sampling rate | up to 192 kHz
- Bit depths | 16 – 24

Connectivity
- Network connectivity | Gigabit Ethernet RJ45 | Wi-Fi 5
- Supported network file share protocol | Server Message Block (SMB)
- USB | 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
- Bluetooth quality | Support for aptX® HD
- Bluetooth connectivity | Two-Way (Receive and Headphone modes)

User Interface
- Supported operating system** | Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions**
- Mobile Application | Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone, and iPod), Android devices, Kindle Fire and Windows or macOS desktops
- Front panel | 7-inch full-color touch screen
- Remote control | HTRM 2 remote control

Power Consumption
- Auto Standby ON | <0.5W
- Idle Power | <40W
- Dimensions and Weight:
- Dimensions WxHxD ** | 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8”)
- Net Weight | 9.7kg (21.4lb)
- Shipping Weight | 18.4kg (40.6 lb)

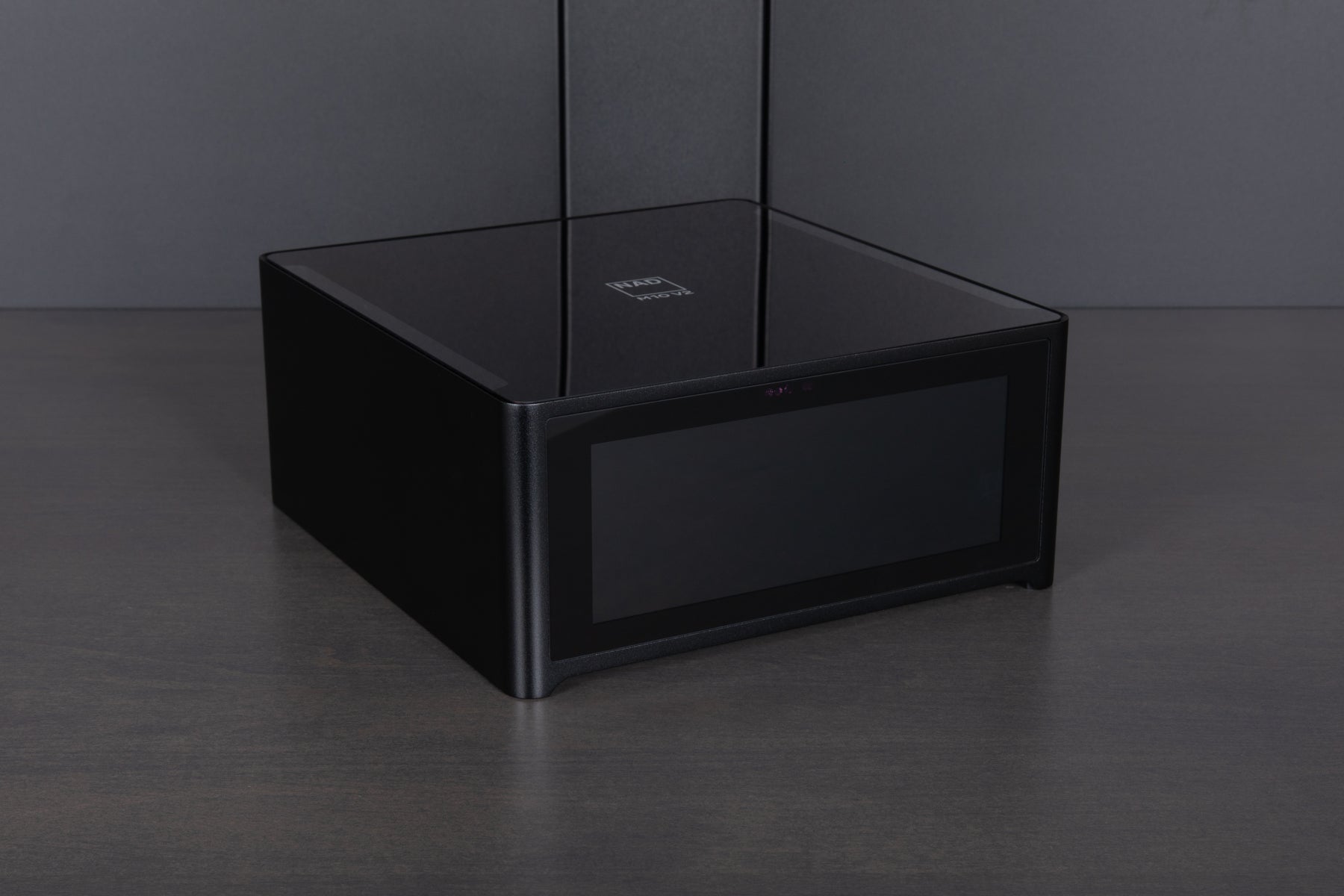

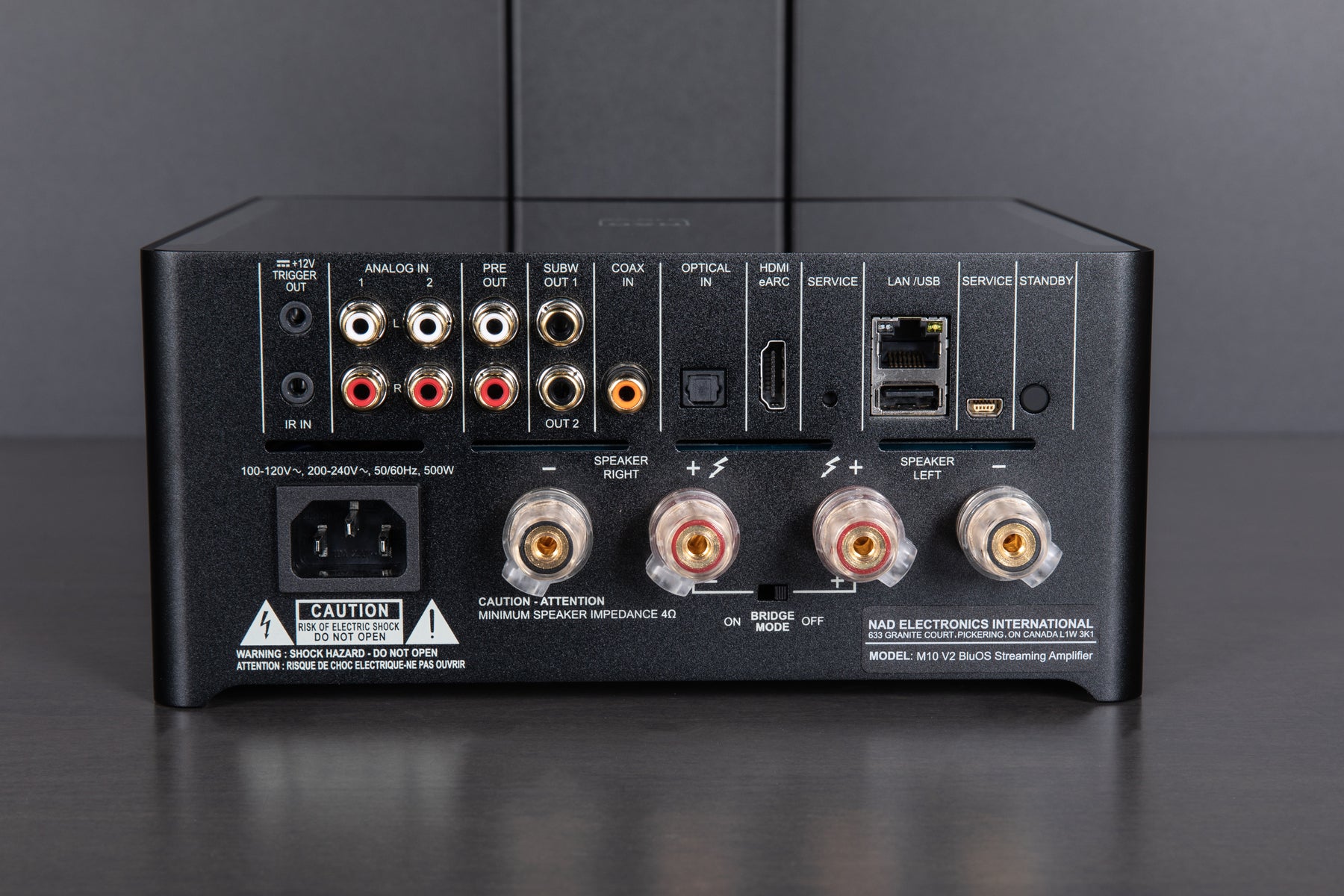

NAD M10
- 100 watts x 2 channels into 8 or 4 ohms (20-20,000 Hz) at 0.03% THD
- 4-ohm stable for use with a wide range of speakers
- 32-bit/384kHz ESS Sabre DAC built-in
- Plays high-resolution music (up to 24-bit/192kHz resolution) | Supports high-res MQA, FLAC, WAV, and AIFF files
- Color touchscreen display with proximity sensor
- Supports voice control with Amazon Alexa
- BluOS compatibility for further expansion with Bluesound wireless speakers
- Built-in two-way Bluetooth® with aptX HD for wirelessly streaming music from a compatible device or streaming to a set of Bluetooth headphones
- Connects to your home network via built-in dual-band Wi-Fi® or wired Ethernet for music streaming | Includes support for Amazon Music Unlimited, Spotify®, TIDAL, Napster, Deezer, Qobuz and more (subscription required for some services) | Free internet radio from TuneIn Radio and iHeartRadio
- Apple® AirPlay® 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music (via future firmware update) | Free BluOS controller app for iOS®, Android, Windows, and Mac OS X
- Supports Dirac Live room correction

Connections:
- 2 analog stereo RCA audio inputs
- Digital inputs: 1 Toslink optical, 1 coaxial
- HDMI ARC input (2-channel PCM only; does not support Dolby Digital or DTS)
- USB (Type A) port for connecting a thumb drive or mass storage device
- Stereo RCA preamp output for connecting a separate amplifier
- 2 mono RCA outputs for connecting powered subwoofers
- Binding post speaker connectors
- IR input and 12-volt trigger in/out
- Dimensions and warranty:
- 8-1/2"W x 3-15/16"H x 10-1/4"D
- Weight: 11 lbs.
- Warranty: 3 years

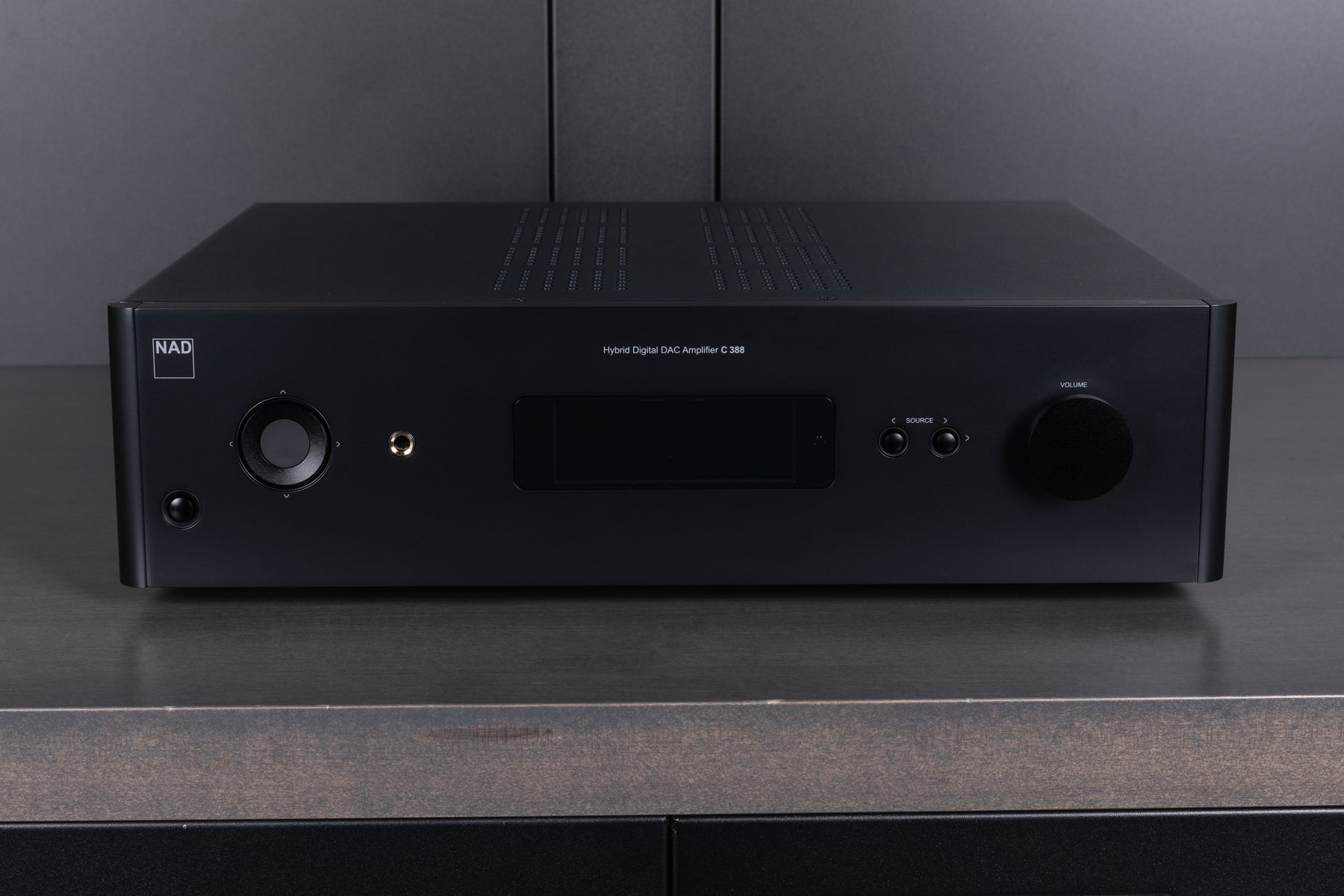

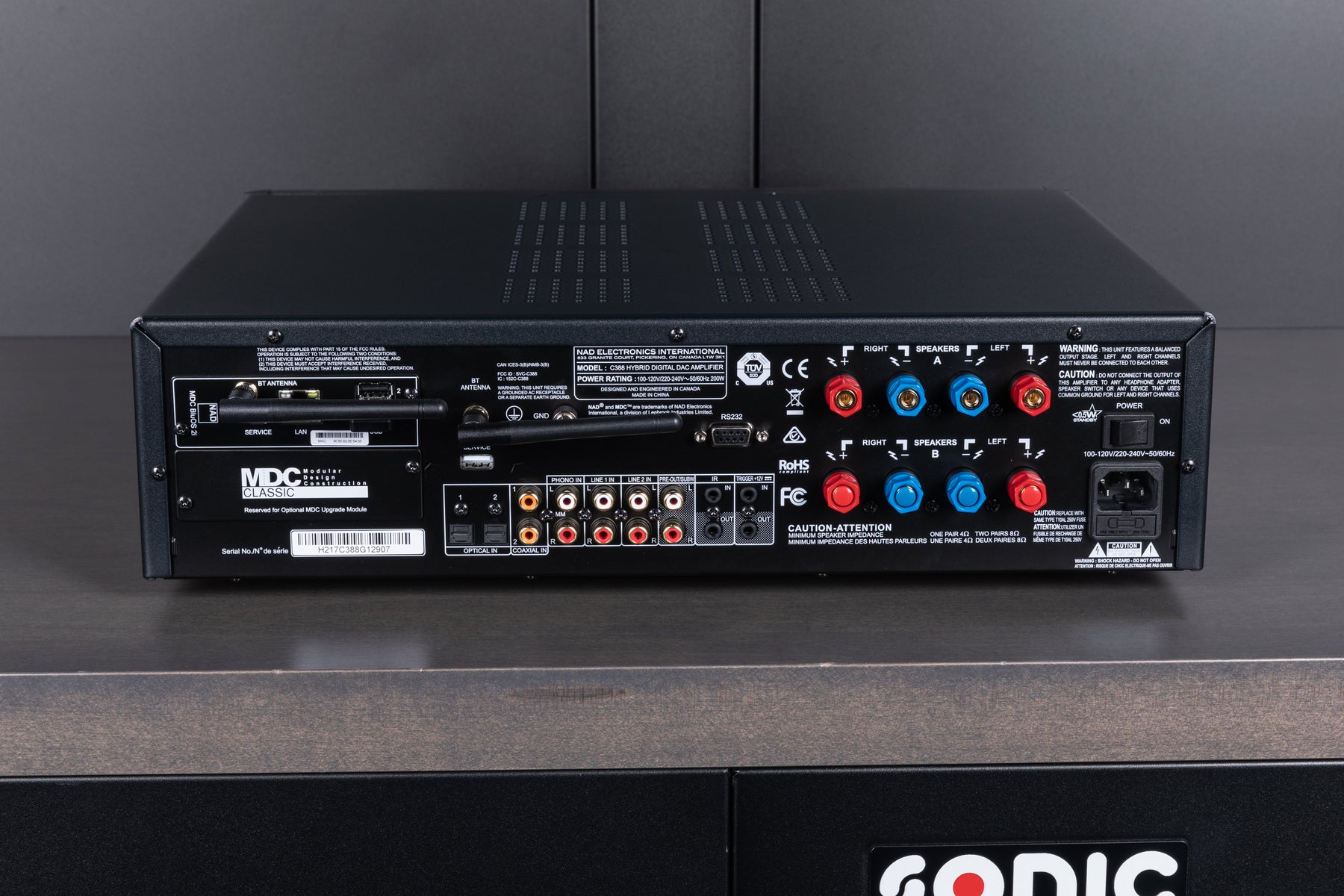

NAD C388
- 150 watts x 2 channels into 8 or 4 ohms (20-20,000 Hz) at 0.009% THD
- 4-ohm stable for use with a wide range of speakers
- Class D Asymmetrical PowerDrive amplifier design
- Connects to your home network via wired Ethernet or Wi-Fi for music streaming
- Apple® AirPlay® 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music (via future firmware update)
- BluOS compatibility for further expansion with Bluesound wireless speakers
- Compatible file types: MQA, MP3, AAC, WMA, OGG, WMA-L, FLAC, ALAC, WAV, and AIFF
24-bit/192kHz digital-to-analog converter for high-performance playback of digitally connected sources such as a CD player
- Built-in Bluetooth for wireless music streaming from a compatible device or wireless headphone listening
- Independent built-in high-output headphone amplifier
- 2 MDC (Modular Design Construction) slots for adding additional capabilities and features (one slot has the pre-installed BluOS module)
- Remote control
- Compatible with leading third-party control systems like Control4, Crestron, RTI, and URC

Connections:
- Ethernet port for wired connection to a home network
- USB (Type A) input for connecting USB thumb drives and compatible external hard drives
second USB (Type A) input for connecting included - Wi-Fi dongle
- USB mini (Type B) input for service only
- Four digital audio inputs (2 optical/2 coaxial)
- Three stereo RCA audio inputs, including a phono input (for use with a moving magnet cartridge)
- Stereo RCA preamp output for connecting a separate amplifier or powered subwoofer
- RS-232C port for use with external controllers
- IR in/out and 12-volt triggers
- Full-size headphone jack
- Two pairs of binding post speaker connectors for A and B speakers
- Detachable power cord
- Dimensions and warranty:
- Signal-to-noise ratio: 95 dB
- 17-1/8"W x 4-3/4"H x 16-5/8"D (6-3/8"H w/antenna)
- Warranty: 2 years


Subwoofer

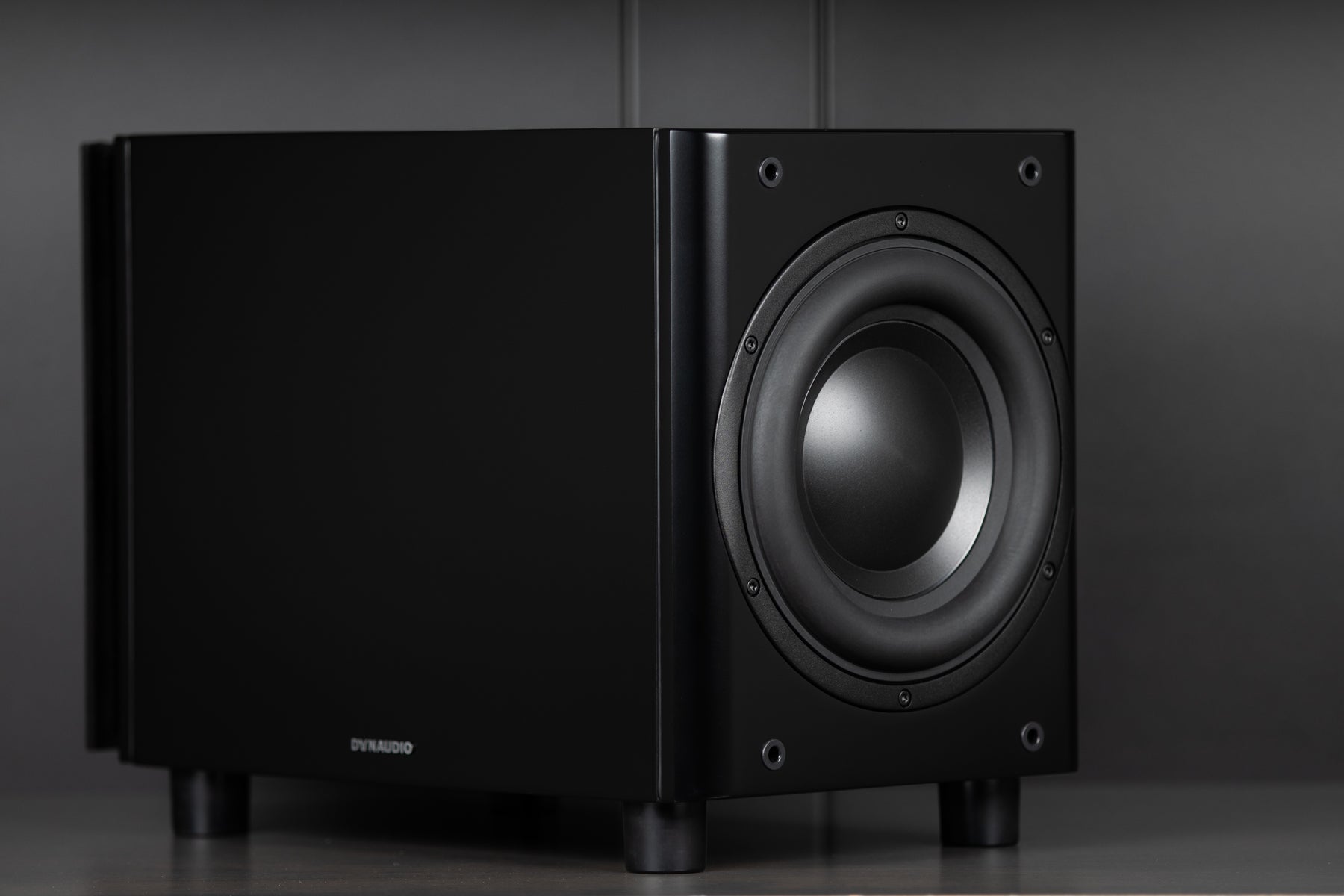

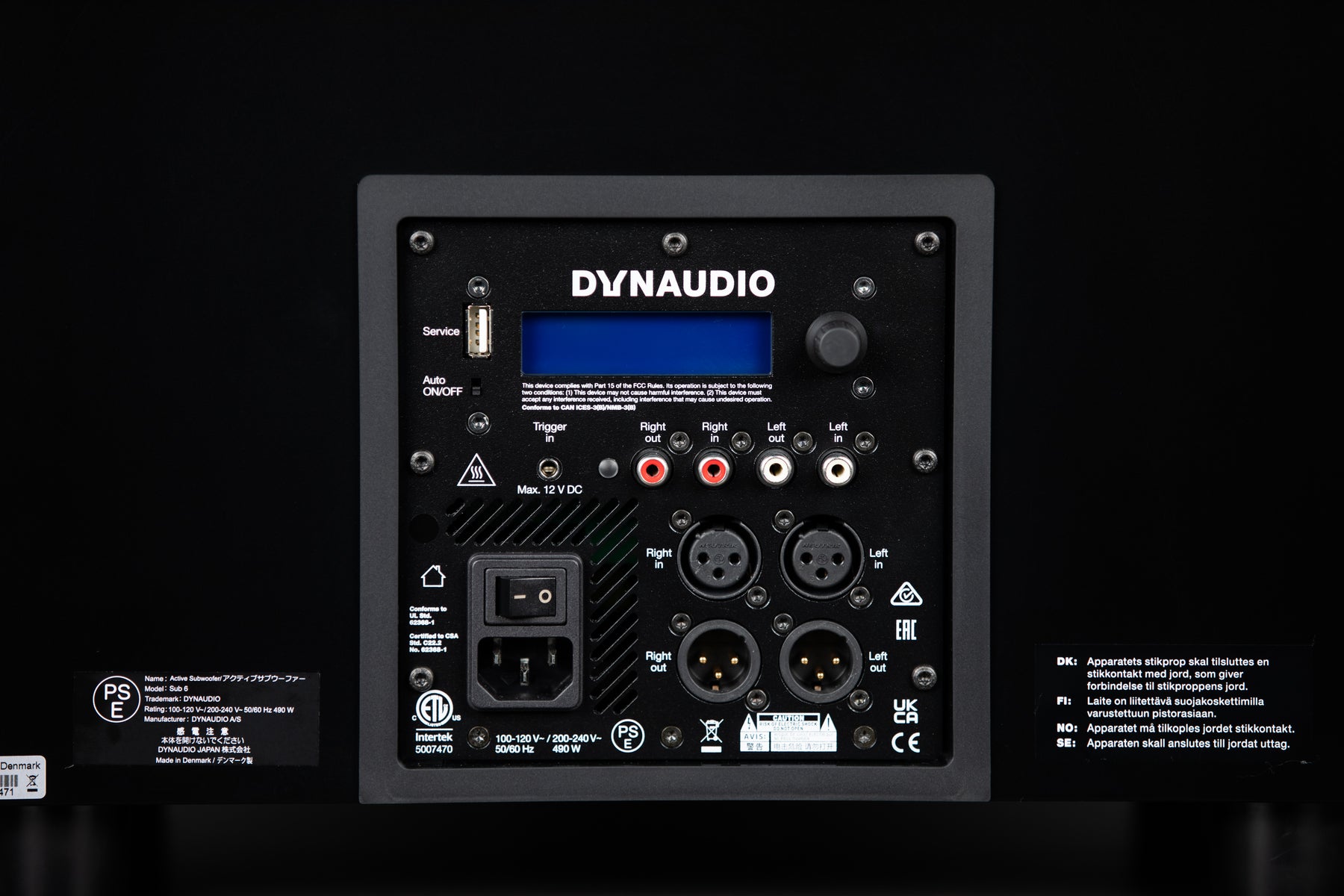

Sub 6
- System: Twin opposed driver, closed box, active DSP subwoofer
- Analog inputs: 2 x balanced XLR, 2 x unbalanced - RCA phono
- Analog outputs: 2 x balanced XLR, 2 x unbalanced RCA phono
- Frequency response (±3dB): 16Hz – 230Hz
- Auto ON/OFF: Yes
- Box Principle: Sealed
- Low Pass Filter: Adjustable/preset
- Phase Adjustment: 0/180 degrees
- Woofer: 2 x 23cm MSP + hybrid drive
- Amplifier power: 500W
- AC power input: 100 - 120V/220 - 240V 50/60Hz
- Standby power consumption: <0.5W
- Maximum power consumption: 490W
- Weight: 21.5kg / 45.2lb
- Dimensions (W x H x D): 447 x 300 x 268mm
- Dimensions with feet /grille (W x H x D): 470 x 333 x 268mm

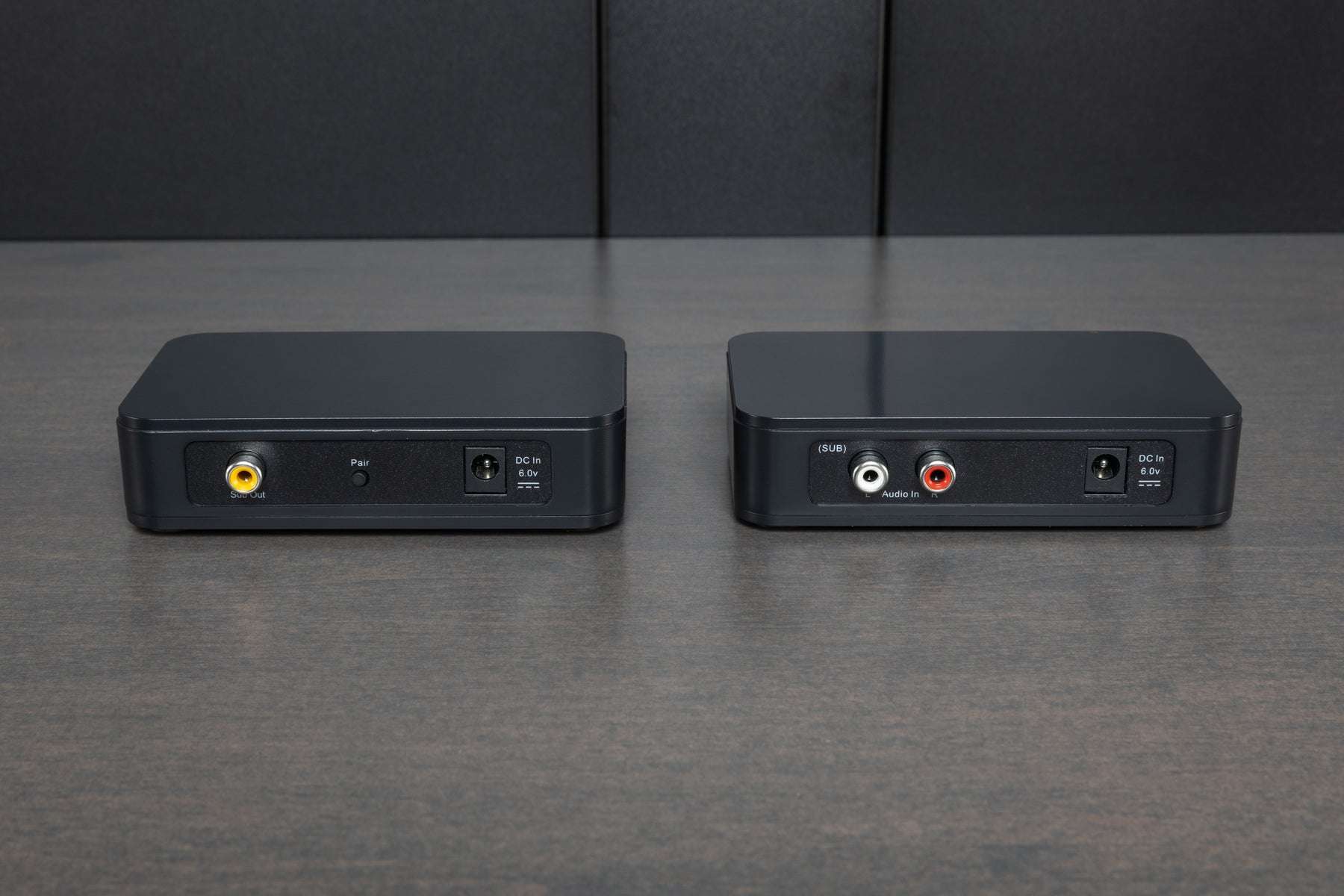

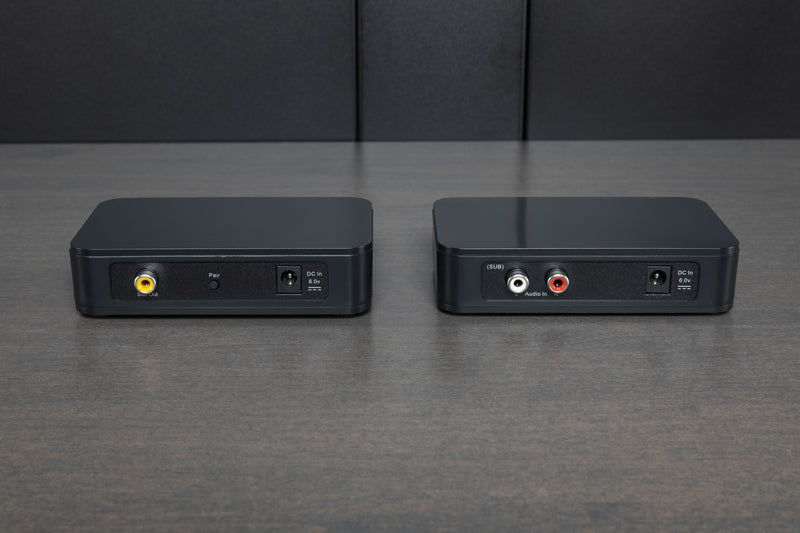

OSD Audio Nero Wireless Subwoofer Kit (if you choose wireless)
- 5.8 GHz operating frequency for reliable bass audio
- Upgraded chip set for reliability and a near-zero delay
- Up to 150 ft operation distance between transmitter and receiver (line of sight).
- Audio Output Level: 2V
- Frequency Response: 18Hz-22KHz
- Audio Distortion: <1%
- Signal to Noise Ratio: >80dB


Cables and Wiring

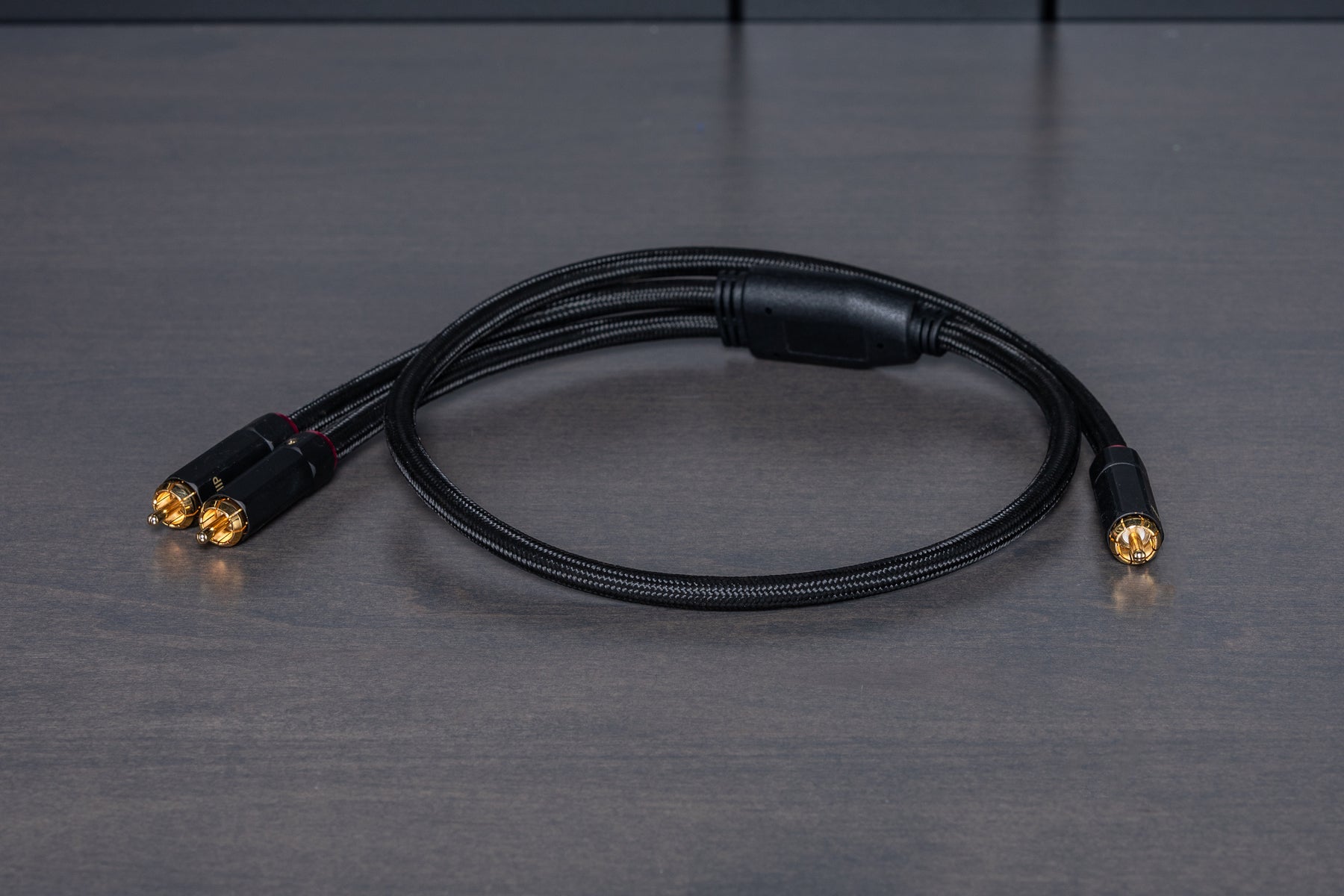

- Monoprice Single Male to Dual Male - RCA Y-Adapter
- Gold plated RCA male connectors
- Two channels for audio on left and right speakers
- 97% pure oxygen-free copper conductor
- Double shielded with copper braiding
- 22 pF per foot capacitance
- 75 ohm impedance

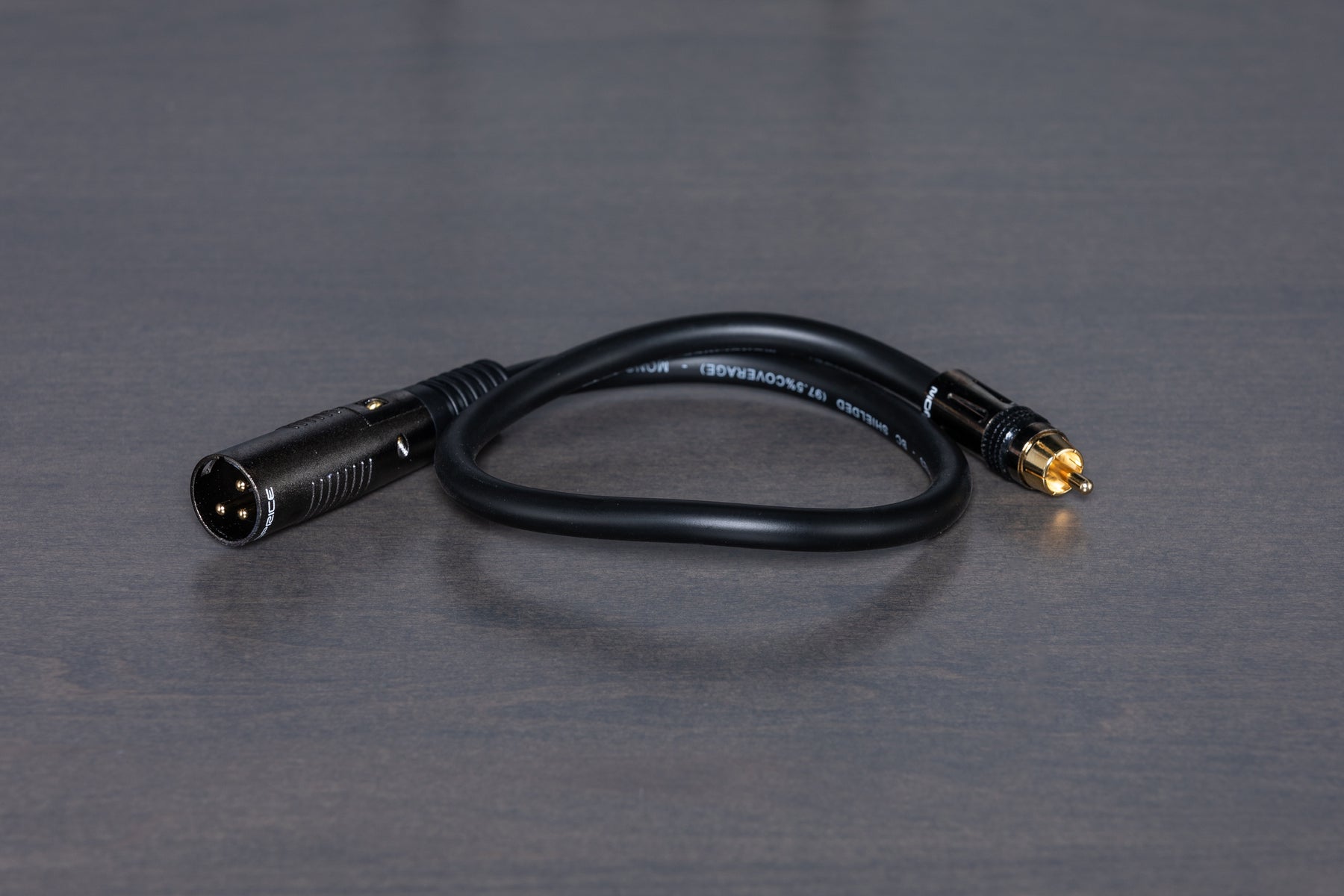

- Monoprice Premier Series XLR Male to RCA Male
- 16AWG stranded copper wire conduits
- 97.5% shielded balanced connections
- Gold plated connectors
- Metallic graphite-colored connector housings
- Molded strain relief boots

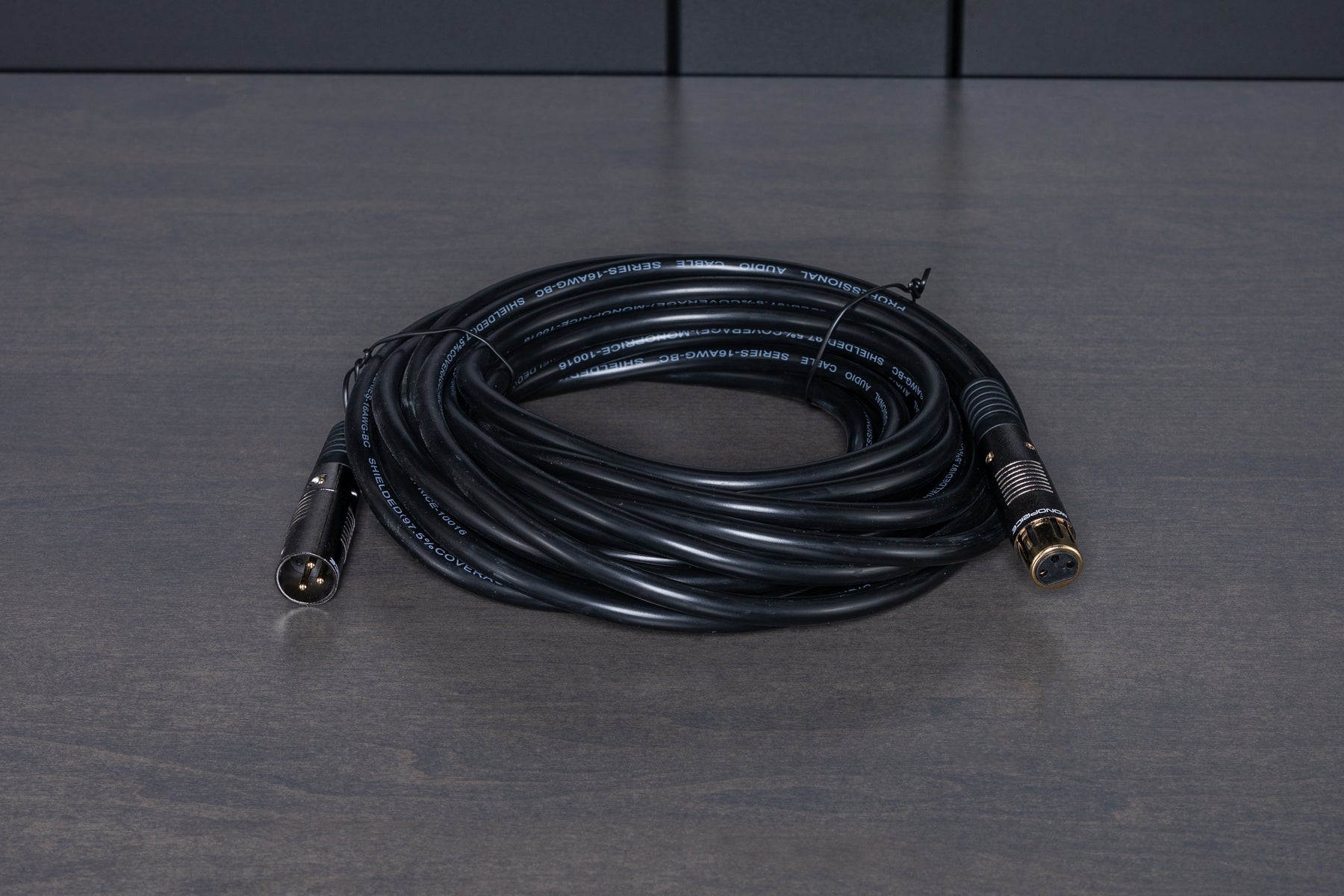

25’ Monoprice Premier Series XLR Cable
- 16AWG Stranded Copper Wire Conduits
- 97.5% Shielded Balanced Connections
- Gold Plated Connectors

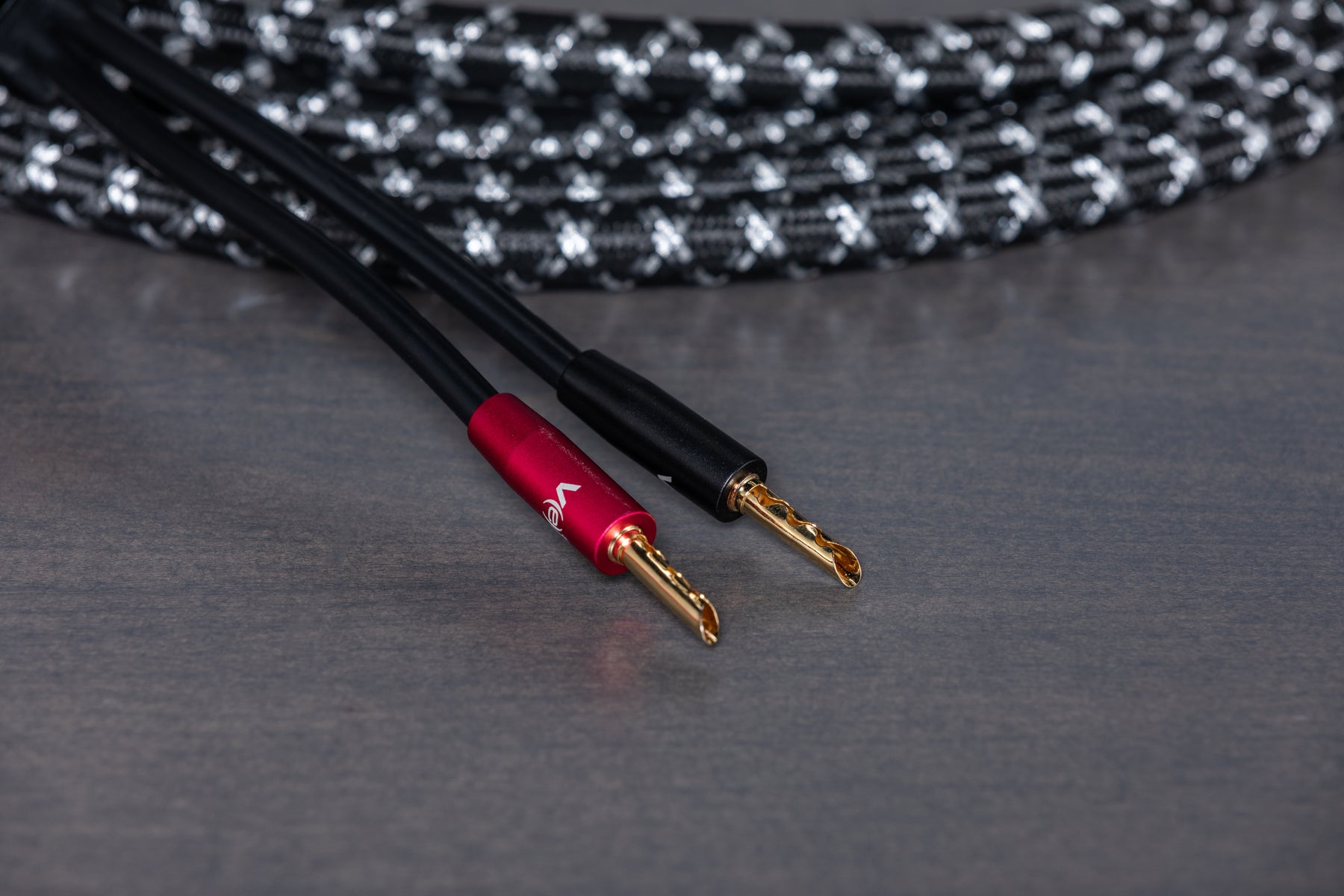

- Metallic graphite-colored connector housings
- Molded strain relief boots

Ships from OGHQ Warehouse. Shipping costs are calculated at checkout. Our audio solutions will be fulfilled as products are available, so shipments might be delayed. Audio products are subject to a 15% restocking fee.


ETA Information:

In Stock and Ready to Ship
