Shipping
Regular price $5,270.00
/

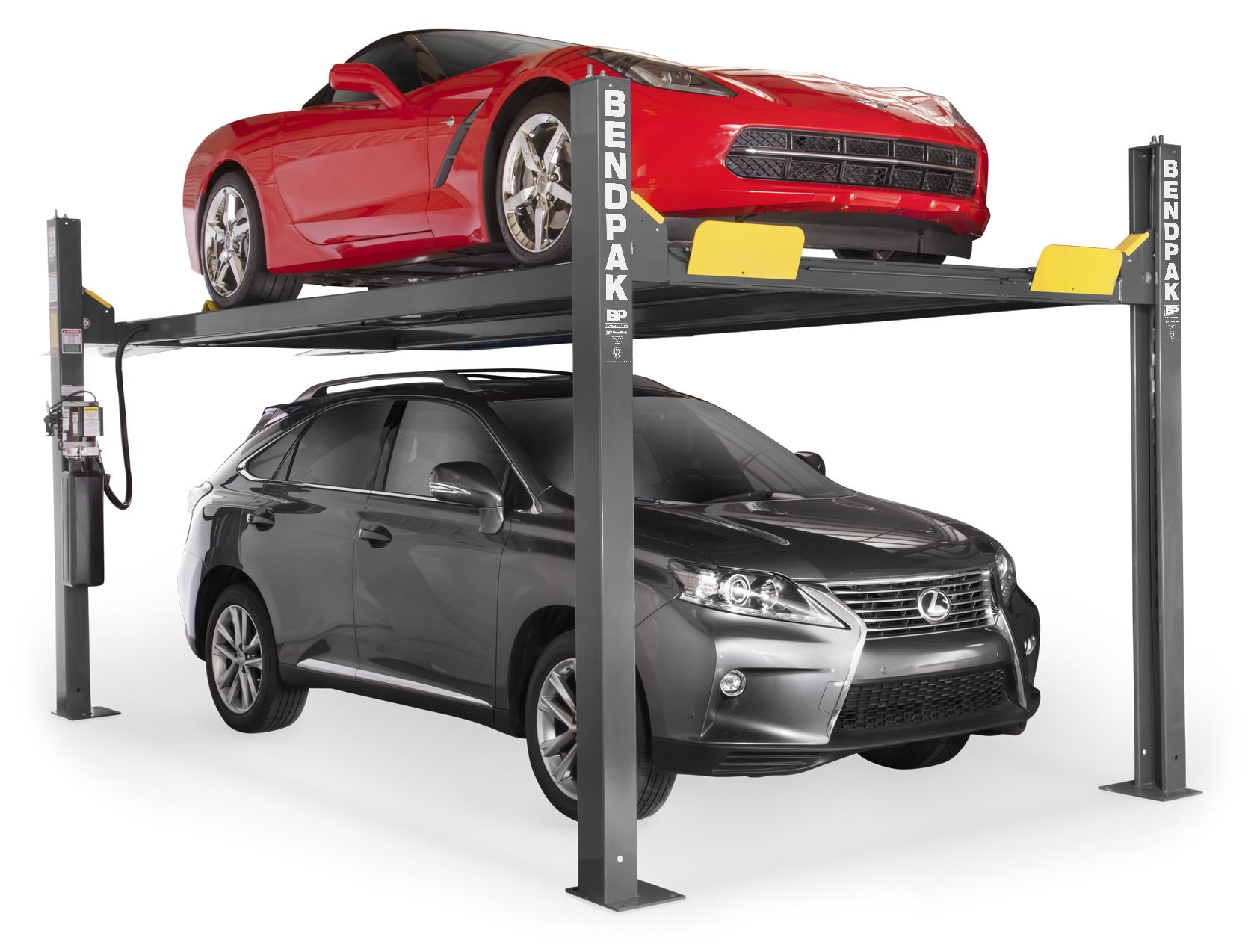

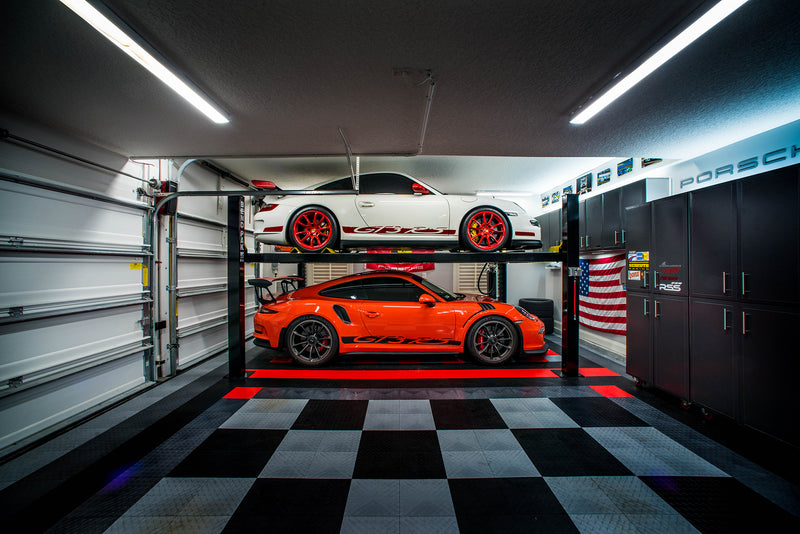

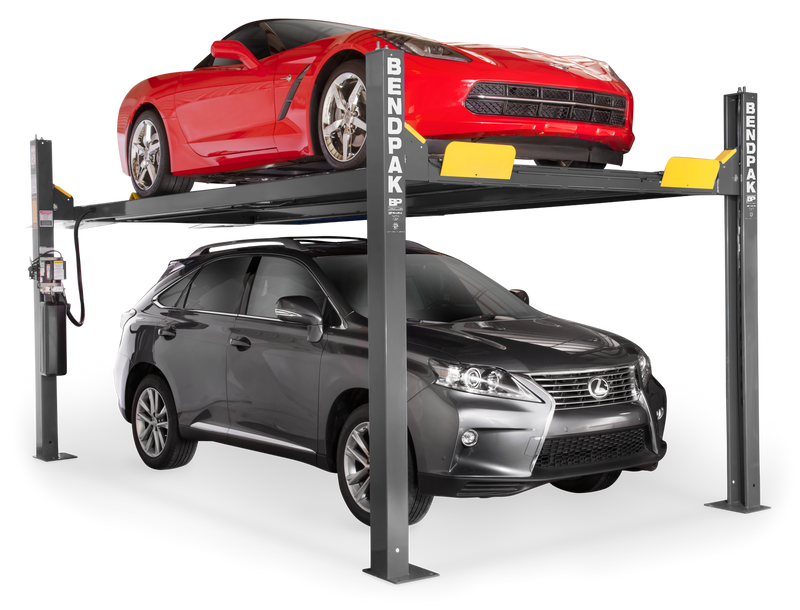

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they're availableThe HD-9XW is great for those looking to add some extra car storage in their garage. It also has a low deck runway of 4.5" and long approach ramps to help you not scrape the crap out of your lowered car when putting it on the lift.

Features & Specifications

  • Features
    • 9,000-lb. maximum lifting capacity
    • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
    • Freestanding design
    • High-rise

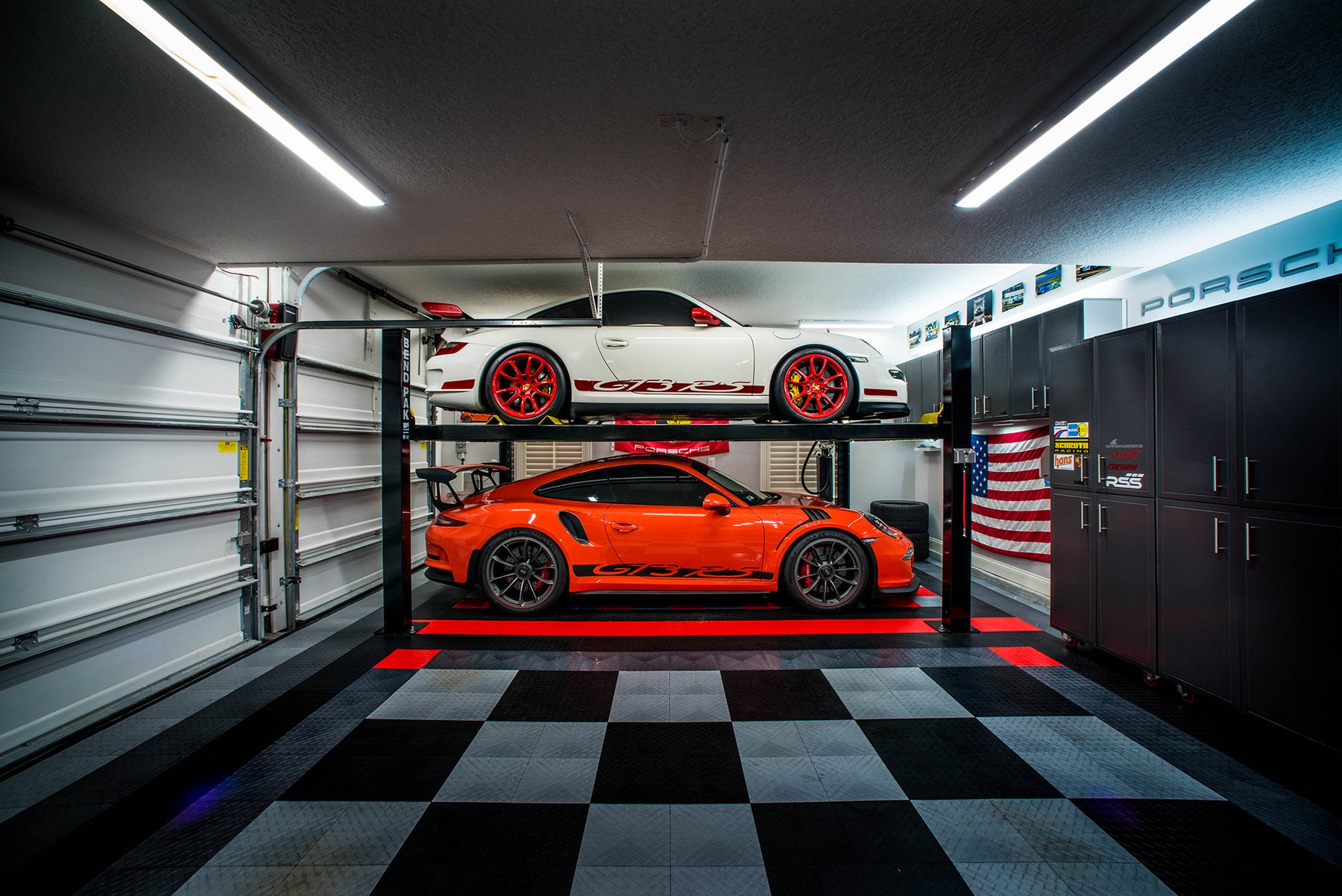

    • Perfect for parking, storage and service
    • Runways accommodate narrow and standard vehicles
    • Runways include rail-kit for optional accessories
    • Electric-hydraulic power system

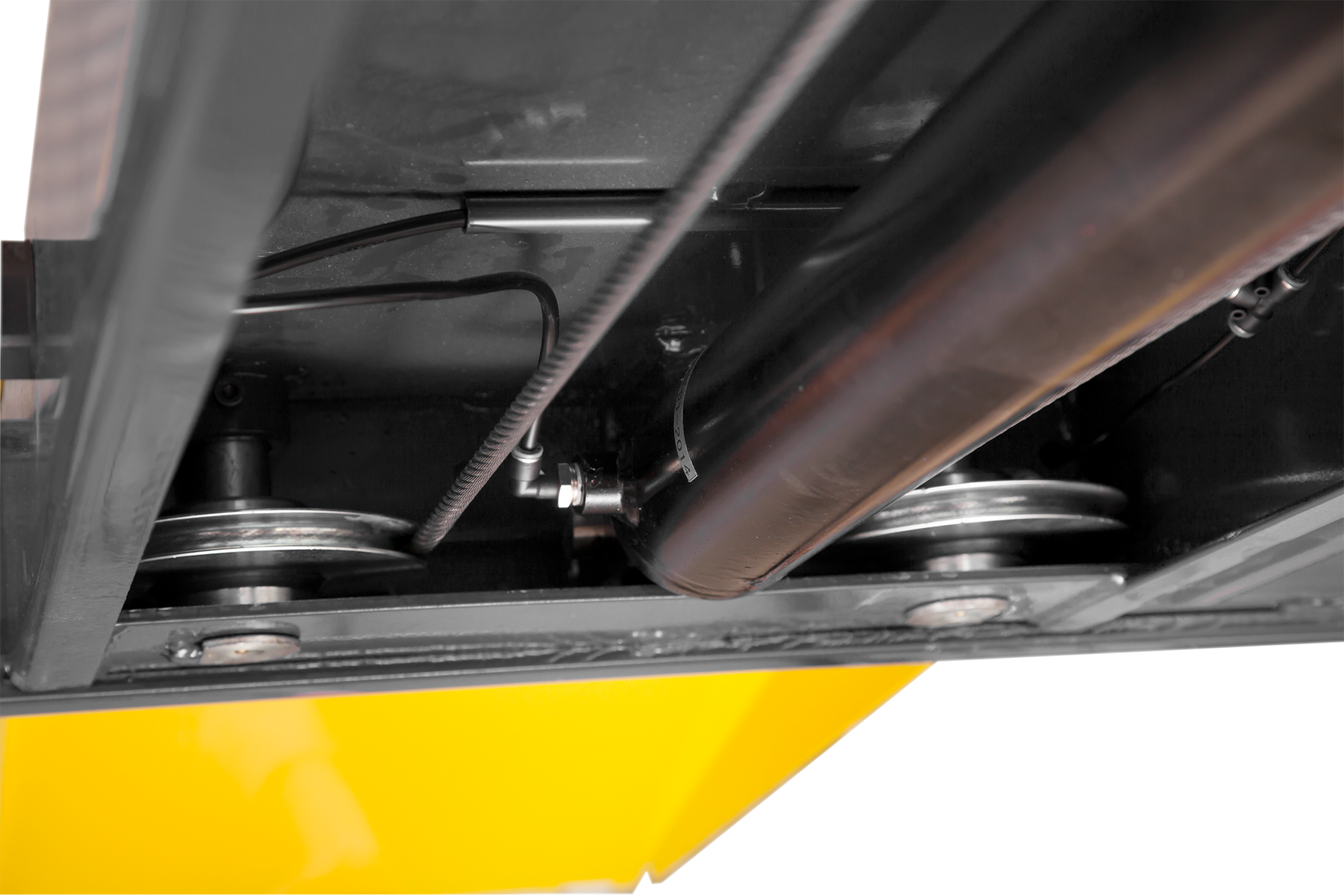

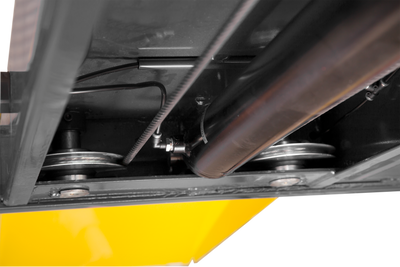

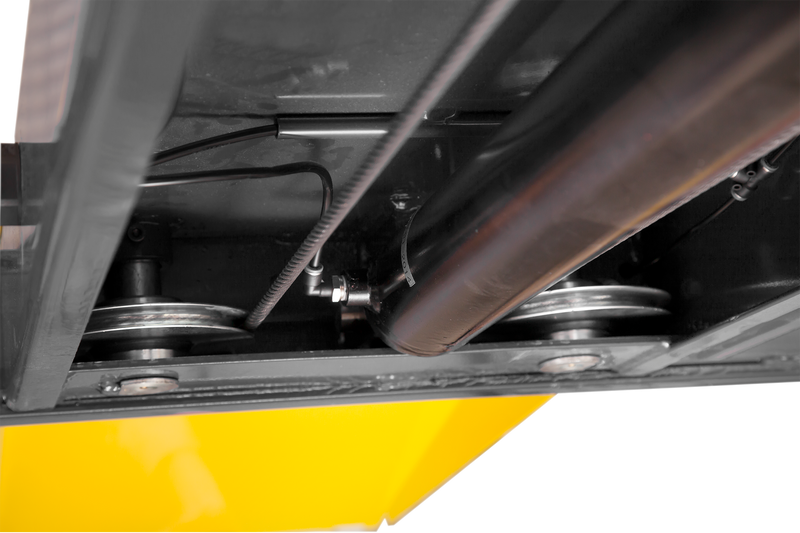

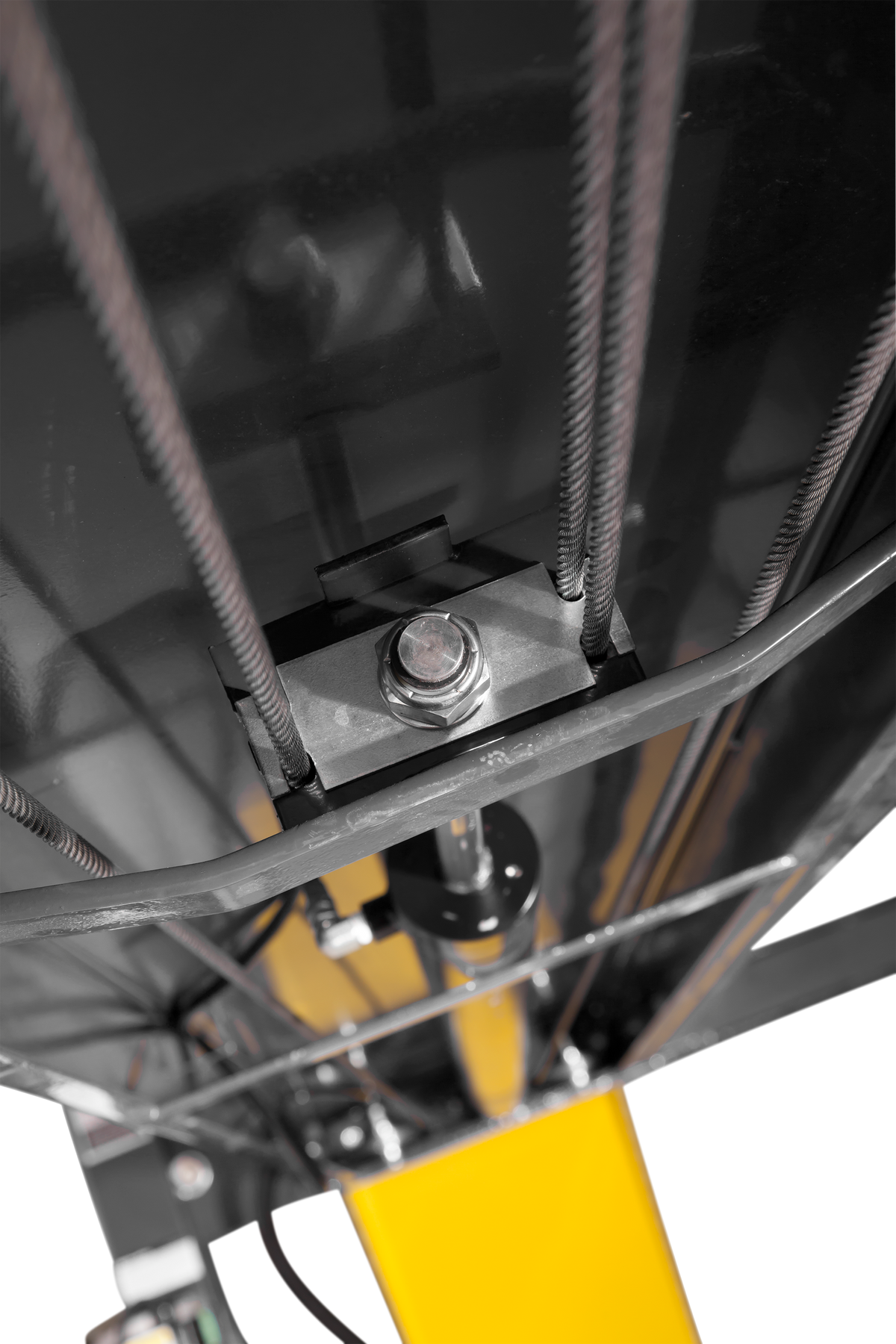

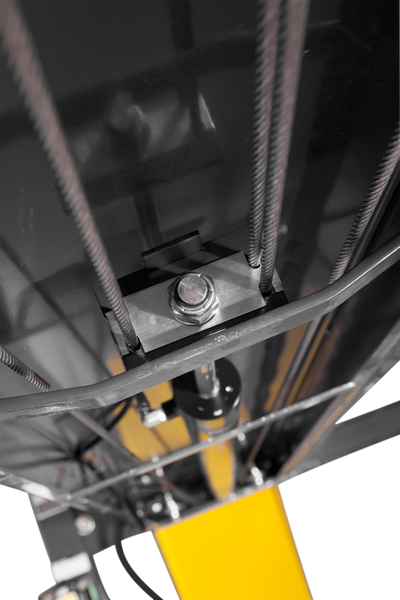

    • Single hydraulic cylinder mounted underneath runway

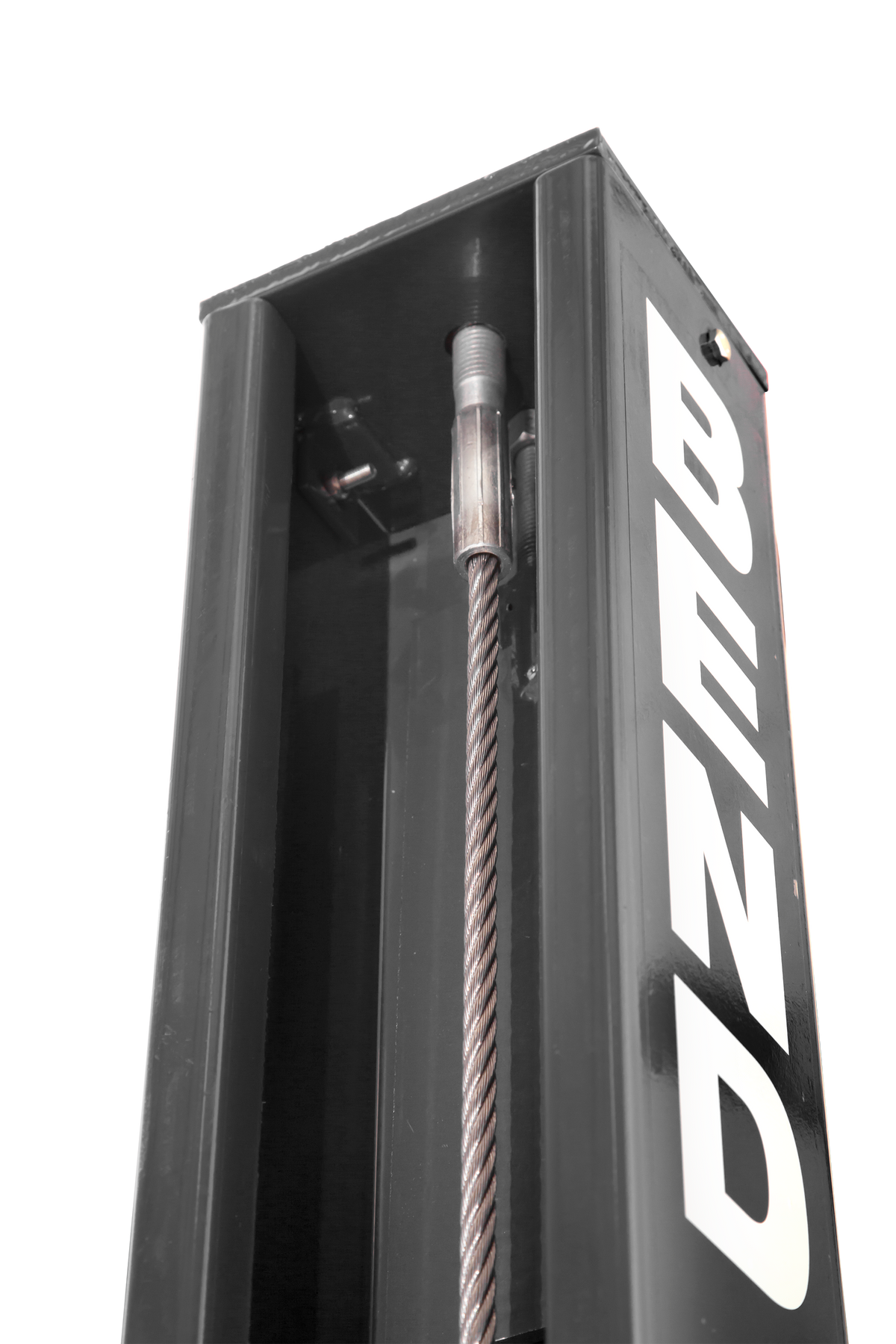

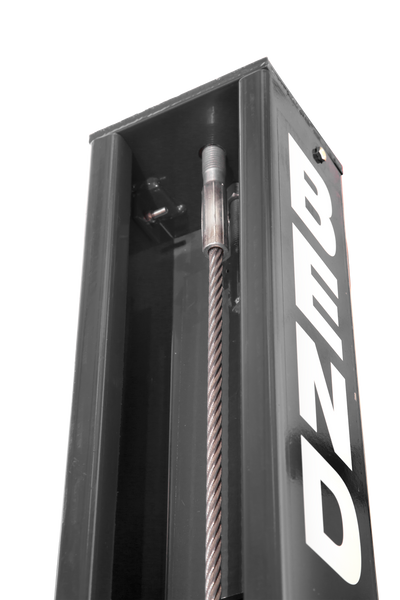

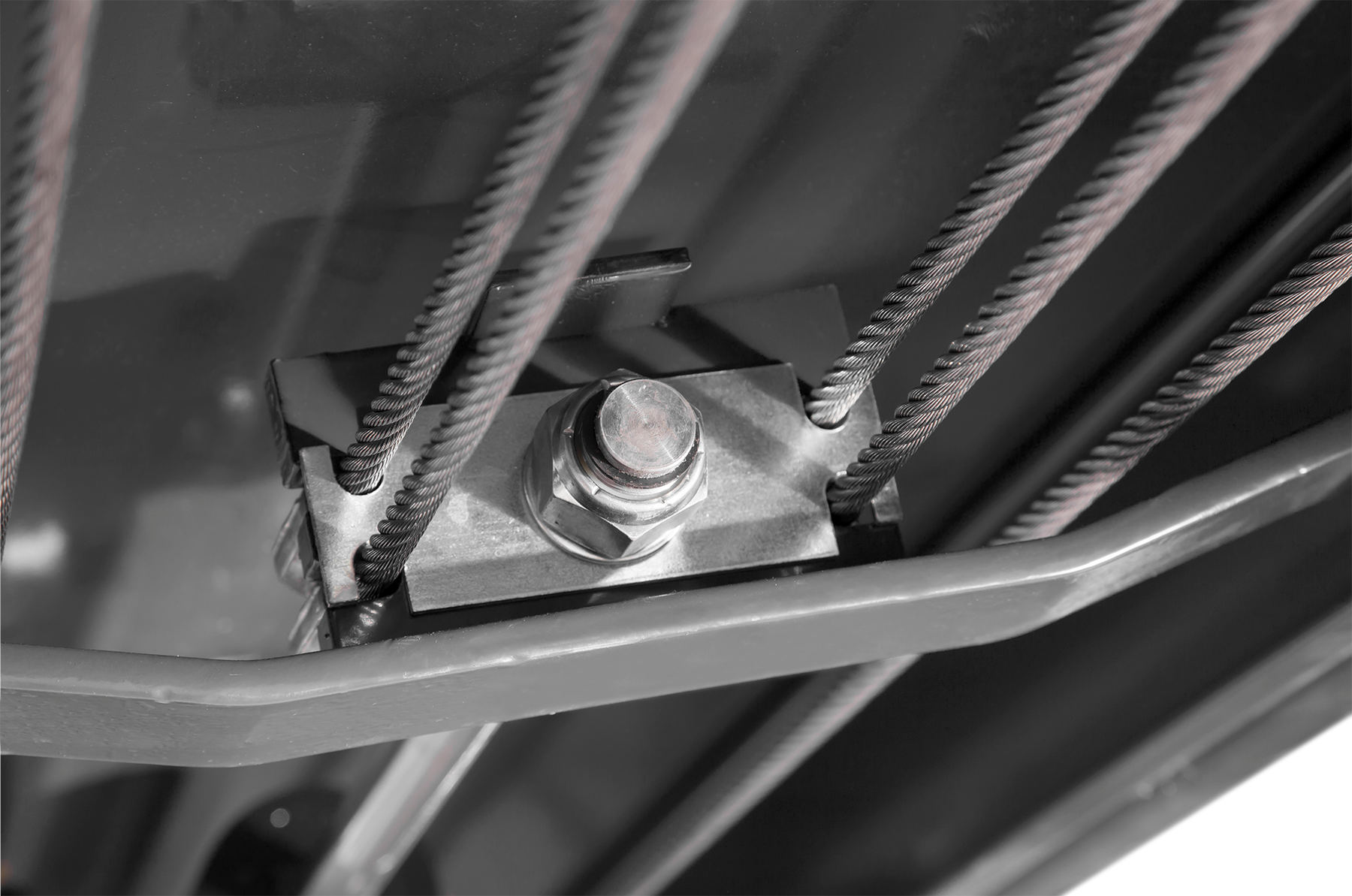

    • Fully enclosed lifting cables, safety locks and sheaves
    • Internal anti-sway slider blocks in each column

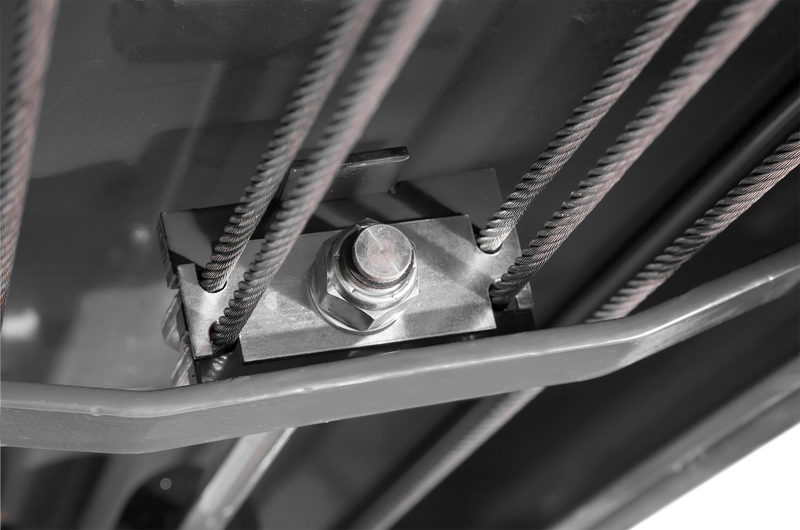

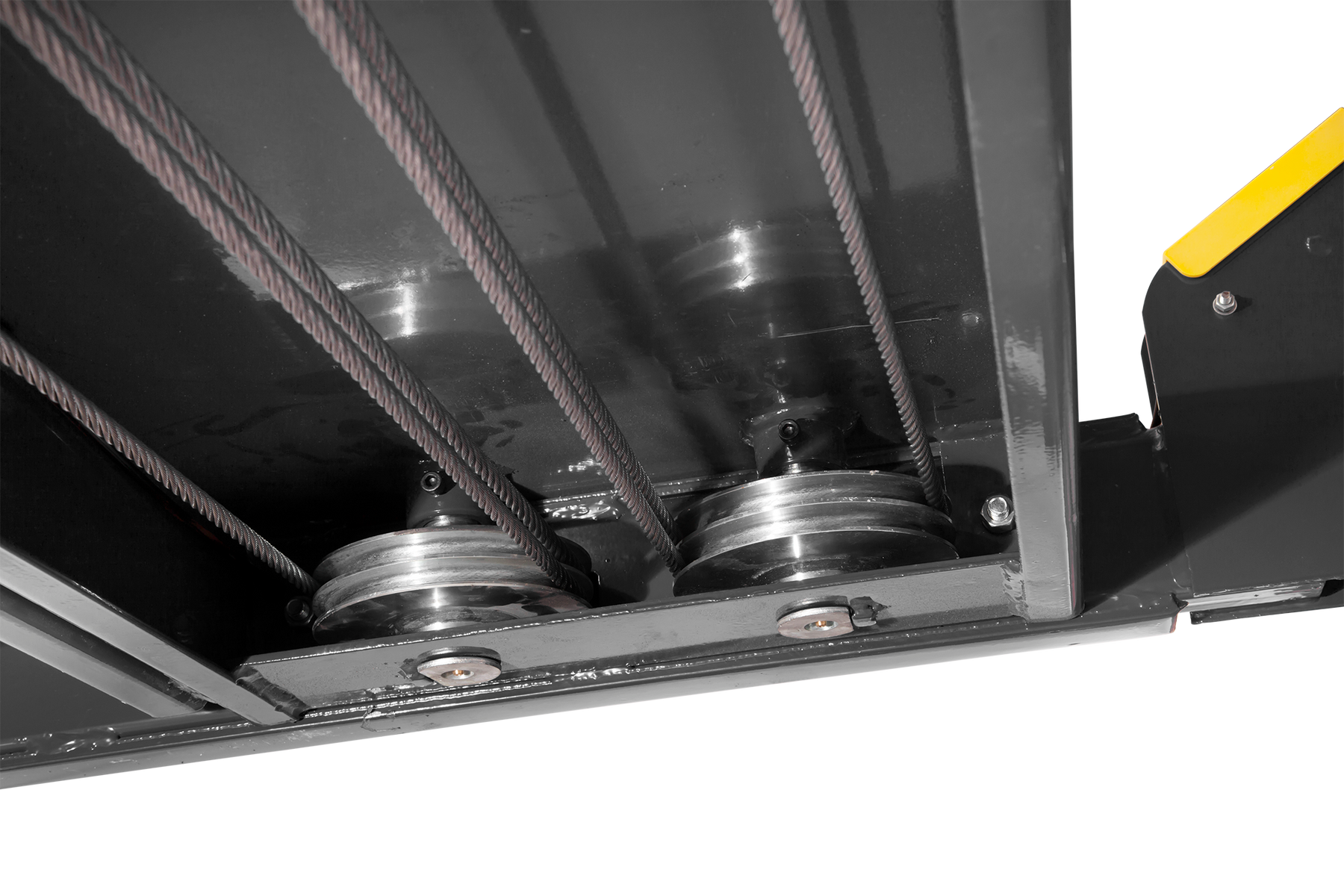

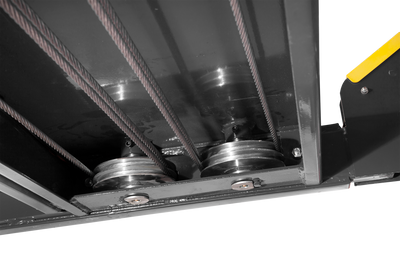

    • Oversized self-lubricating cable rollers
    • Features heavy-duty 3/8" aircraft cable
    • Rugged 1.25" roller axles

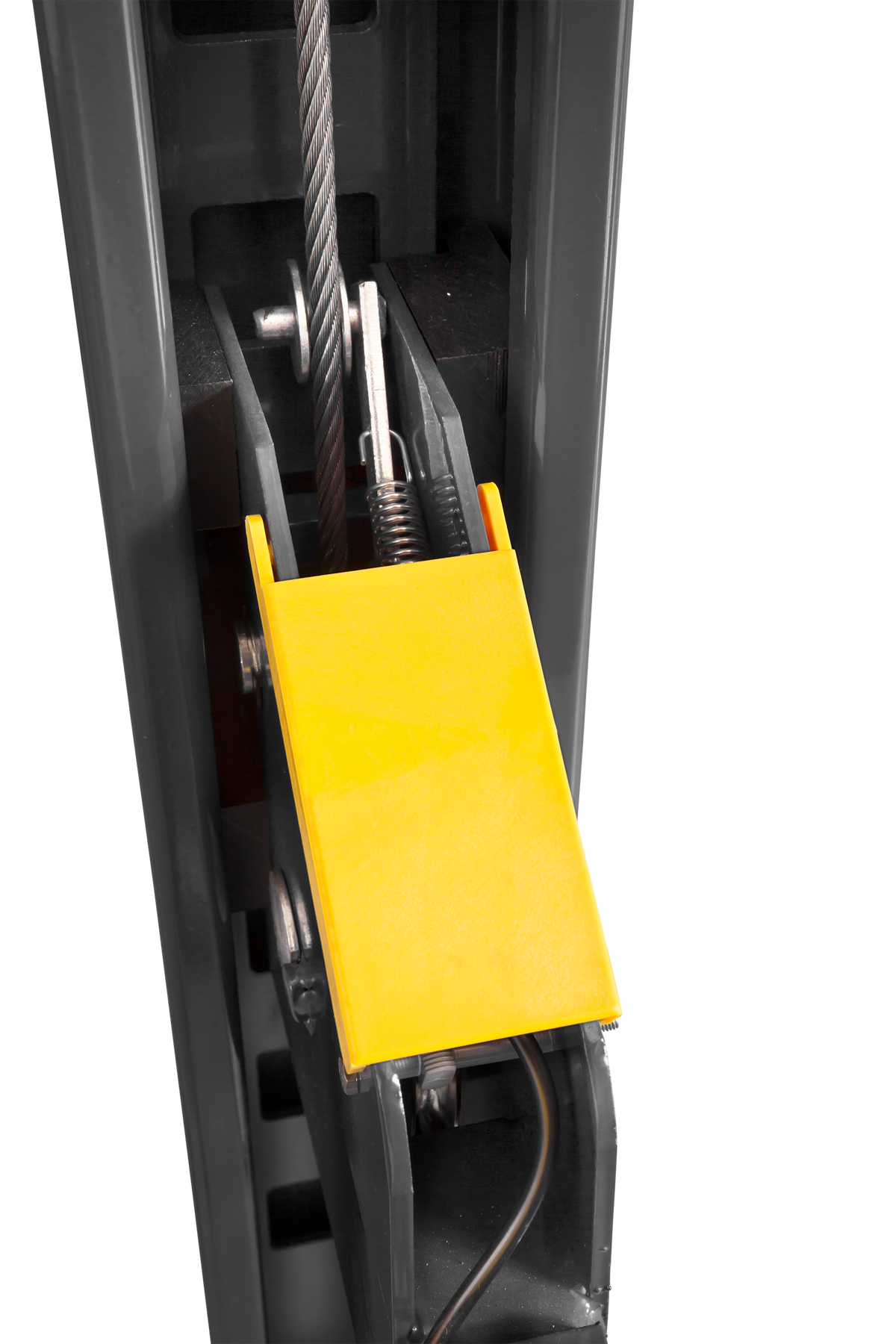

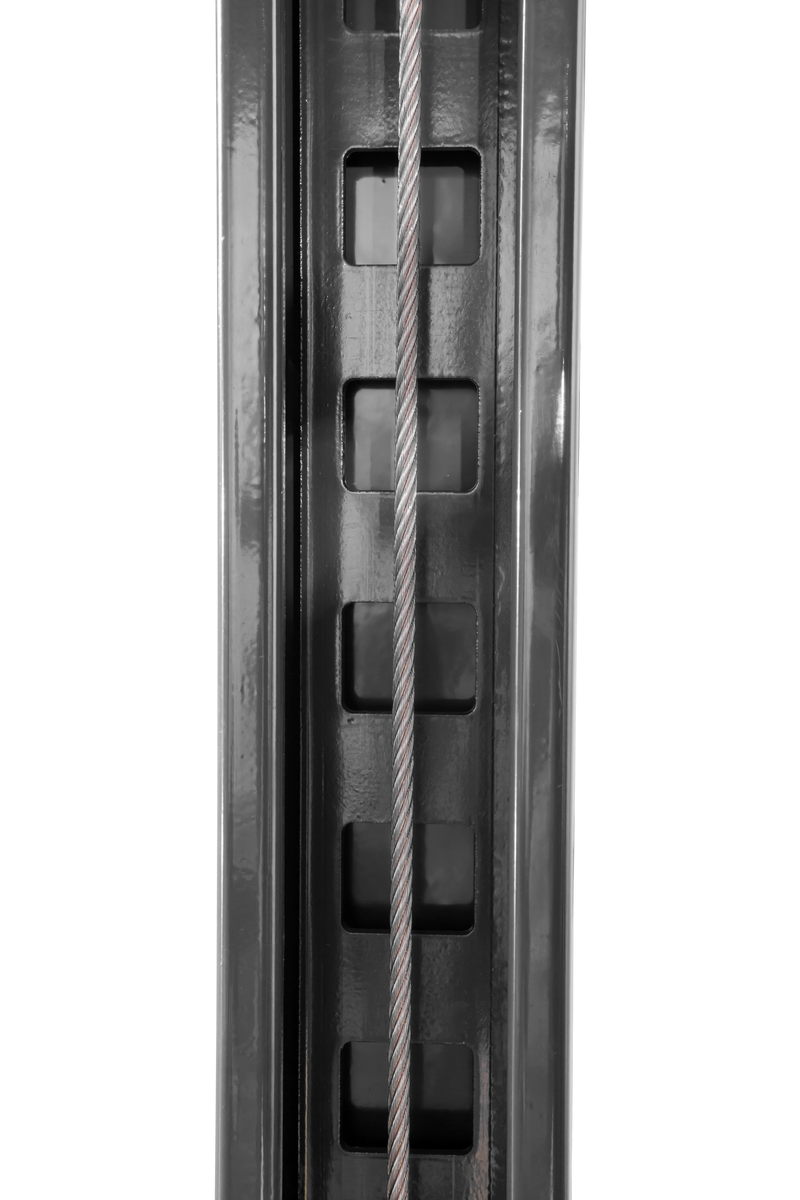

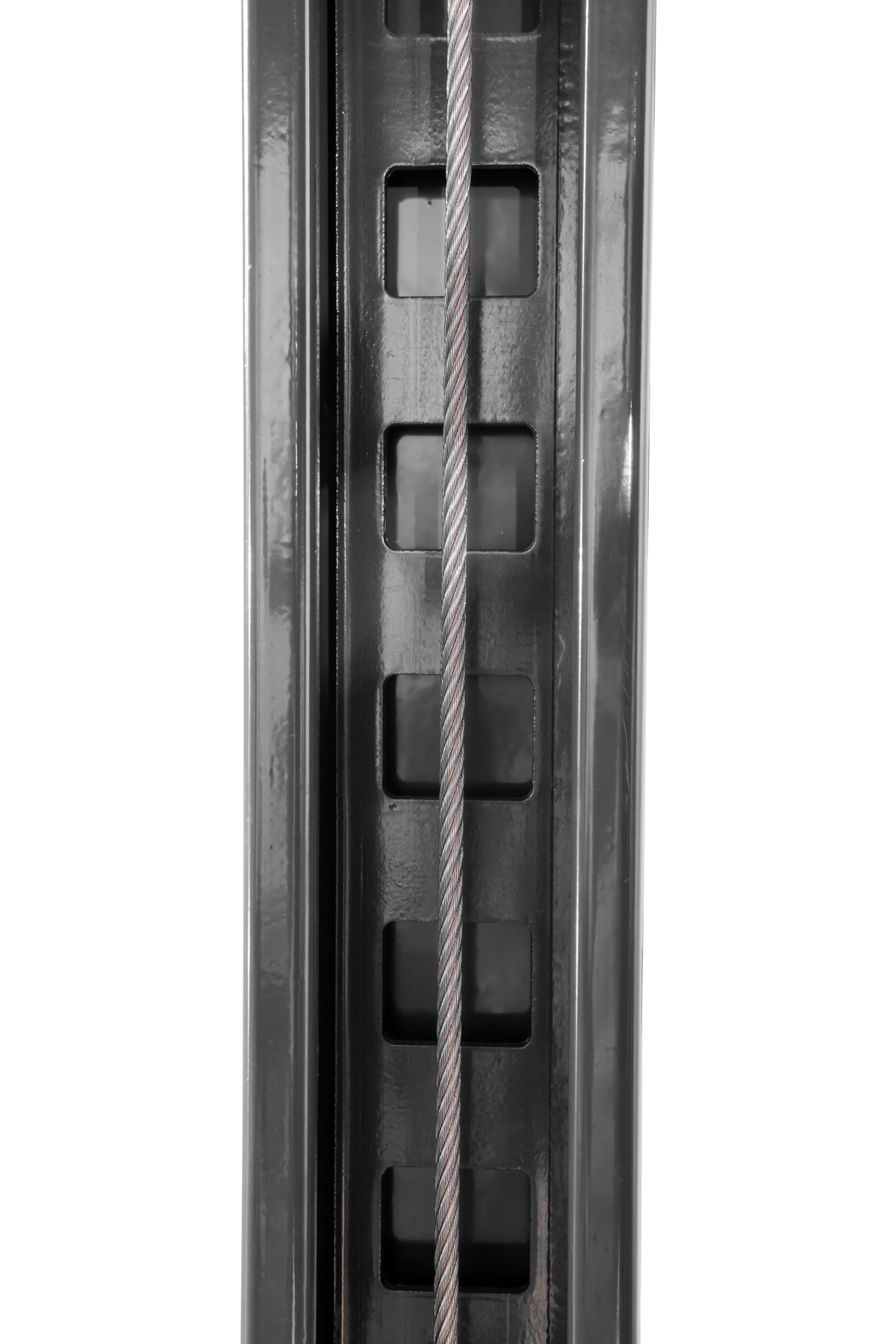

    • Multi-position safety locks in each column
    • Adjustable lock ladders

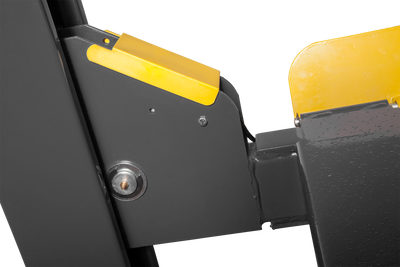

    • Push-button pneumatic safety release
    • Independent backup slack-cable safety latches
    • Customizable power unit location
    • Removable approach ramps for additional drive-under clearance
    • Longer approach ramps for low-ground clearance vehicles available
    • Optional drive-thru ramps available
    • Optional drip trays available
    • Optional solid deck available to increase storage capacity
    • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
    • ETL Approved
  • Specs



    • Lifting Capacity* 9,000 lbs. (4,082 kg)
    • *Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
    • *Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
    • A - Min. Runway Height: 4.5" (114 mm)
    • B - Max. Rise: 82" (2,083 mm)
    • C - Max. Lifting Height: 86.5" (2,197 mm)
    • Time to Full Rise: 50 seconds
    • D - Overall Width: 110.25" (2,800 mm)
    • E - Outside Length: 198" (5,029 mm)
    • F - Overall Length: 224" (5,690 mm)
    • G - Height of Columns:100" (2,540 mm)
    • H - Width Between Columns: 100.25" (2,546 mm)
    • I - Drive-Thru Clearance: 86.5" (2,197 mm)
    • J - Runway Width: 19" (483 mm)
    • K - Length of Runways: 188" (4,775 mm)
    • L - Width Between Runways: 37.5" (953 mm) or 44.375" (1,127 mm)
    • M - Runway Centerline: 56.5" (1,435 mm) or 63.375" (1,610 mm)
    • N - Outside Edge of Runways: 75.5" (1,918 mm) or 82.375" (2,092 mm)
    • Rated Capacity: 135" (3,429 mm)
    • 75% Capacity: 115" (2,921 mm)
    • 50% Capacity: 95" (2,413 mm)
    • 25% Capacity: 80" (2,032 mm)
    • Locking Positions: 15
    • Lock Spacing: Every 4" / 102 mm
    • Motor: 220 VAC / 60 Hz. 1Ph.
    • Noise: 45 dB
    • Weight: 1,798-lbs. (815.6 kg)
    • Dimensions: 192'' x 21'' x 34'' (4,877 mm x 533 mm x 864 mm)

FAQ & Support

Free Shipping in the 48 contiguous states to Commercial addresses that do not require a lift gate or fork lift. If you live in a residential area, select the residential shipping option which includes lift gate service.

Concrete Slab Requirements

User Manual

HD-9XW Specs

BendPak Warranty

Balance Safety Guide




ETA Information:
