Shipping
Regular price $5,070.00
/

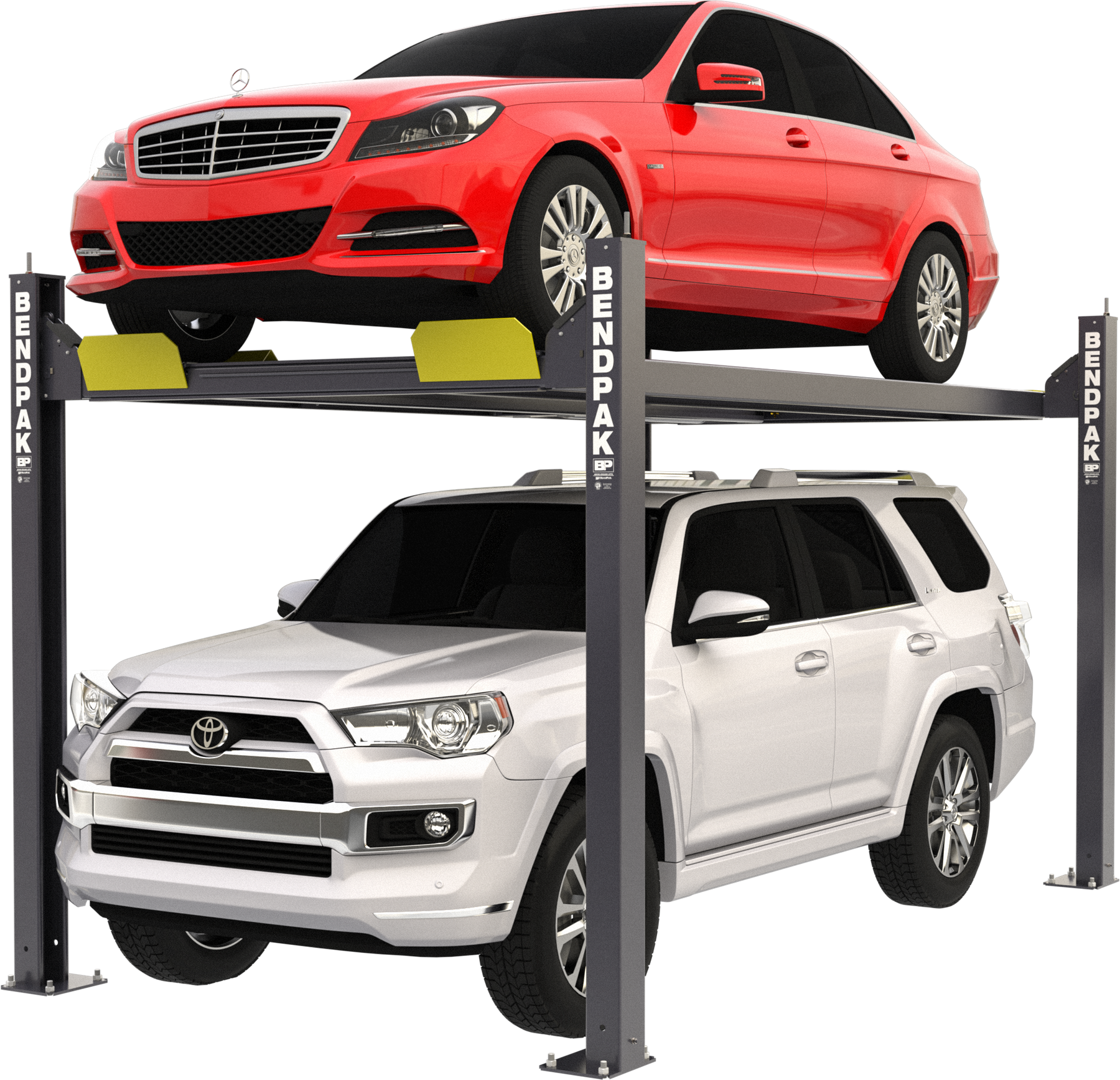

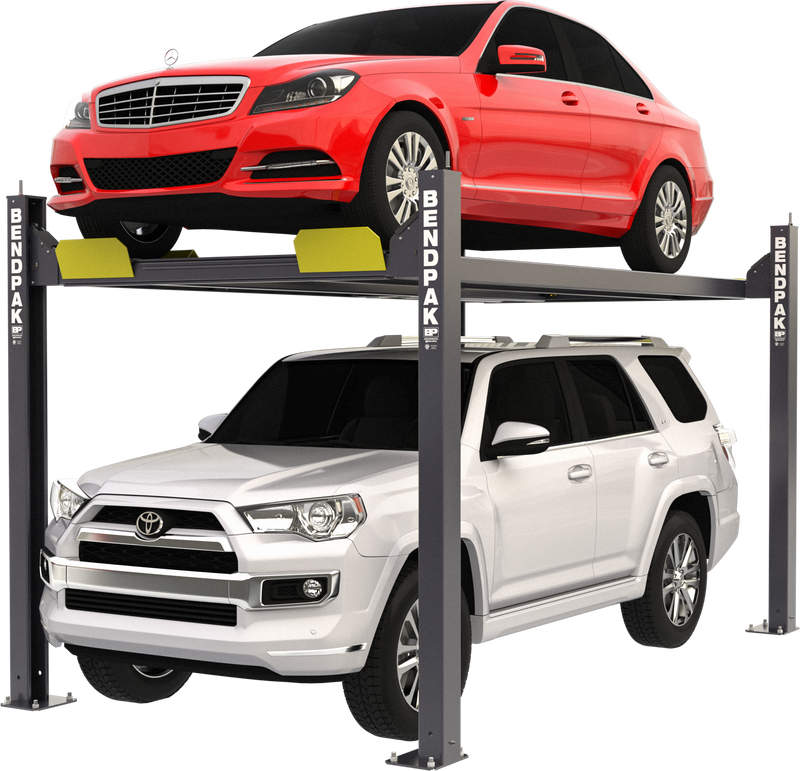

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they're available. The HD-7P is great for those looking to add some extra car storage in their garage. With a 4 post you don't need to worry about concrete depth thanks to its 10"x12" base plates and available caster kit to make it movable. It also has a low deck runway of 4.5" and long approach ramps to help you not scrape the crap out of your lowered car when putting it on the lift.

Features & Specifications

  • Features
    • 7,000-lb. maximum lifting capacity
    • High lift with short runways

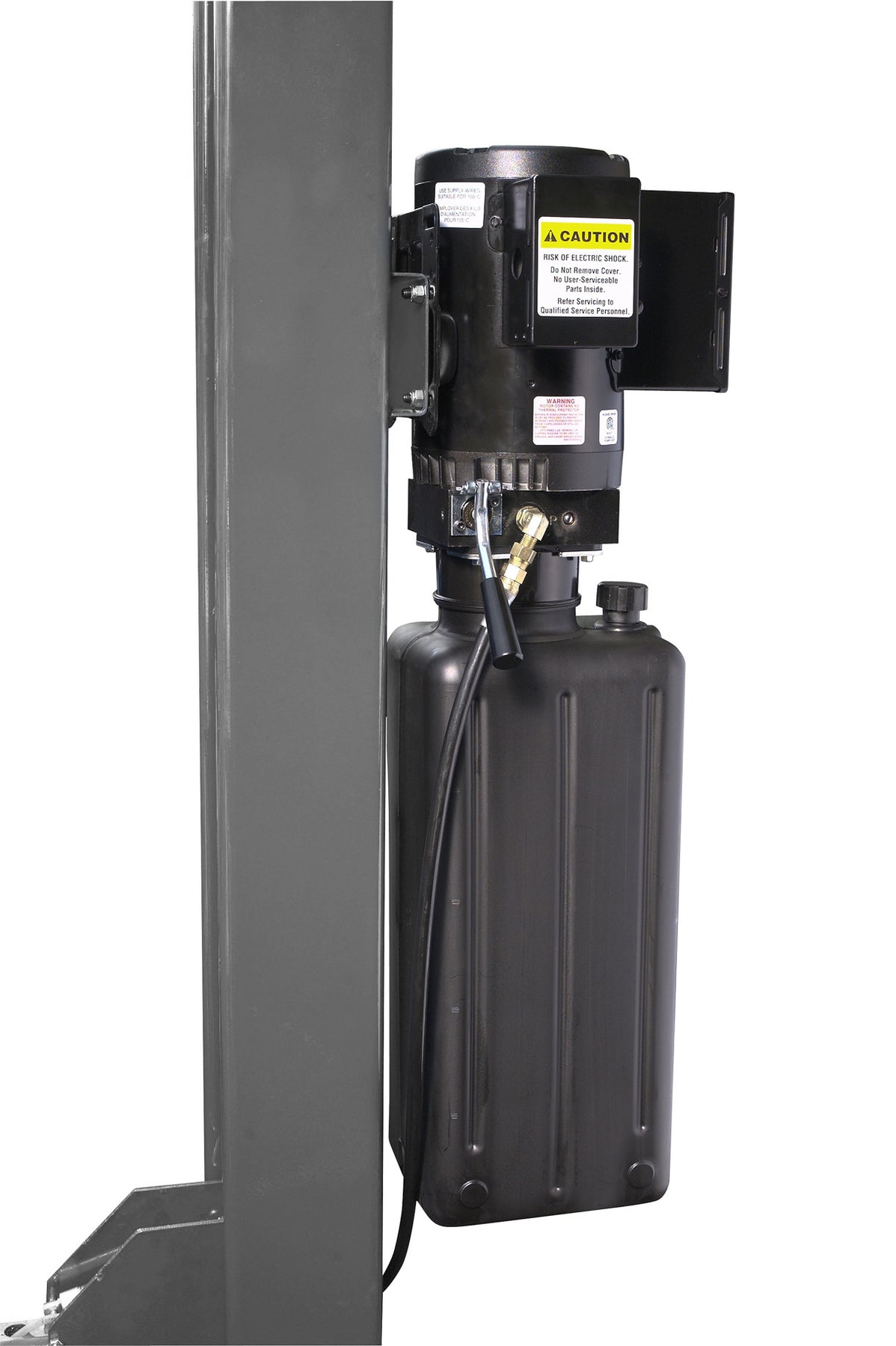

    • Electric / hydraulic power system

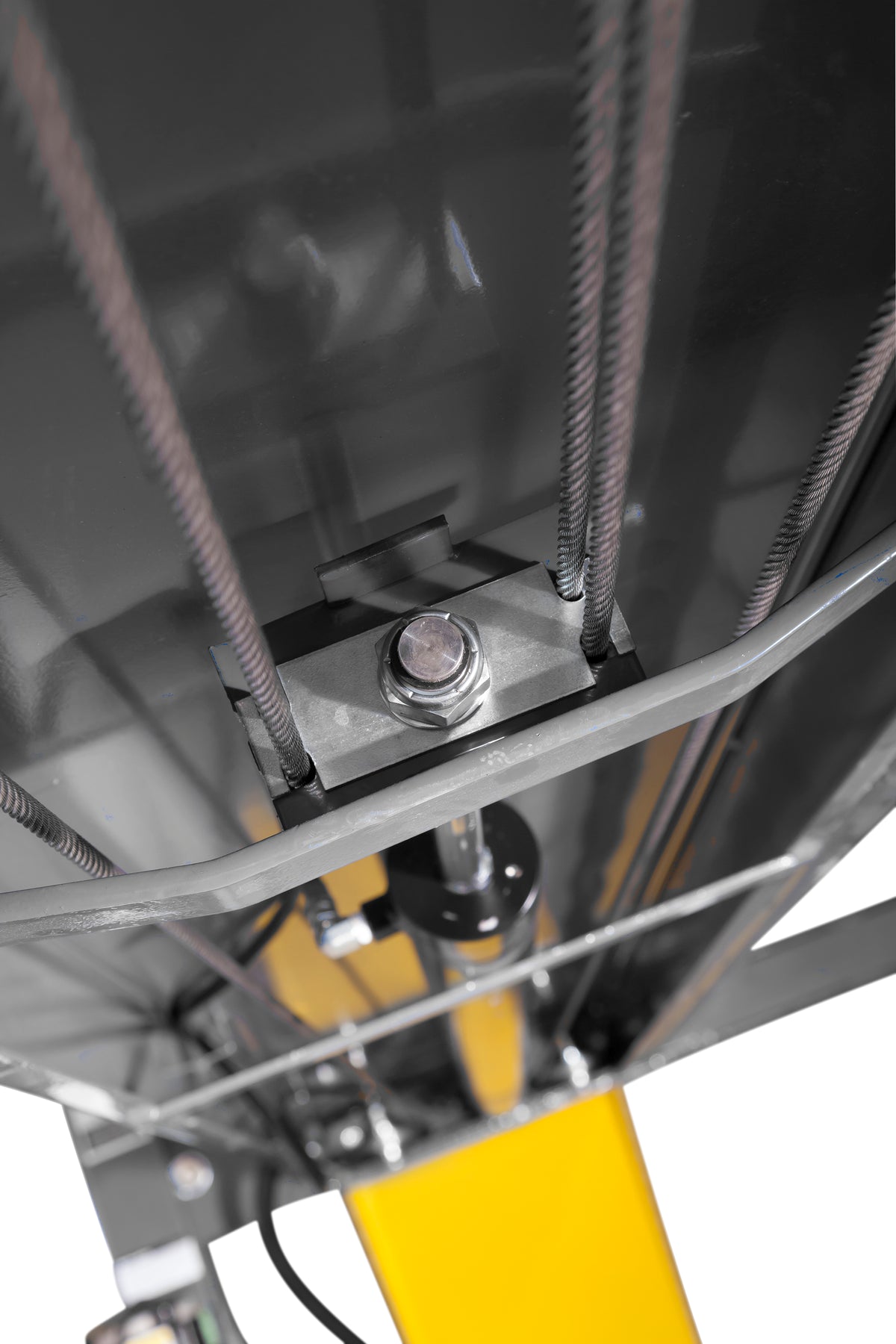

    • Single hydraulic cylinder mounted underneath runway
    • Internal anti-sway slider blocks in each column
    • Oversized self-lubricating cable rollers
    • High-speed lifting

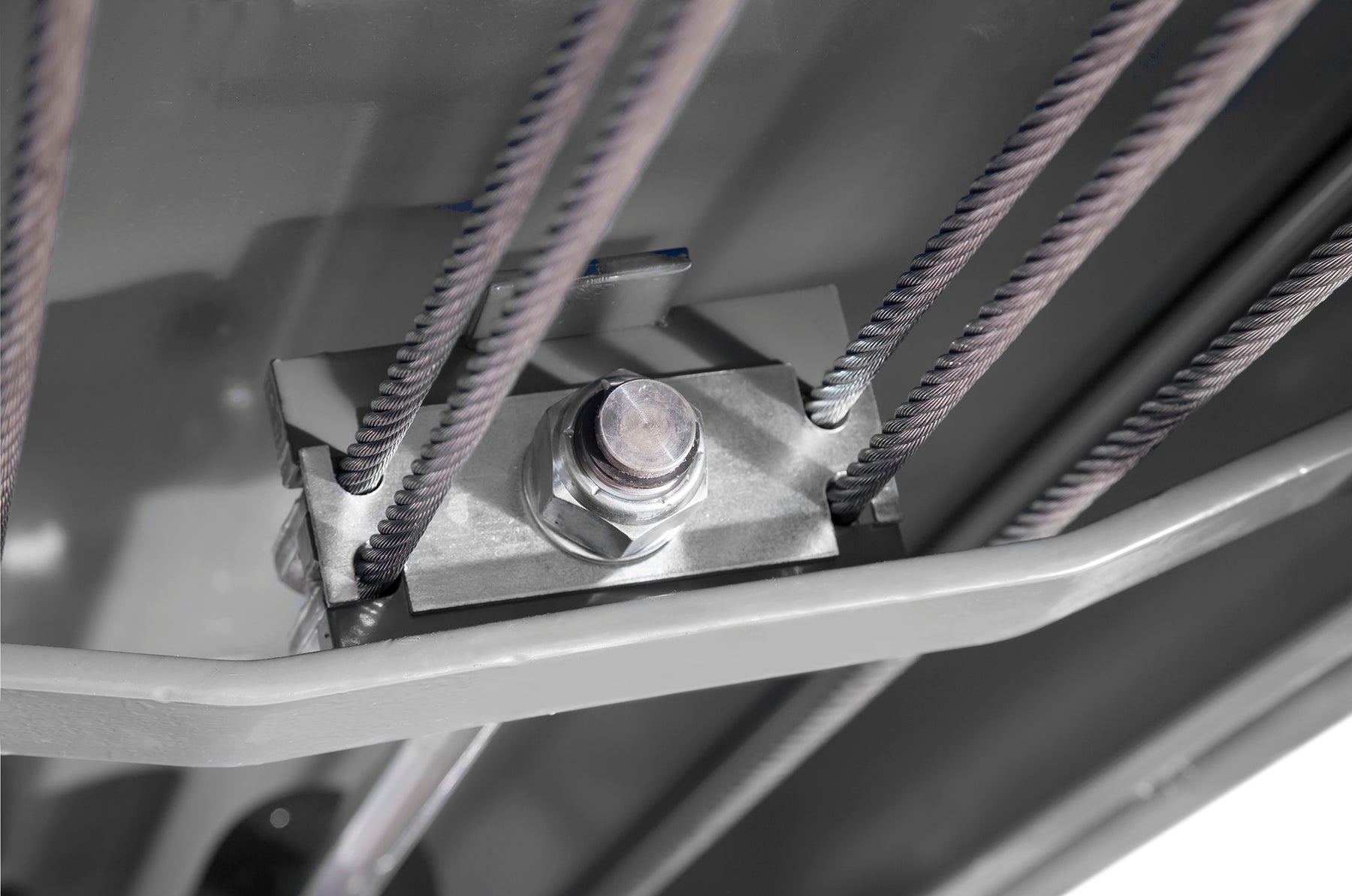

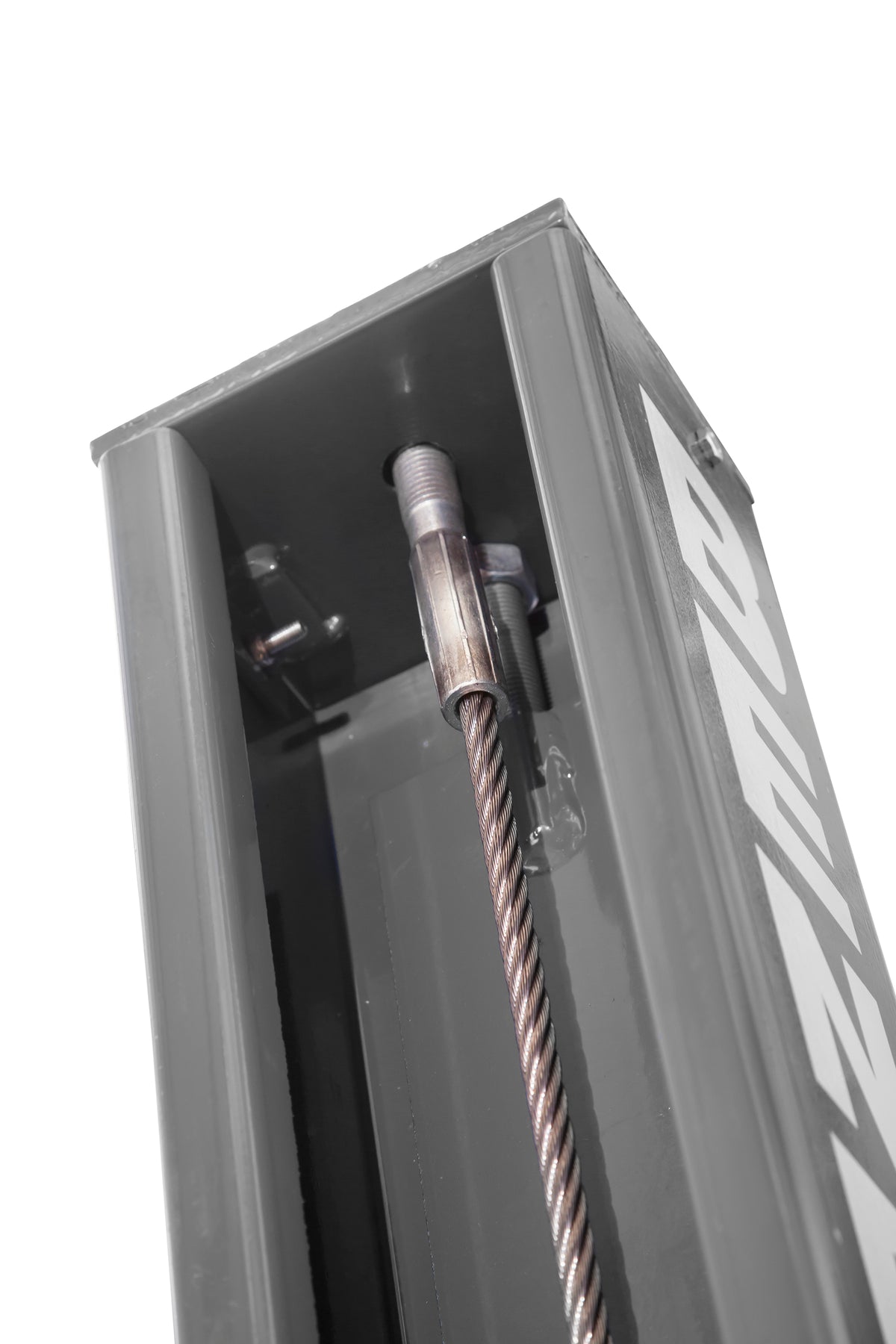

    • Features heavy-duty 3/8" aircraft cable
    • Rugged 1.25" roller axles

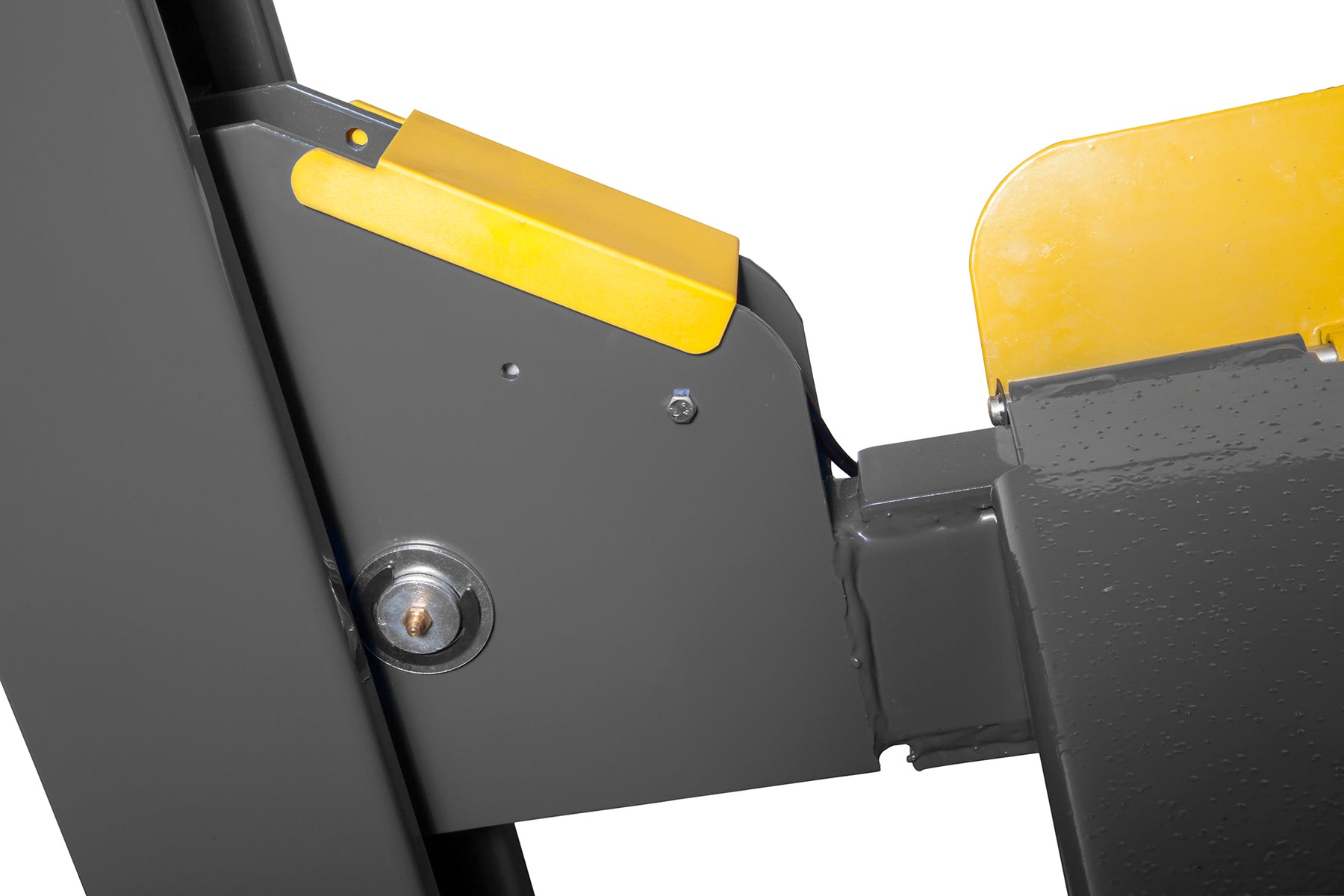

    • Multi-position safety locks in each column
    • Adjustable lock ladders
    • Push-button pneumatic safety release
    • Optional 4,500-lb. capacity rolling jack available (Model RJ-45)
  • Specs



    • Lifting Capacity* 7,000 lbs. (3,175 kg)
    • *Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
    • Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
    • A - Min. Runway Height: 4.5" (114 mm)
    • B - Max. Rise: 82" (2,083 mm)
    • C - Max. Lifting Height: 86.5" (2,197 mm)
    • Time to Full Rise: 35
    • D - Overall Width: 100.25" (2,546 mm)
    • E - Outside Length: 174" (4,420 mm)
    • F - Overall Length: 200" (5,080 mm)
    • G - Height of Columns: 100" (2,540 mm)
    • H - Width Between Columns: 90.25" (2,292 mm)
    • I - Drive-Thru Clearance: 76.5" (1,943 mm)
    • J - Runway Width: 19" (483 mm)
    • K - Length of Runways: 164" (4,166 mm)
    • L - Width Between Runways: 37.5" (953 mm)
    • M - Runway Centerline: 56.5" (1,435 mm)
    • N - Outside Edge of Runways: 75.5" (1,918 mm)
    • Rated Capacity: 115" (2,921 mm)
    • 75% Capacity: 100" (2,540 mm)
    • 50% Capacity: 85" (2,159 mm)
    • 25% Capacity: 70" (1,778 mm)
    • Locking Positions: 15
    • Lock Spacing: Every 4" / 102 mm
    • Motor: 220 VAC / 60 Hz. 1Ph.
    • Noise: 45 db
    • Shipping Weight: 1,803-lbs. (817.8 kg)
    • Shipping Dimensions: 168'' x 22'' x 35'' (4,267 mm x 559 mm x 889 mm)

FAQ & Support

Free Shipping in the 48 contiguous states to Commercial addresses that do not require a lift gate or fork lift. If you live in a residential area, select the residential shipping option which includes lift gate service.

Concrete Slab Requirements

User Manual

HD-7P Specs

BendPak Warranty

Balance Safety Guide



1 Awesome Lift

This item is dropshipped from BendPak in California. Shipping will be calculated at checkout for most addresses. If you cannot get a shipping quote, please reach out to support for a quote.


ETA Information:
