Shipping
Regular price $5,125.00
/

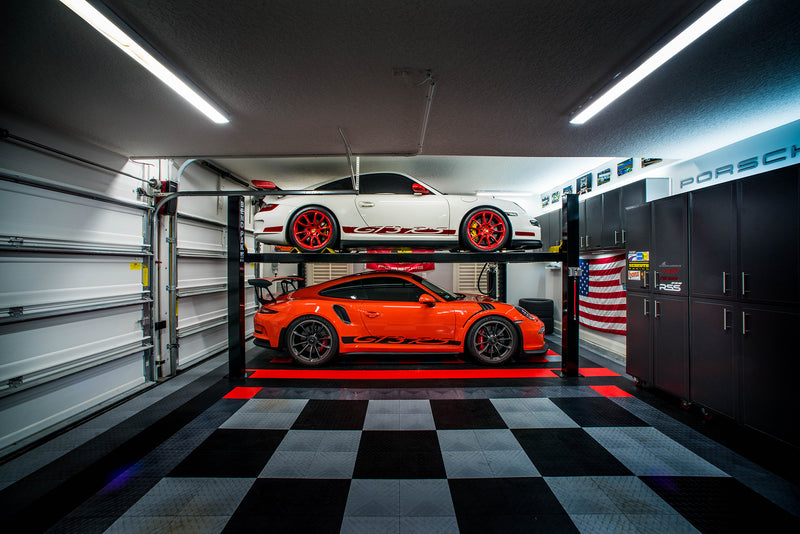

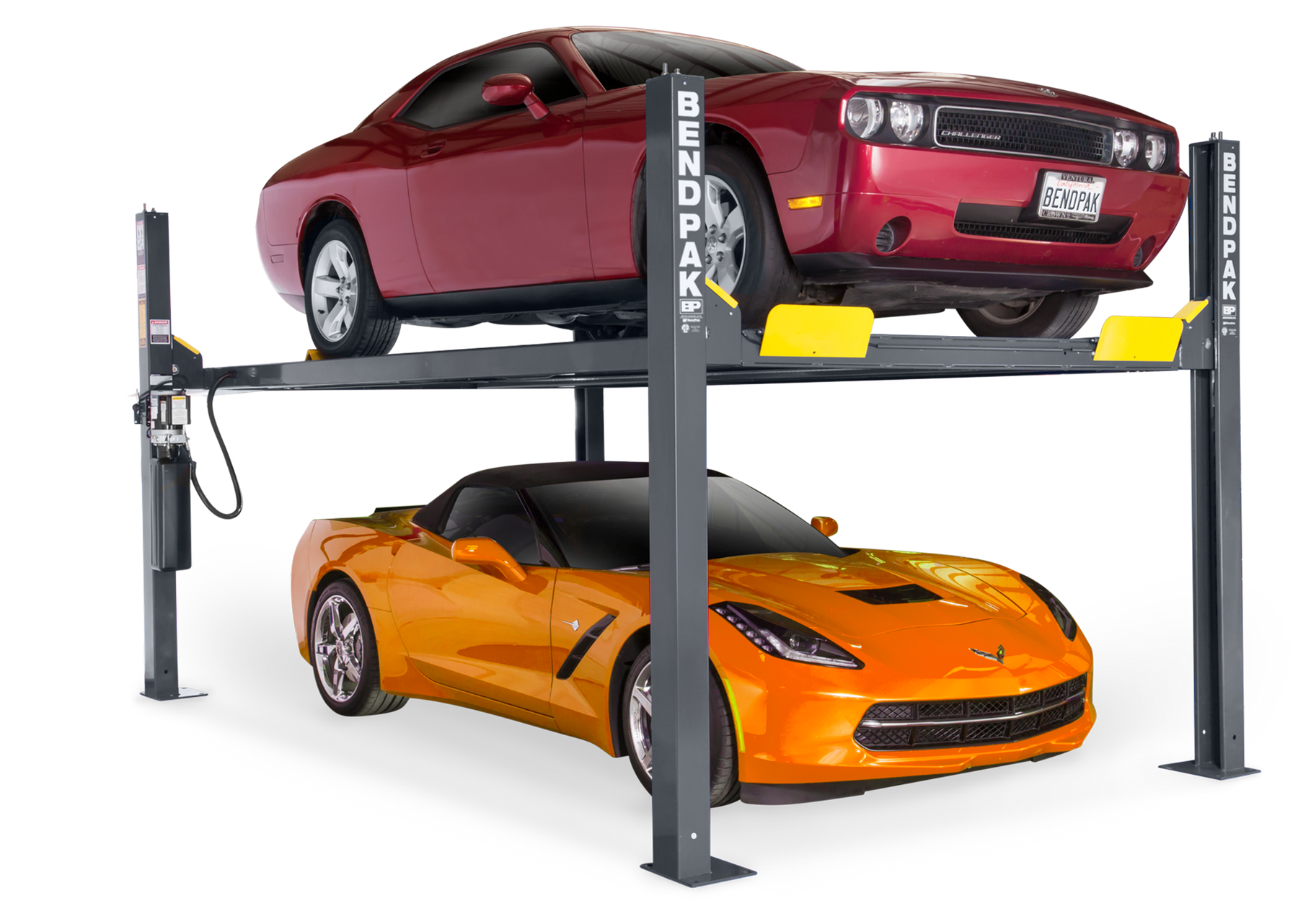

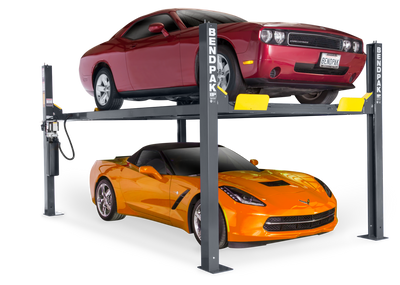

The guys at OG and BendPak have been bugging me about getting an affordable lift offering in the store, and now they're available. The HD-9 is great for those looking to add some extra car storage in their garage. With a 4 post you don't need to worry about concrete depth thanks to its 10"x12" base plates and available caster kit to make it movable. This supports more weight than the HD-7 but features the same low deck runways so you can easily get your lowered car on the lift.

Features & Specifications

  • Features
    • 9,000-lb. maximum lifting capacity
    • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
    • Freestanding design

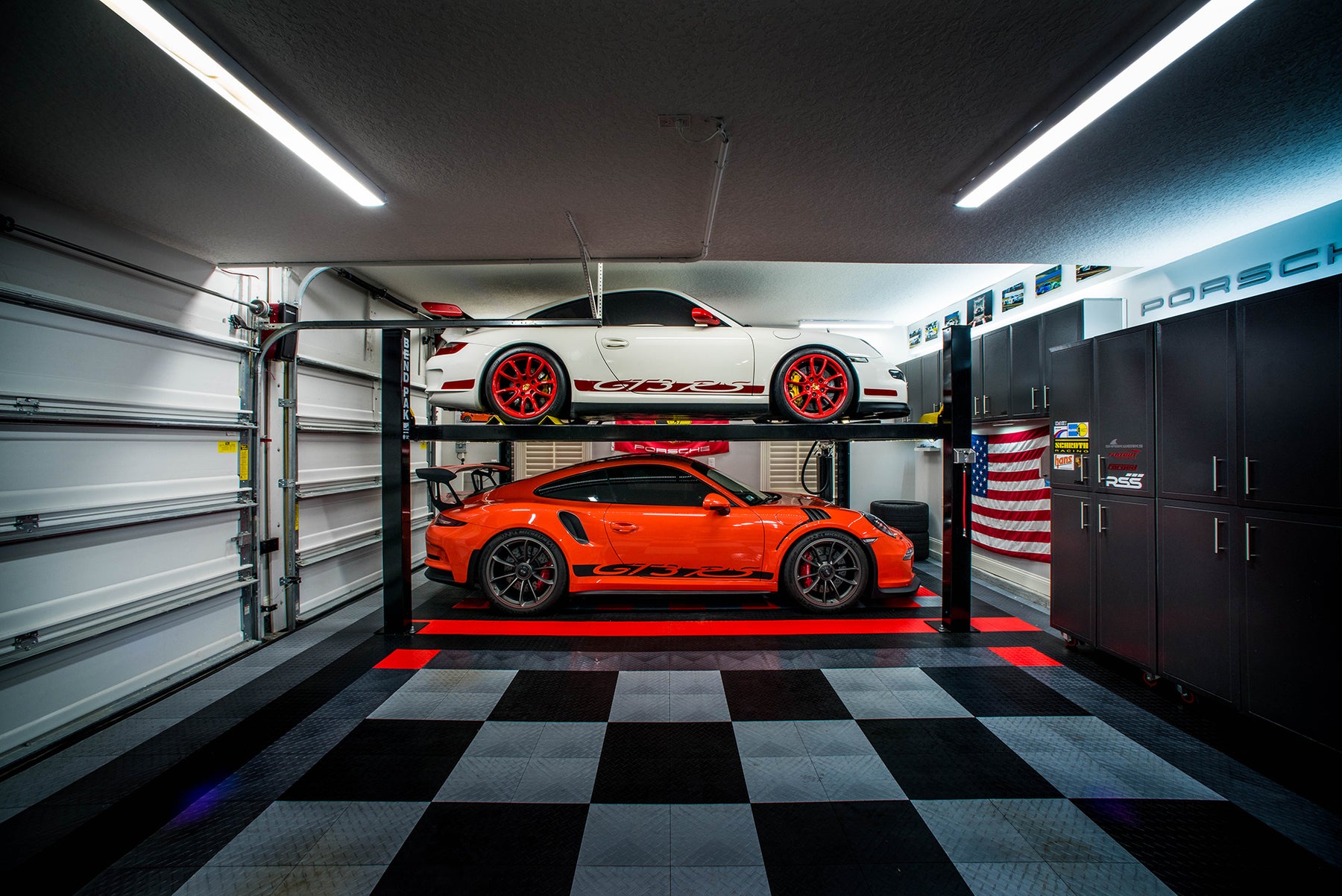

    • Perfect for parking, storage and service
    • Runways accommodate narrow and standard vehicles
    • Runways include rail-kit for optional accessories
    • Electric / hydraulic power system

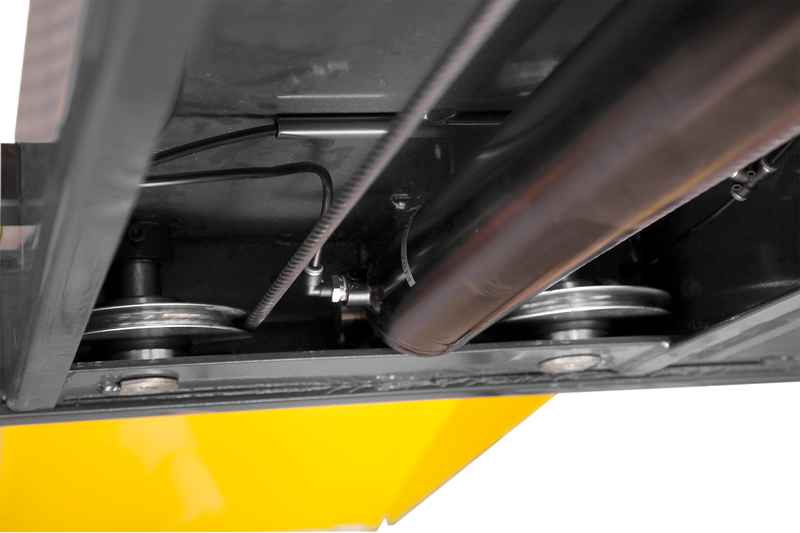

    • Single hydraulic cylinder mounted underneath runway

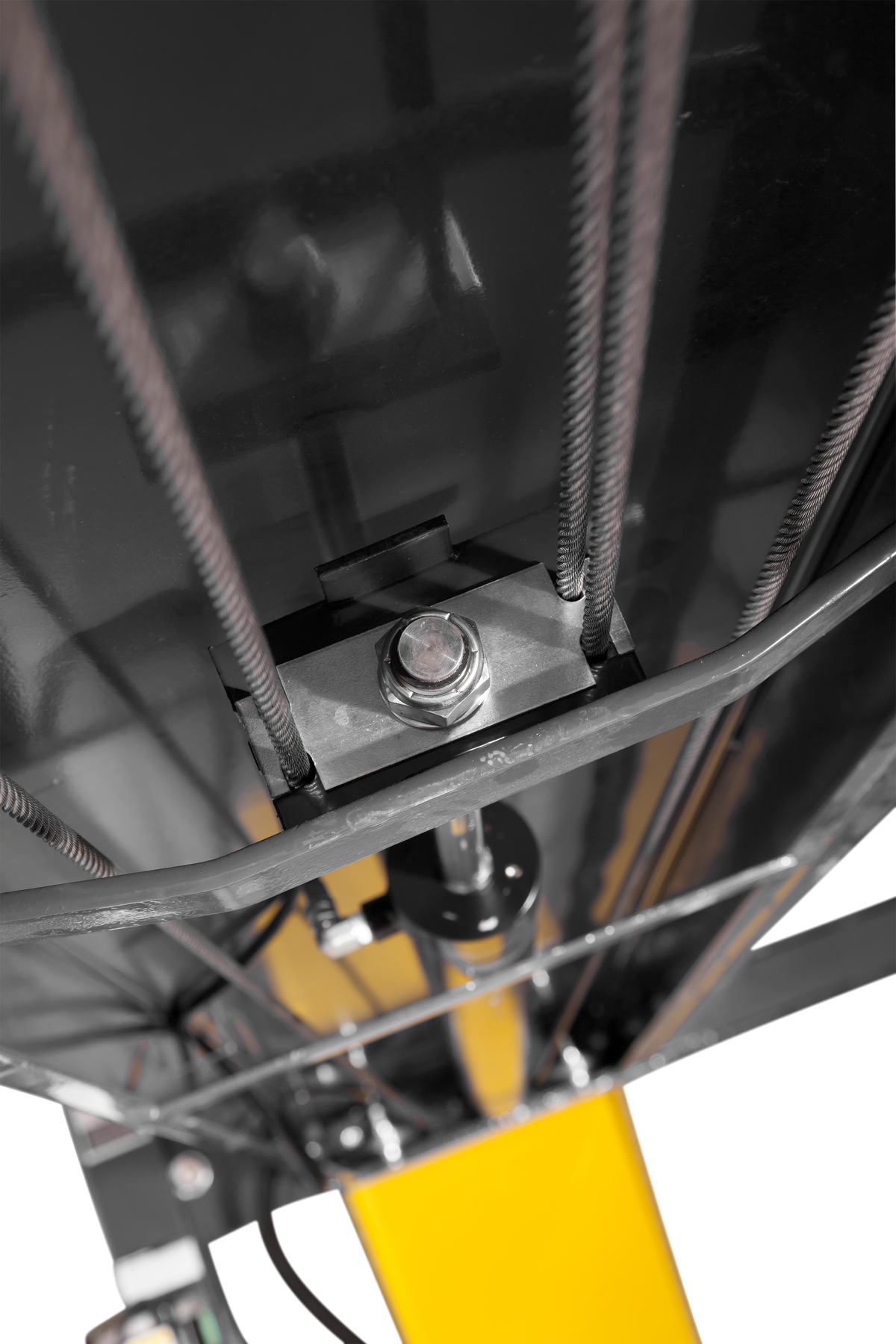

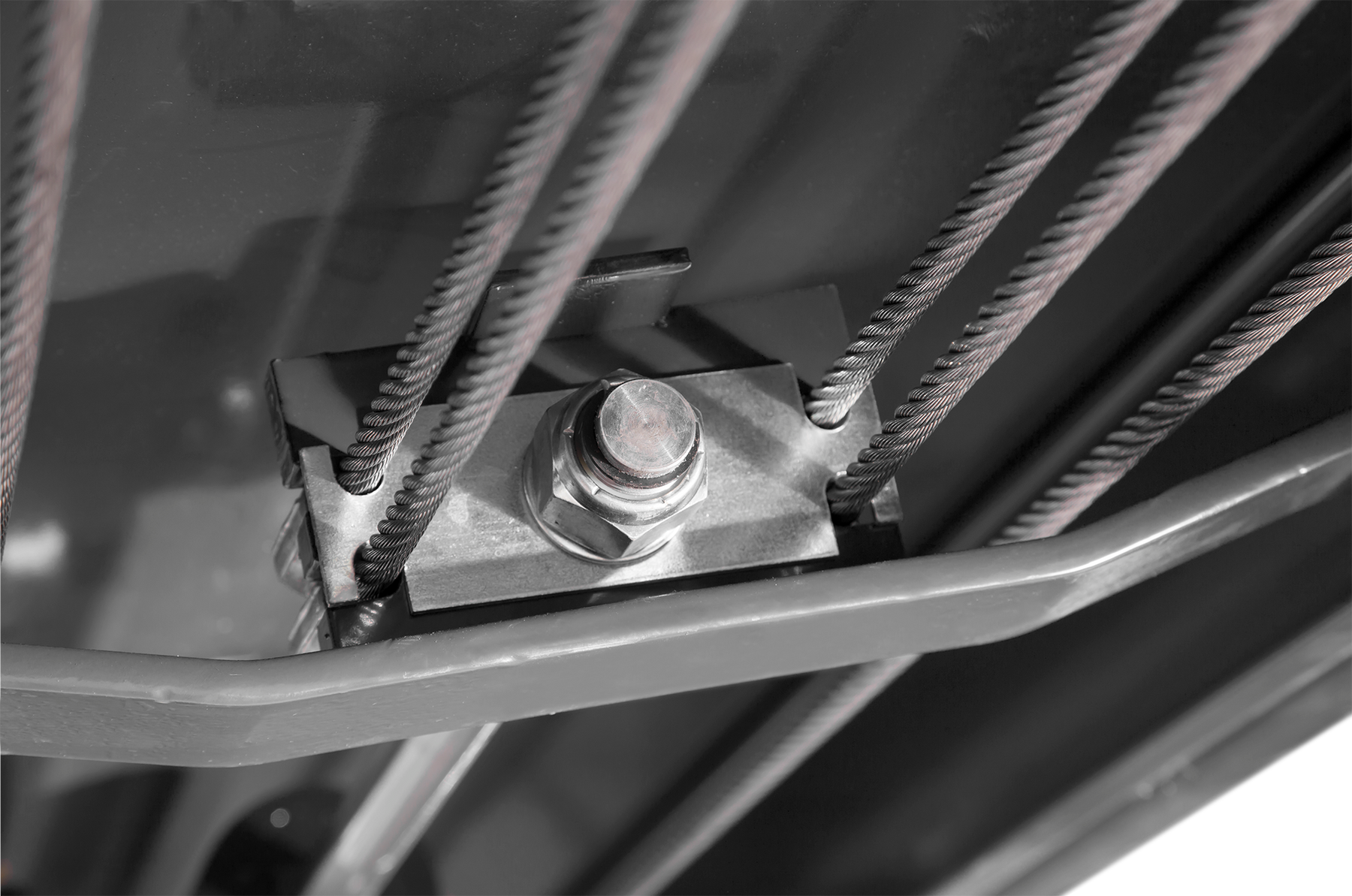

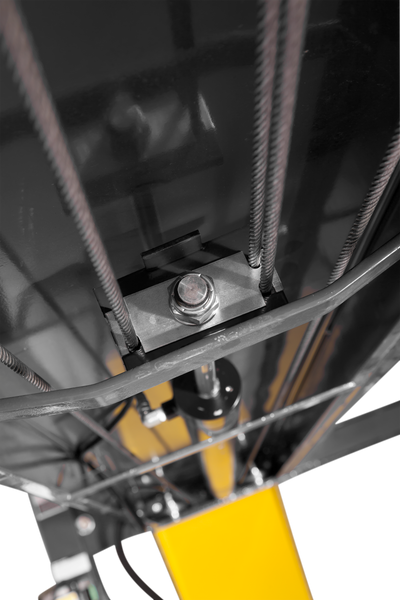

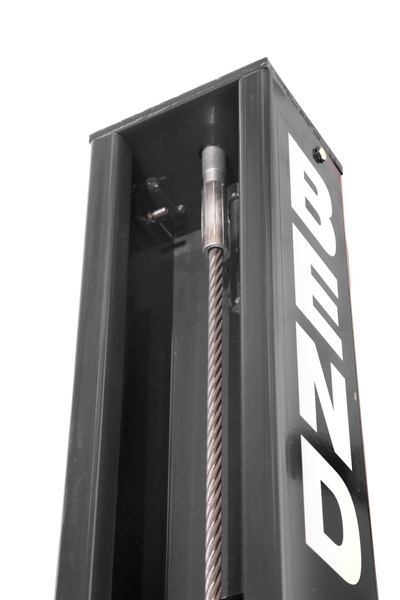

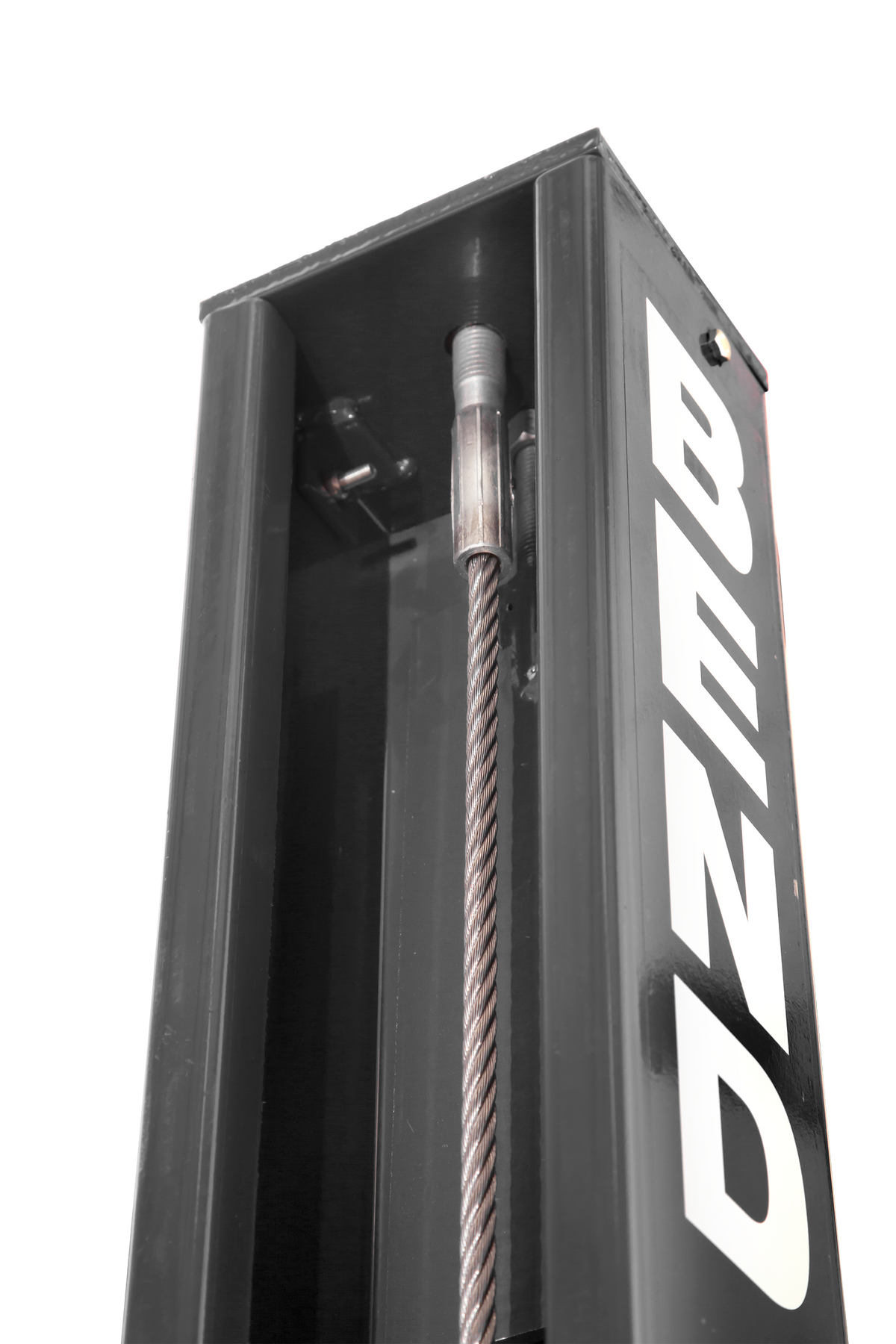

    • Fully enclosed lifting cables, safety locks and sheaves
    • Internal anti-sway slider blocks in each column

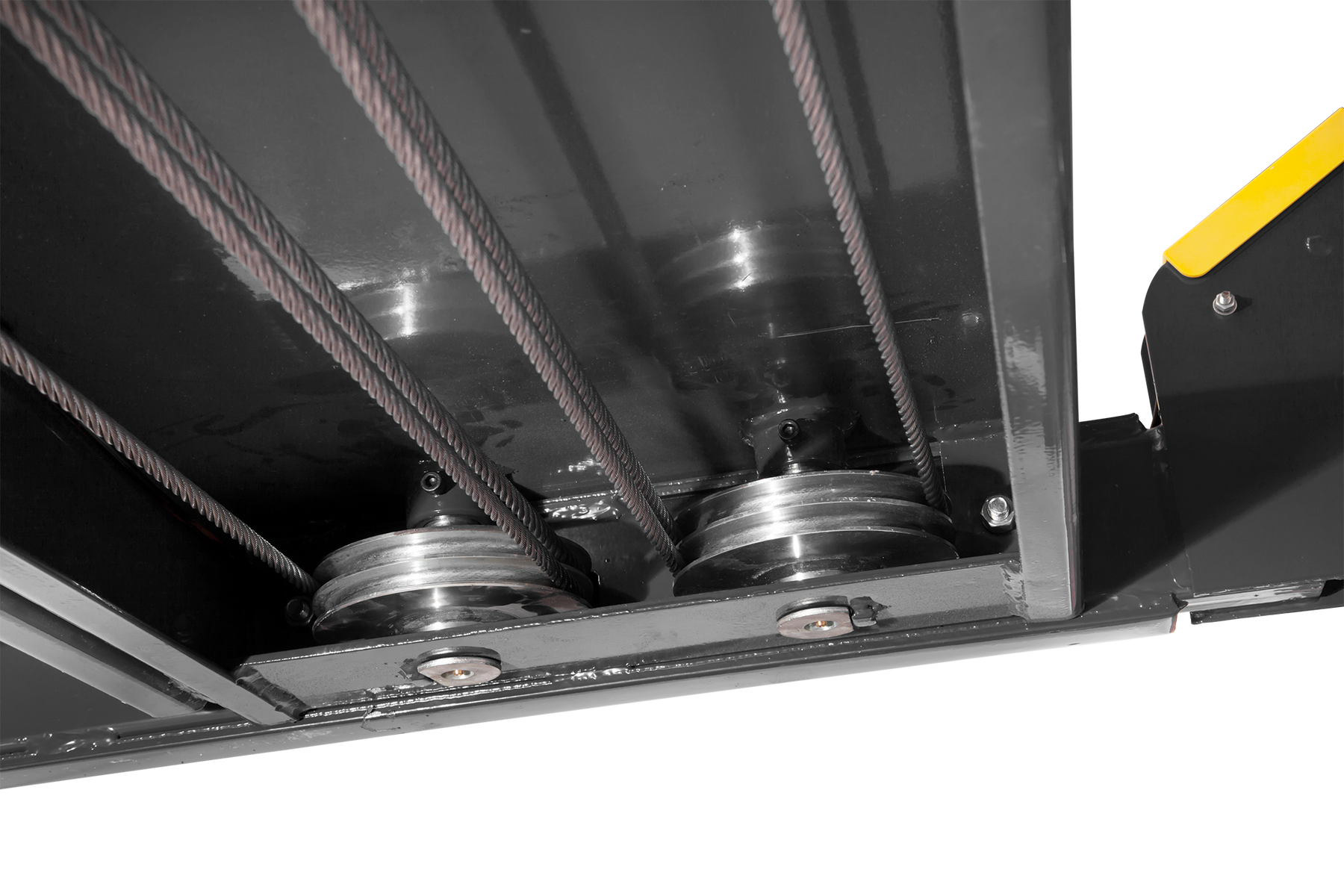

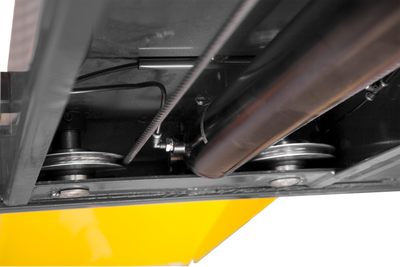

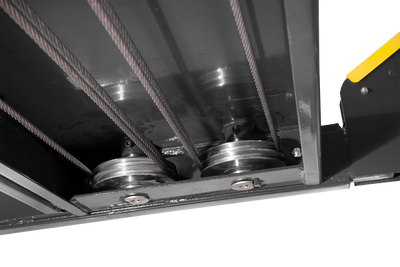

    • Oversized self-lubricating cable rollers
    • Features heavy-duty 3/8" aircraft cable
    • Rugged 1.25" roller axles

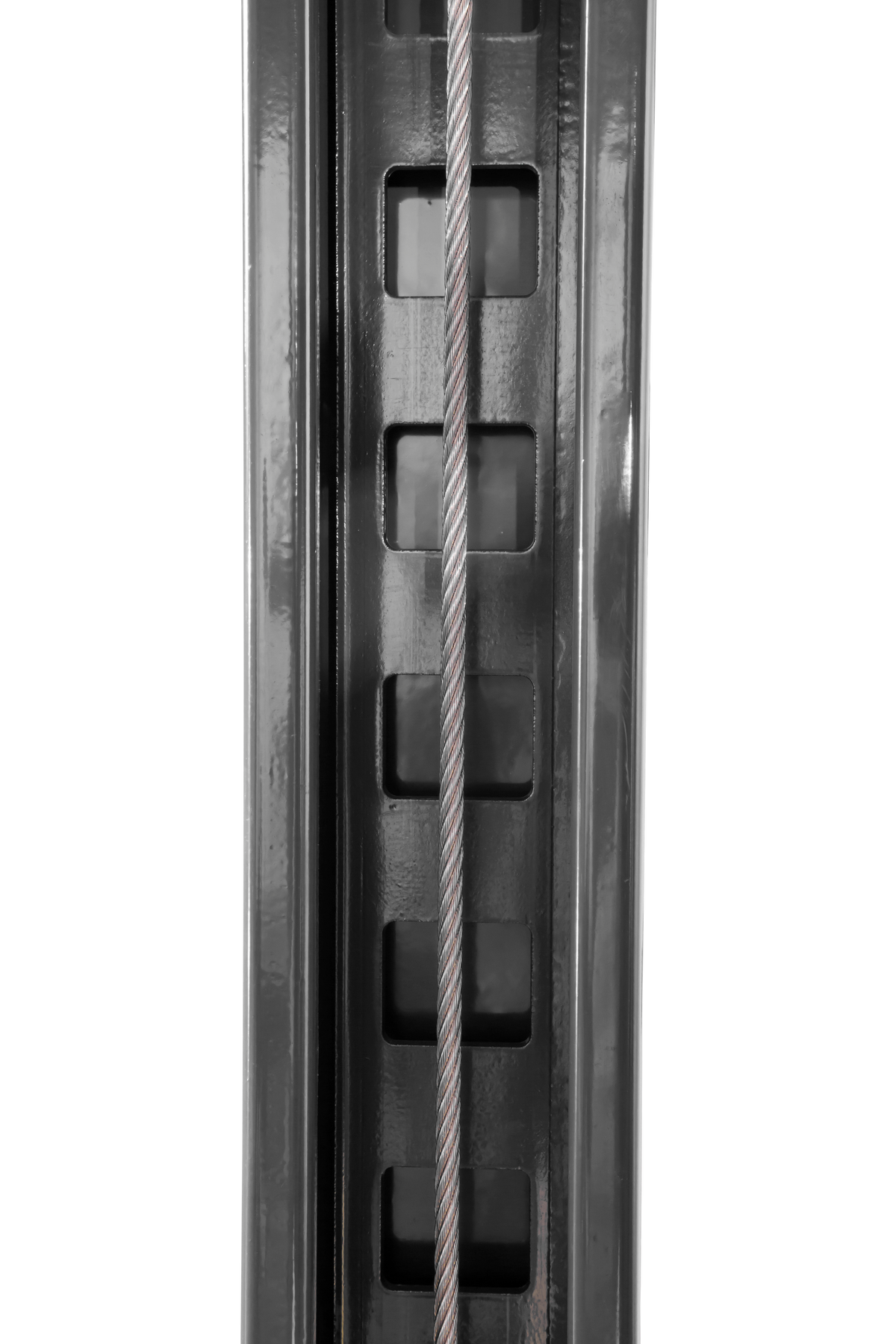

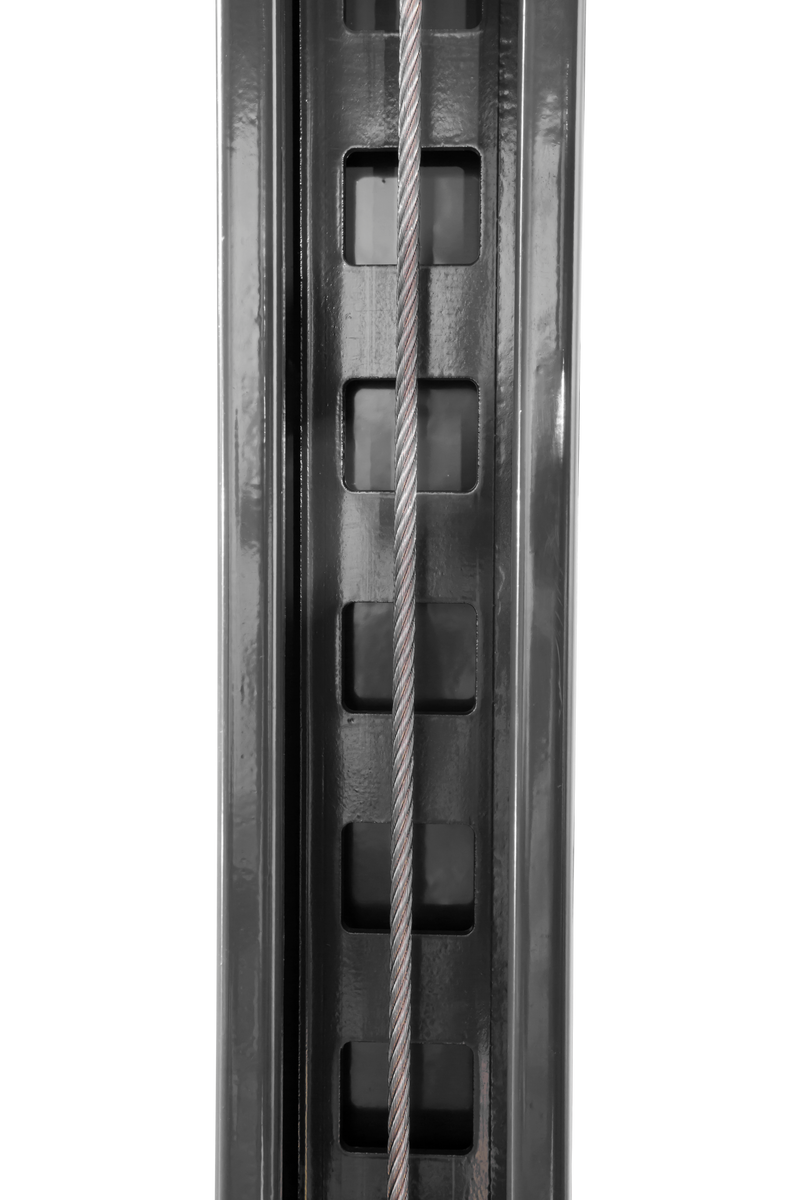

    • Multi-position safety locks in each column
    • Adjustable lock ladders
    • Push-button pneumatic safety release

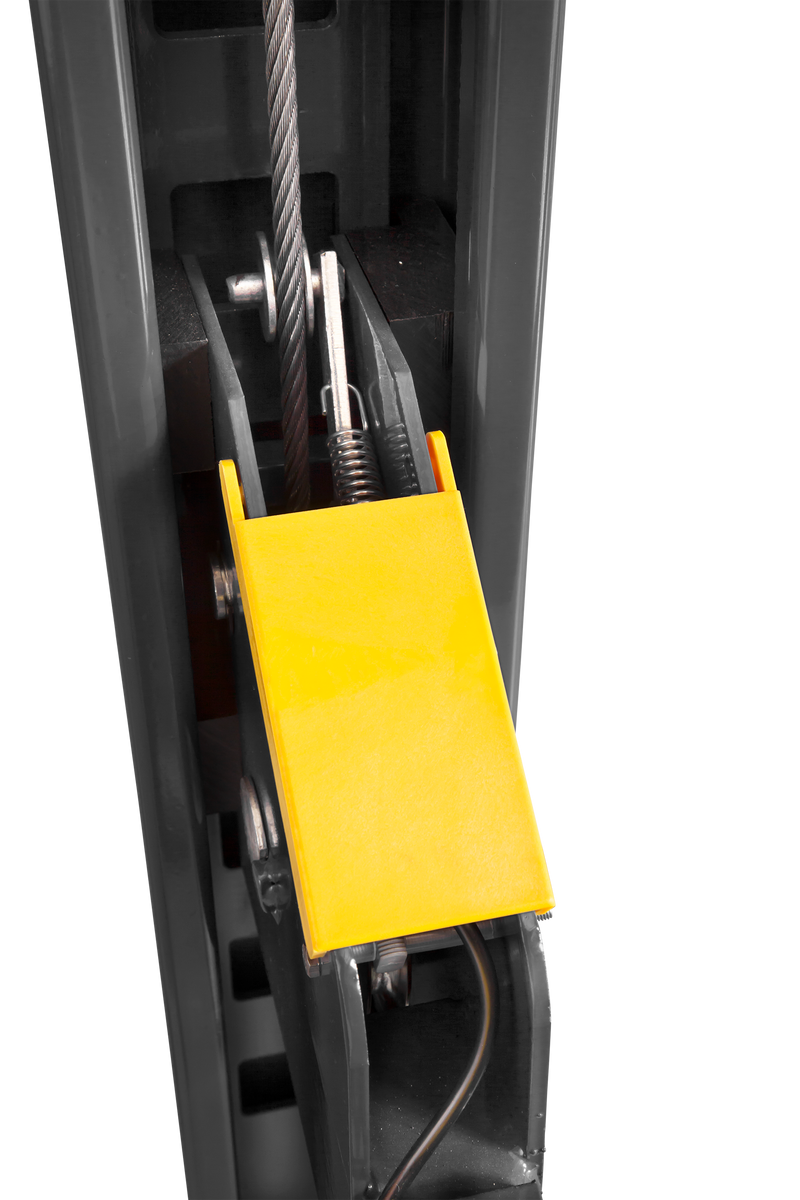

    • Independent backup slack-cable safety latches
    • Customizable power unit location
    • Removable approach ramps for additional drive-under clearance
    • Longer approach ramps for low-ground clearance vehicles
    • Optional drive-thru ramps available
    • Optional drip trays available
    • Optional solid deck available to increase storage capacity
    • Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
    • ETL Approved

  • Specs



    • Lifting Capacity*9,000 lbs. (4,082 kg)
    • *Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
    • *Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
    • A - Min. Runway Height: 4.5" (114 mm)
    • Max. Rise: 70" (1,778 mm)
    • C - Max. Lifting Height: 74.5" (1,892 mm)
    • Time to Full Rise: 45 seconds
    • D - Overall Width: 110.25" (2,800 mm)
    • E - Outside Length: 174" (4,420 mm)
    • F - Overall Length: 200" (5,080 mm)
    • G - Height of Columns: 88" (2,235 mm)
    • H - Width Between Columns: 100.25" (2,546 mm)
    • I - Drive-Thru Clearance: 86.5" (2,197 mm)
    • J - Runway Width: 19" (483 mm)
    • K - Length of Runways: 164" (4,166 mm)
    • L - Width Between Runways: 37.5" (953 mm) or 44.375" (1,127 mm)
    • M - Runway Centerline: 56.5" (1,435 mm) or 63.375" (1,610 mm)
    • N - Outside Edge of Runways: 75.5" (1,918 mm) or 82.375" (2,092 mm)
    • Rated Capacity: 115" (2,921 mm)
    • 75% Capacity: 100" (2,540 mm)
    • 50% Capacity: 85" (2,159 mm)
    • 25% Capacity: 70" (1,778 mm)
    • Locking Positions: 12
    • Lock Spacing: Every 4" (102 mm)
    • Motor: 220 VAC / 60 Hz / 1 Ph
    • Noise: 45 dB
    • Shipping Weight: 1,746-lbs. (792 kg)
    • Dimensions: 165'' x 22'' x 34'' (4,191 mm x 559 mm x 864 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.


FAQ & Support

Free Shipping in the 48 contiguous states to Commercial addresses that do not require a lift gate or fork lift. If you live in a residential area, select the residential shipping option which includes lift gate service.

Concrete Slab Requirements

User Manual

HD-9 Specs

BendPak Warranty

Balance Safety Guide



1 Awesome Lift

This item is dropshipped from BendPak in California. Shipping will be calculated at checkout for most addresses. If you cannot get a shipping quote, please reach out to support for a quote.


ETA Information:
