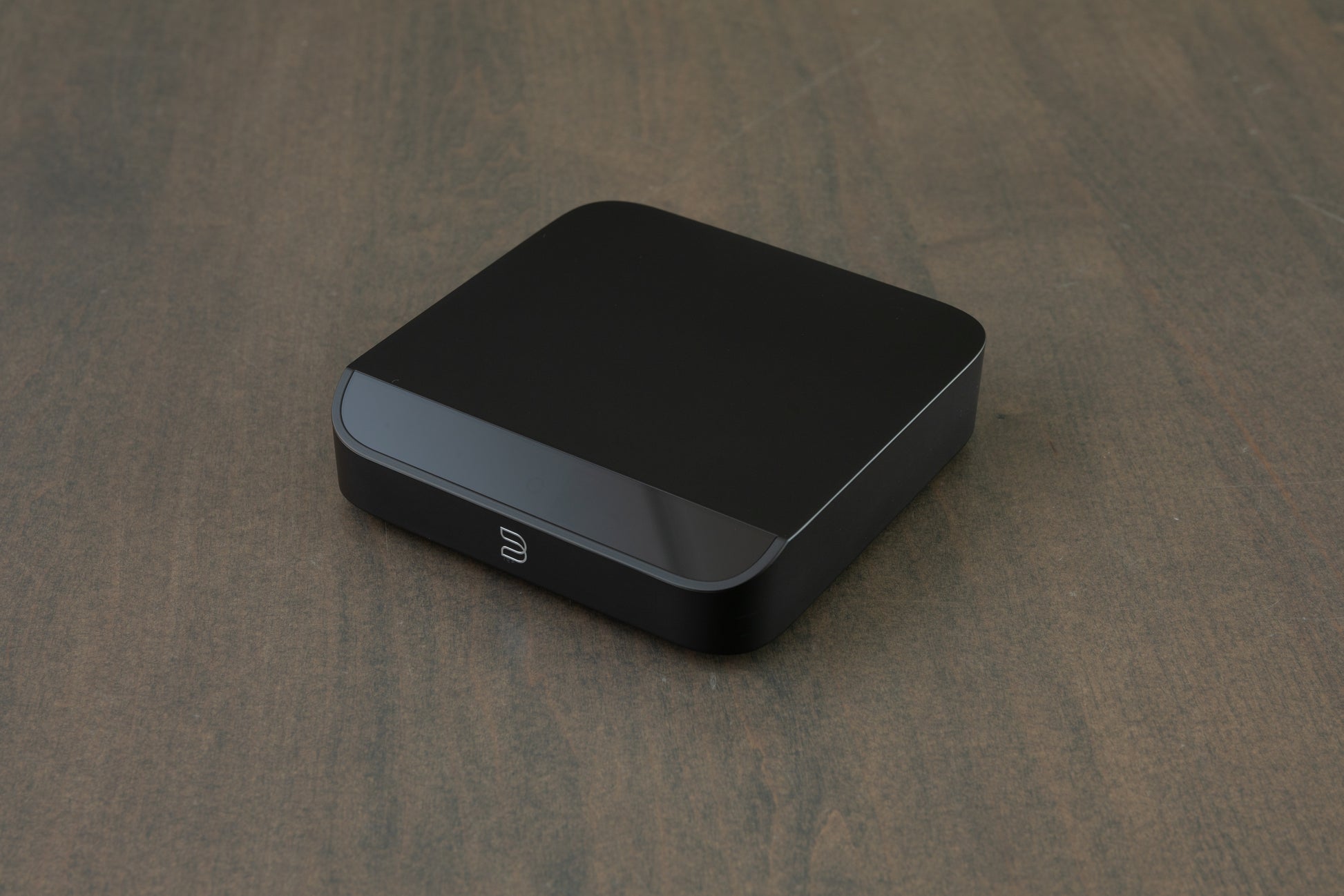

Bluesound NODE NANO

AUDIO

Supported Audio File Formats: - MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported High-Quality Audio File Formats: - FLAC, MQA, WAV, AIFF, MPEG-4 SLS

DSD Support: - DSD256, available via future BluOS update

Native Sampling Rates: - up to 192 kHz

Bit Depth: - 16-24 - Audio Controls & EQ:

BluOS Controller App

DAC: - ESS ES9039Q2M

Signal-to-Noise Ratio: - -118 dB

Distortion: - THD+N, 0.0007%

Software and Intergrations

Operating System: BluOS

App Controller Operating System: iOS, Android, Windows, macOS

Processor: ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Supported Network File Sharing: Server Message Block (SMB) up to 200,000 files

Album Art Supported: JPG, PNG

Music Services & Internet Radio: 23+ Music Services

3rd-Party Integrations: AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready

Control System Integrations: Crestron, Control4, RTI, ELAN, URC, Lutron

Voice Control Integrations: Amazon Alexa Skills

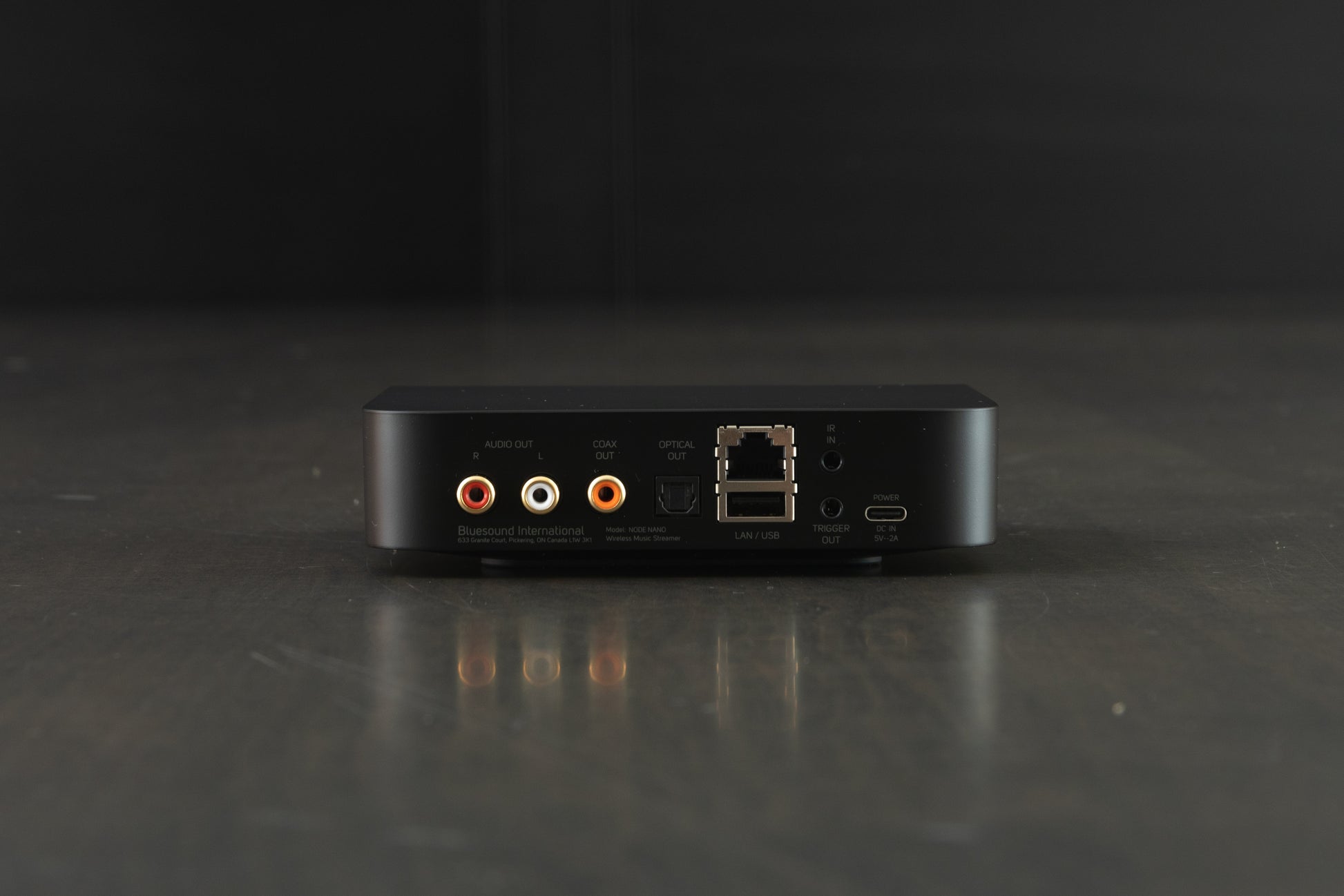

Connections

Power Supply: USB-C (5V-2A)

Ethernet/LAN: Ethernet RJ45, Gigabit 1000 Mbps

Wi-Fi Built-In: Wi-Fi 5 (802.11ac), dual-band

Bluetooth Quality: Bluetooth 5.2 aptX Adaptive

Bluetooth Connectivity: Two-Way (transmit & receive)

IR Optical Built In: IR Sensor Built In - front panel with IR Remote Learning

IR Input: 3.5mm Jack

USB IN: Type A (Fat32 Formatted) - External Storage only; Local Server Mode

Audio Output: Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A)

Coaxial Output: RCA

Optical Output: TOSLINK digital optical

Trigger Out: 12 Volt

Headphone Output: Bluetooth

Subwoofer Output: Wireless to PULSE SUB+

General

Product Dimensions:

143 x 36 x 143mm (W x H x D)

5.6 x 1.4 x 5.6 in (W x H x D)*
